Coordinated control of acceleration slip regulation and active front steering for in-wheel motor driven electric vehicle based on dynamic slip ratio constraint
Zhigang Zhou, Wei Shen, Fang Xu, Ruili Yang
TL;DR
This paper proposes a control strategy for electric vehicles with in-wheel motors to improve stability on icy or snowy roads by coordinating acceleration slip regulation and active front steering.
Contribution
A novel coordinated control strategy integrating acceleration slip regulation and active front steering under dynamic slip ratio constraints is proposed.
Findings
The proposed strategy effectively suppresses wheel spin and improves vehicle stability on icy and snowy surfaces.
Co-simulations show reduced lateral path tracking errors and enhanced longitudinal and lateral stability.
The method dynamically minimizes wheel slip ratio while maintaining driving stability through optimal torque distribution.
Abstract
In-wheel motor driven electric vehicles are prone to issues such as wheel spin, vehicle sideslip, fishtailing, and steering instability when traveling on compacted snow surfaces. While traditional optimal slip ratio tracking aims to maximize longitudinal force, it significantly compromises lateral force reserves. Moreover, most existing longitudinal-lateral coordination strategies fail to actively constrain the slip ratio, unable to prevent the deterioration of road adhesion conditions. To address these challenges, this study proposes a coordinated control strategy integrating acceleration slip regulation (ASR) and active front steering (AFS) under dynamic slip ratio constraints. To maximize the preservation of tire lateral force margin for enhanced anti-sideslip capability, a dynamic slip ratio constraint control method is proposed. With the objectives of dynamically minimizing wheel…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
Fig 10
Fig 11
Fig 12
Fig 13
Fig 14
Fig 15
Fig 16
Fig 17
Fig 18
Fig 19
Fig 20
Fig 21
Fig 22
Fig 23
Fig 24
Fig 25- —http://dx.doi.org/10.13039/501100017700Henan Provincial Science and Technology Research Project
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsVehicle Dynamics and Control Systems · Soil Mechanics and Vehicle Dynamics · Real-time simulation and control systems
1. Introduction
Affected by climate change, driving safety under extreme weather conditions has become increasingly prominent. Particularly in severe winter regions, roads are often covered with snow and ice, which form complex low-friction surfaces after compaction. These surfaces readily induce wheel spin, vehicle sideslip, fishtailing, and steering instability. This critical situation poses new challenges to vehicle ASR performance [1–3]. As a new generation of intelligent transportation systems, the in-wheel motor driven electric vehicle provides a novel technical approach to address ASR challenges through its unique driving architecture and rapid response characteristics.
Compared with conventional centralized-drive vehicles, the in-wheel motor driven electric vehicle achieves independent and precise torque control for each driving wheel, providing superior performance in traction, braking, acceleration slip regulation (ASR), and stability control [4–7]. However, due to the extremely low and distinctive friction coefficient of compacted snow surfaces [8–10], tires may fail to recover sufficient traction during acceleration or startup, resulting in excessive wheel slip and spin. This further deteriorates road adhesion conditions, severely compromising vehicle mobility and safety. Therefore, the ASR control strategy designed for the in-wheel motor driven electric vehicle operating on compacted snow surfaces must incorporate proactive slip prevention to avoid excessive wheel spin, fully account for the impacts of tire-snow friction characteristics, while effectively maintaining vehicle driving stability.
At present, the ASR control strategies for in-wheel motor driven electric vehicle can be primarily categorized into two types based on their core principles. The first category focuses on tracking the optimal slip ratio. For instance, Zhang Z et al. [11] employed a fading-memory unscented Kalman filter to estimate the road adhesion coefficient and derived the optimal slip ratio based on the relationship curve between the road adhesion coefficient and the slip ratio, applying it to anti-slip control to improve vehicle passability. Abbas Soltani et al. [12] proposed an integrated control strategy based on optimal wheel slip ratio estimation. This scheme employs an Unscented Kalman Filter (UKF) to estimate key state variables in real time for calculating the road friction coefficient, and introduces an Adaptive Neuro-Fuzzy Inference System (ANFIS) to predict the optimal wheel slip ratio under different road conditions. By coordinating the Active Front Steering (AFS) and Active Braking (AB) systems, the approach comprehensively enhances the longitudinal, lateral, and yaw stability of vehicles during emergency braking scenarios. Zhang HZ et al. [13] estimated the road adhesion coefficient using the recursive least squares method, determined the optimal slip ratio via the Burckhardt tire model, and achieved rapid tracking through a sliding mode controller. Zhang LP et al. [14] combined the relationship curve between tire longitudinal force and wheel slip ratio with a variable β sliding mode extremum seeking algorithm to calculate the optimal slip ratio in real time, thereby solving for the desired driving torque. These control methods, which aim to track the optimal slip ratio to maximize traction force, have achieved effective acceleration slip regulation (ASR) performance on conventional road surfaces. However, their core reliance on accurate identification of road adhesion coefficient and real-time calculation of optimal slip ratio inevitably increases the complexity of the control strategy and introduces inherent delays in identification and computation. The second category focuses more on maintaining vehicle driving stability. Some studies in this category primarily concentrated on longitudinal stability control. For example, Bao YT [15] and Sun XM [16] considered longitudinal stability when designing their acceleration slip regulation (ASR) strategies, emphasizing vehicle longitudinal anti-slip performance. However, they neglected lateral stability control and did not account for steering conditions in experimental validation, making them inadequate for complex and varying real-world driving conditions. Some researchers have also attempted to achieve coordinated control of both longitudinal and lateral stability. For example, Wu JY [17] et al. adopted a coordinated control strategy integrating acceleration slip regulation (ASR) with direct yaw moment control (DYC), utilizing priority evaluation and multi-objective coordination to simultaneously enhance both longitudinal and lateral vehicle stability. However, this priority-based control method may cause torque abruptions during logic switching between control modules, making it difficult to simultaneously maintain stability in both directions.
Liang JH [18] et al. applied Pareto optimal theory to identify the optimal operating ranges for active front steering (AFS) and direct yaw moment control (DYC), thus achieving integrated longitudinal and lateral vehicle stability control. Dang M [19] et al. developed a coordinated control strategy between AFS and differential drive assisted steering (DDAS) systems to mitigate undesired yaw moment effects, with AFS/DDAS working regions demarcated based on sideslip angle deviation. Liang JH et al. [20] proposed a cooperative control framework that integrates torque vectoring (TV) and an active front steering (AFS) system. This scheme treats TV and AFS as two interactive intelligent agents. Using distributed model predictive control (DMPC) and game theory, the agents pursue their respective control objectives while achieving cooperative optimization. Terminal constraints are introduced to ensure the asymptotic stability of the system. Zheng, ZC [21] et al. established an evolutionary game model to coordinate AFS and DYC control weight distribution across various vehicle operating states, leading to enhanced driving stability. Liang JH et al. [22] employed T-S fuzzy rules to handle the nonlinear characteristics of tires and constructed a vehicle stability region represented by the phase plane of the tire sideslip angle. The scheme dynamically adjusts the priority between handling performance and stability control based on the stability margin. Thereby, the multi-objective control problem is transformed into a robust H∞ performance optimization problem with dynamic weights, achieving an effective balance between vehicle handling and stability. Li Q [23] et al. implemented phase plane analysis to delineate the working regions of DDAS and vehicle stability control (VSC) systems, with their coordinated operation improving both vehicle maneuverability and stability. These studies improved vehicle stability under complex driving conditions by partitioning operational domains or coordinating control weights to schedule different control methods. However, they generally neglected the influence of wheel slip ratio on driving stability. Control strategies that rely solely on wheel steering or torque redistribution lack effective constraints on slip ratio, which can easily cause excessive slip of individual wheels and consequently impair vehicle stability.
In summary, although acceleration slip regulation (ASR) for in-wheel motor driven electric vehicles has been extensively studied, existing methods still exhibit significant limitations when dealing with compacted snow surfaces. Firstly, control methods aimed at pursuing the optimal slip ratio struggle to effectively suppress excessive wheel slip and fail to efficiently utilize limited road adhesion. Moreover, their reliance on parameter identification tends to cause computational delays. Secondly, there is inadequate coordination between longitudinal anti-slip control and lateral stability control, with control logic transitions prone to inducing torque abruptions. Finally, most current coordinated longitudinal-lateral control strategies neglect slip ratio constraints, relying solely on steering or torque redistribution, which may lead to excessive wheel slip and consequently compromise stability.
Therefore, to efficiently utilize the limited tire-compacted snow friction and achieve coordinated control of both longitudinal slip prevention and lateral stability, while simplifying the control architecture and reducing time delays, this paper proposes a dynamically slip-ratio-constrained longitudinal-lateral coordinated optimal acceleration slip regulation (ASR) control strategy. The main contributions of this study are as follows:
(1) A “dynamic slip ratio constraint” control method is proposed, which proactively confines the slip ratio within a lower, safe range. This ensures a sufficient reserve of tire lateral force and significantly enhances the vehicle’s anti-skid capability.(2) Achieving deep coordination between acceleration slip regulation and active steering, rather than a simple superposition of control modules. By establishing a feedforward-feedback composite control architecture, the two systems work together coordinatively, avoiding disturbances caused by control mode switching and realizing a seamless integration of longitudinal and lateral stability.(3) A multi-objective real-time optimization function based on dynamic slip ratio constraints was constructed. This strategy can dynamically adjust the slip status of all four wheels according to complex operating conditions (e.g., low adhesion, steep slopes, accelerated turning), comprehensively balancing dynamics, anti-slip performance, and stability. Thereby, while suppressing wheel slip, it provides a more stable controlled object for the subsequent AFS feedback control. Co-simulation results using Carsim and Matlab/Simulink demonstrate that this strategy effectively suppresses wheel slip and reduces trajectory deviation, providing a practical solution for the safety control of in-wheel motor electric vehicles on icy and snowy roads.
2. Vehicle dynamic model
Taking in-wheel motor driven electric vehicle as the research object, a seven-degree-of-freedom (7-DOF) vehicle dynamics model, Magic Formula tire model, and two-degree-of-freedom (2-DOF) vehicle dynamics reference model were established to provide the foundation for subsequent simulation experiments [24–26].
2.1. Vehicle dynamics equation

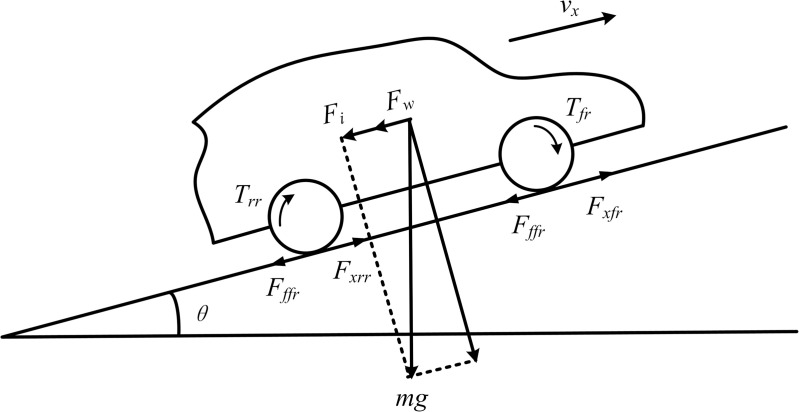

The force analysis of the vehicle on a longitudinal slope is shown in Fig 1, and the vehicle’s force equilibrium equation is expressed by Equation (1):
Force analysis of vehicles on slopes.
In the equation, Fx represents the longitudinal driving force; Ff represents the rolling resistance; Fw represents the air resistance; Fi represents the gradient resistance; Fj represents the acceleration resistance; Tij represents the drive torque of each wheel (where ij = fl, fr, rl, rr; representing the front-left wheel, front-right wheel, rear-left wheel, and rear-right wheel, respectively); r represents the tire rolling radius; f represents the rolling resistance coefficient; θ represents the road slope; Cd represents the drag coefficient; A is the frontal area; vx is the longitudinal vehicle speed.
Consequently, the necessary driving torque to achieve the target longitudinal acceleration ax is obtained as:
2.2. 7-DOF vehicle dynamics model

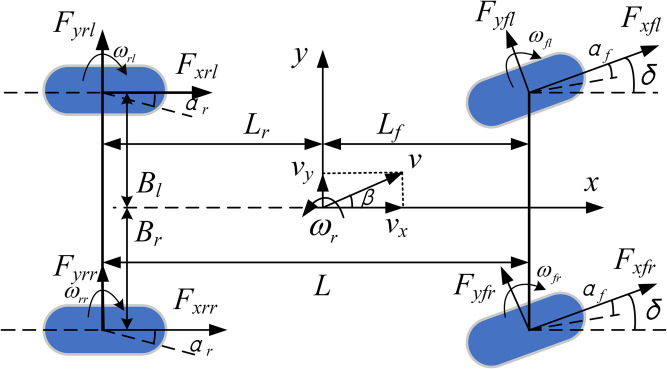

To acquire the vehicle’s state parameters during operation, ignoring the effects of the vehicle suspension system, as well as the vehicle’s roll and pitch motions; assuming the vehicle body is a rigid body; assuming all in-wheel motors and tires have identical characteristics; and considering slope driving conditions, a 7-DOF vehicle dynamics reference model is established, as shown in Fig 2. This model includes three degrees of freedom (longitudinal, lateral, and yaw motions) and four rotational degrees of freedom for the wheels.
7-DOF vehicle dynamics model.
Thus, the 7-DOF vehicle dynamics equations can be derived as follows:
In the equations, vx and vy represent the longitudinal and lateral vehicle speeds, respectively; ax and ay represent the longitudinal and lateral accelerations, respectively; Fxij denotes the longitudinal force of each wheel; Fyij denotes the lateral force of each wheel; δ is the front wheel steering angle; Iz is the vehicle’s moment of inertia about the Z-axis; ωr is the yaw rate; Lf and Lr are the distances from the front and rear axles to the center of mass, respectively; Bl and Br are the distances from the left and right wheels to the center of mass, respectively; β is the sideslip angle of the center of mass; αf and αr are the slip angles of the front and rear wheels, respectively.

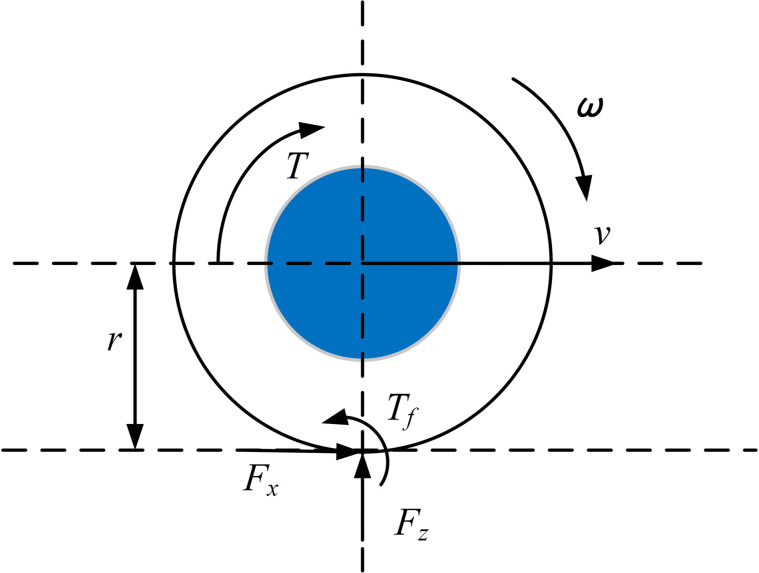

The rotational dynamics model of the wheel is shown in Fig 3:
Wheel rotational dynamics model.
Thus, the wheel rotational dynamics equation can be obtained:
In the equations, Iw is the wheel’s moment of inertia; ωij represents the angular velocity of each wheel; Tij denotes the driving torque of each wheel; Ffij is the rolling resistance of each wheel; Tfij is the rolling resistance moment of each wheel; and Fzij represents the vertical force of each wheel.
Ignoring the influence of the suspension, the vertical load of each wheel is calculated as follows:
The slip ratio λ is a key variable that characterizes the degree of wheel slip, and its calculation formula is:
The relationship between the slip angles of the front and rear wheels and the steering angle of the front wheels is:
2.3. Tire model
As the only contact point between the vehicle and the road, the mechanical characteristics of tires directly affect the handling stability and safety of the vehicle. To better reflect the real operating state of the vehicle, this paper adopts the Magic Formula tire model to calculate the longitudinal and lateral forces acting on the tires. The expression is as follows:
In the equation, Y(x) represents the longitudinal force, lateral force, or aligning torque; X represents the slip ratio or slip angle; B represents the stiffness factor; C represents the curve shape factor; D represents the peak factor; E represents the curvature factor; Sv represents the vertical shift of the curve; and Sh represents the horizontal shift of the curve.
2.4 Motor model
The drive motor, serving as the core actuator in electric vehicles, significantly influences overall vehicle control performance through the dynamic characteristics of its output torque. A permanent magnet synchronous motor is selected as the drive motor, and the relationship between its output torque Tout and the target torque Tin can be represented by the following transfer function:
Where Tin is the target torque calculated by the optimization-based allocation controller, Tout is the actual torque output by the motor, and is the damping coefficient determined by the motor parameters.
2.5. 2-DOF vehicle dynamics reference model

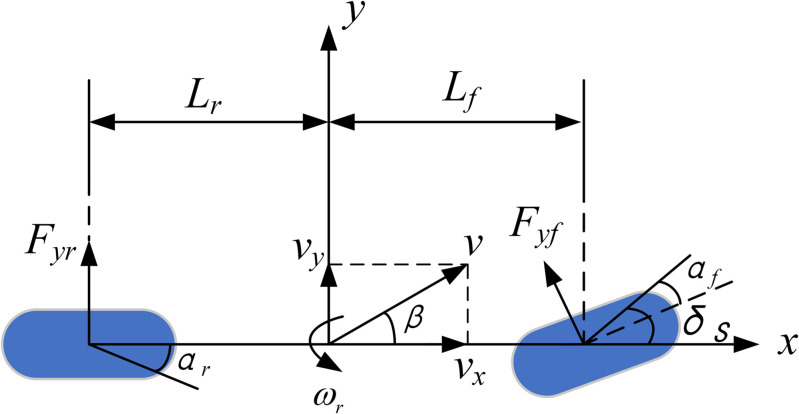

The linear 2-DOF vehicle model (as shown in Fig 4) has a simple structure and involves fewer vehicle characteristic parameters, yet it can effectively reflect the relationship between the wheel steering angle and the sideslip angle as well as the yaw rate. Therefore, the linear 2-DOF model is adopted as the reference model for designing the controller to calculate the ideal yaw rate and the ideal sideslip angle during vehicle operation.
Linear 2-DOF vehicle dynamics reference model.
In Fig 4, Fyf and Fyr represent the lateral forces of the front and rear axles, respectively, and δs denotes the steering angle of the front wheels under the action of the steering wheel. Thus, the differential equations of the 2-DOF model can be derived as follows:
In the equation, kf and kr represent the cornering stiffness of the front and rear axles, respectively. To facilitate subsequent derivations, Equation (13) is rewritten in state-space form as follows:
In the equation: a_11_=(Lfkf-Lrkr)/Iz, a_12_=(Lf^2^kf + Lr^2^kr)/Izvx, a_21_=(kf + kr)/mvx, a_22_=(Lfkf-Lrkr)/mvx^2^−1, b_1_=-Lfkf/Iz, b_2_=-kf/mvx.
The ideal yaw rate and sideslip angle of the vehicle can be derived from the linear 2-DOF vehicle model. However, during actual driving conditions, these ideal values are constrained by the road adhesion coefficient. Based on empirical formulas, the ideal yaw rate can be expressed as:
In the equation, L represents the wheelbase; ωd represents the desired yaw rate of the vehicle; and K represents the stability factor, whose expression is as follows:
From the perspective of vehicle safety and stability, an excessive sideslip angle must be avoided to prevent vehicle skidding. Therefore, the ideal sideslip angle is selected as zero. That is:
3. Coordinated control of ASR and AFS

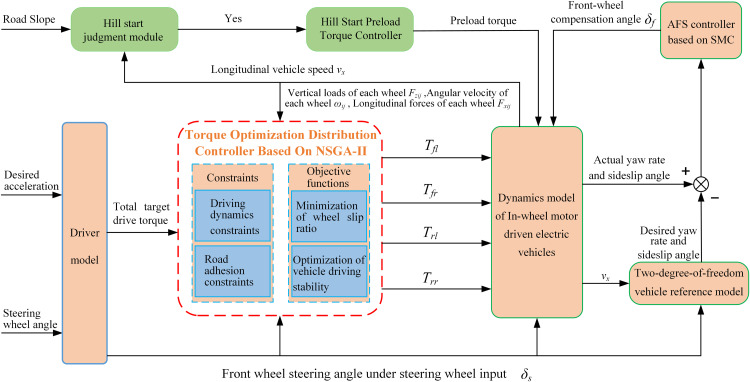

On the basis of obtaining the total target driving torque, a coordinated control strategy for drive anti-slip and active front steering (AFS) based on multi-objective optimization was designed [27–29]. The control framework is shown in Fig 5. The strategy includes a drive torque optimal distribution module, which utilizes dynamic slip ratio constraints and the NSGA-II algorithm. While meeting the total driving demand, it actively limits the slip ratio of each wheel within a safe range, minimizes slip loss, and preliminarily coordinates wheel speeds to suppress undesired yaw moments. AFS Compensation Module: Based on sliding mode control (SMC), it takes the desired yaw rate and sideslip angle as tracking targets to dynamically generate front-wheel compensation angles. This precisely counteracts undesired yaw moments caused by road unevenness or torque distribution itself, thereby enhancing directional stability. The two modules work synergistically to form a closed-loop system, achieving efficient coordination between drive anti-slip and directional stability. Additionally, a pre-torque control strategy is specifically developed for hill-start conditions to ensure smooth launching.
Overall structure of the coordinated control strategy.
3.1 NSGA-II-based ASR controller

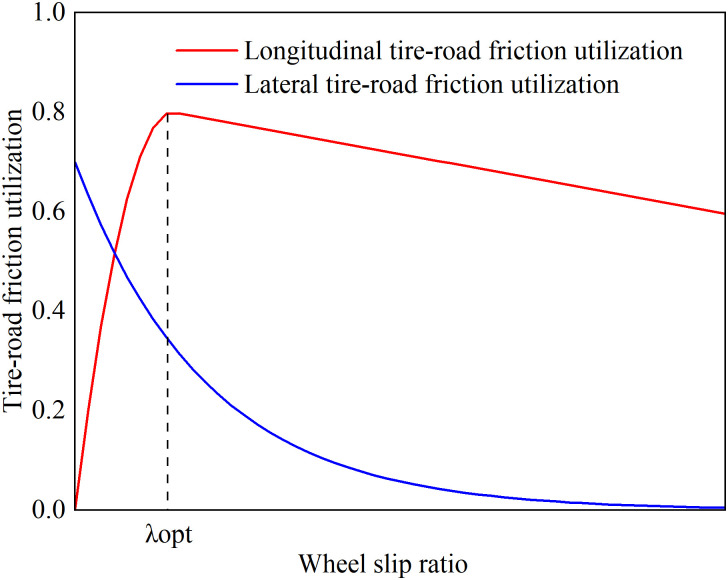

The tire-road adhesion characteristic curve shown in Fig 6 indicates that tracking the optimal slip ratio aims to maximize the longitudinal utilized adhesion coefficient under current road conditions, thus achieving maximum longitudinal traction. However, this approach significantly reduces the tire’s lateral force reserve, making the vehicle prone to skidding or spin instability during steering maneuvers. Additionally, excessive slip exacerbates the frictional thermal effects between the tire and snow, compromising the limited contact stability of the snow surface and further reducing the road adhesion coefficient. Therefore, when driving on compacted snow, it is necessary to dynamically adjust the slip ratio constraints to ensure vehicle dynamics while limiting the slip ratio within a smaller safety range, thereby improving lateral stability.
Tire-road adhesion characteristic curve.
Therefore, an ASR controller based on NSGA-II [30–31] was designed. Its control inputs include: the total target driving torque TM; the vertical forces on each wheel (Fzfl, Fzfr, Fzrl, Fzrr); the road adhesion coefficients at the contact patch of each wheel (μfl, μfr, μrl, μrr); the longitudinal vehicle velocity vx; the angular velocities of each wheel (ωfl, ωfr, ωrl, ωrr); the longitudinal forces on each wheel (Fxfl, Fxfr, Fxrl, Fxrr); and the front wheel steering angle under steering wheel input δf. With the objectives of minimizing the wheel slip ratio and maintaining vehicle stability, the driving torque is optimally distributed to all four wheels to achieve acceleration slip regulation for the entire vehicle, thereby ensuring its driving mobility and stability.
3.1.1. Constraint conditions.
The sum of the distributed drive torques must always equal the total target drive torque TM. That is:
The distributed drive torque for each wheel must satisfy the road adhesion conditions. That is:
In the equation, μij represents the road adhesion coefficient at the contact point of each wheel.
3.1.2. Objective functions.
When driving on compacted snow surfaces, excessive slip of any single wheel can lead to excessive friction between the tire and the compacted snow surface, further reducing the road adhesion coefficient and the vehicle’s driving dynamics, affecting the vehicle’s mobility, and introducing potential safety risks. Therefore, it is necessary to minimize the slip ratio of each wheel while meeting the vehicle’s dynamic performance requirements. The objective function is as follows:
In the equation, λij represents the average slip ratio of the four wheels.
During straight-line driving, in order to reduce phenomena such as vehicle sideslip and fishtailing, and to maintain driving stability, it is necessary to minimize the speed difference among the four wheels while meeting the vehicle’s dynamic performance requirements. The objective function is as follows:
In the equation, is the average speed of the four wheels.
During cornering, to meet the speed difference requirements between the inner and outer wheels and to prevent wheel slip on the inner side, each wheel’s speed should be controlled to approach its corresponding optimal speed. According to the Ackermann steering geometry (as illustrated in Fig 7), all wheels should ideally rotate around the same instantaneous center of rotation (ICR) under perfect conditions.

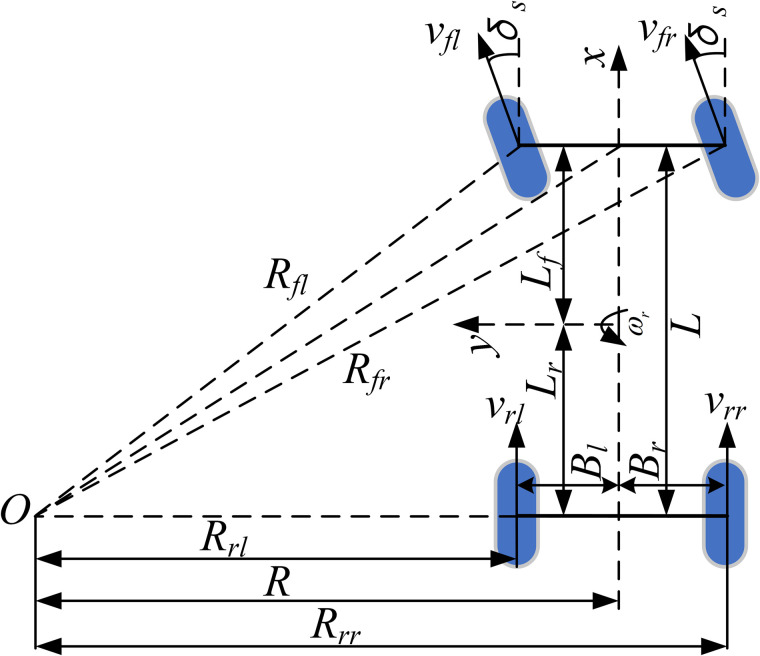

Ackermann steering model.
