Efficient two-step chemoenzymatic conjugation of antibody fragments with reporter compounds by a specific thiol-PEG-amine Linker, HS-PEG-NH2
Haruya Sato, Yukiko Kataoka, Youichi Nishikawa, Daiki Okano, Mami Nagai, Yoshio Yamauchi, Masato Taoka, Katsuki Naitoh, Rui Tada, Rui Tada, Rui Tada
TL;DR
This paper introduces a simplified two-step method for attaching reporter compounds to antibody fragments using a specific linker, improving efficiency and reducing by-products.
Contribution
A novel two-step chemoenzymatic conjugation method using an HS-PEG-NH2 linker that avoids deprotection steps and minimizes by-products.
Findings
The HS-PEG linker efficiently conjugated to Fab fragments without requiring deprotection.
Reporter compounds like Alexa488 and phycoerythrin were successfully attached in two steps.
Phycoerythrin conjugated with multiple Fab molecules showed higher activity in assays.
Abstract
Chemoenzymatic conjugation of antibodies with reporter compounds offers broad applicability for detecting target antigens in the context of in vitro research and diagnostics. For conjugation, a bifunctional linker with a protected thiol and an amino group, serving as a transglutaminase substrate, is often employed. However, protective groups require an additional deprotection step during synthesis. To overcome this limitation, we selected a long-chain thiol-PEG-amine (HS-PEG) linker as the substrate. The HS-PEG linker exhibited minimal S–S bond dimerization in solution and was efficiently conjugated to Fab containing the transglutaminase-specific sequence tag (Q-tag), retaining the free state of the SH group. Using this SH group, a reporter compound containing two types of activated maleimides, Alexa488 or the red algae-derived fluorescent dye phycoerythrin, was conjugated to Fab. Both…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMonoclonal and Polyclonal Antibodies Research · Platelet Disorders and Treatments · Blood properties and coagulation
Introduction
Antibody conjugates with reporter molecules, such as fluorescent or chemiluminescent molecules, serve as powerful analytical tools for detecting target analytes in life science research and in vitro diagnostics (IVD) [1–4]. The conventional method for conjugating these reporter molecules to antibodies involves a chemical reaction using N-hydroxysuccinimide or maleimide derivatives, which target the amino group of lysine or the thiol group of cysteine residues of the antibody, respectively [5–8]. In these reactions, targeting specific residues among the multiple lysine and cysteine residues of the antibody is challenging, making it difficult to limit the stoichiometry to a certain range, leading to the synthesis of heterogeneous conjugates with low antigen-binding activity.
To achieve stoichiometric binding of reporter compounds to antibody molecules, most existing strategies require chemical modification of antibody carbohydrate-binding sites or the introduction of peptide tags, cysteine residues, or non-natural amino acids through molecular biological techniques [9,10]. Among these approaches, adding a “transglutaminase recognition sequence tag” (Q-tag) [11–13] to antibodies, followed by modification using MTGase, a protein glutamine γ-glutamyltransferase isolated from Streptomyces mobaraensis, has become a versatile tool for conjugate production owing to its high specificity and broad applicability [12,14–16]. In particular, a two-step chemical-enzymatic approach—where a linker containing a highly reactive residue, such as a thiol, azide, alkyne, or tetrazine group, is first attached to an antibody via MTGase, then reacted with a suitable reporter compound—is widely used for its high specificity and high conjugate yield [17–22]. Among these approaches, synthesizing derivatives through reactions with inexpensive thiol-containing linkers is preferred, as other functional groups are costlier and less practical.
Although the reaction of thiol groups with maleimide derivatives is useful for synthesizing conjugates using thiol groups [23–26], thiols must be free for this reaction to occur. However, free thiol groups are highly reactive and are typically blocked by protective groups such as acetylation or S–S bond reagents, which must be removed before use to prevent interference with other substances. The requirement for this deprotection step is a major limitation of an otherwise convenient reaction.
In this study, we used an HS-PEG linker to eliminate the need for protection and deprotection steps. The terminal thiol group of PEG was presumed to be stable enough in its free state to allow sufficient reaction time. Using this linker, we successfully constructed a stoichiometrically controlled conjugate of Q-tagged Fab with Alexa488 or phycoerythrin (PE) from red algae in a two-step process. Furthermore, we demonstrated that the Q-tagged Fab–PE conjugate is applicable for fluorescence (FL) ELISA and flow cytometry (FCM).
Results
Workflow and features of the conjugation method
This method synthesizes antibody-reporter conjugates by linking Fab and reporter compounds in two steps via an HS-PEG linker with amino and thiol groups at each end (Fig 1). In the first step, the amino group of the linker was conjugated to the prepared Q-tagged Fab using MTGase forming HS-PEG-modified Fab. In the second step, the maleimide-functionalized reporter compound was coupled to the thiol group to complete conjugate construction. As MTGase and maleimide reactions are highly specific, this approach enables chemically controlled synthesis of antibody-reporter conjugates.

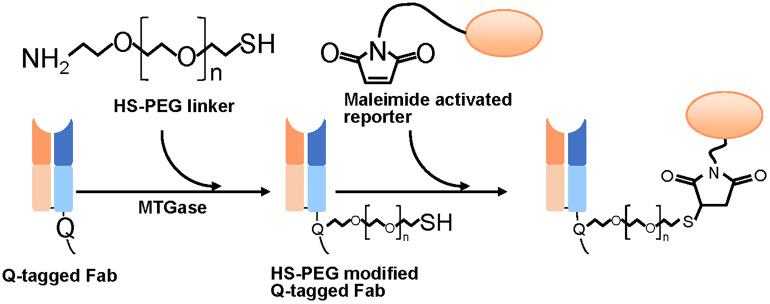

Schematic of our two-step chemoenzymatic modification of Q-tagged Fab with maleimide-activated reporter compounds.
A key advantage of our method is that it eliminates the need to protect active thiol groups, which are commonly used in conjugate reactions [17,27]. This eliminates the protection and deprotection reaction steps from the synthetic procedure, thus simplifying conjugation. This strategy was achieved using an HS-PEG linker based on the speculation that the unique structure of this molecule creates spatial constraints, which prevent collisions between the thiol groups at the end of each molecule to inhibit the formation of S-S bonds. This is because: (i) this linker is sufficiently dispersed in water due to its high hydrophilicity [28], and (ii) its PEG portion has a trans-gauche-trans conformation that forms a long “cage-like” helical structure that restricts free movement in water [29,30]. Similar linkers have also been used in reactions with gold and silver particles without protective groups [31–35]. Therefore, we expected to achieve sufficient product yields without protection or deprotection.
Characterization of the HS-PEG linkers by MS
To examine the molecular weight distribution of the HS-PEG2k linker, we performed direct infusion MS in the MTGase reaction buffer (Fig 2). The main signals in the MS spectrum corresponded to the calculated m/z values for HS-CH_2_CH_2_-(OCH_2_CH_2_)n-NH_2_ (Fig 2A). The spectra showed signals with degree of polymerization ranges of 39–55, with the most abundant signal, marked with an asterisk, observed at [M + H]^+^ 2060.2, equal to the calculated value of [M + H]^+^ at 2060.2 for the 45-mer of the HS-PEG2k linker. The other observed signals corresponded to Na adducts, not the dimer formed by the S–S bond. After an additional 180 min incubation, the spectrum showed that the dimerized HS-PEG linker signal (inverted black triangle) was only ~2% of the monomer (Fig 2B). This result indicates that most of the HS-PEG linkers retained their thiol groups after dissolution. This suggests that the MTGase-catalyzed first-step reaction can proceed efficiently without SH group protection due to rapid synthesis. We also analyzed the HS-PEG3.5k and HS-PEG5k linkers immediately after dissolution using direct infusion MS. The spectra showed signals with polymerization ranges of 64–95 and 86–124 (S1 Fig), a wider range than that of the HS-PEG2k linker. The major signal series in the MS spectra corresponds to those calculated from the structural formula, including H^+^ and Na^+^ adducts, and not to the dimer formed by the S–S bond. For subsequent experiments, we decided to use the HS-PEG2k linker reagent (n = 39–55) because it was more homogeneous and easier to handle.

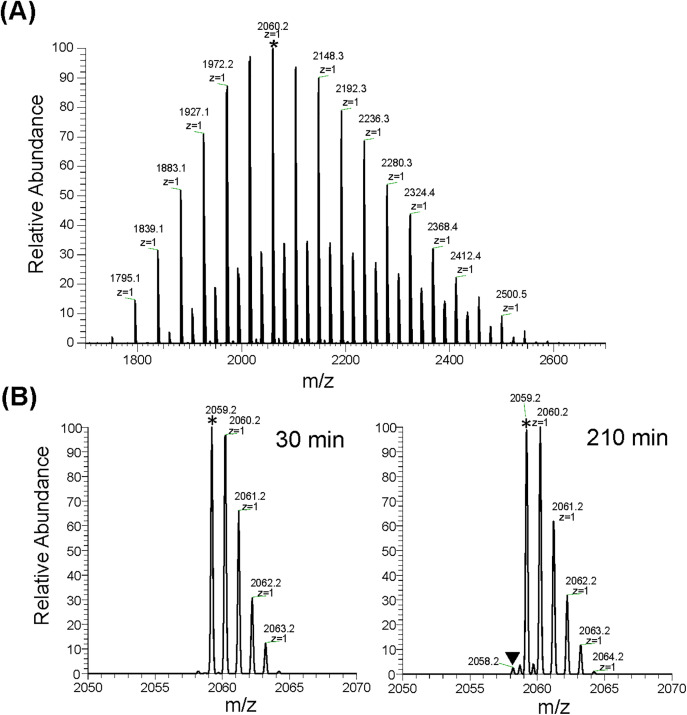

Mass spectrometric characterization for the HS-PEG2k linker.(A) Direct infusion MS spectra taken 30 min after solubilization of the HS-PEG2k linker reagent. Charge (z) and m/z are shown for some signals. Note that m/z for the major series of signals (every 44 Da) is consistent with m/z calculated from the structural formula of HS-CH2CH2-(OCH2CH2)n-NH2. The minor signal series was their Na adducts. (B) Infusion MS spectra at 30 (left) and 210 (right) min after solubilization of the HS-PEG2k linker, expanded around m/z 2059.2. Asterisks indicate the signal corresponding to monomer (n = 45) at m/z 2059.2 (z = 1). The triangle denotes the dimer signal (m/z 2058.2, z = 2) formed by an S–S bond..
Proof-of-concept experiment for the method using the HS-PEG linker
We conducted experiments using an HS-PEG2k linker, Fabp24 as a typical Fab (Fig 3A), and the maleimide-activated Alexa488 as a reporter compound.

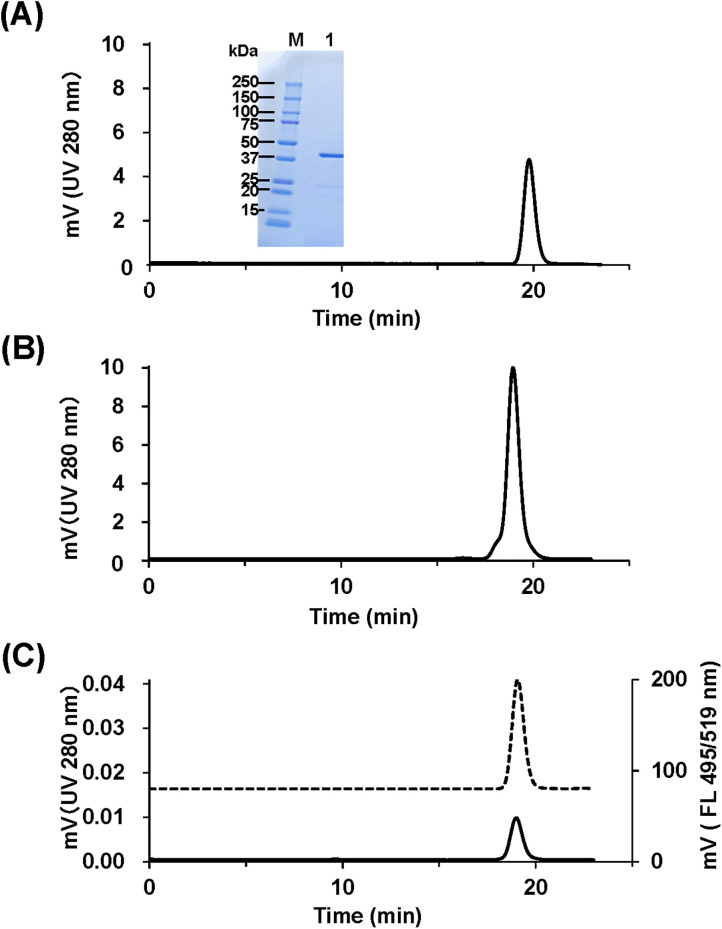

SEC-HPLC profiles of Fabp24 and its conjugates.(A) SEC and SDS-PAGE profile of Fabp24. Inset, non-reducing SDS-PAGE. Molecular weights of marker proteins are indicated. M, protein marker; 1, Fabp24. Fabp24 recognizes the HIV-1 p24 antigen, synthesized in-house (see Supplementary Information). Note that purified Fabp24 showed a single peak and band in SEC-HPLC and non-reducing SDS-PAGE. (B) SEC profile of HS-PEG2k-Fabp24. (C) SEC-UV and fluorescent profile of Alexa488-PEG2k-Fabp24. UV, solid line; FL, dotted line.
In the first step, the amino terminus of the HS-PEG2k linker was reacted with Fabp24, catalyzed by MTGase. It was confirmed in advance that MTGase specifically introduced a linker molecule into this Q-tag using pentylamine-biotin as a probe (S2 Fig, S3 Fig and S1 Table). The reaction products were purified using protein G chromatography, concentrated by ultrafiltration, and monitored by size exclusion chromatography (SEC) (Fig 3B). In the presence of MTGase and the HS-PEG2k linker, the Fabp24 peak in the chromatogram appeared at an earlier elution time, suggesting successful conjugation. The estimated reaction efficiency, based on the UV peak area, was high (>95%). Similar results were obtained while using the HS-PEG3.5k and HS-PEG5k linkers, which also reacted with Fabp24 at efficiencies comparable to that for HS-PEG2k (Fig S4).
In the second step, SEC-purified HS-PEG2k-Fabp24 was incubated with maleimide-activated Alexa488. Analytical SEC showed a single peak with both FL and UV absorption (Fig 3C), confirming a successful reaction. Although LC-MS analysis indicated an almost 100% reaction efficiency, the yield of Alexa488-modified HS-PEG2k-Fabp24 (Alexa488-PEG2k-Fabp24), based on the starting amount of Fabp24, was relatively low (0.1 mg, 33%), likely owing to conjugate loss during affinity chromatography and concentration steps.
MS characterization of Alexa488-PEG2k-Fabp24
To characterize the conjugates, we performed LC-MS analyses of Fabp24, HS-PEG2k-Fabp24, and Alexa488-PEG2k-Fabp24 under reducing conditions (Fig 4). For unmodified Fabp24, multivalent MS signals of the heavy (H) and light (L) chains were observed (Fig 4, top panel). The deconvoluted average masses of the H and L chains of Fabp24 (24892.321 and 23588.539 Da, respectively) closely matched the theoretical values calculated from the sequences (24897.874 Da and 23593.337 Da, respectively). These results indicated that the H and L chains of Fabp24 have the designed sequences.

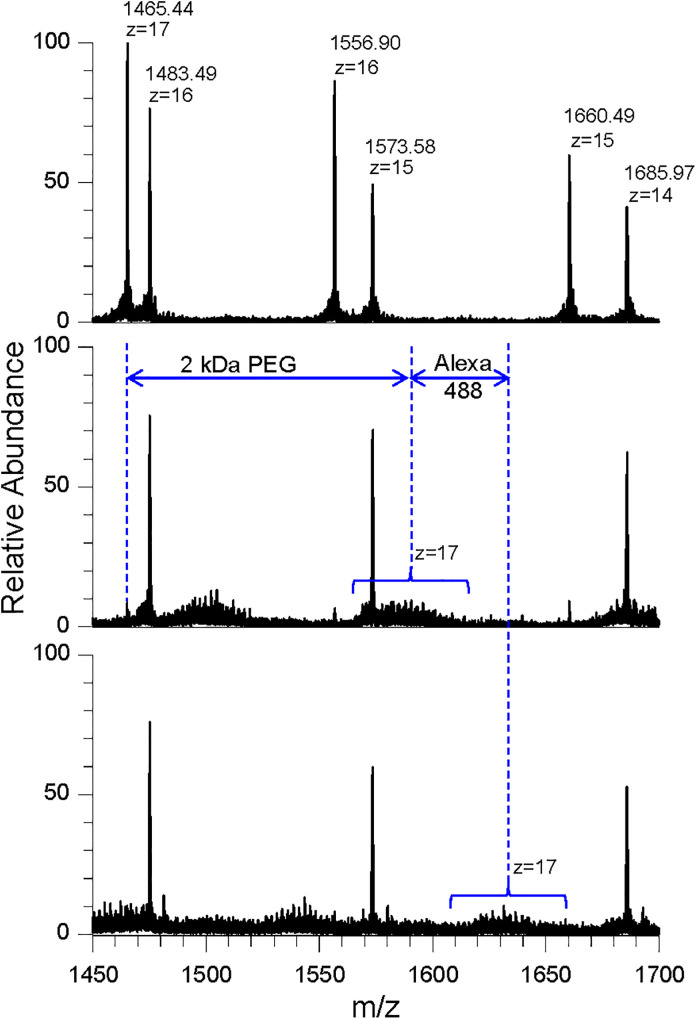

LC-MS spectra of Fabp24 (top), HS-PEG2k-Fabp24 (middle), and Alexa488-PEG2k-Fabp24 (bottom).Note that m/z 1465.44, corresponding to the heavy chain (z = 17), shifted to a higher molecular weight with the addition of the HS-PEG2k linker (middle) and Alexa488 (bottom), based on their molecular weight (blue arrows, dotted line, and parentheses). Similar shifts were observed for heavy chains at z = 16 and 15 (data not shown).
For HS-PEG2k-Fabp24, multiple signals were observed in Fig 4 (middle panel), likely representing H chains modified by HS-PEG2k with varying degrees of polymerization. The molecular mass differences between the H chains (Z = 17, Fig 4, top and middle panels) and 4(B)) closely matched the mass of the HS-PEG2k linker, suggesting site-specific conjugation of a single linker molecule to the H chain of Fabp24 by MTGase.
For Alexa488-PEG2k-Fabp24, the MS signals of the heavy chains in HS-PEG2k-Fabp24 showed an additional mass increase of approximately 700 Da (m/z 43, Z = 17, Fig 4, bottom panel), which was almost equal to that of maleimide-activated Alexa488 residue (697.7 Da). These results suggested that one molecule of maleimide-activated Alexa488 was incorporated into the H chain of HS-PEG2k-Fabp24, specifically in the SH group of PEG.
HS-PEG linker with reporter compound does not affect Fab binding to target antigen
To compare the binding activities of Fabp24, HS-PEG2k-Fabp24, and Alexa488-PEG2k-modified Fabp24 against the HIV-1 p24 antigen, we conducted surface plasmon resonance (SPR) analyses for the purified samples (Table 1 and S5 Fig). Both modified Fabp24 showed KD values (1.5 × 10^−9^ M and 1.3 × 10^−9^ M) similar to those of the unmodified Fabp24 (1.4 × 10^−9^ M) (Table 1). These results indicate that linker and reporter conjugation using this method did not reduce the antigen-binding activities of Fab.
Table 1: Dissociation constants of Fabp24, HS-PEG2k-Fabp24, and Alexa488-PEG2k-Fabp24 against HIV-1 p24 protein measured using SPR.
Applicability of the HS-PEG linker method for in vitro research uses
In practical applications of FL ELISA and FCM, PE is widely used as a highly fluorescent dye to detect low-level antigen expression [36]. Thus, we conjugated Fabp24 to PE via the HS-PEG linker, as described in the Methods section. Fig 5 shows SEC chromatograms of the reaction products between HS-PEG2k-Fabp24 and maleimide-activated PE. The starting materials decreased upon reaction, yielding at least three distinct conjugation products (products C, D, and E in Fig 5), all exhibiting UV absorption and PE-derived FL. The SEC-HPLC elution times and the UV/FL ratios of products C, D, and E increased in sequence, indicating that more HS-PEG2k-Fabp24 was conjugated per PE molecule. We concluded that products C, D, and E correspond to the mono-, di-, and trivalent HS-PEG2k-Fabp24 conjugates to a single PE molecule, respectively, as the UV/FL ratios of products C, D, and E were 1.0, 1.2, and 1.3, respectively, closely matching the calculated values (1.0, 1.1, and 1.2, respectively). Under the same reaction conditions, the quantitative ratios of products C, D, and E were consistently 1:2:3, as calculated from the peak areas monitored by UV absorption (Fig 5). We separated C, D, and E using preparative SEC (S6 Fig), and the resulting sample was subjected to FL ELISA against the HIV-1 p24 antigen (Fig 6A). At the same relative molar concentration, the FL signal increased in the order of C, D, and E, indicating that a higher number of Fab molecules per reporter molecule enhanced the affinity of the conjugate to HIV-1 p24.

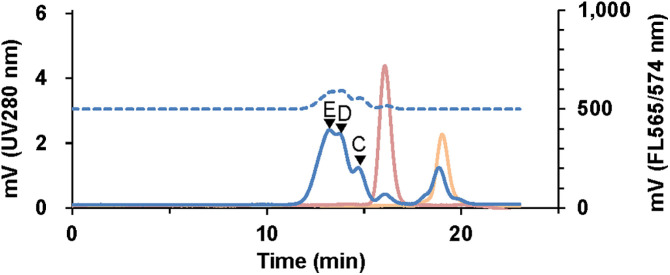

SEC-HPLC chromatogram of the products of HS-PEG2k-Fabp24 reacted with maleimide-activated PE.The reaction products of HS-PEG2k-Fabp24 and maleimide-activated PE were analyzed by SEC. The main products forming these peaks are marked with arrowheads C–E. UV, solid line; FL, dotted line; reaction product, blue; maleimide-activated PE, red; and HS-PEG2k-Fabp24, orange. The main products forming the peaks are marked with C–E and arrowheads.

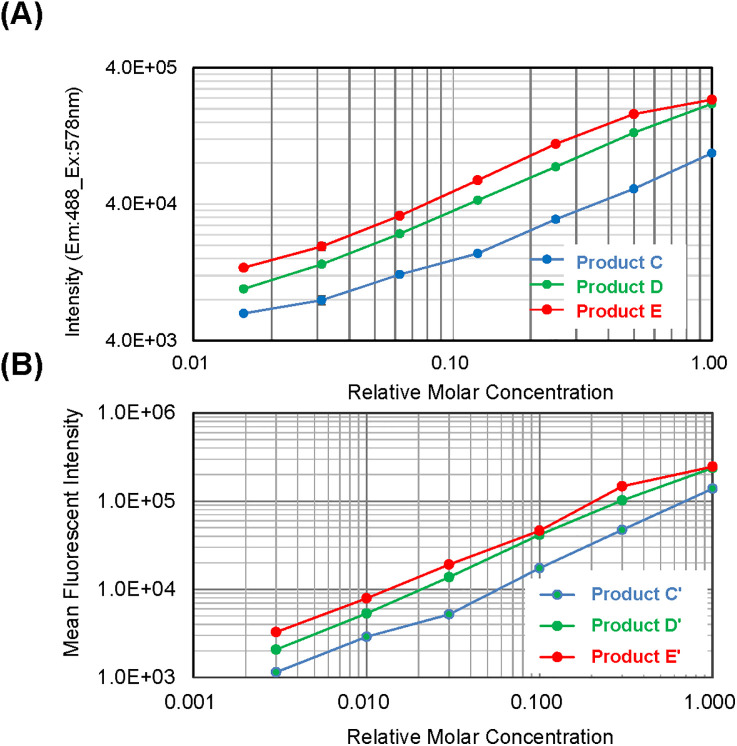

Antigen detection ability of conjugates containing a few Fabs per PE molecule.(A) ELISA plots for HIV-1 p24 protein using the product C-E of PE-PEG2k-Fabp24 as a probe. Each value represents the mean of two independent measurements. (B) FCM plots for CD20-expressing Ramos cells using the product C-E of PE-PEG2k-FabCD20 as a probe. Relative molar concentrations were adjusted by normalizing the FL intensity of each conjugate.
