Primary envelopment of Kaposi’s sarcoma-associated herpesvirus at the nucleoplasmic reticulum
Alexa Wilson, Neale D. Ridgway, Craig McCormick
TL;DR
This study shows that Kaposi’s sarcoma-associated herpesvirus (KSHV) uses specific nuclear membrane structures to help its viral particles escape the cell nucleus during replication.
Contribution
The paper reveals that KSHV specifically targets Type-I nucleoplasmic reticulum for primary envelopment, despite the expansion of both Type-I and Type-II structures during reactivation.
Findings
KSHV reactivation increases both Type-I and Type-II nucleoplasmic reticulum, but primary envelopment occurs only at Type-I structures.
CTP:phosphocholine cytidylyltransferase (CCTα) recruitment at Type-I NR supports membrane expansion and viral egress.
Live cell microscopy shows KSHV capsids traffic from Type-I NR toward the nuclear periphery and cytoplasm.
Abstract
Herpesvirus egress begins with primary envelopment of newly assembled capsids at the inner nuclear membrane (INM). Primary envelopment has been observed at the peripheral INM as well as nuclear infoldings. Nuclear infoldings from invaginations of the INM are Type-I nucleoplasmic reticulum (NR), whereas infoldings of both INM and outer nuclear membrane (ONM) are Type-II NR. Here, we report that Kaposi’s sarcoma-associated herpesvirus (KSHV) reactivation from latency and lytic cycle progression correlates with increases in both types of NR, but primary envelopment is restricted to peripheral INM and Type-I NR. These Type-I NR structures co-localized with puncta containing CTP:phosphocholine cytidylyltransferase (CCTα), the enzyme that catalyzes the rate-limiting step in phosphatidylcholine (PtdCho) synthesis that drives the de novo membrane biogenesis and membrane curvature required for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
Fig 10| 48 h | 72 h | 96 h | 120 h | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capsids in the NR | 65 | 442 | 37 | 1 | ||||||||
| Enveloped first-order infolds | 53 | 309 | 27 | 1 | ||||||||
| Non-enveloped second-order infolds | 12 | 133 | 10 | 0 | ||||||||
| Perinuclear space | 1 | 8 | 0 | 0 | ||||||||
| Total capsids in nucleoplasm | 352 | 1,492 | 1,334 | 197 | ||||||||
| Capsid type | A | B | C | A | B | C | A | B | C | A | B | C |
| Nucleoplasm | 75 | 63 | 214 | 139 | 414 | 939 | 203 | 861 | 270 | 11 | 136 | 50 |
| Total C-capsids in the cytoplasm | 24 | 218 | 286 | 50 | ||||||||
- —Canadian Institutes of Health Researchhttp://dx.doi.org/10.13039/501100000024
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHerpesvirus Infections and Treatments · Cytomegalovirus and herpesvirus research · Viral-associated cancers and disorders
INTRODUCTION
Herpesvirus capsid assembly and DNA packaging occur in a multistep process in the cell nucleus, yielding at least three distinct products known as A-, B-, and C-capsids (1, 2). All capsid types possess angular shells consisting of major capsid protein (MCP) arranged into pentons and hexons (3), small capsid protein (SCP) that caps the outer surface of hexons (4), triplex protein complexes that link adjacent capsomers (5), and a dodecameric portal protein complex (6). A-capsids are abortive, with an empty capsid shell devoid of internal scaffolding proteins or a viral genome. B-capsids are assembly intermediates or abortive capsids that contain an inner scaffold consisting of scaffold protein and scaffold protease but no viral genome (7). C-capsids are mature capsids that have ejected scaffolding proteins and replaced them with the linear viral genome. There is evidence that C-capsids gain priority access to the host cell cytoplasm for subsequent steps in assembly and egress, at least in part, through the capsid-vertex-specific component (CVSC), a multiprotein complex enriched on the penton vertices of C-capsids; however, molecular support for this mechanism remains incomplete. These newly assembled capsids are too large to exit the nucleus through nuclear pores and instead bud at the INM into the perinuclear membrane space, acquiring an envelope in the process. This event has been termed “primary envelopment.” Enveloped viruses in the perinuclear space fuse with the outer nuclear membrane (ONM), losing their envelope in the process of gaining access to the cytoplasm.
The generally accepted model of herpesvirus egress is primary envelopment at the peripheral INM, but there is growing evidence for an alternative mechanism involving envelopment at nuclear infoldings (NI) (8–11). NI share structural similarities with the nucleoplasmic reticulum (NR); “NI” describes any membrane infoldings that extend into the nucleoplasm, whereas “NR” refers to a subset of these structures that meet the definition of nucleoplasmic reticulum (12). Type-I NR features single-membrane branched or unbranched invaginations of INM that extend into the nucleoplasm (Fig. 1). Type-II NR are double-membrane invaginations of both inner and outer NM. As such, Type-II NR contains nuclear pores and nuclear lamina, facilitating an extended cytoplasmic interface with the nucleoplasm, whereas the Type-I NR is lamin-poor and devoid of proteins associated with the ONM. Hybrid structures incorporating both Type-I and Type-II morphology have been reported (e.g., a Type-II invagination that gives rise to multiple Type-I extensions) (12). These hybrid structures contribute to the architectural complexity of the NR.

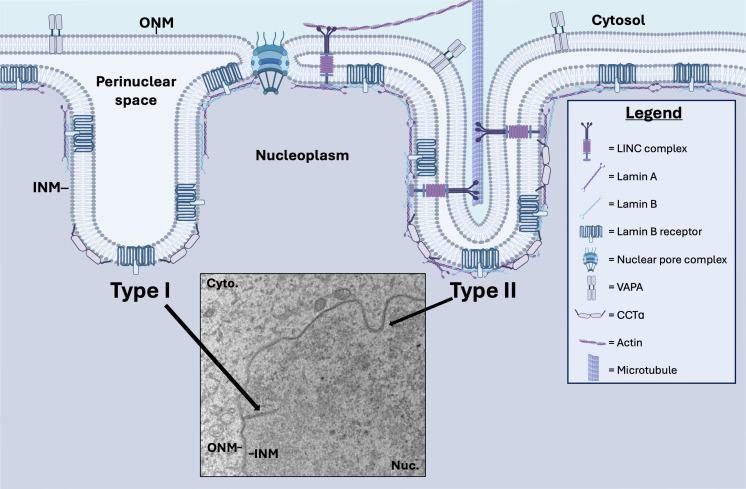

Morphology of Type-I and Type-II NR. Model depicting the ONM and INM, nucleoplasm (purple), and cytosol (blue). The inset shows an electron micrograph of Type-I NR and Type-II NR in latent iSLK cells. Invagination of the INM produces lamin-poor Type-I NR that feature INM-associated proteins, such as the lamin B receptor. Invagination of the ONM and INM together produces Type-II NR with an underlying lamina and markers including (i) lamin B receptor, (ii) vesicle-associated membrane protein-associated protein A (VAPA), which is involved in the delivery of late endosomes and nuclear transfer of extracellular vesicle-derived components to the NR, (iii) the linker of nucleoskeleton and cytoskeleton (LINC) complex, which is tethered to the cytoskeleton and regulates NM dynamics, and (iv) nuclear pore complexes. Both Type-I NR and Type-II NR feature CTP:phosphocholine cytidylyltransferase α (CCTα), an enzyme associated with the INM that catalyzes the rate-limiting step in phosphatidylcholine synthesis required for membrane biogenesis.
It has long been recognized that cytomegalovirus (CMV) egress involves primary envelopment at NI. As early as 1964, intranuclear structures resembling NI were reported during murine CMV (MCMV) infection (13). In the years that followed, intranuclear compartments were documented with heightened detail during MCMV infection, and their role in primary envelopment became evident (14). Eventually, intranuclear structures were documented for human CMV (HCMV) as well (15), which were later referred to as “pseudo-inclusions” of the nucleus (16). More recent reports demonstrate that although NI account for a small fraction of nuclear membrane area during CMV infection, most capsids bud at NI rather than the peripheral INM (9). Analysis of HCMV-infected cells using focused ion beam/scanning electron microscopy (FIB/SEM) tomography revealed complex networks of tubules and spherical compartments, with the latter assuming a variety of hierarchical structures consistent with the Type-I NR (10, 12). It has been well documented that lytic herpesvirus replication causes the nucleus to increase in size (17). Villinger et al. proposed a “pushing membrane model” that considers changes in nuclear membrane size and the emergence of complex NR networks observed in HCMV-infected cells (10). In this model, disruption of the nuclear lamina is accompanied by the synthesis of new membrane, resulting in the invagination of the INM into the nucleoplasm to form complex membrane structures and providing numerous opportunity sites for HCMV budding. Similar to CMV, nuclear pseudorabies virus (PRV) capsids bud into membranous nuclear structures called “tegusomes” that resemble the NR (8). Tegusomes are sometimes connected with the NE and open into the cytoplasm, and most comprise a single membrane with occasional double-membrane structures. Inspecting TEM images of tegusomes reveals remarkable similarity to the Type-I NR and Type-II NR, as well as complex structures defined more recently by Buser et al*.* and Villanger et al*.,* which we now know to be the Type-I NR (9, 10, 18). Together, these studies provide ample evidence for herpesvirus utilization of NI for budding.
Primary envelopment of herpesvirus capsids requires the viral nuclear egress complex (NEC), which consists of a type-II transmembrane protein and a soluble phosphoprotein that assemble into a hexameric lattice structure on the INM to promote local membrane curvature required for capsid budding into the perinuclear space (19). The PRV NEC induces local INM curvature and drives the formation of vesicles embedded within the Type-I NR (20–23). Similarly, the NEC of murine gammaherpesvirus-68 (MHV-68) promotes nuclear invaginations bearing lamin A/C (24). Ectopic expression of Kaposi’s sarcoma-associated herpesvirus (KSHV) NEC proteins elicited formation of nuclear structures described as “vesicles wrapped by membranous structures in the nucleoplasm that appeared to have no connection to the nuclear membrane” (24). During herpes simplex virus type 1 (HSV-1) infection, the NEC proteins localize to the INM and induce vesicle formation (19). The HSV-1 NEC promotes the reorganization of the lamina, which acts as a structural barrier to capsids accessing the INM, causing lamin-positive protrusions in the intranuclear space that resemble the NR (25). During HSV-1 infection, the viral US3 kinase and a complex comprising the NEC, the viral protein γ_1_34.5, host scaffold protein p32, and protein kinase C, phosphorylate and destabilize the nuclear lamina (26–30). Similarly, viral serine/threonine kinases from herpes simplex virus type 2 (HSV-2) (31), Epstein-Barr virus (EBV) (32), and HCMV (33, 34), all phosphorylate and destabilize the lamina. Thus, lamina disassembly is not only a prerequisite for NR formation but also a conserved feature of herpesvirus replication.
To date, the utilization of NI for gammaherpesvirus primary envelopment remains unresolved. One study of KSHV infection demonstrated the presence of an intranuclear double-membrane structure separated from the nuclear envelope, but the authors did not comment on the nature of this invagination (35). Another study of MHV-68-infected cells reported INM invaginations that contained enveloped capsids and secondary compartments within these invaginations that contained non-enveloped capsids (11). Here, we report that KSHV reactivation from latency and lytic cycle progression correlates with increases in both Type-I NR and Type-II NR, but we only observed primary envelopment at Type-I NR and the peripheral INM. The selective utilization of Type-I NR for primary envelopment despite the concurrent expansion of Type-II NR suggests a mechanism to selectively target KSHV capsids to these membranes for budding. Over a time course of infection, we frequently observed DNA-containing KSHV C-capsids budding into nuclear infoldings contiguous with the INM and sparsely decorated with nuclear lamina, characteristic of Type-I NR. These Type-I NR structures co-localized with puncta containing CTP:phosphocholine cytidylyltransferase (CCTα), the enzyme that catalyzes the rate-limiting step in PtdCho synthesis that drives the de novo membrane biogenesis and membrane curvature required for NR expansion. Thus, CCTα activity may provide sufficient Type-I NR to match requirements for KSHV nuclear egress. Finally, we employed live-cell imaging approaches to track newly assembled KSHV capsids as they transited through NR structures to the cytoplasm. Together, these approaches provide a robust framework to investigate the role of the NR in KSHV nuclear egress.
RESULTS
Nuclear infolds increase during KSHV lytic replication
NI described in previous studies of herpesvirus infection have many of the characteristics of the Type-I NR (9, 10, 12). To study NI during latent and lytic phases of KSHV infection, we used a well-established model system consisting of inducible SLK (iSLK) cells latently infected with KSHV BAC16 strain (iSLK-BAC16 cells); treatment of these cells with doxycycline (dox) and sodium butyrate stimulates ectopic expression of the viral replication and transcription activator (RTA) lytic switch protein and reactivation from latency (36). Using reverse transcription quantitative PCR (RT-qPCR), we characterized the progression of lytic replication in iSLK-BAC16 cells by measuring the accumulation of representative gene products from different stages of the lytic replication cycle, including transcripts from immediate early gene RTA, early gene ORF57, and late gene ORF65 (Fig. 2A). iSLK-BAC16 cells have two sources of RTA: the dox-inducible RTA from a transgene stably integrated into the cellular genome and native RTA (nRTA) derived from the viral genome; we used oligonucleotide primers specific for nRTA to selectively measure RTA transcript produced by the viral genome. nRTA transcript levels increased steadily throughout the 72 hour (h) time course, demonstrating reactivation from latency in this model (Fig. 2A). RTA promotes the transcription of early genes, including ORF57; we observed maximal ORF57 transcript levels at 24 h post-reactivation. As expected, the levels of the ORF65 transcript that encodes the small capsid protein peaked at 72 h post-reactivation, marking progression to late lytic replication (Fig. 2A). Viral genome replication is required to license late gene expression (37). We used a qPCR assay to demonstrate that genome replication sharply increased between 24 h and 48 h with little additional increase thereafter (Fig. 2B). The production of infectious KSHV virions was measured by collecting cell supernatants over time and titering them on naïve HEK 293 A cell monolayers and enumerating infected cells expressing the GFP reporter from the BAC16 genome. We observed that while infectious virions were produced at 24 h and 48 h post-reactivation, production peaked at 72 h post-reactivation and increased very little thereafter (Fig. 2C). Based on this finding, we selected the 72 h time point as the optimal window for analysis of KSHV nuclear egress.

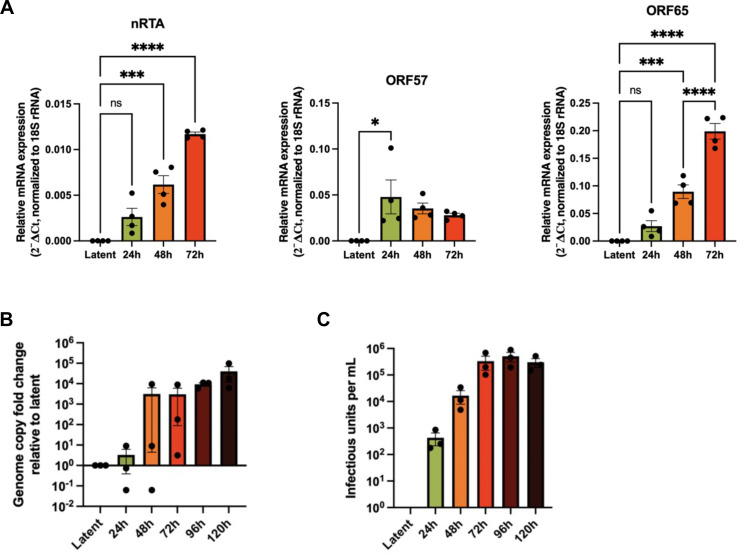

*Production of infectious KSHV virions from iSLK-BAC16-GFP cells peaks at 72 hours post-reactivation. (A) RT-qPCR analysis of viral mRNA accumulation during lytic replication. iSLK-BAC16-GFP cells were reactivated from latency with 1 µg/mL doxycycline and 1 mM sodium butyrate. Total RNA was harvested at the indicated timepoints, and expression of the immediate early gene native RTA (nRTA) (nRTA is transcribed from the viral genome and can be distinguished from the RTA mRNA expressed in trans), early gene ORF57, and late gene ORF65 was measured by RT-qPCR. Transcript levels were normalized to 18S rRNA using the ΔCt method (N = 4 biological replicates; mean ± SEM; significance determined by one-way ANOVA with Tukey’s post hoc test). *P ≤ 0.05; ***P ≤ 0.001; ***P ≤ 0.0001; ns, non-significant. (B) Quantification of viral genome replication. Genomic DNA was extracted from iSLK-BAC16-GFP cells at the indicated timepoints, and fold change in viral genome copies was measured by qPCR targeting ORF26, normalized to β-actin (N = 3 biological replicates; mean ± SEM; one-way ANOVA with Tukey’s post hoc test). (C) Quantification of infectious virus production. Supernatant from reactivated iSLK-BAC16-GFP cells was harvested at the indicated times and used to infect naïve 293 A cells. At 24 h post-infection, cells were fixed and stained with Hoechst, and GFP-positive cells were quantified using Imaris software (N = 3 biological replicates; mean ± SEM; one-way ANOVA with Tukey’s post hoc test).
Transmission electron microscopy (TEM) of iSLK-BAC16 cells harvested at 72 h post-reactivation revealed the presence of NI that appear as large spheroid compartments containing enveloped C-capsids (Fig. 3A). We applied a previously established hierarchical system of NI categorization (10) to our studies of KSHV infection, whereby first-order NI contain C-capsids within a single membrane compartment and second-order NI have non-enveloped C-capsid-containing periplasm-derived vesicles within a single membrane compartment. As previously reported (10), our findings suggest that the lumen of the first-order NI is continuous with the perinuclear space. The lumen of the second-order NI is reminiscent of the nucleoplasm and hypothesized to originate from invaginations of nucleoplasm into first-order NI (10). Third-order infoldings originate from separate compartments within second-order infoldings and have a lumen that has an electron density resembling that of the perinuclear space in our studies and others (10). However, the origin of these compartments remains speculative, and further confirmatory studies are required. We also describe a novel “convoluted membrane” NI, which appeared as a single membrane containing multiple encapsulated vesicles or membrane whorls.

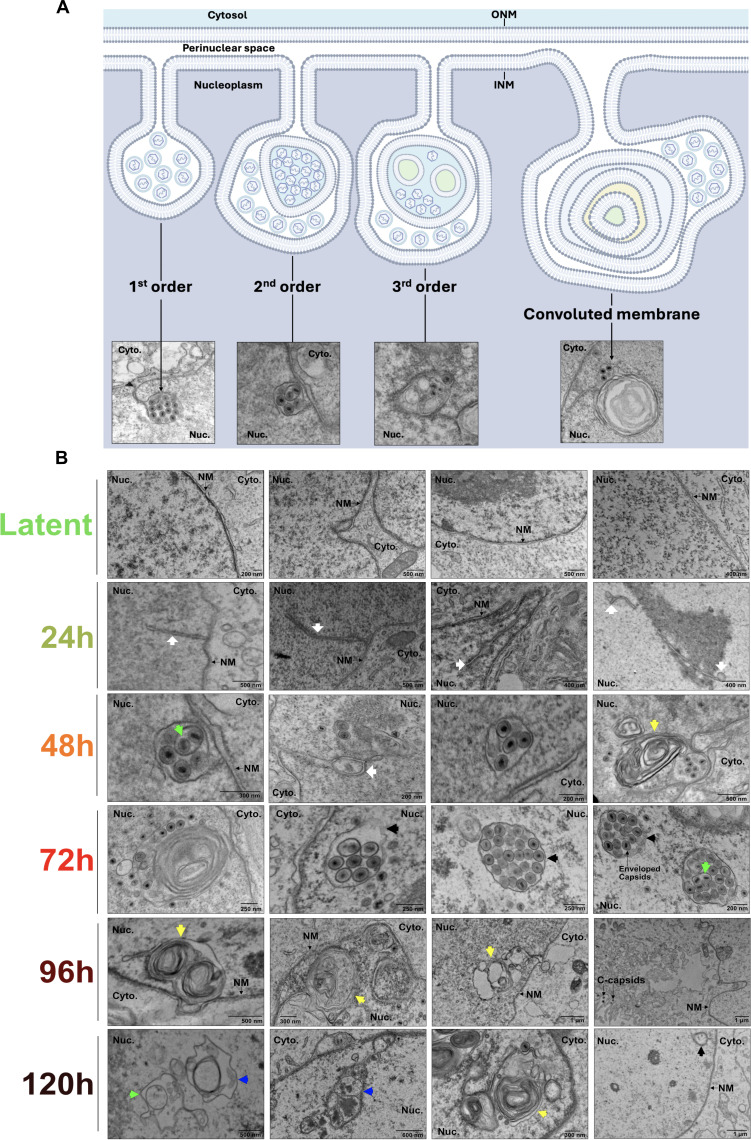

Enveloped KSHV C-capsids accumulate in diverse nuclear infolds. (A) NI exhibit a hierarchical order (first order = 1 infold, second order = 2 infolds, etc.). The ONM and INM are shown in relation to the cytosol (blue) and nucleoplasm (purple). First-order NI appear as single membrane tubules/vesicles that are continuous with the Type-I NR (example image reproduced from Fig. 5). Second-order NI appear as a single membrane compartment that contains one or more additional single membrane compartments (example image reproduced from Fig. 3B). Third-order NI are second-order NI that contain additional compartments (example image reproduced from Fig. 6). Convoluted membranes often appear as a second-order infolds, but the second compartment is a large, convoluted membrane whorl (example image reproduced from Fig. 5). (B) Transmission electron microscopy (TEM) analysis of nuclear envelope remodeling in doxycycline-inducible iSLK cells infected with KSHV BAC16. Cells were reactivated with 1 µg/mL doxycycline and 1 mM sodium butyrate and harvested at 24, 48, 72, 96, and 120 h post-reactivation. Four representative images were selected per timepoint. White arrows mark NI. Black, blue, green, and yellow arrows specifically mark first, second, third, and convoluted membrane infolds, respectively. Nucleus (Nuc), cytoplasm (Cyto), and nuclear membranes (NM) are labeled. Representative images are from N = 3 biological replicates. The complete set of original electron micrographs is available via the Dryad open data publishing platform at the following link: https://doi.org/10.5061/dryad.qbkh18v9.
To visualize nuclear envelope changes over the course of viral replication, iSLK-BAC16 cells were reactivated from latency and harvested for TEM at 24, 48, 72, 96, or 120 h post-reactivation (Fig. 3B). During latency, the nuclear envelope is smooth with evenly distributed lamin (Fig. 3B, first row), and only a few small NI are observed, indicating low basal NI activity, as previously reported in other human cell lines (38, 39). By 24 h post-reactivation (early lytic replication), we observed increases in NI, appearing as short tubules radiating from the nuclear periphery that are sometimes linked to spherical compartments (Fig. 3B, second row). By 48 h post-reactivation (late lytic replication), NI expand into larger spherical vacuoles connected to the INM and often form networks (Fig. 3B, third row). C-capsids enter first-order NI, acquiring a primary envelope, whereas some naked capsids are located in second-order NI; more complex third-order NI are also evident. By 72 h post-reactivation, NI increase in abundance and form large compartments containing numerous enveloped C-capsids (Fig. 3B, fourth row). At this time, NI appear as first, second, third order, and convoluted membrane morphologies. By 96 h post-reactivation, NI are largely devoid of viral capsids and have an altered elongated appearance featuring empty first- and second-order infolds (Fig. 3B, fifth row). A few residual C-capsids can be observed in the nucleus at 96 h post-reactivation, but most are found in the cytoplasm or at the cell surface. Similarly, at 120 h post-reactivation, empty NI continue to be observed, suggesting that these compartments persist long past their peak association with viral capsids (Fig. 3B, sixth row). Table 1 provides quantitative data from all electron micrographs included in this study, enumerating capsid types and their subcellular localization at different times post-reactivation, including information about their association with various types of NI.
During peak activity at 72 h post-reactivation, NI-containing enveloped KSHV C-capsids were often observed within single membrane compartments with first-order NI morphology (Fig. 3B, black arrows). However, C-capsids were also observed budding into single membrane structures surrounding a multi-membrane whorl (Fig. 3B, yellow arrows). In addition, a subset of NI appeared to have a second-order infold structure, and vesicles or tubules were seen inside a compartment akin to first-order NI (Fig. 3B, blue arrows). Finally, although we captured significantly more capsids budding into NI, we still observed “classical” budding at the peripheral NM at 72 h post-reactivation (Fig. 4, white arrows). For example, we observed a cell that contained three classical budding events at the peripheral NM, alongside a complex NI that contained multiple enveloped C-capsids within a first-order NI (Fig. 4 panel iv, black arrow). Taken together, these observations indicate that KSHV C-capsids are associated with diverse NI structures, and envelopment at the peripheral NM and envelopment at NI can take place concurrently in an infected cell.

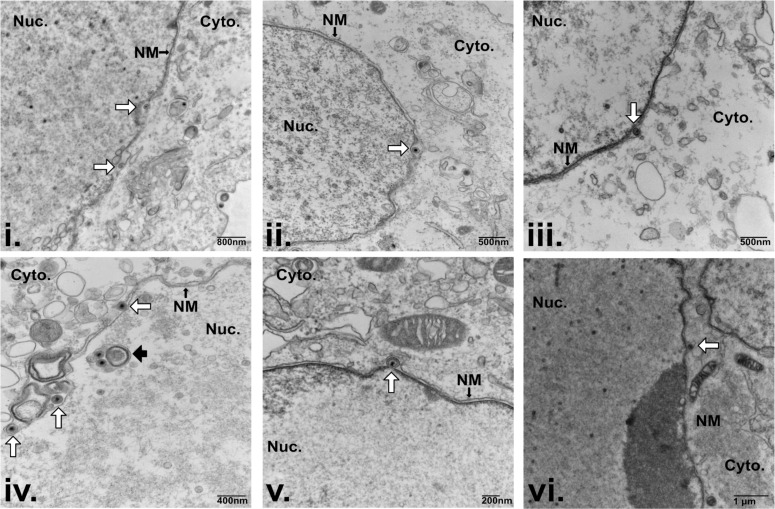

KSHV C-capsids can undergo primary envelopment at nuclear infoldings and the peripheral inner nuclear membrane concurrently. Electron micrographs of iSLK-BAC16 cells reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate and harvested at 72 hours post-reactivation. Nine individual primary envelopment events at the peripheral INM are shown. Image “v.” shows a nuclear infold containing enveloped C-capsids (black arrow) with three canonical peripheral budding events nearby, marked by white arrows.
KSHV buds into Type-I nucleoplasmic reticulum
We observed accumulation of enveloped KSHV C-capsids in NI that resemble the Type-I NR. However, definitive identification of these compartments as Type-I NR requires evidence of their direct connection to the INM. At 72 h post-reactivation, we observed enveloped KSHV C-capsids within NI that were clearly connected to the INM, but not the ONM, by a tubule (Fig. 5, white arrows; blue lines trace continuity with the INM). An electron-dense layer resembling the nuclear lamina extends along the neck of the Type-I NR but appears largely absent around spheroid compartments containing enveloped C-capsids (Fig. 5, white dashed lines). In some cases, this dense layer is challenging to distinguish from peripheral heterochromatin, and we therefore acknowledge the possibility that, in certain images, the observed density may include contributions from both the lamina and adjacent chromatin. Our observations are consistent with established literature describing Type-I NR, which typically feature a small amount of nuclear lamina limited to regions adjacent to the peripheral INM (12, 40). These observations are also consistent with the lamin-poor Type-I NR observed during MCMV infection (9). By contrast, even though Type-II NR also expands during KSHV lytic replication, and we observed C-capsids adjacent to Type-II NR, we have never observed budding events at these structures.

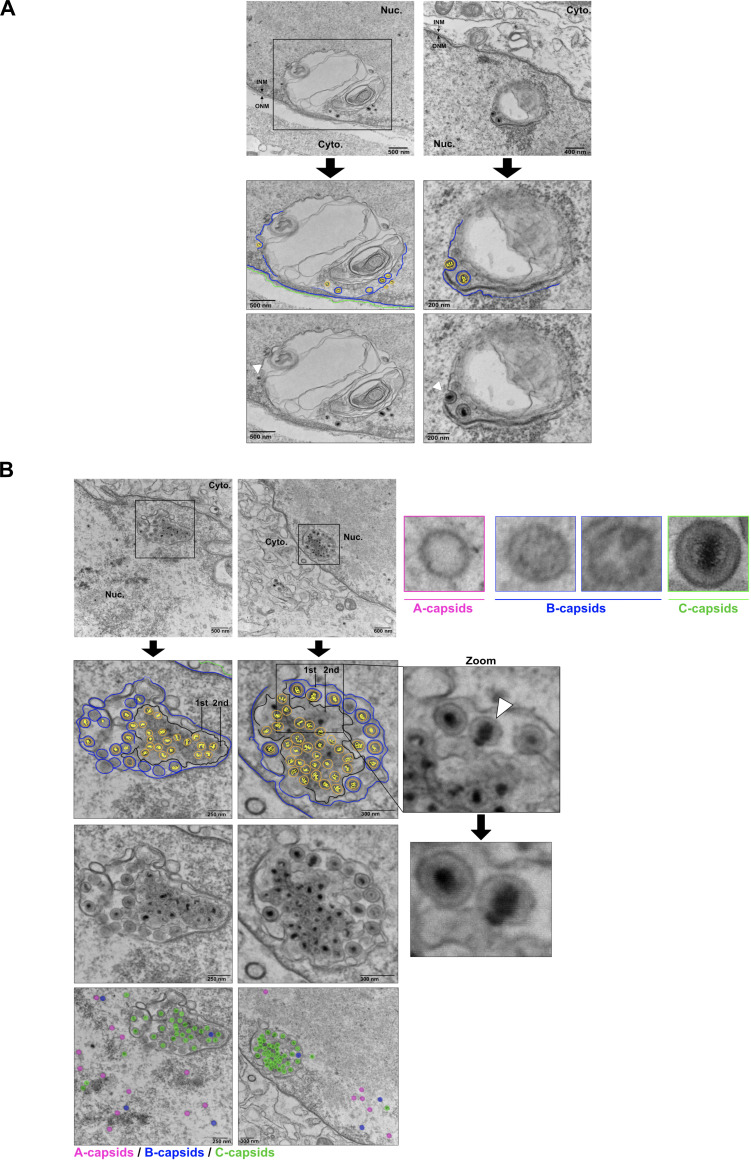

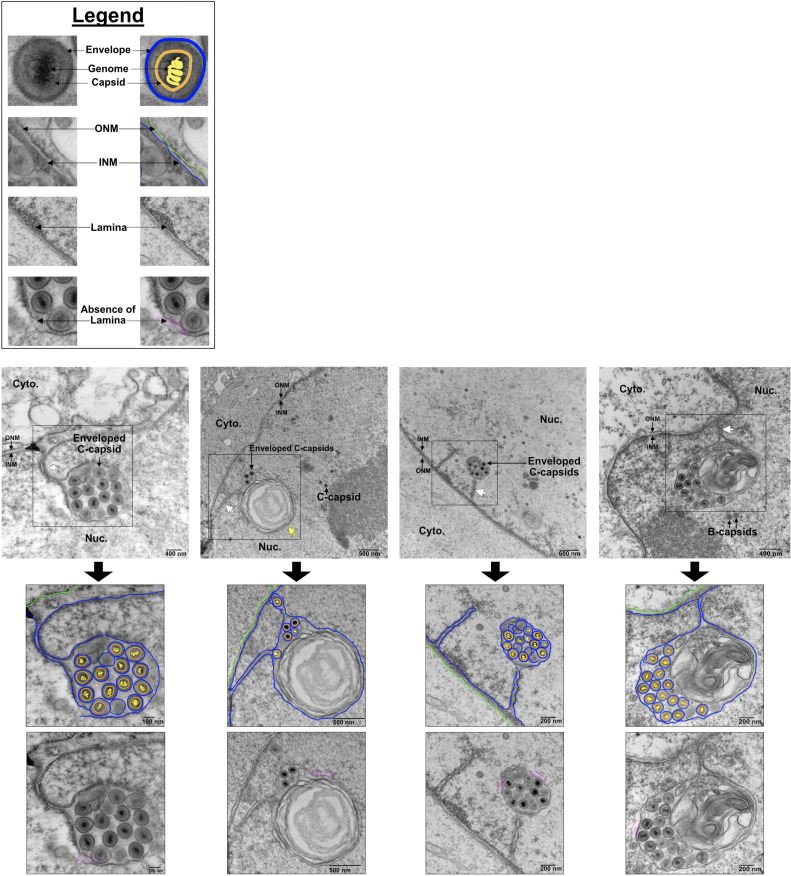

Primary envelopment of KSHV C-capsids at Type-I nucleoplasmic reticulum. Electron micrographs of iSLK-BAC16 cells reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate and harvested at 72 h post-reactivation. An electron-dense matrix that resembles nuclear lamina is marked by white dashed lines across different NR regions. White arrows mark tubules connecting intranuclear compartments in the INM. The yellow arrow points to a convoluted membrane. Duplicate images are colorized to aid interpretation: INM (blue), ONM (green), enveloped C-capsids (blue), capsids (orange), and nucleoproteins (yellow). Discontinuities in the INM are indicated by blue dotted lines. A legend is provided to help the reader inspect TEM images and identify key features, including envelope, genome, capsid, ONM, INM, lamina, and absence of lamina. The images associated with the legend were reproduced from our collection of electron micrographs and include a capsid presented in Fig. 8. The complete set of original electron micrographs is available via the Dryad open data publishing platform at the following link: https://doi.org/10.5061/dryad.qbkh18v9.
During HCMV infection, Type-I NR is a complex consisting of a hierarchy of compartments interconnected by tubules (10). Similarly, we documented numerous instances where spherical compartments containing enveloped C-capsids were connected to other spherical compartments by a tube-shaped “neck,” resulting in the formation of a network (Fig. 6). We frequently observed C-capsids budding into 1st order NI surrounding, and/or sometimes appearing to be contiguous with, convoluted membranes, but C-capsid access to the convoluted membrane interior was exceedingly rare, suggesting a potential barrier in capsid access to convoluted membrane structures.

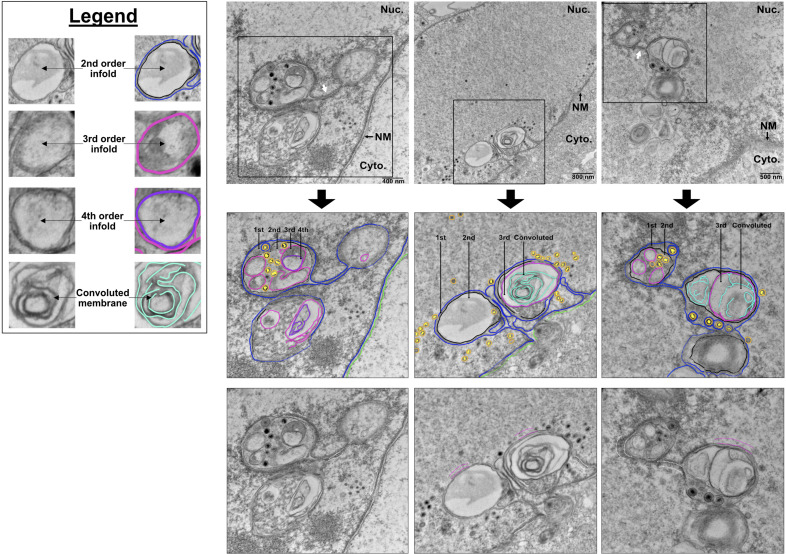

Type-I NR forms hierarchical membrane networks comprised of interconnected spherical compartments and tubules. Electron micrographs of iSLK-BAC16 cells reactivated with 1 µg/mL doxycycline and 1 mM sodium butyrate and harvested at 72 h post-reactivation reveal complex Type-I NR morphologies. Compartmental Organization includes first-, second-, third-, and fourth-order infoldings, as well as highly convoluted membrane structures. These nested compartments are interconnected via tubules, suggesting a dynamic, multi-layered membrane architecture. Enveloped C-capsids are visible within first-order infolds.
Taken together, our observations indicate that NI associated with KSHV C-capsids during infection are lamin-poor and continuous with the INM, meeting the definition of the Type-I NR (12). Similar to HCMV infection (10), the Type-I NR is remodeled into membranous networks during KSHV infection, characterized by multiple spherical compartments connected by tubule necks to the INM.
Nucleoplasmic reticulum expansion in KSHV-infected cells correlates with recruitment of CTP:phosphocholine cytidylyltransferase and increased intranuclear VAPA
We next conducted immunofluorescence microscopy studies on KSHV-infected cells to determine the subcellular localization of key proteins involved in NR expansion, lamin A/C, VAPA, and CCTα (41). VAPA engages oxysterol-binding protein–related protein 3 and Rab7 to form the VOR complex responsible for the transfer of extracellular vesicle (EV)-derived components from endosomes into the NR. This mechanism delivers cargo from internalized EVs to specific regions in the nucleoplasm, often near the nucleolus. CCTα is activated by insertion of a lipid-sensing amphipathic helix into the INM, where it catalyzes the rate-limiting step for PtdCho synthesis required for de novo membrane biogenesis (42). CCTα also aids in NR expansion by promoting membrane curvature in collaboration with a lamin A/B1 scaffold (Fig. 1). Since the ER is continuous with the ONM, VAPA marks Type-II NR, whereas CCTα is associated with both Type-I and II NR.
In latently infected cells, lamin A/C is uniformly distributed across the INM and intensified at the nuclear envelope edges (Fig. 7A and B). By 72 h post-reactivation, lamin A/C projections radiate from the INM, forming spherical compartments, consistent with NR expansion reported in previous studies of the NR (43, 44) and lamin reorganization during HCMV, EBV, HSV-1, and HSV-2 infection (31, 32, 45, 46). By 96 h, lamin A/C-positive tubules emerged from the INM, exhibiting a branched, cylindrical morphology and linking multiple NR compartments. One limitation of this lamin A/C immunostaining procedure is that it does not detect lamin-poor NR compartments that were readily detected by TEM; instead, these immunostaining images show lamin A/C-positive tubules lacking a terminal compartment, which is likely undetectable due to lamin deficiency.

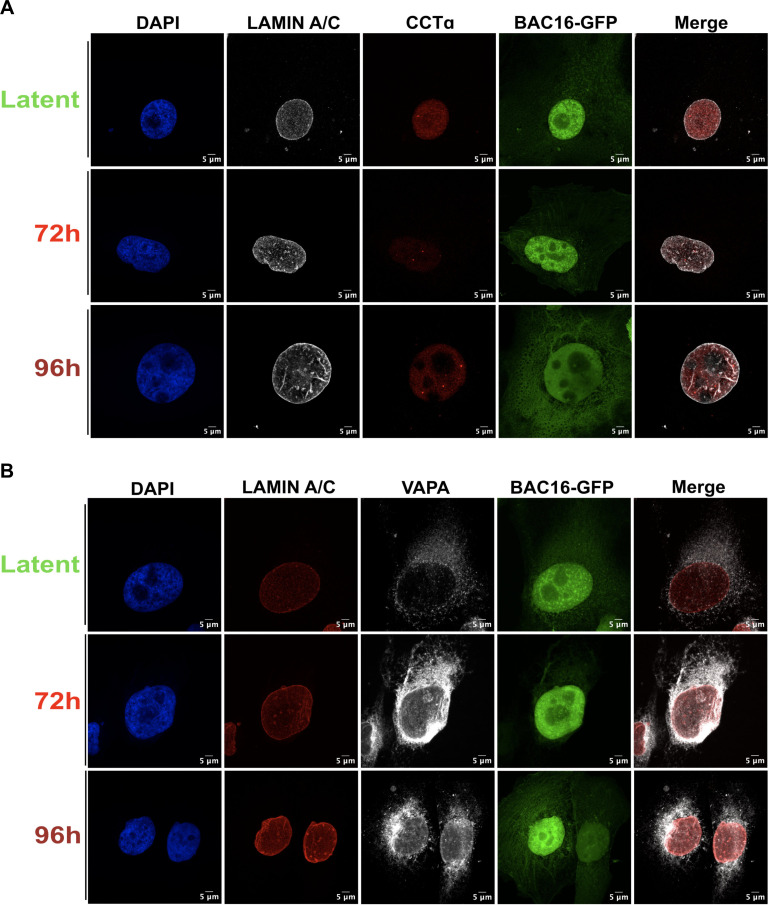

Nucleoplasmic reticulum expansion in KSHV-infected cells correlates with the emergence of CTP:phosphocholine cytidylyltransferase puncta and increased intranuclear VAPA. (A and B) iSLK-BAC16 cells cultured on coverslips were reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate and harvested at 72 and 96 h post-reactivation. Cells were fixed and immunostained for lamin A/C and CCTα (A) or lamin A/C and VAPA (B). All images were acquired using a confocal laser scanning microscope and are presented as maximum intensity projections from one of three independent experiments.
CCTα staining in latently KSHV-infected cells was uniformly distributed in the nucleoplasm, with only occasional puncta, suggesting that CCTα primarily remains in its inactive state (Fig. 7A). By 72 and 96 h post-lytic reactivation, CCTα puncta were prominent, indicating activation at membranes within the nucleoplasm. These CCTα puncta partially overlapped with lamin A/C-positive structures, suggesting that CCTα localizes to compartments with and without lamin A/C. VAPA staining in latent cells was primarily localized to the peripheral ER, with dim puncta scattered throughout the nucleus (Fig. 7B). At 72 h post-reactivation, VAPA-positive veins and hollow loops appear near the nuclear periphery, characteristic of Type-II NR. By 96 h, bright VAPA-positive puncta and tubules extend through the nucleus, displaying partial co-localization with lamin A/C, confirming our previous observations of increased Type-I and Type-II NR in these cells by TEM.
Selective budding of C-capsids into Type-I nucleoplasmic reticulum
Our frequent observation of KSHV C-capsids near and within Type-I NR motivated further analysis of selective capsid recruitment and budding at these structures. Indeed, we captured events of capsid budding into Type-I NR where the surrounding membrane appeared to conform tightly around this capsid, consistent with membrane curvature changes associated with capsid envelopment (Fig. 8A). Furthermore, in nuclei containing an assortment of capsid types, we observed that C-capsids were associated with Type-I NR structures, whereas B-capsids and A-capsids were largely restricted to the nucleoplasm (Fig. 8B). We also observed complex Type-I NR structures bearing enveloped C-capsids, as well as naked C-capsids in the interior of second-order Type-I NR. These observations suggest that C-capsids can accumulate at invaginations of the nucleoplasm into the Type-I NR. Capsids from all TEM images in this study were counted and their abundance in different regions of the infected cell was recorded as follows: (i) capsids in the NR (further divided into capsids present in first-order infolds and second-order infolds), (ii) capsids in the perinuclear space, (iii) total capsids in the nucleus (including all capsids associated with the NR and peripheral NE, and (iv) total capsids in the cytoplasm (Table 1). At 48 h post-reactivation, 18% of nuclear capsids were associated with the NR compartment, increasing to a peak of 30% by 72 h post-reactivation. Most NR-associated capsids at all timepoints were localized to 1st order infolds, suggesting preferential capsid accumulation at these structures. By 96 h post-reactivation, the proportion of NR-associated capsids declined to 3% and most C-capsids were found in the cytoplasm, leaving behind a greater proportion of nuclear A- and B-capsids. These findings provide evidence for a primary envelopment pathway that specifically selects for C-capsids, where the hierarchy of Type-I NR architecture plays a role in capsid transit. Importantly, the cells analyzed were enriched for prominent NR compartments and therefore do not represent their frequency across the total lytic population.
Selective budding and fusion of C-capsids into Type-I nucleoplasmic reticulum. (A) iSLK-BAC16 cells were reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate. Cells were harvested 72 h post-reactivation and processed for transmission electron microscopy (TEM). White tailless arrows show C-capsids budding into the Type-I NR. (B) Unenveloped C-capsids accumulate within the second-order NI. iSLK-BAC16 cells were harvested for TEM as described for panel A. Zoomed-in images show a C-capsid transitioning between second-order and first-order nucleoplasmic reticulum compartments, highlighted by a white tailless arrow. First- and second-order compartments are labeled as such. A (pink), B (blue), and C (green) capsids are colorized, and representative images of each capsid type are shown on the right-hand side.
Dynamic labeling of viral genomes using CLICK chemistry enables capsid tracking at the nucleoplasmic reticulum
Despite evidence that KSHV C-capsids can undergo primary envelopment and perhaps de-envelopment at Type-I NR and accumulate in the cytoplasm over time, it remains difficult to determine the fate of capsids by inspecting static electron micrographs. Nevertheless, we did observe capsids in the narrow “neck” of Type-I NR structures and congregating in the space between the ONM and expanded INM (Fig. 9A, black arrows). We reasoned that labeling of viral genomes prior to their loading into nascent capsids could enable tracking of capsid nuclear egress. To monitor capsid trafficking in NR compartments, we conducted live-cell imaging experiments using the green fluorescent dye 3,3′-Dihexyloxacarbocyanine Iodide (DiOC_6_) to label polar lipids, including NR, and inverse electron demand Diels-Alder (IEDDA) CLICK chemistry to label viral genomes (47). We pulsed labeled newly synthesized viral DNA with the synthetic nucleotide 5-vinyl-2'-deoxyuridine (VdU), followed by treatment with acridine tetrazine (PINK) (48); a similar approach was recently used to study replication compartments during adenovirus and HSV-1 infection (49). iSLK-BAC16 cells stably expressing blue fluorescent protein (BFP) were seeded on coverslips, reactivated from latency, and pulsed with VdU at 40 h post-reactivation. Cells were subsequently fixed, incubated with PINK, and processed for immunofluorescence imaging at 72 h or 96 h post-reactivation. In latently infected cells, nuclear DNA labeling was uniformly distributed, consistent with VdU incorporation into viral DNA as well as host DNA during S-phase. Because KSHV lytic replication triggers host cell cycle arrest (50), these cells exhibit reduced DNA labeling overall and the emergence of nuclear puncta representing newly synthesized viral DNA (Fig. 9B). These red fluorescent puncta co-localized with KSHV ORF65 (small capsid protein), confirming their identity as viral genomes that were subsequently packaged into capsids (Fig. 9C). At 72 h post-reactivation, puncta containing viral DNA and ORF65 were often clustered near DiOC_6_-labeled invaginations, confirming capsid association with the NR as we observed previously by electron microscopy. By 96 h post-reactivation, these capsid puncta largely accumulated in the cytosol, suggesting that newly assembled capsids containing labeled viral genomes were competent for nuclear egress.

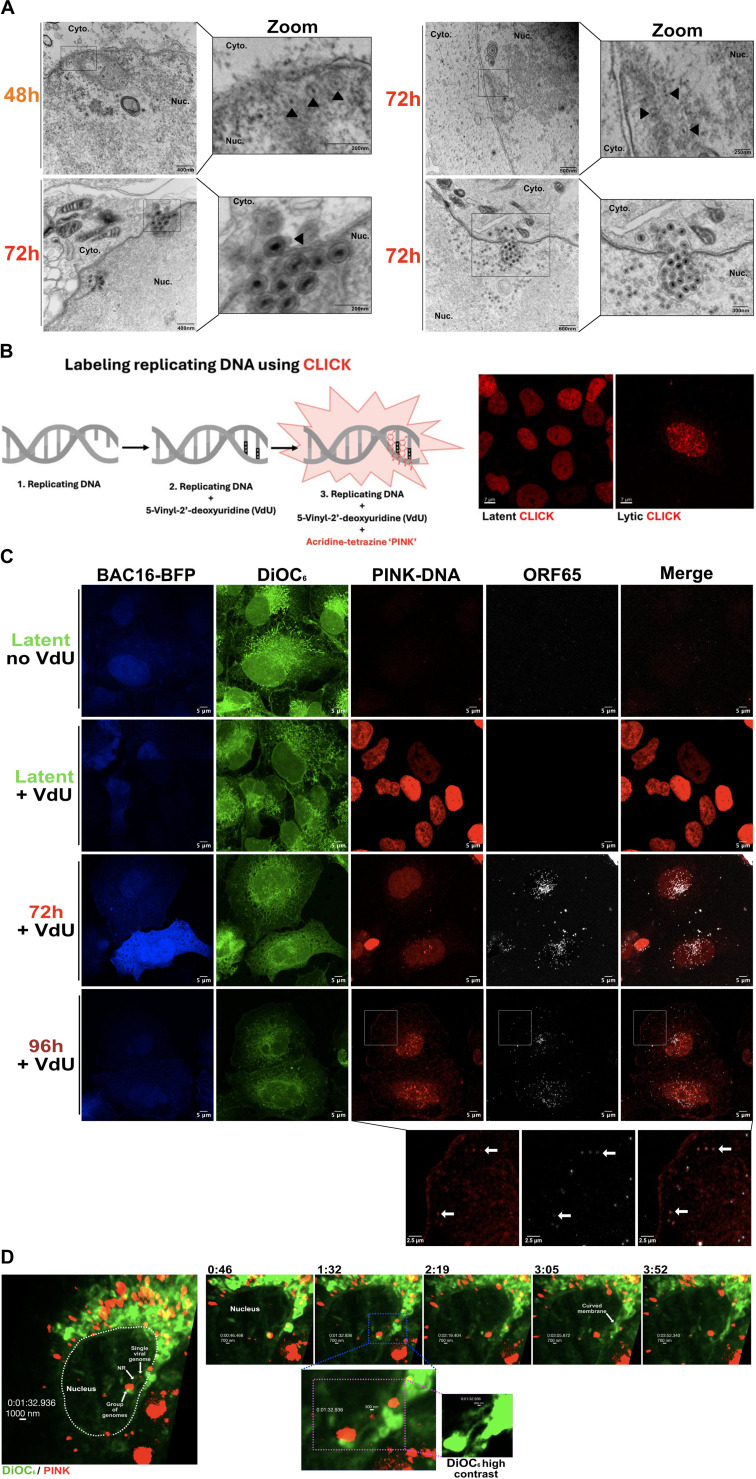

Dynamic labeling of viral genomes using CLICK chemistry enables capsid tracking at the nucleoplasmic reticulum. (A) iSLK-BAC16 cells were reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate for the indicated timepoints and analyzed by TEM. Capsids visualized in Type-I NR necks and found invading the cytoplasm are indicated by black tailless arrows in enlarged images on the right-hand side. (B) Diagram of CLICK chemistry. A synthetic nucleotide analog (VdU) is incorporated into newly replicating DNA. The probe called photo-inducible nucleotide KLICK (PINK) is added to live cells. PINK intercalates into DNA and forms a covalent bond with VdU, resulting in the dequenching of PINK and fluorescence emission. Latent cells are readily labeled by PINK due to host genome replication (shown in red). In lytic cells, host genome replication is arrested, and less PINK labeling occurs, instead revealing PINK-positive puncta marking newly synthesized viral genomes. (C) CLICK-labeled genomes associate with the ORF65 capsid protein. iSLK-BAC16 cells cultured on coverslips were reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate. Cells were harvested at 72 h and 96 h post-reactivation. Coverslips were fixed and immunostained for ORF65 (white), incubated with the lipid stain DiOC6 (green), and CLICK chemistry using PINK was applied (red) (N = 2). (D) Live-cell imaging of CLICK-labeled iSLK-BAC16 cells reveals exit from the nucleoplasmic reticulum. iSLK-BAC16 cells were seeded in chamber well slides and reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate. To label newly synthesized DNA, cells were pulsed with VdU at 40 hours post-reactivation. At 44 hours post-reactivation, cells were pulsed with PINK (red) for 4 hours followed by three washes with warm media. At 72 h post-reactivation, cells were stained with DiOC6 (green), which marks the nuclear membrane and other cellular membranes containing polar lipids. Live images were captured as Z-stacks (seven slices) under 100× oil immersion at 46 second intervals (Zeiss Cell Observer Spinning-disk Confocal) (N = 2). White dashed lines mark the nuclear envelope at 0:00 minutes. A blue-sashed box marks an inset showing areas of potential viral genome release from the NR. The inset highlighted by a pink dashed box provides increased detail as a high-contrast image of the green DiOC6 channel that highlights NR structure.
We next used live-cell microscopy to track the fate of NR-associated CLICK-labeled viral genomes in real time. iSLK-BAC16 cells were reactivated from latency and pulsed with VdU at 40 h post-reactivation, followed by a PINK pulse from 44 to 48 h post-reactivation. DiOC_6_ staining allowed us to visualize the expanded NR in live cells, highlighting brightly stained compartments connected to the INM by a hollow “neck” (Fig. 9D). In the cell nucleus, DiOC_6_-positive NR co-localized with large red fluorescent clusters of newly synthesized DNA (Fig. 9D, Movies S1 and S2). In real time, we observed smaller DNA foci appear to emerge from the densely packed compartment and transit an NR neck to the peripheral NE (Fig. 9D, 1: 32 and 2:19 minutes). In the next frames, we observed the positive curvature of the NE and arrival of viral DNA puncta in the cytoplasm (Fig. 9D, 3:05 and 3:52 minutes). Thus, these images show that capsid transit from large NR compartments to the cytoplasm can occur in a few minutes. Increasing the contrast of the DiOC_6_-stained NR neck revealed intricate spherical patterns along the NR neck, resembling primary envelopes in both size (~300 nm) and shape. Based on this data, we suggest that capsids with labeled viral genomes can transit from NR compartments to the cytoplasm.
Fluorescent KSHV capsid transit through nucleoplasmic reticulum
To further investigate the role of the NR in KSHV nuclear egress, we performed live-cell imaging using a dual-color reporter KSHV (51). This BAC16-ORF65_mScarlet-gM_mNeon virus (hereafter RG-BAC16) encodes fluorescent capsid (ORF65_mScarlet) and envelope (gM_mNeon) proteins, enabling real-time tracking of capsid assembly and nuclear egress (Fig. 10A, bottom right cartoon). At different times post-reactivation, iSLK cells infected with RG-BAC16 were stained with anti-lamin B receptor (LBR) antibody to mark both Type-I NR and Type-II NR structures (Fig. 10A). At 72 h post-reactivation, bright ORF65_mScarlet puncta appear in the nucleus, alongside more diffuse cytoplasmic staining, likely reflecting newly synthesized ORF65_mScarlet that has yet to be imported to the nucleus. ORF65_mScarlet puncta were often observed in association with LBR-positive NR that appeared as spherical compartments connected to the NE by hollow “necks.” By 96 h post-reactivation, cytoplasmic ORF65_mScarlet puncta increased and could be seen in proximity to gM_mNeon, although some ORF65_mScarlet signal remained associated with the NR and peripheral nuclear membrane. These images suggest that ORF65-mScarlet reporter protein can be used to monitor trafficking of newly assembled KSHV capsids.

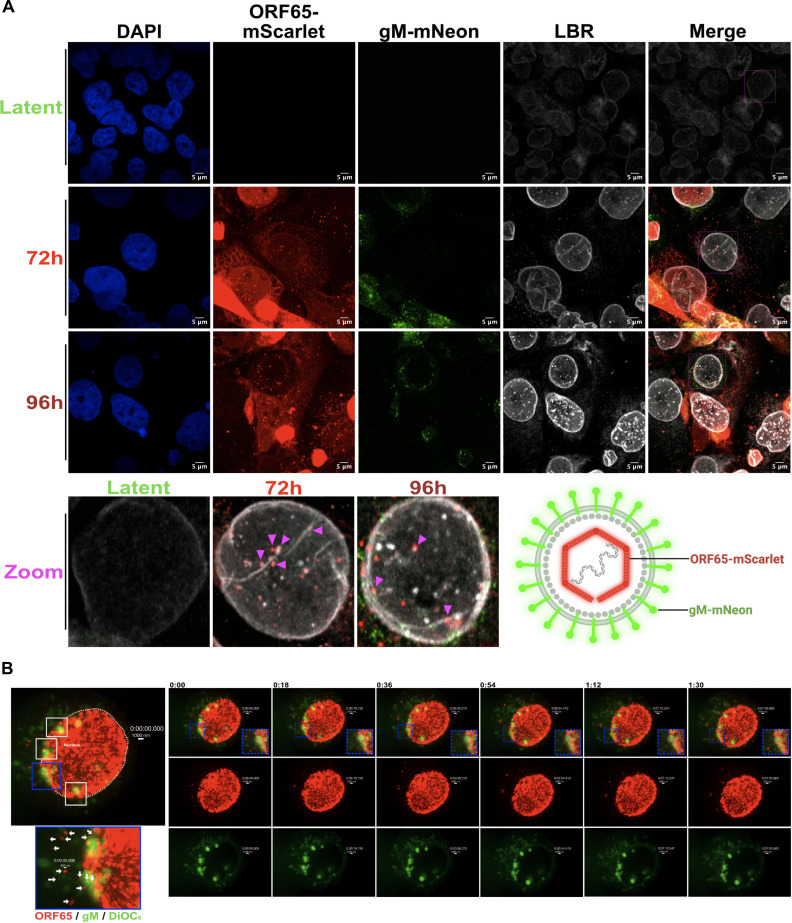

Fluorescent KSHV capsids transit through the nucleoplasmic reticulum. (A) Fluorescent KSHV capsids are observed at the NR. Diagram of dual-labeled KSHV virions expressing fluorescent capsid and envelope markers (bottom right cartoon). ORF65-mScarlet fusion protein enables tracing of KSHV capsids, with gM-mNeonGreen marking locations of viral envelope glycoproteins, which enables real-time tracking of capsid and envelope dynamics during infection. iSLK-ORF65-mScarlet/gM-mNeon cells were seeded on coverslips and reactivated from latency by the addition of 1 µg/mL doxycycline and 1 mM sodium butyrate. Cells were harvested at 72- or 96 hours post-reactivation and immunostained with anti-lamin-B receptor antibody to mark the NR (white) and stained with DAPI to mark nuclei (blue). Magenta boxes highlight insets shown in zoomed-in images below, enabling capsid co-localization with LBR compartments to be seen in detail at 72 h and 96 h timepoints. (N = 2) (B) Live-cell imaging shows ORF65-mScarlet-positive puncta closely associated with the nucleoplasmic reticulum (bright green circles) and appearing to shuttle from the NR into the cytoplasm. iSLK-ORF65_mScarlet–gM_mNeon cells were reactivated and stained with DiOC6 and imaged live using 100× oil immersion (6 Z-stacks slices taken over 18 second intervals, Zeiss Cell Observer Spinning-disk Confocal microscope, N = 2). Time is shown as minutes:seconds. Although both gM and DiOC₆ fluoresce in the green spectrum, DiOC₆ was used to visualize the NR during live-cell imaging. As shown in panel A, some perinuclear gM-mNeon signal can be observed, but it is far less intense than DiOC6-labeled NR compartments. White arrows indicate ORF65-positive puncta. White dashed lines outline the nuclear envelope at 0:00. Blue insets highlight where puncta are concentrated in and released from regions of the nucleus, where NR structures are prominent.
