Diagnosis of Trypanosoma cruzi infection in Mexican populations: current conventional serology lacks adequate sensitivity and specificity

TL;DR

This study shows that current blood tests for Trypanosoma cruzi in Mexico are not reliable and suggests using molecular methods for better diagnosis.

Contribution

The study evaluates diagnostic performance in specific ethnic populations and highlights the inadequacy of conventional serology.

Findings

Only 81% of previously diagnosed infections were reconfirmed using serology.

Serological sensitivity was 8% and specificity 16% in the primary diagnosis cohort.

Molecular testing identified T. cruzi and T. dionisii co-infections using 18S ribosomal DNA.

Abstract

The performance of serological tests for Trypanosoma cruzi
diagnosis in Mexico has not included discordant control sera nor has it
evaluated the role of immune response specificities, patient infection
history or clinical status.

The performance of commercial serological and molecular diagnostic tests and
diagnostic algorithms was analysed in Mixtecan and Zapotecan ethnic
populations having recent and long-term infection history.

An amplified global gold standard for T. cruzi infection
included serological (≥ 2 conventional tests positive) and molecular
(sequence identity of any of five genes using end point polymerase chain
reaction (epPCR) or any positive using quantitative polymerase chain
reaction (qPCR) diagnostic test results.

Only 81% of previously diagnosed untreated infections were reconfirmed using
serology, while an additional 14% only using PCR. Serological diagnosis
sensitivity (≥ 2 tests positive) in the primary diagnosis cohort was 8%,
while specificity was 16%. Diagnosis sensitivity was similar using epPCR and
qPCR only in primary diagnoses and all identified using the satellite (SAT)
gene. The 18S ribosomal DNA identified T. cruzi and
T. dionisii co-infections from Pacific coast sites.

The current study provides evidence for inadequate diagnostic performance of
conventional serological tests and the need to develop appropriate antigenic
tools and use molecular testing of seronegatives to ascertain absence of
infection.

Figures

Full text

Zoonotic Trypanosoma cruzi and Chagas disease in humans (CD) are widely distributed in the American continent as in Mexico, causing important clinical and economic burden.1 ^,^ 2 ^,^ 3 ^,^ 4 Estimates of CD prevalence in Mexico suggests that between 2 and 4 million individuals may be T. cruzi infected and that incidence has doubled from 46,600 cases in 19905 to 86,500 cases in 2018.6 ^,^ 7 These data, however, are considered underestimates since there has been systemic deficiencies in acute and chronic case detection, treatment and transmission prevention, at least prior to 2020.8

Seroprevalence analyses covering most regions in Mexico suggest gradients among urban, suburban, and rural areas such as 1.0%, 2.4% to 3.2%, respectively, from Nuevo Leon,9 while 6.6% from rural Queretaro,10 17.8% from rural Jalisco11 and 4.8% from rural Campeche.12 Migrant Mexican blood donors double-tested in the United States (not filtered by single test screening) are 2.2% to 4.7% seropositive,13 although blood samples have low antibody reactivity and clinical sensitivity.14

Analyses of 64,969 blood donations from 18 Mexican states reported 1.5% seropositivity overall in blood donations (subjected to screening filters),15 although other studies report a range 0.01% to 3.1% seropositive screened donations16 and independent blood bank studies report from 0.5% to 2.8% seroprevalence.17 ^,^ 18 Even assuming no impact due to screen test false seronegativity, a blood bank survey conducted in 2008 (560 blood banks) estimated approximately 2000 inhabitants each year are at risk of contracting T. cruzi infection due to the lack of universal donation blood screening,19 while a subsequent study (503 blood banks) estimated that only 74% of banks conducted quality control, suggesting continued deficient screening compliance.20 Improper undisclosed performance analyses for screening procedures may cause the bias observed in the discrepancies evidenced between seroprevalence reported by blood banks vs. open populations. A 4% seroprevalence is reported from rural populations in Puebla,21 although blood donation seroprevalence ranges from 0.14% in an urban centre,16 1.24% in rural, but 7.7% in suburban banks.22 ^,^ 23 In Veracruz, seroprevalence in blood donations ranges from 0.5%18 to 0.94%,16 while there is 16.8% seroprevalence evidenced from 19 rural communities.24 A similar example from Chiapas reports 0.31% seroprevalence from urban blood donations,16 while 22% seroprevalence reported from rural populations25 and 5.0% in pregnant women.26

Although these discrepancies may derive from multiple study design and testing biases and/or different procedures used for diagnosis,27 ^,^ 28 ^,^ 29 including the double urban to rural blood donor ratio, other poorly analysed factors such as T. cruzi population shifts over the course of natural infections and differences of immunodominant phenotypes from short and long-term infections may affect the quality, quantity or affinity of antibody responses.30 ^,^ 31 Phenotypic and antigenic differences have been evidenced between T. cruzi strains from South and North America and there are clear differences in immune responses among human infections from different regions within the continent.32 ^,^ 33 Additionally, multiple clinical case reports in Mexico have reported false negative serology from clinical settings in patients with demonstrated T. cruzi infection using histology,34 mini-exon (ME) end point polymerase chain reaction (epPCR) and haemoculture,35 PCR using brain tissue biopsy36 and using satellite (SAT) and 18S ribosomal DNA (18SrDNA) PCR.37 Given high T. cruzi diversity evidenced in Mexican vectors and zoonotic reservoirs,38 ^,^ 39 ^,^ 40 it is expected that even within the country there may be a broad diversity of immune responses, despite the dominant discrete typing unit I (DTUI) lineage and secondary prevalence of DTUVI.41 Non-autochthonous recombinant, synthetic antigens or proteins/peptides may not reflect regionally-specific parasite strains, diversity or shifting specificities. Epitope specificities and low-level T. cruzi specific antibodies may not be detectable using current conventional or point of care rapid tests, thereby reducing sensitivity and specificity to detect human immune responses in Mexico.27 ^,^ 31 ^,^ 42 ^,^ 43 Low sensitivity (62.5%) of the Stat-Pak rapid test as compared to conventional assays and in comparison with South American populations of seropositive pregnant women is another clear example of regional antigen/immune response variation.44

Precise diagnostic capacity of T. cruzi infection is essential to characterise the diversity and broad distribution of CD burden and inform public policy in Mexico, whether by serological or parasitological methods. In order to evaluate the performance of current diagnostic tools and algorithms for population cohorts having different infection history, the aim of the present study has been to analyse the sensitivity and specificity of currently available T. cruzi serological and molecular diagnostic methods using a global gold standard. Herein we report results from previously studied population cohorts from three regions in Oaxaca. Two groups from each site were selected: the first was composed of individuals who had previous T. cruzi diagnosis but no etiological treatment (secondary diagnosis group - SDG) and the second was a same-community control of exposed subjects diagnosed for the first time (primary diagnosis group - PDG). Samples from all subjects were analysed using multiple serological tests currently approved in Mexico (conventional and rapid), recombinant T. cruzi-specific proteins, and molecular analyses using epPCR (and sequencing of five nuclear and mitochondrial gene fragments) and TaqMan quantitative polymerase chain reaction (qPCR) for two genes.

MATERIALS AND METHODS

Ethics statement - Studies were conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the Instituto Nacional de Salud Pública de México Ethics Committee (CI1237 to JMR). All adult subjects or parents-guardians of minors gave their signed informed consent and minors signed assent for participation prior to inclusion in the study and all provided approval for secondary use of remaining blood sample aliquots. No specimen is connected to any personal information. Participants were also invited and signed informed consent to be evaluated by a project physician through a clinical history, general physical examination, and 12-lead electrocardiogram. All diagnostic and clinical results were given to participants individually (on paper and electronically if requested) and overall results and strategies to access healthcare and treatment through the public health service (PHS) discussed in collective meetings. All diagnostic and clinical results were submitted to the corresponding Sanitary Jurisdiction Heads (JSI, JSII, JSIV in Oaxaca). There are no conflicts of interest to report.

Study sites and populations - Study populations were invited to participate during county and community-based CD longitudinal engagement, surveillance and prevention projects conducted between 2003 and 2015 in three distinct regions in Oaxaca state: (1) Santos Reyes Nopala (SRN) county (0970837 latitude/160621 longitude, 45 communities), (2) Salina Cruz (SC, 0951145 lat/161057 long), and (3) Santa Cruz Papalutla (SCP, 0963502 lat/165720 long) [Supplementary data (Fig. 1)]. Demographic and exposure variables for each of the three populations are summarised in Supplementary data (Table I).

In each original engagement project, any individual recognising direct contact with bugs based on self-evaluation (having seen bugs in houses, having had dermal chinchomas or having altered cardiological or gastrointestinal symptoms) requested and was tested for T. cruzi infection. Following signed informed consent and assent (minors), blood samples were analysed using two-three T. cruzi serological tests by each of three laboratories (the Oaxaca State Public Health Laboratory, the National Diagnostics and Reference laboratory, and the Instituto Nacional de Salud Pública - INSP - Chagas laboratory). Sustainability of community-based surveillance and prevention was evaluated periodically and in 2015 none of the 45 inhabitants originally diagnosed had been treated: SRN (N = 12), SCP (N = 19), or SC (N = 14). All inhabitants originally diagnosed with T. cruzi (between 2004 and 2008) were assigned to the SDG and any family member or neighbour having exposure risk or seeking diagnosis between 2016-2017 was invited to participate and assigned to the PDG. Following informed consent and approval to share diagnostic and clinical results with public health services for subsequent treatment, all participants responded to an exposure risk survey and a blood sample (two vials of 5 mL) was drawn for standard serology (four tests) and one rapid serological test (one vial in serum separation tube - SST) and the second vial in guanidine - EDTA buffer (GEB) for molecular parasite detection.38

Serological diagnosis using conventional and rapid test - Serum samples were tested for T. cruzi antibody using four conventional commercial enzyme-linked immunosorbent assay (ELISA) included in Mexican and international reference strategies. All assays were conducted in the Infectious Disease Laboratory at the Instituto Nacional de Nutrición y Ciencias Médicas Salvador Zubirán (INNCMSZ) per manufacturer instructions: (S1) Bio-Rad Chagascreen Plus v4 (recombinant antigen), (S2) Test ELISA Chagas III, Bios, Chile, (S3) Accutrack Chagas Microelisa Test System, Laboratório Lemos S.R.L., (S4) Accutrack Chagas recombinant microELISA Test, Laboratorio Lemos S.R.L.45 All serum samples were evaluated in duplicate and ELISA cut-off values were calculated as the mean optical density (OD) of replicate true negative serum samples plus three standard deviations (SD) of that mean (+ 3 SD). Aliquots of all serum samples were additionally analysed using the Chagas Ab Rapid serological test (Standard Diagnostics Bioline) according to the manufacturer’s instructions.46

Trypanosoma cruzi-specific antibody using recombinant proteins - All sera were screened for antibodies reactive to a panel of 10 recombinant T. cruzi proteins (Kn122, Kn107, Kn80, Kn117, FF10, LE02, G10, Fab4, ATPase, calmodulin) in a Luminex-based format at the Centre for Tropical and Emerging Global Diseases, University of Georgia, as previously described.28 All samples were run in replicate in four batches along with T. cruzi Y strain lysate (amastigote/trypomastigote) and green fluorescent protein (GFP)(negative control protein) to independently validate sample quality and absence of immune suppression to T. cruzi antigens. Results from any sample having GFP values above the negative mean + 3SD are not reported due to non-specific activity.

Parasites - The CARI06 (T. cruzi lineage I; TcI) and CL-Brener (T. cruzi lineage VI; TcVI) strains were grown in liver infusion tryptose (LIT) and the genomic DNA of seven log dilutions (5 x 10^3^ to 5 x 10^-3^ parasites/mL) of TcI or TcVI spiked negative blood for PCR titration series. T. cruzi titration series and negative blood controls were used to determine each gene fragment’s sensitivity using epPCR and qPCR. In addition, Silvio X10 (TcI) and CL-Brener (TcVI) prepared by Instituto de Investigaciones en Ingeniería Genética y Biología Molecular (INGEBI) as previously reported for standard curves for all quantitative TaqMan PCR were run in parallel with CARI06 (TcI) spiked titration series.47

Molecular detection of T. cruzi - Genomic DNA from blood preserved in GEB was extracted using a phenol-chloroform protocol and paired extraction aliquots used for epPCR and qPCR to reduce methodological bias.48 All samples were analysed for T. cruzi DNA by epPCR using five gene fragments: a 195 bp fragment of SAT DNA using primers cruzi1/cruzi2,49 the S34/S67 fragment (120 bp) for the conserved repeat region of kinetoplast DNA (kDNA),50 a fragment of the small subunit 18S ribosomal DNA gene (18S rDNA) amplified using SSU561F/SSU561R (560 bp), although all products between 550-750 bp were sequenced,51 the spliced leader mini-exon gene (ME; 300-350 bp representing lineage I and II),52 and the 24Sα ribosomal DNA (24S rDNA) gene using the D71/ D72 primers which, similar to the ME, produce alternative size bands depending on the lineage (110-130 bp).53 DNA amplification protocols for epPCR were as previously described47 and T. cruzi DNA from CARI06 and CL-Brener parasite strains and negative amplification controls were processed with test sample batches using epPCR; all samples not amplifying parasite controls were analysed using the cytochrome b (cyt b) gene for integrity.50 Triplicate aliquots of spiked serial dilutions (5 x 10^3^ - 5 x 10^-3^ para/mL) of CARI06 and CL-Brener were also extracted and all five gene fragments amplified using epPCR. Relevant amplicon bands were sequenced from test and control samples to ascertain specificity and sensitivity limits of electrophoretic, purification and sequencing procedures. All amplicons of previously reported (expected) band size and range were purified using QIAquick Gel Extraction kits (QIAGEN, Valencia, CA) and capillary sequencing carried out on an Applied Biosystems 3730XLs (Macrogen, Korea). Internal plate controls for sequencing quality were included to monitor cross-contamination of amplicons among specimens and positive controls.

The TaqMan qPCR was conducted using cruzi1/cruzi2/cruzi3 primers for SAT DNA (SAT qPCR) and 32F/148R/71P primers for kinetoplast kDNA (kDNA qPCR) at INGEBI.47 ^,^ 49 Paired aliquots of DNA extracted from all samples at CRISP/INSP and used for epPCR were transported in H_2_O to INGEBI for TaqMan qPCR processing. Aliquots of serial dilutions of spiked control blood samples of TcI (CARI06, Silvio X10) and TcVI (CL-Brener), the dominant DTUs expected, were used to compare dynamic ranges for the two primer sets and standard curve parameters were estimated for all primers and DTUs.

Data analyses - All samples were scored for T. cruzi infection based on results from (1) individual conventional serological tests: positive if mean OD ≥ OD negative+3SD, (2) rapid serological test: positive or negative, (3) reactivity to individual recombinant proteins and Y lysate: mean OD ≥ OD negative+3SD,54 (4) T. cruzi sequence identity to GenBank registries of consensus sequences from expected size epPCR amplicons of the five gene fragments: SAT, kDNA, ME, 18S, 24S, and (5) TaqMan qPCR using SAT or kDNA: threshold counts (Ct) above positive control, positives were scored as either quantifiable or non-quantifiable.

Positive T. cruzi serological diagnosis was scored if ≥ 2 conventional serological tests were positive. T. cruzi infection (parasitaemia) using epPCR was scored positive if amplicons from ≥ one of five gene fragments had T. cruzi sequence identity and also using qPCR (SAT or kDNA), scored positive if the Ct value was ≥ to 0.01 parasite equivalents/mL, with quantitative values (Q), or below this threshold but above negative control as non-quantitative (NQ). The combined global infection gold standard (global diagnosis) scores any sample positive if there is a positive result by any one of the three diagnosis criteria: conventional serology (≥ 2 tests positive) and/or epPCR and/or qPCR.

The rapid serological test was not used for overall serological or global diagnosis, although its correlation and concordance with that of all individual conventional tests, as well as with serological diagnosis, was analysed using Pearson’s correlation coefficient. Correlations (correlation matrix) of the different diagnostic test results were computed using Pearson’s correlation coefficient to identify tendencies of results from the PDG and SDG separately. Serologic diagnosis, epPCR diagnosis, qPCR diagnosis and global diagnosis were also correlated separately for the PDG and the SDG and results of individual epPCR using SAT, kDNA or ME and qPCR with either SAT or kDNA were each correlated with global diagnosis. Sensitivity (true positive/true positive + false negatives) and specificity (true negative/true negative + false positives) of serological diagnoses, epPCR, and qPCR were calculated as the ratio of positive or negative results, using global diagnosis as reference for both the PDG and the SDG. The sensitivity and specificity of serological diagnosis to reconfirm the original diagnoses (SDG) was also calculated. The concordance between serological, epPCR, qPCR and global diagnoses was analysed using Cohen’s kappa coefficient to control for randomness of results. Recombinant reactivity differences between the PDG and the SDG were analysed using a paired t test.

Gene amplification specificity for each gene fragment in epPCR (expected size amplicons) is calculated as the ratio of sequences with identity to T. cruzi to all size-relevant amplicons sequenced for the fragment. Standard curves for serial dilutions of TcI and TcVI were obtained by linear curve adjustment of the data. The curve-adjusting parameters (slope and intercept) were used to generate 30 random numbers distributed along the curves considering a normal distribution with a 10% standard deviation. This set of silico-generated data was used to calculate the mean difference and statistical significance using a paired t-test, considering a null-hypothesis of mean difference equal to zero. Adjusted parasite load was calculated for all qPCR quantitative results based on a factor calculated both for SAT and for kDNA from the spiked control standard curves for Silvio and CARI06 for SAT, and for CARI06 and CL-Brener for kDNA [Supplementary data (Fig. 2)]. Median parasite loads for PDG and SDG were compared separately for SAT and kDNA excluding high outliers for SAT (1,488 and 2 parasites/mL) and kDNA (5, 8, 10 parasites/mL).

Consensus sequences of the five gene fragments were generated independently using MEGA v.10.55 Sequence identity for the five fragments was generated using the GenBank platform (https://blast.ncbi.nlm.nih.gov/), using priors with query cover values above 70% and percentage identity above 80%; the first 100 sequences were considered. Haplotypes and haplotype diversity were generated using the DnaSP v.5.10 software for each gene.56 Representative T. cruzi haplotypes were deposited in GenBank: accession numbers for the SAT fragment: OR288103-OR288138; accession numbers for the kDNA fragment: OR288139-OR288142; accession numbers for the 18S fragment: OR286389-OR286392. Unique T. cruzi SAT haplotypes were used to analyse relationships and an independent median-joining haplotype network was generated using Network v.4.6.57 Representative T. dionisii 18S haplotypes were also deposited in GenBank: accession numbers OR286393-OR286397.

RESULTS

Study populations - Demographic variables for participants assigned either to the PDG or the SDG from each study site were not significantly different, with the exception of the SDG in the predominately rural SRN county (high male emigration) [Supplementary data (Table I)]: lower women/men ratio, average age and number of years of schooling. Despite differing elevations and surrounding topography, degree of urbanisation, total population, and predominant vector species, the three sites are located between 220 and 300 km in linear distance from each other [Supplementary data (Fig. 1)]. Highest positive predictive value for bug identification was from SC (Triatoma phyllosoma is the largest species), followed by SRN (Triatoma mazzottii similar size to T. phyllosoma, but the secondary Triatoma dimidiata Hg2 is smaller) and lowest in SCP, where one of the smallest of Mexican species is found (Triatoma barberi). The dermal inflammation caused by the bug bite (“chinchoma”) and the memory of bugs in houses or being bitten were consistent with bug size.

Parasite detection limits for five T. cruzi gene fragments using epPCR - The parasite detection threshold using epPCR was lowest using the SAT (5 x 10^-3^ parasites/mL; para/mL) and kDNA (5 x 10^-2^ para/mL), while 5 para/mL for 18S, 5 x 10^2^ para/mL for ME and 5 x 10^3^ para/mL for 24S. Proportion of infections identified using each gene singly or in combination with another gene are summarised in Supplementary data (Table II). Replicate amplifications were run for control on 30% of samples for kDNA, 31% for the ME, and 55% for the 18S, resulting in complete concordance for amplification and identity results following sequencing. A total of 57 samples amplified for one or more of the five genes (58% one gene, 40% two genes), 95% of these using SAT (57% alone, 43% with at least a second gene), but only 26% using kDNA. The kDNA only identified one infection not amplifying with any other gene. Two infections not amplifying with either SAT or kDNA were identified only using the ME (lineage I).

Fragment amplification specificity, the proportion of expected-size amplicons having T. cruzi sequence identity, was different among sites and for each fragment, even though overall, there was high amplification rates using the primers for kDNA (99%), while lower for SAT, ME, and 24S (65%-70%) [Supplementary data (Table III)]. Amplicon specificity using SAT (88.5%) was significantly higher in the urban inland SCP than in SRN (P = 0.041) or SC (P = 0.021). Amplicon specificity for T. cruzi kDNA was significantly lower than SAT overall (17.2%), although in contrast to SAT, significantly higher in SCP (32.4%) than in SRN (7.4%, P = 0.005) or SC (4.3%, P = 0.001). The specificity of ME lineage I (ME LI) amplicons (350 bp) in SCP was significantly lower to that in SRN (26.7%, P = 0.02) or SC (25.0%, P = 0.02) and none of ME lineage II (ME LII, 300 bp, N = 33) or 24S amplicons (N = 59) from any site had sequence identity for T. cruzi.

Parasite detection limits using SAT and kDNA TaqMan qPCR - The sensitivity (parasite load) of the TaqMan qPCR using SAT and kDNA is 0.01 - 0.02 para equiv/mL for TcI (INGEBI).47 Both SAT and kDNA were analysed using qPCR in 74% of samples, while sensitivity of single SAT analysis was 87% and the negative predictive value for SAT qPCR was 94%.

Parameters of the qPCR standard curves were evaluated using both INGEBI-standard spiked TcI and TcVI control samples and the in-house TcI-spiked 10-fold dilution series (CARI06) (Fig. 1). There were significant differences between SAT dynamic ranges of the Mexican TcI (CARI06) vs. Silvio X10 TcI (P = 3.8 x E-08) and vs. CL-Brener TcVI (P = 5.0 x E-03). TcI-CARI06 kDNA Ct values were significantly lower than TcVI CL-Brener (P = 5.7 x E-19) and therefore positive Ct values below external control test laboratory limits (INGEBI) were scored positive as not-quantifiable (NQ).

Fig. 1:standard curves for serial dilutions of Trypanosoma cruzi lineage I (Silvio X10 and CARI06) and T. cruzi lineage VI (CL Brener) in TaqMan polymerase chain reaction (PCR) assay using satellite (SAT) DNA (A) and kinetoplast DNA (B) primer sets. Standard curve parameters (slope/ intercept/ r2) for SAT DNA were: Silvio X10/INGEBI (triangle, -1.304/30.43/0.0029), CARI06/INSP (circle, -1.141/27.41/0.9961), CL Brener/INGEBI (square, -1.168/26.58/0.9956), and for kinetoplast DNA (kDNA): CARI06 /INSP (circle, -1.231/24.96/0.9941), CL Brener/INGEBI (square, -1.325/32.37/0.9759).

Conventional and rapid test serology - Overall, 65.9% of the SDG were reconfirmed using conventional serology, while an additional 29.6% were confirmed only using PCR (total 95.5% infections reconfirmed; Table I). Overall, 4.5% of the PDG were T. cruzi positive using conventional serology, although 86.4% were infected using either PCR method. Conventional serological diagnosis (≥ 2 tests positive) of the PDG had low correlation with global infection diagnosis (0.107) and that of the SDG was random (-0.433) (Table II A). Sensitivity of conventional serology to reconfirm previous diagnosis was 48% [95% confidence interval (CI): 0.31, 0.65], while sensitivity for serological diagnosis of the PDG was 8% (95% CI: 0.0, 0.17) (Table II B). Specificity of serological diagnosis indicated low confidence in seronegative results with 16% for the PDG (95% CI: 0.04, 0.28) and 13% for the SDG (95% CI: 0.01, 0.25), which was additionally evidenced by low concordance of serological and global diagnoses: 20.4% (K = -0.30, -1.16, 0.55) for the PDG and 31.8% (K = 0.94, 0.31, -1.57) for the SDG (Table II C). Concordance between original diagnosis and serological reconfirmation (of SDG) was 36.3% (K = -0.008, 95% CI: -0.63, 0.61).

TABLE ISerological and molecular diagnosis for Trypanosoma cruzi infection in patient samples of primary diagnosis group (PDG) and secondary diagnosis group (SDG) from three counties in OaxacaSitePrevious T. cruzi testingNumber samples (N patient)SerologyMolecular T. cruzi serology & molecular (N)Global infection T. cruzi (N) T. cruzi positive - 4 conventional tests (N) T. cruzi positive RapT (N)Mean num. reactive RP (N)Mean ± SD OD Lysate (N)Lysate/ GFPepPCR (N)qPCR (N)Salina Cruz (SC)PDG13 (13)0 (13)0 (13)9.3 (11)2494 ± 18971.776.9% (13)100%^b2^ (13)0 (13)100% (13)SDG^c^ 2 (1)0 (2)0 (2)10 (2)4076 ± 3882.0100% (2)50.0% (2)0 (2)100% (2)SDG^d^ 8 (3)0 (8)0 (8)9.9 (8)6445 ± 59685.3100%^a5^ (8)50.0%^b1^ (8)0 (8)100% (8)Santos Reyes Nopala (SRN)PDG12 (12)16.7% (12)16.7% (12)9.3 (11)6233 ± 75189.383.3%^a4^ (12)100.0%^b2^ (12)16.7% (12)100% (12)SDG16 (15)81.3% (16)75.0% (16)9.8 (15)16243 ± 64069.875.0%^a6^ (16)68.8% (16)68.8% (16)100% (16)Santa Cruz Papalutla (SCP)PDG19 (19)0 (19)0 (19)9.8 (19)4028 ± 40773.963.2% (19)36.8%^b5^ (19)0 (13)68.4% (19)SDG18 (18)88.9% (18)77.8% (18)9.9 (18)10304 ± 71146.616.7% (18)16.7%^b2^ (18)18.8% (16)88.9% (18)OaxacaPDG44 (44)4.5% (44)4.5% (44)9.5 (43)4167 ± 50284.772.7% (44)72.7%^b5^ (44)5.3% (38)86.4% (44)SDG44 (37)65.9% (44)59.1% (44)9.9 (43)11724 ± 761410.756.8% (44)43.2%^b5^ (44)38.1% (42)95.5% (44)Global infection is the sum of serology, end point polymerase chain reaction (epPCR) and quantitative polymerase chain reaction (qPCR) results; RP: recombinant proteins (N = 10). a: # samples also with T. dionisii by 18S epPCR; b: # NQ T. cruzi, all positive also by epPCR, serology or qPCR; c: only 1 test positive; d: two tests positive in three laboratory.

TABLE II Trypanosoma cruzi infection diagnosis of primary diagnosis group (PDG) and secondary diagnosis group (SDG): (A) correlation between serological, end point polymerase chain reaction (epPCR), quantitative polymerase chain reaction (qPCR) and global diagnoses; (B) sensitivity and specificity of conventional serology, epPCR, and qPCR based on the global gold standard; and (C) concordance between serological diagnosis and epPCR, qPCR and global diagnoses, and between primary and secondary results from patients having previous diagnosis (SDG).(A). Correlation PDGDx serologyDx epPCRDx qPCRDx globalSDGDx serology1-0.0370.1660.107Dx epPCR-0.43310.3130.649Dx qPCR0.1430.38910.649Dx global-0.4331.0000.3891

(B). Sensitivity and specificity PDGSDGSensitivityMean95% CIMean95% CIDx serology0.080.000.170.480.310.65Dx epPCR0.840.720.961.001.001.00Dx qPCR0.840.720.960.600.440.76 SpecificityMean95% CIMean95% CIDx serology0.160.040.280.130.010.25Dx epPCR0.500.330.671.001.001.00Dx qPCR0.500.330.670.600.440.76

(C). Concordance PDGSDGDx serology vsConcordanceκ (95% CI)Concordanceκ (95% CI)Dx epPCR29.5% (13/44)0.08 (-0.58,0.74)31.8% (14/44)0.94 (0.31,1.57)Dx qPCR34.0% (15/44)-0.36 (-1.03,0.30)54.5% (24/44)-0.28 (-0.88,0.31)Dx global20.4% (9/44)-0.30 (-1.16,0.55)31.8% (14/44)0.94 (0.31,1.57)Dx primary serologyNANA36.3% (16/44)-0.008 (-0.63,0.61)

The correlation matrix for all individual conventional serological tests was consistently linear, indicating a high probability of similar results between tests and the rapid test (80.7% and 90.9%, respectively) for both the PDG and the SDG [Supplementary data (Table IV)]. The correlation of global diagnosis with individual conventional serological or rapid tests and serological diagnosis was similarly low for the PDG (10.7% and 8.7%, respectively) and random for the SDG (-0.433 and -0.352, respectively).

Serological diagnosis sensitivity differences among sites - Serological sensitivity was heterogeneous among sites; no infections were reconfirmed (SDG) using conventional serology from SC, while 81% from SRN and 89% from SCP were reconfirmed. However, all seronegative infections from SRN (18.7%) and SC (N = 17) were reconfirmed using PCR (Table I). The proportion of infections from both the SDG and the PDG identified by both serological and molecular techniques was also significantly different among sites (t = -5.37, df = 115, P = 2.00x10^-7^).

Two discordant serology cases were both confirmed only using PCR. One previously diagnosed case with original discordant serology (SC #11, 2006) was seronegative again in two new serial samples, but T. cruzi positive using epPCR (SAT, ME, and 18S) and qPCR (SAT and kDNA). The same individual was also coinfected with T. dionisii based on identity of 18S sequences. In addition to this patient, another individual from the PDG was seropositive in only one of four conventional serological tests, but T. cruzi infected using SAT qPCR.

Trypanosoma cruzi-specific antibody to recombinant proteins - Sera from 79 patients (N = 86, two samples excluded due to high reactivity to the GFP control) from all sites and both diagnostic groups reacted each to between nine and 10 recombinant proteins (Table I). The mean Y lysate reactivity was significantly higher in SDG vs. PDG in all three sites (P < 0.05) and that of the SDG was significantly different among the three sites (P < 0.002). Reactivity to all recombinant proteins, previous and current serological diagnosis category, diagnostic group, current global diagnosis (serology+epPCR+qPCR), Y lysate/GFP ratio, and identification of single vs multiple-samples for patients from the three sites are summarised in a heatmap (Fig. 2). Despite heterogeneous responses, highest reactivity (> 95% CI) was observed unexpectedly in seropositive samples which were also PCR positive, as seen in the right half of the heatmap along with the positive test control (PTC). Samples from coinfected T. cruzi-T. dionisii had both high (#55, 56, 59, 64) and low (#1, 2, 70) recombinant protein reactivities. There was a range of serum reactivity profiles, although highest responses were to proteins Kn122, FF10, Kn107, Fab4, LE2, Kn80 and the Y strain lysate (Fig. 3A). Reactivity was significantly higher in the SDG as compared to the PDG for Kn107 (P = 0.0001), Fab4 (P = 0.006), LE2 (P = 0.0002), calmodulin (P = 0.04), G10 (P = 0.01), and the Y lysate (P = 0.0001) (Fig. 3B).

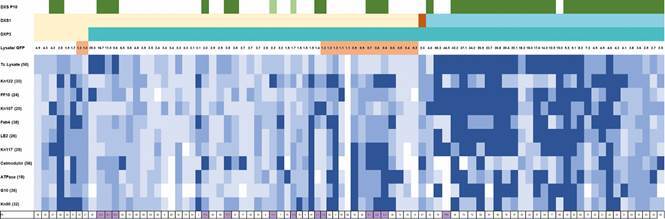

Fig. 2:heatmap of combined results for Oaxaca patient samples reactive to recombinant Trypanosoma cruzi proteins: (1) previous conventional serology (DxS Pre10): dk green = 2 test pos., lt green = 1 test pos, no colour = not tested (primary diagnosis group - PDG), (2) current conventional serology (DxS1): yellow = negative to 4 tests, brown = discordant (1 of 4 test pos.), blue = 3-4 of 4 tests pos., (3) combined serological and molecular diagnoses (DxP3): yellow = negative for 4 serological tests, negative 5 genes using end point polymerase chain reaction (epPCR), negative 2 genes using quantitative polymerase chain reaction (qPCR); blue = positive serology (≥ 2 tests positive) and/or epPCR and/or qPCR, (4) Y lysate/GFP ratio: negative = 1.4, < 1.4 in orange, (5) reactivity for Y lysate and 10 recombinant proteins above control (negative + 3SD), and (6) PC - patient codes (numbers with 1-3 decimals in purple indicate sequential samples of individual patients at t = 0 (2016), 12mo, 18mo, or PTC control).

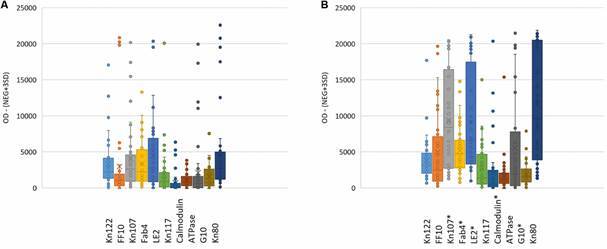

Fig. 3:reactivity of Oaxaca sera to recombinant proteins and Y lysate from (A) primary diagnosis group (PDG) and (B) secondary diagnosis group (SDG). All values represent the optical density (OD) minus (mean negative control + 3SD); all outliers are included. *significant difference between PDG and SDG.

Trypanosoma cruzi infection using PCR - Infection prevalence overall was similar between the two PCR methods for both PDG and SDG (Table I). Despite poor correlation between epPCR and qPCR overall, 31.3% for the PDG and 38.9% for the SDG, the correlation of global diagnosis with epPCR and qPCR was the same for PDG (65%), although higher using epPCR vs qPCR in the SDG (100% and 39%, respectively) (Table II A). The sensitivity of epPCR and qPCR was 84% (95% CI: 0.72, 0.96) for the PDG, while 100% using epPCR and 60% (95% CI: 0.44, 0.76) using qPCR for the SDG (Table II B). The specificity using both epPCR and qPCR was 50% for the PDG, while 100% using epPCR and 60% using qPCR in the SDG. Overall, most T. cruzi infections from the PDG (95%), while only 31% from the SDG were diagnosed only using PCR (Table III). All the PDG and 88% of the SDG infections using epPCR were identified using the SAT gene; two or more genes amplified from 53% of the PDG, but only 28% of the SDG infections.

TABLE IIICharacteristics of Trypanosoma cruzi molecular diagnosis in Oaxacan populationsCounty (N)Previous T. cruzi testing (N) T. cruzi only Dx molecular (N) T. cruzi infections epPCR (N)Proportion T. cruzi epPCR ≥ 2g (N) T. cruzi identity T. cruzi infections qPCR (N)Adjusted parasite load SAT (para/mL)Adjusted parasite load kDNA (para/mL)SATkDNAME18SSalina Cruz (SC, 23)PDG (13)100% (13)76.9% (13)41.7% (12)100.0%10.0%20.0%0.0%100.0%^b2^ (13)0.117^b1^ 0.044ª^1,b1^ SDG (10)100% (10)100% (10)30.0% (10)90.0% ^§4^ 0.0%20.0%20.0%50.0%^b1^ (10)0.0250.005^b1^ Santos Reyes Nopala (SRN, 28)PDG (12)83.3% (12)83.3% (12)30.0% (10)100.0%^§1^ 10.0%10.0%*20.0%100.0%^b2^ (12)0.145 ª^1,b1^ 0.039ª^2,b1^ SDG (16)18.8% (16)75.0% (16)16.7% (12)83.3%^§3^ 8.3%25.0%^§1^ 0.0%68.8% (16)0.109-Santa Cruz Papalutla (SCP, 39)PDG (19)100% (13)63.2% (19)91.7% (12)100.0%83.3%0.0%5.3%36.8%^b5^ (19)0.025^a1^ 0.016^b5^ SDG (18)0 (18)16.7% (18)66.7% (3)100.0%66.7%0.0%0.0%16.7%^b2^ (18)0.079-^b2^ Oaxaca (88)PDG (44)94.7% (38)72.7% (44)53.1% (32)100.0%^§1^ 37.5%9.4%9.4%72.7%^b9^ (44)0.103^a2,b2^ 0.044ª^3,b7^ SDG (44)31.0% (44)56.8% (44)28.0% (25)88.0%^§7^ 12.0%20.0%^§1^ 8.0%43.2%^b3^ (44)0.0890.011^b3^

^

---

^ 1 sample amplifying three genes end point polymerase chain reaction (epPCR) + satellite (SAT) quantitative polymerase chain reaction (qPCR); § #: T. dionisii 18S co-infection; a #: SAT outliers (1488 and 2 p/mL) and kDNA outliers (5, 8, 10 p/mL) not included; b #: non-quantitative (NQ) T. cruzi also positive by epPCR, serology or qPCR.

Concordance of serological diagnosis using qPCR was greater than using epPCR, although it was similar for the PDG (34.0% and 29.5%, respectively) and the SDG (54.5% and 31.8%, respectively) (Table II C). Although overall T. cruzi was identified in similar proportions in seronegative (59.2%) and seropositive (66.7%) samples by combined results from both PCR methods, the prevalence of T. cruzi infections identified using epPCR was significantly greater (t = -2.38, df = 34, P = 0.01) in seronegative (75.4%) vs seropositive (45.2%) individuals [Supplementary data (Table V)].

Trypanosoma cruzi SAT haplotypes identified using epPCR - The SAT gene amplified from 95% of the PDG T. cruzi infections and therefore haplotype analysis is representative for all three sites. The SAT gene amplified and sequenced similarly for SDG populations only from SC and SRN sites (86% of infections), but only 19% of infections from SCP, possibly due to this site having the lowest parasite levels measured using qPCR (Tables II-III). Therefore, results for the SDG from SCP should be interpreted with caution [Supplementary data (Table VI)]. A total of 36 SAT haplotypes were identified from 46 consensus sequences (124-126 bp); only 8% (3) were identified in more than one site and similarly from both diagnostic groups. There were significantly more haplotypes from seropositive (91%, N = 11) vs. seronegative (79%, N = 29) infections, although similar prevalence of unique haplotypes (91% vs. 90%, respectively), consistent with high haplotype diversity (Hd = 0.97).

SAT sequence alignments had highest identity for three strains of TcI (Las Palomas, CARI06 and Silvio X10), but most also had high identity for CL Brener (TcVI), strains 3869 and M6241 of TcIII, and strains B147 and 115 of TcV [Supplementary data (Table VII)]. The minimum spanning Network (using the 36 haplotypes) evidence at least three shared among the three sites (H2), while one (H6) was shared between SC and SRN, and one (H16) was shared between SCP and SRN. Haplotypes from SRN have more mutational steps from H2, even at the intra-locus level (e.g., between H6 and H32, 18 mutational steps). Similarly, there was at least 18 mutational steps between H2 and H11 from SC (Fig. 4).

Fig. 4:minimum haplotype Network for Trypanosoma cruzi based on 134 nucleotides of the satellite gene fragment (SAT). Haplotype colour represents each site. Green: Santa Cruz Papalutla (SCP), blue: Santos Reyes Nopala (SRN), yellow: Salina Cruz (SC). Missing haplotypes are indicated as red circles. The line connecting haplotypes represents one mutational step, whereas numbers along the lines are total number of mutational steps. Circle area is proportional to the frequency of each haplotype.

Although in far lower overall proportion as compared to SAT, significantly more T. cruzi infections were identified using the S34/S67 kDNA/epPCR for the PDG (37.5%; t = -2.02, df = 28, P = 0.02) vs. the SDG (12.0%). A greater proportion of infections were identified using kDNA from SCP as compared to SRN or SC for both the PDG (83.3%, t = -3.44, df = 37, P = 0.0007) and the SDG (66.7%, t = -3.89, df = 33, P = 0.0002). Although the internal kDNA fragment used herein could have produced a 70-71 bp consensus sequence similar to that for reference samples from the Yucatan (accession numbers OQ236562- OQ236563), final alignments obtained and reported herein from Oaxaca are only 30-34 bp. A total of four haplotypes were identified from 15 kDNA consensus sequences indicating a low to moderate (Hd = 0.54) haplotype diversity. The most frequent haplotype H1 was shared between patients from SCP (9) and SRN (1), while one unique haplotype was identified in each of the sites: SRN (H2, N = 1), SCP (H3, N = 3), and SC (H4, N = 1).

Since there was low amplicon specificity for the ME, 18S and 24S gene sequences, genotype could only be determined using direct sequence identity; amplicon T. cruzi specificity for all fragments and for all sites are summarised in Supplementary data (Table III) and for lineage using ME and 24S in Supplementary data (Table VIII). The ME gene was not identified from amplicons of any PDG or SDG (20/29) infection from SCP, in contrast to the greater prevalence of infections identified using kDNA from that site. No ME-LII amplicons (300 bp) had identity to T. cruzi, while 15% of samples amplifying single ME-LI amplicons and 24% of samples amplifying both LI and LII amplicons had identity to TcI. A total of eight ME haplotypes (Hd = 1.00) were identified, three from SC and five from SRN. A total of 63.3% of samples amplifying ME for either LI and/or LII also amplified 24S, although none of the sequences from 24S amplicons, ranging between 110 bp and 130 bp had identity with T. cruzi.

The 18S gene (561 bp) amplified in 36% of T. cruzi infected samples producing amplicons between 550-650 bp. Consensus sequences (541 bp) of four samples had high query cover (range from 93%-100%) and identity (range from 81%-99%) to T. cruzi for TcI (Strain G) from triatomines (T. barberi, T. dimidiata), dogs, birds and both North and South American marsupials and rodents. Although few samples were analysed, the 18S T. cruzi haplotype diversity was high (Hd = 1.0), with two haplotypes from SC (H1 and H2) and two from SRN (H3 and H4).

Most samples amplifying the 18S (70%) produced multiple bands within the 350-550 bp range which had identity to Trypanosoma dionisii. T. dionisii 18S sequences ranged from 347-504 bp, with high query cover (range from 96%-100%) and identity (range from 92%-100%) among the first 100 matches. A total of five T. dionisii 18S haplotypes were obtained from seven patient’ samples; haplotype diversity was high (Hd = 0.85). Only one haplotype (H1) was shared between two patients, one each from SC and SRN, and additional unique haplotypes H2-H5 were identified only from SRN; no T. dionisii was identified from SCP. All T. dionisii infections (N = 7) were identified only in T. cruzi co-infected samples of the PDG and the SDG from SRN and the SDG from SC. Four of seven T. cruzi co-infected samples were seropositive using conventional T. cruzi serology, while all seven co-infections were confirmed for T. cruzi using SAT and/or ME epPCR and SATqPCR.

TaqMan qPCR (SAT and kDNA) and parasite load quantification - Trypanosoma cruzi infection prevalence using qPCR (73% for the PDG and 43% for the SDG) was similar to that using epPCR overall (Table I), although there were T. cruzi prevalence differences for the PDG among sites between the two PCR methods. The proportion of infections from SCP identified using qPCR was significantly lower for both PDG (37%, t = -2.31, df = 28, P = 0.0001) and SDG (17%, t = -1.28, df = 33, P = 0.0003) diagnostic groups, as compared to SRN (100% and 69%, respectively) and SC (100% and 50%, respectively). T. cruzi infection using qPCR correlated 65% with global diagnosis for the PDG (47.8% for SAT), but only 39% for the SDG (46.8% for SAT) [Table II, Supplementary data (Table IV)]. The correlation of qPCR with serological diagnosis was low but similar in both diagnostic groups (17% in PDG and 14% in SDG), as was concordance for the PDG (34.0%, K = -0.36, 95% CI: -1.03, 0.30) and the SDG (54.5%, K = -0.28, 95% CI: -0.88, 0.31) (Table II). The sensitivity of qPCR was 84% for the PDG and 60% for the SDG and its specificity was 50% for the PDG and 60% for the SDG. Although there was similar T. cruzi infection prevalence using both SAT and kDNA genes by qPCR in seronegative (61.4%) and seropositive (51.6%) samples, the proportion of non-quantifiable infections using kDNA (31.3%) was significantly greater than that using SAT (5.0%; t = -2.64, df = 108, P = 0.004) [Supplementary data (Table V)].

Parasite load values from all samples were normalised based on Ct values from spiked titration series for SAT and kDNA [Table III, Supplementary data (Fig. 2)]. Overall, median parasite loads for the PDG and the SDG were low using both the SAT (0.103 equivalent parasites/mL and 0.089 equivalent parasites/mL, respectively) and the kDNA (0.044 equivalent parasites/mL and 0.011 equivalent parasites/mL, respectively). High parasite load outliers, not included in median load values, were only recorded from the PDG (10% of SAT and 20% of kDNA) from all three sites (Table III). High SAT outliers were recorded from SCP and SRN (1488 and 2 para/mL, respectively) and kDNA outliers from SC and SRN (5, 8, and 10 para/mL).

DISCUSSION

Only 81% of T. cruzi infections diagnosed 10-15 years previously in three separate qualified laboratories were serologically reconfirmed, surprising since 14% additional infections were confirmed using PCR. There was even less capacity to diagnose more recent infections (PDG) with only 8% sensitivity for serology, while 84% for PCR, suggesting limited capacity of antigens/epitopes used in current commercial tests to detect predominant antibody responses to T. cruzi populations. Reactivity to recombinant expression proteins validated the presence of T. cruzi-specific antibodies in both subgroups, significantly greater for Kn122, FF10, Kn80, Kn107, Fab4, LE2, and support results for the failure of conventional and rapid diagnostic tests. Specificity of conventional serology, the capacity to identify true negatives, was similar for both diagnostic-history groups (13% - 16%) indicating that both conventional and rapid tests are additionally ineffective as diagnostic tools to determine the absence of T. cruzi infection in exposed populations. The evidence indicates a shift over the course of infections in antibody responses to current commercial test antigens/ recombinants, at least across the Zapotecan and Mixtecan regions, since these results have been substantiated using additional commercial serological tests and through immunomic analyses.32 ^,^ 33

Multiple international studies have evaluated standardised T. cruzi diagnostic serology, since they can provide timely and highly cost-effective tools to detect and initiate treatment to prevent CD burden, particularly if sensitive and specific in rapid format for point of care tests.58 However, the mounting robust evidence for heterogeneous human immunogenetics and immune responses across the American continent,59 ^,^ 60 and multiple studies demonstrating evolving immune responses to pathogen population shifts due to anthropogenic landscape-biodiversity changes have not been evaluated for T. cruzi.61 ^,^ 62 Consistent with increasing evidence for reduced sensitivity and specificity of current “universal” conventional and rapid tests in some regions,63 ^,^ 64 these results are not surprising given the parasite’s high genetic diversity as documented from vectors and reservoirs from these Oaxacan sites.40 Failure to include discordant sera and relevant regional and disease-chronicity antigens in control panels of international validations have led to performance measure bias, at least for Mexico. This bias has formed the basis for Mexican PHS norms and policy, “overriding” the wealth of evidence from the present and other detailed studies and antigen-antibody specificities in Mexican populations.32 ^,^ 33 Independent of the inflexible public policy, there is an urgent need to design and assure access to a new diagnostic algorithm for the estimated 85,000 incident annual cases in Mexico, and probably the North American and Mesoamerican regions.8 Given low negative predictive value for current commercial serological tests and risk for congenital, transfusion and transplant transmission, this would require, in the short-term, testing seronegative samples using standardised and validated in-house SAT qPCR and amplifying testing capacity to clinical laboratories with molecular capacity, at least until commercial qPCR improve sensitivity.

Lack of concordance between serological and molecular diagnosis reflects the methodological capacity of each, the former dependent on the measured phenotype specificity and the latter to the balance of circulating parasite levels and global antibody responses limiting those levels. Naturally shifting circulating parasites of varying antigenic diversity are the true measure of active T. cruzi infection, unless there is more precise capacity to detect chronic specificities of immune responses. In the present study, molecular diagnostic methods were fundamental to reconfirm a fifth of the SDG and most of the PDG infections, not confirmed using conventional serological tests. Therefore, lack of concordance between serological and molecular tests evidence methodological diagnostic failures, which justify the need to use both in a complementary way until they can be improved and individually validated for precise measure of T. cruzi infection considering origin, history of infection and disease status. The overall proportion of both epPCR and qPCR positives among seropositive individuals (58%) was lower in SDG infections, very possibly due to the lower parasite loads, barely at detection threshold levels. In contrast, a similar proportion of molecular positive infections identified in “apparent seronegative” individuals (86%) evidence that antibodies not identified by current serological tests may be specific to regional or disease history novel antigens/epitopes.32 ^,^ 33 All evidence supports the need to improve specificity of overall infection diagnosis given the low negative predictive value of current serology and additional benefit for timely diagnosis (and treatment), since undiagnosed, misdiagnosed or diagnosed and untreated patients are a continued source for chronic disease outcomes, CD burden, vertical transmission as well as vector infections.3 ^,^ 6 Diagnostic policy in Mexico must consider the estimated 6-8 million current human T. cruzi infections which are evolving and re-infecting with alternative parasite populations, since greater than 98% have never been diagnosed or treated.7 ^,^ 8

However, in the medium-term, public policy should also target the design and testing of new serological tests using the growing evidence for appropriate Mexican-relevant antigens,32 ^,^ 33 ^,^ 65 since governance and budgetary considerations have consistently been important access hurdles for CD in Mexico. Any new formulations will require broad validation across other Mexican regions (occidental, northwest, northeast, Gulf of Mexico), since serological diagnostic failure has been heterogeneous even within this reduced region (4.8% of landmass and 3.3% of the population).66 This failure affected primary diagnoses (recent infections) in an urban area with profound landscape modifications (SC) and in a highly modified rural landscape (SCP), despite reconfirming fewer infections from rural highly modified landscape (SRN). Serological diagnostic performance is expected to be even more heterogeneous than measured herein across Mexico and will require using the global gold standard and including acute and chronic cohorts from rural and urban demographics as well as clinically important CD classification cases (asymptomatic, symptomatic). Since the performance (sensitivity, specificity) of molecular methods for Mexican T. cruzi infections and populations confirmed patent parasitaemia in conventional test seronegatives and seropositives, the evaluation study design will need to include serological and molecular testing for all participants and diverse population subgroups based on demographics, clinical disease and all transmission-relevant ecoregions.

Trypanosoma cruzi infection, confirmed by sequence identity, was sensitive only for SAT amplicons in this study. SAT haplotype diversity was higher in recent PDG seropositive infections (vs SDG), although the proportion of unique haplotypes was similar between the two groups and among sites. There was high interpopulation SAT haplotype diversity since only one of the 40 was shared among all three sites and only two were shared each by two sites (SC-SRN and SRN-SCP). Haplotypes from SCP, the most urban, modified and transport-connected landscape in the Neovolcanic central valleys (T. barberi) were closer to the site-common haplotype than to the two coastal sites, as expected. We found no evidence of genotype associations with SAT haplotypes in these Mexican populations which had highest identity to TcI (Silvio x10 and CARI-06), although lower but high identity also to lineages TcIII, TcV, and TcVI, indicating that SAT repeats rich in AT are conserved across lineages.67 ^,^ 68

Previous studies in Mexico using the S35/S36 fragment of kDNA with epPCR reported 41% amplification from asymptomatic seropositive blood donors69 and 81% amplification from seropositive CCC cases,70 although neither study reported sequence specificity of amplicons. Herein, the internal shorter kDNA identified only 26% of overall infections, 93% of these were also identified using either SAT or ME. Differential success of the internal shorter kDNA sequence may be due to the complementary of the primer 5’ region being located in a variable region, which would also explain the low efficiency to sequence from kDNA amplicons.40 ^,^ 50 Only four haplotypes were identified from 15 kDNA sequences, the only shared haplotype identified from SRN and SCP. The S34/S67 fragment provides evidence for a broader kDNA diversity in human Oaxacan populations, although novel kDNA haplotypes having low prevalence in zoonotic reservoirs are present in this region.71

Very low patent parasitaemia and/or sequence polymorphisms affected results for the three gene markers used to genotype parasite populations (ME, 24S, 18S). Although 77.5% of infected samples amplified for the ME lineage I and/or lineage II, only 13% of these had sufficient aligned nucleotides to score identity for T. cruzi DTUI. Buekens et al. previously reported genotyping only 41% of parasite populations in pregnant Mexican women and García et al. reported similar results for another ME fragment and ribosomal markers.72 ^,^ 73 Although novel methods provide new opportunities to detect and genotype parasite populations,74 if current oligonucleotides for the major ME lineages are used to filter NGS analyses from human infections to analyse T. cruzi diversity, this study´s evidence suggests results will be biased.

Unexpected co-infections of T. cruzi and T. dionisii were identified in two of the Oaxacan sites, both along or within the foothills of the Pacific coast. T. dionisii was identified in four T. cruzi serology-positive and three seronegative individuals (the latter were SAT epPCR and/or qPCR positive). Given evidence of T. dionisii in triatomines, bats and spillover to dogs and synanthropic rodents in these communities,40 simultaneous vector transmission of both T. cruzi and T. dionisii is likely to be occurring. How this may affect human population immune responses and those specific to T. cruzi, as well as performance of diagnostic tests, will require further study of individual T. dionisii infections.

If CD is to be appropriately targeted at all healthcare levels in Mexico, it will require access to sensitive as well as specific diagnosis for T. cruzi infection. The Mexican National Institute for Epidemiological Diagnosis and Reference (InDRE) tests all proposed commercial serological kits for T. cruzi (ELISA, quimioluminescence, rapid tests, multiple antigen types) using in-house characterised reference and/or commercial reference panels approved for national and state procurement.4 However, the use of antibody as a proxy for infection depends on the capacity to recognise a broad repertoire of immune responses (or adequate evidence of conserved responses) to an even broader parasite diversity, both affected by reservoir and vector diversity and parasite population shifts over the chronicity of infections.75 Current control panels do not include discordant or seronegative samples which are T. cruzi molecular positives and there has been no evaluation or analysis of control panel sera representation for antibody responses to T. cruzi across the heterogeneous epidemiological gradient currently evident in Mexico.32 ^,^ 40 If only seropositive samples to “apparently” universal commercial tests are used, as opposed to a full panel of control sera for the high diversity and range of circulating parasite populations and antibody responses in Mexican populations, serology for T. cruzi infection will continue to be insensitive, imprecise and ineffective for precise and reliable diagnosis. Continued neglect to provide accurate infection diagnosis maintains social inequity hindering public policy change and civil society efforts to implement an integrated approach for CD case detection and management in Mexico.8
