BTK autoinhibition analyzed by high-throughput swaps of SH2 domains
Timothy J. Eisen, Sam Ghaffari-Kashani, Chien-Lun Hung, Jay T. Groves, John Kuriyan
TL;DR
This study explores how Bruton’s Tyrosine Kinase (BTK) is autoinhibited without a clear latch mechanism, using high-throughput SH2 domain swaps to uncover stabilizing interactions.
Contribution
The study reveals that distributed electrostatic interactions between SH2 and kinase domains stabilize BTK autoinhibition, unlike specialized latching mechanisms in related kinases.
Findings
Many SH2 domains can substitute into BTK and increase fitness by disrupting autoinhibition.
Electrostatic interactions between SH2 and kinase domains stabilize BTK's autoinhibited state.
Autoinhibition in BTK relies on specific evolutionary refinements rather than generic SH2 domains.
Abstract
Bruton’s Tyrosine Kinase (BTK) is an important target in cancer treatment, motivating studies into its mechanism. Like many other tyrosine kinases, BTK contains an SH2 domain that binds to phosphotyrosine residues. However, unlike kinases in the closely related Src and Abl families, BTK lacks an obvious intramolecular latch that stabilizes its autoinhibited state. Using high-throughput methods that enable measurement of the effects of hundreds of SH2-domain replacements, we find that the SH2 domain is crucial for stabilizing the autoinhibited state of BTK. Electrostatic interactions between the SH2 and kinase domains serve to stabilize the SH2 domain in an inhibitory conformation, suggesting that specialized latching mechanisms were a later evolutionary refinement. Bruton’s Tyrosine Kinase (BTK), a Tec-family tyrosine kinase, resembles the Src and Abl kinases in that an SH2-SH3 module…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig. 2
Fig. 3
Fig. 4
Fig. 5- —HHS | NIH | National Institute of Allergy and Infectious Diseases (NIAID)100000060
- —Damon Runyon Cancer Research Foundation (DRCRF)100001021
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsChronic Myeloid Leukemia Treatments · Chronic Lymphocytic Leukemia Research · Protein Kinase Regulation and GTPase Signaling
The discovery of the phosphotyrosine-binding SH2 domain in 1986 by Pawson et al. (1) revolutionized our understanding of tyrosine kinase signaling. There are now over 59,000 cataloged SH2 domains across eukarya (2). The proliferation of SH2 domains in many different contexts, along with conservation of the phosphotyrosine-recognition site, highlights the broad utility of these modular units of phosphotyrosine recognition.
In an important group of tyrosine kinases, including members of the Src, Abl, and Tec families, the SH2 domain is found within a “Src module” (Fig. 1 A and B and SI Appendix, Fig. S1A). The Src module is an ancient structural unit that consists of an SH3 domain, an SH2 domain, and a tyrosine kinase domain that arose before the emergence of the metazoan lineage (3). In Src-family kinases, the autoinhibited conformation of the Src module is stabilized by a latch, provided by a phosphorylated tyrosine residue in the C-terminal tail (residue 530 in human c-Src), that interacts with the SH2 domain (4, 5) (Fig. 1C). The latch anchors the SH2 domain next to the C-terminal lobe of the kinase and positions the SH2-kinase linker so that it can serve as a docking site for the SH3 domain. Interaction of the SH3 domain with the linker and the N-terminal lobe of the kinase stabilizes the inactive conformation of the kinase catalytic center (6, 7). The absence of the SH2 latch in the viral oncoprotein v-Src partly explains its constitutive activity (8). In the principal isoform of c-Abl (ABL1a), an N-terminal myristoyl group provides the latching function through an allosteric mechanism (9) (Fig. 1C). In the oncogenic BCR-ABL fusion protein, the myristoylation site is absent, contributing to uncontrolled kinase activity.
Bruton’s Tyrosine Kinase (BTK) is a member of the Tec family of tyrosine kinases, which contain a Src module preceded by a lipid-binding pleckstrin-homology (PH) domain fused to a Tec-homology (TH) domain (PH-TH module) and a long linker connecting the PH-TH module to the SH3 domain. BTK lacks an obvious SH2-kinase latch but the SH2 domain of BTK contributes to autoinhibition. A mutation in the SH2 domain (T316A) confers drug resistance in patients treated with the BTK inhibitor ibrutinib (11). The Src module of BTK adopts an assembled conformation that is very similar to that of c-Src and c-Abl, as shown by crystallography and cryoelectron microscopy (10, 12).
As in the Src and Abl kinases, a key autoinhibitory interface in BTK is between the SH3 domain, the SH2-kinase linker, and the kinase domain. The interface between the SH2 domain and the kinase domain is not tightly packed in BTK (10). An interaction between Arg 307 in the SH2 domain and Asp 656 in the C-terminal tail segment of the kinase domain contributes to BTK autoinhibition (13). The presence of a corresponding negatively charged residue in the C-terminal tails of the kinase domains in other Tec kinases suggests that these kinases may have evolved to use an aspartate or glutamate residue in place of the phosphotyrosine latch in the Src kinases. In BTK, the D656K mutation increases autophosphorylation of BTK and causes disassembly of the autoinhibited conformation (13). The importance of this single ion pair between Arg 307 and Asp 656 leads us to wonder whether there are other features of the SH2-kinase interface that support BTK autoinhibition.
In this study, we develop a high-throughput assay for BTK function that allows us to measure the relative fitness of hundreds of chimeric BTK molecules with different SH2 domains. The SH2 domains tested are derived from vertebrate Tec kinases, other human SH2-containing proteins, and SH2 domains generated using ancestral sequence reconstruction. As expected from the modular nature of SH2 domains, most SH2 domains are functional in BTK, with only 44 out of 249 chimeric BTK variants (17%) exhibiting strong loss of fitness. Even the most divergent SH2 domains tested, with as little as 25% sequence identity to the BTK SH2 domain, can maintain function when swapped into BTK. Surprisingly, 128 of the SH2 domains (51%) increase the fitness of BTK. For one set of SH2 domains, we trace the origin of these fitness increases to disruption of the SH2-kinase domain interface, demonstrating that this interface is important for BTK autoinhibition.
Results
Design of a Library of Chimeric BTK Proteins.
We constructed a library of BTK variants in which human BTK has its SH2 domain replaced with SH2 domains from BTK proteins from other species, from other Tec-kinases, or from other SH2-containing proteins (SI Appendix, Fig. S1B). After construction of the library of chimeric proteins, we tested the ability of these proteins to support signaling in lymphocytes, using an assay that we have described (14). The boundary of the SH2 domain was defined from the protein families [PFAM (2)] database of sequence alignments and corresponds to residues 281 to 362 in BTK. These alignments stem from a curated set of SH2 domains that are representative of the larger SH2 family. Although longer regions of homology can be detected between more closely related sequences, this aligned block of SH2 sequence facilitates searches for more distantly related domains.
We began by developing a computational pipeline to select SH2 domains to swap into BTK (SI Appendix, Fig. S1C). From the PFAM database, we used the five Tec kinase SH2 domain sequences to mine the PFAM database to select SH2 sequences from Tec kinases in different jawed vertebrates. The resulting set contained 83 Tec kinase SH2 sequences in which the most divergent sequence was that of the BMX SH2 domain from Ursus maritimus (the polar bear, with a pairwise identity of 46% with the human BTK SH2 sequence). We generated 114 additional SH2 sequences using ancestral-sequence reconstruction to interpolate between Tec-kinase SH2 sequences (15). The library also included SH2 sequences from proteins that are not Tec kinases (e.g., SRC, ABL1, SHIP-1, PTN11). Variant SH2 sequences, in which a critical phosphotyrosine-interacting arginine residue (Arg 307 in BTK, SI Appendix, Fig. S1D) was mutated to lysine, were also included. This mutation is expected to weaken phosphotyrosine binding substantially (16?–18).
Fitness and Abundance Measurements of Chimeric Proteins.
The fitness of each SH2–BTK chimera was determined using a cellular assay for BTK function (14) (SI Appendix, Fig. S1E). This assay relies on the ability of BTK or variants to induce expression of CD69, a surface-expressed glycoprotein commonly used as a marker for T and B cell activation (19). In one adaptation of the assay, heterologous expression of BTK variants in interleukin-2-inducible T-cell kinase (ITK)-deficient Jurkat T cells is used to measure their ability to support CD69 upregulation. The extent of CD69 upregulation, as determined by cell sorting, is defined as “fitness.” In the second adaptation of the assay, the fitness of BTK variants expressed in BTK-deficient Ramos B cells is determined in a similar fashion.
To measure fitness, lymphocytes expressing BTK or chimeric BTK variants were sorted based on their expression of CD69. High-throughput RNA sequencing (RNA-seq) was then used to measure the relative abundances of each chimera in the CD69-selected and input libraries, as described (14). RNA-seq is used instead of DNA sequencing because it detects more variants at a similar sequencing depth (14). We calculated fitness values for each chimeric protein i as follows:
The values Fitness_i_, SortCount_i_, and InputCount_i_ are the fitness score, RNA-seq read counts in the CD69-sorted library, and RNA-seq read counts in the input library for a particular chimera i, respectively. SortCount_wild type_ and InputCount_wild type_ are the read counts for the different synonymous sequences encoding the human BTK SH2 domains included in the library, which are then averaged. A fitness value of 0 indicates that the chimera induces the same amount of CD69 expression as the wild-type BTK protein, negative values indicate reduced CD69 expression, and positive values indicate increased CD69 expression. Fitness scores from this assay agreed well among biological replicates (SI Appendix, Fig. S2 A and B, Pearson R ≥ 0.65 for n = 328 SH2 domain variants for four biological replicates in the Jurkat assay and Pearson R ≥ 0.62 for n = 328 SH2 domain variants for three biological replicates in the Ramos assay). Results from the Jurkat-cell and Ramos-cell experiments agreed, except where indicated below (SI Appendix, Fig. S2C, Pearson R = 0.60).
We also considered the possibility that differences in fitness between the BTK chimeras might be due to differences in protein abundance. To examine this, we tagged each chimeric BTK protein at its C-terminus with the mGreen-Lantern protein (a brighter GFP variant) (20). We then prepared lentiviruses from this library and transduced ITK-deficient Jurkat cells. We sorted the Jurkat cells by mGreen-Lantern fluorescence. The sorted and input populations were sequenced and the same fitness metric as used for CD69 upregulation was calculated, except that for this experiment we refer to this metric as “abundance” because it indicates the level of protein abundance from each SH2 chimera. Abundance measurements from this experiment showed good agreement among biological replicates (SI Appendix, Fig. S2D, Pearson R ≥ 0.62 for n = 328 SH2 domain variants for three biological replicates in the Jurkat assay). As expected, BTK proteins with SH2 domains containing stop codons exhibit strongly decreased abundance because the C-terminal mGreen-Lantern protein is not translated (SI Appendix, Fig. S2E).
Phosphotyrosine Recognition by the SH2 Domain Is Required for Functional Chimeric BTK Proteins.
A phosphotyrosine-dependent interaction between the scaffold protein SLP65 (BLNK) and the BTK SH2 domain is important for triggering calcium signaling downstream of the B cell receptor in Ramos cells (16). The R307K mutation in the BTK SH2 domain disrupts this interaction because the arginine residue is critical for phosphotyrosine recognition (16?–18, 21) (SI Appendix, Fig. S1D). We introduced arginine to lysine substitutions at positions corresponding to Arg 307 in BTK and 61 BTK chimeras that have at least 60% identity to the human BTK SH2 domain. Replacement of the arginine reduces the fitness of human BTK and most of the chimeras for which this mutation was tested (57 out of 61 in the Jurkat assay and 50 out of 61 in the Ramos assay, Fig. 1D and SI Appendix, Fig. S2F). For most of the chimeric BTK variants, substitution of the arginine for lysine at position 307 results in either no change in abundance or a modest decrease (Fig. 1E). The decrease in abundance is small compared to the decrease in fitness upon introducing the arginine to lysine substitution in SH2 domains even though stop codon substitutions result in similar decreases in fitness or abundance in both assays (Fig. 1E).
Many SH2 Domains Increase BTK Fitness When Substituted for the BTK SH2 Domain.
A surprising result of measuring the fitness of BTK chimeras in Jurkat T cells is that many of the chimeric variants exhibit increased fitness compared to human BTK. For the four SH2 domains derived from the human Tec kinases (excluding BTK), SH2 domains from TXK and BMX increased fitness when swapped into human BTK (Fig. 1F). This trend holds when examining the 249 SH2 domains in the library (excluding controls), as about half (51%, or 128 sequences) had fitness scores greater than 0.
We constructed a phylogenetic gene tree for the Tec-derived SH2 domains and plotted the sequence relationships along with the fitness scores for each sequence (Fig. 2). The resulting data show that sequences cluster into groups that increase or decrease fitness similarly. Despite some measurement noise, it is clear that SH2 domains from two classes, corresponding to the BMX and TXK domains, increase fitness when substituted into human BTK. Similar experiments performed using the Ramos B cell assay also showed that the TXK and BMX classes of SH2 domains increased fitness when substituted into human BTK (SI Appendix, Fig. S3A). The BTK proteins with SH2 domains in the TXK or BMX classes do not have increased abundance overall, indicating that their increased fitness is not explained by increased protein stability or gene expression (SI Appendix, Fig. S4). Not all sequences show concordance between the T cell and the B cell assay results. In particular, 15 extant sequences in the TXK class exhibit fitness scores that strongly depend on the cell line (SI Appendix, Fig. S3B).

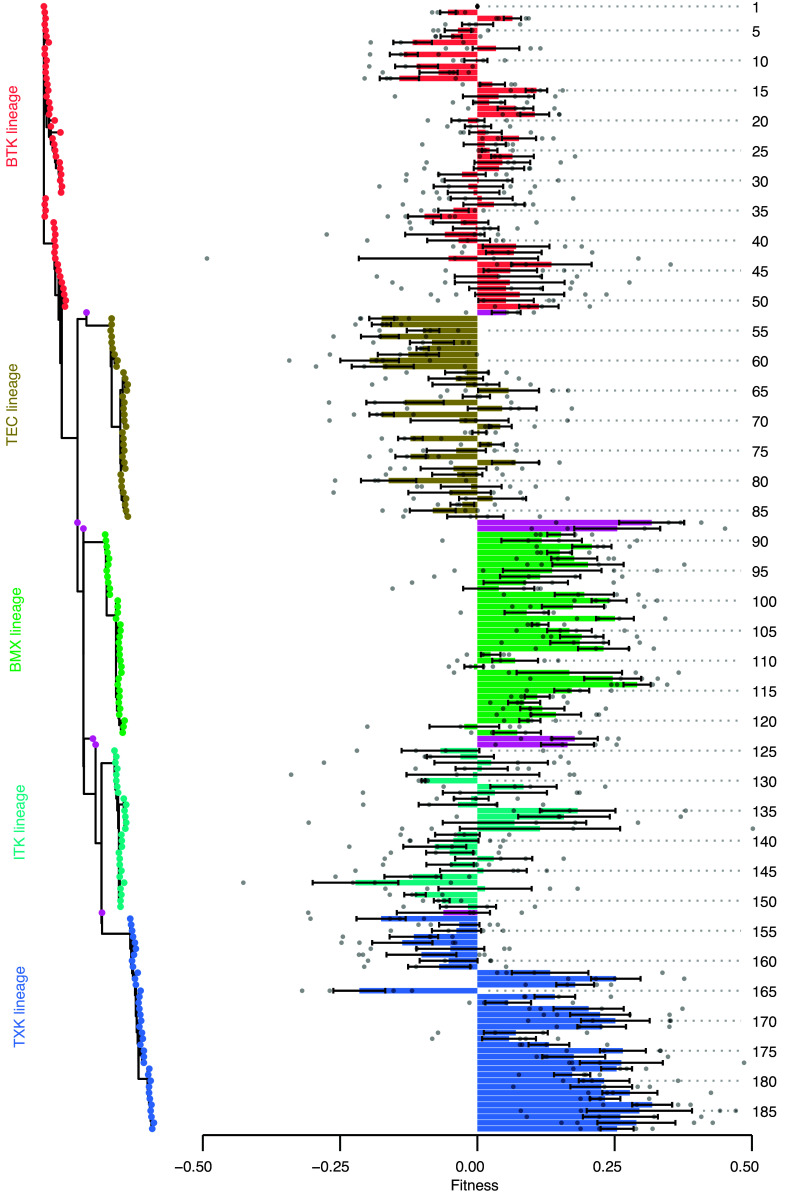

SH2-domain substitutions increase fitness in BTK. Fitness scores for the 188 SH2-domain chimeras corresponding to Tec kinases or ancestral SH2 domains are shown. SH2 domains are ordered by their sequence relationships. The fitness bars, measured using the Jurkat assay, are colored by the human Tec kinase to which they are most closely related, requiring at least 75% sequence identity to display that color (sequences without 75% sequence identity to a human Tec kinase are colored purple). Error bars represent SEM and points are the individual replicate values. Sequence numbering corresponds to SI Appendix, Table S1.
The c-Abl and c-Src SH2 domains, which are more distant in sequence from Tec-kinase SH2 domains, increase fitness when substituted into BTK (SI Appendix, Fig. S5A). However, substitution by even more distantly related SH2 domains tends to decrease fitness in general. Most of these distantly related SH2 domains (44 out of 54) decrease protein abundance when swapped into BTK (SI Appendix, Fig. S5).
Using Ancestral Sequence Reconstruction to Focus on Fitness-Increasing Substitutions.
To determine why the BMX SH2 domains increase fitness of the chimeric BTK proteins, we used ancestral sequence reconstruction to focus attention on small sets of substitutions that modulate fitness. This approach has been used to examine mechanisms of drug selectivity in c-Src and c-Abl (22). The technique has also been used extensively in studies of evolutionary trajectories (23, 24). The human BMX and BTK SH2 domains differ at 41 positions that are distributed across the domain. We used ancestral-sequence reconstruction to generate SH2 sequences that fall in between those of BTK and BMX. BTK chimeras with these sequences exhibit intermediate fitness values (SI Appendix, Fig. S5 B and C).
Eight reconstructed ancestral SH2 domains within the BMX group (denoted BMX-A through BMX-H) increase fitness progressively when substituted into human BTK (Fig. 3 A and B). The BTK chimera with the BMX-A SH2 domain (with 50% identity to the human BTK SH2 domain), behaves similarly to human BTK (fitness = 0.0 ± 0.017). In contrast, the BTK chimera with the BMX-H SH2 domain exhibits increased fitness (fitness = 0.23 ± 0.046). Between BMX-A and BMX-H, there are four substitutions in the SH2 domain: N285D, A289S, R310S, and A312V. The four residues that are substituted are not expected to interact with the phosphotyrosine residue in the target peptide (SI Appendix, Fig. S5D). These residues are located at the interface between the SH2 and kinase domains as seen in the mouse Btk crystal structure [PDB code: 4XI2 (10)], suggesting that disruption of stabilizing interactions between the SH2 and kinase domains may underlie the observed increases in fitness of the mutants (Fig. 3C).

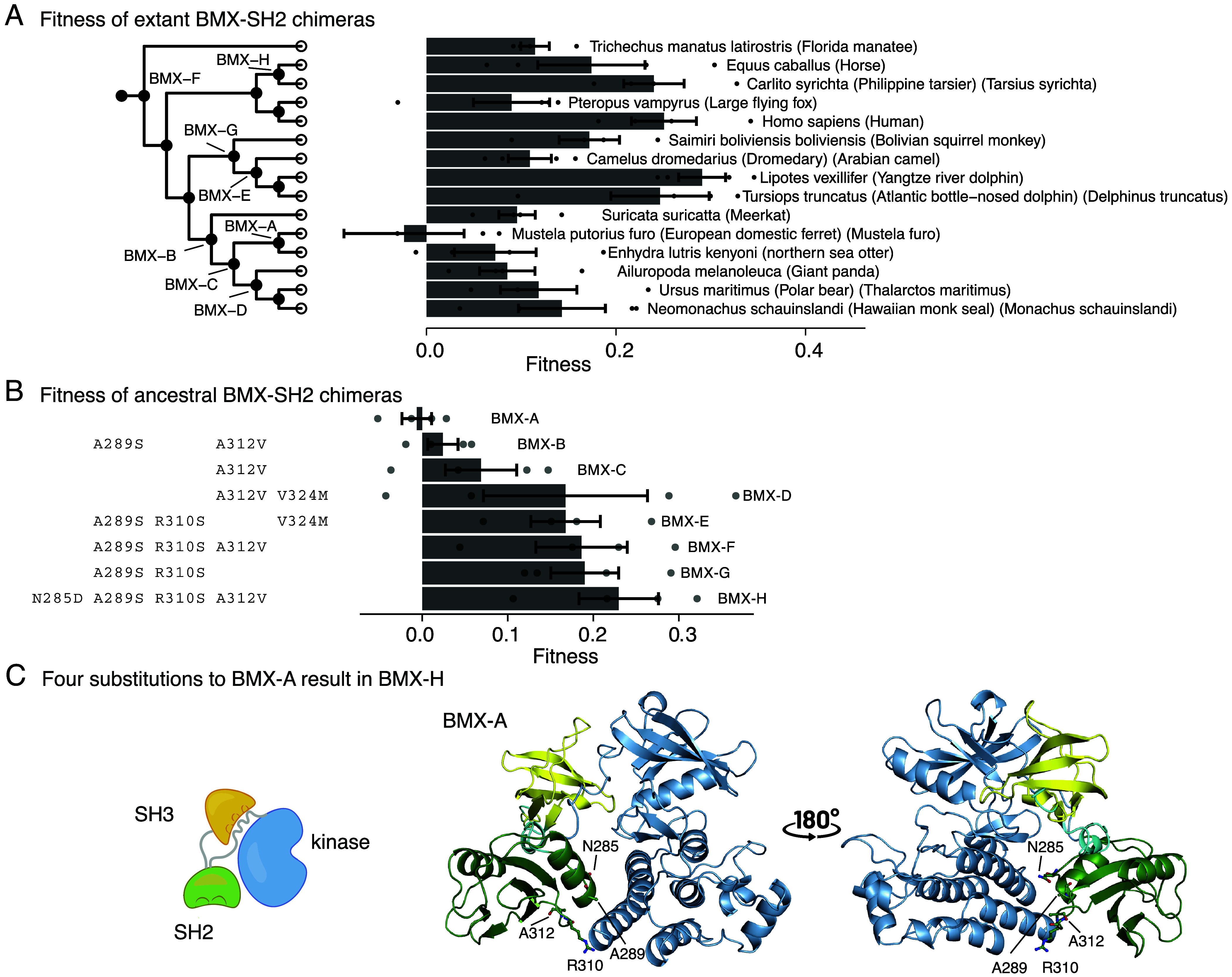

Ancestral-sequence reconstruction charts the fitness progression in the BMX Lineage. (A) Fitness scores from the BMX group of SH2 sequences. Each sequence is shown with its Latin name and common name. Positions correspond to sequence relationships based on a phylogenetic gene tree (Left), in which ancestors that were reconstructed are labeled. Error bars represent SEM. One point was removed from the Mustela furo bar at x = –0.2. (B) The eight ancestral-reconstructed sequences from (A), arranged by order of increasing fitness. The substitutions to the BMX-A sequence are shown at the Left. (C) An Alphafold (25) model of the Src module of the BMX-A sequence. The four residues (Asn 285, Ala 289, Ala 312, Arg 310) substituted in the BMX-H protein chimera are shown as a stick representation.
Kinase–Domain Mutations Decrease Fitness in a Manner That Depends on the SH2 Domain.
To explore further the role of the SH2-kinase domain interface in autoinhibition, we generated mutations in the kinase domain that alter this interface. We mutated helix αI^kinase^, the C-terminal helix in the kinase domain (SI Appendix, Fig. S6A), which interacts with the SH2 domain in the crystal structure of mouse Btk (10). We created a library of αI^kinase^ sequences from a multiple sequence alignment of 364 BTK sequences from the jawed vertebrates, curated by HomoloGene (26). 113 of these sequences were unique. We included the five human Tec kinase αI^kinase^ sequences for a total of 118 sequences, and swapped these sequences for αI^kinase^ in human BTK (SI Appendix, Fig. S6B).
We sought αI^kinase^ sequences that decrease the fitness of chimeric BTK by stabilizing the inactive conformation. The challenge in identifying such sequences is that sequences that destabilize the protein are also expected to decrease fitness. To filter out destabilizing sequences, we measured the fitness of αI^kinase^ variants in two genetic backgrounds: wild-type BTK and the gain-of-function BMX-H SH2 chimera. An αI^kinase^ variant that destabilizes the kinase domain should reduce fitness in both BTK and the BMX-H SH2 chimera (SI Appendix, Fig. S6C). In contrast, an αI^kinase^ variant that reduces fitness by making interactions that stabilize the BTK SH2-kinase interface should reduce fitness in BTK, but have little or no effect in the BMX-H SH2 chimera, which has a different SH2 domain (SI Appendix, Fig. S6C).
We developed a barcoding approach to determine the identity of the SH2 domain and the αI^kinase^ variant in high-throughput assays simultaneously (SI Appendix, Fig. S7A). The αI^kinase^ variants were cloned into human BTK and into BTK variants with the BMX-H SH2 domain. The BTK genes also contained a three-nucleotide barcode after the stop codon that was associated with the SH2 domain. One sequencing read was used to determine both the identity of αI^kinase^ and the three-nucleotide barcode, which identified the SH2 domain. The resulting fitness scores from these libraries were reproducible among biological replicates (R ≥ 0.87 for n = 236 proteins and n = 4 biological replicates, SI Appendix, Fig. S7B). The fitness scores showed good agreement between the Jurkat T cell assay and the Ramos B cell assay (SI Appendix, Fig. S7C, Pearson R = 0.68). In keeping with a previous study (13), substitution of Asp 656 in αI^kinase^ increased fitness (SI Appendix, Fig. S7D).

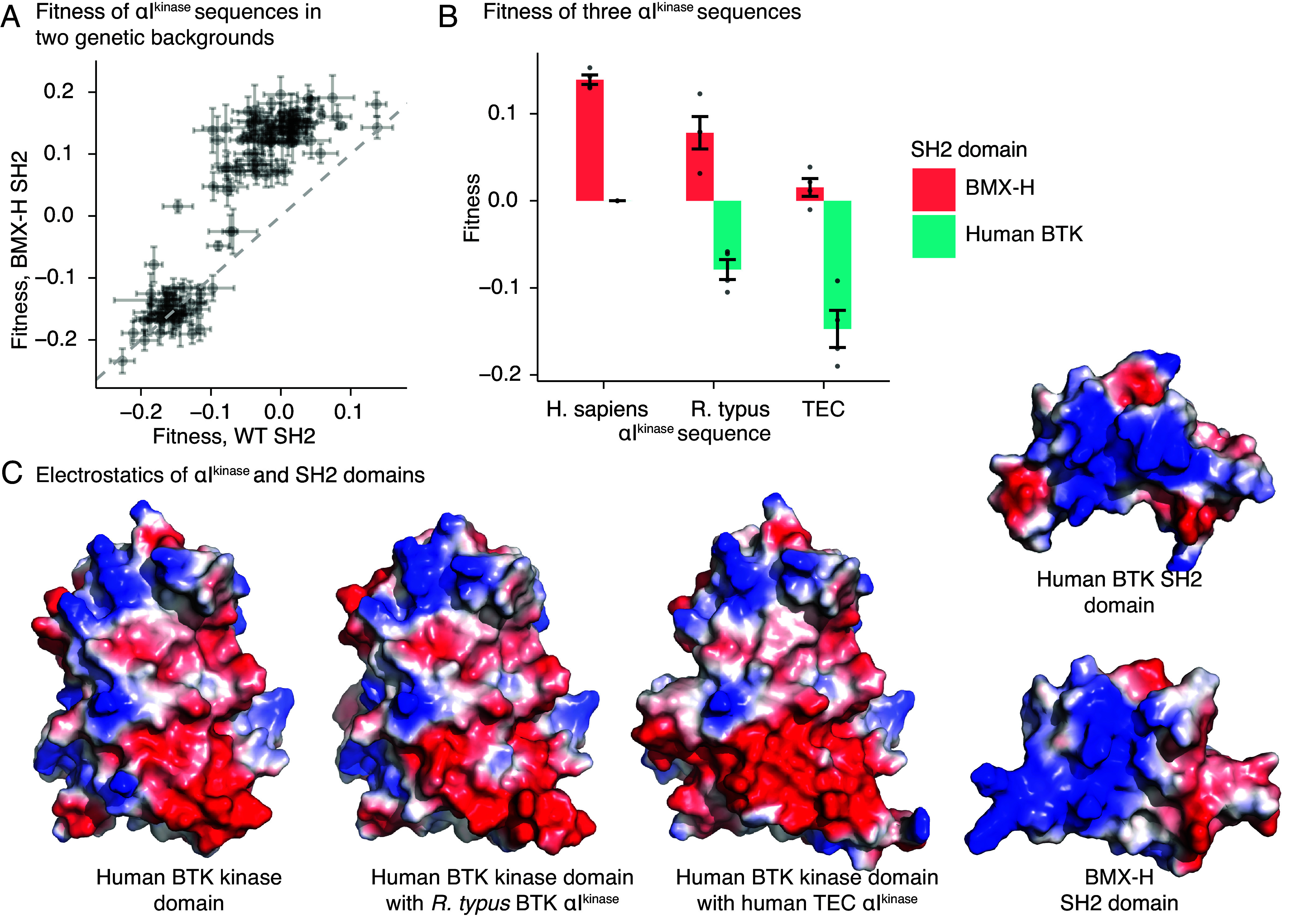

As expected, many αI^kinase^ sequences exhibit negative fitness scores in both the human BTK and the BMX-H backgrounds, consistent with destabilization of the kinase domain (Figs. 4 and 5A). For example, Ile 651 in αI^kinase^ forms a hydrophobic packing interaction with the adjacent helix, αG^kinase^, in the C-lobe of the kinase domain (SI Appendix, Fig. S7E). Substitution of Ile 651 by the smaller valine residue (for example, see Salmo salar, arctic salmon, and Boleophthalmus pectinirostris, great blue spotted mudskipper, Fig. 4) results in loss of fitness regardless of the identity of the SH2 domain.

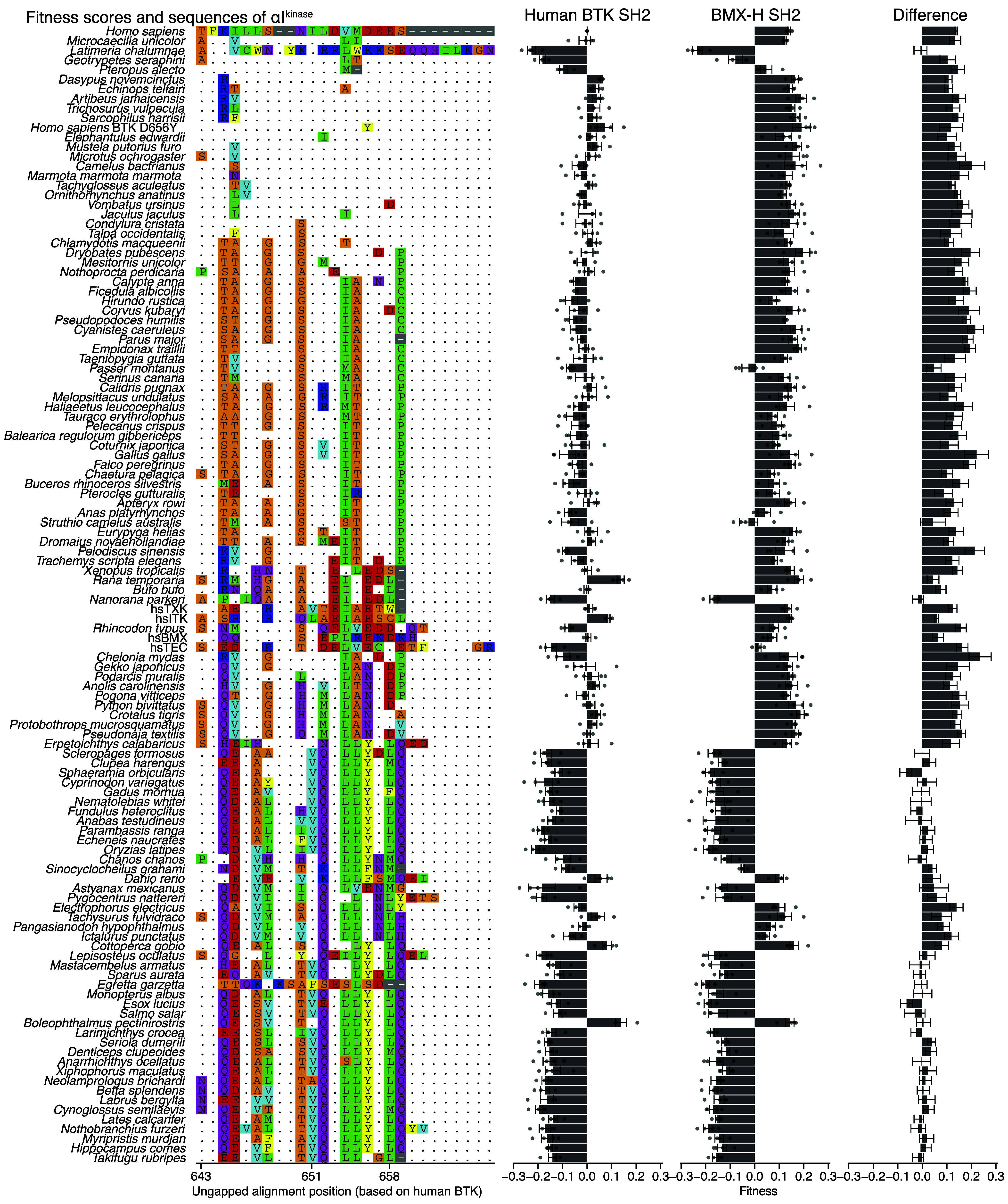

Screening αIkinase substitutions. The 118 αIkinase sequences are shown along with a multiple sequence alignment and fitness scores. The fitness scores are shown for the human BTK SH2 genetic background, the BMX-H SH2 genetic background, and the difference between these two backgrounds (BTK values subtracted from the BMX-H values). Error bars represent SEM and points represent the individual replicate values. For the difference values, error bars are determined using the SE propagation formula.
