Implantation of a vascular access button in mice
Suguru Yamauchi, Kaitlyn Ecoff, Andrei Gurau, Kristen P. Rodgers, Yuping Mei, Franck Housseau, Yun Chen, John Michel, Omkar Dhaygude, Sakura Minamisawa, Ziying Xu, Feiyu Chen, Frank Bosmans, Andreas S. Barth, Jinny S. Ha, Takumi Iwasawa, Kazunori Kato, Miki Yamauchi
TL;DR
This study evaluates the implantation of vascular access buttons in mice, showing high success rates and providing guidelines for optimal use.
Contribution
The study introduces standardized methodologies for vascular access button implantation in mice, validated through survival, patency, and clearance analyses.
Findings
VAB implantation achieved a 90.2% technical success rate and 80.4% 28-day survival rate.
Optimal catheter insertion lengths were determined for different mouse weights.
VAB administration showed advantages over venipuncture in biodistribution and clearance.
Abstract
Vascular access presents unique challenges in experimental mice due to their small size and anatomical constraints. Achieving reliable vascular access is crucial for optimizing experimental outcomes, especially in protocols requiring serial blood sampling or repeated intravascular therapy. Although vascular access buttons (VABs) offer significant advantages, their widespread adoption has been limited by technical challenges and a lack of comprehensive validation regarding their safety, feasibility, and long-term management. To address these gaps, we conducted a comprehensive evaluation of VAB implantation in mice. The technical success rate was 90.2%, and the 28-day survival rate was 80.4%. Optimal catheter insertion lengths determined by intraoperative and autopsy findings, and computed tomography were 9.5 ± 0.6 mm (20–25 g), 10.1 ± 0.8 mm (25–30 g), and 11.2 ± 0.5 mm (> 30 g),…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7- —Subsidies for Current Expenditures to Private Institutions of Higher Education from the Promotion and Mutual Aid Corporation for Private Schools of Japan
- —NIH
- —NIH Medical Scientist Training Program
- —Dysautonomia International
- —https://doi.org/10.13039/100029725Banks Family Foundation
- —Skalka-Kronsberg family
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsVeterinary Pharmacology and Anesthesia · Receptor Mechanisms and Signaling · Zebrafish Biomedical Research Applications
Introduction
Mice are the predominant animal model for in vivo experiments^1,2^. Vascular access, such as blood sampling and intravenous (IV) injection, is crucial for a wide range of biomedical experiments. However, due to the small size of mice, vascular access can be challenging and requires significant technical expertise^3^. Improper vascular access can considerably affect experimental results and hinder the generation of scientifically evidenced data. In addition, repeated testing and treatment, especially in peripheral vessels such as the tail vein, can lead to insufficient volume during blood sampling, incorrect IV administration, limited availability of peripheral veins due to venous fragility, and increased likelihood of undue stress in mice, possibly necessitating changes in study design.
An effective strategy to address these challenges involves the surgical placement of chronic vascular access catheters in laboratory animals. The external jugular vein (EJV) is the most common route for catheter placement in small animals^4–7^. Two options for chronic vascular access in mice are available: (i) an exterior vascular catheter and (ii) a vascular access button (VAB). An exterior vascular catheter is surgically implanted in a blood vessel, such as the jugular vein and central vein, and exteriorized somewhere on the body, usually between the shoulder blades^8^. The VAB system is an improved version of external vascular catheters, consisting of a catheter inserted into a blood vessel and an external hub (i.e., button) with a distinct port that is implanted subcutaneously, through which the vessel can be accessed from the body surface. The VAB also simplifies the process of injections and blood sampling from laboratory animals and can be implanted even for mice housed in a group. A VAB also contributes to the practice of the 3R principle in laboratory animals by enhancing animal comfort, minimizing physical and mental stress, and reducing the need for repeated venipunctures^9^.
Despite the advantages of the VAB system, only a few studies have examined its application in laboratory animals, with limited reports focusing on VAB implantation in larger species, such as rabbits^10^ and ferrets^11^. A systematic review of the literature highlights a significant gap in comprehensive studies on vascular access systems in murine models, with a notable lack of rigorous investigations specifically addressing VAB implantation methodologies and outcomes^12–14^. The limited adoption of VAB technology in standard experimental protocols stems from insufficient empirical validation of technical parameters and safety profiles. Critical aspects requiring systematic investigation include optimal catheter tip positioning, long-term catheter patency rates, and evidence-based maintenance protocols—all essential determinants of successful VAB implementation.
This study aims to provide a robust scientific foundation for the broader implementation of VAB technology in murine experimental models, facilitating enhanced reproducibility and reliability in preclinical research.
Results
Catheter insertion into the EJV was performed using the classical cutdown method^15–18^. Supplementary Video 1 and its instructions show a step-by-step VAB implantation technique. To ensure consistency in surgical technique, all procedures in this study were performed by a single operator. If another operator was involved in a specific procedure, this was explicitly documented and taken into account during analysis. A flowchart of the analysis of all in vivo experiments performed in this study is presented as Fig. 1.Fig. 1. Experimental design. Flowchart for all analyses of this study. VAB, vascular access button; CT, contrast-enhanced computed tomography.
Technical success rate

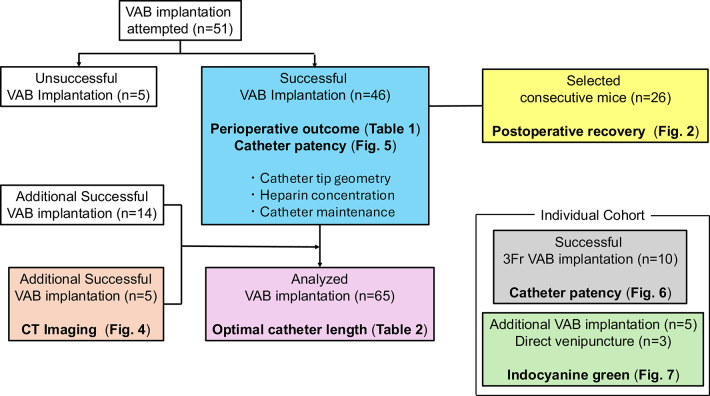

Catheter insertion into the right EJV and VAB implantation was attempted in 51 mice and the procedure was accomplished in 46 mice with a technical success rate of 90.2%. The five failed cases were due to difficulty in inserting the catheter because of the size and trajectory of the vein.
Perioperative outcome
Thus, perioperative outcomes were analyzed in 46 mice that underwent successful VAB implantation (Table 1). The median age of the mice was 15.0 ± 5.6 weeks. The mean preoperative body weight was 26.0 ± 3.5 g. After general anesthesia, the mean operative time from disinfection of the surgical field to wound closure was 24.8 ± 5.9 min. The maximum diameter of the right EJV was measured immediately superior to the clavicle prior to catheter insertion. The mean maximum diameter was 1.73 ± 0.3 mm. Postoperative complications included bleeding (n = 4) and seroma (n = 1), but these were minor and required no additional treatment. One case of wound dehiscence (n = 1) was repaired by reoperation under general anesthesia. Complications related to catheter and VAB devices were observed on five occasions (10.8%) and included catheter dislodgement (n = 2), catheter-button disconnection (n = 2), and mechanical damage to the button (n = 1). No intraoperative mortality was observed, including in cases where the procedure was unsuccessful. The 28-day survival rate was 80.4% (37/46) among successfully implanted mice. Among the mortalities, 66.7% (6/9 mice) occurred within 7 days post-surgery. While the specific cause of death could not be determined in these cases, necropsy findings revealed no complications associated with catheter or VAB placement.Table 1. Perioperative outcome.n = 46Age (weeks)15.0 ± 5.6SexMale27 (58.7%)Female19 (41.3%)Preoperative body weight (g)26.0 ± 3.5Surgical time (min)24.8 ± 5.9Intraoperative EJV diameter (mm)1.73 ± 0.3Postoperative complicationMinor bleeding4 (8.7%)Wound seroma1 (2.2%)Wound dehiscence1 (2.2%)Catheter dislodgement2 (4.3%)Catheter and button disconnection2 (4.3%)Buttons mechanical damage1 (2.2%)28-day survival rate37 (80.4%)Within 7 days after surgery in fatal cases6/9 (66.6%)Values are given as the mean ± standard deviation.
Postoperative recovery

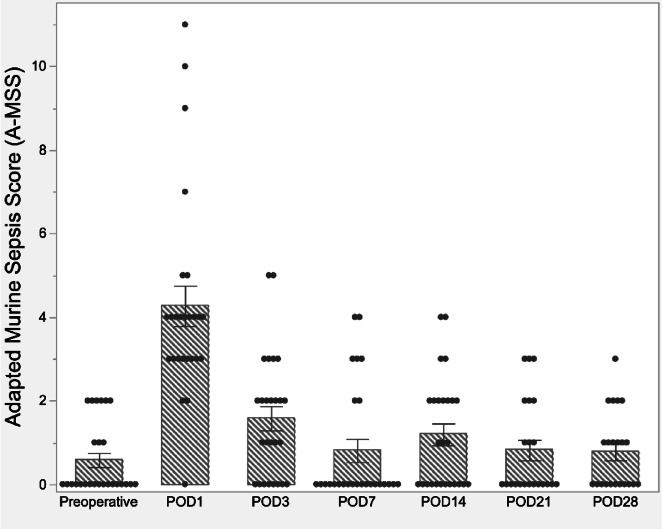

We analyzed the recovery of mice after surgery using changes in preoperative vs. postoperative Adapted Murine Sepsis Scores (A-MSS)^19^. A-MSS results for 26 consecutive mice, excluding cases that experienced mortalities during the postoperative observation period (Fig. 1), are shown in Fig. 2. At both postoperative day 21 (POD21) and POD28, data from four cases were lost at each time point, resulting in a final analysis of 22 cases in total. Preoperative A-MSS scores were ≤ 2 for all subjects. The highest A-MSS scores were observed on POD1, with a mean of 4.3 and a standard deviation of 2.5. A-MSS scores showed progressive improvement, returning to near-baseline levels by POD7. During the remaining follow-up period, A-MSS scores were observed to be stable.Fig. 2. Adapted murine sepsis score (A-MSS) over the course of the postoperative period. The A-MSS score, a metric used to assess postoperative recovery in mice, typically reached its peak value on postoperative day 1 (POD1). Subsequently, the score demonstrated a gradual improvement, with most subjects returning to near-baseline values by POD7.
Catheter insertion length

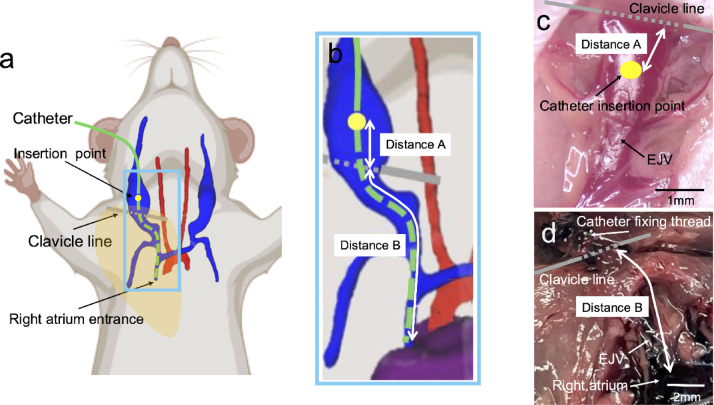

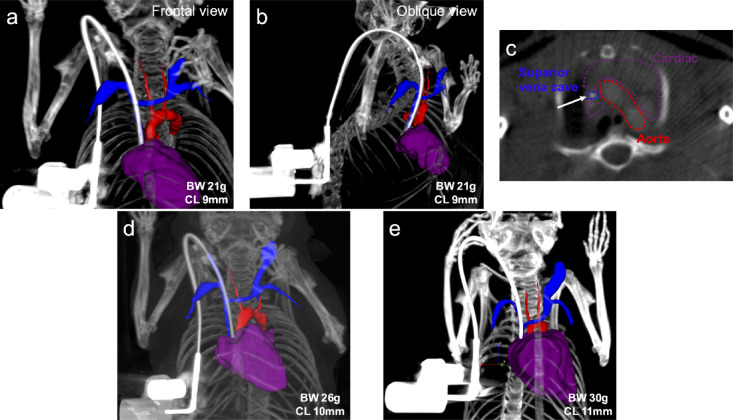

The optimal catheter insertion length was determined through a combination of intraoperative measurements and post-mortem examinations. Figure 3a,b show a schematic representation of the catheter insertion parameters used in this study. To ensure consistency, Distance A was defined as the distance from the clavicular line to the EJV catheter entry point (Fig. 3c). Distance B was defined as the distance from the clavicular line to the superior vena cava (SVC)-right atrial junction. This landmark where the SVC pierces the dome of the right atrium was deemed the optimal site for catheter implantation (Fig. 3d). The sum of Distances A and B represents the optimal catheter insertion length into the vein. Catheter insertion lengths obtained from intraoperative as well as autopsy findings and dependent on body weight are shown in Table 2. Distance A was nearly constant at 1.8 to 1.9 mm regardless of mouse weight. Distance B was 7.7 ± 0.5 mm for mice weighing 20 g to 25 g, 8.3 ± 0.7 mm for mice weighing 25 g to 30 g, and 9.3 ± 0.4 mm for mice weighing 30 g or more. To validate the predetermined catheter length specifications (Table 2), we performed imaging after catheter insertion in an additional cohort (n = 5) of live mice (Fig. 1), enabling visualization and confirmation of optimal catheter tip positioning. Figure 4 illustrates the catheter placement in a live mouse implanted with a VAB, visualized through a three-dimensional (3D) rendering of contrast-enhanced computed tomography (CT) images. The 3D vessel rendering was constructed from all directions and angles, and the frontal (Fig. 4a) and right oblique (Fig. 4b) images were critical elements in confirming the catheter tip position. The vein wall of the anterior half of the right EJV surrounding the catheter was removed during the rendering to better visualize the catheter’s trajectory and tip position. The position of the catheter tip was verified with a contrast-enhanced CT axial cross-sectional image (Fig. 4c). Following the guidelines in Table 2, VABs were implanted in mice weighing 21 g (Fig. 4a), 26 g (Fig. 4d), and 30 g (Fig. 4e) with catheters 9 mm, 10 mm, and 11 mm long, respectively. Catheter tip positioning, guided by weight-dependent length specifications, demonstrated that our standardized placement protocol is applicable to living mice and achieves the anatomical target location at the SVC-right atrial junction.Fig. 3. Schematic and image of catheter length. (a) An overall view shows catheter insertion through the external jugular vein. Blue indicates the external jugular and subclavian veins; red, the aortic arch and carotid artery; and purple, the heart. Green denotes the catheter; yellow indicates the point of insertion of the catheter into the external jugular vein. (b) Close-up view of Fig. 1a. Distance A is defined as the distance from the external jugular vein insertion point of the catheter to the clavicular line. Distance B is defined as the distance from the clavicular line to the superior vena cava-right atrial junction. (c) Full view of the external jugular vein in surgery. Distance A is determined intraoperatively. (d) Full view of the external jugular vein into which the catheter was inserted at autopsy. The sternum and ribs have been removed. Distance B was measured manually at autopsy. Distance A plus Distance B is the optimal catheter insertion length (catheter tip at the junction of the superior vena cava and right atrium) into the external jugular vein. EJV, external jugular vein.Table 2. Weight-Dependent Catheter Length Parameters.Body weightDistance A (mm)Distance B (mm)Optimal catheter length (A + B, mm)20 g-25 g (n = 28)1.78 ± 0.317.7 ± 0.59.5 ± 0.625 g-30 g (n = 23)1.82 ± 0.288.3 ± 0.710.1 ± 0.830 g- (n = 9)1.88 ± 0.229.3 ± 0.411.2 ± 0.5Values are given as means ± standard deviation.Fig. 4. Comparison of different catheter insertion lengths in living mice. Imaging after catheter insertion obtained from an additional cohort of living mice (n = 5) allowed visualization and confirmation of optimal catheter tip location. Blue indicates the external jugular and subclavian veins; red, the aortic arch and carotid artery; and purple, the heart. A white high-intensity catheter filled with a contrast agent can be recognized as a curved material connected to the VAB. (a) 3D reconstruction demonstrating anterior view of a VAB with 9-mm catheter placement to the cardiovascular system of a 21 g mouse. (b) Oblique view of a 3D rendering of a 9 mm long VAB with catheter placement to the cardiovascular system of a 21 g mouse (c) Confirmation of the catheter tip on contrast-enhanced CT cross-sectional image. White arrow; the tip of the catheter located in the superior vena cava just before the right atrial entrance. (d) Anterior view of a 3D rendering of a 10 mm long VAB with catheter placement to the cardiovascular system of a 26 g mouse. (e) Anterior view of a 3D rendering of an 11 mm long VAB with a catheter implanted in a 30 g mouse. BW, body weight; CL, catheter length.
Catheter patency
We evaluated catheter patency using a three-tier classification system: (i) complete patency—successful bidirectional flow, allowing both injection and blood aspiration via the VAB; (ii) partial patency—unidirectional flow, permitting injection but not blood aspiration via the VAB; and (iii) no patency—the absence of flow in either direction, precluding both injection and blood aspiration. Multiple factors potentially influencing catheter patency were systematically investigated. These included physical parameters such as catheter tip geometry, heparin concentration in the maintenance solution, and frequency of catheter maintenance procedures. The impact of these factors on maintaining 28-day patency was comparatively analyzed. Forty-six mice implanted with VABs were analyzed and stratified into four categories based on distinct combinations of factors influencing catheter patency (Fig. 1). Additionally, the study incorporated an evaluation of a 3 Fr catheter in an additional cohort (Fig. 1), which has a larger diameter than the 2 Fr catheters typically employed in murine models (Supplementary Fig. 1).
Square vs. round catheter tip

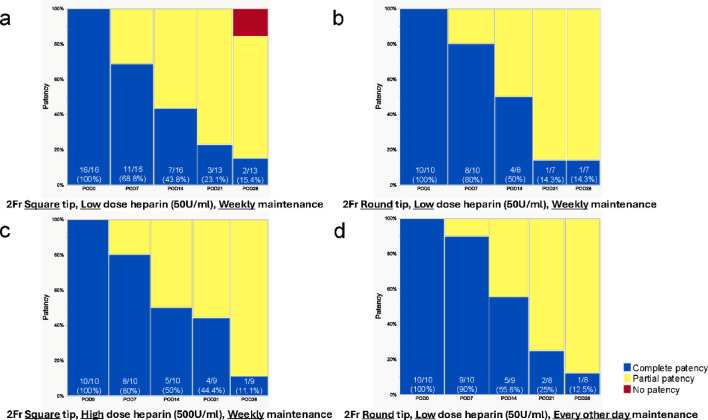

First, we investigated the impact of catheter tip geometry (square vs. round) on vascular patency. The surgical technique and maintenance protocol were standardized across all subjects, with weekly administration of heparinized saline (50 U/mL) for catheter maintenance. The sole variable was the catheter tip geometry. Results are presented in Fig. 5a,b. We started the study with 16 mice in the square-tip group and 10 mice in the round-tip group; 3 mice at POD21 in the square-tip group, 2 mice at POD14, and 1 mouse at POD21 in the round-tip group were excluded from the analysis due to mortality. On POD7, complete patency was observed in 68.8% (11/16) of the square-tip group and 80% (8/10) of the round-tip group (p = 0.66, Fisher’s exact test). The incidence of partial patency increased over time in both groups. By POD28, complete patency rates had decreased to 15.4% (2/13) in the square-tip group and 14.3% (1/7) in the round-tip group (p = 0.53, Pearson’s chi-square test). Additionally, two cases of complete occlusion were observed in the square-tip group at POD28.Fig. 5. Catheter patency over time with different management methods. (a) The catheter tip geometry is square, heparinized saline used for flushing is a low dose (50U/ml), and catheter maintenance is weekly. (b) The catheter tip geometry is round, heparinized saline used for flushing is low dose (50U/ml), and catheter maintenance is weekly. (c) The catheter tip geometry is square, heparinized saline used for flushing is a high dose (500U/ml), and catheter maintenance is weekly. (d) The catheter tip geometry is round, heparinized saline used for flushing is low dose (50U/ml), and catheter maintenance is every other day. The numbers shown in the figure represent the percentage of complete patency.
Low dose (50 U/ml) vs. high dose (500 U/ml) heparinized saline
Catheter tip geometry (square tip), surgical technique, and weekly maintenance frequency were standardized, and the dose of heparin used for flushing was compared between low (50 U/ml) and high (500 U/ml) concentrations. The results are shown in Fig. 5a,c. We started the study with 16 mice in the low-dose group and 10 mice in the high-dose group; 3 mice at POD21 in the low-dose group, and 1 mouse at POD21 in the high-dose group were excluded from the analysis due to mortality. At POD7, complete vascular patency was observed in 68.8% (11/16) of subjects in the low-dose group and 80% (8/10) in the high-dose group (p = 0.66, Fisher’s exact test). Both groups exhibited a progressive decrease in complete patency rates and a corresponding increase in partial patency rates over the postoperative period. Statistical analysis revealed no significant differences in patency outcomes between the low-dose and high-dose groups throughout the study duration (POD14: p = 0.66, Fisher’s exact test; POD21: p = 0.37, Fisher’s exact test; POD28: p = 0.42, Pearson’s chi-square test).
Comparison of weekly vs. every-other-day maintenance
We compared the effects of weekly and every other-day maintenance protocols on catheter patency. Catheter tip geometry (round tip), surgical technique, and heparinized saline concentration (50 U/mL) were standardized across all subjects. Results are presented in Fig. 5b,d. We started the study with 10 mice in the weekly maintenance group and 10 mice in the every-other-day group; 2 mice at POD 14 and 1 mouse at POD21 in the weekly maintenance group, and 1 mouse at POD14 and 1 mouse at POD21 in the every-other-day group were excluded from the analysis due to mortality. At POD7, complete vascular patency was observed in 80% (8/10) of subjects in the weekly maintenance group and 90% (9/10) in the every-other-day group (p = 1.00, Fisher’s exact test). Both groups exhibited a marked decline in complete patency rates, with approximately 50% reduction by POD14. This downward trend in complete patency continued throughout the subsequent postoperative period. Statistical analysis revealed no significant differences in patency outcomes between the two maintenance frequency groups at any observation time point (Comparison at all POD time points: p = 1.00, Fisher’s exact test).
3Fr catheter with a square tip

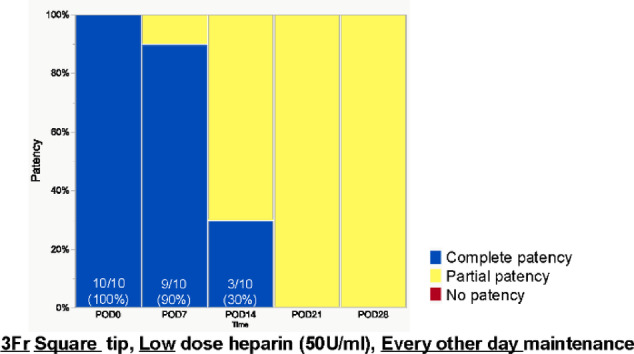

Following unsuccessful attempts to improve partial patency rates through various experiments with 2 Fr catheters, including modifications to catheter tip geometry and maintenance protocols, we transitioned to larger 3 Fr catheters with square tips (Fig. 6). The internal and external diameters of the catheters were 0.43 × 0.69 mm for 2 Fr and 0.64 × 1.00 mm for 3 Fr, respectively. Surgical technique and maintenance protocol were standardized across all subjects, with catheter maintenance performed every other day using heparinized saline (50 U/mL). We conducted this analysis on 10 mice without mortality during the observation period. With the 3 Fr catheters, complete vascular patency was observed in 90% (9/10) of subjects at POD7, decreasing to 30% (3/10) at POD14, and 0% (0/10) at POD21. In all cases where complete patency was not maintained, partial patency was observed. Notably, the transition from complete to partial patency occurred earlier with 3 Fr catheters compared to the previous experiments with 2 Fr catheters.Fig. 6. Catheter patency over time with 3Fr catheter. 3Fr diameter, the catheter tip geometry is square, heparinized saline used for flushing is low dose (50U/ml), and catheter maintenance is every other day. The numbers shown in the figure represent the percentage of complete patency.
Biodistribution and clearance of the ICG with IV Injection via VAB

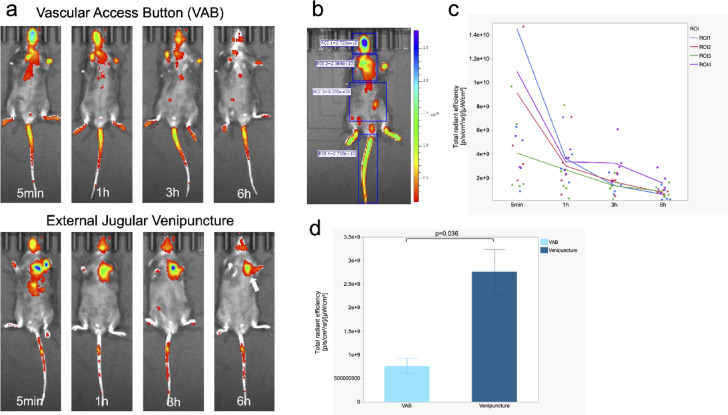

We compared the biodistribution and clearance of the indocyanine green (ICG) fluorescent dye with IV injection via VAB versus direct external jugular venipuncture, as visualized through an in vivo imaging system (IVIS) (Xenogen; Perkin Elmer, MA, USA). Five mice with IV injection via VAB and 3 mice with direct external jugular venipuncture were used for this analysis (Fig. 1). Figure 7a illustrates the temporal distribution of ICG as visualized by IVIS between these two administration routes. Figure 7b depicts a representative image of the regions of interest (ROI) defined in this study and the calculated total radiant efficiency. Figure 7c shows the total radiant efficiency over time at each ROI for mice administered ICG via VAB. Rapid systemic distribution of ICG was observed in both groups, with detectable fluorescence in the head and peripheral extremities at 5 min post-injection, indicating comparable biodistribution kinetics between VAB and direct venipuncture (Fig. 7a). ICG was gradually excreted into bile and cleared through the intestines. In VAB, the fluorescent signal is only weakly detectable 6 h after injection. The total radiant efficiency results in VAB corroborate these qualitative observations quantitatively (Fig. 7c). However, in mice receiving ICG via direct venipuncture, a relatively strong fluorescent signal persisted near the injection site (corresponding to ROI2) even 6 h post-injection (white arrow, Fig. 7a). A comparison of the total radiant efficiency in the ROI2 region at 6 h post-administration, as shown in Fig. 7d, revealed significantly higher values in mice that underwent direct external jugular venipuncture compared to those with VAB administration (p = 0.036, Mann–Whitney U-test).Fig. 7. Biodistribution and clearance of the ICG with IV Injection via VAB. (a) Comparison of VAB vs. direct external jugular venipuncture over time. In both routes of administration, ICG is distributed throughout the body immediately after administration and is excreted in approximately six hours. Venipuncture mice still show relatively high ICG fluorescence at 6 h post-evaluation (White arrow). (b) The head, chest, abdomen, and tail were defined as regions of interest (ROI)1, ROI2, ROI3, and ROI4, respectively, and total radiant efficiency was calculated. (c) Trends over time in the total radiant efficiency of each ROI in mice administered ICG via VAB. The metabolic and excretory processes of ICG administered via VAB are represented by the quantitative decrease in fluorescence intensity in all ROIs. (d) Comparison of total radiant efficiency in ROI2 area at 6 h in VAB and venipuncture. Venipuncture mice have significantly higher fluorescence intensity (p = 0.036, Mann–Whitney U-test).
