Nanoindentation under retrocorneal pressure to determine the biomechanical response of the human cornea to accelerated UVA crosslinking and riboflavin osmolarity ex vivo
Robert Lohmüller, Günther Schlunck, Bero Bressler, Daniel Böhringer, Thomas Reinhard, Stefan J. Lang
TL;DR
This study examines how different corneal crosslinking protocols and riboflavin osmolarities affect corneal stiffness and creep under realistic pressure conditions.
Contribution
A novel experimental setup combining nanoindentation with adjustable retrocorneal pressure to simulate physiological conditions during biomechanical assessments.
Findings
All CXL protocols significantly increased corneal stiffness and reduced tissue creep.
Hyperosmolar riboflavin enhanced biomechanical effects compared to the standard protocol.
High radiation intensity in accelerated protocols diminished biomechanical outcomes.
Abstract
Riboflavin-mediated UVA corneal crosslinking (CXL) is an established treatment to halt the progression of keratoconus. However, the biomechanical effects of accelerated protocols and varying riboflavin osmolarities under physiological conditions remain poorly understood. Traditional biomechanical assessments using nanoindentation typically analyze tissue flatmounts, disregarding the natural tissue strain exerted by intraocular pressure. We developed a novel experimental setup combining nanoindentation with adjustable retrocorneal fluid pressure (RCP) to simulate physiological conditions during measurements. Using this approach, we first examined five corneas under incrementally increasing RCP levels to quantify the effect of tissue pre-tension on biomechanical properties. In a subsequent series, we investigated 70 human corneas to evaluate seven different protocols, including…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7- —Universitätsklinikum Freiburg (8975)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCorneal surgery and disorders · Corneal Surgery and Treatments · Glaucoma and retinal disorders
Introduction
Understanding human corneal biomechanics is crucial for gaining deeper insights into corneal ectatic pathologies such as keratoconus. These conditions, characterized by progressive corneal thinning and structural alterations, significantly impact vision and corneal integrity^1^. The development of riboflavin-mediated UVA crosslinking (CXL) to slow down or halt the progression of keratoconus^2,3^ has further emphasized the importance of accurately assessing corneal biomechanical properties. Corneal biomechanics have been studied using various techniques. In vivo methods include non-contact tonometry with Corvis ST for air-puff-induced deformation analysis^4,5^, the Ocular Response Analyzer (ORA) which measures corneal hysteresis and corneal resistance factor^5,6^, Goldmann applanation tonometry^7^, and Brillouin microscopy^8,9^. Ex vivo approaches encompass uniaxial extension^10–12^, atomic force microscopy^13,14^, nanoindentation (NI)^15–19^ and optical coherence elastography^20–22^. Each of these techniques offers unique insights, contributing to the overall understanding of this complex tissue.
Our study introduces a novel approach to examining human corneal tissue mimicking physiological conditions. We have developed a method for sample fixation which allows to apply a well-controlled retrocorneal fluid pressure during NI measurements. This technique addresses a key limitation of traditional biomechanical assessments, which often use flatmounted corneal samples and neglect the crucial role of intraocular pressure (IOP) in corneal shape and function. By using intact human donor corneas in an artificial anterior chamber, we simulate physiological IOP during measurements. This setup allows us to study corneal biomechanics under various degrees of mechanical pre-tension, offering insights more relevant to in vivo conditions. Our NI approach enables detailed, spatially resolved characterization of corneal biomechanical properties in a near-physiological state.
CXL has seen significant advancements, focusing on enhancing treatment efficiency and patient comfort. Accelerated protocols aim to reduce corneal irradiation time, improving patient experience while potentially achieving similar stiffening effects to standard protocols, albeit with possible differences in crosslinking depth and distribution. Hypo-osmolar riboflavin solutions allow treatment of patients with thin corneas by inducing corneal swelling to achieve the necessary thickness for irradiation. Our study quantifies the effects of these CXL protocols on corneal biomechanics under near-physiological conditions, contributing to the optimization of CXL treatments. For a comprehensive overview of recent CXL advances, see Raiskup et al.^23^.
The current study comprises two main components. First, using healthy donor corneas, we aim to characterize the biomechanical properties of corneal tissue by comparing flatmounted samples with pre-tensioned tissue under physiological conditions. In particular, we assessed the influence of tissue pre-tension, generated by intraocular pressure, on corneal biomechanics. This approach not only reveals how mechanical pre-tension affects corneal biomechanics but also improves the physiological relevance and quality of the measurements. Second, we utilize this newly developed method to evaluate the treatment effects of different CXL protocols. We assess the impact of various riboflavin solutions and accelerated CXL protocols by comparing the initial biomechanical properties of the corneal tissue with those measured after each treatment. This approach allows us to quantify the changes induced by different CXL techniques under near-physiological conditions. Through these investigations, we aim to enhance the understanding of corneal biomechanics and the effects of various CXL protocols.
Materials and methods
Corneal tissue and preparation
Human donor corneas not suitable for transplantation due to low endothelial cell count were obtained from LIONS Cornea Bank Baden-Württemberg. Ethical approval from the Ethics Committee of the Albert-Ludwigs-University of Freiburg (408/15) was given. The standards of the Declaration of Helsinki were followed. Informed consent for corneal donation and, if applicable, for the use for research purposes was obtained from the donors or, if not available, from their next of kin.
Initial equilibration in culture medium
The corneas were equilibrated in MEM Earl’s cell culture medium (BS.F0325, Bio & SELL, GmbH, Feucht, Germany) supplemented with 15% dextran 500 (9219.1, Carl Roth GmbH + Co. KG, Karlsruhe, Germany), 10% fetal bovine serum (FBS, FBS.S 0615, Bio & SELL, GmbH, Feucht, Germany), 100 U / mL penicillin and 100 µg / mL streptomycin (P4333-100ML, Sigma-Aldrich, St. Louis, MO, USA), 2,5 mg Amphotericin B (A2942-50ML, Sigma-Aldrich, St. Louis, MO, USA), 12,5 mM HEPES-Buffer (P05-01100, PAN-Biotech GmbH, Aidenbach, Germany) and 2 mM L-Glutamine (25030-081, Life Technologies, Paisley, UK) for 24 h at + 37 °C to control the tissue hydration (Fig. 1).Fig. 1. Nanoindentation (NI) matrix of 10 spatially resolved NIs (points) in the center of the corneal tissue with one surface detection using an adjust depth offset (ADO) illustrated by an asterisk (A). Extended Nanoindentation matrix for quantifying corneal crosslinking (CXL) effects with 28 NIs (points) assigned to a total of five ADO (asterisks) (B). The Force–Displacement diagram a typical progression curve of the NI with Hertz fitted loading part from 10 to 98% of the maximum Force (F_max_) applied (C). A typical Force–Time and Displacement–Time curve from a NI with highlighted progression of Displacement during constant load from h_i_ to h_m_ (D).
Artificial anterior chamber setup

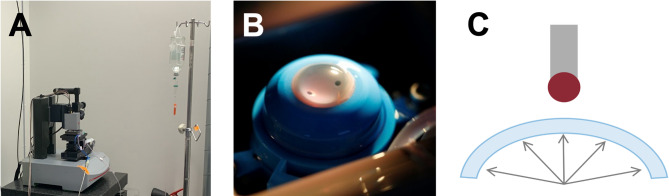

For NI measurements, the corneal tissue was clamped in a modified artificial anterior chamber (K20-2125, Barron Precision Instruments L.L.C., Grand Blanc, MI, USA). The chamber consists of a tissue pedestal and a matching tissue retainer, which is placed over the cornea after centration. The tissue is then securely fixed by tightening a locking ring, thereby compressing the scleral rim to achieve a watertight seal. The inner chamber of the artificial anterior chamber was filled with dextran-supplemented cell culture medium. One of the two connector tubes of the artificial anterior chamber was connected to both a saline infusion and a pressure sensor (G19237 Mod. Duesseldorf, Geuder, Heidelberg, Germany), while the second tube was clamped to close the system. The adjustable retrocorneal fluid pressure was controlled by varying the height of the connected saline infusion, and the pressure was continuously monitored by the pressure sensor. The modified artificial anterior chamber was fixed in a specifically developed 3D-printed (Form 3B + , Tough 2000 Resin, Formlabs GmbH, Berlin, Germany) sample mount for the biomechanical characterization (Fig. 2).Fig. 2UNHT^3^ Bio Nanoindenter (Anton Paar, Graz) (A). Cornea clamped in an artificial anterior chamber (B). Schematic drawing of the experimental setup (C).
Measurement conditions
All measurements were conducted with the tissue immersed in a bath of cell culture medium supplemented with 15% dextran. This approach served two purposes: preventing dehydration and maintaining corneal thickness within a physiological range. Prior to native measurements, the corneal epithelium was removed. Following CXL, each cornea was kept overnight in medium supplemented with 15% dextran to equilibrate tissue hydration. This step ensured that biomechanical properties could be measured at comparable thicknesses across samples.
Nanoindentation
Nanoindentation (NI) was utilized in this study to assess both the elastic properties and the time-dependent deformation of corneal tissue samples. The measurements were performed using a UNHT^3^ Bio Nanoindenter (Anton Paar, Graz, Austria) equipped with a spherical ruby tip with a radius of 500 µm. During the testing protocol, the indenter applied force to the corneal tissue samples until a maximum penetration depth of 25 µm was reached. The force required to achieve this depth (F_max_) was maintained for 90 s before the unloading phase commenced. The force–displacement and time course of the indentation protocol are illustrated in Fig. 1.
Elastic properties: the hertz elastic modulus

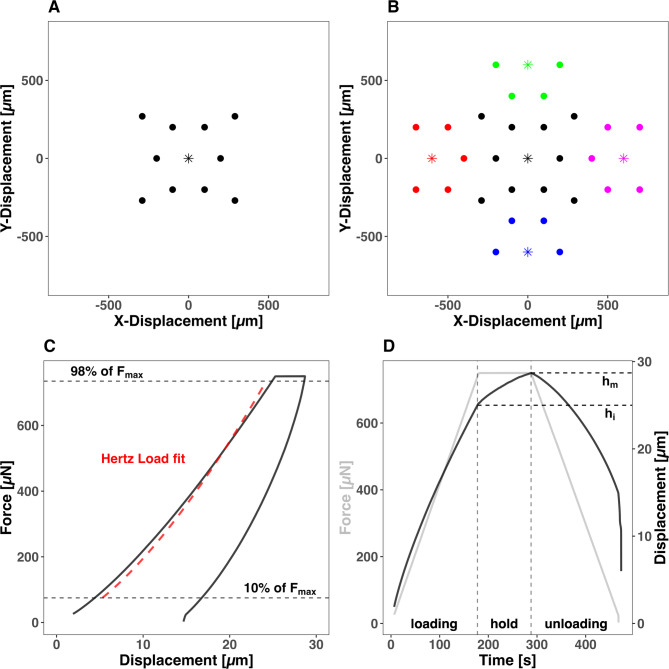

The elastic properties of the tissue were quantified by calculating the Hertz elastic modulus (E_HZ_) based on the force–displacement data using Eq. 1:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$F=\frac{4}{3}E\sqrt{R}{(h)}^\frac{3}{2}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$F$$\end{document} represents the indentation force, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$R$$\end{document} the radius of the indenter tip, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$h$$\end{document} the penetration depth. The calculation was performed using data in the range between 10 and 98% of F_max_, following methods from previous studies^15,17^.
Time-dependent deformation: the creep index
In addition to elastic properties, NI enables the analysis of time-dependent deformation under a constant force, which reflects the viscoelastic behavior of the tissue. During the 90-s holding phase, the indentation depth gradually increases due to the material’s viscoelastic response. The creep index (C_IT_) was used to quantify this behavior and was calculated as in previous studies^15,17^ using Eq. 2:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${C}_{IT}= \frac{({h}_{m}-{h}_{i})}{{h}_{m}}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${h}_{i}$$\end{document} represents the initial indentation depth at the beginning of the holding period, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${h}_{m}$$\end{document} signifies the maximum indentation depth at the end of the force-controlled holding phase. The resulting dimensionless C_IT_ value represents the percentage increase in indentation depth during the holding period. It provides insight into the material’s time-dependent mechanical properties and, for biological tissues like the cornea, can indicate fluid shifts within the tissue matrix.
Corneal biomechanics under physiological conditions
To establish appropriate measurement condition for subsequent CXL investigation the biomechanical properties of five ex vivo corneal samples were evaluated under varying retrocorneal pressure conditions. The five corneoscleral discs were mounted in an artificial anterior chamber and pre-tensioned by adjustable retro-corneal fluid pressure (RCP). All measurements were performed in immersion with dextran-supplemented cell culture medium to ensure a comparable corneal thickness. NI was performed at 10 positions within the central 1 mm^2^ area of the cornea at five different RCP levels: 10, 15, 20, 30, and 40 mmHg. These pressure levels represent the physiological intraocular pressure range^24^ and extend to levels above that range. Following these measurements, the central 8 mm of each cornea was carefully excised (trephined), flatmounted to the base of a Petri dish using UHU SUPER GLUE (62687, UHU GmbH & Co. KG, Bühl, Germany) and covered with dextran-supplemented medium. These flatmounted samples were then subjected to the same measurement protocol, using 10 spatially resolved NIs. This flatmount method is comparable to previous NI studies^15–17,19^ allowing for direct comparison with existing literature. The consistent use of immersion conditions across all measurements ensures physiological hydration and comparability between the pre-tensioned and flatmounted sample fixation method.
Riboflavin mediated corneal UVA-crosslinking
To quantify the effect of different riboflavin-mediated corneal collagen crosslinking protocols, human corneas were biomechanically characterized ex vivo in a spatially resolved manner by NI before (pre) and after (post) crosslinking. The indentation matrix used, which contained 28 indentations within the central 2 mm^2^ of the cornea, is shown in Fig. 1B. All tissue samples were saturated with a riboflavin solution by means of drops applied every 2 min for 30 min. To maintain corneal hydration and ensure sufficient riboflavin concentration during the entire procedure, riboflavin drops were continued every 2 min throughout the subsequent UVA irradiation. UVA exposure (370 nm wavelength, dose 5.4 J/cm^2^) was performed using a PLX 330 Platinum (Peschke Trade GmbH, Huenenberg, Switzerland) irradiation system. Throughout the crosslinking procedure and during NI measurements pre- and post-CXL, the RCP was maintained at 20 mmHg to ensure consistent testing conditions. Depending on the crosslinking protocol applied, one of three riboflavin solutions and one of five different UVA irradiance intensities were used. After crosslinking, the corneal hydration was equilibrated overnight in cell culture medium supplemented with 15% Dextran at a stable RCP of 20 mmHg to ensure comparable hydration for both NI pre- and post-CXL measurements. For each crosslinking protocol, 10 human corneal samples were used to ensure a robust dataset. This study encompassed two comparative analyses. The reference protocol (3 mW / cm^2^ for 30 min using 0.1% riboflavin + 1.1% Hydroxypropyl-methylcellulose (HPMC) (MedioCROSS® M)) served as the benchmark in both comparisons: first, when evaluating different riboflavin solutions, and second, when assessing various UV irradiation intensities. This approach ensured consistent comparisons across both experimental series.
To ensure spatial consistency between pre- and post-CXL measurements, all corneas remained mounted in the same artificial anterior chamber throughout the entire experiment. The chamber was fixed in a reproducible position relative to the nanoindenter using a custom sample mount. While exact repositioning cannot be guaranteed, we assume high consistency of central and peripheral measurement areas. Any minor deviations are considered negligible in relation to the treatment effects.
Comparison of three different riboflavin solutions
For this comparison, CXL was performed using one of three commercially available riboflavin solutions with different osmolarities (Medio-Haus Medizinprodukte GmbH, Kiel, Germany): 0.1% riboflavin (MedioCROSS® H), 0.1% riboflavin + 1.1% HPMC (MedioCROSS® M), and 0.1% riboflavin + 20% dextran 500 (MedioCROSS® D). All CXL procedures used UVA radiation at an intensity of 3 mW / cm^2^ for 30 min, delivering a total dose of 5.4 J/cm^2^. Each riboflavin solution was used to crosslink 10 donor corneas, resulting in a total of 30 treated corneas for this comparison. Corneal thickness was measured at three time points using ultrasound pachymetry (Pachmate 2 DGH 55B Pachymeter, DGH Technology Inc., Exton, PA, USA): before CXL NI (T1), after CXL treatment (T2), and before post-CXL NI (T3). These measurements were taken to monitor the hydration status of the samples for NI. For biomechanical comparisons, we used the nanoindentation data acquired after T1 (before CXL) and after T3 (post-CXL, following overnight hydration equilibration), as these time points represent physiologically comparable hydration conditions.
Comparison of five different UV radiation intensities
To compare the treatment effects of five different CXL protocols, including the standard Dresden Protocol and four accelerated versions, different UV irradiation intensities were used. The protocols employed were: 3 mW / cm^2^ for 30 min (Dresden Protocol, also used in the riboflavin solution comparison), 6 mW / cm^2^ for 15 min, 9 mW / cm^2^ for 10 min, 18 mW / cm^2^ for 6 min, and 30 mW / cm^2^ for 3 min. All CXL procedures in this comparison were performed using a 0.1% riboflavin + 1.1% HPMC solution (MedioCROSS® M). The Dresden Protocol served as the gold standard, while the other four protocols aimed to accelerate the treatment duration. Each of the five CXL protocols was applied to 10 corneas.
Statistical analysis
To quantify the effects of different CXL protocols, we employed linear mixed effects models (LMEM) to account for the hierarchical structure of our data, where each cornea was characterized by multiple measurements both before (pre) and after (post) CXL treatment. Basing our statistical analysis on the method proposed by Herber and colleagues^25^, the analysis was structured around two key aspects of CXL treatment, each addressed by a separate statistical model:
- The first model compared the impact of riboflavin solutions of different osmolarity. It incorporated the specific riboflavin formulations as fixed effects and individual corneas as random variable.
- The second model examined the influence of different UV irradiation intensities, corresponding to various exposure times. This model used the different UV intensities as fixed effects, again with individual corneas as random variable.
In both LMEMs, pre-CXL (control) and post-CXL measurements were included for each protocol. To account for potential donor tissue variability, we included donor age, gender, and preservation time in tissue culture as additional fixed effects in our models. This approach allowed each model to estimate both the untreated biomechanical properties and the respective treatment effects for its specific focus (riboflavin solution or UV intensity), while controlling for donor-specific factors. Residual diagnostics, including Q-Q plots, were performed to assess normality of residuals and confirm that model assumptions were met. To assess measurement reliability, intraclass correlation coefficients (ICC) were derived from random-intercept models (response ~ 1 + (1|Cornea)). ICCs were first calculated for repeated NI measurements using two mounting approaches (flatmount vs. artificial anterior chamber) to evaluate the effect of tissue pretension on E_HZ_ reliability, based on 92 NI measurements from five samples. In a second analysis, baseline reliability was determined for E_HZ_ and C_IT_ from pre-CXL measurements under 20 mmHg pretension, including 1932 NI measurements from 70 samples. ICCs, defined as the proportion of between-cornea variance relative to total variance, quantify the consistency of repeated measurements. All statistical and graphical analyses were conducted using R statistical software^26^, with R Studio^27^ as the integrated development environment.
Results
Biomechanical properties of pre-tensioned corneal tissue

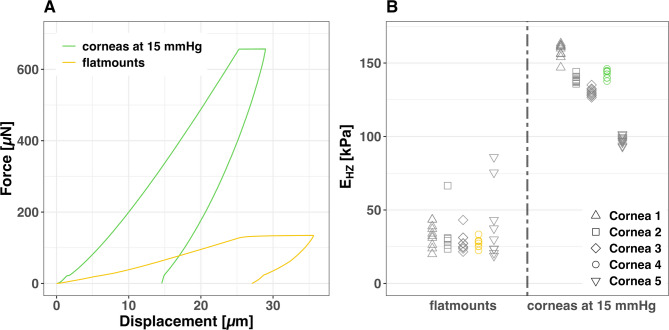

This study investigated pre-tensioned human corneal tissue biomechanics using five male donor samples (mean age: 83.2 ± 8.73 years; mean preservation time in tissue culture: 49.2 ± 5.97 days). Human corneal tissue in its physiological shape pre-tensioned by an RCP exhibits higher E_HZ_ values and a reduced intraindividual standard deviation compared to tissue flatmounts. Biomechanical differences between individual corneas become clearly detectable in the presence of physiological RCP (Fig. 3; Table 1). Reliability analysis of repeated measurements confirmed these findings. Flatmounts showed very poor reliability (ICC = 0.02), whereas mounting in an artificial anterior chamber under 15 mmHg pretension achieved excellent reliability (ICC = 0.98).Fig. 3. Force–Displacement-Diagram showing the mean progression curves of Nanoindentations of Cornea 4 at 15 mmHg retrocorneal fluid pressure (RCP) and tissue flatmounts (A). Scatterplot with illustration of the absolute E_HZ_ values of the measurements at 15 mmHg RCP and tissue flatmounts (B). The measured values of the different corneas are shape coded. The values belonging to the Force–Displacement-Curves (A) are also color-coded.Table 1E_HZ_ Statistics for Individual Corneas: Pre-tensioned at 15 mmHg vs. flatmounted.SampleMethodMedianMeanSDCornea 1flatmount33.1533.057.97015 mmHg160.48158.335.037Cornea 2flatmount29.6834.4515.96315 mmHg138.03138.802.383Cornea 3flatmount27.2028.346.44215 mmHg129.93130.212.654Cornea 4flatmount27.8827.533.32115 mmHg144.15142.812.735Cornea 5flatmount29.9139.8624.62015 mmHg97.5597.582.841

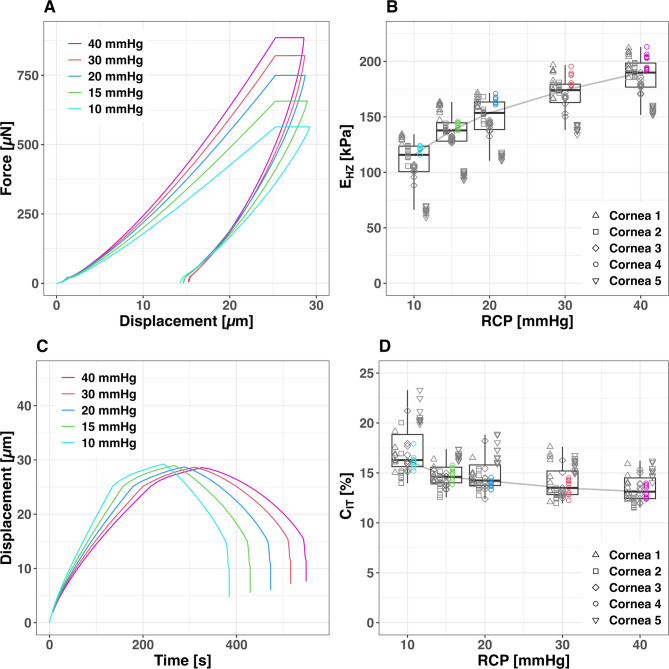

Increasing RCP levels generally lead to higher E_HZ_ and diminished C_IT_ values. However, these changes are not linear, as shown in (Fig. 4). For instance, in the 10–15 mmHg RCP range, E_HZ_ increases by 4.4 kPa / mmHg. In contrast, at higher pressures between 30 and 40 mmHg RCP, the E_HZ_ increase rate declines to 1.6 kPa / mmHg, illustrating the non-linear nature of corneal response to pressure changes (Table 2).Fig. 4. Force–Displacement-Diagram (A) and Displacement–Time-Diagram (C) showing the mean progression curves of Nanoindentations (Nis) of Cornea 4 at five different retrocorneal fluid pressure (RCP) levels. Boxplots with illustration of the absolute values and curve of the median E_HZ_ (B) and C_IT_ (C) over the five measured RCP levels. The boxplot displays median values (horizontal lines within boxes) and interquartile ranges (boxes). The measured values of the different corneas are shape coded. The values belonging to the Force–Displacement-Curves (A) and Displacement–Time-Diagram (C) and are also color-coded.Table 2. Aggregated E_HZ_ and C_IT_ Statistics: Multiple RCP Levels vs. flatmounts.E_HZ_ [kPa]C_IT_[%]MethodMedianMeanSDMedianMeanSD10 mmHg115.75107.1723.3616.2817.222.3515 mmHg137.76133.5520.6114.6114.861.2220 mmHg153.54147.8919.3214.2314.841.5830 mmHg174.09169.1817.6113.5014.101.5440 mmHg189.88185.8817.7413.1213.471.30flatmounts29.0632.6513.9438.3938.169.37
Quantification of the effect of different crosslinking protocols
This study compared seven different CXL protocols using 70 human donor corneas (mean donor age 74.8 ± 11.9 years, range 37 – 93 years; 16 females, 54 males), with a mean preservation time in tissue culture from tissue donation to the experiment of 50.29 ± 21.07 days. Baseline reliability of pre-CXL measurements under 20 mmHg pretension was excellent for E_HZ_ (ICC = 0.95) but only moderate for C_IT_ (ICC = 0.74).

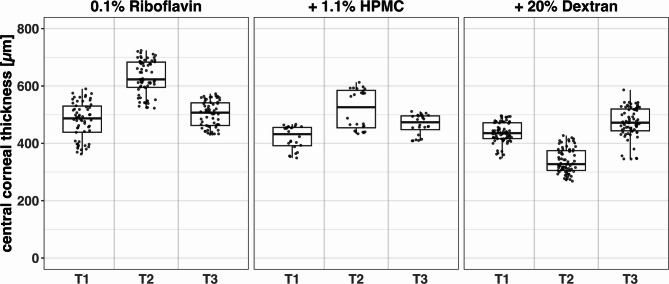

Effects of riboflavin osmolarity on corneal thickness and biomechanics

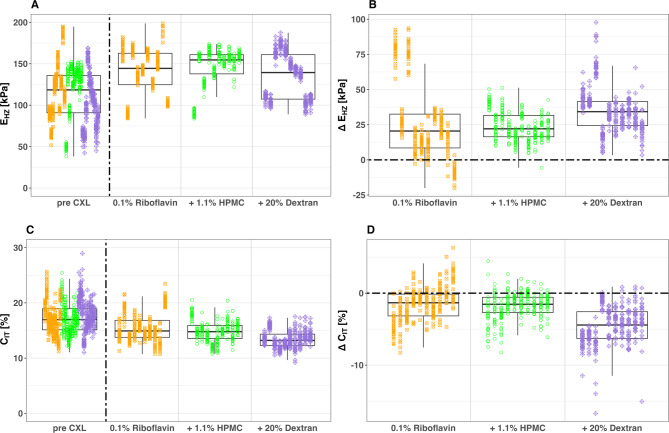

The descriptive visualization in Fig. 5 illustrates measured values as absolute E_HZ_ and C_IT_ values as well as changes induced by CXL treatment (Δ E_HZ_ and Δ C_IT_) which are calculated by subtracting pre CXL from post CXL measurements. The absolute pre- and post-CXL values were used to construct the linear mixed-effects models (LMEMs). When including preservation time, donor age, and gender as covariates, only preservation time showed a statistically significant effect (p = 0.02). For the final analysis, we consequently reduced the model to include only preservation time, which remained significant (p = 0.018), showing a positive correlation with E_HZ_ (increasing by 0.55 kPa per day) and a negative correlation with C_IT_ (decreasing by 0.037% per day). The analysis calculated treatment effects for three riboflavin solutions: 0.1% riboflavin, 0.1% riboflavin + 1.1% HPMC, and 0.1% riboflavin + 20% dextran 500. Detailed results are presented in Table 3, providing a nuanced analysis accounting for preservation time in tissue culture variability. Baseline values were estimated for zero preservation days, enabling a precise estimation of treatment effects while accounting for variability due to preservation time of the corneal tissue in cell culture. Ultrasound pachymetry measurements (n = 23) revealed different effects on corneal thickness depending on which Riboflavin solution was used for the treatment. Corneas treated with pure 0.1% riboflavin (n = 9) increased in thickness by an average of 149.75 µm. Those treated with 0.1% riboflavin + 1.1% HPMC (n = 4) showed less swelling, increasing by 98.88 µm. In contrast, corneas treated with 0.1% riboflavin + 20% dextran (n = 10) decreased in thickness by about 98.77 µm. These measurements are represented in Fig. 6 and summarized in Table 4. From the initial 10 samples per group, different numbers had to be excluded from analysis due to technical limitations during pachymetry measurements.Fig. 5. Boxplots of absolute values E_HZ_ (A) and C_IT_ (C) before and after corneal crosslinking (CXL) with one of three different Riboflavin solutions. The boxplot displays median values (horizontal lines within boxes) and interquartile ranges (boxes). The CXL effects are also visualized as changes Δ E_HZ_ (B), and Δ C_IT_ (D) using boxplots. CXL protocols shape and color-coded. All CXL treatments comparing riboflavin solutions were performed with a UV irradiation intensity of 3 mW / cm^2^ with an irradiation time of 30 min.Table 3LMEM Results: Estimated Baseline E_HZ_ and C_IT_ Values pre CXL and Estimated Treatment Effects for Different Riboflavin Solutions post CXL.ConditionE_HZ_ [kPa]C_IT_ [%]EstimateStd.errorp valueEstimateStd.errorp valuePre CXL88.3710.97 < 0.0118.830.79 < 0.010.1% riboflavin27.640.93 < 0.01− 1.520.13 < 0.01Δ CXL0.1% riboflavin + 1.1% HPMC23.820.92 < 0.01− 1.770.13 < 0.010.1% riboflavin + 20% dextran35.070.92 < 0.01− 4.490.13 < 0.01Presevation time0.550.220.02− 0.0370.160.03Fig. 6Boxplots of central corneal thickness measured by ultrasound pachymetry at three time points: before corneal crosslinking (CXL) (T1), immediately after CXL treatment (T2), and after overnight equilibration of tissue hydration state, before post-CXL Nanoindentations (T3). The plot compares results from CXL treatments using three riboflavin solutions of different osmolarity: 0.1% Riboflavin (9 corneas), 0.1% Riboflavin + 1.1% HPMC (4 corneas), and 0.1% Riboflavin + 20% Dextran (10 corneas). Boxplots represent the interquartile range (IQR) with a horizontal line indicating the median, while individual data points appear as dots.Table 4. Central Corneal Thickness: Comparative Analysis of Three Riboflavin Solutions with Varying Osmolarity at pre-CXL (T1), Immediate post-CXL (T2), and post-CXL biomechanical characterization after thickness equilibration (T3) Timepoints.Riboflavin solutionTimepointNumber of successful measurementsMedianMeanSD0.1% riboflavinT158487.00480.3363.77T264623.00630.0859.34T358507.00501.7444.580.1% riboflavin + 1.1% HPMCT124432.00420.2540.81T224526.00519.1368.88T324473.50466.0435.390.1% riboflavin + 20% dextranT170435.50437.3635.47T270327.50338.5943.12T370472.00473.0453.19
Effects of UV irradiation intensity on corneal biomechanics

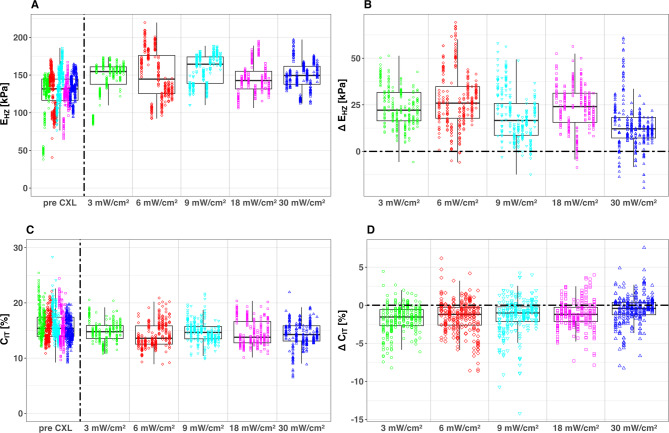

The measured E_HZ_ and C_IT_ values, presented descriptively in Fig. 7 as absolute results and derived changes (Δ E_HZ_ and Δ C_IT_, calculated as post-CXL–pre-CXL), served as the basis for the LMEM analyses. These models evaluated the effects of different UV irradiation intensities (3, 6, 9, 18, and 30 mW / cm^2^) on corneal biomechanics, with UV irradiation intensity as a fixed effect and cornea as a random variable. Models that included preservation time, donor age, and gender as covariates showed no significant improvement in explaining the data compared to the simple model. Therefore, these factors were excluded from the final analysis. A detailed summary of the model estimates E_HZ_ and C_IT_ is provided in Table 5. The LMEM analysis showed statistically significant treatment effects (p < 0.001) for all CXL protocols in both comparisons.Fig. 7. Boxplots of absolute values E_HZ_ (A) and C_IT_ (C) before and after corneal crosslinking (CXL) with one of five different UV irradiation intensities. The boxplot displays median values (horizontal lines within boxes) and interquartile ranges (boxes). The CXL effects are also visualized as changes induced by CXL Δ E_HZ_ (B), and Δ C_IT_ (D) using boxplots. CXL protocols shape and color-coded. For comparison of UV irradiation intensities, CXL was performed with an 0.1% Riboflavin + 1.1% HPMC solution (MedioCROSS M®).Table 5LMEM Results: Estimated Baseline E_HZ_ and C_IT_ Values pre CXL and Estimated Treatment Effects for Different UV Irradiation Intensities post CXL.ConditionE_HZ_ [kPa]C_IT_ [%]EstimateStd.errorp valueEstimateStd.errorp valuepre CXL128.2132.25 < 0.0115.820.27 < 0.013 mW/cm^2^23.750.70 < 0.01− 1.750.12 < 0.01Δ CXL6 mW/cm^2^27.520.71 < 0.01− 1.520.12 < 0.019 mW/cm^2^18.740.70 < 0.01− 1.440.12 < 0.0118 mW/cm^2^23.520.70 < 0.01− 1.190.12 < 0.0130 mW/cm^2^13.770.70 < 0.01− 0.580.12 < 0.01
