Ultrastructural analysis of synapses after induction of spike-timing-dependent plasticity

TL;DR

Researchers used optogenetics and electron microscopy to study how synapses change after a type of brain plasticity called STDP.

Contribution

A new method combining optogenetics and electron microscopy to visualize STDP-induced synaptic changes at the ultrastructural level.

Findings

Optogenetically induced STDP can be studied at the ultrastructural level using electron microscopy.

Potentiated spines grow and curve around presynaptic boutons after STDP.

Only a few synapses among thousands are strengthened by STDP.

Abstract

Repeated sequential activation of connected neurons causes lasting changes in synaptic strength, a process known as spike-timing-dependent plasticity (STDP). Recently, sequential spike patterns have been induced without electrodes, using two spectrally separated channelrhodopsins. However, due to the difficulty of labeling and localizing the few connecting synapses between the stimulated pre- and postsynaptic neurons (∼1–5 per neuron pair), ultrastructural analysis after STDP has not been reported. Here, we optogenetically induce STDP at CA3-CA1 hippocampal synapses and identify stimulated boutons and spines in CA1 using transmission electron microscopy (TEM). Presynaptic CA3 neurons express vesicle-targeted horseradish peroxidase, cre recombinase, and cre-dependent ChrimsonR, a red light-activatable channelrhodopsin. Postsynaptic neurons express violet light-activatable CheRiff and dAPEX2, an enhanced ascorbate peroxidase. In TEM, presynaptic boutons and postsynaptic spines are readily identifiable with well-preserved ultrastructural features. Our labeling strategy allows ultrastructural analysis of optogenetically manipulated neurons and their synapses.

•We optogenetically induce spike-timing-dependent plasticity•We combine channelrhodopsin with electron-dense labels for electron microscopy•We perform ultrastructural analysis of optogenetically manipulated neurons•We show that paired stimulation drives expansion of axon-spine interface

We optogenetically induce spike-timing-dependent plasticity

We combine channelrhodopsin with electron-dense labels for electron microscopy

We perform ultrastructural analysis of optogenetically manipulated neurons

We show that paired stimulation drives expansion of axon-spine interface

Spike-timing-dependent plasticity (STDP) induces changes in the strength of synaptic connections between neurons that have been spiking together. Whether this results in long-lasting changes in the ultrastructure of individual synapses or whether other changes are responsible for synaptic memory has not been investigated. This gap in our understanding is largely due to technical difficulties. First, it has only recently become possible to induce STDP without patching the postsynaptic neuron. Second, it is not trivial to individually label the pre- and postsynaptic neurons that have undergone STDP. Here, we present a workflow that allows all-optical induction of STDP and subsequent processing of the tissue to find the relevant pre- and postsynaptic structures using transmission electron microscopy.

Optogenetic induction of spike-timing-dependent plasticity leads to the strengthening of a few hippocampal synapses among thousands of synapses that received no paired stimulation. Wang et al. combine channelrhodopsins with electron-dense labels to find the potentiated synapses with electron microscopy and show that potentiated spines grow and curve around their presynaptic boutons.

Figures

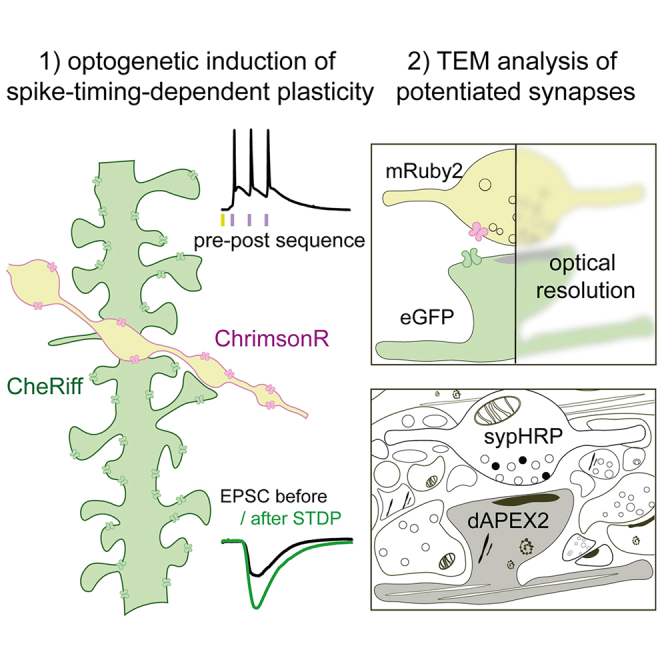

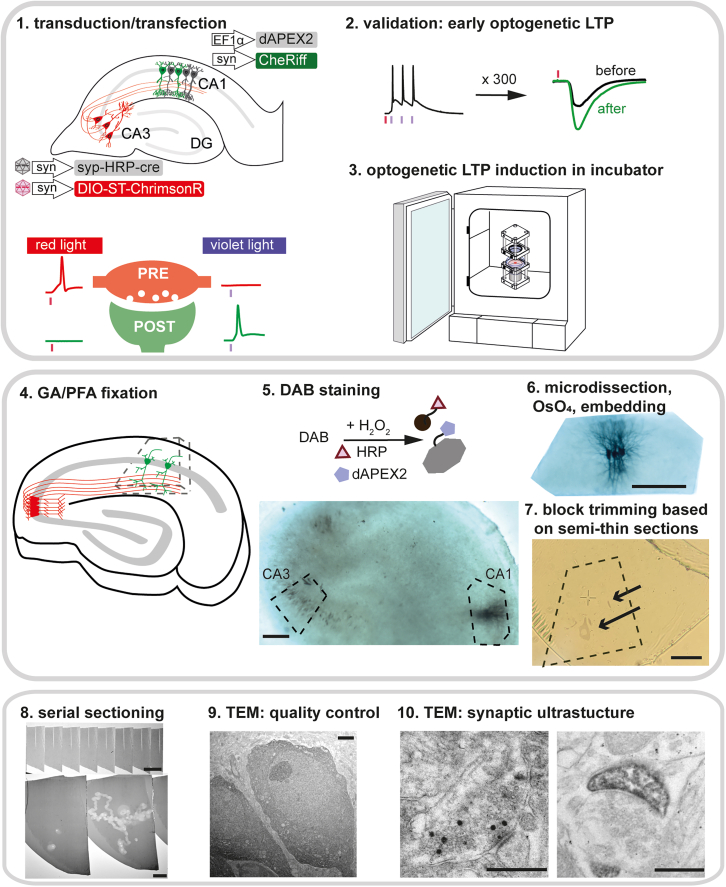

Workflow of STDP induction and sample preparation to study synaptic ultrastructureStep 1: AAV-assisted transduction of presynaptic neurons and single-cell electroporation to transfect postsynaptic neurons. Red light (635 nm) only induces action potentials in presynaptic neurons expressing ChrimsonR, and violet light (405 nm) only induces action potentials in postsynaptic neurons expressing CheRiff.Steps 2 and 3: optogenetic induction of STDP. Induction of all-optical tLTP by 300 repetitions of single presynaptic (red) and three postsynaptic (violet) action potentials. Validation of all-optical

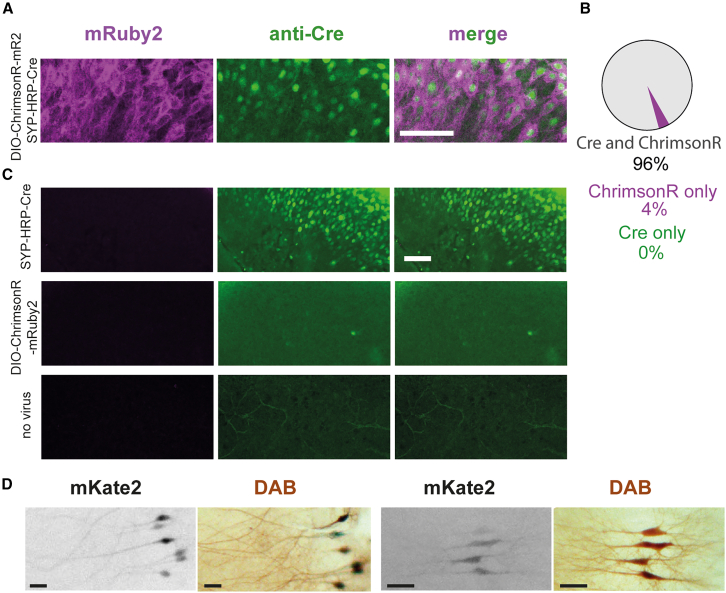

Assessment of electron microscopy label and channelrhodopsin co-expression(A) CA3: a mixture of rAAV^2/9^-syn-DIO-ChrimsonR-mRuby2-ST and rAAV^2/9^-syn-SYP-HRP-IRES-Cre was co-injected into CA3. Slices were fixed and immunostained against mRuby2 (magenta) and cre (green). Scale bar: 100 μm.(B) Quantification of co-expression rate of ChrimsonR-mRuby2 and syp-HRP-IRES-Cre. *n* = 202 cells (4 slice cultures).(C) Application of the individual viruses or no virus. Scale bar: 100 μm.(D) Two examples of co-expression in CA1 pyramidal neurons electroporated with plasmids encoding dAPEX2, mKate2, and C

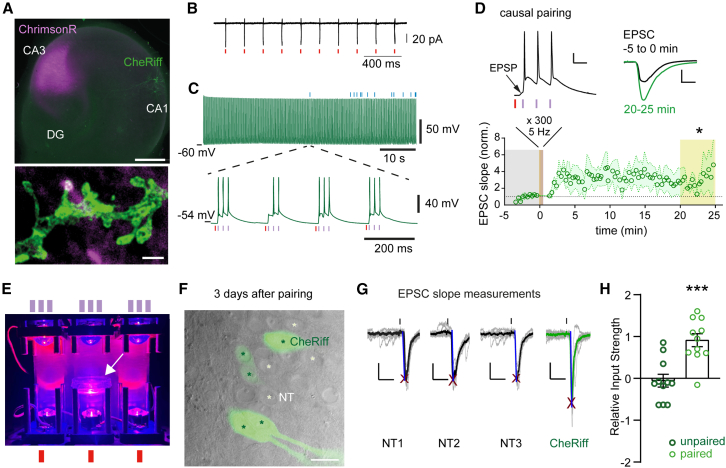

All-optical tLTP in hippocampal slice culture lasts for 3 days(A) Transfection/transduction strategy for hippocampal STDP. Top: wide-field image of hippocampal slice culture shows cluster of virally transduced CA3 pyramidal cells (magenta) and a single transfected CA1 pyramidal cell (green). Bottom: STED image (z projection) of CheRiff-expressing dendrites (green) overlaid with confocal image of presynaptic ChrimsonR-expressing boutons (magenta), showing a putative synaptic contact (white). Scale bars: 500 μm and 1 μm.(B) Representative cell-attached recordings of Flex-ST-ChrimsonR, co-express

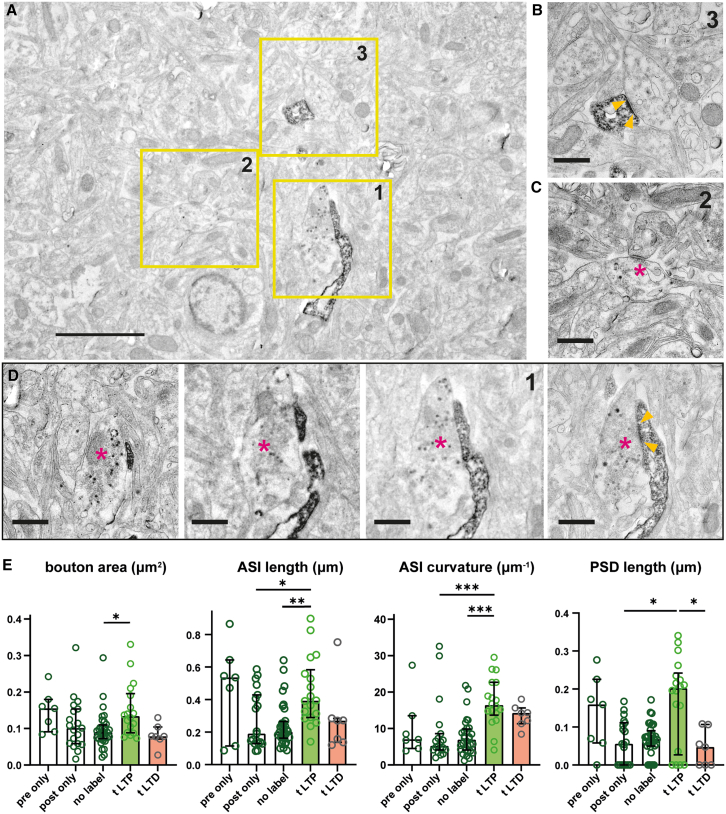

Causal pairing drives expansion of spine-bouton interface and postsynaptic density(A) In the same field of view (FOV), a double-labeled synapse (1) and single-labeled synapses (2 and 3) are visible.(B) High-resolution image of the labeled spine (3) in synaptic contact with unlabeled bouton. Yellow arrow tips delimit postsynaptic density (PSD).(C) High-resolution image of bouton (2, magenta asterisk) with two labeled vesicles in contact with unlabeled postsynaptic element.(D) Serial sections through the double-labeled synapse (red asterisk: bouton, blue arrow: spine). The PSD is visible in the

Full text

Introduction

Exactly what changes in the brain when a new memory is formed is not fully understood. The memory trace, or “engram,” may consist of minute structural changes at the synaptic connections between neurons that have repeatedly fired together. Spike-timing-dependent plasticity (STDP), induced by precisely ordered firing of neurons, causes timing-dependent long-term potentiation (tLTP) or timing-dependent long-term depression (tLTD) of cortical synapses.1^,^2^,^3 Recently, we have shown that the functional changes induced by optogenetic STDP (oSTDP) in the hippocampus can be very long-lasting.4 Assessing the strength of synaptic connections days after the induction of plasticity became possible by controlling the firing of pre- and postsynaptic action potentials through light-gated channels (channelrhodopsins) instead of invasive recordings with glass electrodes.

It is unknown whether the relative increase in synaptic strength induced by STDP is maintained by a physical change in synapse size. Multiple synapses formed by boutons from one axon onto spines of a specific postsynaptic neuron have remarkably similar ultrastructures, suggesting that synaptic structure is tightly controlled by the activity history in the presynaptic and postsynaptic neurons.5^,^6^,^7 However, the actual activity history and strength of the connection between the pre- and postsynaptic neurons were unknown in these studies. Rather than increasing the size of existing synapses, newly formed (additional) synaptic connections between neurons would also increase the functional strength of the connection. The formation of new spine synapses can be induced by localized glutamate release onto a dendrite.8^,^9

Since the size of a typical CNS synapse is close to the diffraction limit of light, subcellular synaptic structures cannot be visualized by conventional light microscopy. Stimulated emission depletion (STED) microscopy is a promising approach to imaging dendritic spines and associated presynaptic vesicle clusters.10 However, fluorescence-based methods alone visualize only labeled entities and provide no information about surrounding unlabeled structures or cells in the tissue unless they are combined with electron microscopy (EM).11 After osmium tetroxide staining, unlabeled membranes become visible in EM, providing precise information about the volume of spines and presynaptic boutons, the size of postsynaptic densities and active zones, and the presence of organelles such as vesicles, mitochondria, and endoplasmic reticulum (ER). Several studies have analyzed synaptic ultrastructures after high-frequency electrical stimulation.12^,^13^,^14^,^15 A limitation of blind electrical stimulation is that just a subset of axons is activated at the desired frequency, leading to a mix of potentiated, partially stimulated, and unstimulated synapses in the analyzed samples.

Correlative light-electron microscopy (CLEM) allows analyzing the ultrastructure of identified synapses that were directly stimulated, e.g., by glutamate uncaging in Mg^2+^-free artificial cerebrospinal fluid (ACSF).16 Although there is no activation of the presynaptic terminal in these experiments, the resulting rapid changes in postsynaptic ultrastructure are impressive. Optogenetic stimulation offers the exciting possibility to drive spiking in identified neurons non-invasively under physiological conditions. It has recently been combined with membrane-targeted peroxidase expression to identify light-activated axons by post-embedding immunogold labeling.17 Our goal was to extend this promising approach to establish a labeling protocol that would allow the detection of STDP-stimulated (“paired”) synapses and the investigation of activity-related ultrastructural changes. Paired synapses could then be compared to three types of “control” synapses: (1) nearby synapses between unlabeled/unpaired neurons, (2) synapses from the same presynaptic neuron onto unstimulated postsynaptic neurons, and (3) other synapses onto the same postsynaptic dendrite. Control synapses within the same tissue block are ideal to exclude small variations in fixation or staining that could affect the quantification of synaptic ultrastructure. We present a methodological workflow starting with viral transduction of neurons, induction of oSTDP, and processing of fixed tissue for transmission electron microscopy (TEM) to study ultrastructural changes at synapses associated with tLTP.

We present a combination of opsins, EM-compatible labels, and staining procedures that allows unambiguous identification of presynaptic boutons of ChrimsonR-expressing CA3 neurons and postsynaptic spines and dendrites of CheRiff-expressing CA1 neurons. Since both EM labels are peroxidases that are detected by 3,3′-diaminobenzidine (DAB) staining, our strategy is also compatible with serial block-face imaging, automated 3D reconstruction, and analysis,18^,^19^,^20^,^21 which should greatly improve the throughput and success rate of finding potentiated synapses. Since both labels are genetically expressed, they can be precisely targeted to the cell types of interest and are broadly applicable to studies of other synapses of interest. Postsynaptic dAPEX2 could also be expressed in other cell types, such as astrocytes or microglia, if the goal is to study their proximity to specific synapses. There is no reliance on antibody-mediated labeling, so there are no concerns about tissue penetration, antigen availability, selectivity, or specificity. In addition, fluorescence does not need to be retained during fixation steps, so these can be strong and optimized for the easy identification of membranes and organelles. We expect this method to be particularly useful in answering open questions about the fate of synapses and their ultrastructural changes after STDP.

Results

The ultrastructure of potentiated synapses

Our goal was to induce STDP non-invasively and subsequently examine the ultrastructure of the presynaptic boutons and postsynaptic spines connecting the co-stimulated neurons (Figure 1). The most critical step in the development of this workflow was the identification of a pair of peroxidase-based genetic tags that, after processing and TEM, would allow the unambiguous identification of the structures originating from presynaptic and postsynaptic neurons. We focused on Schaffer collateral synapses formed by axons of CA3 pyramidal cells onto spines of CA1 pyramidal cells in rat organotypic hippocampal slice cultures. Since the slice cultures are ∼300 μm thick, we wanted to avoid antibody-based labeling, which often fails to reveal structures more than ∼50 μm below the surface.Figure 1. Workflow of STDP induction and sample preparation to study synaptic ultrastructureStep 1: AAV-assisted transduction of presynaptic neurons and single-cell electroporation to transfect postsynaptic neurons. Red light (635 nm) only induces action potentials in presynaptic neurons expressing ChrimsonR, and violet light (405 nm) only induces action potentials in postsynaptic neurons expressing CheRiff.Steps 2 and 3: optogenetic induction of STDP. Induction of all-optical tLTP by 300 repetitions of single presynaptic (red) and three postsynaptic (violet) action potentials. Validation of all-optical tLTP at early and late time points.Step 4: fixation at the desired time point after induction of tLTP.Step 5: metal-enhanced DAB staining to reveal HRP in presynaptic vesicles and dAPEX2 in the postsynaptic neurons.Step 6: micro-dissection of the stained CA3 and CA1 regions, osmification, and embedding.Step 7: further trimming of the block based on DAB-stained somata and processes in semi-thin sections (arrows).Step 8: ultrathin serial sectioning for TEM.Step 9: verify structural preservation/sample quality at the soma area of labeled CA3 and CA1 neurons.Step 10: locate and image structures of interest.Scale bars: steps 5 and 6: 200 μm; 7: 20 μm; 8: 60 μm and 20 μm; 9: 2 μm; and 10: 500 nm.

Step 1: Viral transduction of CA3 neurons and single-cell electroporation to transfect CA1 neurons

To independently spike and label presynaptic CA3 neurons, we used two recombinant adeno-associated viral vectors (rAAVs). One rAAV encoded the red light-activatable channelrhodopsin ChrimsonR, the second a synaptic vesicle-targeted horseradish peroxidase (synaptophysin-HRP [syp-HRP]). Initial attempts to package a single plasmid encoding ChrimsonR-tdTomato and syp-HRP into one rAAV were unsuccessful. When we mixed two rAAVs with capsid serotype rh10, the percentage of neurons expressing both proteins was disappointingly low (∼40%). We solved this problem of poor co-expression with the Cre/LoxP system.22 We packaged a cre-dependent version of ChrimsonR in one rAAV and a bicistronic vector for co-expression of syp-HRP and cre (syp-HRP-IRES-cre) in a second one, both with capsid serotype AAV9. We observed that 1 week after local injection of the mixed rAAVs, 96% of transduced CA3 neurons expressed both ChrimsonR and syp-HRP-IRES-cre (Figures 2A and 2B). The remainder (4%) appeared to express only ChrimsonR, indicating that cre expression was below the antibody detection limit. This interpretation is supported by the observation that no neurons expressed ChrimsonR when the rAAV was applied alone (Figure 2C). Somewhat surprisingly, we detected no neurons expressing only syp-HRP-IRES-cre when the two rAAVs were applied together. Taking these results together, we expect almost no cases where light-activated CA3 neurons do not express the EM label syp-HRP, and vice versa. A small volume of the virus mix was pressure injected into area CA3 of hippocampal cultures using a picospritzer (1.8 bar, 50 ms pulse). As we have previously shown,4 it is very important that the number of transduced CA3 neurons is in the range of 30–40 to achieve successful and specific induction of oSTDP. Simultaneous activation of a larger number of CA3 neurons causes firing of secondary (non-transfected [NT]) neurons and, consequently, synaptic plasticity at unlabeled synapses. For reliable oSTDP, light-induced excitatory postsynaptic currents (EPSCs) in the postsynaptic neuron should be well below 200 pA (Figure S1).Figure 2. Assessment of electron microscopy label and channelrhodopsin co-expression(A) CA3: a mixture of rAAV^2/9^-syn-DIO-ChrimsonR-mRuby2-ST and rAAV^2/9^-syn-SYP-HRP-IRES-Cre was co-injected into CA3. Slices were fixed and immunostained against mRuby2 (magenta) and cre (green). Scale bar: 100 μm.(B) Quantification of co-expression rate of ChrimsonR-mRuby2 and syp-HRP-IRES-Cre. n = 202 cells (4 slice cultures).(C) Application of the individual viruses or no virus. Scale bar: 100 μm.(D) Two examples of co-expression in CA1 pyramidal neurons electroporated with plasmids encoding dAPEX2, mKate2, and CheRiff-eGFP: mKate2 fluorescence (contrast-inverted grayscale) several days before fixation and corresponding DAB staining after fixation (brown). Scale bars: 40 μm (left images) and 70 μm (right images).

To independently spike and label a few postsynaptic CA1 neurons, we co-expressed the violet light-activatable channelrhodopsin CheRiff with dAPEX2,21 an enhanced version of soluble APEX2,23 by single-cell electroporation of a 1:20 plasmid mixture.24 A high concentration of dAPEX2 was critical to later trim the resin block close to the dark dendritic branches of electroporated cells. For electrophysiology experiments, a small amount of mKate2 plasmid was added to allow us to visualize the transfected CA1 neurons without activating CheRiff. In our patch-clamp experiments, we never encountered mKate2-expressing neurons without photocurrents, suggesting highly reliable co-expression of the electroporated plasmids. Consequently, neurons revealed by DAB staining corresponded to mKate2 fluorescence several days before fixation (Figure 2D).

Step 2: Validation of all-optical tLTP induction

For oSTDP induction, we used two channelrhodopsins with largely separated activation spectra, ChrimsonR and CheRiff.25^,^26 Previously, we carefully characterized their properties and found that low-intensity violet light pulses (∼1 mW mm^−2^, 2 ms) selectively generate single action potentials in CheRiff-expressing neurons, while high-intensity orange to red light pulses (∼7 mW mm^−2^, 2 ms) selectively spike ChrimsonR-expressing neurons4 (Figure 1, step 1). Slice cultures with virally transduced CA3 neurons and electroporated CA1 neurons (Figure 3A) were stimulated with a 594 nm laser positioned through the condenser to illuminate CA3 or a red light-emitting diode (LED) coupled through the objective. CheRiff-expressing CA1 neurons were stimulated by a 405 nm LED coupled through the objective. Using the exact combinations of viral vectors and plasmids described in step 1, we verified that ChrimsonR/syp-HRP-expressing CA3 neurons faithfully followed red light flashes with single action potentials in cell-attached recordings (Figure 3B). When recording from CA1 neurons, a 2 ms, 594 nm light pulse elicited an EPSC of 100–200 pA. To induce tLTP, the 594 nm light pulse was paired with a burst of 3 violet light flashes, delayed so that the first spike in the CA1 neuron occurred 10 ms after the onset of the EPSC (+10 ms causal pairing). Repeated 300 times at 5 Hz, this spike/burst stimulation pattern produced EPSCs and 3 spikes in CheRiff/dAPEX2-expressing CA1 neurons and induced tLTP (Figures 3C and 3D).Figure 3. All-optical tLTP in hippocampal slice culture lasts for 3 days(A) Transfection/transduction strategy for hippocampal STDP. Top: wide-field image of hippocampal slice culture shows cluster of virally transduced CA3 pyramidal cells (magenta) and a single transfected CA1 pyramidal cell (green). Bottom: STED image (z projection) of CheRiff-expressing dendrites (green) overlaid with confocal image of presynaptic ChrimsonR-expressing boutons (magenta), showing a putative synaptic contact (white). Scale bars: 500 μm and 1 μm.(B) Representative cell-attached recordings of Flex-ST-ChrimsonR, co-expressed with SYP-HRP-Cre CA3 neurons, recorded in culture medium. CA3 Syp-HRP-Cre + Flex-ST-ChrimsonR neuron fires single action potential in response to red light pulses (red tics).(C) Representative current-clamp recording of a CA1 neuron while applying paired optical stimulation. Blue ticks above the trace indicate stimulations where only 2 postsynaptic spikes were triggered instead of 3 (see expanded timescale below). In this example, 286 out of 300 paired stimulations were flawless.(D) After oSTDP induction (left inset, scale bars: 20 mV, 20 ms), the slope of EPSCs increases (right inset, scale bars: 200 pA, 10 ms). Red tic indicates the light pulse (7 ms conduction delay from CA3 to CA1). Paired t test, p = 0.044, n = 4 slice cultures. Data are plotted as mean ± SEM.(E) Three LED towers for in-incubator stimulation. The middle tower contains a 35 mm Petri dish with cell culture insert (white arrow). Ticks symbolize the three 405 nm light pulses from the top LED and the single 635 nm pulse from the bottom LED.(F) Dodt contrast and epifluorescence image of CA1. CheRiff neurons (green asterisks) were distinguished from non-transfected (NT) neighbors (white asterisks) by their somatic fluorescence (green). Scale bar: 36 μm.(G) Calculation of input strength. Vertical lines indicate presynaptic optical stimulation (1 ms, 594 nm, identical light intensity was used to stimulate sequentially patched NT and CheRiff cells in each slice). For each neuron, the 20%–60% slope was measured on the averaged EPSC (thick traces) from 10 consecutive stimulations (gray traces). Red crosses show auto-detected peaks. Scale bars: 25 ms, 50 pA.(H) Effect of paired optical stimulation on input strength. Each circle shows the EPSC slope of a CheRiff-expressing neuron normalized to the EPSC slope in 2–3 NT neighbors. The tLTP group (light green) was assessed 3 days after causal pairing, and the control group (dark green) received no paired stimulation. Unpaired t test, p = 0.0002, n = 11, 11 neurons. Bars show mean ± SEM.

Step 3: Optogenetic stimulation in the incubator

To follow the stimulated synapses over several days or before fixing for ultrastructural analysis, we optically stimulated slice cultures inside the cell culture incubator (Figure 3E). As there is no baseline to compare EPSCs after STDP, the EPSC slope of paired CA1 neurons is normalized to the average EPSC slope of several (3–5) neighboring NT neurons (NT EPSCs; Figures 3F and 3G). The relative input strength is calculated as

$$[eqn]$$

As previously reported,4 the relative synaptic input strength to CheRiff-expressing CA1 neurons was stronger compared to nearby NT neurons 3 days after causal pairing (Figures 3G and 3H). Thus, in organotypic slices, tLTP persists for at least 3 days (late tLTP). Importantly, too many simultaneously spiking CA3 neurons will directly drive spiking in the postsynaptic CA1 neurons, even in the absence of CheRiff and violet light.4 In this case, the NT neurons will also undergo STDP, which means that the specificity that only connections between the ChrimsonR-expressing presynaptic neurons and the CheRiff-expressing postsynaptic neurons are potentiated will be lost. LTP is still induced under these conditions, but it is not possible to use unlabeled postsynaptic neurons as a reference group. Thus, if the goal is to compare the ultrastructure of “paired” synapses with that of neighboring “control” synapses in CA1, it is a requirement that relatively few CA3 neurons express ChrimsonR/syp-HRP.

Steps 4–9: Preparation of tissue for TEM and serial sectioning

After plasticity induction, each slice culture was fixed and processed for EM examination. We tested several staining protocols for syp-HRP and dAPEX2. We found that metal-enhanced DAB staining followed by osmification was necessary to reliably visualize both the axonal boutons of CA3 neurons and the spines and dendrites of CA1 neurons. Briefly, after the DAB reaction using metal-enhanced DAB substrate (Thermo 34065), the section was trimmed under visual control using the stained CA1 neurons as a guide. The trimmed specimens were then fixed with 1% (w/v) osmium tetroxide, dehydrated in an ascending series of ethanol, and embedded in Epon 812. Several rounds of trimming were required to center the brown DAB-stained CA1 neurons in the blocks, minimizing the area to be searched for synaptic contacts. Semi-thin sections were cut and immediately inspected for DAB-stained somata (Figure 1, step 7). After further trimming of the edges of the mounted block, serial ultrathin sections were cut. For quality control, we sectioned separate blocks containing the somata of stained CA3 and CA1 neurons and inspected them for abnormalities (Figure S2). Organelles such as the Golgi apparatus, mitochondria, and rough ER were abundant in the cytoplasm, and nuclei appeared normal. Note that dAPEX2 creates a granular precipitate of electron-dense particles in the nuclei and cytoplasm of CA1 neurons that is not associated with any particular biological structure.

Step 10: Analysis of synaptic ultrastructure after STDP

Labeled synaptic vesicles in channelrhodopsin-expressing axons appeared as distinct, electron-dense dots. This allowed for the identification of stimulated axons and their boutons (Figure 4). The somata (Figure S2), dendrites, and spines of HRP-labeled postsynaptic neurons were filled with granular electron-dense material that was easy to recognize in ultrathin sections. Potential synaptic connections were identified as contacts between labeled presynaptic and postsynaptic compartments (Figures 4A and S3). Both single- and double-labeled synapses could be identified in the same specimen (Figure 4B), which provided important internal controls: contacts of labeled boutons with unlabeled spines experienced presynaptic activity and glutamate release, but not pairing with postsynaptic spikes. Labeled spines in contact with unlabeled boutons experienced triplets of back-propagating action potentials, but not simultaneous glutamate release. These forms of activity are not expected to induce strong long-term plasticity, though some degree of heterosynaptic plasticity is possible. As a second oSTDP group, we analyzed synapses from a slice culture that we stimulated in anti-causal sequence: three postsynaptic action potentials were followed by one presynaptic action potential (Figure S4). Anti-causal stimulation is known to induce early tLTD.4Figure 4. Causal pairing drives expansion of spine-bouton interface and postsynaptic density(A) In the same field of view (FOV), a double-labeled synapse (1) and single-labeled synapses (2 and 3) are visible.(B) High-resolution image of the labeled spine (3) in synaptic contact with unlabeled bouton. Yellow arrow tips delimit postsynaptic density (PSD).(C) High-resolution image of bouton (2, magenta asterisk) with two labeled vesicles in contact with unlabeled postsynaptic element.(D) Serial sections through the double-labeled synapse (red asterisk: bouton, blue arrow: spine). The PSD is visible in the last section (yellow arrow heads). Scale bars: 2 μm, 500 nm.(E) Analysis of bouton area, axon-spine interface (ASI) length, ASI curvature, and PSD length (pre only: n = 7; post only: n = 19; no label: n = 32; tLTP: n = 18; tLTD: n = 7 synapses). Bars show median ± quartiles. ANOVA followed by Kruskal Wallis tests (∗p < 0.05, ∗∗p < 0.01, and ∗∗∗p < 0.001).See also Figures S3 and S4.

A comparison of the size of presynaptic boutons revealed that tLTP synapses had a larger cross-sectional area than unlabeled synapses (Figure 4E), resulting in longer axon-spine interfaces (ASIs). Interestingly, the ASI became strongly curved after tLTP, suggesting that the activated spine heads began wrapping around the active presynaptic boutons (Figure 4E). Actin polymerization inside spine heads is indeed triggered by NMDAR-mediated calcium influx,27 and enlarged, cup-shaped spines have frequently been reported after LTP protocols.28^,^29 Not all bouton-spine contacts had a clearly identifiable postsynaptic density (PSD) in the inspected sections (Figures S3 and S4). However, the median length of double-labeled PSDs after tLTP increased significantly compared to PSDs in contact with non-activated boutons (post only; Figure 4E). The PSDs of tLTP synapses were also much larger than the PSDs of the tLTD group, reflecting the well-established functional consequences of causal versus anti-causal stimulation.1^,^4 Due to our limited 2D dataset, we could not analyze spine morphology in more detail. Since LTP is believed to affect the geometry of the spine neck,16 generating 3D data of synapses after oSTDP is an exciting prospect.

In summary, the task of finding the connecting synapses between a small number of presynaptic neurons and a specific CA1 neuron is difficult but not impossible. Based on the excitatory postsynaptic potential (EPSP) amplitude in response to presynaptic optogenetic stimulation, a typical miniature EPSC (mEPSC) amplitude of 20 pA,30 and an average release probability of 0.5, we estimate ∼20 light-stimulated synapses onto a single postsynaptic neuron, corresponding to about 0.1%–0.2% of spines.31 Thus, we needed to inspect approximately 1,000 spines from a single CA1 neuron to find one double-labeled synapse. In practice, we increased our odds by targeted search on oblique dendrites in stratum radiatum, where CA3 axons form most of their contacts.

Discussion

We present a workflow to first induce tLTP with light pulses and subsequently localize and study potentiated Schaffer collateral synapses in ultrathin serial sections. Compared to previous approaches to studying the ultrastructure of potentiated synapses, our method has several advantages: oSTDP is induced inside a cell culture incubator at 37°C, avoiding the insertion of electrodes and other perturbations between plasticity induction and fixation. The resulting tLTP lasts for days, providing a remarkably long time window for studying ultrastructural changes. Using targeted peroxidase labels, each labeled synaptic structure could be assigned unambiguously to presynaptic or postsynaptic neurons and the associated stimulation pattern. This made it easy to identify essential control groups of synapses (presynaptic stimulation only, postsynaptic stimulation only, or unstimulated) present within each tissue block. DAB staining and sample trimming under a bright-field microscope are basic procedures; correlative fluorescence imaging or antibody staining was not required for our approach. Thus, we could use a strong fixation protocol to obtain high-contrast images. All viral vectors are compatible with the lowest biosafety level (BSL-1). By combining optogenetic tools with peroxidase-based genetic tags using Cre/LoxP, we present a method to study the ultrastructural changes of tLTP from minutes to days after plasticity induction. 10 min after the induction of tLTP, we found evidence for rapid growth of PSDs at double-labeled synapses and strongly curved ASIs that suggest cup-shaped spines. As a future perspective, it may be possible to induce oSTDP in a suitably equipped high-pressure freezing machine32 to study even faster changes in synaptic ultrastructure.

Limitations of the study

The main limitation of our method is its low throughput, limited by the time required to manually search and locate double-labeled synapses with conventional serial-section TEM. Deep learning-based methods have proven extremely powerful for the automated tracing and detection of synapses in EM images33^,^34 and could be applied to this problem. A further advance would be to combine our stimulation and labeling approach with volume EM methods such as array electron tomography,35 serial block-face EM,36 or focused ion beam milling.37^,^38 Since DAB staining of tissue blocks is straightforward (no antibody staining required), our approach seems particularly well suited for these high-throughput methods. We did not, however, test this idea. A second limitation is the possibility of missing small presynaptic boutons of labeled CA3 neurons, as only about 20% of presynaptic vesicles become electron dense.21 The comparatively large size of labeled boutons (pre only; Figure 4E) is probably a reflection of this bias. Tracking axons through serial sections or 3D volumes will mitigate this risk, as nearby boutons containing labeled vesicles will signal that an adjacent unlabeled bouton was also active during plasticity induction.

Resource availability

Lead contact

Requests for resources, reagents, and further information should be directed to the lead contact, Thomas G. Oertner (thomas.oertner@zmnh.uni-hamburg.de).

Materials availability

The pAAV-Syn-SYP-HRP-IRES-Cre plasmid generated in this study has been deposited to Addgene (#231252). Recombinant AAVs used in this study are available from the lead contact upon request.

Data and code availability

• •TEM images and electrophysiological data generated during this study will be shared by the lead contact upon request.
• •Custom code for electrophysiology analysis has been deposited at Zenodo and is publicly available (https://doi.org/10.5281/zenodo.15976791).
• •Any additional information required to reanalyze the data reported in this paper is available from the lead contact upon request.

Acknowledgments

We thank Jan Schröder, Iris Ohmert, Emanuela Szpotowicz, and Saskia Siegel for their excellent technical assistance. Bas von Bommel performed STED microscopy at the UKE Microscopy Imaging Facility with Virgilio Failla. Ingke Braren from the UKE Vector Facility produced rAAVs. pAAV-hSyn-DIO-ChrimsonR-mRuby2-ST was a gift from Hillel Adesnik (Addgene plasmid #105448). pAAV-syn-SYP-HRP (Addgene plasmid #117185) and pAAV-EF1α-dAPEX2 (Addgene plasmid #117173) were gifts from David Ginty. CheRiff (Addgene #51697) was a gift from Adam Cohen, and ChrimsonR (Addgene #59171) was a gift from Edward Boyden. Funding was received from 10.13039/501100001659Deutsche Forschungsgemeinschaft grants SFB 936 (178316478) and FOR 2419 (278170285) and the 10.13039/501100000781European Research Council (ERC-Synergy 951515).
