Biopsy proteome-based classification of T cell-mediated kidney allograft rejection
Daria Kania, Daniel Fochtman, Łukasz Skoczylas, Marta Gawin, Łukasz Marczak, Agata Kurczyk, Katarzyna Fidyk, Agnieszka Perkowska-Ptasińska, Ewa Chmielik, Alicja Dębska-Ślizień, Justyna Gołębiewska, Anna Wojakowska, Monika Pietrowska
TL;DR
This study explores using kidney biopsy proteomes to better classify T cell-mediated rejection in kidney transplants, potentially improving patient diagnosis and treatment.
Contribution
A proteomic panel of four proteins is proposed for classifying kidney transplant rejection, with GNB4 and PDK1 showing promise for immune cell and macrophage-based classification.
Findings
Proteomic analysis identified 2547 proteins with strong concordance between borderline and acute rejection groups.
GNB4 and AGXT significantly differentiated borderline and acute rejection groups.
PDK1 and CD73 best classified samples in binary analysis, with IHC confirming GNB4 upregulation in immune cells and PDK1 in macrophages.
Abstract
T cell-mediated rejection (TCMR) remains a challenge in kidney transplantation. Based on a histopathological biopsy examination, patients can be classified into groups such as no rejection (NR), borderline rejection (BR; Banff category 3), and acute rejection (AR; Banff category 4). Yet, this classification is not sufficient, since for the borderline cases a number of patients may require a clinical intervention. Thus, a robust classification by biopsy proteome profiling may provide a solution. In this work, kidney tissue from patients classified into NR, BR, and AR were subjected to MS-based proteomic profiling. Subsequently, a panel of four proteins (GNB4, PDK1, AGXT, CD73) was selected for validation by immunohistochemistry (IHC). This retrospective study was approved by the Bioethics Committee of the Medical University of Gdańsk, no. NKBBN/201/2021. Proteomic analysis identified…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —http://dx.doi.org/10.13039/501100004281Narodowe Centrum Nauki
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRenal Transplantation Outcomes and Treatments · Cytomegalovirus and herpesvirus research · Hematopoietic Stem Cell Transplantation
Introduction
Enhanced understanding of the immune system role in allograft rejection along with advancements in immunosuppressive therapy have enabled more effective organ transplantation; however, T cell-mediated rejection (TCMR) remains a common complication [1, 2]. The kidney allograft function decline, which may occur shortly after transplantation or even years later, usually manifests clinically with decreased urine output and proteinuria, with more severe cases including transplant tenderness. Even though TCMR responds well to immunosuppressive therapy, rejection still proceeds in around 10–12% of patients [3]. Kidney allograft biopsy, evaluated according to the Banff classification, remains the gold standard for diagnosing rejection [4, 5]. This grading system includes the classification of cases into “category 4: TCMR”, with its subcategories including “acute TCMR”, and also defines certain cases as “category 3: borderline (suspicious) for acute TCMR” [5].
Borderline rejection is a difficult diagnostic category. The diagnosis is made upon the assessment of the areal extent of interstitial inflammation and tubulitis using arbitrary thresholds. The thresholds are broad (especially depending on the edition of the Banff criteria) expanding from minor or absent interstitial infiltration (Banff i1and i0) to 10–25% cortical inflammation with foci of various degree tubulitis (Banff t1, t2, and t3). What is more, both interstitial inflammation and tubulitis are nonspecific lesions associated with various conditions in both native and transplanted kidneys. Both the lack of pathognomonic qualitative criteria and broad quantitative criteria result in borderline rejection being potentially a heterogenous diagnostic grouping [6–8].
There have been conflicting reports on the clinical significance of borderline cases. They are associated with increased numbers of subsequent clinical interventions; however in many cases, the pathological changes may also resolve spontaneously [6, 9–12]. Although borderline rejection may indicate inadequate control of the alloimmune response, it remains unclear whether all patients require anti-rejection treatment and which interventions are most effective in preventing unfavorable outcomes. Some cases of borderline rejection may actually represent acute rejection with discrepancies arising from sampling errors and inter-observer variability in assigning Banff scores [11, 12]. For this reason, there is an ongoing search for tools to improve the diagnostic accuracy of an inherently imperfect histopathological assessment [13].
Molecular alterations precede visible structural changes and, if quantitatively assessed, they offer an immense diagnostic potential. Proteomic analysis allows for the detection and quantification of thousands of proteins, facilitating the identification of changes associated with allograft rejection and providing insights into the underlying biological processes. This approach has been successfully applied before, enabling the discrimination between acute and no rejection patients with high reliability (AUC = 0.87) based on a panel of three serum proteins proposed by Wang et al. [13]. Epidermal growth factor analysis in the urine of patients was proposed as a potential biomarker of antibody-mediated rejection (AUC = 0.78) in a study reported by Heidari et al. [14]. Yet, in an expanded multicenter study enrolling 635 patients, discrimination for acute TCMR based on urine analysis yielded subpar results [15]. It is possible that, thus far, noninvasive analyses have given unsatisfactory or unrepeatable results because proteins that would reflect allograft rejection status are low-abundant components of urine or blood (as compared to other highly abundant proteins, e.g., serum albumin). Thus, a robust method of TCMR classification is still needed, which could be achieved via mass spectrometry (MS) based analysis of biopsy specimens. This study aimed to identify possible proteomic signatures of both borderline for acute TCMR (BR) and acute TCMR (AR), (collectively labeled ‘R’—rejection), using kidney allograft biopsy specimens (FFPE material) and to validate selected biomarker candidates based on immunohistochemical methods (used as a standard procedure during a histopathological examination).
Materials and methods
Patient samples
Retrospective FFPE kidney allograft tissue cores were obtained at the Medical University of Gdańsk Transplant Center. For this retrospective proteomic study, samples were obtained from patients who underwent a for-cause biopsy – performed due to worsening kidney function or proteinuria, or erythrocyturia—between 2014 and 2022. Based on histopathological assessment of the collected material, patient samples were later classified into three groups: no rejection (NR; n = 10), borderline rejection (BR; n = 12), and acute rejection (AR; n = 10). All biopsies were classified according to the current Banff criteria at the Department of Pathology, Medical University of Warsaw, Poland. For the immunohistochemistry staining, due to the limited amount of material, a separate set of samples of deceased kidney donors’ preimplantation biopsies was obtained. Thus, for the immunohistochemistry analysis, the grouping was as follows: donor kidney (DK; n = 8), borderline rejection (BR_IHC; n = 8), and acute rejection (AR_IHC; n = 9). Fully anonymized clinical data for these sample groups are available as supplementary tables (see Additional File 1 and Additional File 2). No statistically significant correlation was found between the available clinical data and the biopsy-related group assignments.
Sample preparation for proteomics analysis
To the FFPE tissues, 0.5 mL of heptane was added, and the samples were incubated for 30 min at room temperature and spun down at 16,000 g for 2 min. Heptane was discarded, and this de-waxing step was repeated three times. Finally, 50µL of methanol was added, samples were centrifuged at 16,000 g for 2 min, and the supernatant was discarded. The remaining pellet was air-dried for 20 min. Proteins were extracted from the FFPE tissues according to a modified procedure used by Geoui et al. [16] and using the Qproteome FFPE Tissue Kit (Qiagen). The pellet was reconstituted with 100µL of extraction buffer, then incubated at 100 °C for 20 min and at 80 °C for 2 h with 750 rpm mixing. After cooling to 4 °C, samples were centrifuged at 20,000 g for 15 min at 4 °C, and the extraction buffer was topped up to 125µL. Next, 400µL of methanol, 100µL of chloroform, and 300µL of water were added, and each time the samples were mixed and spun down. The supernatant was discarded, and 300µL of methanol, then 1 mL of acetone, was added, with mixing, spinning down, and supernatant removal. The air-dried protein pellet was resuspended in 50µL of 0.1% RapiGest (Waters Corporation) in 50 mM ammonium bicarbonate (AmBIC) and heated to 100 °C for 20 min. Following centrifugation at 20,000 g for 15 min, the supernatant protein concentration was determined as described by Wiśniewski and Gaugaz [17]. Next, 50µL of 50 mM dithiothreitol in 25 mM AmBIC was added, and the samples were incubated at 37 °C for 1 h with 950 rpm mixing. Alkylation was performed using 50µL of 100 mM iodoacetamide in the dark for 1 h. Samples were digested with a trypsin-to-protein ratio of 1:50 for 18 h at 37 °C in 150µL of AmBIC. After digestion, 45µL of 5% trifluoroacetic acid was added. Samples were incubated with 45µL of 5% trifluoroacetic acid at 37 °C with agitation at 950 rpm for 60 min and centrifuged at 18,000 g for 30 min. After desalting, peptides were vacuum-dried and re-dissolved in 20µL of water. Quantification of peptides was performed as per Wiśniewski and Gaugaz [17]. Finally, samples were acidified to 0.1% (v/v) TFA for analysis.
Mass spectrometry-based proteomics
Peptides were separated using an Acclaim PepMap RSLC nanoViper column (75 µm × 25 cm, 2 µm particle size) with a 190 min gradient of 4 – 60% acetonitrile in 0.1% formic acid at 300 nl/min using a Dionex UltiMate 3000 RSLC nanoLC system. Mass spectrometry analysis was performed using Exploris 480 Orbitrap (ThermoFisher) with top-10 data-dependent acquisition in positive ionization at MS resolution of 70,000 and MS/MS of 17,500. Peptides with ≥ 2 charges in the 300–2000 m/z range were fragmented at normalized collision energy of 28% using higher energy collisional dissociation (HCD). Raw data was processed using Protein Discoverer v.2.2 (Thermo Fisher Scientific) based on the Uniprot database with 10 ppm MS and 0.08 Da MS/MS accuracy. Methionine oxidation, carbamidomethylation, and two missed digestion sites were allowed. Proteins were identified if at least two peptides per protein at the false-discovery rate (FDR) ≤ 0.01 were found. Total ion current was used as a normalization factor.
Statistical analysis
Missing values were imputed with random numbers from a lognormal distribution with parameters estimated by the maximum likelihood method while accounting for the missing tail (truncation between 0 and the lowest measured value for a particular protein). The Kruskal–Wallis test with post hoc Conover comparisons was used for quantitative analyses [18] with the Jonckheere − Terpstra test for trend analysis [19]. Effect size was calculated as eta-squared with standardized Conover test, yielding Pallant’s “r” [20] with Cohen’s interpretation, i.e., small (|r|> 0.1), medium (|r|> 0.3), and a large effect (|r|> 0.5) [21]. Fisher’s exact test was used for binary analysis with Cramér’s V as an effect size measure and the Cochran-Armitage test for trend [22]. The Benjamini–Hochberg multiple testing correction was applied, and the statistical significance threshold was set to 0.05. Identified proteins were considered as differentially expressed /accumulated when the p-value after FDR correction was lower than 0.05. Analyses were conducted using R v.4.3.1 and MatLab v.2023a. ROC analysis was performed using MetaboAnalyst 6.0 (www.metaboanalyst.ca) with balanced sub-sampling, Monte Carlo cross-validation, and feature ranking by Linear Support Vector Machine and a built-in algorithm.
Immunohistochemistry staining
The FFPE tissues, provided in 1.5 mL Eppendorf tubes, were initially deparaffinized and subsequently embedded individually in separate paraffin blocks. Sectioning of these tissue blocks was performed using the Microm HM 355S microtome (Thermo Fisher Scientific). Slides of 4 µm thickness were deparaffinized and hydrated, then epitope retrieval was performed using the DAKO PT Link instrument (Agilent Technologies) at preheat temperature 85–97 °C for 10 min, epitope retrieval at 97 °C for 20 min and a cooldown to 75 °C for 20 min. Subsequently, EnVision FLEX Target Retrieval Solution diluted 1:50 (Agilent Technologies) was used as follows: HIGH pH for GNB4, PDK1, CD73, and LOW pH for AGXT. The slides were treated with Flex Peroxidase Blocking solution for 10 min, primary antibody for 20 min, Flex HRP for 15 min, Flex DAB with Substrate-Chromogen for 10 min, and Flex hematoxylin for approximately 45 s. Antibodies were diluted 1:300 for AGXT (#22,394–1-AP, Proteintech), CD73 (#PA5-29,750, Invitrogen), GNB4 (#PA5-113,327, Invitrogen) and 1:100 for PDK1 (#MA5-32,702, Invitrogen) using the FLEX Antibody Diluent. EnVision FLEX Wash buffer diluted 20 × was applied before the addition of each reagent for 10 min. One slide for each patient was stained with hematoxylin and eosin (H&E). Digitization was performed using a Pannoramic 250 slide scanner with the Pannoramic Viewer software v.1.15 (3DHISTECH).
Results
Proteomic profiling of kidney tissues

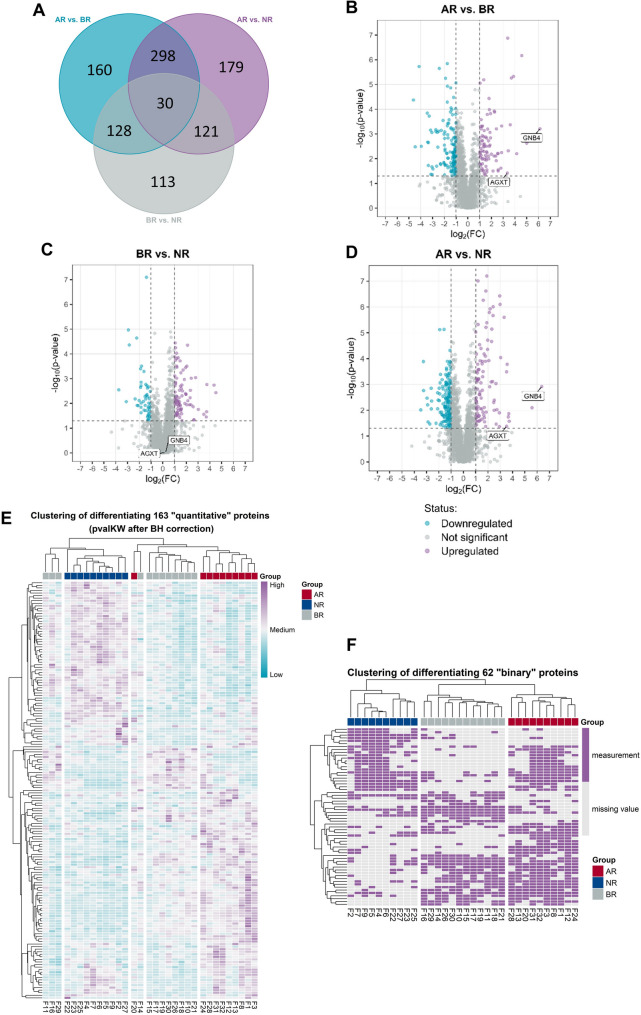

Proteomic profiling of kidney tissues in a retrospective analysis of biopsies from patients without (NR) and with borderline (BR) or acute transplant rejection (AR) allowed the identification of 2547 proteins in total. Out of these, quantitative analysis was possible for 2273 proteins, whereas 274 proteins were included in a binary type of analysis (i.e., present/absent). The complete list of identified and quantified proteins is presented as a supplementary table (see Additional File 3). 1029 differentially expressed proteins (DEPs) were identified (FDR < 0.05): 392 between BR and NR groups, 628 between AR and NR, and 616 between AR and BR (Fig. 1A, 1, 1, 1). To find proteins upregulated in both borderline and acute rejection (as compared to the no-rejection group), further analysis was focused on analyzing common proteins that differentiated AR or BR from NR. This comparison resulted in 225 proteins commonly differentiating AR and BR from NR groups (163 in a quantitative manner and 62 in a binary fashion; Fig. 1E and 1, respectively). Noteworthy, hierarchical clustering of the proteomic data revealed a very similar profile of samples in the AR and BR groups.Fig. 1. Proteomic profiling of kidney tissues from patients with kidney transplant showing no signs of rejection (NR), with borderline (BR) or acute rejection (AR). A Venn diagram indicating the number of differentiating proteins between experimental groups. B, C, D Volcano plots denoting the statistical significance and fold-change for all identified proteins in all possible group comparisons. Upregulated proteins are marked in purple, whereas downregulated proteins are marked in blue. Proteins chosen for further study due to their quantitative differentiation (i.e., AGXT, GNB4) are marked separately. E, F Heatmaps for proteins differentiating the experimental groups in a quantitative and binary manner

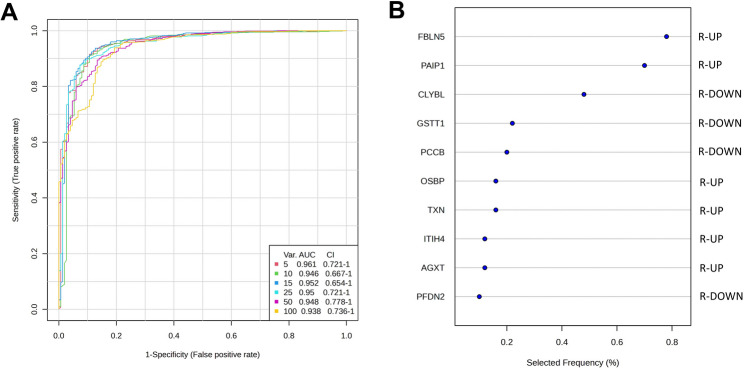

A hypothetical panel of potential proteomic biomarkers of TCMR was tested using a multivariate approach (Fig. 2A). Due to the similarity of proteomic profiles in the AR and BR groups, a model comparing NR vs both AR and BR (collectively labeled ‘R’—rejection) was constructed. Here, a set comprising ten proteins was indicated as the one with the best predictive accuracy (88.2%) with an AUC of 0.946. Notably, AGXT, which was chosen for further validation (see below), was among proteins having a high predictive value based on the ROC analysis (Fig. 2B). Additional panels for paired comparisons are available as a supplementary figure (see Additional File 4).Fig. 2. Prediction of potential proteomic biomarker by ROC analysis. A Multivariate ROC curves for six models differing in the number of proteins (from 5 to 100) as their variables in comparisons of NR vs R (rejection). B Frequency of the proteins present in the model based on the top-ten features (6 proteins upregulated in R and 4 proteins upregulated in NR)

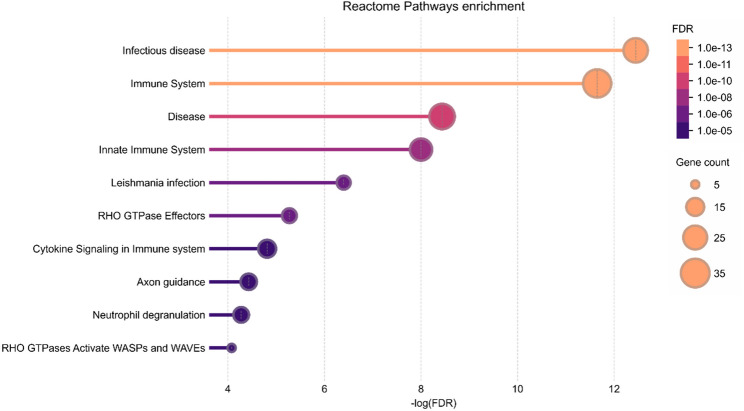

To further narrow down the proteins associated with the kidney transplant rejection, we focused on the subset of 80 proteins upregulated in both AR and BR (as compared to NR) that showed a large effect size (|r|> 0.5) of differences supplementary figure (see Additional File 5). These proteins were characterized functionally in silico. Among processes linked to the subset of AR/BR-upregulated proteins, the most significantly overrepresented were: response to stimulus, positive regulation of biological process, cellular component organization and immune system process (see Additional File 6). Further, the Reactome Pathways enrichment analysis revealed infectious disease, neutrophil degranulation, immune system and innate immune system as the most significantly overrepresented process. Moreover, this subset of proteins included species linked to RHO-GTPase pathway effectors and cytokine signaling (Fig. 3).Fig. 3. In silico functional analysis of upregulated proteins common to AR and BR groups. Reactome Pathways enrichment plot showing ten most significantly upregulated pathways associated with the differentiating proteins

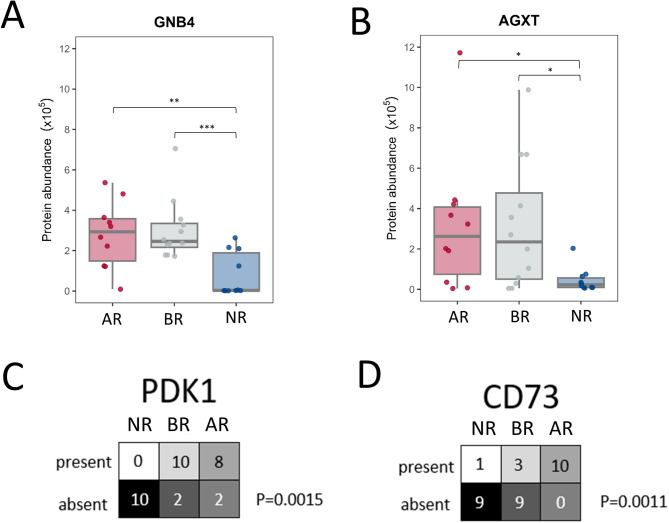

Among the 80 proteins significantly upregulated in the AR/BR groups, guanine nucleotide-binding protein subunit beta-4 (GNB4) exhibited the highest relative abundance, with approximately 80-fold upregulation compared to the NR group (Fig. 4A). Next, alanine-glyoxylate aminotransferase protein (AGXT) was about tenfold upregulated compared to the NR group. ROC analysis further identified it as a key protein with strong predictive value. Although GNB4 did not appear in the list of most frequently chosen proteins for the prediction of transplant status, its high upregulation makes it an ideal candidate for a biomarker, which warrants further validation using IHC. Moreover, two proteins had the most predominant presence in the AR and BR groups as compared to the NR group based on the binary analysis: PDH kinase 1 (PDK1) and 5’-nucleotidase (CD73) (Fig. 4C, 4). Hence, these four proteins were selected for further validation study using immunohistochemical methods.Fig. 4. Proteins selected for further study with immunohistochemical staining. A, B Bar plots showing quantitative protein abundance differences between the experimental groups for GNB4 and AGXT. C, D Binary protein abundance differences (present/absent) for PDK1 and CD73. Statistical significance is denoted as: * p < 0.05, ** p < 0.01, *** p < 0.001
Immunohistochemical validation of selected proteins characteristic of transplant rejection
Four proteins (GNB4, AGXT, PDK1, and CD73) putatively discriminating patients with a transplant rejection, as identified by proteomic profiling, were validated using the immunohistochemical approach in a set of kidney biopsies from healthy kidney donors (DK) and patients with borderline (AR_IHC) and acute (AR_IHC) transplant rejection. Localization of these proteins in tissue sections was determined, i.e., staining intensity and area in either tubular epithelium, immune cells, and/or macrophages were assessed (Fig. 5). Out of four proteins selected for immunohistochemical analysis, neither AGXT nor CD73 yielded statistically significant differences between the experimental groups. Hence, the presentation of results was focused on GNB4 and PDK1.Fig. 5. Representative images for H&E and immunohistochemical staining. Tissue sections were stained for PDK1 (A) and GNB4 (B)

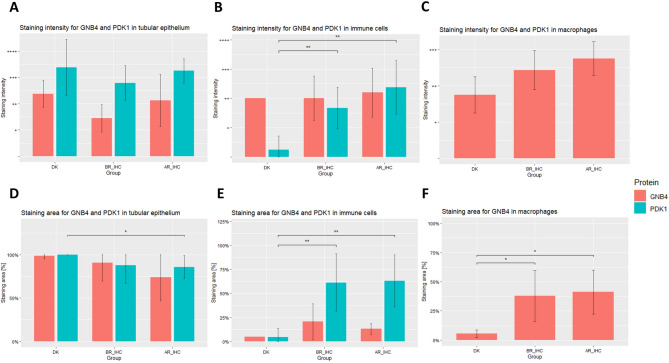

We found that neither PDK1 nor GNB4 was significantly up-regulated in the tubular epithelium of patients with the transplant rejection (in the case of PDK1, lower intensity of the staining was noted in the BR_IHC group in comparison to DK vs AR_IHC) (Fig. 6A, 6). On the other hand, significant differences were noted among the compared groups in the case of the immune cells component of the specimen. For PDK1, both the area and intensity of staining of immune cells were significantly higher in the BR_IHC and AR_IHC groups compared to the DK (differences in the staining of GNB4 were not statistically significant when all immune cells were considered) (Fig. 6B, 6). However, in the case of GNB4, significantly stronger staining (both area and intensity) in the BR_IHC and AR_IHC groups was noted specifically for macrophages (PDK1 was not detected in macrophages) (Fig. 6C, 6).Fig. 6. Differences in immunohistochemical staining for PDK1 and GNB4 in kidney tissue samples. A, B, C Staining intensity in the tubular epithelium, immune cells, and macrophages. D, E, F Staining area in the tubular epithelium, immune cells, and macrophages. Results for PDK1 in macrophages have been omitted since no visible staining could be observed. Statistical significance is denoted as: * p < 0.05, ** p < 0.01
Discussion
Identification of a reliable molecular biomarker associated with the risk of T cell-mediated rejection (TCMR) remains a critical challenge in the field of kidney transplantation. Although several studies have proposed hypothetical biomarker signatures based on protein components of urine or plasma, their findings have not been confirmed in larger clinical trials [15], with analyses specific for tissue biopsies being scarce [23, 24]. In this study, we have performed proteomic profiling of kidney specimens (FFPE tissue biopsy samples) from patients with acute or borderline TCMR and without transplant rejection. Using an MS-based approach, we were able to identify a set of proteins differentiating the experimental groups. Their functional analysis revealed a strong correlation with immune system functioning, e.g., the process of cytokine signaling, which is expected to be overrepresented in studies of TCMR [25–27]. Moreover, overrepresentation of the term “RHO GTPase effectors”, which control cell motility, has been previously linked with reduced kidney function and immune cell activation [28, 29]. A hypothetical multicomponent signature was proposed that showed a strong predictive value of NR vs AR or BR. This signature included CLYBL that had already been identified as a predictive factor in kidney transplant rejection [30, 31]. Other components of this hypothetical signature, FBLN5, GSTT1, TXN, and ITIH4, have been connected to kidney injury, renal cancer progression, and immune system activation [32–36]. TXN protein specifically differentiated AR and NR groups in a study by Feng et al. using kidney biopsies [23]. In that same study, AGXT2 (protein with a high degree of similarity to AGXT) was also reported as differentiating.
Kidney transplant rejection is a process tightly regulated by the immune system. T cell-mediated rejection (TCMR) is, by definition, characterized by T cell infiltration at the rejection site, a condition that is further exacerbated by macrophage activation [5, 37, 38]. It has been previously shown that monitoring of a kidney status with immunological markers using an MS approach is possible, which is exemplified by the assessment of CD45 (protein expressed on all leukocytes) [24]. However, since a typical proteomics protocol for an MS analysis applies to lysates of heterogeneous tissue specimens, the information on the cell-type-specificity of detected proteins is missed. Therefore, for the validation study, we have chosen the immunohistochemical approach (instead of a Western Blot analysis), which enables us to address the specific cellular and sub-cellular context of protein localization. With this approach, using a partly independent set of specimens, we confirmed enhanced accumulation of two candidate biomarkers in specimens representative of acute and borderline TCMR (compared to the kidney of healthy donors). PDK1 was upregulated in immune cells generally, while GNB4 was upregulated in macrophages of patients who rejected the transplant (noteworthy, differences between groups of samples were negligible when the tubular kidney epithelium was addressed). This finding adds a new context to the connections between the immune system and a kidney transplant rejection. GNB4 has been previously reported to be associated with the immune system functioning; however, the role of either GNB4 or PDK1 in processes related to kidney transplantation is uncommon [39]. Although upregulation of CD73 or AGXT in kidney specimens of patients who rejected the transplant was not confirmed using immunohistochemistry, it should be noted that CD73 is a known immune checkpoint molecule playing a costimulatory role for T lymphocytes [40–43].
Conclusions
We have identified a multi-component panel of proteins putatively associated with kidney transplant rejection. Moreover, using immunohistochemistry analysis, we validated two biomarker candidates, PDK1 and GNB4, that accumulated in the kidney of patients with pathologic diagnosis of both acute and borderline TCMR, which are associated with the functions of immune cells and macrophages. Hence, a new approach to the monitoring of transplanted kidney status could be proposed based on examination of a biopsy. However, further investigation is required to verify the clinical applicability of findings, particularly in the context of identifying borderline changes requiring additional clinical intervention.
Study limitations
All kidney allograft samples used in this retrospective study were remnant clinical samples. The biopsies were performed over a period of nine years, during which several major revisions of the Banff Classification of Kidney Allograft Pathology were made, including the criteria defining borderline changes, which could have affected the final diagnosis [7]. The set of samples used in the MS-based proteomic analysis and immunohistochemistry staining only partially overlapped. This was due to the low availability of the studied material, where the volume of kidney biopsies is minimized for patient safety. On the other hand, performing the IHC analysis for independent samples enhanced the strength of the validation study. The localization of the analyzed proteins in tubular epithelium, immune cells, and/or macrophages was analyzed by IHC without co-staining of specific markers of these structures (based on morphological features determined in situ by brightfield microscopy).
Taking the above-mentioned limitations into account, follow-up studies should be performed on a set of samples obtained in a relatively short period of time (i.e., less than 9 years), where Banff classification criteria remained constant. Moreover, validation studies using IHC should include immune cell co-staining.
