Label-free structural imaging of plant roots and microbes using third-harmonic generation microscopy

TL;DR

This paper introduces a new imaging technique that allows detailed, label-free observation of plant roots and microbes in their natural environment.

Contribution

The study introduces THG microscopy as a novel, label-free method for imaging root structures and microbes with high resolution.

Findings

THG imaging revealed root structures like vasculature, Casparian strips, and root cap cells.

THG provided contrast for visualizing bacteria and fungi in the root rhizosphere without labels.

Combined THG and 3PF imaging enabled tracking of microbes and subcellular features in the rhizosphere.

Abstract

Root biology is pivotal in addressing global challenges including sustainable agriculture and climate change. However, roots have been relatively understudied among plant organs, partly due to the difficulties in imaging root structures in their natural environment. Here we used microfabricated ecosystems (EcoFABs) to establish growing environments with optical access and employed nonlinear multimodal microscopy of third-harmonic generation (THG) and three-photon fluorescence (3PF) to achieve label-free, in situ imaging of live roots and microbes at high spatiotemporal resolution. THG enabled us to observe key plant root structures including the vasculature, Casparian strips, dividing meristematic cells, and root cap cells, as well as subcellular features including nuclear envelopes, nucleoli, starch granules, and putative stress granules. THG from the cell walls of bacteria and fungi also provides label-free contrast for visualizing these microbes in the root rhizosphere. With simultaneously recorded 3PF signal, we demonstrated our ability to investigate root-microbe interactions by achieving single-bacterium tracking and subcellular imaging of fungal spores and hyphae in the rhizosphere.

The online version contains supplementary material available at 10.1038/s41598-025-20030-9.

Figures

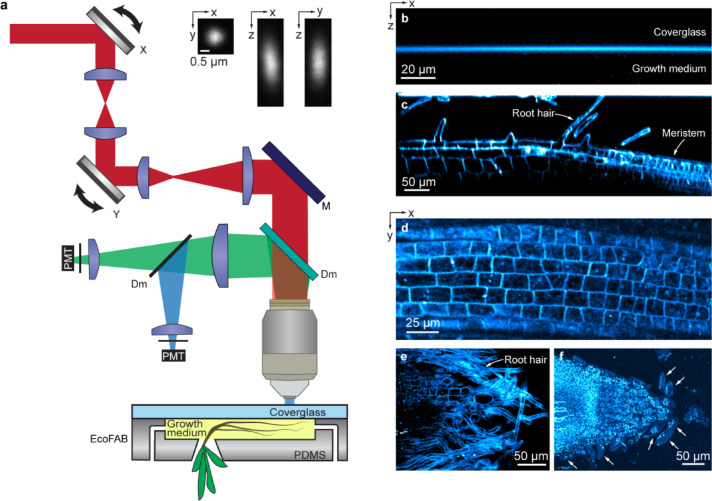

THG microscopy reveals plant root structure at subcellular resolution. (a) Schematics of the microscope and EcoFAB. Red: excitation light; Green: 3PF; Blue: THG. X, Y: X and Y galvanometer mirrors; M: mirror; Dm: dichroic mirror; PMT: photomultiplier tube. Insets: lateral (xy) and axial (xz, yz) images of a 0.2-μm-diameter bead. (b) xz THG image of the interface between coverglass and growth medium. (c) xz and (d,e) xy THG images of *B. distachyon* roots inside the EcoFAB chamber. (b,c) acquired at 2 μm/pixel in x and 1 μm/pixel in z. (d,e) acquired at 1 μm/pixel. (f) Brightest-spot projection

THG imaging of *B. distachyon* apical meristem and root cap. (a) Brightest-spot projection with depth cueing (100% to 50%) of an image stack through a root tip. 230-μm-thick image stack acquired at 1 μm/pixel and z step size of 2 μm. (b) xy image acquired at z = 160 μm. White arrows in (a,b): boundary between meristem and root cap. (c) xz images acquired along dashed yellow line in (a). (d,e) xy images from two other root samples acquired at 0.5 μm/pixel. These roots were placed in between a microscope slide and a coverslip instead of inside EcoFAB to minimize sample motion. Post-objective pow

b), we observed stationary (red and purple arrowheads), slowly moving (yellow arrowheads), as well as fast moving (orange arrowheads) bacteria near the *A. thaliana* root. These results indicate that our microscope is capable of simultaneously imaging and tracking of bacteria in the root rhizosphere, and that with additional fluorescence labeling for 3PF, it can image multiple bacterial strains simultaneously.Fig. 5Imaging root-microbe interactions at high spatial and temporal resolution. (a) 3PF (green) and THG (cyan) xy images of *A. thaliana* root inoculated with two strains of *P. simiae*

Full text

Introduction

Root biology research informs wide-ranging areas of intensifying global interest including soil remediation^1^, climate^2^, genetics^3^, and sustainable agriculture^4^. Optical microscopy, capable of visualizing plant morphology at sub-cellular resolution, is critical for understanding plant structure and function^5^. However, compared to more extensively studied plant organs such as stems and flowers, a dearth of imaging studies on plant roots has resulted in roots being continually designated the “hidden half” of the plant body^6^.

The native environment of plant roots, composed of soil and organic matters, strongly scatters and absorbs light, severely limiting optical access to plant roots. As an alternative, microfabricated ecosystems such as EcoFABs^7^ provide controllable and reproducible growth conditions to plants. The absence of soil in EcoFABs relieves the requirement of uprooting the plant from its growing environment and provides non-destructive optical access for in situ imaging of root structure and its immediate microenvironment^8–10^.

Single-photon fluorescence microscopy techniques such as confocal microscopy^11^ and light sheet microscopy^12–14^ have been used to image plant roots^15,16^. However, light scattering by root tissues has limited their applications to relatively transparent or cleared root samples^17^. They also often require the introduction of extrinsic fluorescent labels. Transgenic fluorescent markers are compatible with live root imaging but can only be implemented for plants with established transformation systems and even in the best cases are laborious, whereas vital stains can suffer from poor incorporation^18^ or unwanted interference with cellular activity^19^. Thus, a label-free microscopy approach that can image structures at high resolution in opaque live root tissues would be highly desirable but has yet to be demonstrated.

Nonlinear optical microscopy methods utilizing near-infrared excitation light provide greater depth penetration in tissues than single-photon fluorescence techniques, and have been used to image both fluorescently labeled and unlabeled plant tissues^20–24^. Two nonlinear imaging modalities, three-photon fluorescence (3PF) microscopy and third-harmonic generation (THG) microscopy, have recently emerged as powerful techniques for subcellular resolution imaging at millimeter depths in opaque tissues such as the mouse brain^25,26^. Here, we explored the potentials of using 3PF and THG microscopy for label-free in situ imaging at subcellular resolution of live plant roots in EcoFABs, including Brachypodium distachyon, a monocot grass known for its genetic tractability and relevance to agricultural crops^27,28^, and the dicot Arabidopsis thaliana, a central model organism in plant research^29^. We found that THG provided excellent optical resolution and label-free contrast for a variety of subcellular structures, while 3PF from the intrinsic fluorophores of root cells provided complementary structural information. We were able to visualize root hairs, vasculature, as well as subcellular components of mitotically active and border-like cells. In the optically opaque root of B. distachyon, THG microscopy imaged vasculature beyond 200 μm in depth in the mature zone and imaged through the entire 230-μm thickness of a root tip. Furthermore, we combined simultaneous label-free and fluorescence imaging to study root-microbe interactions, including real-time monitoring of Pseudomonas simiae dynamics in the vicinity of A. thaliana roots at single-bacterium resolution and visualizing the fungus Trichoderma atroviride adjacent to B. distachyon roots at subcellular resolution.

Results

THG microscopy provides label-free contrast for plant root structures at subcellular resolution

THG, a coherent optical process that convert three near-infrared excitation photons to one visible photon having one-third the excitation wavelength, has its signal originating from the third-order nonlinear susceptibility^30^. Under tight focusing conditions in microscopy, its contrast derives from the local optical heterogeneities within the excitation focus^20,31–33^. When the absorption of three near-infrared photons also promotes a fluorophore to its excited electronic state, 3PF can be generated by the same excitation laser. At longer wavelengths than the third-harmonic signal, 3PF signal can be spectrally separated from and simultaneously detected with the THG signal. The third-order nonlinear excitation involved in THG and 3PF confines the signal generation to within the excitation focus, thus optically sections 3D samples.

We conducted all imaging experiments using a custom-built multimodal microscope^26^ capable of simultaneously acquiring THG and 3PF signals (Fig. 1a). A near-infrared excitation laser beam (λ = 1300 nm; Monaco-Opera-F system, Coherent Inc.) propagated through a laser-scanning assembly comprising galvanometric mirrors (X,Y) and scan lenses to overfill a high-numerical-aperture (NA) water-dipping objective (Olympus XLPLN25XWMP2, NA 1.05, 25 ×). THG (433 nm) and 3PF (500—550 nm) signals were separated from the excitation light by a dichroic mirror (Dm) and further separated into two paths by an additional dichroic mirror for detection by photomultiplier tubes (PMTs). We measured the point spread function (PSF) of our microscope by 3PF imaging of 0.2-μm-diameter fluorescent beads. The PSF had a lateral full width at half maximum (FWHM) of 0.65 μm in the xy plane and an axial FWHM of 1.78 μm (insets, Fig. 1a).Fig. 1THG microscopy reveals plant root structure at subcellular resolution. (a) Schematics of the microscope and EcoFAB. Red: excitation light; Green: 3PF; Blue: THG. X, Y: X and Y galvanometer mirrors; M: mirror; Dm: dichroic mirror; PMT: photomultiplier tube. Insets: lateral (xy) and axial (xz, yz) images of a 0.2-μm-diameter bead. (b) xz THG image of the interface between coverglass and growth medium. (c) xz and (d,e) xy THG images of B. distachyon roots inside the EcoFAB chamber. (b,c) acquired at 2 μm/pixel in x and 1 μm/pixel in z. (d,e) acquired at 1 μm/pixel. (f) Brightest-spot projection with depth cueing (100% to 50%) of an 88-μm-thick image stack of a root tip acquired at 0.8 μm/pixel and z step size of 2.75 μm. White arrows: border-like cells. Post-objective power: (b) 2 mW, (c,d) 3 mW, (e) 4 mW, (f) 2.4–2.8 mW.

Seedlings of B. distachyon or A. thaliana were allowed to germinate within an EcoFAB growth chamber^9^ made of coverglass and PDMS before loading into the microscope (Methods). The excitation light entered through the coverglass side of the chamber and the emitted THG and 3PF signals were collected and detected in the epi direction. When the excitation focus was entirely within the coverglass or the growth medium, there was no THG signal generated due to the optical uniformity of the material within the focus^30^. When the excitation focus bisected the coverglass-medium interface, a strong THG signal was generated due to the abrupt change of susceptibility from glass to growth medium (Fig. 1b).

When the excitation focus was scanned across B. distachyon roots, THG signal provided high-resolution label-free visualization of various structures in both axial (Fig. 1c) and lateral (Fig. 1d–f) planes. Within the root, plant cells appeared as individual compartments (Fig. 1c–e), with strong THG signal observed at their cell walls, likely due to the different optical properties of the cell wall and the cytopolasm^34,35^. We confirmed that the THG signal arose from cell walls by acquiring 3PF and THG images from root samples stained with Auramine O, a fluorescent dye known to stain plant cell walls. Compared to unstained roots, our fluorescent staining procedure substantially reduced signal and disturbed structure of the cell walls in THG images (Supplementary Fig. S1), indicating that extrinsic fluorescent labelling can lead to unwanted perturbations on root structure.

In an example axial (xz) image (Fig. 1c), we observed elongated cells with root hairs protruding from the root surface—a well-known characteristic of the mature root zone^36^. Here from left to right, cells progressively diminished in size, corresponding to the transition into the meristematic zone. A similar transition was observed in a lateral (xy) image (Fig. 1d). Another lateral image section of a slightly inclined root revealed root hairs enveloping the root’s surface (Fig. 1e). Imaging the tip of a root, we observed cells that were detached from the primary body of the root near the root cap region (white arrows, Fig. 1f), reminiscent of border cells^37,38^ and suggesting that roots grown in the EcoFAB system resemble roots grown in soil. These label-free high-resolution images motivated us to systematically explore the cellular and subcellular features revealed by THG in B. distachyon roots, as detailed below.

THG and 3P autofluorescence microscopy imaging of the mature zone of B. distachyon roots

In addition to THG, intrinsic contrast can arise from the autofluorescence of endogenous chromophores in biological specimens. Spectrally separating the THG and 3P autofluorescence signals, we simultaneously acquired THG and 3P autofluorescence images in the mature zone of B. distachyon roots (Fig. 2; Supplementary Video 1).Fig. 23P autofluorescence and THG microscopy visualize epidermis, cortex, endodermis, and vasculature in the mature root zone of B. distachyon roots. (a) 3P autofluorescence (green) and THG (cyan) xz images acquired at 1 μm/pixel showing a cross section of mature root zone. (b–d) xy images acquired at depths indicated by white arrows in (a) corresponding to (b) epidermis, (c) cortex and (d) endodermis tissues. Pixel size: 1 μm/pixel. (e) xy THG images of root tissues at 26 μm, 80 μm, and 140 μm depths, corresponding to epidermis, endodermis and vasculature, respectively. Yellow arrows in (a,d,e) indicate putative Casparian strips. Pixel size: 0.3 μm/pixel. Post-objective powers: (a–d) 2.6 mW, (e) 1.2, 1.6, and 14 mW from left to right.

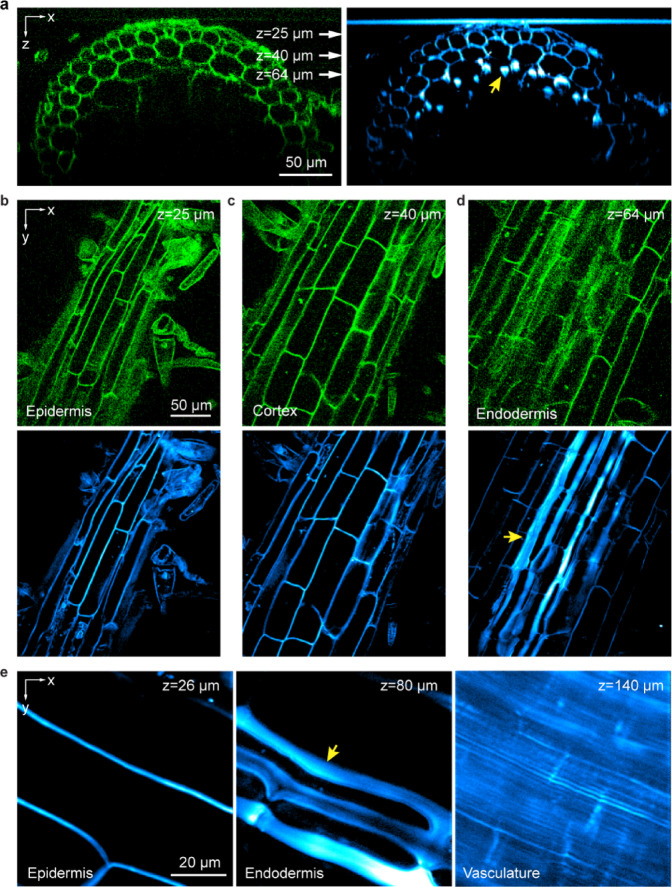

Roots in the mature zone contain concentric layers of epidermis, cortex, endodermis, and vasculature. In epidermis and cortex, THG and 3P autofluorescence signals co-localized at cell walls (Fig. 2a–c). Even though THG signal was ~ 3.4–8.8 × stronger than 3P autofluorescence signal, cell walls were easily visible in both channels. The contrasting composition of the plant cell wall and the surrounding cytoplasm generated THG signal, while the phenolic compounds in the cell wall^39–41^ were likely the source of autofluorescence.

Right before the THG and autofluorescence signals dropped off at larger depths, in the THG images we observed striation features of greater brightness and larger widths than the cell walls above (yellow arrows, Fig. 2a,d,e). Interestingly, the corresponding autofluorescence image did not exhibit this large increase of brightness (e.g., 65—83 µm, Supplementary Video 1), suggesting that THG signal here was caused by a substantial change in the optical susceptibility. The location and morphology of these bright striated features of ~ 10 µm width were consistent with Casparian strips in endodermis, which surround the vascular cylinder and regulate the passage of water and other solutes between cortex and vasculature^42,43^. The distinct molecular composition^44^ and thickness of Casparian strips from those of regular cell walls presumably led to its stronger THG contrast. Below the endodermis, vasculature structures were visualized as parallel channels ~ 1.5 µm apart (Fig. 2e). Although ~ 10 × higher excitation power was needed for vasculature than for cells in epidermis and Casparian strips in endodermis, we were able to observe structures more than 200 µm deep into the mature root (Supplementary Video 1).

THG and 3P autofluorescence microscopy image elongation, meristem, and root tip of B. distachyon roots at subcellular resolution

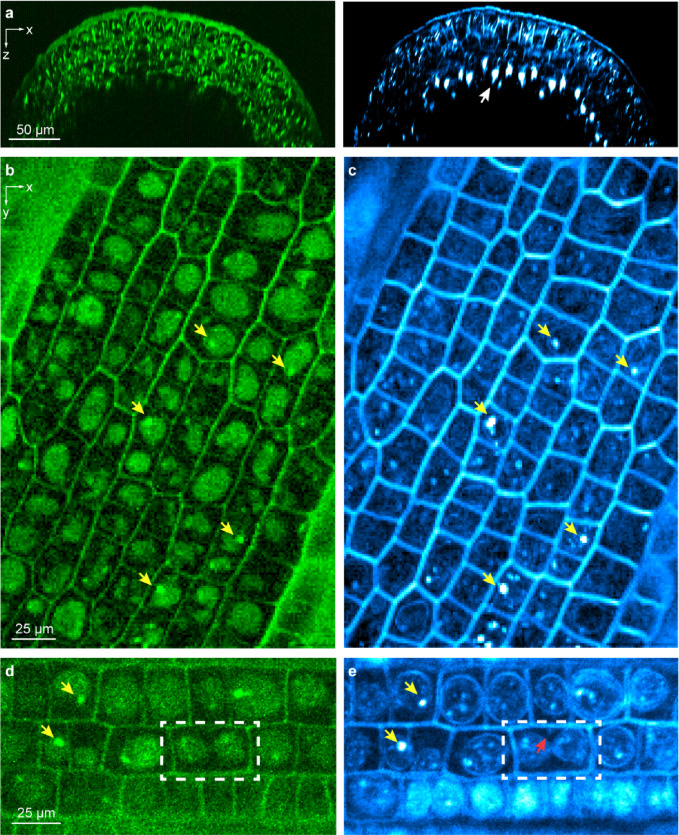

Compared with differentiated cells in the mature zone, cells in the elongation and meristem zone contain more intracellular features required for root growth. Moving towards the root tip from the mature zone, we visualized structures in the intracellular space in both 3P autofluorescence and THG cross-sectional images of a B. distachyon root, likely in the elongation zone (Fig. 3a). As in the mature zone, cell walls generated stronger THG signal than 3P autofluorescence signal and strong THG signal was observed in striated structures as those in the mature zone (white arrow, Fig. 3a).Fig. 33P autofluorescence and THG microscopy provide label-free imaging of the B. distachyon root meristem at subcellular resolution. (a) 3P autofluorescence (green) and THG (cyan) xz images acquired at 0.3 μm/pixel showing a cross section of the root meristem. White arrow: putative Casparian strip. (b–e) 3P autofluorescence (green) and THG (cyan) xy images acquired at (b,c) 0.5 μm/pixel and (d,e) 0.3 μm/pixel. Yellow arrows: putative nucleoli; Dashed white box: a mitotic cell; red arrow: a protusion between two daughter nuclei. Post-objective power: (a) 5.3 mW; (b,c) 5 mW; (d,e) 7 mW.

In contrast to cells in the mature zone, cells in the meristem region were less elongated and approximately isodiametric (Fig. 3b–e). In 3P autofluorescence images, we observed ellipsoidal structures occupying most of the cell volume (Fig. 3b,d). There structures were likely enlarged nucleus, a characteristic feature of meristem cells, with their autofluorescence arising from the aromatic chemical structures of nucleic acid molecules^45^. In several nuclei, we found bright, micron-sized autofluorescent aggregates (yellow arrows, Fig. 3b,d), which were consistent with nucleoli. The higher molecular density^46^ could explain the brighter fluorescence observed.

Due to the coherent nature and symmetry requirements of THG, subcellular structures exhibited distinct features in THG images (Fig. 3c,d) from those of 3P autofluorescence. When the excitation focus was within the optically uniform portion of the cell (e.g., cytoplasm or the non-nucleolus, nucleoplasm part of nucleus)^47^, THG signal was minimal. The varying susceptibilities across cytoplasm and nucleoplasm, however, gave rise to strong THG signal at the nuclear envelope (Fig. 3e). Inside the nuclei, strong THG signal was observed from the putative nucleoli (yellow arrows, Fig. 3c,e) due to their distinct optical susceptibility from nucleoplasm^47^. In both autofluorescence and THG images, nucleoli were often found near the nuclear envelopes, consistent with previous reports for plant cells^48,49^.

The distinctive features of meristem cell nuclei and the strong signal of cell walls in THG images provided us a label-free method to monitor cell division. For example, we observed a dividing cell with two daughter nuclei close to being separated (dashed box, Fig. 3d,e). On the upper cell wall, we observed a small protrusion (red arrow, Fig. 3e that appears at first glance as a nascent cell wall between the two daughter cells. However, in monocots, new plant cell walls are believed to begin their formation at the center of the dividing cells and then expand outward until they fuse with the existing cell wall. Therefore, the identity of this intriguing protrusion remains unknown.

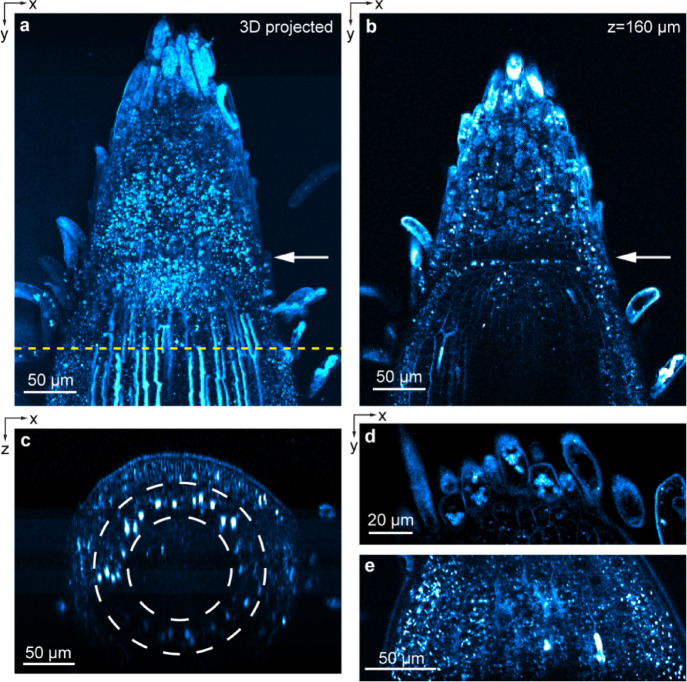

THG also provided label-free structural contrast at subcellular resolution near the root tip (Fig. 4). Imaging through a 230-μm-thick root tip (Supplementary Video 2), THG revealed a clear boundary between the meristem and the root cap^36^ (white arrows in Fig. 4a, a projected image of a 373 × 310 × 230 μm^3^ volume, and Fig. 4b, a single xy image section). Bright striated structures as in the endodermis image in Fig. 2 were found to terminate before reaching the root cap region (Fig. 4a; Supplementary Video 2), consistent with known anatomy of Casparian strips^36^. An axial cross-sectional view showed a complete encirclement of the central vasculature by the striated structures (Fig. 4c). Because light scattering and sample-induced aberration degraded focal intensity at deep depths, the putative Casparian strips in the bottom half of the root were substantially dimmer than those above. Using the THG signal from these features, we measured the effective attenuation length (EAL) in the B. distachyon root to be 177 μm (Supplementary Fig. S2) at 1300 nm wavelength. In cells protruding from the tip of the root cap, we observed bright granules of 3–7 μm in size (Fig. 4d), whose location and morphology were consistent with starch granules^50^. Throughout the apical meristem and root cap, we also saw smaller granules of 1–3 μm in size (Fig. 4e). We speculated that they may be processing bodies or stress granules^51^, which needs to be validated with further experiments (e.g. using transgenic lines that fluorescently label marker proteins^52,53^).Fig. 4THG imaging of B. distachyon apical meristem and root cap. (a) Brightest-spot projection with depth cueing (100% to 50%) of an image stack through a root tip. 230-μm-thick image stack acquired at 1 μm/pixel and z step size of 2 μm. (b) xy image acquired at z = 160 μm. White arrows in (a,b): boundary between meristem and root cap. (c) xz images acquired along dashed yellow line in (a). (d,e) xy images from two other root samples acquired at 0.5 μm/pixel. These roots were placed in between a microscope slide and a coverslip instead of inside EcoFAB to minimize sample motion. Post-objective power: (a–c) 3–15 mW; (d) 4 mW; (e) 3.4 mW.

THG and 3PF microscopy enable simultaneous imaging of plant roots and microbes in the rhizosphere

In addition to imaging plant roots themselves, the ability to simultaneously image microbes in the rhizosphere, the region in the vicinity of the roots where the microbiome interacts with the plant, would help understand the complex mechanisms through which root-microbe interactions impact plant growth^54,55^. We found that THG can be combined with 3PF to simultaneously image plant roots and bacteria as well as fungi in the rhizosphere in situ.

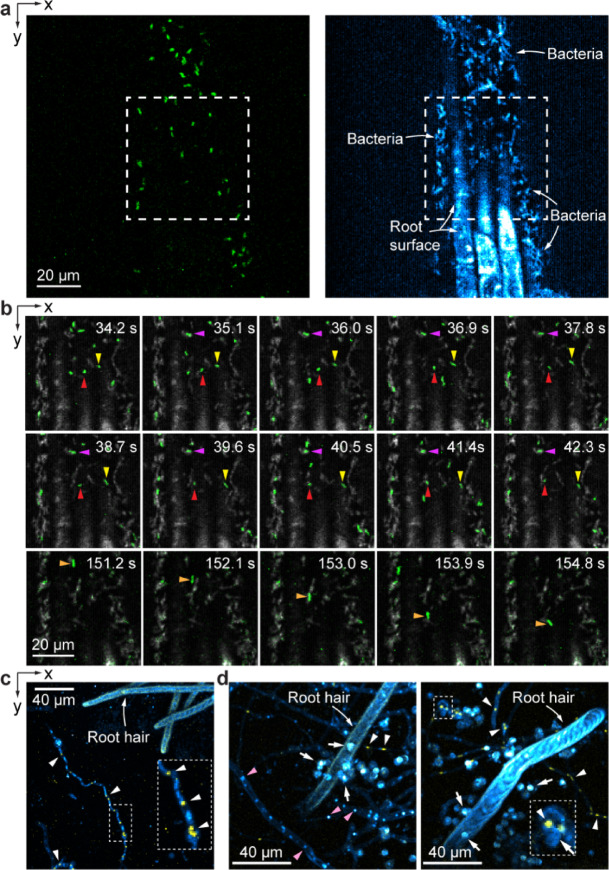

We first imaged two strains of Pseudomonas simiae bacteria^56^ near the surface of an A. thaliana root, including a GFP-labeled wildtype strain and a mutant strain without fluorescent labeling. Both P. simiae strains appeared as rod-like structures in THG images, often forming aggregates around the root tissue (Supplementary Videos 3,4; right panel, Fig. 5a). The GFP-labeled wildtype P.simiae had much stronger 3PF signal than the autofluorescence from root tissue (left panel, Fig. 5a) and showed up in both 3PF and THG channels at comparable signal strengths. During time-lapse imaging over 160 s at 1.1 Hz frame rate (Supplementary Video4, Fig. 5b), we observed stationary (red and purple arrowheads), slowly moving (yellow arrowheads), as well as fast moving (orange arrowheads) bacteria near the A. thaliana root. These results indicate that our microscope is capable of simultaneously imaging and tracking of bacteria in the root rhizosphere, and that with additional fluorescence labeling for 3PF, it can image multiple bacterial strains simultaneously.Fig. 5. Imaging root-microbe interactions at high spatial and temporal resolution. (a) 3PF (green) and THG (cyan) xy images of A. thaliana root inoculated with two strains of P. simiae (wildtype P. simiae labeled with GFP, mutant P. simiae without GFP). (b) Consecutive frames of time-lapse imaging of the dashed box area in (a) with 3PF in green and THG in gray. Red/purple, yellow, and orange arrowheads: stationary, slowly-moving, fast-moving bacteria, respectively. (c,d) Maximal intensity projected 3PF (yellow) and THG (cyan) images of B. distachyon roots inoculated with T. atroviride strain IMI with GFP-labeled nuclei. (c) 50-μm-thick image stack acquired at 0.75 μm/pixel and z step size of 2.5 μm. (d) 70-μm-thick image stacks acquired at 0.5 μm/pixel and z step size of 2.5 μm. White arrowheads: GFP-labeled nuclei; pink arrowheads: unlabeled nuclei; white arrows: spores. Insets: zoomed-in views of white dashed boxes. Post-objective power: (a, b) 3.4 mW; (c) 5.6 mW; (d) 5.3 mW.

We also investigated fungal colonization by imaging B. distachyon roots inoculated with Trichoderma atroviride strain IMI^57,58^, which had its nuclei labeled with GFP (H1-GFP^59^). Filamentous structures (Fig. 5c) with multiple fluorescent nuclei puncta of 1.5–2.5 µm in size^60^ (white arrowheads and inset, Fig. 5c) were identified as fungal hyphae. With their THG signal coming from fungal cell walls, these hyphae were observed near root hairs (Fig. 5c). In the THG image of another sample, we observed unlabeled punctate structures that are embedded within the hyphae and of similar size to the labeled nuclei, suggesting their identity as nuclei (pink arrowheads, Fig. 5d). In addition, spherical features with high THG signal were observed in close proximity to root hairs (white arrows, Fig. 5d). These spheres were 4–6 μm in diameter and were consistent with being fungal spores, with several of them having colocalized, GFP-labeled nuclei (inset, Fig. 5d). Therefore, THG microscopy proved to be a valuable tool for visualizing fungal hyphal structures, spores, and nuclei, alongside root structures. When combined with fluorescent labeling, the simultaneous detection of 3PF and THG signals can provide more specific structural insights into the interactions between roots and fungi.

Discussion

THG microscopy combined with microfabricated ecosystems allowed us to capture subcellular-resolution images of living plant roots without extrinsic fluorescent labels. Because THG signal originates from heterogeneity of optical susceptibilities within the excitation focal volume, it generates label-free visualization of cell walls. The 1300-nm excitation light penetrated deep into the opaque B. distachyon roots, which are ~ 2.5 × thicker^61^ than the more widely studied and optically transparent roots of A. thaliana, and enabled us to visualize the vasculature in mature roots and image through the entirety of a 230-μm-thick root tip. Given that all cells in plant roots possess cell walls generating strong THG signal, THG microscopy can provide organ-scale views of root structures at subcellular resolution. In contrast to electron microscopy, which also offer a view of subcellular features, THG microscopy can be applied to live roots without labeling. Furthermore, due to its distinct wavelength, THG signal can be combined with simultaneously acquired fluorescent signals, either from the autofluorescence of endogenous molecules or from exogenous fluorescent labels, to provide structural context for biological processes of interest.

The structural features we observed in THG images are consistent with the known anatomy of plant roots. These include root hairs and elongated cells in the mature root zone. We observed the layered arrangement of epidermis, cortex, and endodermis. Within endodermis, we found longitudinal striation features with strong THG signal that terminated near the root tip and were consistent with the location and morphology of Casparian strips. In the root meristem, THG contrast allowed us to visualize nucleoli and nuclear envelopes, providing information on stages of cell division. These structural identifications were supported by simultaneously recorded 3P autofluorescence signals from cell walls, nuclei, and nucleoli. In both apical meristem and root cap, between which a clear boundary can be identified in their THG images, the subcellular resolution of our imaging system allowed us to visualize and differentiate granules of varying sizes. Whereas starch granules were observed in root cap cells and border-like cells, we speculated that the small and bright puncta throughout meristem and root cap were likely stress-related granules, whose identities need to be further confirmed with molecular labeling approaches.

It is important to note that, as a label-free technique, THG microscopy alone cannot identify the chemical components or their concentrations in the observed structures. This limitation arises from the nonlinear interactions that generate THG signals, which depend not only on the optical properties (nonlinear hyperpolarizability) of the molecular components but also on their spatial arrangement at the molecular scale, the polarization of the excitation light, and the relative size and location of the excitation focus to the imaged structure^20,33^. Therefore, THG does not offer molecular specificity or provide quantitative readout of their concentrations.

For the same reason, the assignment of both subcellular features (e.g., nuclear envelope, nucleoli, stress granules) and root structures (e.g., Casparian strips) using THG images remain speculative. Molecular and structural insights can be further obtained through the simultaneous acquisition of 3PF signals, using fluorophores that label specific biomolecules or structures in live roots and microbes, with THG providing the spatial context for their movement and location.

While THG’s strength does not lie in identifying unknown structures or their molecular composition, it excels in providing global structural information throughout live plant roots at subcellular resolution. Its ability to provide longitudinal, live imaging of plant roots—without the need for staining, sectioning, or clearing—offers significant advantages for studying root development and responses to environmental influences such as salinity, nutrient availability, temperature, microbial interactions, and chemical exposure in real-time.

In addition to providing global structural information throughout the plant roots at subcellular resolution, THG microscopy also allows one to image bacteria and fungi in the rhizosphere. Because both bacteria and fungi have cell walls, they could also be visualized in a label-free manner by THG microscopy. Transgenic bacteria and fungi with fluorescent protein labels further improve the specificity of structural imaging. With multimodal THG and 3PF imaging, we were able to observe dynamics of bacterial distribution and fungal spores and hyphae near roots in situ. With deep penetration depth and optical sectioning capability, THG and 3PF microscopy therefore enable the investigation of root-microbe interactions throughout rhizosphere and within plant roots at high spatial and temporal resolution.

It should be noted, however, that plant cells and microbes are susceptible to light- and/or heat-induced damages, especially during multiphoton excitation^24,62,63^. This sensitivity is highly dependent on tissue and cell type: Two-photon excitation of mesophyll protoplasts with 760 nm light caused photo-induced damage at 6.4 mW (manifested by a decrease and blue shift in chloroplast fluorescence)^62^, while nonlinear imaging of fungal samples showed no structural change under 50 mW excitation at ~ 800 nm and 1045 nm^24^. Photodamage in plant cells has also been shown to be strongly wavelength dependent^64^: 120 mW excitation at 1230 nm for 10 min caused no visible structural changes in onion epidermis cells, while 10 mW excitation at 800 nm induced rapid optical breakdown.

THG imaging at 1300 nm likely benefits from reduced photodamage at longer excitation wavelengths. In our experiments, strong THG signals from cells in the epidermis, cortex, and endodermis of the mature zone were detectable with only 1–2 mW excitation at 1300 nm (Fig. 2). In these structures, prolonged imaging at even tens of milliwatts caused no structural changes, suggesting that photodamage is unlikely to be a concern for routine imaging of these cells. In contrast, extended imaging of meristem zone at powers exceeding 10 mW at 1300 nm consistently induced damage evidenced by an increasing number of bright puncta in THG channel. These observations suggest that different cell types within the root have distinct tolerance to photodamage. Future studies should include systematic dosage dependency measurements using assays such as the uptake of SYTOX dyes, which selectively stain non-viable cells^65^, or neutral red, which labels viable cells in roots^66,67^, to assess damage thresholds across cell types and root zones in situ under different imaging parameters (e.g., pixel size).

Our combined EcoFAB and multimodal imaging approach provides a powerful tool for studying the cellular structure of the roots. The large imaging depth of THG and 3PF microscopy enables the study of root-penetrating bacteria in opaque root tissues^68^. THG microscopy’s ability to visualize dividing root cells will enable studies on cellular division, elongation, and differentiation during root growth. Growth conditions could be altered within the EcoFAB chamber—providing a testbed for investigating how roots respond to environmental conditions, such as salinity or nutrient levels^69^, at high spatiotemporal resolution. In summary, by integrating microfabricated systems with nonlinear optical microscopy for label-free imaging of plant roots, we expect that our approach will illuminate the “hidden half” of the plant, shedding light on numerous unexplored facets of root biology.

Methods

3PF and THG microscopy setup

A simplified diagram of our multimodal 3PF and THG microscopy is shown in Fig. 1a. The excitation source (not shown) consisted of an optical parametric amplifier (Opera-F, Coherent) pumped by a 40-W femtosecond laser (Monaco 1035–40-40, Coherent). Opera-F was tuned to generate 1,300 nm output at 1 MHz. A Pockels cell (M360-40, Conoptics) controlled the light power. A homebuilt single-prism compressor^70^ was used to reduce the group delay dispersion (GDD) of the excitation beam path. The excitation laser beam was reflected by two conjugated galvanometric scanning mirrors (6215H, Cambridge Technology) and relayed to the back-pupil plane of a high NA water-dipping objective (Olympus XLPLN25XWMP2, NA 1.05, 25 ×) by two pairs of scan lenses (SL50-3P and SL50-3P, SL50-3P and TTL200MP; Thorlabs). The objective was mounted on a piezoelectric stage (P-725.4CD PIFOC, Physik Instrumente) for axial translation of the excitation focus. The fluorescence and THG signals were collected by the same objective, reflected by a dichroic mirror (FF665-Di02-25 × 36, Semrock) and detected by two photomultiplier tubes (H10770PA-40, Hamamatsu). An additional dichroic mirror (Dm, FF458-Di02-25 × 36, Semrock) and two filters (FF03-525/50–25 for fluorescence, FF01-433/24–25 for THG; Semrock) were used to split and filter the 3PF and THG signals. Frame rates were 0.2—0.6 Hz except for Fig. 4, which was acquired at 0.03—0.08 Hz, and Fig. 5a,b, which was acquired at 1.1 Hz. The post-objective power used in each imaging condition is provided in the figure captions.

Bead sample

Carboxylate-modified fluorescent microspheres (FluoSpheres™, Invitrogen) were immobilized on poly(l-lysine)-coated microscope slides (12-550-12, Fisher Scientific).

Imaging EcoFAB fabrication

Imaging EcoFAB devices were fabricated as described previously^9^. Negative molds for imaging EcoFAB were 3D printed using a Form2 printer (Formlabs) with clear resin version 4 (Formlabs). EcoFAB design can be obtained from https://eco-fab.org/device-design/. Each EcoFAB device was housed in a magenta box with a vented lid (MK5, with vented lid, Caisson Labs) for autoclave sterilization.

Brachypodium distachyon growth conditions for EcoFAB imagings

Brachypodium distachyon line Bd21-3 seeds, sourced from Joint Genome Institute, Berkeley CA, was used for this study^71^. Seeds were dehusked and surface sterilized in 70% ethanol for 30 s, followed by 50% v:v bleach (with 6.25% sodium hypochlorite chlorine) for 5 min, and rinsed 5 times with sterile milliQ water^9^. Seeds were then arranged on a sterile petri dish containing 1/2 Murashige and Skoog basal salt media (Caisson Labs) with 1% phytogel (Sigma-Aldrich). Surface sterilized seeds were stratified in the dark at 4 °C for 3 days. Following stratification, seeds were allowed to germinate in a growth chamber at 25 °C at 200 μmol m^−2^·s^−1^, 16-h light/8-h dark. Three Days post germination, seedlings were transplanted into sterilized imaging EcoFABs containing 0.5 × MS media with 0.8% phytogel^9^. Following transplantation, plants were grown in the growth chamber for three more days before imaging. All root samples were imaged within the EcoFABs except for Fig. 4, for which the plant was taken out of the EcoFAB and imaged with its root between two glass coverslips to reduce root tip motion.

Dissected Brachypodium distachyon root sample

For dissected B. distachyon root samples imaged in Supplementary Fig. S1, staining was done using Bd21-3 B. distachyon seedlings 3 days post germination. Seedlings were dissected and fixed in 4% PFA in 1 × PBS (Biotium) for at least 60 min with vacuum treatment. After fixation, seedlings were washed twice for 1 min in 1 × PBS solution. For sectioned samples, primary root tissues were laterally hand sectioned using razor blades. Both hand sectioned and intact roots were then stained for lignin and suberin using 0.5% Auramine O solution (Sigma, CAS-No: 2465-27-2) adapted from Ursache et al., 2018^66^ before imaging.

Trichoderma culture conditions and Inoculation

Three days post germination, sterile B. distachyon seedlings were inoculated with Trichoderma atroviride strain IMI^58^ containing nuclear GFP label (H1-GFP) (generously provided by Drs. Catherine Adams and Louis Glass, University of California Berkeley, CA, USA). Fungal spores were grown on PDA plates at 28 °C for 7 days 12/12 night/day cycle to induce sporulation. Spores were then harvested using sterile distilled water and separated from mycelia using a 0.4 micron filter (Pall). Spore concentration was determined using Neubauer chamber and then diluted to a spore suspension of 1 × 10^6^ spores/ml. Seedlings were soaked in the spore suspension for 2 h prior to transplanting onto Imaging EcoFABs^72^. Following transplantation, plants continued growing in the growth chamber for two more days before imaging.

Arabidopsis thaliana and P. simiae sample preparation

Seeds of Arabidopsis thaliana Col-0 (stock # CS66818) were obtained from the Arabidopsis Biological Resource Center (Ohio State University, Columbus, OH). Seeds were surface-sterilized by immersion in 70% (v/v) ethanol for 2 min, followed by immersion in 10% (v/v) household bleach containing 0.1% Triton X-100 (Roche Diagnostics GmbH) were stratified in distilled water at 4°C for 2 days. In this study, we utilized two strains of the root-colonizing bacterium Pseudomonas simiae, the non-fluorescently labeled strain P. simiae WCS417r and the eGFP-expressing strain P. simiae SB642, which has been previously characterized^56^. Both strains were pre-cultured under kanamycin selection (150 µg ml^−1^) in Luria–Bertani medium (Sigma-Aldrich) diluted in 0.5 × MS medium containing 2.15 g/L, 0.25 g/L of MES monohydrate (ChemCruz), and buffered to pH 5.7. The pre-cultured bacterial cells were washed twice with 0.5 × MS medium and used to inoculate the stratified seeds of A. thaliana at an initial OD600 of 0.01 for each strain. The inoculated seeds were sown into agar-filled imaging EcoFAB chamber. The growth medium contained 0.5 × Murashige and Skoog basal salt mixture (Sigma-Aldrich), 2.5 mM of MES monohydrate (ChemCruz), and was buffered to pH 5.7 and solidified with 1 wt% SFR agarose (Electron Microscopy Sciences). Arabidopsis seedlings were grown under 16 h light (140 µmol m^−2^ s^−1^) and 8 h dark regime at 23 °C for 10–14 days.

Digital image processing

Imaging data were processed with Fiji^73^. We used the ‘Green’ lookup table for 3PF images and the ‘Cyan hot’ lookup table for THG images. In Fig. 5b, the 3PF and THG signals were presented with ‘Green’ and ‘Gray’ lookup tables, respectively. For Fig. 5c,d, the 3PF and THG signals were presented with ‘Yellow’ and ‘Cyan hot’ lookup tables, respectively. To improve visibility, saturation and gamma of some images were adjusted. For Fig. 5d, we applied the ‘RemoveOutliers’ function in Fiji to eliminate hot pixels. We generated three-dimensional projection images (Fig. 1f and Fig. 4a) and a video (the second half of Supplementary Video 2) using Fiji’s ‘3D Project’ function with ‘brightest-point projection’ and depth cueing set at 100% to 50%.
