Sensor Input Type and Location Influence Outdoor Running Terrain Classification via Deep Learning Approaches

TL;DR

This study explores how sensor type, location, and deep learning models can accurately classify outdoor running surfaces like grass and asphalt.

Contribution

The study identifies optimal sensor configurations and preprocessing steps for classifying running surfaces using deep learning.

Findings

Acceleration signals improved classification accuracy by 3.8% compared to angular velocity.

Foot-mounted sensors provided the best performance-to-sensor ratio with 95.5% accuracy.

Splitting data into gait cycles improved accuracy by approximately 28%.

Abstract

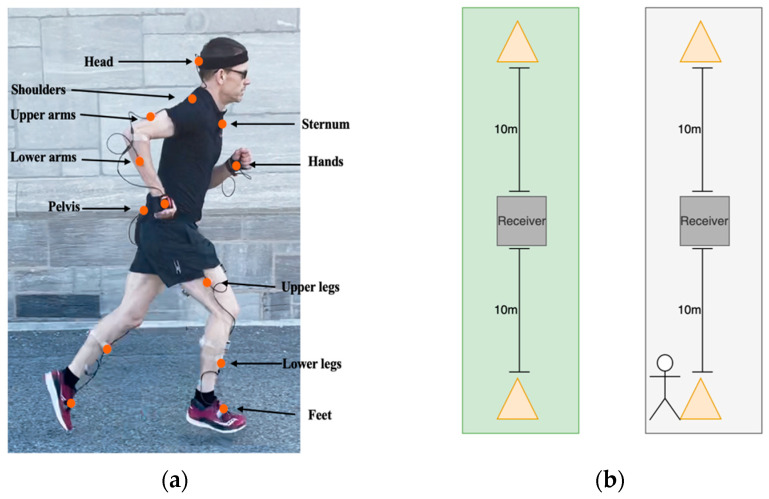

Background/Objective: Understanding the training effect in high-level running is important for performance optimization and injury prevention. This includes awareness of how different running surface types (e.g., hard versus soft) may modify biomechanics. Recent studies have demonstrated that deep learning algorithms, such as convolutional neural networks (CNNs), can accurately classify human activity collected via body-worn sensors. To date, no study has assessed optimal signal type, sensor location, and model architecture to classify running surfaces. This study aimed to determine which combination of signal type, sensor location, and CNN architecture would yield the highest accuracy in classifying grass and asphalt surfaces using inertial measurement unit (IMU) sensors. Methods: Running data were collected from forty participants (27.4 years + 7.8 SD, 10.5 ± 7.3 SD years of running) with a full-body IMU system (head, sternum, pelvis, upper legs, lower legs, feet, and arms) on grass and asphalt outdoor surfaces. Performance (accuracy) for signal type (acceleration and angular velocity), sensor configuration (full body, lower body, pelvis, and feet), and CNN model architecture was tested for this specific task. Moreover, the effect of preprocessing steps (separating into running cycles and amplitude normalization) and two different data splitting protocols (leave-n-subject-out and subject-dependent split) was evaluated. Results: In general, acceleration signals improved classification results compared to angular velocity (3.8%). Moreover, the foot sensor configuration had the best performance-to-number of sensor ratio (95.5% accuracy). Finally, separating trials into gait cycles and not normalizing the raw signals improved accuracy by approximately 28%. Conclusion: This analysis sheds light on the important parameters to consider when developing machine learning classifiers in the human activity recognition field. A surface classification tool could provide useful quantitative feedback to athletes and coaches in terms of running technique effort on varied terrain surfaces, improve training personalization, prevent injuries, and improve performance.
