Tree-Guided Transformer for Sensor-Based Ecological Image Feature Extraction and Multitarget Recognition in Agricultural Systems

TL;DR

This paper introduces a new AI framework that improves image recognition in farmland ecosystems by using ecological knowledge and sensor data.

Contribution

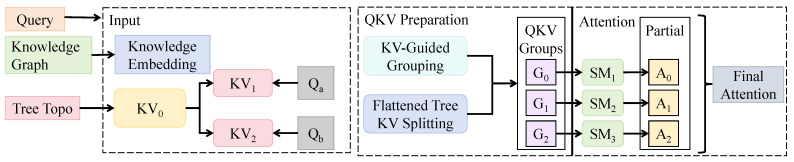

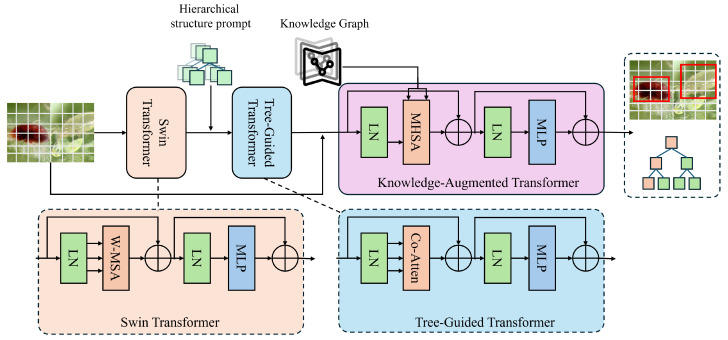

The novel tree-guided Transformer with a knowledge-augmented co-attention mechanism enhances ecological image feature extraction and multitarget recognition.

Findings

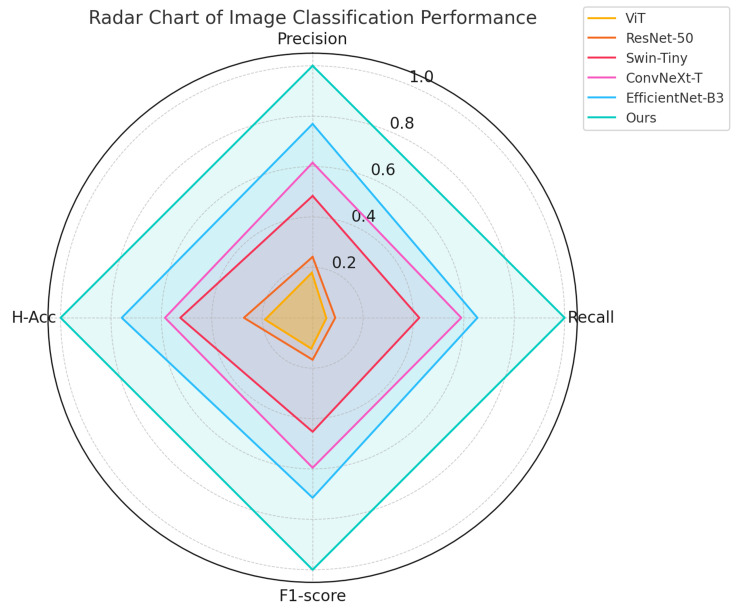

The framework achieves 90.4% precision, 86.7% recall, and 88.5% F1-score in image classification.

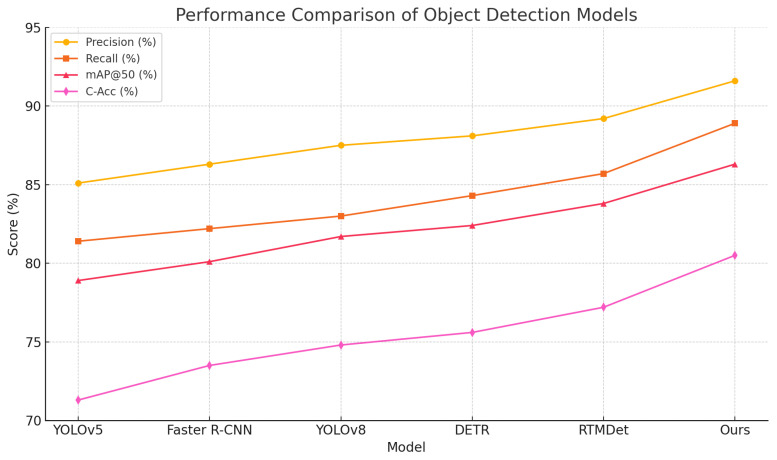

It attains 91.6% precision and 86.3% mAP@50 in detection tasks with 80.5% co-occurrence accuracy.

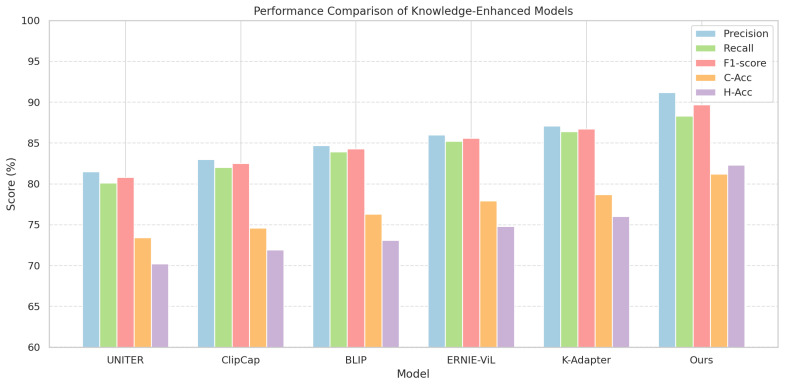

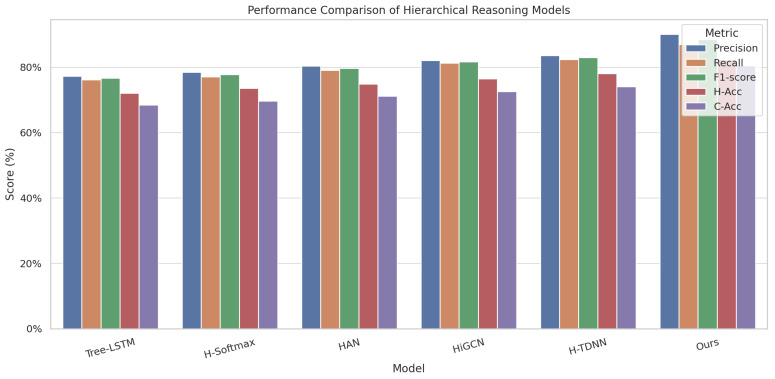

Hierarchical reasoning and knowledge-enhanced tasks reach F1-scores of 88.5% and 89.7%.

Abstract

Farmland ecosystems present complex pest–predator co-occurrence patterns, posing significant challenges for image-based multitarget recognition and ecological modeling in sensor-driven computer vision tasks. To address these issues, this study introduces a tree-guided Transformer framework enhanced with a knowledge-augmented co-attention mechanism, enabling effective feature extraction from sensor-acquired images. A hierarchical ecological taxonomy (Phylum–Family Species) guides prompt-driven semantic reasoning, while an ecological knowledge graph enriches visual representations by embedding co-occurrence priors. A multimodal dataset containing 60 pest and predator categories with annotated images and semantic descriptions was constructed for evaluation. Experimental results demonstrate that the proposed method achieves 90.4% precision, 86.7% recall, and 88.5% F1-score in image classification, along with 82.3% hierarchical accuracy. In detection tasks, it attains 91.6% precision and 86.3% mAP@50, with 80.5% co-occurrence accuracy. For hierarchical reasoning and knowledge-enhanced tasks, F1-scores reach 88.5% and 89.7%, respectively. These results highlight the framework’s strong capability in extracting structured, semantically aligned image features under real-world sensor conditions, offering an interpretable and generalizable approach for intelligent agricultural monitoring.
