Theoretical Study on the Grafting Reaction of Benzophenone Compounds to Polyethylene in the UV Radiation Cross-Linking Process
Yang Du, Chi Deng, Hui Zhang, Xia Du, Yan Shang, Xuan Wang
TL;DR
This paper studies how benzophenone compounds react with polyethylene under UV radiation to improve insulation materials for high-voltage cables.
Contribution
The study introduces a theoretical evaluation of benzophenone grafting reactions with polyethylene using quantum chemistry calculations.
Findings
Benzophenones show the lowest Gibbs free energy barrier for grafting onto polyethylene.
Electron-donating groups increase the reaction energy barrier.
2-Nitrobenzophenone has the highest electron affinity and superior electrical resistivity.
Abstract
In this study, benzophenone compounds substituted with electron-withdrawing groups (-NO2, -F, and -Cl) and electron-donating groups (-OH, -CH3, -NH2, and -OCH3) were employed as voltage stabilizers for crosslinked polyethylene (XLPE) insulation materials. At B3LYP/6-311+G(d,p) level, reaction Gibbs free potential energy data for eleven reaction channels and molecular characteristics, including electron affinity EA(s), ionization potential IP(s), and HOMO-LUMO gap (Eg) of benzophenone derivatives, were obtained. The effects of electron-donating and electron-withdrawing functional groups were systematically evaluated. The calculated results indicate that benzophenones exhibit the lowest Gibbs free energy barrier for grafting onto polyethylene among the investigated molecules. With the introduction of electron-donating groups, the reaction Gibbs free energy barrier increases. It is worth…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

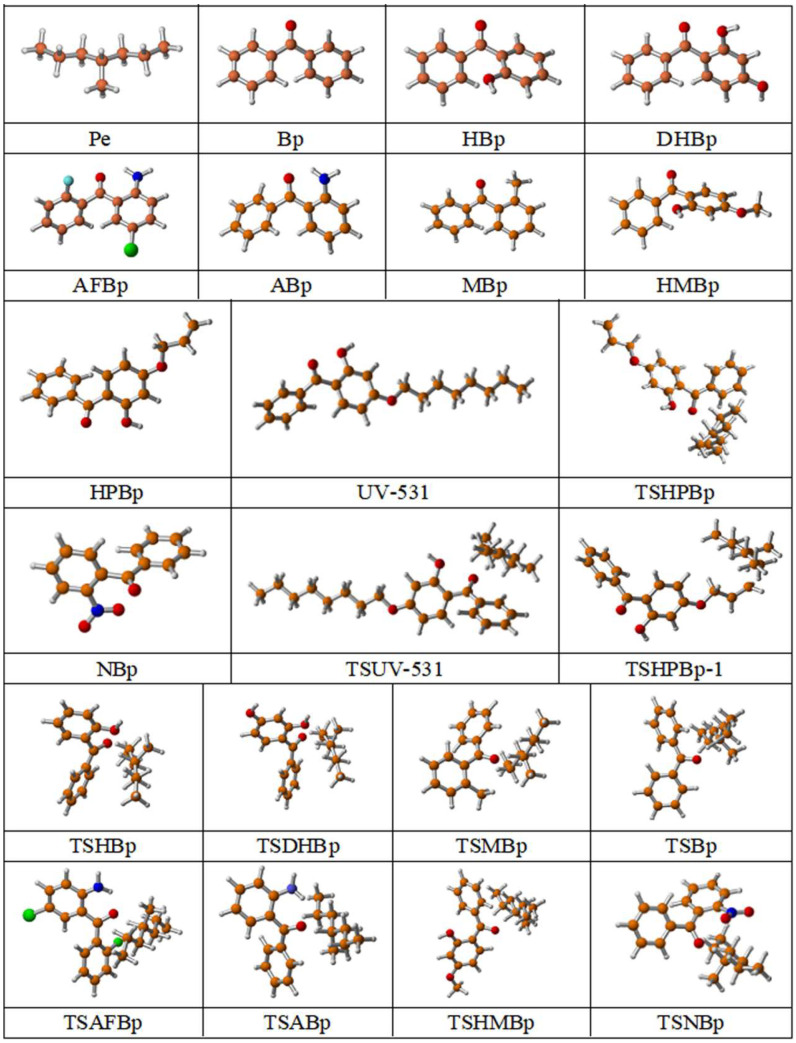

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34
Figure 35
Figure 36Peer Reviews
