Comparison of Approaches to Determining the Coefficient of Friction in Stretch-Forming Conditions
Tomasz Trzepieciński, Krzysztof Szwajka, Valmir Dias Luiz, Joanna Zielińska-Szwajka, Marek Szewczyk
TL;DR
This paper compares different methods for calculating friction in metal forming, using experiments on steel sheets with modified surfaces.
Contribution
A novel comparison of analytical models for determining the coefficient of friction in stretch-forming conditions using a self-developed testing apparatus.
Findings
The coefficient of friction varied by approximately 40% across different analytical models.
Surface modification via ion implantation increased average roughness by 19% in friction tests.
Friction significantly reduced kurtosis values, indicating changes in surface topography.
Abstract
Control of the friction process in stretch-forming conditions, when creating sheet metal, is essential for obtaining components of the quality required. This paper presents an approach to modelling the friction phenomenon at the rounded edges of stamping dies. The aim of the study is to compare the coefficient of friction (CoF) determined from numerous analytical models available in the literature. Experimental studies were conducted using self-developed bending under tension friction testing apparatus. The test material was low-carbon DC01 steel sheeting. Tests were conducted under lubricated conditions, using industrial oil intended for deep drawing operations. The surfaces of countersamples made of 145Cr6 substrate were modified using the ion implantation of Pb (IOPb) and electron beam melting processes. Variation in the CoF in BUT tests was related to continuous deformation-induced…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

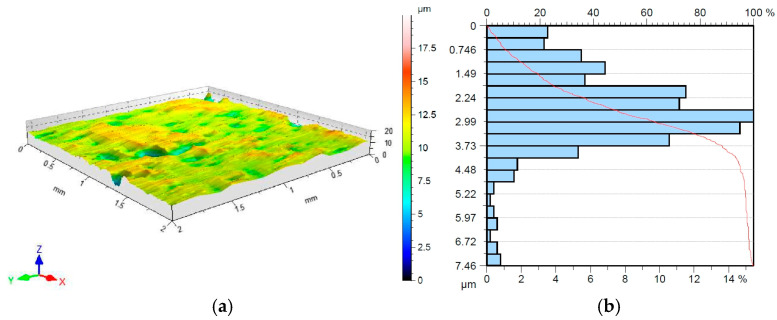

Figure 1

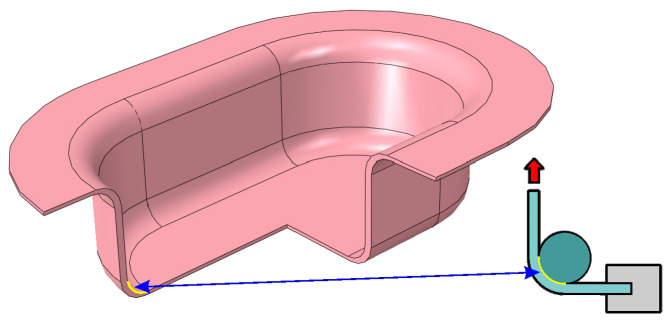

Figure 2

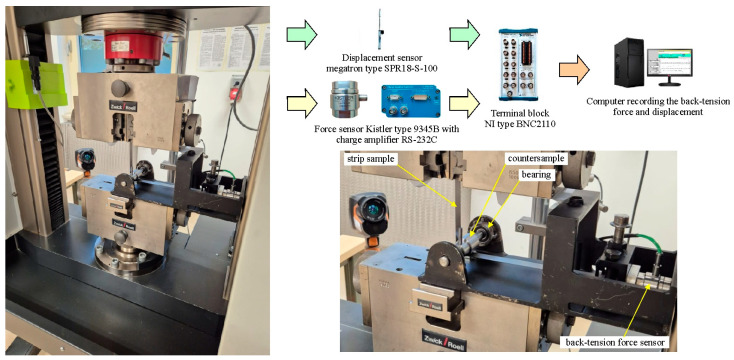

Figure 3

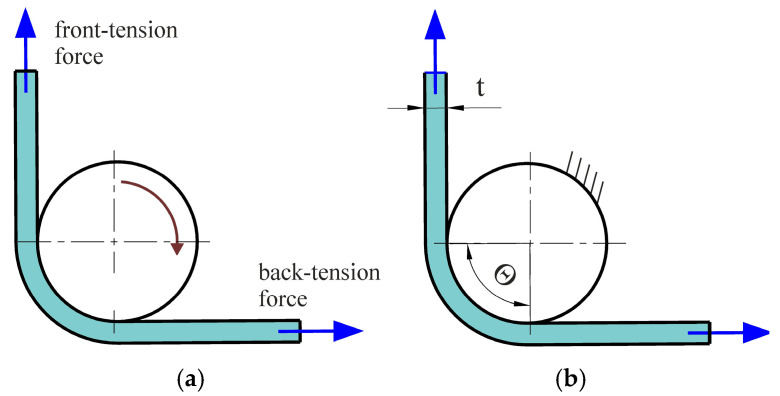

Figure 4

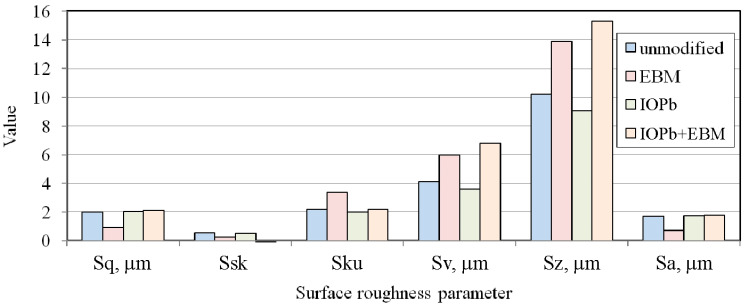

Figure 5

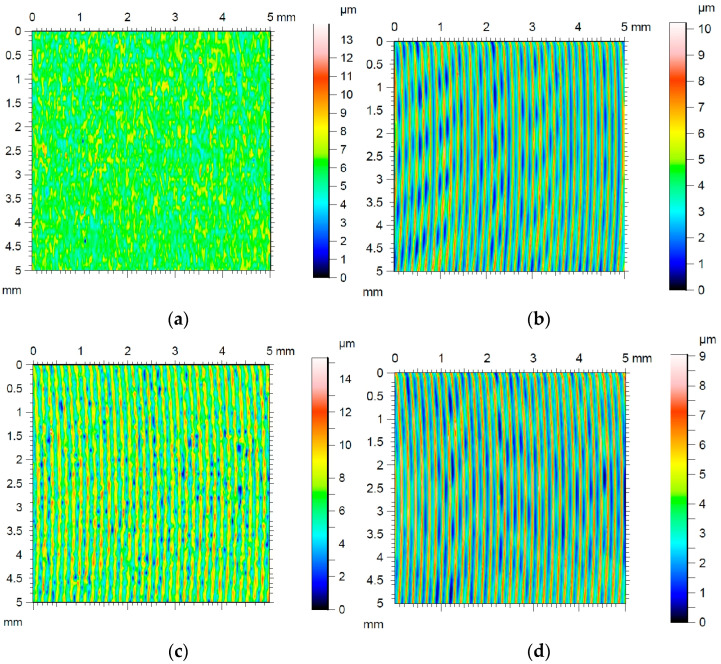

Figure 6

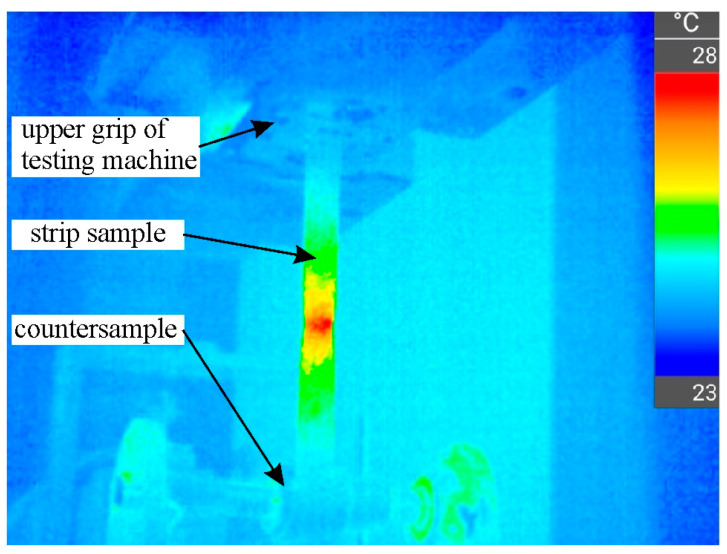

Figure 7

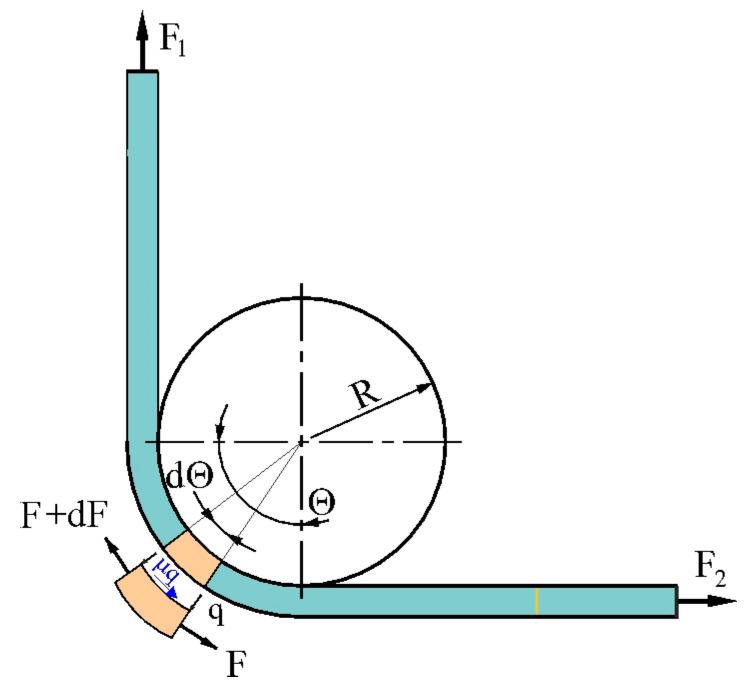

Figure 8

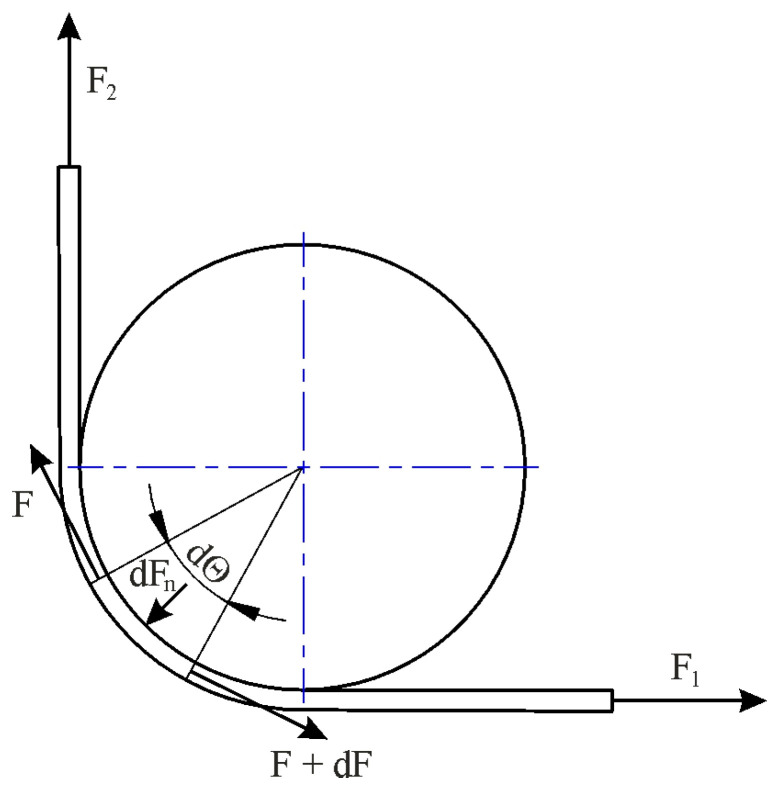

Figure 9

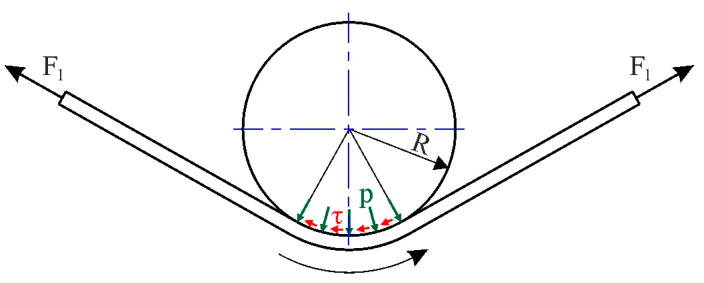

Figure 10

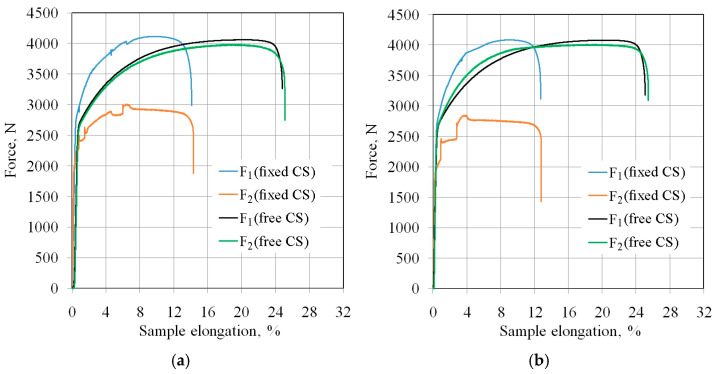

Figure 11

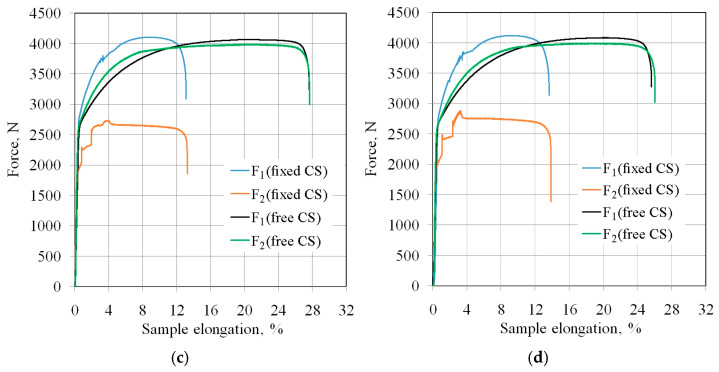

Figure 12

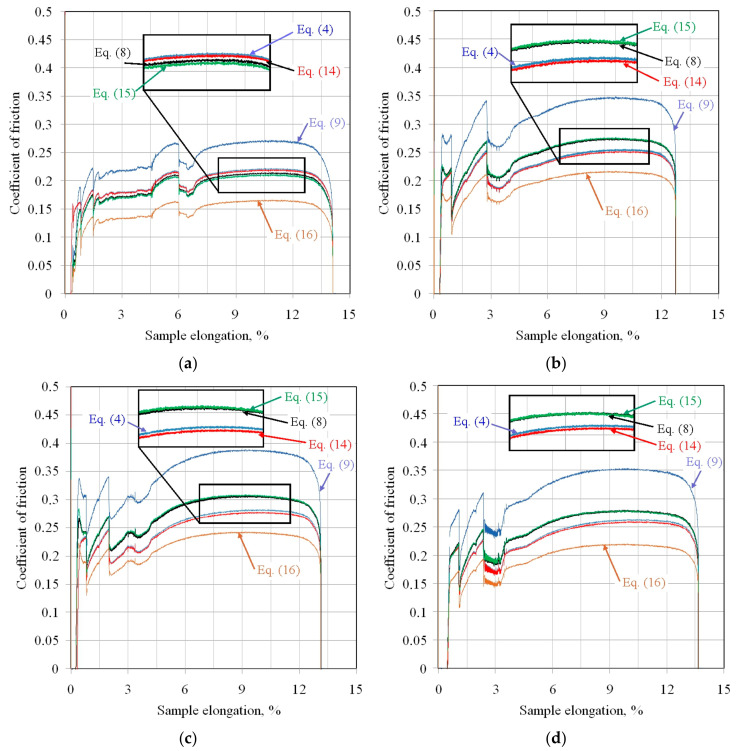

Figure 13

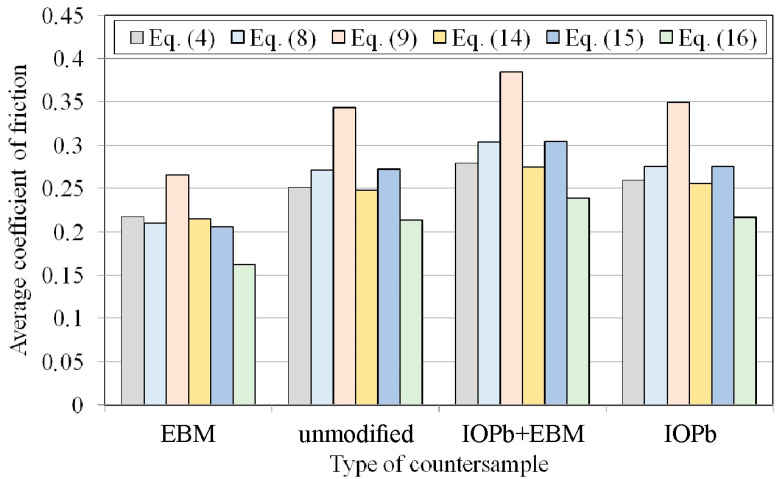

Figure 14

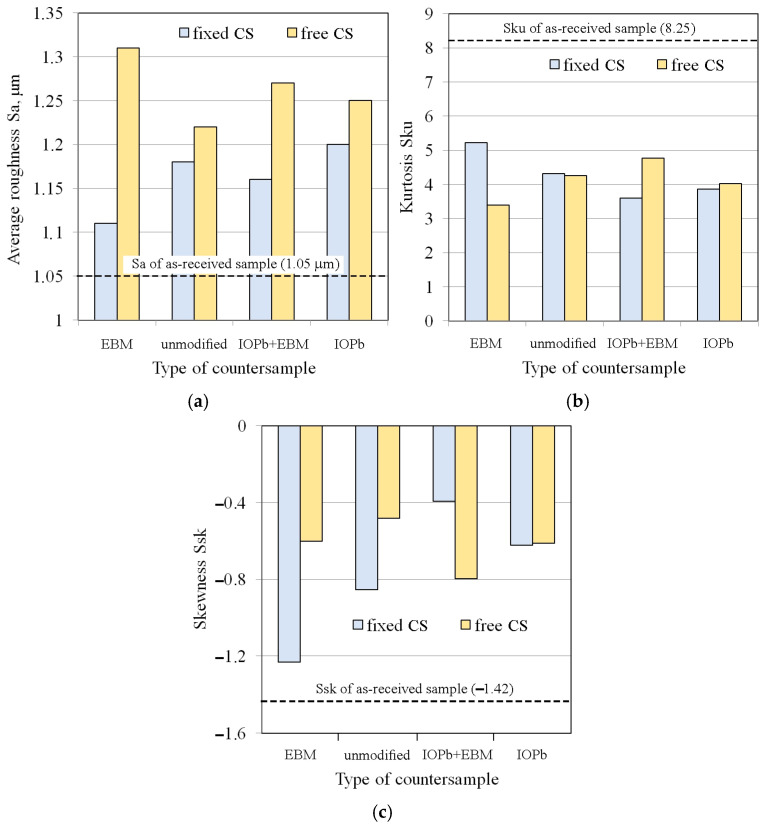

Figure 15

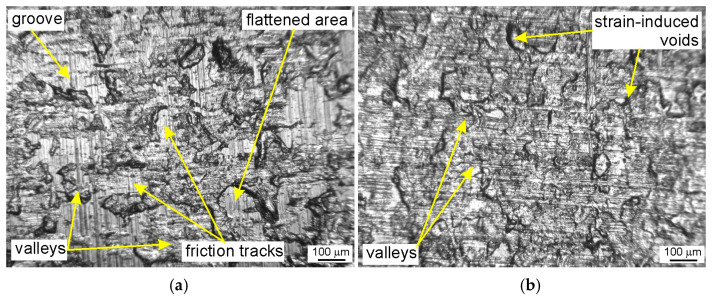

Figure 16
Figure 17

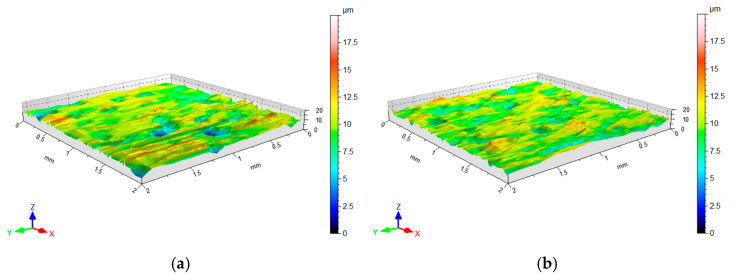

Figure 18

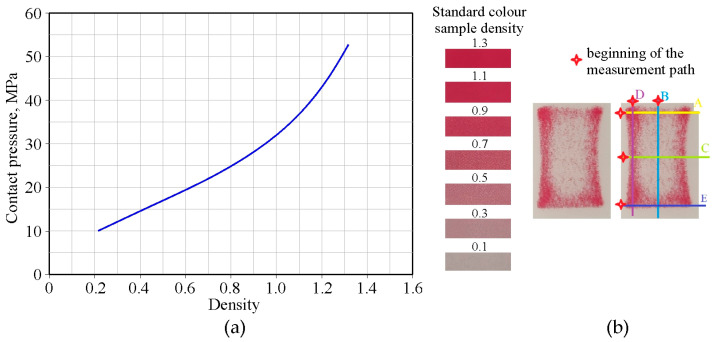

Figure 19

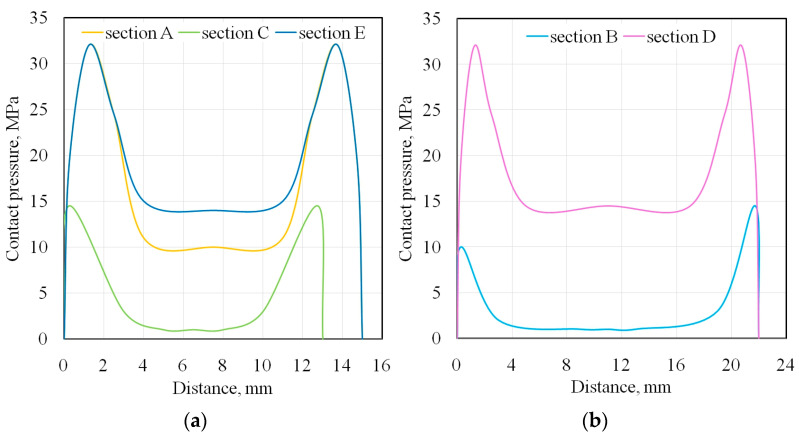

Figure 20Peer Reviews
