Forces on the Incisor Teeth During Odontoplasty of the Cheek Teeth in Sedated Horses
Martin Ostmeier, Frank Schellenberger, Antonia Troillet, Doreen Scharner

TL;DR
This study measures the forces on horse incisors when using mouth specula during dental procedures, finding significant variations based on separation distance and treatment.
Contribution
The study introduces a novel method to quantify forces on horse incisors during odontoplasty using a modified mouth speculum with a force transducer.
Findings
Forces on incisors increased significantly with greater separation distances (82 mm, 92 mm, 102 mm).
Active treatment with a mechanical bur resulted in lower median forces compared to no active bur.
Maximum force peaks reached up to 3783.60 N during the procedures.
Abstract
Mouth specula with incisor bite plates shift the pressure from all teeth exclusively to the incisors in the opening phase which leads to increased forces on dental, osseous, and soft tissue structures of the horse's head. The potentially pathological character of these forces is described clinically by single reports of maxilla and mandible fractures occurring during the use of opened mouth specula. This study describes these forces on incisor teeth in horses during odontoplasty of cheek teeth under sedation. Measurements were documented using a modified “Günther” mouth speculum fitted with a force transducer along the force axis. Forces were recorded for different incisor separation distances and for dental rasping at a defined incisor separation distance. The results showed a significant difference in the median loads on the incisors at 82 mm (198.88 N), 92 mm (214.18 N), and 102 mm…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

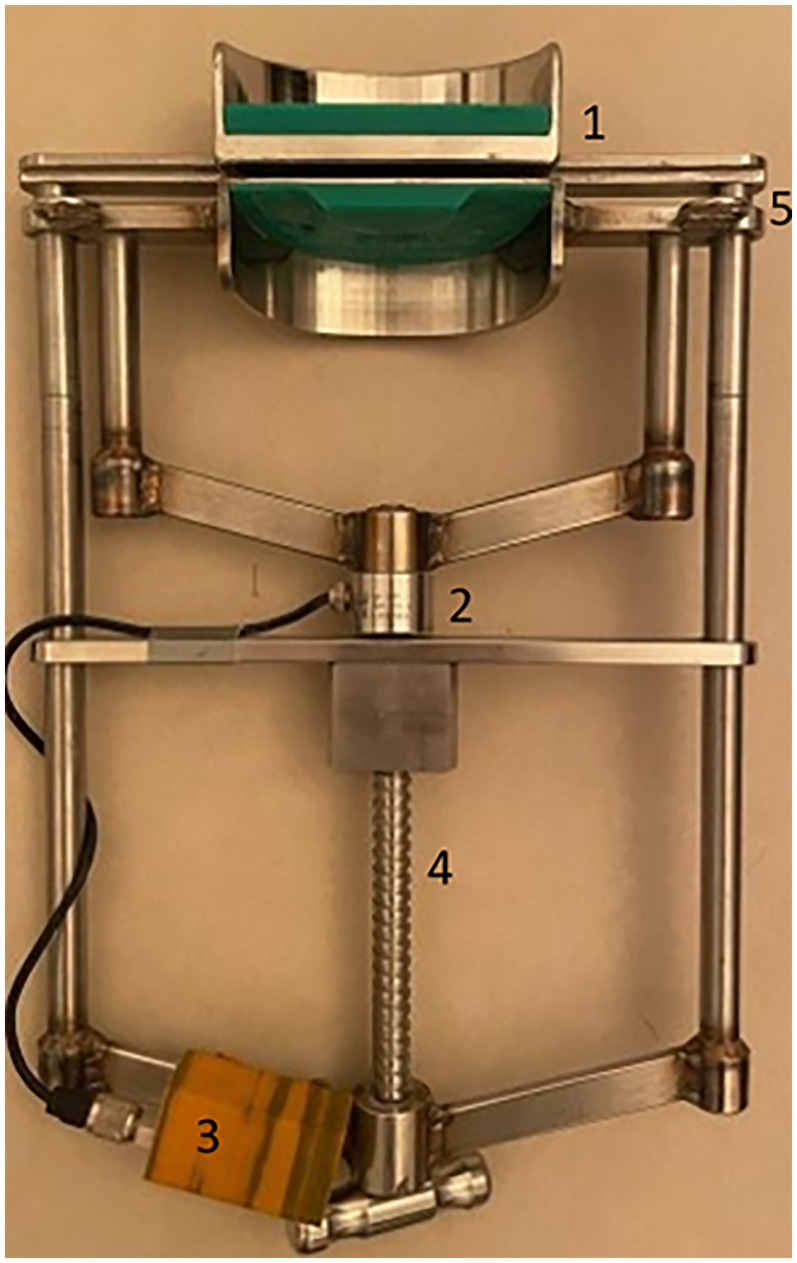

Figure 1

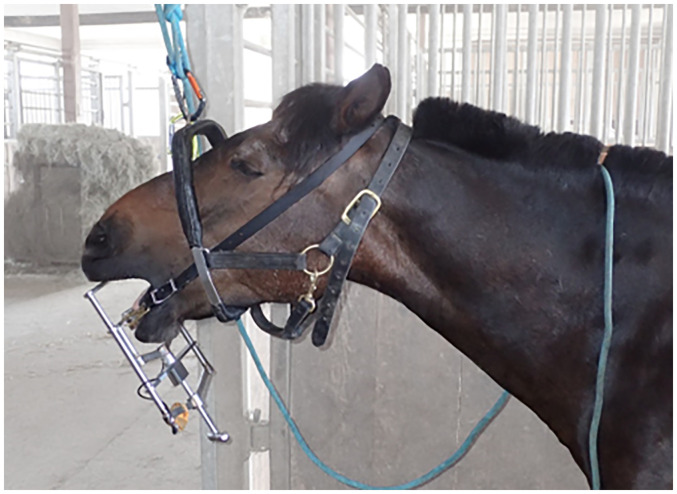

Figure 2

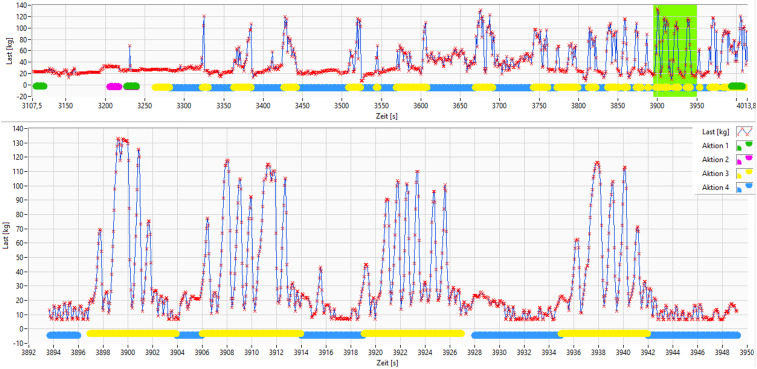

Figure 3

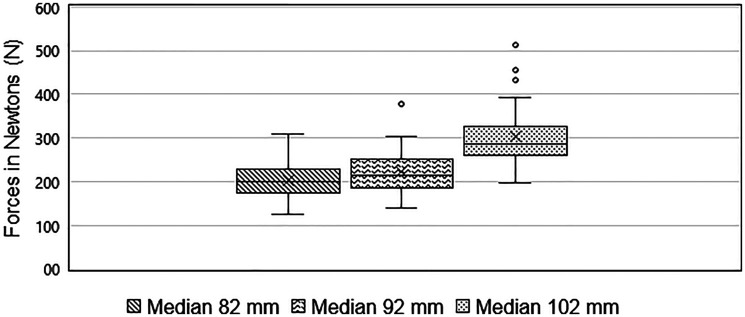

Figure 4

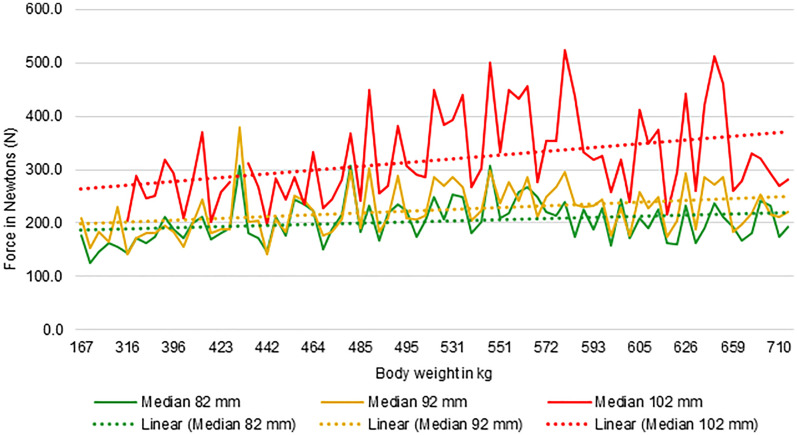

Figure 5

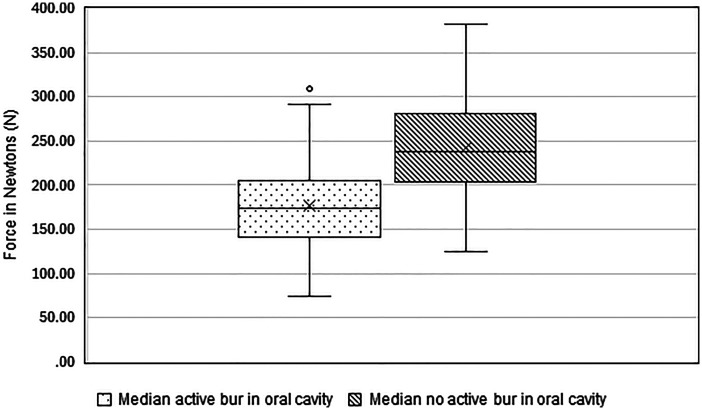

Figure 6

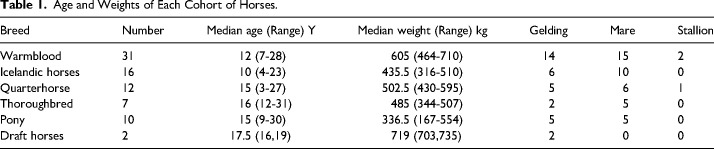

Figure 7Peer Reviews
