Carbon fiber rods in the treatment of cervical spine tumors: a case series and description of a novel surgical technique

TL;DR

This study introduces a new surgical technique using carbon fiber rods for cervical spine tumor surgery, improving imaging and radiotherapy planning.

Contribution

A novel surgical technique is proposed to use carbon fiber rods in cervical spinal tumor surgery using a customized titanium connector.

Findings

Carbon fiber rods were successfully used in cervical spinal tumor surgery with no implant-related complications at two years.

Imaging surveillance detected local tumor recurrence in one patient.

Postoperative radiotherapy and hadron therapy were successfully administered to five patients.

Abstract

Conventional implant materials used in spinal tumor surgery, such as stainless steel and titanium, may interfere with the planning and delivery of radiotherapy, and pose difficulties for tumor imaging surveillance, due to the influence of implant-induced artefacts. These limitations have led to the development of novel materials such as carbon fiber composites. However, carbon fiber rods are not used in cervical spinal tumor surgery due to the absence of suitable rod calibers for cervical instrumentation. This study aims to propose a technique to utilize carbon rods in cervical spinal tumor surgery.

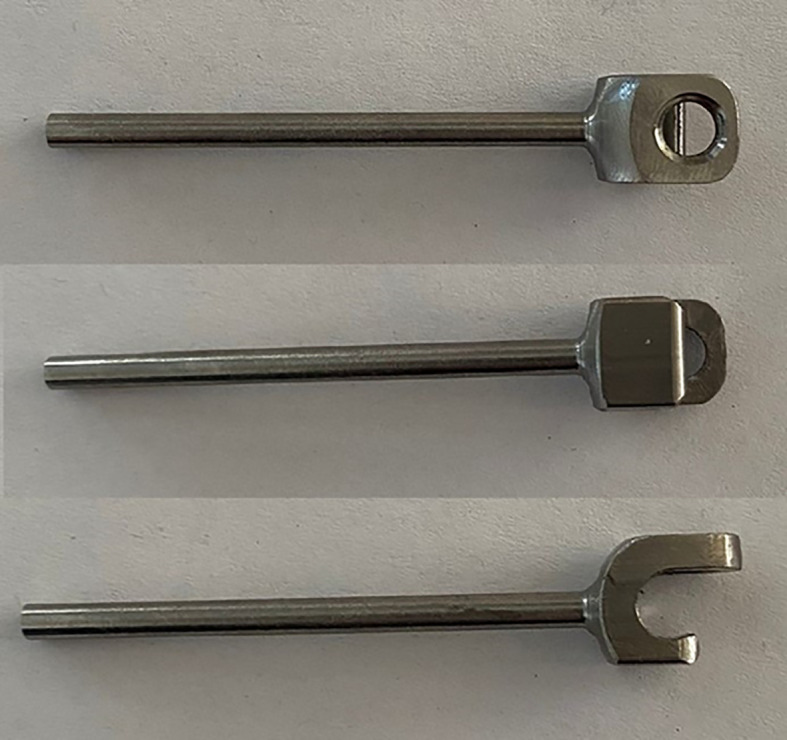

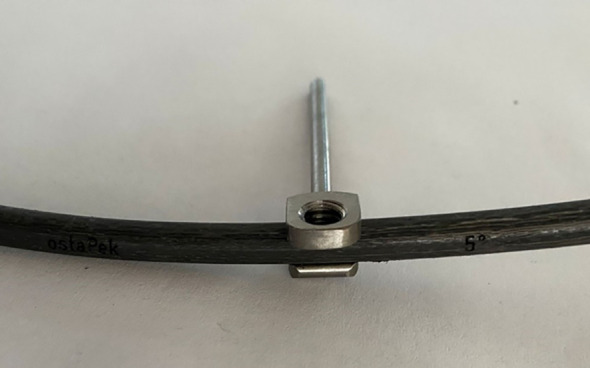

This is a retrospective case series of patients who underwent cervical spinal tumor surgery between November 2020 and September 2022. A customized titanium connector was used to allow connection of a carbon rod to the cervical/occipital instrumentation.

There were 11 patients included. Mean age was 59.5(range 21-80) years. In 2/11(18%) cases, en-bloc resection was performed; in 5/11(45%), intralesional debulking; in 4/11(36%), separation surgery. Mean construct length was 9(range 7-11) levels; mean number of non-instrumented levels was 3(range 2-5). 9/11(82%) patients did not require anterior reconstruction. Postoperative radiotherapy/hadron therapy was successfully administered to five patients - 3/11(27%) patients underwent postoperative radiotherapy; 1/11(9%), pre-/postoperative radiotherapy; 1/11(9%), postoperative hadron therapy. At two years of follow-up, there were no cases of loss of spinal alignment, implant pull-out, or breakage. Imaging surveillance was able to detect local tumor recurrence in one patient.

The results of our study demonstrate that this is a valid method of utilizing carbon rods in cervical spinal tumor surgery, with their accompanying biomechanical advantages.

Figures
