In-operando characterizations of oligothiophene OFETs: controlling the structure-property relationships at the nanoscale
Souren Grigorian, Anton Davydok, Linda Grodd, Yuriy Luponosov, Sergey Ponomarenko, Ilaria Fratoddi
TL;DR
This paper uses X-ray scattering to study how voltage affects the structure of a thin film semiconductor in working organic transistors.
Contribution
A custom in-operando setup enables direct correlation of microstructural changes with electrical performance under applied voltages.
Findings
DH5T thin films show significant anisotropic structural changes under applied voltages.
Voltage induces a 1% tensile strain in the in-plane direction, suggesting structural reorganization.
Out-of-plane microstructure remains stable, indicating less sensitivity to applied voltages.
Abstract
Grazing Incident Wide Angle X-ray Scattering (GIWAXS) studies on organic field-effect transistors (OFETs) fabricated with an aliphatic functionalized α,α'-quinquethiophene (i.e. 5,5′′′′-dihexyl-2,2′:5′,2′′:5′′,2′′′:5′′′,2′′′′-quinquethiophene, DH5T) thin film, were carried out. The structure-property relationships of the semiconductor material were investigated. A detailed, spatially resolved microstructural characterization of the active layer was carried out with the aim of understanding the role of the film’s microstructure on electrical performance. For this purpose, a custom-made setup designed for in-operando tests of OFETs was used, allowing a correlation under measured conditions of the complex microstructure with the thin film electrical behavior, under operating conditions. The GIWAXS measurements revealed a significant anisotropy of the DH5T thin films, under source-drain…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —Universität Siegen (3162)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsOrganic Electronics and Photovoltaics · Advanced Memory and Neural Computing · Conducting polymers and applications
Introduction
The intrinsic characteristics of organic single-crystal semiconductors make them exceptionally suited for a wide range of optoelectronic applications, including photovoltaics, and transistor applications, where they play a pivotal role in performance of electronic devices [1]. Their nearly flawless spatial arrangement and high crystallinity contribute to minimal defects, which in turn enhances electron mobility. These features position organic semiconductors as ideal candidates for high-performance transistors [2]. Recently these materials have emerged as promising candidates for wearable electronics, where flexibility and tunable electronic properties play a crucial role [3]. Small-molecule organic semiconductors exhibit pronounced π–π stacking features, which can be tuned by varying film preparation and applied stress [4]. Efficient electronic conjugation ensures high mobility of charge carriers between source and drain electrodes, thus facilitating rapid switching speeds in transistors [5].
Conjugated oligothiophenes and their derivatives have emerged as promising candidates for applications in organic electronics [6, 7]. It is noteworthy that their chemical stability ensures the long-term reliability in diverse operating conditions, making them suitable for the development of organic transistors [8]. The synthetic versatility of conjugated oligothiophenes allows for the precise control over their molecular structure, side-functionalities, molecular weight and, in turn, electronic properties. Moreover, the presence of aliphatic substituents in the main chin or as ending groups, enhances their solubility in common organic solvents [9]. This tunability is essential for tailoring transistors to meet specific application requirements [7], providing the versatility needed to attain desired electrical characteristics and endowing them for an extensive array of electronic devices, ranging from low-power sensors to high-speed processors, and various flexible electronic devices [10, 11]. Furthermore, a deep understanding of the lifespan and stability of organic semiconductors is necessary for ensuring sustained functionality and tuneable performances in electronic devices [12]. Among others, oligothiophenes with thiophene units in the 2–6 range have been extensively investigated for organic field-effect transistor (OFET) applications [13]. Specifically, 5,5′′′′-dihexyl-2,2′:5′,2′′:5′′,2′′′:5′′′,2′′′′-quinquethiophene (DH5T), a symmetrical alkyl-substituted quinquethiophene, stands out as a model compound of organic semiconductors [14].
Detailed characterization of OFET behaviour, including parameters such as conductivity, field-effect mobility, voltage sensitivity, and the applicable operating range, is essential for defining their practical use in devices [15]. Additionally, understanding the microstructure-property relationships in OFETs is also critical for optimizing their performances in optoelectronic applications [16]. Furthermore, the limited availability of high-quality, single organic crystals of appropriate sizes to match the channel dimensions of OFETs presents a challenge, requiring specific conditions for testing [17]. To address this, several methods are employed to study these materials, including in-operando impedance measurements [18] and interface-state distributions analysis in metal-insulating-semiconductor capacitors [19] as well as in-operando spectrometry [20]. Poly(3-hexylthiophene-2,5-diyl), (P3HT) a popular low band gap polymer, has been subject of extensive study using these techniques.
Among different, synchrotron characterization methods at the shallow incident angle such as grazing incidence wide-angle X-ray scattering (GIWAXS) or grazing incidence X-ray diffraction/scattering (GIXD/GIXS) have been established as effective tools for exploring these fundamental aspects in organic thin films and organic devices [21, 22]. Despite significant progress has been made in correlating the structure and device functionality of conjugated organic systems, a comprehensive understanding remains elusive. For instance, GIXD analysis of P3HT films revealed moderate structural changes in the out-of-plane (h00) series under linear current conditions up to 20 V, while a dramatic reduction in the structural order was observed in the non-linear current regime at higher voltages [23, 24]. Phase transitions in thin oligothiophene films have been explored through combined electrical measurements and in situ X-ray diffraction [25]. In another study, the correlations between ordering, phase transitions, and charge transport were investigated in thin α,α'-dihexyl-quarterthiophene films using combined structural and electrical in-situ investigations [26]. These studies underscore the need for an improved understanding of the relationship between microstructure and electronic properties to enhance the performance of organic electronic devices.
The impact of nanoscale structural changes on the material performances has been demonstrated in real-sized in-operando OFETs based on P3HT films, where spatially resolved structural changes were observed during operation [27, 28]. In addition to GIXD, other in-situ and in operando techniques have been applied to study these materials, such as X-ray absorption spectroscopy (XAS) and X-ray photoelectron spectroscopy (XPS), providing insights into the local chemical environment and electronic states during device operation [29, 30]. In-situ Raman spectroscopy has also been used to monitor molecular vibrations and charge transport dynamics under applied bias, shedding light on how the molecular packing and interactions evolve under different electrical stress [31]. Furthermore, in operando electron microscopy techniques, including scanning electron microscopy (SEM) and transmission electron microscopy (TEM), allow for real-time imaging of device morphology changes at the nanoscale during operation [32, 33]. Recently, we developed a new setup for in-operando probing of OFETs, which enables the observation of microstructural changes in real-time, revealing local-scale modifications within working organic transistors [34]. These advanced in-situ and in operando methods offer crucial insights into the dynamics of organic materials under real operating conditions and are essential for advancing the design and optimization of next-generation organic electronic devices.
In this paper spatially resolved GIWAXS studies combined with electrical measurements are presented. In operando studies have been carried out on DH5T oligothiophene thin films deposited on single channel OFETs. This approach provides a simultaneous structural and electrical characterization at the nanoscale of the local parameters that influence the microstructure and, in turn, the electrical performance of thin semiconducting films.
Experimental part
Sample preparation
The OFET testbeds (gold on silicon field-effect transistor substrates) with 20 devices on a single chip were purchased from Ossila Limited, Sheffield, United Kingdom. A Keithley 2612A dual-channel source meter was used to source and measure current at applied V_SD_ voltage in the range ± 10 V and fixed V_G_ of − 10 V. The 5,5′′′′-dihexyl-2,2′:5′,2′′:5′′,2′′′:5′′′,2′′′′-quinquethiophene (DH5T) oligothiophene [14] thin layer was thermally evaporated in a vacuum deposition chamber under high vacuum at 10^−6^ mbar with the evaporation rate of 0.2 Å/s at the 60 °C [35].The substrate temperature was controlled by thermocouple integrated in the system and thin film thickness of 89 nm was determination using X-ray reflectivity. A solution of DH5T in toluene with the concentration of 0.3 mg mL^−1^ was used for both ex-situ and in situ studies. The solution was stirred for half an hour at the temperature of around 50 °C. Silicon wafers with thermally grown 300 nm silicon dioxide were cut into plates of two different sizes: 10 × 10 mm^2^ and 18 × 18 mm^2^. Smaller substrates were used for ex-situ studies. Electric gold electrodes (around 80 nm thick) with a chromium adhesion layer of about 5 nm were thermally evaporated onto 18 × 18 mm^2^ substrates. Gold electrodes were evaporated with the channel length of 1 mm using a shadow mask.
Synchrotron experiments
In-operando GIWAXS structural characterization of the DH5T oligothiophene thin films-based transistor was performed at Nanofocus Endstation of P03 beamline at PETRA III Synchrotron, DESY (Hamburg, Germany) [36]. The experiment was performed with monochromatic X-ray beam with photonic energy of 16.98 keV. X-ray beam was focused down to 300 nm^2^ by Kirkpatrick–Baez mirrors from JTEC. The measurements were performed in grazing geometry under shallow X-ray striking beam with controlled penetration depth. Scattered signal was recorded by CCD type Photonic Science area detector with pixel size of 62 × 62 µm^2^ and dimension of 2940 × 2940 pixels^2^ installed on distance 317 mm from a sample position. Two-dimensional scattering patterns were integrated into 1-dimensinal profiles with the use of software packages of DPDAK [37] and self-developed MATLAB routine.
Results and discussion
A deep understanding of charge transport processes in organic semiconductors is of fundamental importance and examining the local structure under operating conditions shields light on their real time behaviour. In weakly scattering organic thin films, structural information is typically averaged across the entire film. Considering the OFET device architecture, the channel length is usually several orders of magnitude smaller than the width, typically ranging from a few microns to a few tens of microns. Therefore, sub-micron resolution is required to accurately characterize the microstructure across the conductive channels. To achieve this, nanobeam GIWAXS studies are combined with a multimeter to source and measure current and voltage on the oligothiophene thin film. This combined approach provides fundamental insight into the molecular-level structural features, the arrangement of organic chains, and the correlation with the electrical response of the conductive system.
Figure 1A illustrates the miniature setup used for in-operando GIWAXS characterization and local scale probing of DH5T-based OFET devices. The setup allows precise positioning of any transistors in the testbed. Source and drain electrodes are connected to Keithley digital multimeter via two adjustable gold electrodes. This configuration enabled to record the real-time current–voltage characteristics as schematically shown in Fig. 1B, during the in-operando characterization of the device.Fig. 1A OFETs probing setup and B schematic sketch of DH5T in-operando characterizations
The GIWAXS technique was used to observe changes in the microstructure of DH5T oligothiophene under externally applied voltages. By combining a synchrotron beam with an energy of 16.98 keV and large-area detector, the measures cover regions up to 3 Å^−1^ in reciprocal space in both directions in-plane and out-of-plane (i.e. parallel and perpendicular to the device surface). Due to the grazing incidence geometry with shallow incident angle, the beam footprint of 450 μm in direction along the striking beam covers entire transistor channel (Fig. 1B). In the perpendicular direction, the beam size is 300 nm providing high spatial resolution during lateral scans. All diffraction patterns were collected for 20 s per image, striking a balance between obtaining an intense signal and minimizing radiation damage. Spatially resolved scans through entire OFET channel were measured at initial stage, under voltage conditions and when voltage was released. GIWAXS measurements were performed at P03 Nanofocus Endstation, PETRA III (DESY, Hamburg).

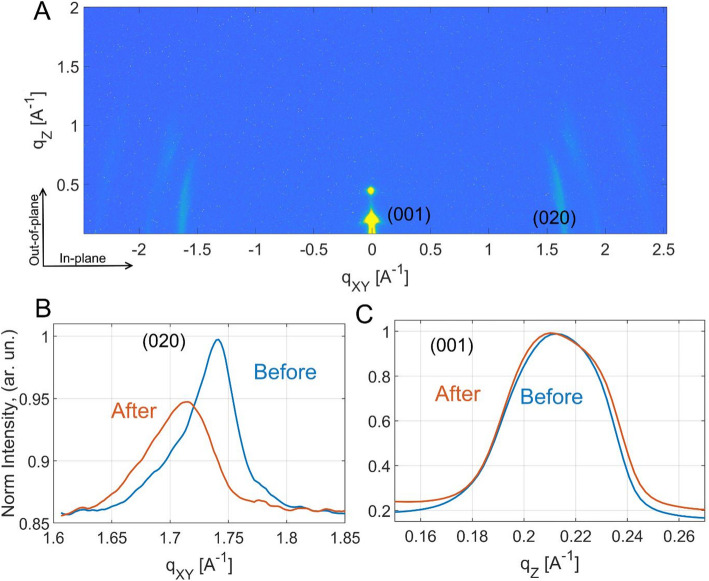

Experimental scattering pattern recorded at the initial stage of the in-operando experiment is shown in Fig. 2A. The pattern presented is recorded at the geometrical middle of OFET conductive channel at the incident angle of 0.045° degree.Fig. 2A The GIWAXS pattern of DH5T thin film; B the in-plane line profiles before (blue) and after (red) the working cycle; C the out-of-plane line profiles before (blue) and after (red) the working cycle
The GIWAXS pattern shown in Fig. 2A corresponds to a monoclinic cell, where the molecules are found to be inclined with respect to a fully upright position along the π–π stacking direction [14]. The multilayer structure exhibited a surface morphology, which clearly reveals molecular monolayer terraces with an average thickness of 89 nm. For further analysis we have chosen two (001) and (020) peaks associated with long molecular axes and the π–π stacking. For both directions we compared the initial line profiles (blue) with the profiles (red) after the working cycle with − 2 V, − 5 V and − 10 V applied voltages (see Fig. 2B). The in-plane line profiles revealed substantial changes of the π–π stacking with expansion of the (020) interplanar distances and broadening of the Full width at half maximum (FWHM). At this point, it should be mentioned that the measurement of X-ray damage did not reveal any structural worsening due to X-ray irradiation. At the same time, the out-of-plane peak is stable after device operation without changes of the interplanar distances and marginal broadening of the peak (Fig. 2C).

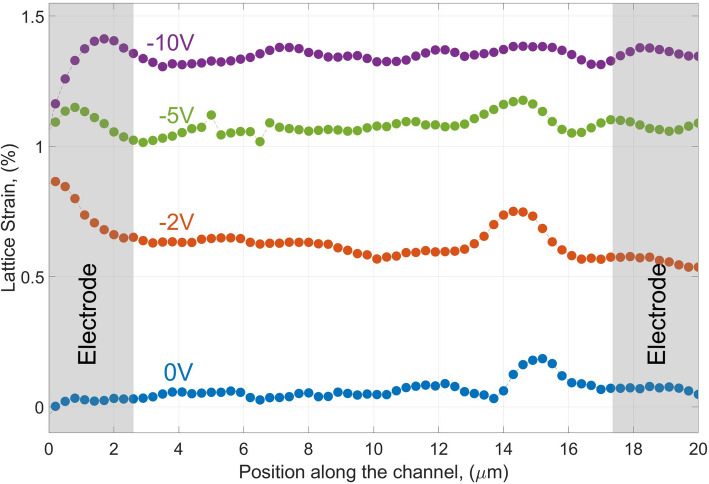

Further on, we analysed the π–π stacking behaviour with local resolution along the conducting channel. Starting and finishing at lateral positions on the gold electrodes we scanned within the steps size of 300 nm including whole conductive channel of 15 μm (see Fig. 3). When − 10 V voltage was applied, an average tensile strain of 1.3% was found. Spatially resolved measurements revealed a local variation of the tensile strain across the whole conductive channel shown in Fig. 3 as a function of the applied voltages. Interestingly, a local strain variation is observed along the channel, being present with up to 0.2% tensile strain even in the initial state before the device application (Fig. 3, blue curve). At the low voltages of − 2 V, this variation is still visible, however it's vanishing upon increasing of the applied voltage. The accuracy of the measurements is in the order of 10^–4^, indicating that the observed effect is real and represents residual strains, even at the initial stage. This highlights the advantage of using a nanobeam, as it enables the resolution of such small effects.Fig. 3. Lattice strain for in-plane profiles along the measured channel in a pristine state (blue curve) and under the applied voltages of − 2, − 5 and − 10 V_SD_ (red, green and magenta curves; respectively)
A more comprehensive understanding of the working device behaviour can be gleaned through an analysis of the average lattice strain observed at each voltage step, incorporating data from the electrodes and the channel with high-resolution precision. It is notable that the deviation of the d-spacing, as directly measured in the experiment, surpasses the values depicted solely for the channels in Fig. 3. These fluctuations are elucidated in Fig. 4, accompanied by corresponding error bars. Despite the apparent elevation of the lattice strain values, it is imperative to emphasize the precision achieved, measured in Angstrom units, which necessitates the utilization of nanoscale X-ray beams.Fig. 4. Left: Schematic representation of the initial DH5T arrangement and under a V_G_ and V_SD_ voltages of − 10 V; Right: Lattice strain provoked by externally applied V_SD_ voltage for in-plane (red) and out-of-plane (blue) directions before the voltage was applied, under − 2, − 5 and − 10 V and after the voltage was released

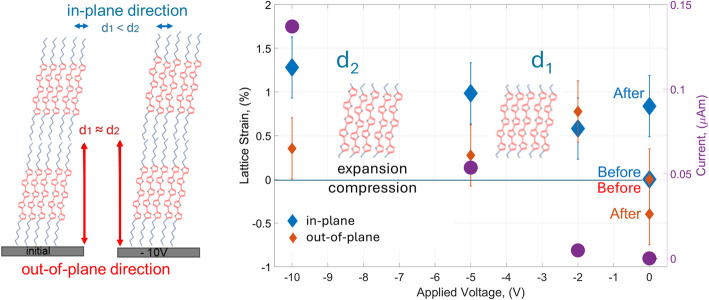

The sketch in Fig. 4, left schematically illustrated an initial arrangement of DH5T molecules and under the highest applied V_SD_ voltage of − 10 V for in-plane and out-of-plane directions. In Fig. 4, right both lattice directions are compared here (in-plane and out-of-plane) for the operating device at the different V_SD_ voltages and fixed V_G_ of − 10 V. Initially the system is unstrained with the position “Before” for both directions. Further on a clear tendency is observed: the higher level of the applied V_SD_ voltage coincides well with the expansion of in-plane π–π stacking. The lattice behaviour at the given V_SD_ value can be directly correlated with of current–voltage characteristics of the OFET (magenta filled circles).
