Physiologically-Based Pharmacokinetics and Empirical Pharmacodynamic Modeling for Pediatric Henagliflozin Dosing: Clinical Insights for Chinese Patients

TL;DR

This study uses modeling to determine effective pediatric dosing of henagliflozin, an SGLT2 inhibitor, for Chinese patients.

Contribution

The study introduces a validated PBPK/PD modeling approach for optimizing pediatric dosing of henagliflozin.

Findings

The PBPK model accurately predicted drug exposure in adults and adolescents within a twofold range.

Model-based dosing recommendations achieved comparable drug exposure in pediatric patients to adult doses of 5–10 mg.

The approach reduces reliance on clinical trials and supports real-world validation.

Abstract

Objective: This study aimed to present a quantitative modeling and simulation approach for oral henagliflozin, a selective sodium-glucose cotransporter 2 (SGLT2) inhibitor primarily metabolized by uridine diphosphate-glucuronosyltransferase (UGT) enzymes.

Methods: A physiologically-based pharmacokinetic (PBPK) model for henagliflozin was developed using in vitro metabolism and clinical pharmacokinetic (PK) data, with validation across multiple contexts, including healthy adults, and hepatic impairment populations. Additionally, empirical pharmacodynamic (PD) modeling was employed to optimize pediatric dosing based on exposure-response relationships for urinary glucose excretion (UGE). Predicting henagliflozin exposure in pediatric patients poses challenges due to UGT enzyme ontogeny and the scarcity of clinical PK data in younger age groups. Using twofold acceptance criteria, model-predicted and observed drug exposures and PK parameters (area under the curve and peak concentration) were compared in diverse scenarios, including monotherapy in healthy adults (single/multiple doses), hepatic impairment, and extrapolation to pediatric age groups.

Results: The PBPK model accurately captured observed exposures within a twofold range in both adults and adolescents, supporting the model's predictive utility. The verified PBPK and empirical PD models informed dosing recommendations in pediatric populations aged 1 month to 18 years, achieving henagliflozin exposures comparable to those in adult patients receiving a 5–10 mg dose.

Conclusion: This study shows that PBPK and PD modeling effectively guide pediatric dosing of henagliflozin, reducing trial reliance and supporting real-world validation.

Figures

Full text

1. Introduction

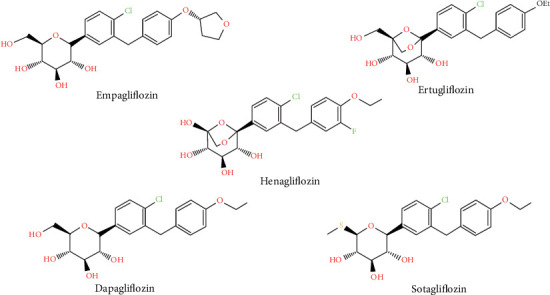

Henagliflozin is a novel, orally administered, and highly selective sodium-glucose cotransporter 2 (SGLT2) inhibitor with over 800-fold greater selectivity for SGLT2 compared to SGLT1 [1]. It was developed and approved in China and shares structural similarities with other SGLT2 inhibitors like ertugliflozin and dapagliflozin (Figure 1) [2]. Clinical studies, including two phase 3 trials, have demonstrated that henagliflozin effectively improves glycemic control, reduces body weight, and lowers blood pressure in adult patients with type 2 diabetes mellitus (T2DM) when used as monotherapy at 5–10 mg once daily, or in combination with metformin or retagliptin [3–5].

The pharmacokinetic (PK) profile of henagliflozin in type 2 diabetic patients is consistent with that in healthy subjects. Following oral administration, henagliflozin reaches peak plasma concentration within 1.0–2.0 h, with peak concentration (Cmax) and area under the concentration–time curve (AUC) increasing proportionally to the dose. Food intake has no clinically significant impact on its absorption. Henagliflozin is highly bound to plasma proteins (94.5%−95.9%) and primarily metabolized by uridine 5'-diphospho-glucuronosyltransferase isoform 2B4/7, 1A9, 1A3, and 1A6 enzymes, forming three inactive glucuronide metabolites. It is predominantly excreted as metabolites in urine (30.1%) and unchanged in feces (50.0%), with an elimination half-life of 9.1–14.0 h and a total cumulative excretion rate of 80.1%. Figure S1 shows the henagliflozin disposition pathway based on absorption, distribution, metabolism, and excretion (ADME) studies with assumptions illustrated.

SGLT2 inhibitors, such as dapagliflozin and empagliflozin, are established treatments for adults with T2DM, chronic kidney disease (CKD), and heart failure [6]. While SGLT2 inhibitors are well-established in adults, their translation to pediatrics is delayed by developmental maturation of drug metabolizing enzymes, resulting in age-dependent PKs that preclude simple dose scaling from adult data [7]. Recently, empagliflozin (marketed as Jardiance) received Food and Drug Administration (FDA) approval for pediatric use in children 10 years and older based on positive results from the DINAMO phase 3 clinical trial [8]. Despite this advancement, other SGLT2 inhibitors, including henagliflozin remain uncertain in pediatric care, primarily due to the lack of robust clinical data [9]. However, clinical trials for these populations often face challenges such as ethical concerns, recruitment difficulties, and the need for age-appropriate formulations. To date, no clinical trials for henagliflozin have enrolled participants under 18 years of age, and registrational studies explicitly exclude pediatric populations. These gaps indicate the need for quantitative modeling approaches to inform pediatric dosing strategies across a full age spectrum, especially for adolescents with increased risks of T2DM.

Fortunately, physiologically-based PK (PBPK) modeling has emerged as a valuable and recognized tool for overcoming these challenges [10]. By integrating age-specific physiological parameters, PBPK models enable the prediction of drug PKs across different subpopulations, including geriatrics and pediatrics. This approach allows for the simulation of various dosing scenarios, accounting for ontogeny and population variability without exposing children to unnecessary risks [11]. Numerous PBPK models have been successfully verified to reproduce adult clinical PK profiles with high reliability. These verified models can be further leveraged to predict drug PK in pediatric populations when direct clinical study data is unavailable [12–14]. By incorporating pediatric-specific physiological factors, such as enzyme ontogeny, body weight, and renal excretion maturity, PBPK models offer a framework to predict age-appropriate drug exposure, optimize dosing strategies, and support clinical decision-making in children [15, 16]. In recent years, the U.S. FDA, the European Medicines Agency (EMA), and the International Council for Harmonization of Technical Requirements for Pharmaceuticals for Human Use (ICH) have released guidelines supporting pediatric extrapolation and advocating for the use of modeling and simulation to inform pediatric drug development and optimize dose selection [17, 18].

This study aims to develop and validate a PBPK model for henagliflozin to predict its PK in special populations. By leveraging an established adult PBPK model, we seek to simulate age-appropriate dosing regimens for pediatric populations, considering developmental physiological changes. The objective is to provide a scientific foundation for optimal pediatric dosing, thereby reducing the need for extensive pediatric trials and supporting regulatory and clinical decision-making for henagliflozin's use in pediatric patients with T2DM.

2. Materials and Methods

2.1. Software and Tools

In this study, the PBPK model development was conducted using the Open Systems Pharmacology Suite, incorporating PK-Sim (Version 11, Open Systems Pharmacology Suite, https://www.open-systems-pharmacology.org/). PK parameters and statistical analyses were performed using R software (Version 4.0, https://www.r-project.org/) and graphical visualizations were created using GraphPad Prism (Version 8.0, https://www.graphpad.com/). Physicochemical properties were retrieved using the DrugBank database (https://go.drugbank.com/drugs/DB11939), PubChem database (https://pubchem.ncbi.nlm.nih.gov/compound/Henagliflozin), and related literature sources. PK data were collected by searching literature databases, including PubMed and China National Knowledge Infrastructure (CNKI). Plasma drug concentration–time curve data were digitized using the GetData Graph Digitizer (Version 2.22, http://www.getdata-graph-digitizer.com/).

2.2. Development and Evaluation of Adult PBPK Model

2.2.1. Model Structure and Parameterization

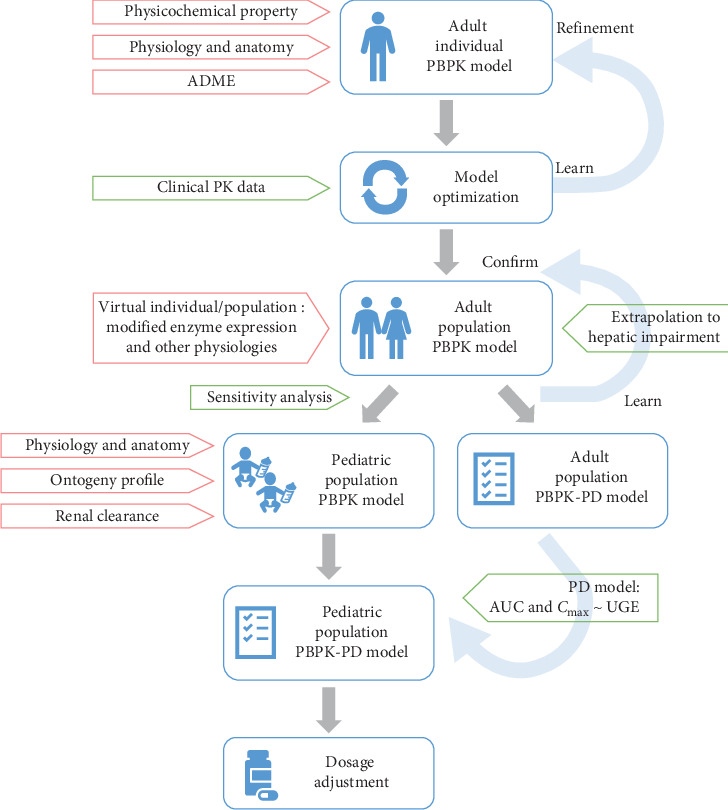

A combination of “top-down” and “bottom-up” modeling strategies was applied to develop the models. The modeling workflow is illustrated in Figure 2. A whole-body, 18-compartment PBPK model was developed using PK-Sim for modeling and simulation. Each compartment consisted of four subcompartments: blood, plasma, interstitial, and intracellular space [19]. A virtual individual representing a typical 30-year-old male of East Asian ethnicity was created using average physiological parameters, and the virtual population of 100 individuals was generated based on this profile using the “population” building block in the software. Each population consisted of 50 males and 50 females within the age range of 18–45 years. The adult model for henagliflozin was developed using collected physicochemical properties, in vitro characteristics, and in vivo ADME parameters. Initial parameters were optimized using the Monte Carlo algorithm, with detailed parameter information provided in Table 1. All dosing protocols corresponding to each clinical study were accurately reproduced within the “administration protocol” building block of PK-Sim, ensuring that dosing regimens, including both single and multiple doses under fasted or fed states, reflected the clinical conditions without altering other parameters. Additionally, a “feeding event” was incorporated in PK-Sim using a default 1000 kcal meal to simulate the impact of food on PK.

Henagliflozin is structurally similar to the SGLT2 inhibitor ertugliflozin, sharing a comparable metabolic pathway (Figure S1) [22]. In humans, two glucuronide metabolites of ertugliflozin have been identified: a minor metabolite, ertugliflozin 2-O-glucuronide (mediated by UGT2B7/2B4), and a major one, ertugliflozin 3-O-glucuronide (mediated by UGT1A9) [23]. Based on human mass balance studies, ertugliflozin shows significant oxidative metabolism (fCL = 0.12), with systemic clearance largely mediated by UGT1A9 (70%), UGT2B7/2B4 (16%), CYP3A4 (10%), CYP3A5 (1.2%), CYP2C8 (0.5%), and renal elimination (2%). Similarly, data from in vitro studies and human mass balance for henagliflozin suggest that its clearance is primarily through UGT1A9 (47%), UGT2B7/2B4 (30%), and UGT1A3 (9%), with a smaller contribution from CYP enzymes (11%) [24, 25]. Approximately 1.9%–3% of henagliflozin is cleared renally as the unchanged drug [26, 27]. To assign enzymatic clearance rates in PK-Sim, a retrograde translation strategy was employed, using these fraction metabolized (fm) values to calculate intrinsic clearance (CL_int_) for each enzyme. In vitro studies with human liver and kidney microsomes indicated that 10% of UGT clearance occurs in the kidneys, and 90% in the liver [23]. For modeling, metabolism by UGT2B4/2B7 was attributed to UGT2B7, and CYP3A4 represented the CYP family, with optimized abundance in the PBPK model. Initial input parameters for henagliflozin were set to UGT1A9 CL_int_ at 21.6 µL/min/mg, UGT2B7 CL_int_ at 13.8 µL/min/mg, UGT1A3 CL_int_ at 4.1 µL/min/mg, and CYP family CL_int_ at 0.05 µL/min/pmol.

2.2.2. Model Optimization and Validation

Clinical PK data for oral administration of henagliflozin in healthy subjects were obtained from the clinical research, as detailed in Table S1. These training dataset encompassed a range of single and multiple dosing regimens, with doses from 1.25 to 200 mg, administered both as single doses and daily over multiple days [26]. Validation of the model relied on studies from others involving healthy individuals under both fasting and fed conditions, receiving 5–25 mg single and multiple doses [25, 28–33]. In addition to healthy subjects, the model was also evaluated using data from studies involving patients with T2DM [34]. Since T2DM has been reported to have no significant impact on the PK of henagliflozin, no additional adjustments were made for the disease (except the age range for the virtual population was modified to 45–60 to match clinical demographics). The same model structure and parameterization applied to healthy subjects were used for T2DM patients, ensuring consistent evaluation of PK parameters. The geometric mean of the predicted plasma concentrations as well as urine excretion profile (if available) was obtained through software simulation. Time-concentration curves predicted by the model were visually compared to the observed clinical data. Model performance was evaluated by comparing predicted and observed PK parameters with goodness-of-fit plots, including Cmax and AUC for single-dose administration, as well as steady-state Cmax (Cmax,ss) and AUC (AUC_ss_) for multiple-dose administration. The fold error (FE) was calculated, while the average FE (AFE) and absolute AFE (AAFE) were computed for all plasma concentrations to quantify prediction accuracy (Equations (1)–(3)). Predictive performance was considered acceptable when these values were within a twofold range (0.5–2), and a stricter 1.25-fold limit (0.8–1.25) indicated higher predictive accuracy. Additionally, average absolute prediction error (AAPE) was calculated to measure prediction error scaled to percentage units (Equation (4)). A model is deemed satisfactory if the AAPE is less than 20%, acceptable if the AAPE is between 20% and 50%, and poor if the AAPE is 50% or higher [35].

$$[eqn]$$ $$[eqn]$$ $$[eqn]$$ $$[eqn]$$

2.3. Extrapolation to Hepatic Impaired PBPK Model and Evaluation

The healthy adult PBPK model was extrapolated to simulate PK in populations with hepatic impairment. For the simulations, virtual individuals and populations (n = 100) were created with demographic characteristics aligned with clinical study data [36]. Patients were categorized based on the child-pugh classification: child-pugh A (CP-A), child-pugh B (CP-B), and child-pugh C (CP-C). Hepatic impairment leads to significant morphological and functional changes, including reduced hepatocyte function, altered hemodynamics, decreased plasma protein levels, and compromised renal function. These changes influence drug behavior and necessitate adjustments to enzyme expression abundance and other physiological factors. Several physiological changes were adapted for hepatic impairment, including reduced portal and renal blood flow, increased liver blood flow, and adjusted organ flows except for the brain [37, 38] (Table 2). Specifically, the expression of key metabolic enzymes, such as UGT1A9, UGT2B4/7, and CYP3A4, which play a major role in henagliflozin clearance, were reduced [39]. Additionally, the variability of plasma protein scale factor in PK-Sim was defined to reflect changes in plasma protein concentration and binding among populations [40]. These adjustments were made to capture the impact of hepatic impairment on PK, and simulations were performed for 20 mg single-dose administration. Model performance was evaluated by comparing predicted and observed plasma concentration-time profiles and key PK parameters like Cmax and AUC across healthy controls and hepatic-impaired populations [36].

2.4. Extrapolation to Pediatric PBPK Model and Dose Optimization

Age-related physiological and anatomical parameters, such as height, weight, organ volume, and blood flow, were scaled using the built-in algorithms of PK-Sim. The ontogeny of key metabolic enzymes involved in henagliflozin clearance, including UGT1A9, UGT2B7, and CYP3A4, was integrated into the pediatric PBPK model using built-in ontogeny database in PK-Sim (Figure S2) [41]. Additionally, key parameters for clearance, including unbound fraction, GFR, and enzyme ontogeny factors, were adjusted to reflect pediatric physiology. Four virtual pediatric subgroups were created based on the ICH classification of pediatrics: neonates (0–27 days), infants and toddlers (28 days–23 months), children (2–11 years), and adolescents (12–18 years) [42]. Each subgroup consisted of 100 virtual individuals (50% female).

Given the lack of clinical data for validation, a sensitivity analysis was performed to evaluate the impact of key physiological parameters on henagliflozin's PKs in pediatric populations. Parameters such as enzyme activity (UGT1A9 and UGT2B7), renal function (GFR), and other physiological parameters were varied within plausible ranges to assess their influence on AUC and Cmax [13]. Both local and global sensitivity analyses were conducted. Local sensitivity analysis (LSA) evaluated the impact of individual parameters (e.g., UGT enzyme activity and GFR) on AUC and Cmax using a one-at-a-time perturbation approach. In addition, global sensitivity analysis (GSA) was performed using Morris screening and extended Fourier amplitude sensitivity test (EFAST) methods to account for parameter uncertainty, nonlinearity, and potential interactions [43, 44]. Full methodological details and sensitivity index values are presented in Table S2.

Pediatric doses were optimized to achieve a systemic exposure comparable to adults. To further optimize pediatric doses and ensure clinical efficacy, a pharmacodynamic (PD) model was integrated into the pediatric PBPK framework. Previously reported exposure-response relationships, as shown in the following equations (Equations (5) and (6)), were utilized to link henagliflozin doses and exposure to therapeutic outcomes, particularly focusing on urinary glucose excretion (UGE) [26].

$$[eqn]$$ $$[eqn]$$

where E is the effect (UGE, g), Cmax is the maximum concentration of the drug in plasma, AUC is the area under the concentration–time curve, and EC_50_ is the concentration or AUC at which 50% of the maximum effect is achieved. Based on the results from clinical studies, Emax and EC_50_ were determined to be 48.8 g and 62.0 ng/mL for Cmax based relationships, respectively. For AUC based equation, Emax and EC_50_ were determined to be 48.2 g and 356 ng h/mL, respectively.

3. Results

3.1. Adult PBPK Model Development and Validation

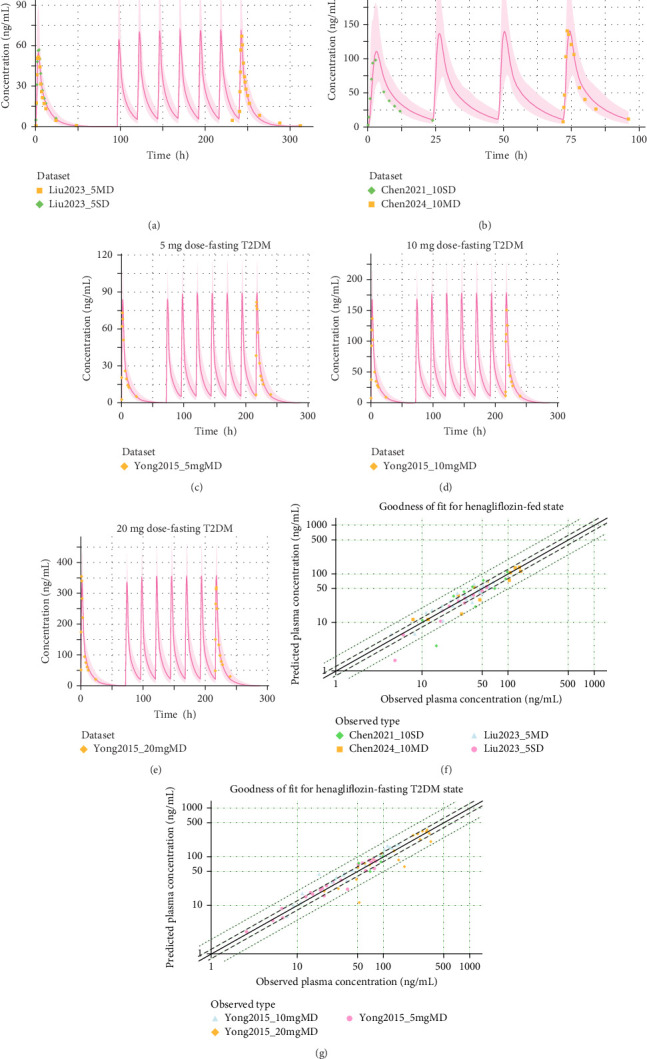

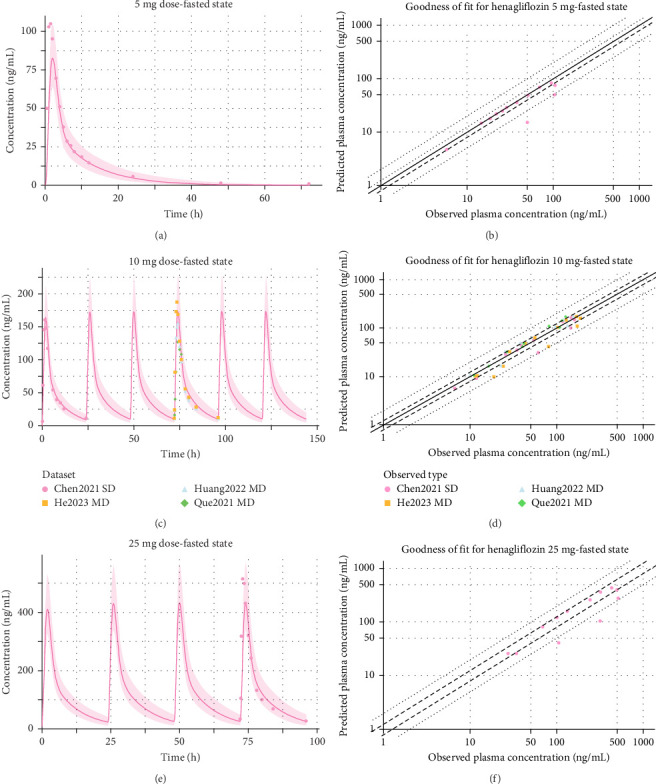

The henagliflozin PBPK model was successfully developed for adults and validated using clinical data from both healthy individuals and patients with T2DM. Simulated PK profiles closely matched the observed data, with predicted values for Cmax and AUC (and fraction of dose in urine in the training datasets) within a two-FE range for FE and less than 50% for AAPE (Table 3), which summarizes all PK comparisons. GOF plots further demonstrated strong concordance between predicted and observed plasma concentrations across all single and multiple dose regimens, with Figure 3 displaying results for the training dataset and Figures 4 and 5 for the validation dataset.

3.2. Validation Through Extrapolation to Hepatic Impaired Populations

The henagliflozin PBPK model was extrapolated to populations with varying degrees of hepatic impairment (CP-A, CP-B, and CP-C) and compared against a control group of healthy individuals. Performance indicators, including AFE, AAFE, and AAPE, were calculated for both AUC_0–72_ and Cmax, providing insights into the model's predictive accuracy across different impairment levels (Table 4 and Figure S3). In the control group, the model performed well, with an AFE of 1.15 for AUC and 1.04 for Cmax, both within an acceptable range. Predictions in CP-A and CP-B groups showed slightly higher errors, with AAFE values for AUC ranging from 1.24 to 1.61, while Cmax errors remained moderate. However, in the CP-C group, representing severe hepatic impairment, the model showed a larger deviation in AUC predictions, with an AAPE of 27.60%, indicating increased variability in this population. Despite these variations, the overall performance remains consistent within an acceptable range for clinical application, suggesting the model's utility in predicting henagliflozin exposure in hepatic impaired populations.

3.3. Extrapolation to Pediatric Populations

The PBPK model predictions for henagliflozin across various pediatric subgroups (neonates, infants/toddlers, children, and adolescents) were evaluated in terms of Cmax,ss, AUC_ss_, and corresponding UGE. As shown in Table 5, the predicted Cmax and AUC values increased with higher doses in all age groups, consistent with the dose–exposure relationship observed in adults. However, younger age groups, particularly neonates and infants, exhibited disproportionately higher Cmax,ss and AUC_ss_ values compared to older pediatric populations at equivalent doses. The UGE results demonstrated a dose-dependent increase across all pediatric age groups.

Based on the exposure and UGE results (Table 5 and Figure 6), pediatric dosing recommendations can be made by comparing to adult exposures at 5 and 10 mg once daily. In adolescents (12–18 years), 5 and 10 mg doses achieve Cmax, AUC, and UGE levels comparable to adults, suggesting adult doses can be applied directly. For children (2–11 years), 2.5 mg corresponds to adult-equivalent exposure for 5 and 5 mg corresponds to adult-equivalent exposure for 10 mg. In infants and toddlers (28 days–23 months), 1.25 mg produces exposure and UGE values similar to adults on 5 mg, while 2.5 mg aligns with adult 10 mg doses. For neonates (0–27 days), 1.25 mg provides exposures comparable to adults on 10 mg, suggesting lower doses are needed. These findings support tailored pediatric dosing that achieves adult-equivalent exposure and therapeutic outcomes.

The sensitivity analysis showed that the pediatric PBPK model was generally robust, with most input parameters having relatively low sensitivity scores for both AUC and Cmax (Figure S4). Parameters such as UGT ontogeny factors, kidney GFR (specific), and gastrointestinal transit times had slightly more pronounced effects, but their overall influence on the model outputs was still moderate, with negligible interaction effects between parameters (Figure S5). This suggests that the extrapolation of adult data to pediatric populations, based on the current model, is solid and reliable, with minimal impact from small variations in individual physiological parameters. Thus, the model is suitable for pediatric dose optimization and provides confidence in the proposed dosing recommendations.

4. Discussion

This study demonstrates the utility of PBPK and empirical PD modeling in addressing the unique challenges of Chinese pediatric dosing for henagliflozin, a locally developed SGLT2 inhibitor. The Research to Accelerate Cures and Equity for Children Act, along with FDA guidance, further emphasizes the inclusion of children in clinical trials when possible to improve the availability of pediatric-specific safety and efficacy data [45]. These initiatives highlight the need for early PK predictions to ensure appropriate and safe exposure levels during pediatric studies. Modeling and simulation have been instrumental in expanding the use of other SGLT2 inhibitors, such as ertugliflozin and dapagliflozin, to pediatric populations [46, 47]. Although neither drug was originally intended for pediatric populations, pharmacometric models have facilitated their adaptation for younger age groups by incorporating developmental PK considerations, including age-related changes in enzyme abundance and activity. For SGLT2 inhibitor uses in pediatric populations, age-related maturation of physiological processes, particularly the ontogeny of enzymes like UGT1A9 and UGT2B7, plays a crucial role in drug metabolism and disposition. Young children, particularly those aged 2–11 years old, have altered maturation of these physiological factors, impacting ADME and ultimately affecting drug efficacy and safety.

Importantly, this study's focus on Chinese pediatric patients fills a significant gap in current SGLT2 inhibitor research, where much of the available data are based on Asian adult or non-Asian pediatric populations. Following the successful modeling approaches used for henagliflozin's analogs (ertugliflozin and dapagliflozin), our study leveraged available adolescent data to refine a PBPK model for henagliflozin, incorporating age-specific physiological and metabolic parameters. Our model addressed these developmental differences by incorporating age-specific physiological parameters, which were further refined through sensitivity analyses. By validating this model against clinical data from healthy adults and patients with hepatic impairment, we confirmed its predictive accuracy and built a foundation for henagliflozin exposure predictions in pediatric subgroups. The model integrates enzyme ontogeny profiles to reflect age-dependent metabolic activity and proposes initial dosing recommendations for pediatric patients that achieve systemic exposure levels comparable to a 5–10 mg adult dose. The empirical PD model further complemented the PBPK framework by linking dose-exposure relationships to therapeutic outcomes, focusing on UGE as a key PD marker. In adolescents (12–18 years), 5 and 10 mg doses achieve comparable PK and PD levels to adults, suggesting adult doses can be applied directly. For children (2–11 years), 2.5 mg corresponds to adult-equivalent exposure for 5 and 5 mg corresponds to adult-equivalent exposure for 10 mg. The combined PBPK and PD models thus offer a robust approach to establishing clinically meaningful dose adjustments for children at various developmental stages, supporting the growing interest in applying quantitative pharmacology to personalize dosing regimens in China, particularly for drugs developed domestically, like henagliflozin.

A significant aspect of this study is the broader applicability of SGLT2 inhibitors beyond T2DM, as recent studies highlight their benefits in managing CKD and congestive heart failure (CHF) across adult populations [48, 49]. These additional indications, alongside the growing interest in pediatric treatment options, underscore the need for age-appropriate dosing of SGLT2 inhibitors in pediatric populations with complex health profiles. Pediatric CKD and CHF represent significant unmet needs, where safe and effective drug exposures are essential yet challenging to establish due to age-related physiological changes [9]. Our PBPK and PD models provide a foundation for these broader applications by predicting dose–response relationships in pediatric populations, potentially guiding safe and effective dosing in CKD and CHF pediatric patients as further clinical evidence becomes available.

This study has limitations that warrant consideration. While hepatic modeling was primarily used for adult validation, its ability to capture reduced enzyme activity supports its relevance for pediatric extrapolation, where enzyme maturation similarly influences clearance. Nonetheless, due to the lack of direct clinical data in neonates and infants, predictions in these subgroups should be interpreted cautiously. The model currently relies on standard ontogeny functions, which may not fully capture age-specific variability. More refined quantitative data, including sex-specific enzyme expression during adolescence, could improve future predictions. On the PD side, our model assumes similar UGE relationships across ages, though renal glucose thresholds may vary. Future studies collecting pediatric UGE or HbA1c data are needed to refine the PD model [20]. Additionally, incorporating kidney-specific exposure and absorption variability, particularly in infants, would enhance mechanistic insights. We also recommend real-world pediatric studies to externally validate and adjust dosing strategies, especially as safety and effectiveness data emerge in broader clinical settings.

5. Conclusion

In summary, this study demonstrates the effectiveness of integrating PBPK and empirical PD modeling to inform pediatric dosing strategies for henagliflozin, with a focus on the Chinese population. Our modeling approach successfully predicts age-appropriate dosing regimens, providing a science-based framework that minimizes the need for extensive pediatric trials. Future work incorporating real-world pediatric data and mechanistic refinements will further enhance the accuracy and clinical relevance of this model.
