Rate-Dependent Tensile Behavior of Glass Fiber Composites Reinforced with Quadriaxial Fabrics, with or Without Coremat Xi3 Interlayer, for Marine Applications

TL;DR

This study examines how different glass fiber composites behave under tension at various speeds, focusing on their performance in marine applications.

Contribution

The paper presents new experimental data on rate-dependent tensile behavior of quadriaxial glass fiber composites with or without a Coremat Xi3 interlayer.

Findings

Polyester-based composites without a mat interlayer showed the highest strength and energy absorption.

Epoxy composites with Coremat Xi3 displayed higher strain and energy absorption at higher test rates.

Results provide design insights for marine structural components requiring both strength and energy absorption.

Abstract

This study is among the first to characterize the tensile response of composites with quadriaxial glass fiber fabrics designed for marine structural applications. Four composite configurations were fabricated at laboratory scale, combining two matrix types (unsaturated polyester resin and epoxy resin) and the presence or absence of a Coremat Xi3 middle layer. Tensile tests were conducted at four test rates (10 mm/min, 200 mm/min, 500 mm/min, and 1000 mm/min), ranging from quasi-static to moderately dynamic conditions. Tests were conducted using the Instron 5982 universal testing machine (from Laboratory for Advanced Materials and Tribology, INCAS Bucharest, Romania). The specimens have a rectangular cross section, in agreement with SR EN ISO 527-4:2023. For strain measurements, an Instron advanced video extensometer (AVE) was used. Key mechanical parameters, such as maximum force, tensile strength, Young’s modulus, strain at break, and energy absorption, were extracted and analyzed. Results show that the polyester-based composite without a mat interlayer displayed the best overall performance, with the highest ultimate strength (~280 MPa), significant energy absorption (~106 J), and a consistent increase in ductility with increasing test rate. In contrast, the epoxy composite with Coremat Xi3 exhibited lower stiffness and strength, but higher strain and energy absorption at higher test rates, indicating a progressive failure behavior. These findings enhance the understanding of the tensile response of composites made of quadriaxial glass fiber fabric and provide valuable design data for structural components in marine environments, where both strength and energy absorption are essential. These insights support producers and end-users of non-crimp fabrics in making experimentally based selections of a composite, technological strategies, and design optimization.

Figures

Full text

1. Introduction

Tensile tests are essential for characterization of composite materials, especially for unidirectional and multidirectional composites, for the following reasons: determination of basic mechanical properties, ease of information comparison to other materials, assessment of batch quality according to the datasheet of the product, practical importance in design, and validation of simulation models and prototypes.

Even if fibers from natural, sustainable resources have been introduced in particular applications [1], the marine industry relies on glass, carbon, and synthetic polymer fibers as reinforcement [2,3], due to their set or mechanical and thermal properties, their robust design based on experimental results with high repeatability, and their durability in a severe environment [4].

Tensile tests provide direct information about tensile strength, defined as the maximum stress before failure, longitudinal modulus of elasticity that reflects the stiffness of the composite in a certain direction related to reinforcement, and elongation at break as the strain before failure. The curve of such characteristics drawn against time or displacement could give information on elastic and plastic behavior, which is important for structural analysis, especially for assessing the safety coefficient.

A structural design could be engineered using data obtained from tensile tests. These could be introduced in finite element simulation as constitutive material models and in failure criteria [5,6,7,8].

Commercial and academic documentation is sparse for quadriaxial fabrics included in composites, and the experimental results presented here could be considered a reference point for future studies.

Caramatescu et al. [9,10] have tested composite structures with different types of materials, including woven glass fiber fabric (WR) and mats with glass fiber whiskers (100 mm to 120 mm) (CSM). The resulting composites have thicknesses of 4.20 mm (2 layers CSM + 1 layer WR + 1 layer CSM for deck),, 4.90 mm (3 layers CSM + 1 layer WR + 1 layer CSM for sideboards), 6.20 mm (2 layers CSM + 1 layer WR + 1 layer CSM + 1 layer WR + 1 layer for bottom side) and 8.30 mm for keel (3 layers CSM + 1 layer WR + 1 layer CSM + 1 layer WR + 2 layers CSM). The matrix was an unsaturated polyester resin. The structure with only glass fiber fabrics attends a yield limit in traction of 131 MPa, for an approx. sample thickness of 5 mm. The authors proposed sequential arrangements using mats with glass fiber whiskers (CSM, with area density of 450 g/m^2^ and 600 g/m^2^), two woven fabrics (WR) with area density of 300 g/m^2^ and 500 g/m^2^, a PVC foam (grade M 55 SCRIM, supplied by Cristex), and a Coremat Xi (from Lantor BV) similar to that used in this research. The proposed solutions were evaluating by taking into account a set of characteristics, and their ranking placed the hybrid composite on the first line (1 layer CSM + 1 layer WR + 1 layer CSM +1 layer PVC foam + 1 layer CSM + 1 layer Coremat Xi +1 layer CSM + 1 layer WR + 1 layer CSM). The lowest displacements (by 44.8%) and the lowest stress (by 29.7%) were calculated, compared to the original variant, having the only disadvantage of a larger mass (but with only 8.6%).

Rajak D. K. et al. [11] reported characteristics in bending and traction for fiber reinforced epoxy composites used in car body parts, with and without Co filler (0.4 to 1.0 wt.%). The glass fiber composites have tensile and flexural limits of approx. 97 MPa and 120 MPa, respectively, while tensile and flexural limits of composites with carbon fibers were approx. 195 MPa and 393 MPa, respectively. Glass fiber composites have a thickness of 2.81–2.88 mm, and the carbon fiber composites have a thickness of 2.90–3.03 mm, all with a sample width of 15 mm.

Itu C. et al. [12] reported characteristics obtained in traction tests for a composite with glass fiber and epoxy resin. The composite could be considered as hybrid as its architecture is OSB (middle layer of thickness of 10 mm), MAT 450 (2 layers of thickness of 2 mm), and chopped glass fiber with resin (2 layers of thickness of 2 mm), resulting in 18 mm for the composite. The tensile tests of each component allow for simulating the behavior of the stratified composite, but tests on actual composite were not reported.

Cao Y. et al. [13] tested composites with two, four, and eight layers of glass fiber fabric (with 0.2 mm as thickness and 200 g/m^2^ as areal density). Comparing tensile characteristics from the tensile test, and the authors reported that the uneven loading between layers in the composite with eight layers caused internal delamination and uneven destruction, reducing the tensile properties of laminates. In addition to the effect of composite thickness, the epoxy resin systems and interfacial performance influenced the tensile properties of the elaborated composite. Using different epoxy resins (with ultimate tensile strength from 25 MPa to 41 MPa), the same characteristic of the four-layer composite varied from 95 MPa to 215 MPa, respectively. For these composites, the increase in resin tensile strength induced higher values for the ultimate tensile strength of the four-layer composite from 98 MPa to 215 MPa. Details of fabric architecture and glass fibers’ quality are not given.

Applications of glass fiber composites include components in renewable energy (wind turbine blades, mainly) [14], marine industry [15], sport and leisure industry [16], automotive [17], aerospace [18], and military applications [19].

Table 1 presents recent research studies on glass fiber composites and points out the diversity of the tested composites and also that thicker composites are not yet investigated even if industries ask for this information, especially in shipbuilding, aircraft and military applications.

Quadriaxial fabric is formed by reinforcement fibers, oriented in four directions, held in place by a secondary non-structural stitching thread. Its advantages include higher fatigue resistance, less resin consumption, better mechanical properties and fade-out of anisotropy, improved speed of fabrication of a product, better drapability, and higher delamination resistance and impact strength. They are widely used in high-performance sectors (marine, wind energy, automotive), but rarely explored in deep research. Continuing our previous work, where the mechanical behavior of the studied glass fiber composites was assessed using bending and impact tests, this paper presents the results of tensile testing on the same composite materials. By expanding the range of mechanical characterizations across different loading conditions, we aim to provide a more comprehensive understanding of material behavior. Such a multifaceted approach supports more reliable structural design and enhances the safety assessment of composite structures. Thus, our experimental campaign could fill a gap between industry practice and laboratory tests, based on new entry composites, such as those having quadriaxial fabrics as reinforcement. For these composites, the experimental results will be fundamental for designing new components. As non-crimp fabrics become more common in structural composites, our paper may become foundational for design engineers and researchers alike.

While the first producer of quadriaxial fabrics is challenging to be established, several companies were involved in the early development and trade of quadriaxial fabrics, including Saertex—a German company recognized for pioneering multiaxial non-crimp fabrics, including quadriaxial variants [31]; Metyx Composites [32]; Solidian-Kelteks [33]; and Castro Composites [34].

The adoption of quadriaxial fabrics has been particularly prominent in industries such as marine, wind energy, automotive, and aerospace, where the materials’ balanced mechanical properties and processing advantages are highly valued.

Despite their growing use, limited data exist regarding the mechanical performance of quadriaxial fabric composites under various loading conditions. Most of the literature focuses on unidirectional or bidirectional reinforcements, often excluding multi-axial architectures. This study aims to bridge that gap by analyzing four specific composite structures and their tensile response as a function of test rate and composite constituents. Particular attention is paid to the influence of resin type and the presence of interlayers, which are critical factors in marine applications where strength, stiffness, and damage tolerance must be finely balanced.

2. Materials and Methods

The same composites were tested in bending and under impact in previous papers [22,35], with details on the laboratory-scale production. Thus, here are briefly described the materials used for producing the composites and their fabrication. It is interesting to mention that, even if we obtained four different composites, the manufacturing operations at laboratory scale are the same. Thus, the producers could use the same equipment for a larger product range.

The reinforcement is the same, quadriaxial glass fiber fabric, supplied by Castro Composites (Porriño, Pontevedra, España); the yarns’ arrangement is 0°/+45°/90°/−45° [36]. Figure 1 presents aspect of the quadriaxial fabric: (a) a view as given in the producer catalog [36], (b) a model of the yarns’ arrangement on the four sub-layers with different orientations, (c) the EDX analysis of the glass fiber core (in the red area), and (d) the EDX analysis of the glass fiber jacket (in the red indicated point). These EDX analyses were repeated for the core and the jacket of several glass fibers in order to obtained an average, with glass fibers from the same fabric being analyzed in [37]. Fiber diameter ranges between 11 μm to 17 μm, as presented by the producer [36]. The SEM images were obtained with the help of FEI Quanta 200 scanning electron microscope from “Dunarea de Jos” University (supplied by FEI Company, Hillsboro, OR, USA, now Thermo Fisher Scientific Inc.) and its software includes an analysis software with EDX spectrometer (namely EDAX32, Genesis software 5.10).

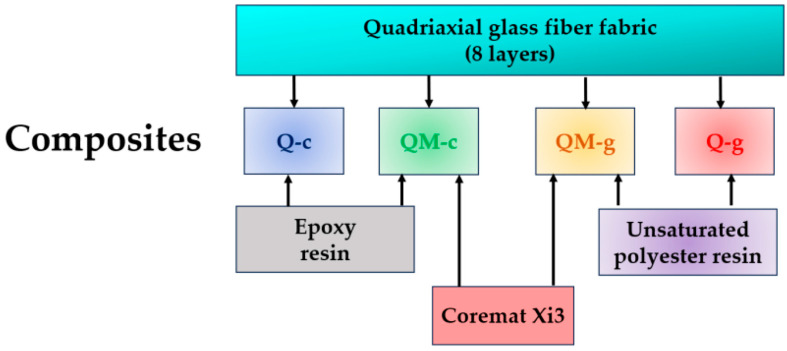

Figure 2 presents the components of the four composites tested under traction. The reinforcement is the same, quadriaxial glass fiber fabric supplied by Castro Composites (Porriño, Pontevedra, España); the yarns’ arrangement is 0°/+45°/90°/−45° [32].

We selected Coremat^®^ Xi 3 mm (from Lantor BV, Veenendaal, The Netherlands), supplied by Rompolimer SA (Bucharest, Romania) [38,39,40,41]. This is used as a core material for ships, automotive components, leisure and sport components, or industrial structures because its set of properties is acceptable for taking into account criteria such as strength, flexibility, and aesthetics. It is made of non-woven polyester fibers with integrated microspheres and is compatible with resins such as epoxy resins, unsaturated polyesters, vinyl esters, and phenolics [38,39].

“Coremat^®^ is made by incorporating microspheres in a polyester based fleece. Because of these microspheres, Coremat^®^ creates a low weight volume and increases stiffness without the extensive use of costly materials” [41]. Several characteristics are described as follows: dry weight of 80 g/m^2^, impregnated density of 630 kg/m^3^. Typical mechanical properties of Lantor Coremat^®^ Xi (3 mm) impregnated with unsaturated polyester resin [38] are a flexural modulus of 1.1 GPa and flexural strength of 11 MPa. The resin is well impregnated in Coremat^®^ Xi 3, and the quantity is relatively low (approx. 600 g/m^2^ for 1 mm of thickness of the resulting composite).

We selected two resins based on producers’ documentation [42,43], namely, an epoxy one and an unsaturated polyester resin. Both are briefly presented.

The two-component epoxy resin SikaBiresin^®^ CR82 with the hardener CH80-2 is supplied by the manufacturer Sika Group (Sika Österreich GmbH, Bludenz, Austria) [44] through PolyChem Chemical SRL, Bucharest, Romania. The curing cycle, applied after seven days of natural aging was carried out at 60 °C for 6 h, followed by cooling at a rate of ~0.5 °C/min.

The other resin was the unsaturated polyester resin Enydyne H 68372 TA (from Polynt Composites, Niepołomice, Poland) [45,46,47] with Metox-50W [48] as the accelerator supplied by Rompolimer Composites [49].

The quadriaxial glass fiber fabric was cut, and a set of 8 layers were weighted; the mold was coated with CIREX CP 10, an extraction wax (producer Airétec [50,51], distributor RomPolimer Composites SA, Bucharest, Romania) used for polyester and epoxy resins. It is a soft release agent that evaporates at room temperature and forms a thin monomolecular layer that adheres to the mold walls and has no affinity for the resin or the composite. The composites were laying up with resin, layer by layer, pressed in mold, and we controlled the thickness with the help with a multi-screw device, also presented in [37].

The Coremat Xi3 layer was also laid up with resin in the same way. Then, a uniform pressure was applied (0.5–0.7 MPa) on the composite for at least 8 h. All fabricated composite plates can be removed from the mold at room temperature.

Tensile tests were carried out on the Instron 5982 universal test machine [52] (from INCAS, Bucharest, Romania). The machine was equipped with a 100 kN force cell, with dedicated software [53], and special grips 2736-004 for tensile tests [54], with a load measurement accuracy to +/−0.5% of reading down to 1/1000 of load cell capacity. For strain measurements, an Instron advanced video extensometer (AVE) [55] was used. Figure 3 presents a set of five test samples, for each composite, with marks for using the extensometer.

Information on fabricated plates are given in Appendix B. One may notice the very small variations of the parameters in Table A1 and Table A2.

ISO 527-1:2019 [56] recommends 13 values for the tensile test rate, starting with 0.125 mm/min, and the highest value is 500 mm/min. ISO 527-4:2021 [57] and ISO 527-5:2021 [58], standards that deal with the tensile testing of composites, refer to ISO 527-1 regarding the testing speed.

ASTM D3039/D3039M—17 Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials [59] suggests a standard head displacement rate of 2 mm/min, but does not limit this parameter. It only specifies that sample failure should be in the range of 1–10 min. It is underlined that for quasi-isotropic laminates, such as our composites, the edge effects and ply orientations are not as significant. The constant rectangular cross-section is also promoted, with the length being 250 mm for either balanced and symmetric or randomly discontinuous arrangement of the reinforcement, and the thickness and width of the specimen could be “as needed”.

ISO 527-5:2021 [58] recommends a test speed for type A specimens of 2 mm/min and for type B specimens of 1 mm/min. For many components made of composites with polymeric matrix, these test speeds are too low as compared to the actual loading speed.

ISO 527-4:2021 [57] is in the favor of testing new composites, as it could be applied for the following:

• -Fiber-reinforced thermosetting and thermoplastic composites incorporating non-unidirectional reinforcements such as mats, woven fabrics, woven rovings, chopped strands, combinations of such reinforcements, hybrids, rovings, short or milled fibers, or preimpregnated materials (prepregs);
• -Combinations of the above with unidirectional reinforcements and multidirectional reinforced materials constructed from unidirectional layers, provided such laminates are symmetrical;
• -Finished products made from materials mentioned above.

We cite this text from the standard in order to emphasis the very wide range of composite materials, innovative or “classic”, that could be tested following this standard procedure. However, this standard also recommends low test speeds: 10 mm/min for routine quality control for specimens 1B and 5 mm/min for specimen types 2, 3 and 4; a test speed of 2 mm/min for qualification tests for all specimens for qualification tests. Our samples are in agreement with sample type 3, without end tabs and with overall length 300 mm > L_3_ ≥ 250 mm and the initial distance between grips (nominal) of 150 mm. Table 2 presents the test rates the authors used in this study and the equivalent strain rates, calculated based on the length between the extensometer length L_0_ = 50 mm [55].

Typical tensile strain rates experienced by composites during various marine events—collisions and wave impacts are as following [60,61,62,63,64]:

• Global structural strain rates remain low, typically < 1 s^−1^, often 0.1–10 s^−1^;
• In a ship-side collision simulation, local equivalent plastic strain rates up to ~30 s^−1^ just before fracture, in a complex model [60];
• Low-velocity wave slamming is similar to quasi-static, with strain rates just a few s^−1^, often negligible change in response [62];
• Under more violent conditions (high-speed slamming or wave impact), strain rates can rise to tens or hundreds of s^−1^, though exact values vary with energy and structure;
• In extreme “blast-like” marine events, such as freak waves, strain rates can reach 1 s^−1^ to 10^4^ s^−1^, with an average around 10 s^−1^ near the blast range [63].

Taking into account the above mention values for the strain rate, the composite structures in marine applications should be tested at larger range for the strain rate; thus, this study offers information on a larger test rate interval for the mechanical characteristics.

ISO 527-1:2019 [56] recommends 13 values for the tensile test rate, starting with 0.125 mm/min and with the highest value being 500 mm/min. We selected four test rates, three are included in this range (10 mm/min, 200 mm/min and 500 mm/min) and one is higher (1000 mm/min), taking into account the machine test parameters and the above discussion.

3. Results

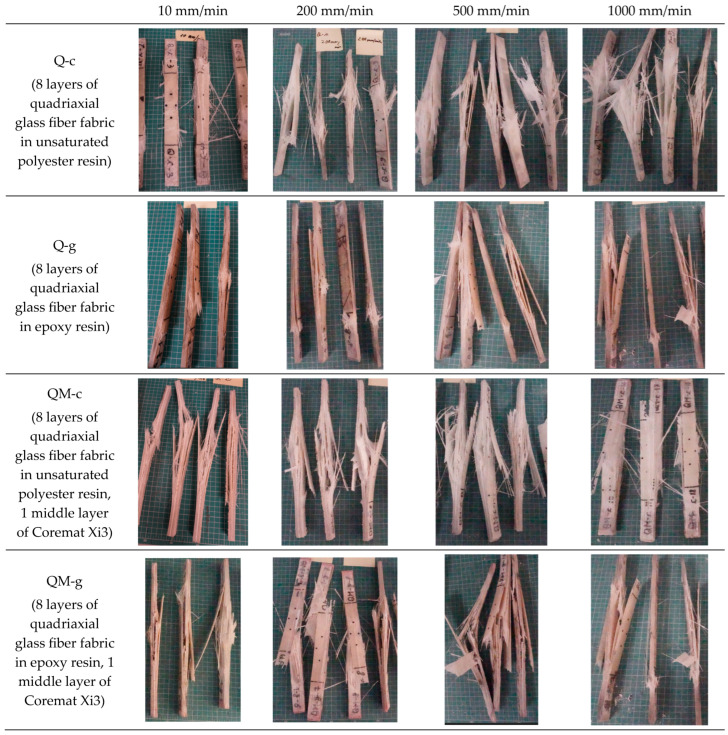

Figure 4 presents typical failure aspects of each tested composite and for each test rate. Progressive damage is noted as the test rate increases. All composites show increasing damage severity (more fraying, fiber pull-out, delamination) as the test rate rises from 10 mm/min to 1000 mm/min. These photos sustain a qualitative evaluation of these composites, suggesting that all materials are sensitive to strain rate to some extent. At higher strain rates (500 mm/min and 1000 mm/min), fiber breakage dominates across all composites, indicating the transition from matrix-dominated to fiber-dominated failure behavior. In both QM-c and QM-g composites, failure tends to initiate or localize around the Coremat Xi3 interface, implying that this internal layer systematically influences crack propagation, and it is less resistant than the stratified structure (composite glass fibers + resin matrix) near it.

At the highest test rate (1000 mm/min), the composite Q-g presents random delamination and is less predictable. The composite QM-g has the most chaotic failure among all, and failure aspects are highly variable, with unstable crack paths.

The composite Q-c seems to have the more consistent damage uniformity across test rates.

The experimental results reveal that the matrix–reinforcement interaction plays a crucial role in tensile performance. The polyester resin-based composite (Q-c) demonstrated the most favorable balance among strength, ductility, and repeatability, making it the best performer among these four tested composites, across multiple criteria. The addition of the Coremat Xi3 layer (in the middle of the composite) generally improved strain at break and energy absorption, but at the cost of stiffness and tensile strength, especially in the epoxy system. These trends confirm that the choice of matrix and internal layering must be tailored according to application needs—whether rigidity or flexibility is prioritized. Moreover, the reduced test rate sensitivity, except the passing from the lowest test rate (10 mm/min) to 200 mm/min, observed for all composites, suggests that test rate is a factor that could be approximated as constant for the tested range, even if this is a non-negligible factor in material selection for real-world dynamic loads.

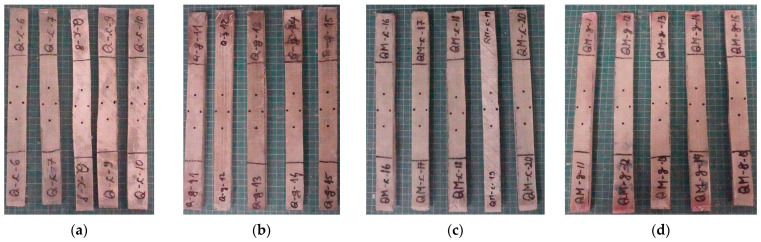

Based on the photos given in Figure 3, we summarized our observations taking into account two criteria: the presence or absence of mat (Table 3) and the test rate for each composite (Table 4).

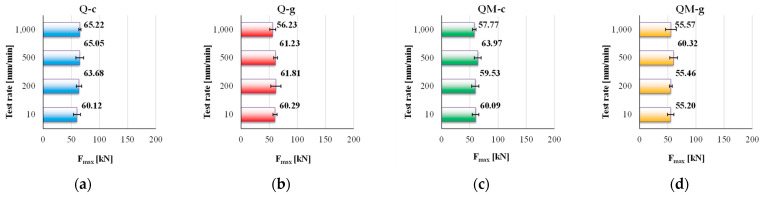

Figure 5 presents the maximum values of measured force, F_max_, for each composite, as the average of five tests and the standard deviation of the measurements. The maximum tensile force values (F_max_), determined as the average of five tests for each composite and testing rate, highlight distinct behaviors depending on the resin type and the presence or absence of the Coremat Xi3 interlayer.

The analysis of the maximum tensile force values (F_max_) reveals a variation on a quite small range (55.2 KN to 65.22 kN, a variation of 15.36% reported to higher value), with the common constituent being the glass fiber fabric. This means that, under traction, the fibers would “dictate” the value of these characteristics, even if structure is different and the matrix resins are different.

Peak values, such as 65.22 kN for Q-c, at 1000 mm/min, and minimum value of 55.20 kN for QM-g, reflect a complex mechanical behavior. The polyester-based system proves efficient in the absence of a middle layer, while the combination of epoxy resin and Coremat Xi3 significantly reduces the load-bearing capacity. These findings are crucial for material selection in dynamic structural applications.

The Q-c composite (polyester matrix, without Coremat Xi3) exhibits the highest F_max_ value, reaching 65.22 kN, for the test rate of 1000 mm/min. A light upward trend is observed for this composite, starting from 60.12 kN, at 10 mm/min, indicating good mechanical adaptability to dynamic loading. This is notable given that polyester resins are generally considered less performant than epoxies, but these results suggest excellent compatibility between this matrix and the quadriaxial reinforcement, when loading in traction.

In contrast, the Q-g composite (epoxy matrix, without Coremat Xi3) shows a different trend: after a slight increase to 61.81 kN, at 200 mm/min, the values begin to drop, reaching 56.23 kN at 1000 mm/min. This significant decrease at a high test rate may indicate increased sensitivity of the epoxy matrix to fast loading, in the absence of a stress-diffusing interlayer.

The QM-c composite (polyester matrix with Coremat Xi3) presents a more distinguished evolution: starting from 60.09 kN, it rises to 63.97 kN at 500 mm/min, then decreases again to 57.77 kN, at 1000 mm/min. This fluctuation suggests that while the Coremat Xi3 layer may positively contribute at moderate test rates, it introduces a damping effect that limits the maximum value of the load under higher rates of deformation.

The QM-g composite (epoxy matrix with Coremat Xi3) shows the lowest values for F_max_ overall, with values ranging between 55.20 kN and 60.32 kN, with low variation. This suggests that the simultaneous presence of a stiff matrix and a soft, porous interlayer leads to an antagonistic effect that reduces the overall supported load.

In conclusion, the Q-c composite, with a polyester matrix and no interlayer, proved to be the most performant with regard to the maximum supported load, under increasing test rate. It combines high resistance with a stable growth trend of maximum tensile force, making it a suitable choice for structural applications involving dynamic loading. On the opposite end, QM-g displayed the weakest performance, suggesting that the addition of Coremat Xi3 in conjunction with an epoxy matrix may be detrimental in terms of the bearing tensile load. These results are highly relevant for material selection in structural applications subjected to variable or dynamic loading, where mechanical resistance under fast testing conditions is critical.

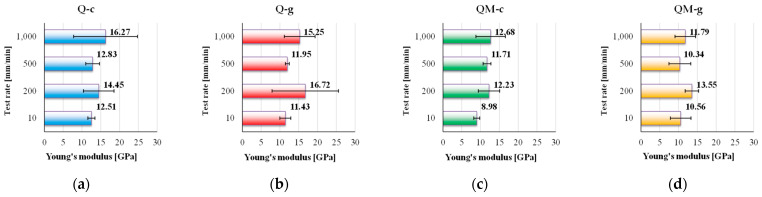

Figure 6 presents the values for Young’s modulus, calculated for each composite. In terms of stiffness, the two composites without the interlayer (Q-c and Q-g) exhibited the highest Young’s modulus values, with a peak of 16.72 GPa for Q-g. However, Q-c stood out for its consistent increase in stiffness with test rate, suggesting better adaptability under dynamic loads. The Coremat Xi3-containing composites recorded lower values, between 8.98 GPa and 13.55 GPa, indicating a mechanical decoupling effect, introduced by the porous middle layer.

Young’s modulus provides essential information about the stiffness of composite materials in the linear elastic regime. It reflects the material’s ability to resist deformation under axial loading and is critical in structural applications where dimensional stability is required. It plays a critical role in the design of composite structures. Ideally, structural components should be designed using multiple modulus values corresponding to different loading rates, especially when dynamic effects are expected.

However, in this study, the experimental results reveal a limited sensitivity of Young’s modulus to the test rate. This finding, based on experimental results, significantly simplifies the design process. The designer may either adopt the most conservative (the lowest) value or apply a calibrated safety factor to cover minor rate-induced variations.

This stability is particularly advantageous for real-world applications where loading rates may vary, such as in marine structures exposed to wave impacts, vibration, or fluctuating operational loads.

From a modeling and simulation perspective, the rate-dependent values of Young’s modulus can be used to define more accurate material constitutive models, particularly under dynamic or transient loading conditions.

However, the limited sensitivity of Young’s modulus to test rate observed in this study allows the use of a constant elastic modulus in numerical models. This simplifies structural analysis and enables reliable predictions without the need for complex viscoelastic or strain rate–dependent formulations.

The Q-c composite (polyester matrix, without Coremat) shows an increasing trend for Young’s modulus, with values ranging from 12.51 GPa at 10 mm/min to 16.27 GPa at 1000 mm/min, demonstrating a consistent increase in stiffness with test rate. This sustained growth suggests a strong interface between matrix and reinforcement and an efficient load transfer capacity under dynamic conditions.

The Q-g composite (epoxy matrix, without Coremat Xi3) achieves the highest overall value (16.72 GPa at 200 mm/min) but exhibits significant variation, starting from 11.43 GPa at 10 mm/min, and reaching 15.25 GPa, at 1000 mm/min. This irregular trend may indicate a sensitivity of the epoxy matrix to low-rate testing, possibly due to early microcracking or incomplete stress relaxation.

The QM-c composite (polyester with Coremat Xi3) has lower stiffness overall, with a minimum of 8.98 GPa at 10 mm/min and a maximum value of 12.68 GPa, at 1000 mm/min. The presence of the Coremat Xi3 layer appears to reduce overall rigidity, although its influence diminishes at higher test rates, possibly due to local compaction of the intermediate layer.

QM-g (epoxy with Coremat Xi3) shows a wavy behavior (in a band of 3 GPa), ranging between 10.56 GPa and 13.55 GPa, with the highest value at 200 mm/min. Despite the inherent rigidity of epoxy resin, the Coremat Xi3 layer seems to limit its effect under extreme test rates, likely due to partial mechanical decoupling at the porous interface.

Overall, Q-g (epoxy matrix, no Coremat Xi3 layer) provides the highest peak stiffness (or Young’s modulus), but Q-c (polyester resin as matrix, no Coremat Xi3 layer) demonstrates the most stable and predictable growth with test rate, making it mechanically robust under variable loading conditions. Both Coremat Xi3-containing composites display significantly reduced values of Young’s modulus, confirming this interlayer’s negative effect on the elastic load-bearing capacity.

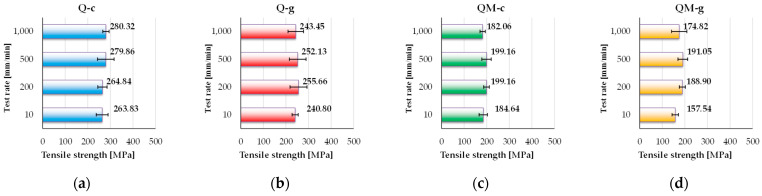

Figure 7 presents the ultimate tensile strength for each composite (tensile stress calculated for F_max_). Tensile strength, expressed in MPa, is a key parameter for evaluating the mechanical performance of composite materials in structural applications. It defines the maximum axial stress a material can withstand before failure and reflects the effectiveness of the reinforcement–matrix interface as well as the overall structural behavior under static or dynamic loading.

Analyzing these values, one may notice differences between the two composites without Coremat Xi3 (Q-c and Q-g) and those with a middle layer of Coremat Xi3, for which the tensile strength is much lower. However, all composites have a reduced sensitivity of this characteristic to the test rate. The tensile strength results emphasize the superior performance of the Q-c composite (peak of 280.32 MPa), followed by Q-g (~255 MPa). The presence of Coremat Xi3 clearly lowers this value, especially for the composite QM-g (minimum of 157.54 MPa). These findings indicate that, for marine or structural applications, mat-free composites are better suited in terms of axial mechanical resistance.

The Q-c composite (polyester matrix, without Coremat Xi3) exhibits the highest tensile strength values, with a peak of 280.32 MPa, at 1000 mm/min and a minimum of 263.83 MPa at 10 mm/min. A consistent increase is observed with rising test rate, indicating a favorable structural response under dynamic loading and a strong compatibility between the polyester matrix and the quadriaxial glass fiber reinforcement.

The Q-g composite (epoxy matrix, without Coremat Xi3) shows slightly lower values, ranging between 240.80 MPa and 255.66 MPa, with minor fluctuations depending on test rate. Although epoxy is generally known for superior mechanical properties, these results suggest that, in the absence of a core layer, polyester resin may perform comparably or even better under certain test conditions.

For QM-c (polyester matrix with Coremat Xi3), the tensile strength values are significantly lower, between 187.64 MPa and 199.16 MPa. While there is a slight increase up to 500 mm/min, a drop to 182.06 MPa, at 1000 mm/min indicates that the presence of Coremat Xi3 negatively affects performance at higher test rates.

QM-g (epoxy resin with Coremat Xi3) performs the worst among all tested composites, with tensile strength values ranging from 157.54 MPa to 191.05 MPa. Although it peaks at 500 mm/min, the value drops again to 174.82 MPa at 1000 mm/min, suggesting a loss of stiffness caused by local decoupling effects introduced by the porous interlayer.

In conclusion, the experimental results clearly demonstrate that the presence of Coremat Xi3 significantly reduces tensile strength, regardless of the matrix type. Q-c remains the top-performing composite configuration and is recommended for structural applications where axial load-bearing capacity is a key criterion. In contrast, QM-g should be avoided in such contexts, due to its limited performance, likely resulting from the combination of a stiff matrix with a compliant (but not very resistant) core structure.

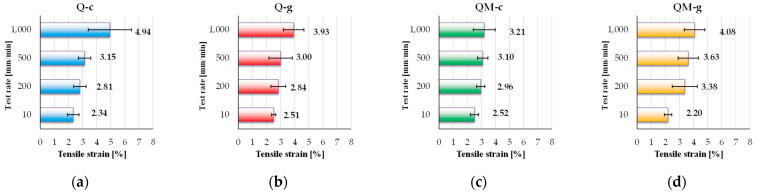

Figure 8 presents the tensile strain at break, calculated for each composite. The tensile strain at break, expressed as a percentage, is a key indicator of a composite material’s ductility. It reflects the material’s ability to undergo deformation prior to failure and provides insight into its pseudo-plastic behavior and energy absorption capacity under tensile stress. Analyzing these values, one may notice a small sensitivity to the test rate: all composites have the smallest value for the lowest test rate (10 mm/min) and the highest value for the highest test rate (1000 mm/min). The strain at break shows a clear tendency to increase with test rate, with the highest value (4.94%) recorded for Q-c. Despite having a high-quality epoxy matrix, QM-g reaches 4.08%, at 1000 mm/min, demonstrating pseudo-plastic behavior induced by the Coremat Xi3 layer. Such a response may be valuable in applications where flexibility is critical. Monitoring critical zones of the structure (as a hull of a ship) (presumed/calculated to have higher strains) and comparing with admissible values for strain depending on elastic region in the stress–strain curve could avoid catastrophic events or could impose a preventive maintenance or a change in operational conditions. Monitoring strain levels and comparing them with the strain at break allows early detection of fatigue, prompting repairs before failure occurs.

In addition, knowing the strain at break allows engineers to assess how large deformation of a structural component (like a hull or a deck) can withstand before failure, which is crucial during storms or collisions. Materials with high strain at break are preferred for flexible joints or hull sections that must absorb energy during impacts without cracking. Understanding and knowing the strain at break helps avoid sudden brittle failure, which in marine environments could lead to flooding, loss of structural integrity, or sinking.

A shipboard engineer could monitor two key deformation zones:

• -Strain up to the elastic limit, which corresponds to normal operating conditions, where the structure returns to its original shape after the load is removed;
• -Strain beyond the elastic limit, but below the strain at break, indicating that the material has entered the (elasto-)plastic deformation range and is experiencing advanced loading.

By continuously comparing measured strain values (from onboard strain gauges or other sensors) to these thresholds, engineers can make informed decisions—such as scheduling preventive maintenance or altering the ship’s operation (e.g., reducing speed, changing course, or avoiding severe weather)—in order to avoid approaching failure and prevent catastrophic damage.

The Q-c composite (polyester matrix, without Coremat Xi3) exhibits the widest variation with test rate, ranging from 2.34% at 10 mm/min to 4.94%, at 1000 mm/min. This notable increase suggests a pronounced viscoelastic behavior of the polyester matrix, which becomes more flexible under dynamic loading conditions.

The Q-g composite (epoxy matrix, without Coremat Xi3) shows a more uniform response, with strain values between 2.51% and 3.93%.

Although both resins have close values for the flexural modulus (3.3 GPa for Enydyne H 68372 TA and 3.0 GPa for SikaBiresin CH80-2), the tensile and flexural strengths are almost twice that for SikaBiresin CH80-2 than the resin Enydyne H 68372 TA. The resulting composites (Table 5), Q-c and Q-g as structures without a Coremat Xi3 layer, do not have such evident differences in mechanical characteristics, meaning that the reinforcement dominates these values and not the matrix. The same conclusion could be drawn for the two composites with Coremat Xi3. The middle layer lowered the tensile strength as compared to the composite without it, with almost 100 MPa for the composite having the polyester resin as matrix and with approx. 70 MPa for the composites with epoxy matrix. The conclusion from this discussion is that only experimental data of a composite should be relied on when designing or verifying a structure made a particular composite.

The QM-c composite (polyester with Coremat Xi3) maintains moderate and stable values: from 2.52% to 3.21%. The Coremat Xi3 layer appears to introduce a zone of controlled deformation, maintaining strain levels within predictable limits, but limiting the overall extensibility of the material.

The composite QM-g (epoxy resin with Coremat Xi3) shows the most interesting behavior: despite starting at 2.20% at 10 mm/min, it reaches 4.08%, at 1000 mm/min. This substantial increase suggests that the Coremat layer Xi3 acts as a tension absorber, partially offsetting the epoxy matrix’s rigidity and allowing for greater deformation under dynamic conditions.

In conclusion, Q-c demonstrates the highest strain capacity, while QM-g exhibits significantly increased ductility at higher test rates, which may be advantageous in applications involving impacts or vibrations. Conversely, Q-g and QM-c show a more rigid and rate-insensitive behavior.

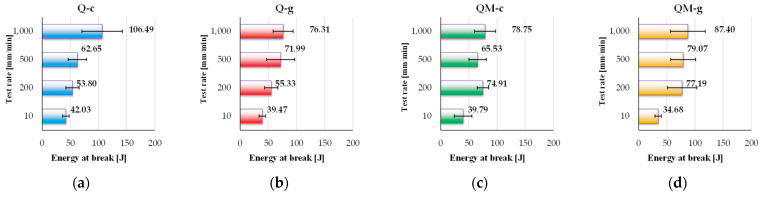

Energy at break, measured in joules (J), represents the total amount of energy a composite material can absorb before complete failure. This parameter is crucial for evaluating the performance of composites in dynamic applications, such as impact-loaded structures, vibration-sensitive components, or cyclically loaded systems. Organizing the experimental data as in Figure 9, the differences among the four tested composites are pointed out.

Analyzing these values, one may notice a sensitivity to the test rate: all composites have the smallest value for the lowest test rate (10 mm/min) and the highest value for the highest test rate (1000 mm/min). For the lowest test rate (10 mm/min), the values do not differ too much; however, when the test rate increases, the composites with Coremat Xi3 have values of 74–77 J for composites QM-c and QM-g, at 1000 mm/min. The composites without a mat layer have a more differentiated trend. The composite Q-c has an average energy at break of 106.49 J, at 1000 mm/in, but Q-g has only 76.31 J for the same test rate. A beneficial contribution of the Coremat Xi3 layer is observed in QM-g and QM-c composites at higher speeds, suggesting high potential for applications requiring energy absorption/dissipation, such as marine structures exposed to impact or vibrations. It is worthy to point out that, for three of the composites (Q-g, QM-c and QM-g), the energy at break at 1000 mm/in is almost twice as the same characteristic at 10 mm/min. Only the composite Q-c has this ratio between energy at break for 1000 m/s and 10 mm/min of 2.5.

The Q-c composite (polyester resin, without Coremat Xi3) exhibits a clearly increasing trend, from 42.03 J at 10 mm/min to 106.49 J, at 1000 mm/min. This behavior highlights the polyester matrix’s efficiency in dissipating mechanical energy under fast loading conditions. The peak value of 106.49 J is the highest among all tested composites.

The Q-g composite (epoxy resin, without Coremat Xi3) shows relatively consistent behavior, with values ranging from 39.47 J to 76.31 J. Although the energy at break increases with test rate, the epoxy matrix appears to have a lower energy absorption capacity compared to the polyester one, likely due to its inherent stiffness and limited internal deformation mechanisms.

The composites that include the Coremat Xi3 interlayer—QM-c and QM-g—behave differently. At low speed (10 mm/min), their energy at break is modest (39.79 J for QM-c, 34.68 J for QM-g). However, as the test rate increases, both values rise significantly, reaching 78.75 J and 87.40 J, respectively, at 1000 mm/min. This trend suggests that the Coremat Xi3 layer plays an important role in additional energy dissipation, especially under dynamic conditions. Its local “damping” effect likely contributes to stress redistribution and progressive failure delay, enhancing the composites’ toughness.

In conclusion, Q-c shows the highest total energy absorption capacity, but QM-g and QM-c achieve comparable performance at higher test rates thanks to the presence of the Coremat Xi3 layer. Thus, these configurations are promising candidates for applications where impact resistance and energy dissipation are critical design factors.

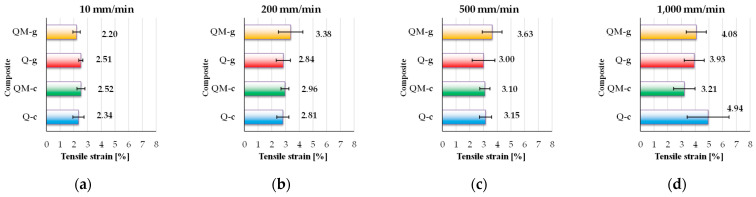

Figure 10 presents the strain at break, a characteristic that proves to be less dependent on the composite architecture and has a slightly trend to increase with test rate, which is unusual for other materials like metallic alloys of polymers that commonly have smaller values for strain at break when the test rate increases.

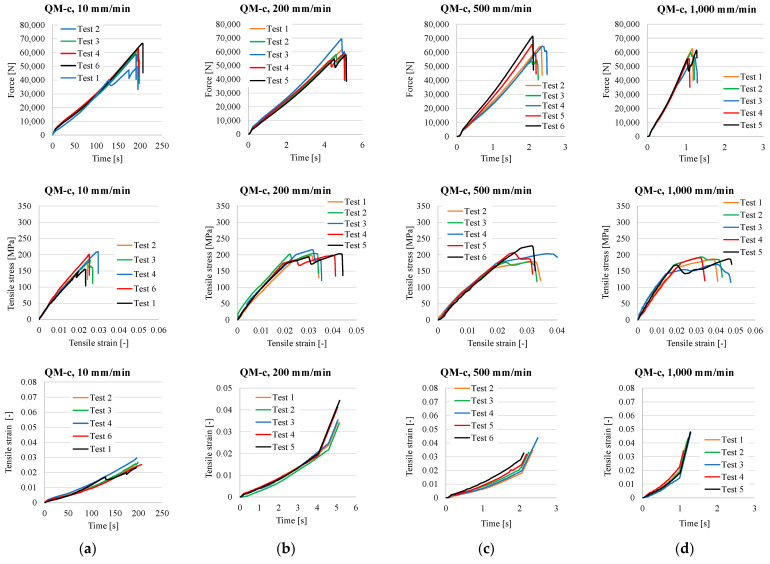

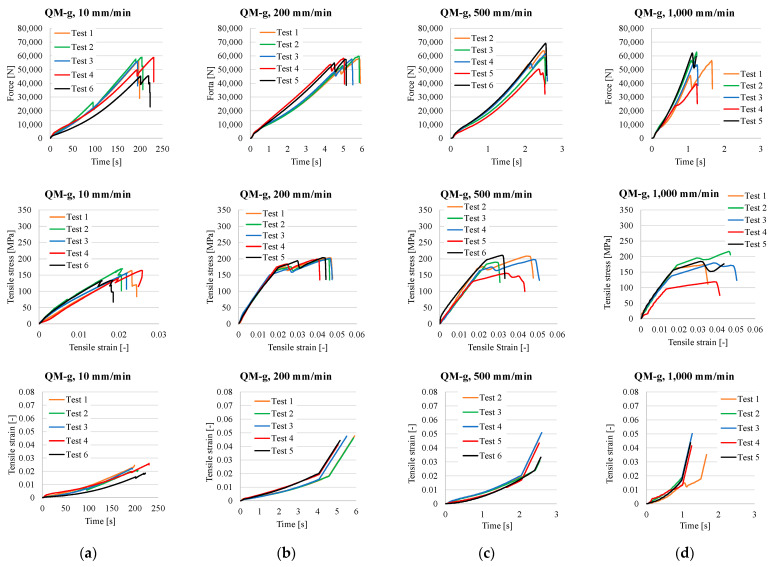

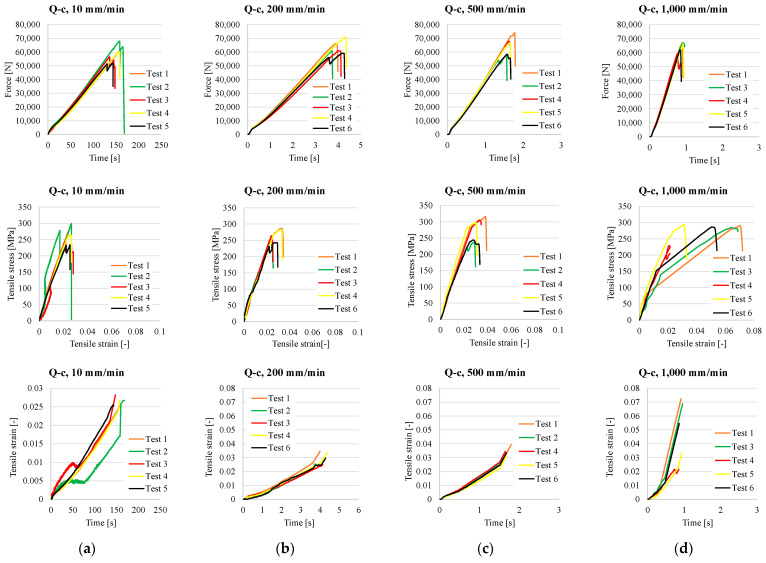

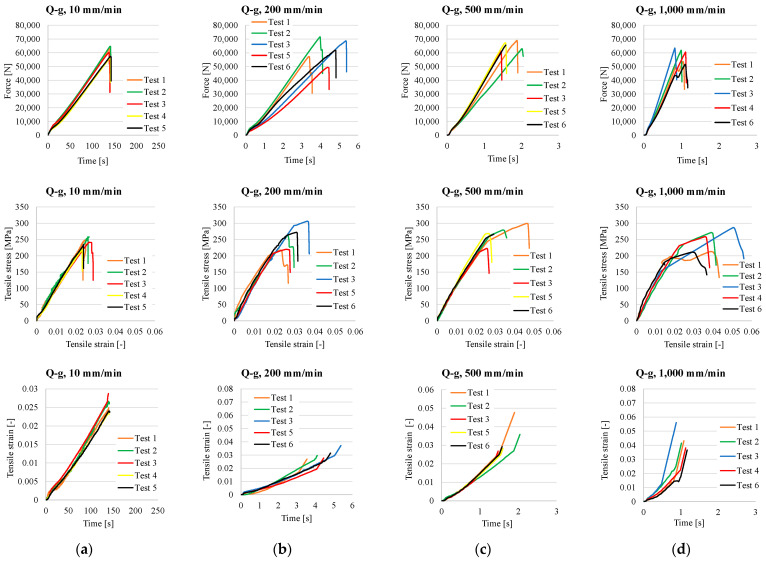

Force–time, stress–strain, and strain–displacement curve details for all samples at various test rates are presented in Appendix A.

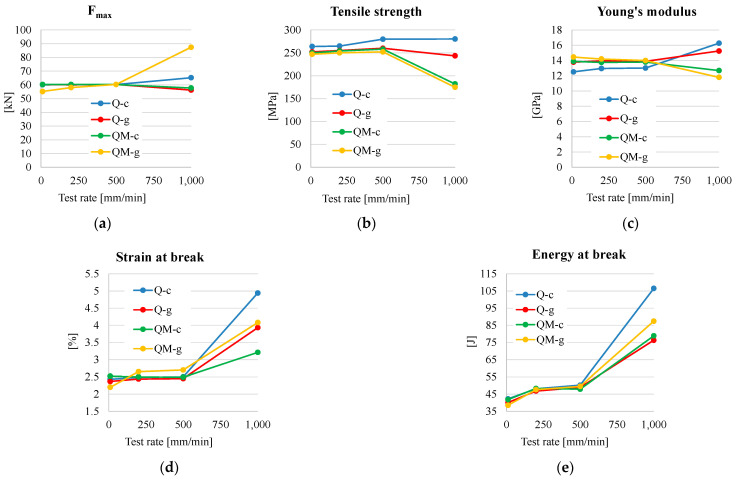

Figure 11 summarizes the experimental results.

The measured values for F_max_ (Figure 11a) are grouped for the range 10–500 mm/min; however, for test rate of 1000 mm/min, this characteristic has a steeper slope for the composite QM-g, close to 90 KN. For the other composites, the evolution of Fmax is in a band of about 10 KN.

The dependency of tensile strength on test rate (Figure 11b) is different. In the range of a test rate of 10–1000 mm/min, composites without Coremat Xi3 have low sensitivity to test rate (only a very slight increase, for composite Q-c). The composites with Coremat Xi3 (QM-c and QM-g) have very close values for all test rates but very low ones at 1000 mm/min, with 182.06 MPa for QM-c and 174.82 MPa for QM-g. This is unusual behavior as other materials have an increase in these characteristics when the test rate increases.

Young’s modulus (Figure 11c) shows little increasing variation with test rate for composites without Coremat Xi3 and is more visible from 500 mm/min to 1000 mm/min, while this characteristic is decreasing obviously for the composites with Coremat Xi3 for the same interval of test rates.

The evolution of strain at break (Figure 11d) is not differentiated for the test rates 10–500 mm/min in a band limited by 2.25–2.75%. However, from 500 mm/min to 1000 mm/min, the strain at break increases visibly to 3.5% for QM-c to 5% for Q-c. This is an unusual behavior that could be explained by micro-local failures of matrix or/and fibers, without a total break of the composite sample.

The values of energy at break (Figure 11e) are well grouped for the test rates of 10–500 mm/min. The slope inclination is small, but the same slope between 500 mm/min and 1000 mm/min has a steeper inclination, which is favorable to absorb more energy in the case of a tensile loading. Further tests should be carried out for greater rates of loading. One may notice a sensitivity of energy at break to the test rate: all composites have the smallest value for the lowest test rate (10 mm/min) and the highest value for the highest test rate (1000 mm/min).

The rate-dependent trend of each tested composite could be pointed out by analyzing the variation of each characteristic, as reported at the value obtained at a test rate of 10 mm/min (Table 6).

Young’s modulus increases with test rate, but with 41.20% for the composite QM-c and only with 11.65% for composite QM-c. Composites without Coremat Xi3, Q-c and Q-g, have increases of 30.06% and 33.42%, respectively.

F_max_ has very small variations between the test rate 10 mm/min and 1000 mm/min, meaning that this characteristic is dependent on the reinforcement of the quadriaxial glass fiber fabric and not on the matrix type and the presence of Coremat Xi3 middle layer. Also, it reflects the quality of all fabricated plates.

Tensile strength, σ_max_, has also a small variation with test rate, except for composites Q-c and QM-g.

Strain at break increases for each composite, a more ductile behavior at 1000 mm/min is noted in composites Q-c and QM-g.

Energy at break is relevant for this test campaign. For each composite, this characteristic increases, with approx. 150% for Q-c and QM-g and only 93.34% and 97.91% for Q-g and QM-c, respectively.

Based on Table 6, the analyzed characteristics could be organized in two groups: Fmax and tensile strength with low sensibility to the test rate and the other group with characteristics increasing with the test rate, depending on the architecture and matrix resin of the composites. The authors emphasis that these conclusions are formulated and supported by experimental data only for the tested composites.

4. Conclusions

This study reports on characteristics obtained from tensile tests for composites designed by the authors and intended for marine applications. The common feature of all the four composites is the reinforcement made of quadriaxial glass fiber fabric. Two composites (Q-g and QM-g) have an epoxy resin as the matrix and the other two use an unsaturated polyester resin (Q-c and QM-c). Two composite types were fabricated with a middle layer of Coremat Xi3 (QM-c and QM-g).

We explored quadriaxial glass fiber composites—a reinforcement architecture underrepresented in the current literature, despite its growing use in industrial sectors like marine and wind energy. This study provides information on their behavior under tensile loading, and this information is useful for comparison with other glass fiber composites.

Through this tensile test campaign and mechanical characterization, we provide some of the first performance data for Castro Composites’ quadriaxial fabrics, which are usable in the marine industry (thicker composites). While unidirectional and bidirectional composites have been extensively studied, quadriaxial laminates lack experimental benchmarks. Our study begins to close that gap and to promote this type of composite due to its low sensitivity in traction to the test rate.

Our results offer designers a starting point to assess quadriaxial-reinforced composites, which are crucial for lightweight structural applications, but also for speed-up technological operations for composite components. These insights can inform producers and end-users of non-crimp fabrics, aiding value in selection, design, and optimization of components using this type of fabric.

The experimental analysis carried out on these composites types under uniaxial tensile loading conditions and varying test rates (10 mm/min to 1000 mm/min) revealed significant differences in mechanical behavior, which can be directly attributed to the matrix type (polyester vs. epoxy) and the presence or absence of the Coremat Xi3 interlayer. By correlating the data for several characteristics (maximum force, Young’s modulus, tensile strength, strain at break, and energy at break) with the detailed information provided by the force–time, stress–strain, and strain–time curves in Appendix A, a comprehensive and nuanced understanding of their tensile performance has been achieved.

Among all the materials tested, the Q-c composite (polyester matrix without Coremat) demonstrated the most balanced mechanical behavior, marked by consistently high tensile strength (~280 MPa at 1000 mm/min, with low variation with test rate), strong initial stiffness, and excellent repeatability among replicates. Its stress–strain curves revealed a clearly defined elastic domain, followed by a sharp fracture. At higher testing speeds, a natural transition toward semi-ductile behavior was observed, with strains exceeding 4% and a significantly increased energy absorption capacity (~106 J), indicating remarkable adaptability to dynamic loading conditions without compromising structural integrity.

The Q-g composite (epoxy matrix without Coremat Xi3), although based on a stiffer resin, exhibited a more brittle trend. The maximum tensile strength remained slightly below that of Q-c (up to ~243 MPa at 1000 mm/min, also with low variation with test rate), and the force–time curves showed abrupt failure events, with increasing variability between samples at higher speeds. Although the strain at break increased slightly under dynamic conditions, the lack of a clear plastic phase and the rapid crack propagation indicated high sensitivity to structural imperfections and reduced energy dissipation capacity.

By contrast, the introduction of the Coremat Xi3 interlayer produced essential changes in the tensile response, enhancing the deformability and enabling a more progressive failure in QM-c and QM-g. The QM-c composite (polyester matrix with Coremat Xi3) showed reduced average strength (maximum 182 MPa), but a noticeable improvement in ductility with increasing test speed, reaching strains of up to 3.6% and energy absorption around 78 J. This transition is associated with a progressive failure mechanism in which the Coremat Xi3 layer functions as a compliant zone that redistributes stress and delays crack propagation.

The most noteworthy case was the QM-g composite (epoxy resin with Coremat Xi3), which combined the advantages of a rigid matrix with the benefits of an interlayer. Starting from a brittle response at 10 mm/min (strain at break being only ~2.2% and tensile strength ~174 MPa at 1000 mm/min), the material evolved into a remarkably deformable structure under high-speed loading, reaching strain at break values above 4% at 1000 mm/min and bearing an energy at break of ~87 J. Its curves for stress, strain, and energy with time indicated diffuse and progressive failure, with delayed structural collapse, confirming the Coremat Xi3′s role in attenuating crack growth and facilitating gradual energy dissipation through local micro-deformation.

Regarding stiffness, the highest Young’s modulus values were recorded for the epoxy-based systems. However, this came at the expense of flexibility and a stronger tendency toward brittle failure. Polyester-based composites, though slightly less stiff, compensated for a more favorable evolution of ductility and more stable performance under dynamic loading.

Taken together, these results highlight that each structural configuration provides specific advantages depending on the application’s requirements. Q-c is ideal for applications requiring high stiffness and long-term strength retention. Q-g may be used in scenarios where immediate stiffness is needed but requires careful control of defects. Meanwhile, QM-c and especially QM-g are recommended for situations demanding enhanced energy absorption, ductility, and progressive failure under tensile dynamic loads.

Ultimately, the tensile behavior of these composites is governed by a complex interaction among matrix type, structural architecture, and test rate.

Moreover, the results presented herein are particularly relevant for marine applications, where composites are frequently subjected to variable tensile loads, cyclic fatigue, and dynamic stresses, caused by wave motion, impact, or high-speed operation. The ability of materials, such as QM-g and QM-c to absorb energy, exhibit controlled deformation, and maintain structural integrity under high strain rates positions them as promising candidates for structural elements in shipbuilding, offshore platforms, and marine renewable energy systems. The high stiffness and consistent tensile performance of Q-c also make it suitable for semi-static marine structures requiring dimensional stability and strength over time. Thus, the comparative tensile testing conducted in this study provides critical insights into the selection and optimization of composite materials tailored for demanding marine environments.
