Biomechanics of humeral locking plate augmented with fibular strut allograft and intramedullary strut plate using finite element analysis
Cheng-Hung Lee, Li-Kun Hung, Yu-Chun Yen, Kuo-Chih Su
TL;DR
This study compares two surgical methods for treating humeral fractures using computer models and finds both provide similar stability.
Contribution
The study proposes that intramedullary strut plates can replace fibular allografts with similar biomechanical outcomes.
Findings
Both fibular strut allograft and intramedullary strut plate reduce displacements and stresses in humeral fractures.
Biomechanical performance of both methods is comparable under axial, oblique, and torsional forces.
Intramedullary strut plate is a viable alternative to fibular allograft in implant design.
Abstract
A humeral locking plate augmented with fibular strut allograft treated for proximal humeral fracture without internal structural support is satisfactory. While it is better clinically and biomechanically than the locking plate alone, it has disadvantages, including difficulty to obtain and the possibility of infection. Other alternative augmentation approaches are in demand. Therefore, the hypothesis of this study is whether intramedullary strut plate can replace fibular strut allograft as a surgical method while providing similar biomechanical performance. The finite element analysis (FEA) models were established based on three-dimensional computed tomography images. Computer-aided design implants were incorporated into the models. According to different implants, models were divided into four groups: the intact humerus, humeral locking plate alone (LP), humeral locking plate augmented…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsShoulder Injury and Treatment · Shoulder and Clavicle Injuries · Elbow and Forearm Trauma Treatment
Introduction
Proximal humeral fracture is a common trauma of the elderly, associated strongly with osteoporosis^1–3^. Open reduction and locking plate fixation are the preferred treatments^1–4^. However, osteoporotic or comminuted fractures may also lead to unfavorable consequences of loss of reduction or implant failure^4,5^. Medial column support is the cornerstone of fixation of proximal humeral fractures^6,7^. The cortical contact at the medial column is more accessible for 2-part fractures, but not for osteoporotic, medial comminuted, 3-part, and 4-part fractures. Combination with other augmentations is needed to achieve the support of the medial column. Such measures are bone void filler (fibular strut allograft, cancellous allograft or autograft, bone cement), inferomedial screws or calcar screws, and medial buttress plate^2,6,8–10^.
In comparing between the locking plate alone and augmented with fibular strut allograft, several researches pointed out that the fibular strut allograft improves clinical and radiological outcomes, thereby reducing complications. Bae et al.'s study with cadaveric humeri cyclical loads showed that the locking plate augmented with fibular strut allograft group has lesser displacements, markedly higher maximum failure loads, and stiffness measures compared to the locking plate alone group. Varus collapses, and plates bending are seen in the locking plate alone group, but no broken plates or screws in both groups^11^. Mathison et al. found that the locking plate fixation with fibular strut allograft significantly reduces relative movements at the interface under bending loads, by increasing the failure load of the constructs by 1.72 fold and increasing the construct’s initial stiffness by 3.84 fold^12^. Lee et al. indicated that when introducing the fibular strut allograft graft, the maximal load increases by >200%, regardless of using conventional or locking plates. The maximal load and stiffness of the locking plate with fibular strut allograft are both higher than the locking plate alone^13^. Dasari et al.'s meta-analysis reported a significant difference favoring augmentation with fibular strut allograft regarding the following: change in humeral head height (HHH) and neck-shaft angle (NSA), final American Shoulder and Elbow Surgeons (ASES) score, and lower risks in developing major complications^8^. Tang et al.'s meta-analysis study indicated that locking plate with fibular strut allograft is superior to locking plate fixation alone in terms of the changes in HHH and NSA, Constant-Murley score, the ASES score, visual analogue scale (VAS) score, the varus malunion rate, and the screw penetration rate. No intergroup difference exists in the rate of humeral head osteonecrosis^10^. Several biomechanical studies also present evidence of better biomechanical effects of the locking plate augmented with fibular strut allograft than the locking plate alone.
Despite the excellent clinical outcome of the fibula strut allograft, its downside includes difficult placement, and difficulty to obtain. The possibility of infection is also a concern^14,15^. In addition, the presence of intramedullary fibula complicates joint replacement surgery if required^16^. Developing an alternative method that can replace the intramedullary fibula would help overcome these limitations. Given these considerations, this study introduced the intramedullary strut plate (IMP) as a potential alternative. The IMP features an intramedullary plate design, aiming to simplify implantation, reduce infection risk, and provide enhanced structural support while maintaining comparable biomechanical stability to FA. Here, we aimed to evaluate the biomechanical properties of the intramedullary strut plate using Finite Element Analysis (FEA), which is widely utilized in orthopedic biomechanics research due to its ability to perform detailed stress, strain, and displacement analysis on complex structures such as bones and implants. FEA enables controlled and standardized testing conditions, reducing variability that may arise in cadaveric or in vitro experiments, ensuring a precise comparison of different fixation methods. Additionally, many previous biomechanical studies on the humerus have also employed FEA to evaluate implant stability and fixation strategies. Our main objective was to use FEA, performed with the commercial software ANSYS Workbench, to analyze the biomechanical effects of three implantation methods: the humeral locking plate alone, the humeral locking plate augmented with fibular strut allograft, and the humeral locking plate augmented with an intramedullary strut plate. ANSYS Workbench is a widely-used commercial software for FEA structural analysis. Additionally, it supports various material models and boundary conditions, enabling the simulation of structural behavior under different types of loads and environmental conditions. By analyzing the biomechanical stability of the IMP, this study aims to determine whether it can serve as a viable alternative to the fibular strut allograft, addressing its associated drawbacks while achieving comparable fixation performance. Thus, the hypothesis of this study is that the intramedullary strut plate can effectively replace the fibular strut allograft as a surgical method while providing similar biomechanical performance.
Materials and methods
Build a simulation geometry model
The proximal humerus model was established using the National Institutes of Health CT images (Visible Human Project) from a male cadaver. The finite element model used in this study was constructed from humerus CT images, which were obtained from the National Institutes of Health (NIH) Visible Human Project. The use of these medical images and the development of the computational model were reviewed and approved by the Institutional Review Board I & II of Taichung Veterans General Hospital. The IRB approval number is CE16108B, under the title "Using medical image (The Visible Human Project) provided by US NIH to build an analyzable model." We used the medical image circle selection software (Mimics Medical 21.0, Materialise, Leuven, Belgium) to circle the approximate humerus region in the CT images. The bone was segmented into cortical and cancellous regions. As for the humeral locking plate and screw parts, we used the computer-aided design (CAD) software (Solidworks 2016, Dassault Systemes SolidWorks Corp, Waltham, MA, USA) to establish all parts of the models. Finally, they were combined to include the humerus, fibula, plates and screws using the Boolean operation to generate computer models suitable for FEA. The generated three-dimensional computer models were finally imported into FEA software (ANSYS Workbench 18.2, ANSYS, Inc., Canonsburg, PA).

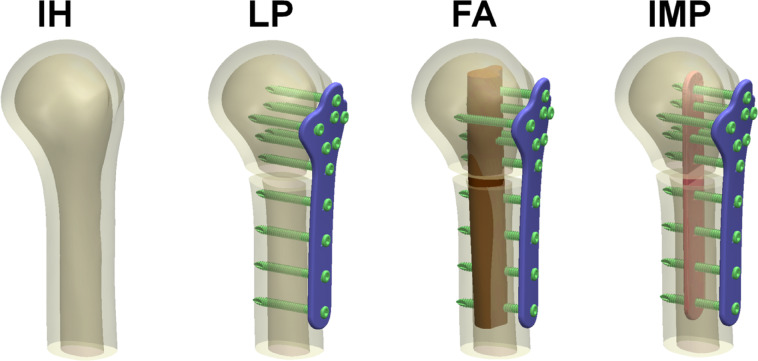

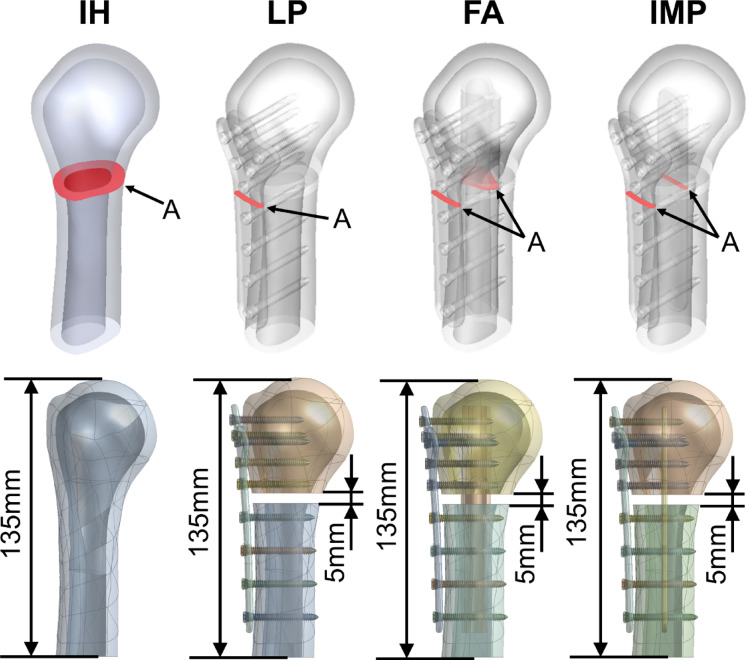

In this study, four computer models were established, which were the intact humerus (IH), humeral locking plate alone (LP), humeral locking plate augmented with fibular strut allograft (FA) and humeral locking plate augmented with intramedullary strut plate (IMP) (Fig. 1). The height of the humerus used in this study is 135 mm. The dimensions of the humeral locking plate are 16–35 mm in length, 3 mm in width, and 120 mm in height. The screws used are 35 mm in length and 3 mm in diameter. The intramedullary strut plate design has dimensions of 16 mm in length, 2.5 mm in width, and 105 mm in height. The fibular strut allograft used has an approximate diameter of 10–15 mm and a height of 105 mm (The fibula computer model used in this study was also created from CT images provided by the Visible Human Project). The IMP used in this study is a non-locking plate, as it does not contain threads within its screw holes. However, the diameter of the holes on the intramedullary plate was designed to match the outer diameter of the locking screw threads, allowing the screws to fit snugly and engage with the plate upon insertion. This design ensures that the screws effectively secure the intramedullary plate within the construct. To simulate the biomechanical characteristics of a comminuted proximal humeral fracture, a 5 mm fracture gap was introduced at the fracture site in the LP, FA, and IMP models, thereby reducing direct structural support across the fracture. This approach represents a clinically relevant unstable fracture condition, suitable for evaluating the effectiveness of internal augmentation. Figure 2 shows the cross-section of the fracture area. Additionally, the cross-sectional area (A), moment of inertia (I), and polar moment of inertia (J) and their detailed information as shown in Table 1.Fig. 1. Four groups of computer FEA models, including intact humerus (IH), humeral locking plate alone (LP), humeral locking plate augmented with fibular strut allograft (FA), and humeral locking plate augmented with intramedullary strut plate (IMP).Fig. 2. The cross-section of the fracture area (A, in red) and the height of the bone defect and the total length of the bone model.Table 1. The cross-sectional area, the moment of inertia, and the polar moment of inertia in the cross-section of the fracture area.IHLPFAIMPCross-sectional area (A) (mm)646.9547.13243.3586.71Moment of inertia (I) (mm^4^)43,383.67959.8417,763.127949.07Polar moment of inertia (J) (mm^4^)69,234.00996.8123,123.649736.36
Loading conditions and boundary conditions

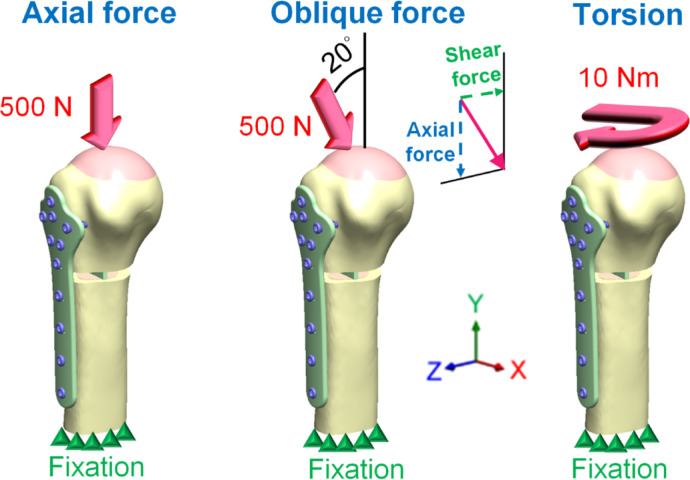

The boundary and loading conditions used for modelling, as shown in Fig. 3, followed those previous reports^17,18^. For the boundary conditions, the lower ends of the humeral shafts were fixed by the setting of displacement in the ANSYS Workbench software, indicated in Fig. 3 (green triangles), and the movements of the point on X-, Y-, and Z-axes were set as zero. The loading conditions were set as axial force, oblique force, and torsion. The axial force was defined as a downward force of 500 N acting at the top region of the humeral head (Fig. 3, pink area). The oblique force was defined as the humerus inclined at 20°, and a downward force of 500 N was applied to the top region of the humeral head, simulating a patient’s daily walking with crutches. The oblique force was divided into axial and shear forces. The torsion was defined as 10-Nm Torque applied to the top of the humeral head along the long axis of the humeral shaft.Fig. 3. The boundary conditions and loading conditions in this study.
Material properties of the model
The computer FEA models had four materials: cortical bone, cancellous bone, plate, and screw. The material properties are shown in Table 2^17,19–22^. All materials were assumed to be homogeneous, isotropic, and linear elastic. Young’s modulus (E) and Poisson’s ratio (ν) were used to reflect the material properties. Plates and screws were simulated to be titanium alloys. The bone was also divided into the cortical and cancellous bones in both humerus and fibula. The interface settings between the IMP and bone, as well as the interface settings between the FA and bone, are both set to “bonded”.Table 2. The material properties of this study^17,19–22^.MaterialYoung’s modulus (MPa)Poisson’s ratioHumerusCortical bone13,4000.3Cancellous bone2,0000.3FibulaCortical bone17,0000.3Cancellous bone7000.3Plate114,0000.3Screw106,0000.33

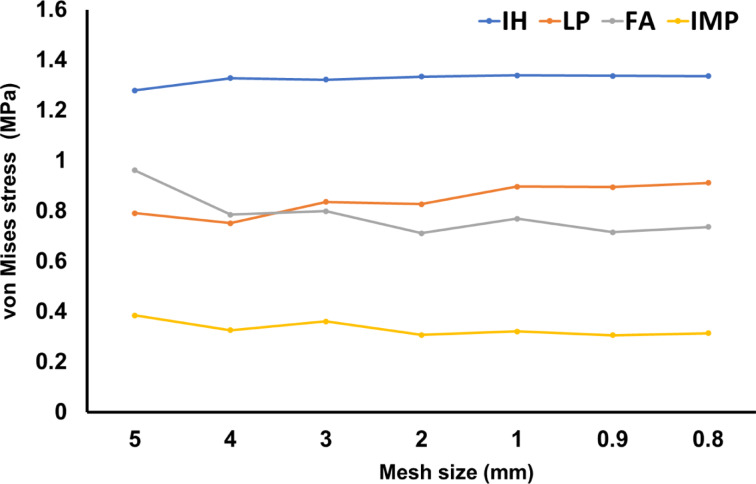

All four models passed the convergence test before starting the FEA to refine the results. The mesh size was adjusted to achieve convergence. Mesh elements were built on quadratic tetrahedral elements using ANSYS Workbench software. A downward force was applied to the humeral head as the loading condition, and the lower end of the humeral diaphysis was fixed as the boundary condition. Then, the stress value was used as the index of the numerical convergence observation to evaluate whether the model had reached the 5% convergence criterion. Figure 4 shows the results of the stress convergence tests at the same location on the humerus for the four different models in this study. The convergent results were that the mesh size was 0.9 mm, and Table 3 shows the number of nodes and elements of each group after meshing. Additionally, the finite element model was validated against a previous experimental study^23^, using the LP model as the reference. In that study, a 450 N load was applied, and the measured displacement ranged between 1.6 mm and 3.1 mm. In the finite element simulation, the LP model resulted in a displacement of 2.4713 mm, which falls within the experimental range, indicating that the finite element model is reasonable.Fig. 4. The results of the stress convergence tests at the same location on the humerus for the four different models in this study.Table 3. The number of nodes and elements of each group after meshing.Mesh numberIHLPFAIMPNumber of nodes150,4231,632,5371,657,6601,665,198Number of elements87,271954,990954,467970,858
After the FEA, the displacement and von Mises stress were used as the observation indices. The maximum displacement of the humerus was recorded, and so was the rotation angle to the y-axis of the pink region upon applied torsion (The rotation angle was obtained using ANSYS APDL (ANSYS Parametric Design Language) commands, specifically the ROTY(Measure_pilot) command, which calculates the rotation about the Y-axis.) (Fig. 3). The maximum displacement and rotation angle were used to calculate stiffness and evaluate the mechanics of the humerus under different structural supports. The von Mises stress was defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma_{von} = \sqrt {\frac{1}{2}\left[ {\left( {\sigma_{1} - \sigma_{2} } \right)^{2} + \left( {\sigma_{1} - \sigma_{3} } \right)^{2} + \left( {\sigma_{2} - \sigma_{3} } \right)^{2} } \right]}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\sigma }_{1}$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\sigma }_{2}$$\end{document} , and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\sigma }_{3}$$\end{document} represent the principal stress along the three coordinate axes. The stress distribution diagrams of the humerus, humeral locking plate, fibular strut allograft and intramedullary strut plate were recorded individually.
Results

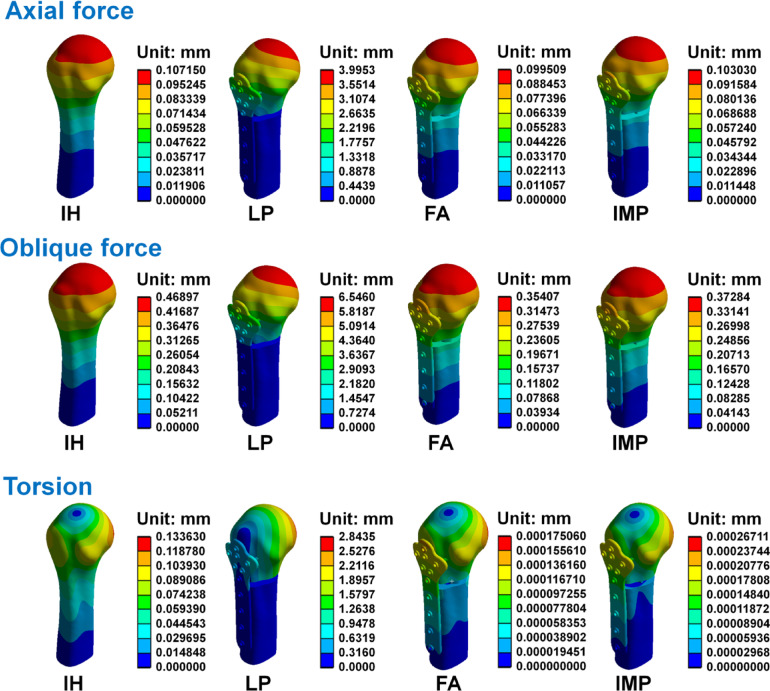

The maximum displacement, rotation angle and stiffness on the humerus with different internal fixators under axial force, oblique force, and torsion are shown in Table 4. Displacement distributions of the humerus and different internal fixators under axial force, oblique force, and torsion are shown in Fig. 5. Results revealed that when these models were under three such loading conditions, the largest displacement was found in the LP group. In comparison, displacement of the FA and IMP groups were rather similar, with the FA displacement being slightly smaller. In each group, the location of the maximum displacement occurs near the top region of the humeral head. The stiffness was calculated to reflect the strengths of structures. Under external loading conditions of axial force, oblique force, and torsion, the FA group exhibits higher stiffness, with values of 5024.6711 N/mm, 1412.1501 N/mm, and 33110.3900 N/°, respectively. Higher stiffness in a structure indicates that a larger external force is required to produce greater displacement and rotation angles, suggesting that the structure has better stability. The construct stiffness is one measure of the overall stability of the entire system. A fixation with better structural stability facilitates fracture healing, allowing patients to begin postoperative movement sooner to restore shoulder joint function^17^.Table 4. The maximal displacement, rotation angle and stiffness on the humerus under axial force, oblique force, and torsion.Axial forceOblique forceTorsionIHLPFAIMPIHLPFAIMPIHLPFAIMPMaximal displacement (mm)0.10723.99530.09950.10300.46906.54600.35410.37280.13362.84350.00020.0003Rotation angle (°)––––––––0.23933.19290.00030.0004Stiffness (N/mm)4666.3556125.14705024.67114852.95541066.166376.38251412.15011341.0578––––Stiffness(N/°)––––––––41.79033.131933,110.390022,510.8615Fig. 5The displacement distributions of the humerus and different internal fixators under axial force, oblique force, and torsion.

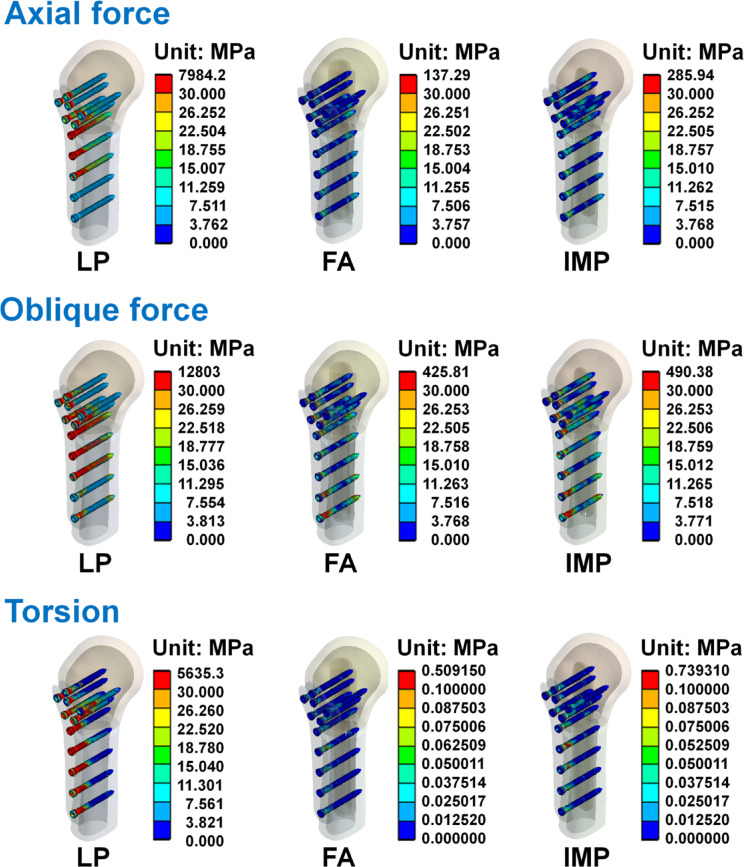

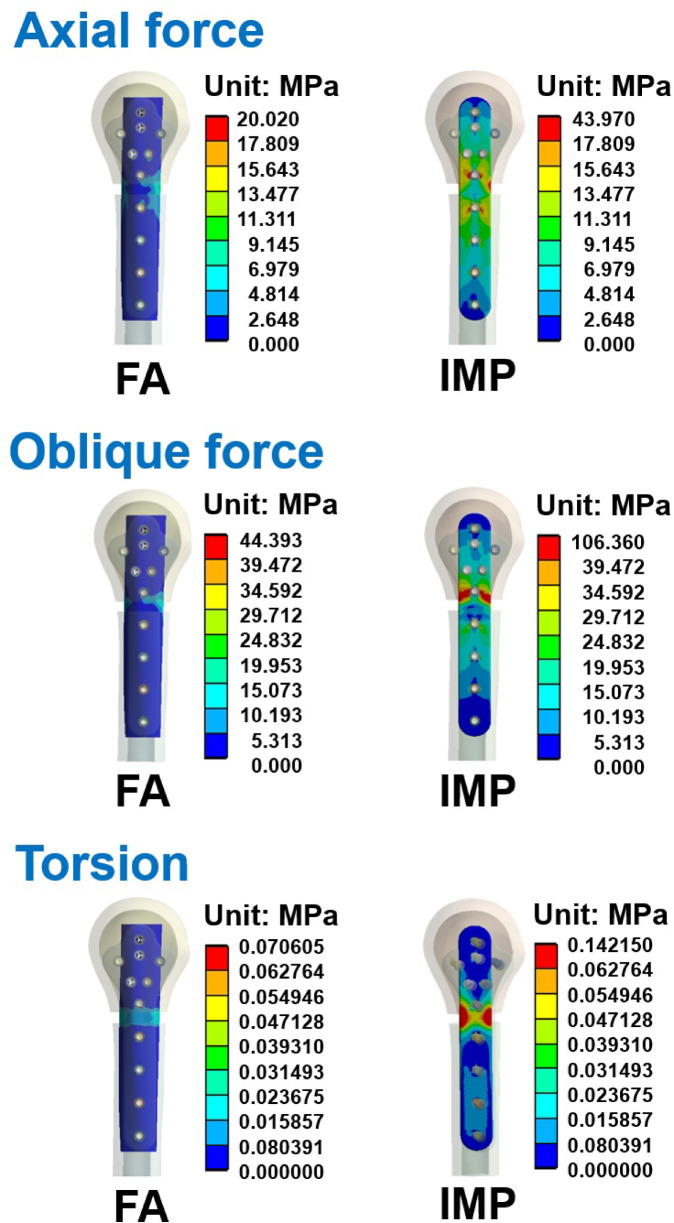

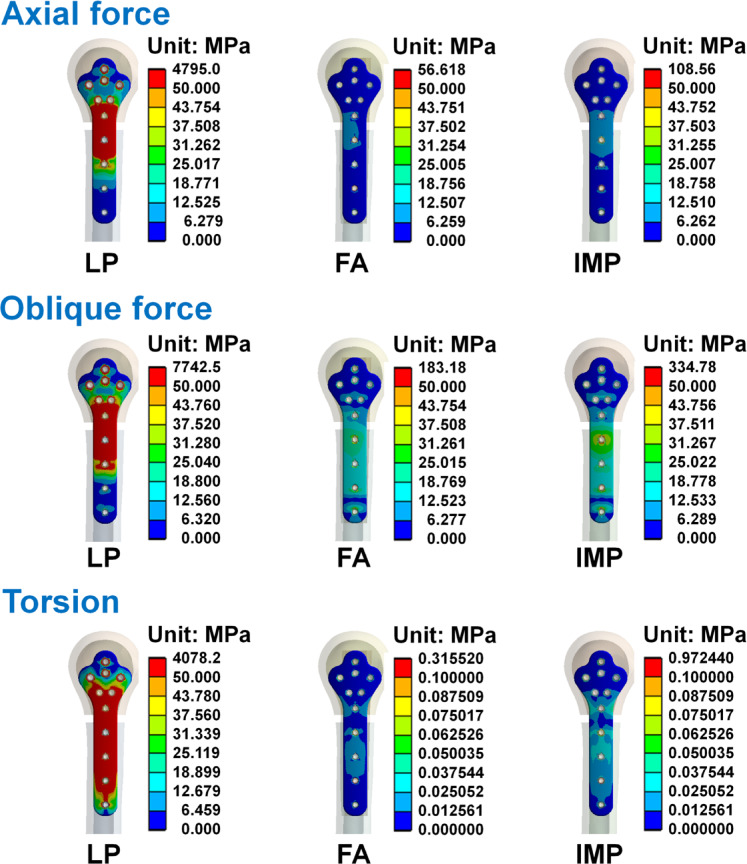

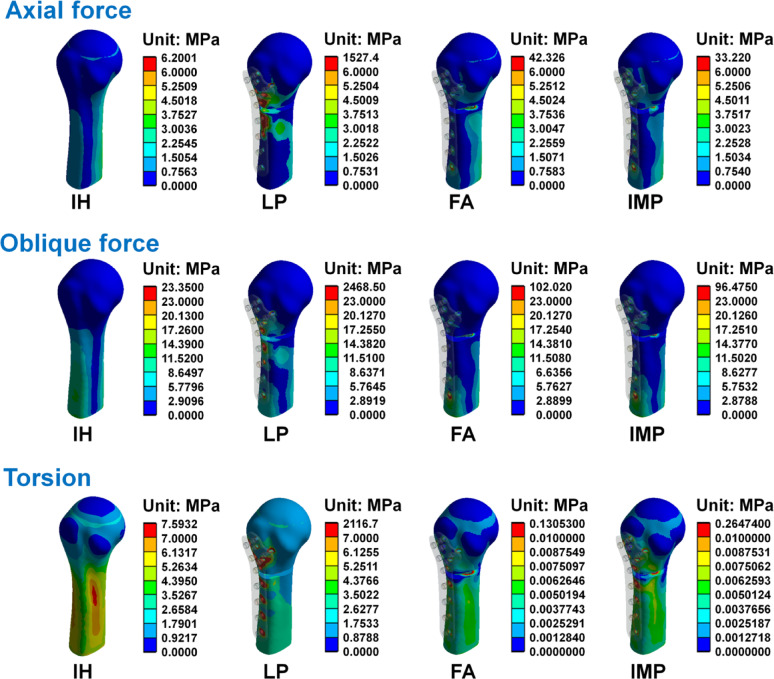

The von Mises stress distribution of the humerus, humeral locking plate, and screws in each group are shown in Figs. 6, 7 and 8. The maximum von Mises stress in each group is shown in Table 5. Results showed that when the humerus models were subjected to the three different loading conditions, the humerus, humeral locking plate, and screws in the LP group had larger von Mises stress. Whereas the von Mises stresses were similar between FA and IMP groups, with the LP group being slightly smaller. Figure 7 shows the stress on the humeral locking plate in the LP, FA, and IMP groups. It was observed that the humeral locking plate in the LP group has higher stress near the humeral defect area compared to the other two groups. In structural analysis, when an object experiences external forces that generate high stress, exceeding its yield strength can result in failure. Thus, after the humeral locking plate is implanted in the humerus, it is essential to minimize high stress to prevent the plate from fracturing. The von Mises stress distributions of the fibular strut allograft and intramedullary strut plate under axial, oblique, and torsional loading conditions are shown in Fig. 9. High stress concentrations were observed near the fracture site in both the FA and IMP groups across all loading modes. Among them, the intramedullary strut plate exhibited higher stress levels than the fibular strut allograft. Although Table 5 shows that the LP group exhibited relatively high von Mises stress values, further analysis revealed that the peak stresses were primarily concentrated at the thread tips of the screws. In finite element analysis, models that include detailed thread geometry often produce localized stress concentrations at the threads, resulting in elevated stress values in these regions^24,25^. To avoid the influence of such thread induced stress artifacts and to ensure consistent visual comparisons across groups, we manually adjusted the second color level in the von Mises stress nephograms to remain below the yield strength of bone and titanium alloy, using the same value wherever possible. This standardization allowed for a more objective assessment of stress distribution differences among the groups. Based on the stress nephograms, the LP group clearly exhibited a broader area of high stress compared to the FA and IMP groups.Fig. 6. The von Mises stress distributions of the humerus in each group under the axial force, oblique force, and torsion.Fig. 7. The von Mises stress distributions of the humeral locking plate in each group under the axial force, oblique force, and torsion.Fig. 8. The von Mises stress distributions of the screws in each group under the axial force, oblique force, and torsion.Table 5. The maximal von Mises stress on the humerus, humeral locking plate, fibular strut allograft and intramedullary strut plate.Axial forceOblique forceTorsionIHLPFAIMPIHLPFAIMPIHLPFAIMPHumeral cortical bone (MPa)6.2001527.40042.32633.22023.3502468.500102.02096.4757.5932116.7000.1310.265Humeral cancellous bone (MPa)0.456199.9407.87013.0711.483322.77012.19621.3870.672192.8300.0200.042Humeral locking plate (MPa)–4795.00056.618108.560–7742.500183.180334.780–4078.2000.3160.972Screws (MPa)–7984.200137.290285.940–12,803.000425.810490.380–5635.3000.5090.739Fibular strut cortical bone (MPa)––20.020–––44.393–––0.071–Fibular strut cancellous bone (MPa)––2.392–––6.947–––0.006–Intramedullary strut plate (MPa)–––43.970–––106.360–––0.142Fig. 9The von Mises stress distributions of the fibular strut allograft and intramedullary strut plate in the FA and IMP groups under the axial force, oblique force, and torsion.
Discussion
This study evaluated biomechanical analysis on humeral locking plate alone, augmented with fibular strut allograft and intramedullary strut plate in proximal humeral fractures. The outcomes of this study were the displacement and von Mises stress value of the structures. The displacement and rotation angles of the LP group were both larger than those of the FA and IMP groups, regardless of axial force, oblique force, and torsion. About von Mises stress, regardless of axial force, oblique force, and torsion, both the FA and IMP groups showed lower stress at the humeral cortical bone, cancellous bone, humeral locking plate and screws compared to the LP group. Therefore, the presence of intramedullary struts can enhance overall biomechanical stability. The results of the study show that the use of IMP had similar biomechanical stability to FA, which is consistent with the hypothesis of this study. Our findings align with those of previous study^23^, which have demonstrated that the addition of FA enhances the stability of humeral fracture fixation when combined with a locking plate. Prior research has shown that FA reduces displacement and improves fixation stiffness, which is consistent with our FEA results. In our study, the FA group exhibited significantly improved stability compared to the LP group across all loading conditions, further supporting the role of FA in enhancing structural integrity. Furthermore, a recent study has also investigated the use of an intramedullary plate for proximal humeral fracture fixation, demonstrating its potential in enhancing biomechanical stability^26^. However, there are notable differences between that study and the present research. The previous study did not include a direct comparison with the locking plate (LP) group, which limits its ability to assess the relative effectiveness of intramedullary plate fixation against standard plating techniques. In contrast, our study incorporates a comprehensive comparison among LP, FA, and IMP groups, providing a more complete biomechanical evaluation. Additionally, in our study, the intramedullary plate was designed to be secured to the lateral locking plate using seven screws, ensuring stronger interlocking fixation. The length of the intramedullary plate used in our model is also designed to match that of the fibular strut allograft, whereas the previous study utilized an intramedullary plate of a different length. These design differences may influence biomechanical performance and fixation stability.

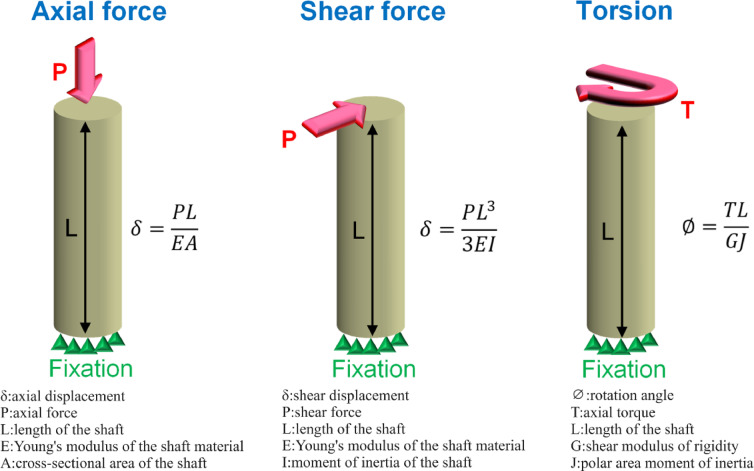

Given a 500 N axial force as the loading condition, the displacements of various groups were observed. The LP group had the most significant displacement compared to other groups. According to material mechanics, when an axial structure is subjected to an axial force, as shown in Fig. 10, its displacement can be expressed by the formula δ=PL/EA, where δ is the axial displacement, P is the axial force, L is the length of the shaft, E is Young’s modulus of the shaft material, and A is the cross-sectional area of the shaft. When the axial force to the shaft and the length of the shaft are both kept constant, the shaft displacement is inversely proportional to Young’s modulus and the cross-sectional area of the shaft. Therefore, considering only structural characteristics, the smaller the cross-sectional area of the structure, the greater is the displacement. Thus, according to the cross-sectional areas of the fracture area of various groups, as shown in Table 1, one can deduce that since the LP group has a smaller cross-sectional area, it generates more significant deformation. Additionally, it was observed that although the cross-sectional area of the IH group is larger than that of the other three groups, its displacement is not the smallest. This is primarily because, under axial force, factors influencing structural displacement include not only the cross-sectional area but also the Young’s modulus. Since the model used in this study is not a single-material model, it is challenging to evaluate it using a single material’s Young’s modulus. However, the IH group did not use metal materials, resulting in a relatively smaller average Young’s modulus for IH group. This is one of the reasons why, despite having a larger cross-sectional area, the IH group does not exhibit the smallest displacement.Fig. 10. The displacements and rotation angles are subject to axial force, oblique force, and torsion. The oblique force can be resolved into an axial force and a shear force.
