Tissue Engineering In Vitro Leaflet- and 3-Dimensional Printing-Based Implant Prototypes for Infant Mitral Valve

TL;DR

This study develops 3D-printed and leaflet-based implant prototypes for infant mitral valve repair using cultured cells and advanced materials.

Contribution

The study introduces UHMWPE coatings and 3D-printed GelMA hydrogels as novel materials for tissue-engineered heart valves.

Findings

UHMWPE coated with PVA and collagen showed high biocompatibility and favorable degradation rates.

GelMA hydrogels demonstrated superior cell viability and scalability for 3D printing.

Both materials show promise for future personalized pediatric heart valve applications.

Abstract

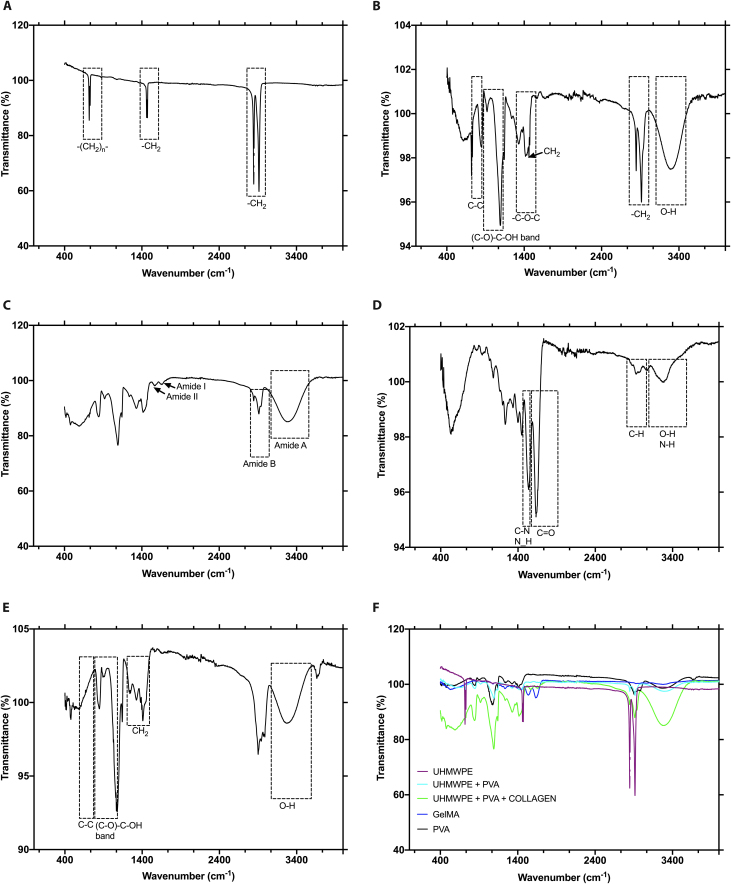

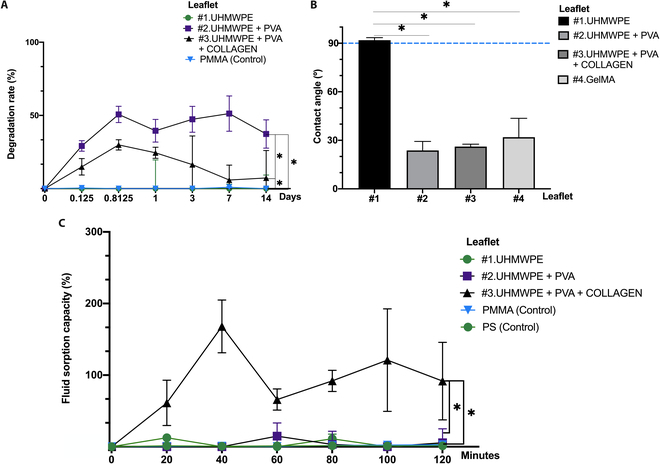

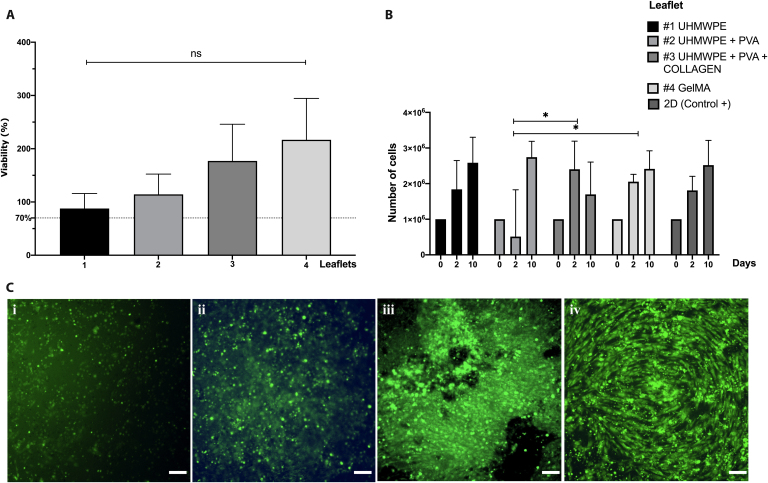

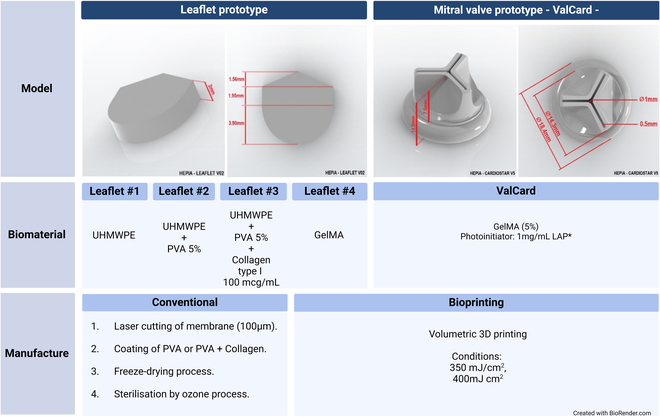

Objective: This study engineers leaflet- and 3-dimensional (3D) printing-based implant prototypes for infant mitral valve repair via in vitro cultured mesoangioblasts isolated from the human fetal aorta (AoMAB). Impact Statement: Ultrahigh-molecular-weight polyethylene (UHMWPE) coatings, as well as 3D-printed gelatin methacrylate (GelMA) hydrogels for implants, represent new possibilities for devices used in mitral valve repair. Introduction: Mitral valve prolapse (MVP) repair in pediatric patients is challenging due to somatic growth, patient–prosthesis mismatch, reinterventions, infections, and thromboembolism. Tissue-engineered heart valves (TEHVs) offer potential solutions through conventional and 3D printing biofabrication. Methods: Four materials are evaluated: UHMWPE, UHMWPE coated with polyvinyl alcohol (PVA), UHMWPE coated with PVA and collagen, and 3D-printed GelMA hydrogels. The prototypes are characterized for micro/nanostructural, physicochemical (degradation, contact angle, Fourier transform infrared spectroscopy), and mechanical properties (simple strength tests, dynamic mechanical analysis) and assessed for cytocompatibility using AoMAB cells. A 3D printing mitral valve prototype is analyzed via immunostaining. Results: Results highlight UHMWPE coated with PVA and collagen as the most promising, with degradation (7.30 ± 18.71%), a hydrophilic contact angle (26.13 ± 1.45°), and biocompatibility (177.04 ± 68.92% viability). GelMA prototypes show superior viability (216.77 ± 77.69%) and scalability for 3D printing. Conclusion: UHMWPE coated with PVA and collagen and GelMA demonstrate strong potential for TEHVs, with AoMAB cells facilitating 3D culture and future personalized pediatric applications. Further in vitro validation and thrombogenicity assessments are needed.

Figures
