ChewNet: A multimodal dataset for invivo and invitro beef and plant-based burger patty boluses with images, texture, and force profiles

TL;DR

ChewNet is a dataset capturing how beef and plant-based burgers break down during chewing, using human and robotic data to study texture changes and support food science and health applications.

Contribution

ChewNet introduces a multimodal dataset combining in vivo and in vitro chewing data to study bolus properties and enable deep learning models for texture prediction.

Findings

The dataset includes images, force profiles, and texture metrics from human and robotic chewing of beef and plant-based patties.

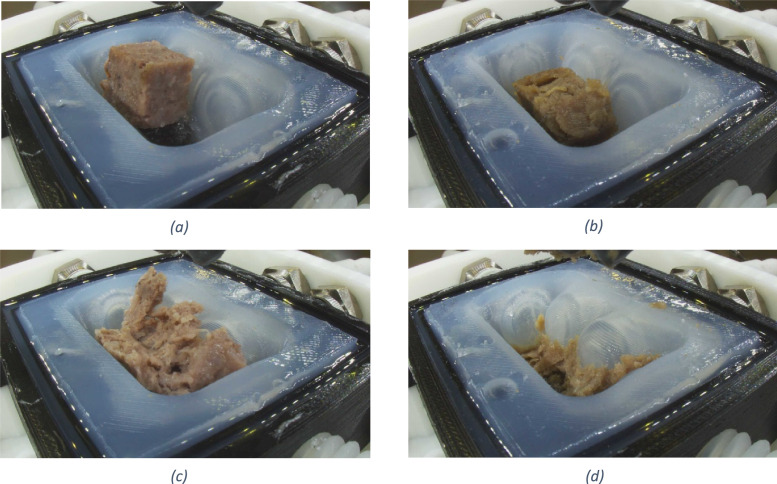

Texture changes with chewing cycles were captured, aiding in the development of models to predict bolus properties from images.

The dataset supports applications in food reformulation, dysphagia rehabilitation, and robotic mastication research.

Abstract

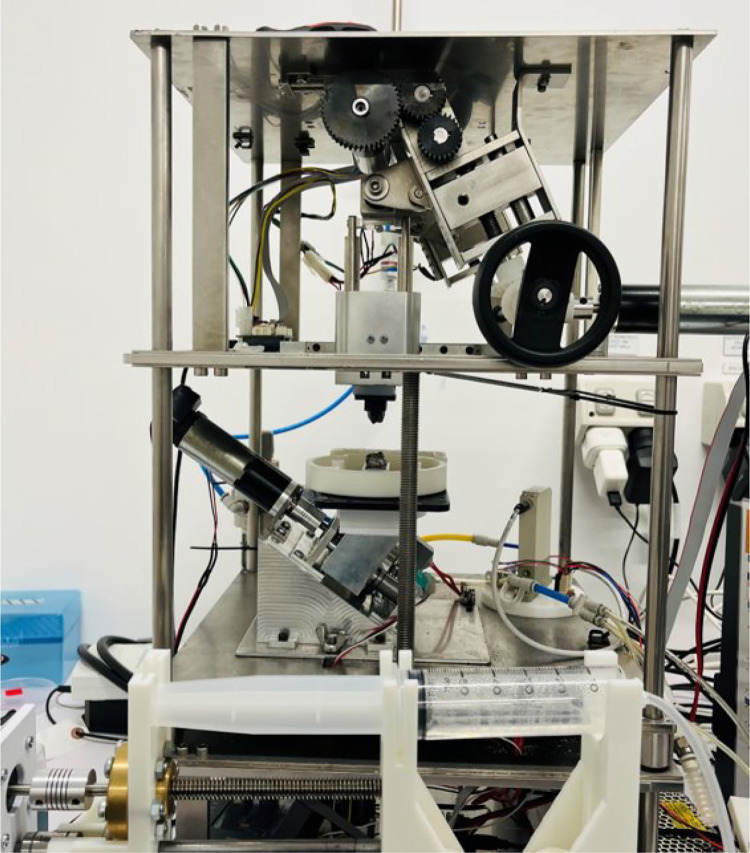

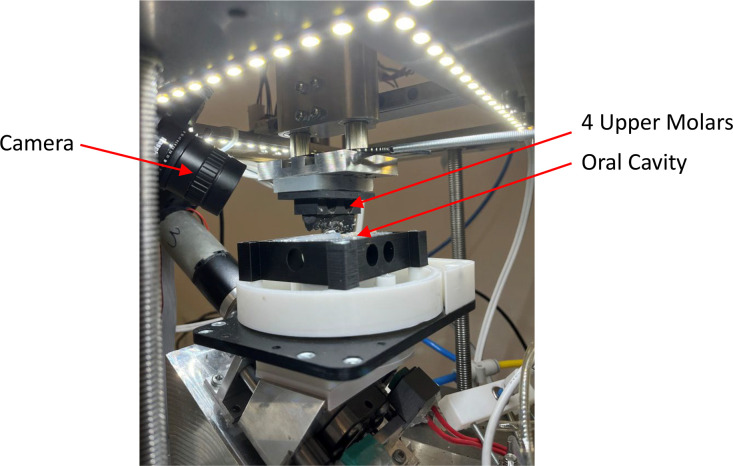

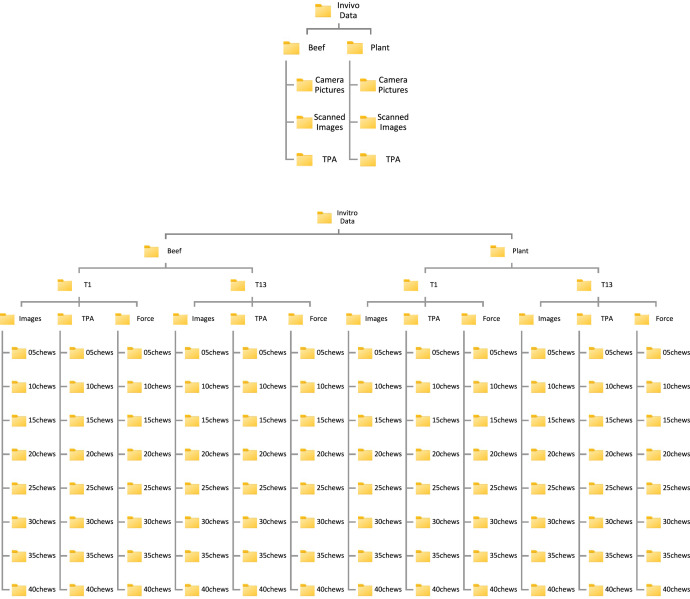

This dataset presents a comprehensive multimodal collection of data acquired from the chewing of beef and plant-based burger patties using both human participants (Invivo) and a biomimicking robotic chewing device (Invitro). The primary objective of the data collection was to discover relationships regarding the change in food bolus properties with the number of robotic chewing cycles as the human swallowing threshold is achieved, which will facilitate the development of deep learning models capable of predicting mechanical and textural properties of chewed food boluses from images. In the in-vivo experiments, expectorated bolus samples were collected from three healthy adult male participants, who chewed food samples until just before swallowing. The chewed boluses were then imaged using a 12MP camera and a flatbed scanner, followed by Texture Profile Analysis (TPA) to measure texture parameters. The dataset comprises two main folders Invivo and Invitro. The Invivo data thus comprises high-resolution images and corresponding TPA metrics at the near-swallowing stage. In the Invitro experiments, a 3 degree of freedom linkage chewing robot (ChewBot) with a soft robotic oral cavity was used to simulate human mastication. The robot performed controlled mastication using different molar trajectories that varied in lateral shearing effect. Food samples were chewed for up to 40 chewing cycles, with artificial saliva introduced at 10 % of the food's weight. For each experimental condition, the dataset includes real-time images captured immediately after each the robotic chewing cycle, force profiles recorded at 100 ms intervals during the chewing, and TPA metrics of the resulting bolus after every 5 chewing cycles. This dataset has significant reuse potential in various fields. In food science, it can support studies on the mechanical breakdown of meat and meat alternatives, aiding in the reformulation of plant-based foods to better mimic desirable animal-based food textures. This dataset supports rehabilitation in health sciences by aiding personalized diet design for individuals with jaw disorders or dysphagia and guiding texture-appropriate menu options for patients. In robotics and artificial mastication, it informs the development of chewing systems. It also enables machine learning applications for predicting food texture from images, allowing automated, non-invasive analysis.
