Roof-dependent Macro-reentrant Left Atrial Flutter Masked by Probable Epicardial Conduction via the Septopulmonary Bundle
Masataka Nakatsuka, Masao Takemoto, Togo Sakai, Takuya Tsuchihashi
TL;DR
A rare case of left atrial flutter was found to involve a unique pathway called the septopulmonary bundle, which may complicate diagnosis and treatment.
Contribution
Highlights the role of the septopulmonary bundle in left atrial flutter and emphasizes the need for detailed 3D mapping in diagnosis.
Findings
A roof-dependent macro-reentrant left atrial flutter was masked by epicardial conduction via the septopulmonary bundle.
Three-dimensional mapping and electrophysiological pacing maneuvers are crucial for identifying the re-entry circuit.
The septopulmonary bundle may contribute to the complexity and maintenance of left atrial flutter.
Abstract
We encountered a 77-year-old woman who had a roof-dependent macro-reentrant left atrial (LA) flutter (LAFL), masked by probable epicardial conduction via the septopulmonary bundle (SPB). The SPB, an epicardial connection in the LA, may contribute to the maintenance and complexity of LAFL. Thus, when evaluating LAFL, physicians should consider the potential involvement of the SPB. Detailed observation using a three-dimensional mapping and comprehensive electrophysiological pacing maneuvers is crucial for identifying the re-entry circuit of LAFL.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

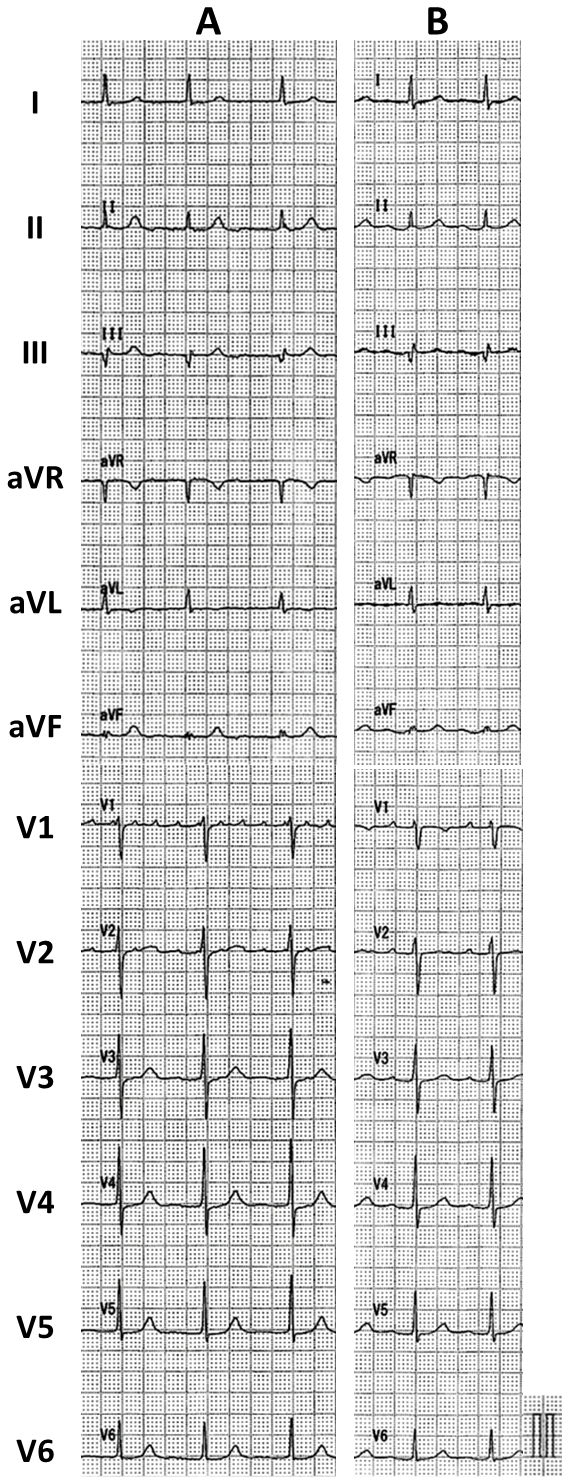

Figure 1

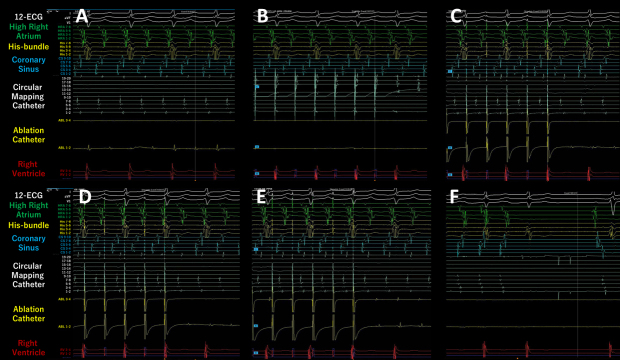

Figure 2

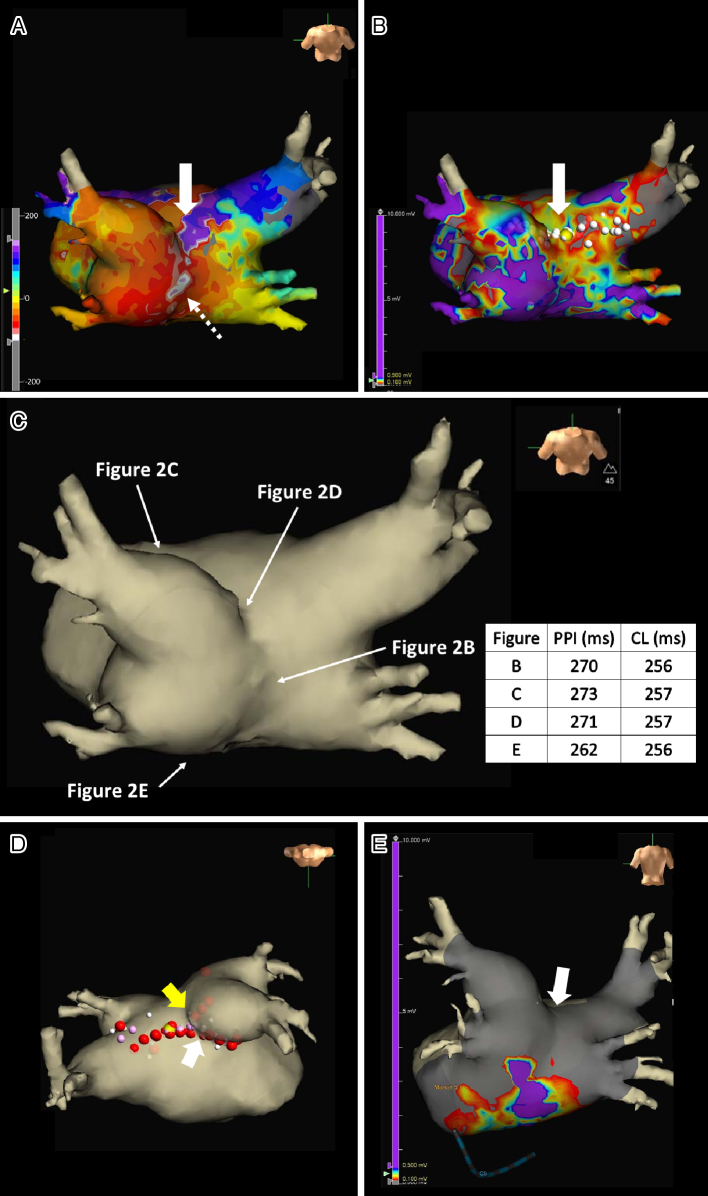

Figure 3

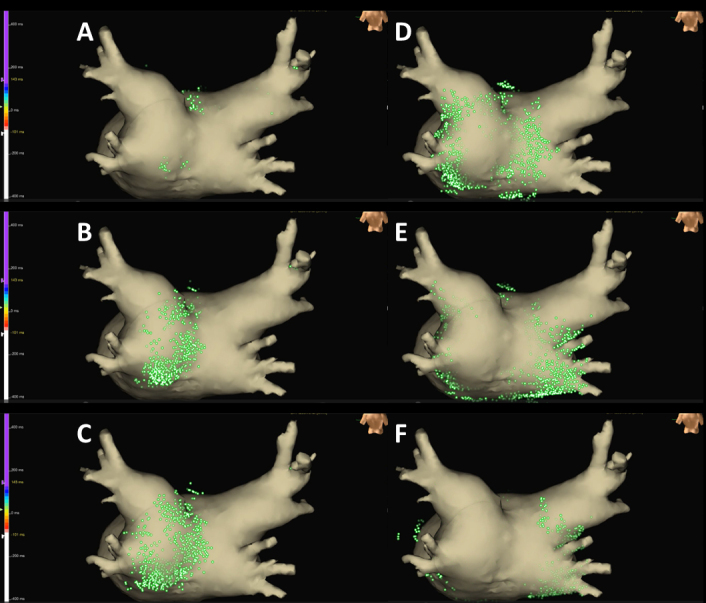

Figure 4Peer Reviews
