Fabrication of (amino)thiol chelating agents on SBA-15 and MCM-41 and applications in the extraction of Cd(II), Pb(II) and Cr(VI) cations from aqueous solutions
Siphosethu Maqinana, Chrispin B. O. Kowenje, Stephen O. Ojwach
TL;DR
This paper describes the creation of new chelating agents on silica supports for efficiently removing heavy metals like cadmium, lead, and chromium from water.
Contribution
The study introduces a novel Schiff base chelating ligand immobilized on SBA-15 and MCM-41 for high-efficiency metal ion extraction.
Findings
L1@SBA-15 and L1@MCM-41 achieved over 97% removal of Cd(II) and Pb(II) in a broad pH range.
Cr(VI) removal was less efficient, with 67% and 77% for L1@SBA-15 and L1@MCM-41, respectively.
L1@SBA-15 showed better overall performance and selectivity in competitive metal ion systems.
Abstract
Reactions of N1,N3-bis(2-mercaptoethyl)isophthalamide with (3-aminopropyl)triethoxysilane (3-APTES) afforded the the corresponding Schiff base chelating ligand, (1Z,3Z)-N1,N3-bis(2-mercaptoethyl)-N'1,N'3bis(3(triethoxysilyl)propyl) isophthalimidamide (L1) in high yields. Subsequent immobilization of L1 on mesoporous silica supports (SBA-15 and MCM-41) following a divergent method produced the respective fabricated L1@SBA-15 and L1@MCM-41 materials. Characterization of the fabricated chelating agents was accomplished using SEM, TEM, EDX, BET, PXRD, FT-IR, and TGA-DTA/DSC techniques. The fabricated materials were used as adsorbents for the removal of Cd(II), Pb(II) and Cr(VI) metal ions from water. Both the L1@SBA-15 and L1@MCM-41 materials demonstrated high extraction efficiencies for Cd(II) and Pb(II) cations, achieving over 98% and 97% removal, respectively, across a broad pH range…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —http://dx.doi.org/10.13039/100016962Department of Science and Innovation, South Africa
- —University of KwaZulu-Natal
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsExtraction and Separation Processes · Chemical Synthesis and Characterization · Adsorption and biosorption for pollutant removal
Introduction
The treatment and reuse of wastewater has become a critical global concern due to the presence of several pollutants (Ezzatkhah et al. 2023). Wastewater can be polluted with toxic substances, including heavy metals, due to industrial, agricultural, and natural activities, among other sources (Sheraz et al. 2024). Among these heavy metals, cadmium, lead, and chromium are considered the most hazardous and non-essential due to their extreme toxicities, even at very low concentrations in the body (Zheng et al. 2021; Purrostam et al. 2023). These heavy metal ions also demonstrate high persistence in the environment and thus have the potential to accumulate to levels exceeding permissible limits (Sen 2023). According to the World Health Organization (WHO) and the United States Environmental Protection Agency (USEPA), the permissible concentrations of cadmium, lead, and chromium in drinking water are 0.005, 0.01, and 0.05 ppm, respectively (Dindar et al. 2016). Exceeding these limits can lead to serious health issues, including central nervous system damage, inhibited cell growth, cancer, and reproductive system damage (Dinh Du et al. 2019; Wang et al. 2021).
To this effect, significant efforts have been directed towards removing cadmium, lead and chromium metals from the environment. Conventional remediation methods, such as membrane filtration (Gouda et al. 2023), coagulation/flocculation (Zaki et al. 2023), reverse osmosis (Lumami Kapepula et al. 2022), coprecipitation (Benalia et al. 2022), and ion exchange have been utilized for this purpose. However, these approaches often suffer from key drawbacks such as high operational costs, secondary sludge generation, and inefficiency in the presence of co-contaminants or wide pH fluctuations (Yazdani et al. 2024). Of these techniques, adsorption is widely favoured due to its simple design, low cost, ease of operation, high adsorption rate, and the possible recycling of the adsorbents (Wang et al. 2021; Zhou et al. 2024). To date, various adsorbents, including activated carbon (Abu-Daabes et al. 2023), clay (Teğin et al. 2023), carbon nanotubes (Abdulkareem et al. 2023), polymers (Dewi et al. 2024), chelating resins (Duan et al. 2023), biosorbents (Suganya et al. 2016) and biomass or plant-based materials (Saravanan et al. 2021; Wu et al. 2023) have been employed in heavy metal remediation. However, these adsorbents often suffer from one or a number of drawbacks, such as weak interactions with metal cations and relatively low removal efficiency, thus limiting their applications (Dindar et al. 2015; Lachowicz et al. 2019).
Recent studies on the use of physical adsorbents has focused on mesoporous silica materials such as SBA-15 (Santa Barbara Amorphous) and MCM-41 (Mobil Composition of Matter), modified with chelating organic ligands. This is largely owed to their several desirable features such as tunable pore size, high specific surface area, excellent thermal stability, and ordered microstructure (Pontes Pereira et al. 2015; Dindar et al. 2015; Lachowicz et al. 2019). In addition, compared to other mesoporous adsorbents, SBA-15 offers a significant advantage due to its large and tunable pore size, which facilitates the accommodation of bulky metal complexes and functional groups, thereby enhancing extraction efficiency. Conversely, MCM-41 provides an exceptionally high surface area and a large number of accessible active sites, making it particularly effective for the adsorption of trace-level metal ions. Both SBA-15 and MCM-41 possess a well-ordered hexagonal mesostructure, which promotes efficient diffusion of metal ions and uniform distribution of functional groups. Moreover, their surfaces can be readily functionalized with a wide range of ligands specifically designed to improve selectivity toward target metal ions (He et al. 2018; Ryu et al. 2019).
Schiff base ligands have been widely used as efficient chelating agents for the removal of a number of heavy metal cations due to their strongly coordinating abilities and the ease of tuning their donor abilities to suit specific metal cations (Dindar et al. 2015; Parambadath et al. 2016). Furthermore, studies have shown that immobilization of the Schiff base ligands on solid supports such as SBA-15 and MCM-41 produces highly effective adsorbents (Wang et al. 2021; Zheng et al. 2021). For example, 3-aminopropyltriethoxysilane was grafted onto MCM-41 and used in the removal of Cd(II) and Pb(II) cations from aqueous solutions, achieving maximum adsorption capacities of 14.08 mg/g and 64.21 mg/g, respectively (Dinh Du et al. 2019). In another study, 5-methyl-2-thiophenecarboxaldehyde was immobilized on SBA-15 grafted with (3-aminopropyl)triethoxysilane for selective removal of Cr(III), Cd(II), and Zn(II) cations from water sources (Parambadath et al. 2016).
Among the heavy metals, Cr(VI) poses distinct environmental and remediation challenges due to its coexistence of two stable oxidation states in aqueous environments, the trivalent chromium [Cr(III)] and the more toxic hexavalent chromium [Cr(VI)]. Cr(VI), commonly found as chromate (CrO_4_^2−^) or dichromate (CrO_7_^2−^), is highly soluble, carcinogenic, and significantly more mobile in water systems, making its removal more difficult compared to Cr(III) (Islam et al. 2023). It has been shown that functionalized adsorbents, particularly those incorporating nitrogen and sulfur donor atoms, can effectively remove Cr(VI) through redox-assisted adsorption mechanisms, including electrostatic attraction and reduction to Cr(III) (Li et al. 2021). For example, Fellenz et al. (2017) demonstrated that mesoporous silica MCM-41, functionalized with aminopropyl groups, achieved a Cr(VI) adsorption capacity of 86.4 mg/g. The removal occurred via electrostatic interactions between the negatively charged HCrO_4_^−^ species and positively charged surface ammonium groups, followed by partial reduction of Cr(VI) to Cr(III). The proposed mechanism suggests that this reduction is accompanied by proton release from the adsorbent surface into the solution (Fellenz et al. 2017).
While the synthesis of N^1^,N^3^-bis(2-mercaptoethyl)isophthalamide ligand for removal of mercury from water has been previously described by Atwood and co-workers (Blue et al. 2010), this work extends on its synthesis and application by further modifying this ligand on silane coupling agent, 3-APTES and additional grafting on SBA-15 and MCM-41 through a convergent approach for extraction of Cd(II), Pb(II) and Cr(VI). To the best of our knowledge, the use of ((1Z,3Z)-N^1^,N^3^-bis(2-mercaptoethyl)-N'^1^,N'^3^bis(3(triethoxysilyl)propyl) isophthalimidamide immobilized on SBA-15 and MCM-41 as chelating agents synthesized through a convergent approach has not been previously reported for the extraction of Cd(II), Pb(II), and Cr(VI) cations.
Following these promising developments in the design of organic–inorganic hybrid materials for effective heavy metal ion removal, the current study aims to design chelating agents which are effective, selective and recyclable in the removal of Cd(II), Pb(II), and Cr(VI) ions from water. The fabrication of the organic chelating agent on mesoporous silica (SABA-15 or MCM-41) was to enhance the physical separation and reuse of the adsorbents. The fabricated chelating agents were characterized by SEM, TEM, EDX, BET, PXRD, and TGA-DTA/DSC to establish the functional groups present, particle size and morphology, elemental composition, surface area and porosity as well as crystallinity of the materials. The effects of the extraction parameters such as pH, contact time, chelating agent dosage and initial metal concentrations were investigated and are discussed together with detailed studies of the kinetics and mechanisms of extractions.
Experimental and methodology
General materials and instrumentation
The reagents: cysteamine chloride, Isophthaloyl chloride (99%), triethylamine (99%), (3-aminopropyl) triethoxy silane (98%), potassium dichromate (K_2_Cr_2_O_7_), cadmium nitrate (Cd(NO_3_)2, lead nitrate (Pb(NO_3_)2, sodium hydroxide pellets (NaOH), and nitric acid (HNO_3_), were bought from Sigma-Aldrich and used without further purification. The solvents, chloroform, and toluene were purchased from Merck and distilled and dried in molecular sieves before use. NMR spectra were recorded on a Bruker Ultrashield 400 spectrometer, while infrared spectra were recorded on a Perkin-Elmer spectrum 100 range 4000–400 cm^−1^. Scanning electron microscope (SEM) and transmission electron microscope (TEM) were acquired on a ZEISS EVO LS15 and JEOL JEM 1400, respectively. Powder X-ray diffraction (PXRD) patterns were recorded on an X-ray diffractometer (Bruker D8 Advance), while Energy Dispersive X-ray (EDX) analysis was carried out using an Oxford-made EDX detector. Following the Brunauer, Emmett, Teller (BET), and Barrett, Joyner, Halenda (BJH) methods, data was evaluated using BELmaster software version 7.3.2.0. Magnetic susceptibility measurements were performed using a Quantum Design MPMS3 Evercool SQUID magnetometer with a 7 Tesla magnet at 300 K, with variable applied DC magnetic fields ranging from −4 T (−40,000 Oe) to 4 T (40,000 Oe) on a DC mode. Thermal analyses (TGA) and differential scanning calorimetry (DSC) were run on a PerkinElmer Thermogravimetric Analyser 4000 (TGA) and PerkinElmer DSC 4000, respectively. The samples were heated from 25 °C to 800 °C at a 20 °C/min rate under N_2_ atmosphere. The concentration of heavy metal cations in the solution was measured using a Shimadzu Plasma Atomic Emission Spectrometer (ICPE-9820).
Results and discussion
Synthesis and characterization of chelating agents

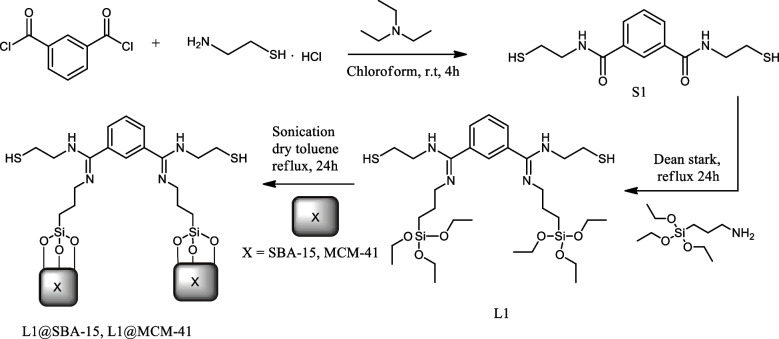

The organic ligand N^1^,N^3^-bis(2-mercaptoethyl)isophthalamide (S1) was synthesized by adopting literature methods in high yields, as shown in Scheme 1 (Blue et al. 2010; Bandara 2022). Subsequent condensation of S1 with (3-aminopropyl)triethoxysilane (APTES) afforded the corresponding ligand (1Z,3Z)-N^1^,N^3^-bis(2-mercaptoethyl)-N'^1^,N'^3^bis(3(triethoxysilyl)propyl) isophthalimidamide (L1) as previously reported (Jayamani et al. 2019). Immobilization of L1 on SBA-15 and MCM-41,following reported protocols (Akiri and Ojwach 2019), furnished the respective composite materials L1@SBA-15 and L1@MCMC-41 in moderate yields as outlined in Scheme 1.Scheme 1. Synthesis and immobilization of L1 on SBA-15 and MCM-41
The structural analyses of the organic ligand (L1) and its respective fabricated materials were achieved using ^1^H NMR and FT-IR spectroscopies (Figs. S1-S4). The identity of S1 was confirmed by the presence of the N–H signal at 7.95 ppm (Fig. S2), while the signal at 0.57 ppm was assigned to the aliphatic CH_2_ protons and validated the formation of Schiff base compound L1 (Fig. S4). The FT-IR spectra of compounds S1 and L1 (Fig. S1) exhibited signature v(N–H) stretching bands at 3282 cm⁻^1^ and 3296 cm⁻^1^, v(S–H) stretching bands at 2531 cm⁻^1^ and 2543 cm⁻^1^ (Fig. S1). More importantly, the signal at 1527 cm^−1^ assigned to the v(C=O) stretching band observed in S1 was absent in L1, consistent with the Schiff base condensation to form the imine functionality later. Indeed, the typical v(C=N) band was recorded at 1534 cm⁻^1^ in L1 (Fig. S3). Successful immobilization of L1 on SBA-15 and MCM-41 supports to form the composite materials L1@SBA-15 and L1@MCM-41, respectively, was deduced from the presence of the v(Si–OH) bands at around 800 cm⁻^1^ in both materials (Figs. S5 and S6).
The surface morphology of the fabricated ligand was characterized using TEM and SEM, as shown in Fig. 1. The SEM images of L1@SBA-15 (Fig. 1a and b) displayed rod-like and aggregated particles, while the TEM images of L1@SBA-15 (Fig. 1c and d) revealed rod-like structures with ordered hexagonal voids. The TEM images of L1@MCM-14 (Fig. 1d) exhibited quasi-spherical particles, consistent with the agglomerated quasi-spherical morphology observed in the SEM images (Fig. 1b). The dark spots in the composite materials indicated the incorporation of the ligands into the silica matrices. The average nanoparticle sizes of L1@SBA-15 and L1@MCM-41, measured from TEM images using ImageJ software, were 2.03 ± 0.11 nm and 2.61 ± 0.09 nm, respectively (Fig. S7).Fig. 1SEM images of (A)** L1@SBA-15, (B) L1@MCM-41,** and TEM images (C)** L1@SBA-15, D L1@MCM-41** of the immobilized ligand
The composition and elemental distribution of the silica-immobilized chelating agents were analyzed using EDX and EDX mapping (Fig. S8). The presence of Si and N, O, and S atoms (from the organic ligands) confirmed the successful incorporation of the organic ligand on the SBA-15 and MCM-41 matrices. The measured quantities of N and S donor atoms were 2.4 wt.% and 14.57 wt.% for L1@SBA-15 and 6.18 wt.% and 4.81 wt.% for L1@MCM-41, respectively. Additionally, EDX mapping demonstrated that the elements were uniformly distributed across the surface of the composite materials.
The nitrogen adsorption–desorption isotherms and pore size distributions of the immobilised chelating materials were obtained through BET and BJH analyses (Fig. S9). Both materials L1@SBA-15 and L1@MCM-41 exhibited type IV isotherms with H1 hysteresis loops, indicating the presence of mesoporous materials with capillary condensations (Wang et al. 2021; Liang et al. 2023). While in L1@SBA-15, a distinct capillary condensation/evaporation step was observed in the P/P_0_ range of 0.6–0.8 (Fig. S9a), L1@MCM-41 showed a partial evaporation step in the P/P_0_ range of 0.9–1.0 with a decrease in nitrogen adsorption, suggesting that organic ligand significantly blocked the MCM-41 pores (Fig. S9b). These results were corroborated by the larger surface area of 141 m^2^/g and an average pore diameter of 9 nm recorded for L1@SBA-15, compared to a much smaller surface area of 7 m^2^/g. recorded for L1@MCM-41 material. Similar findings exist in literature where the SBA-15 functionalized materials showed an average pore diameter of 8.7 nm (Wu et al. 2020), while the corresponding MCM-41 immobilized composite exhibited much smaller surface areas (Bagheri et al. 2019).
The crystallinity of the immobilized materials was determined using powder XRD (Fig. S10). The powder XRD patterns of L1@SBA-15 showed typical diffraction peaks for SBA-15 functionalized materials, though with a slight shift towards higher angles due to modification at 2θ = 21° and 25°, corresponding to the (100) and (110) planes, respectively (Bagheri et al. 2019; Wu et al. 2020; Wang et al. 2021; Liang et al. 2023). These shifts mirror those reported for similar organic ligands immobilized on SBA-15, where only the (100) and (110) planes were observed (Thirupathi et al. 2023). Similarly, the L1@MCM-41 material displayed a prominent (100) plane at 2θ = 21°, significantly reducing the (110) plane intensity. This characteristic could be assigned to the higher content of organic components in the MCM-41 matrix, as corroborated by the EDX data (Fig. S8) and previous reports of Liao et al*.* (Liao et al. 2024).
The thermal stability of the silica fabricated L1 was assessed using TGA-DTA/DSC analysis, as shown in Fig. S11. The thermal decomposition of both fabricated materials proceeded in three distinct weight-loss stages. The initial weight loss recorded for L1@SBA-15 and L1@MCM-41 of 7% and 10% occurred between 50 °C and 260 °C, respectively, and were attributed to the loss of adsorbed water molecules and volatile solvents (Liang et al. 2023). This was followed by a significant weight loss of 32% and 39% between 270 °C and 470 °C for L1@SBA-15 and L1@MCM-41, respectively, corresponding to the degradation of organic materials (Wu et al. 2020). Lastly, the weight losses, observed between 500 °C and 800 °C, of 49% and 55% for L1@SBA-15 and L1@MCM-41, respectively, were attributed to the decomposition of the inorganic mesoporous silica framework. Comparatively, L1@MCM-41 exhibited higher weight loss compared to L1@SBA-15. This points to the high organic matter incorporated in the MCM-41 core, consistent with the BET and EDX data and previous reports of Rabiee and co-workers (Bagheri et al. 2019).
Extraction of Cd(II), Cr(VI) and Pb(II) ions from aqueous solutions
The effect of pH on the extractions of the metal cations
The fabricated materials, L1@SBA-15 and L1@MCM-41, were then applied as adsorbents in the extraction of Cd(II), Pb(II), and Cr(VI) metal ions from aqueous solutions under varied conditions. It is known that the pH of the solution plays a crucial role in the extraction of metal cations, as it influences the surface charges of the adsorbents, the speciation and ionization of the metal ions in the solution (Omotunde et al. 2018) and the mechanism of extractions (Tang et al. 2018). We thus first determined the point of zero charges (pHpzc) of the two adsorbents, as shown in Fig. 2a. The extractions of the metal cations were also studied under different pH values (Fig. 2B and 2 C). The pHpzc values of adsorbents L1@SBA-15 and L1@MCM-41 were determined as 9.5 and 8.1, respectively (Fig. 2a). For positively charged metal cations like Pb(II) and Cd(II) extraction efficiency should be favoured at pH values higher than the pHpzc (Omotunde et al. 2018), while for Cr(VI) species, the extraction efficiency is expected to be higher at pH values (Li et al. 2019b; Liang et al. 2023).Fig. 2. Point of zero charges of fabricated chelating agents L1@SBA-15 and L1@MCM-41 (A); extraction efficiencies of metal ions on 20 ppm metal solution at different pH values using 0.02 g for 24 h, of **L1@SBA-15 **(B) and **L1@MCM-41 **(C); extraction efficiencies at different time intervals using 0.02 g using of **L1@SBA-15 **(D) and **L1@MCM-41 **(E) at pH 3 for Cr(VI), Cd(II) and 5 for Pb(II) cations on 20 ppm solutions

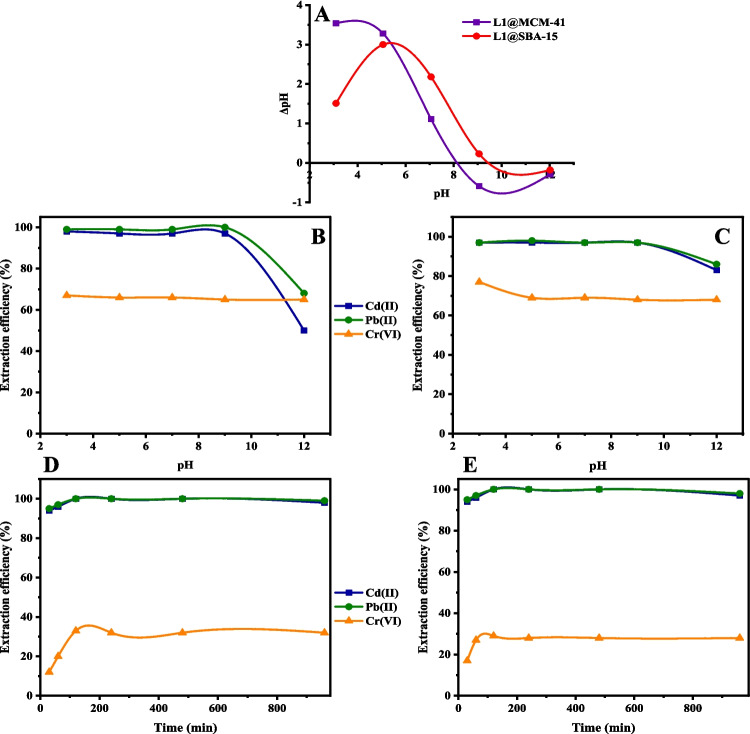

The extraction studies under different pH showed that extraction efficiencies for Pb(II) and Cd(II) cations exceeded 96% for both adsorbents, L1@SBA-15 and L1@MCM-41, across a pH range of 3 to 9 (Fig. 2B and 2 C). This observation follows the trends previously reported using MCM-41 functionalized (amino)/thiol chelating agents, which display high extraction efficiencies for Cd(II) and Pb(II) cations at low pH levels within 2–4 (Tang et al. 2018). At pH values higher than 9, the extraction efficiencies for Cd(II) and Pb(II) significantly decreased, possibly due to the precipitation of the metal ions in the solution (Bagheri et al. 2019; Tang et al. 2022). On the other hand, the extraction efficiencies for Cr(VI) anions, using both chelating agents, decreased at pH values higher than the pHpzc (Fig. 2B and 2 C). This trend is expected and could be assigned to the positively charged surfaces at lower pH, thus enhancing electrostatic attraction of the negatively charged Cr(VI) species (Fakhfakh et al. 2024). It has also been shown that the (amino) thiol-based chelating agents could play a bi-functional role, where the amine groups reduce Cr(VI) to Cr(III), which are then bound to the thiol groups (Zaitseva et al. 2013; Li et al. 2023b). Using chelating agent L1@SBA-15, optimal pH values of 3 pH for Cr(VI) and 9 for Cd(II) and Pb(II) cations were obtained with extraction efficiencies of 67%, 98%, and 100%, respectively (Fig. 2B). On the hand, using L1@MCM-41, the optimal pH values obtained for the Cr(VI) anions and Cd(II) cations were 3 and 5 for Pb(II) cations, achieving extraction efficiencies of 77%, 97%, and 98%, respectively (Fig. 2C).
The effect of contact time and adsorption kinetics
The extraction of Cd(II), Pb(II), and Cr(VI) ions using the fabricated chelating agents L1@SBA-15 and L1@MCM-41 was performed over a time range of 30 to 960 min to determine the optimum contact times (Fig. 2). From the results obtained, both chelating agents showed rapid extractions within 30 min to achieve extraction efficiencies 93% for Cd(II) and Pb(II) cations. In contrast, lower extraction efficiencies for the Cr(VI) anions of 33% and 29% were observed for L1@SBA-15 and L1@MCM-41, respectively, within 120 min (Figs. 2D and 2E). (Ahmed et al. 2020; Waly et al. 2021). Previous related studies reported optimal extraction times of 120 min for Pb(II) cations and Cr(VI) anions using silica-immobilized chelating agents (Ahmed et al. 2020; Waly et al. 2021).

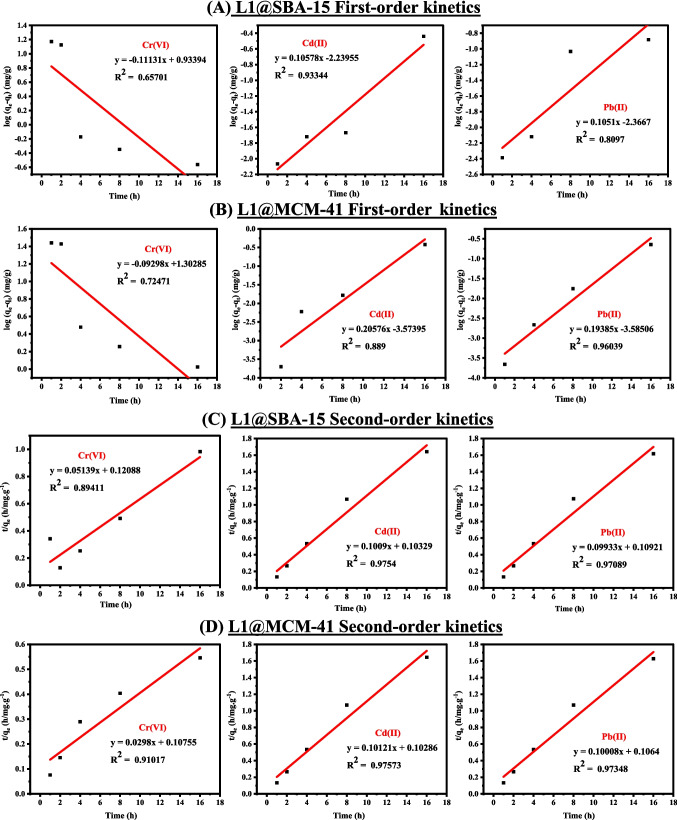

The adsorption kinetic data were further elucidated using pseudo-first-order and pseudo-second-order models. The kinetic models and their parameters are provided in Table S1, while linear fits of the models and the parameters that determine the extraction mechanisms are detailed in Fig. 3 and Table S2**,** respectively. The results indicate that the extractions of Cd(II), Pb(II), and Cr(VI) ions better fitted the pseudo-second-order kinetic model, with high correlation coefficients of 0.9754, 0.97089, and 0.89411 for L1@SBA-15, and 0.97573, 0.97348, and 0.91017 for L1@MCM-41, respectively, compared to the pseudo-first-order model. Moreover, the theoretical q_e_ values calculated for Cd(II), Pb(II), and Cr(VI) ions were 9.91080, 10.0674, and 19.4590 for L1@SBA-15, and 9.88044, 9.99200, and 33.5570 for L1@MCM-41 (Table S2). These values closely matched the experimental q_e_ values for the pseudo-second-order model, indicating better agreement than with the pseudo-first-order model. The kinetics data thus suggest that the extraction of the metal cations occurred primarily through chemisorption, involving the formation of coordination bonds (Lachowicz et al. 2019).Fig. 3. Pseudo-first-order for (A)** L1@SBA-15**, and (B)** L1@MCM-41** and pseudo-second-order (C)** L1@SBA-15**, and (D)** L1@MCM-41**
The effect of initial concentration and adsorption isotherms

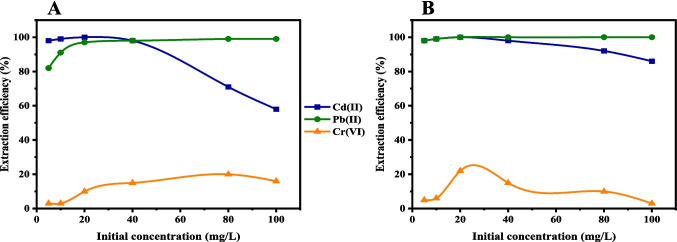

The effect of the initial concentration of the metal cations on their extraction efficiencies was studied using both chelating agents L1@SBA-15 and L1@MCM-41 from 5 to 100 mg/L (Fig. 4). Using a chelating agent, L1@SBA-15, the extraction efficiencies of the metal cations increased with increasing initial concentrations of the metal salts solutions attaining an optimum dosage of 40 mg/L and 80 mg/L for Cd(II) cations and Cr(VI) anions respectively (Fig. 4). This is explained from the available binding sites on the surface of the chelating agents at lower metal concentrations (Tighadouini et al. 2022). However, beyond 40 mg/L for Cd(II) cations and 80 mg/L for Cr(VI) anions, the extraction efficiencies decreased as the initial concentration increased using L1@SBA-15 adsorbent. Similarly, using L1@MCM-41, extraction efficiencies for Cd(II) cations and Cr(VI) anions were recorded at maximum dosages of 80 mg/L and 20 mg/L, respectively. Similar findings have been reported for Cr(VI) anions extraction, where the removal efficiency decreased once the initial concentration of the solution reached 100 mg/L using MCM-48-SH adsorbent (Li et al. 2023a). Interestingly, the extraction of Pb(II) cations by both chelating agents was insignificant over the studied concentrations. While this behaviour is unclear to us at this stage, it is evident that both chelating agents have high adsorption capacities for Pb(II) cations.Fig. 4. Extraction efficiency at different initial concentrations using 0.02 g of (A)** L1@SBA-15** and (B)** L1@MCM-41** at pH 3 for Cr(VI), Cd(II) and 5 for Pb(II) for 2 h

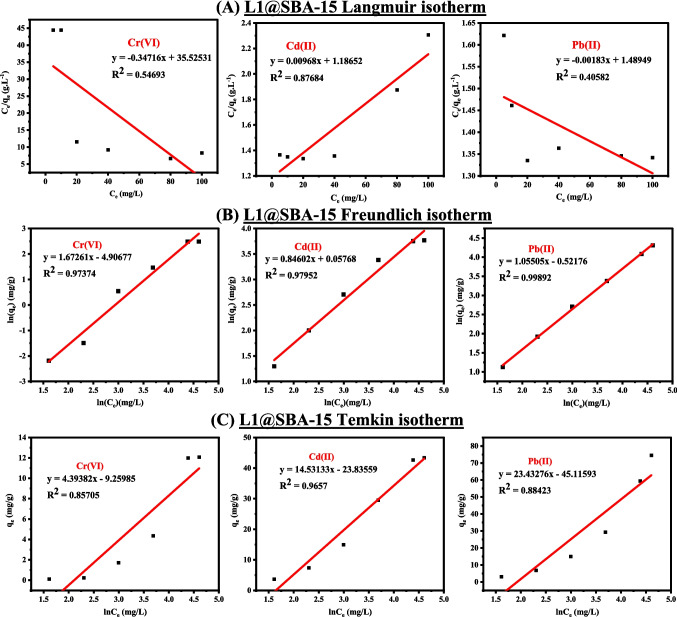

The adsorption isotherms were analysed using the Langmuir, Freundlich, and Temkin models to shed light on the nature of the metal cations'adsorption on the chelating agents'surface. The interpretations of the isotherms and their associated parameters are summarized in Table S3, while linear fits of the isotherms of L1@SBA-51 and L1@MCM-41 are presented in Figs. 5, and S12, respectively. The calculated parameter values are provided in Table S4. The linear fits of the isotherms revealed that the extraction of Cd(II), Pb(II), and Cr(VI) ions followed the Freundlich model, with high correlation coefficients of 0.97952, 0.99892, and 0.97374 for L1@SBA-15 and 0.99879, 0.99999, and 0.90923 for L1@MCM-41, respectively, compared to the Langmuir and Temkin models. This suggests that the extraction of metal cations occurred through a heterogeneous and multilayer adsorption process (Dobrzyńska 2021; Tang et al. 2022). The Freundlich constants, n, and Kf, are used to measure the adsorption capacity of a given material, where n > 1 suggests favourable extraction and n = 1 indicates linear adsorption (Parambadath et al. 2016; Suhail et al. 2020). The calculated n values within the range of 0.80–1.18 (Table S4) demonstrated that L1@SBA-15 and L1@MCM-41 displayed favourable extraction affinities for metal ions in the following order: Cd(II) > Pb(II) > Cr(VI).Fig. 5. Extraction of metal cations using L1@SBA-15 fitted on (A) Langmuir, B Freundlich, and (C) Temkin adsorption isotherms
The effect of chelating agent dosage

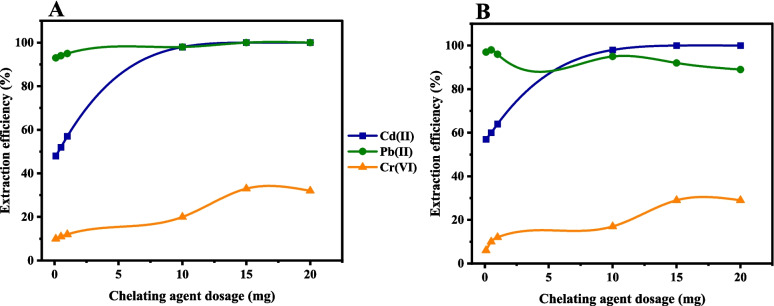

The effect of the chelating agent dosage on the extraction efficiencies of Cd(II), Pb(II), and Cr(VI) ions was investigated by varying the adsorbent from 0.10 to 20 mg (Fig. 6). The results showed that the extraction efficiencies of these metal cations increased with increase in adsorbent dosage up to an optimum value, depending on the adsorbent and the metal cation. For example, using L1@SBA-15, a dosage of 15 mg was recorded as the optimum corresponding extraction efficiencies of > 99% for Cd(II) and Pb(II) and 33% for Cr(VI) ions (Fig. 6a). A further increase in the dosage to 20 mg, did not alter the extraction efficiencies of the metal cations. The chelating agent L1@MCM-41 displayed comparable trends for Cd(II) and Cr(VI), ions to record an optimum dosage of 15 mg, corresponding to extraction efficiencies of > 99% and 29% for Cd(II) and Cr(VI) ions respectively (Fig. 6b). However, using L1@MCM-41, the optimum dosage for Pb(II) cations was observed at a much lower value of 0.5 mg, achieving 98% extraction efficiency (Fig. 6b). This unique trend for Pb(II) cations is consistent with the data discussed for the initial metal concentrations (Fig. 4) and points to higher adsorption capacities of these chelating agents for Pb(II) cations (Pandey et al. 2023). The reduction of extraction efficiencies of the metal ions above the adsorbent dosages of 15 mg for Cd(II) and Cr(VI) and 20 mg for Pb(II) ions has been reported and largely attributed to the aggregation of the chelating agents thus limiting the number of available binding sites (Alqadami et al. 2017).Fig. 6. The extraction efficiency at different dosages using (A)** L1@SBA-15** and (B)** L1@MCM-41** at pH 3 for Cr(VI), Cd(II), and 5 for Pb(II) ions on 20 ppm solution for 2 h
Competitive and selective extraction of the metal cations

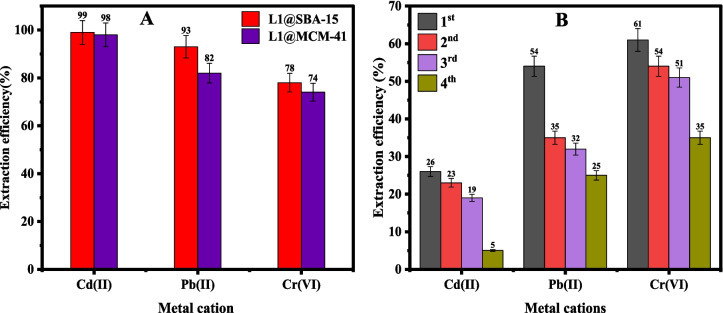

The selective extraction of the three metal cations by the chelating agents L1@SBA-15 and L1@MCM-41 was assessed using a 20-ppm mixed metal cation solution at pH 3 for 2 h (Fig. 7a). The results indicated that both the chelating agents L1@SBA-15 and L1@MCM-41 showed selectivity towards the metal cations in the order Cd(II) > Pb(II) > Cr(VI). The higher extractions of the soft Cd(II) cations, coupled with the lower affinities towards the hard Cr(VI) anions, can be explained by the Hard-Soft Acid–Base (HSAB) theory (Shen et al. 2018) and agree with the presence of the soft S-donor atoms in the organic motif (Prabha Padinhattath and Gardas 2025). Similarly, the high preference for moderate Pb(II) cations, could be derived from the presence of the moderate N-donor in the ligand framework. Additionally, the chelating agents demonstrated similar extraction behaviours in both single-metal and mixed-metal solutions under identical experimental conditions. For example, L1@SBA-15 achieved extraction efficiencies greater than 99% for Cd(II) and Pb(II) cations in single-metal solutions, which were comparable to efficiencies of 99% and 93%, respectively, observed in mixed-metal systems. Notably, Cr(VI) anions showed an improved extraction efficiency of 78% in the mixed-metal solution compared to 66% in the single-metal system. These results suggest potential synergistic effects in multi-metal systems and highlight the robustness of the chelating agents. The nature of the silica support was also found to influence the extraction efficiencies of the chelating agents. In general, the SBA-15 functionalized adsorbent, L1@SBA-15, displayed slightly higher extraction efficiencies than the MCM-41 immobilized material, L1@MCM-41, across all the metal cations. To illustrate this observation, extraction efficiencies of 82% and 93% for Pb(II) cations were reported for L1@MCM-41 and L1@SBA-15, respectively (Fig. 7a). This trend can be explained by the higher surface area and pore diameter of 141 m2/g ad 9 nm respectively for L1@SBA-15 compared to a much lower surface of 7 m2/g, exhibited by L1@MCM-41, in good agreement with previous findings of Ali et al*.* (Ali et al. 2016).Fig. 7A Extraction efficiency using 0.02 g of chelating agents on 20 ppm mixed metal cations solution at pH 3 for 2 h and (B) regeneration cycles and re-use of L1@MCM-41
Regeneration and reuse of the chelating agent

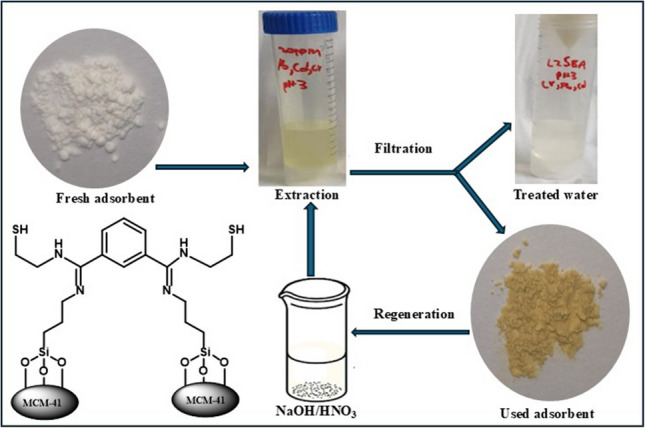

The primary aim of immobilizing the studied organic chelating agent on SBA-15 and MCM-41 supports was to enable efficient separation and reuse of the adsorbents. We thus carried out the regeneration and reuse of the chelating agent L1@MCM-41 using 1.0 M HNO_3_, followed by re-extraction of the metal cations from a 20 ppm solution at their optimal pH conditions (Fig. 7b). While the recycling experiments for the Cd(II) and Pb(II) cations registered significant drops, the recycling experiments of the Cr(VI) anions were quite promising. For example, while Cd(II) cations registered a drop from 99 to 26% in the initial and first recycling experiments, Cr(VI) anions registered 75% and 63% in the initial and first recycling extractions, respectively (Fig. 7). Indeed, by the fourth recycling experiments, Cd(II) cations had negligible extraction efficiency affording only 5% compared to 35% displayed for Cr(VI) anions). This reduction in efficiency is attributed to the loss of chelating agent mass during the stripping and washing steps of each subsequent cycle. A similar trend was observed in the recycling experiments in the removal of Cr(VI) anions and Pb(II) cations, with declines in extraction efficiencies from 73 to 35% and 81% to 24% in the first and fourth cycles being reported, respectively (Bayuo et al. 2020). While losses in the adsorbent during the recycling experiments may account for the decline in extraction efficiencies, the differences in the extraction efficiencies observed for Cd(II) cations and Cr(VI) anions also point to some chemical changes to the adsorbent.
