A new stepwise approach to minimize phrenic nerve injury during cryoballoon pulmonary vein isolation
K. Phkhaladze, H. Omran, T. Fink, V. Sciacca, D. Guckel, M. Khalaph, M. Braun, M. El Hamriti, J. Thale, G. Nölker, J. Vogt, C. Sohns, P. Sommer, G. Imnadze
TL;DR
A new stepwise technique during cryoballoon pulmonary vein isolation reduces the risk of phrenic nerve injury in patients with atrial fibrillation.
Contribution
A novel stepwise cryoballoon technique is introduced to minimize phrenic nerve injury during pulmonary vein isolation.
Findings
Transient phrenic nerve injury occurred in 3.2% of the intervention group versus 6% in the control group.
Persistent phrenic nerve injury was significantly lower in the intervention group (0.4%) compared to the control group (2.8%).
Overall phrenic nerve injury was 3.6% in the intervention group versus 8.8% in the control group.
Abstract
A phrenic nerve injury (PNI) during cryoballoon (CB) pulmonary vein isolation (PVI) continues to represent a limitation of this technique. The objective of this study was to develop a novel technique with the aim of reducing the incidence of PNI. We performed a retrospective analysis of data from two hospitals in patients with symptomatic, drug-resistant atrial fibrillation (AF) over 7 years to evaluate the incidence and clinical characteristics of PNI during cryoballoon PVI. Patients in the intervention group were treated with a new technique consisting of the following consecutive steps: (A) phrenic nerve stimulation near stimulation threshold instead of 10 V stimulation; (B) advanced ablation to the right superior pulmonary vein (PV) using a pre-freezing technique; (C) “pulling away” of the CB after vein isolation and/or after reaching − 40 °C for both right PVs. Two subtypes of PNI…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

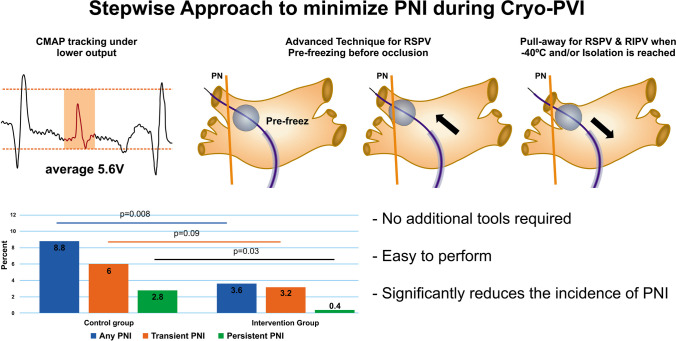

Figure 3- —Heart and Diabetes Centre North Rhine-Westphalia (DKZ NRW) (1007)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiac Arrhythmias and Treatments · Atrial Fibrillation Management and Outcomes · Trauma Management and Diagnosis
Introduction
Atrial fibrillation (AF) is the most common type of cardiac arrhythmia, with a 1.5- to twofold increased risk of death. The prevalence of AF among the world population has increased over the past 20 years. The overall lifetime risk of this arrhythmia is about 15–40% [1]. Over the past decades, several catheter ablation technologies have been developed to significantly reduce the risk of arrhythmia recurrence. Radiofrequency (RF)-guided point-by-point pulmonary vein isolation (PVI) was the initial standard of care as first-line therapy for the symptomatic treatment of drug-refractory AF [2]. Following the development of new generation cryoballoon (CB) catheters, cryoballoon ablation has proven to be an equally effective therapeutic option for rhythm control in patients with AF, according to several recent studies. However, serious noncardiac events related to the procedure, such as phrenic nerve injury (PNI), were frequently identified. PNI is the most commonly observed complication of cryoballoon-guided PVI, with an incidence of 1.1–6.2% [3–5].
The main goal of our study was to develop a new concept that could significantly reduce the incidence of PNI during cryoballoon treatment of resistant AF. We have developed a new step-by-step technique for early detection and prevention of phrenic nerve damage.
Methods
Study Population
The study enrolled 900 consecutive patients who underwent cryoballoon pulmonary vein isolation for drug-resistant symptomatic AF at the Heart and Diabetes Center North Rhine-Westphalia, Germany, and the Klinikum Osnabrück, Osnabrück, Germany. This retrospective observational study followed patients who underwent an initial CB-PVI procedure between 2016 and 2023. Patients in the intervention group who underwent treatment with the new technique were enrolled from 2019. The study collected baseline, procedural, and follow-up data. The study was conducted in accordance with the principles outlined in the Declaration of Helsinki and approved by our local institutional ethics committee. The procedure in both groups was performed by three operators. Another two electrophysiologists had only performed procedures for the control group. All operators had experience of more than 100 procedures.
Procedural management
Prior to the procedure, intracardiac thrombus was excluded by preprocedural transesophageal echocardiography (TEE). The majority of patients underwent computed tomography (CT) or cardiac magnetic resonance imaging to visualize detailed anatomy of the left atrium (LA) and pulmonary veins (PVs). Patients who were treated with Vitamin-K-antagonists maintained their daily anticoagulation adjusted to the procedure with a target International Normalized Ratio of between 2.0 and 3.0. In contrast, patients treated with novel oral anticoagulants (NOACs) discontinued medication uptake one half-life prior to the ablation procedure and resumed after a 4-h time interval. Exclusion criteria included any contraindications to the procedure, uncontrolled heart failure, and contraindications to anesthesia.
Cryoballoon-based pulmonary vein isolation
The procedures were conducted under conscious sedation using propofol and analgesia with fentanyl as needed. Intravenous heparin was administered to maintain an activated clotting time (ACT) of > 300 s throughout the procedure.
Two right femoral vein punctures were performed. A 10-pole steerable diagnostic catheter (Inquiry™, Abbott, USA) was used for coronary sinus intubation, right ventricular rapid pacing, and phrenic nerve (PN) pacing. The procedure utilized a 28 mm 2nd generation CB (Arctic Front Advance, Medtronic, Minneapolis, MN, USA). After transseptal puncture, the balloon catheter was advanced into the LA through a steerable sheath (12-F FlexCath advance Medtronic, Minneapolis, MN, USA). PV mapping was performed using a multipolar mapping catheter (Achieve Advance Mapping Catheter, Medtronic, Minneapolis, MN, USA).
The transseptal puncture (TSP) was performed under fluoroscopy or intracardiac echocardiography (ICE) guidance in the control group until 2019. In the intervention group, TSP was guided solely by fluoroscopy.
After fluoroscopy-guided TSP, the control group underwent pulmonary vein angiography using the standard method or angiography under rapid pacing of the right ventricle. In all patients in the intervention group, angiography was performed under rapid pacing of the right ventricle, as previously reported [6]. Pulmonary vein occlusion was confirmed by PV angiography with the balloon inflated and placed at the PV ostia prior to each freezing cycle. The interventional group used the algorithm of time to isolation (TTI) plus 120 s, while the control group conducted a full freeze of 180 or 240 s. Permanent PVI (entry and exit block) was confirmed after a 20-min waiting period. Prior to ablating the septal PVs, a diagnostic catheter was inserted into the superior vena cava to stimulate the phrenic nerve. Compound motor action potentials (CMAP) from the right diaphragm were recorded along the abdominal palpation as described previously [7]. If the CMAP amplitude decreased by more than 30%, the cryoapplication was immediately stopped. To ensure proper phrenic nerve capture, we also observed diaphragmatic contraction under fluoroscopy.
Definition of the phrenic nerve injury
We defined any PNI resulting in cessation of cryo application as an event, this included a decrease in CMAP. We defined PNI as transient if it recovered before the end of the procedure or before discharge. If PNI was sustained at discharge, we defined it as persistent.
New Steps to Prevent PNI
In the intervention group, additional safety measures were taken during the ablation of the right pulmonary veins. Unlike the control group, the intervention group initially targeted the septal veins and the following steps were performed:
- Step 1—Decrease PN stimulation outputThe PN stimulation threshold was detected for all patients in the intervention group. Instead of continuous pacing with an amplitude of 10 V, we stimulated the phrenic nerve close to the pacing threshold with double output (Fig. 1).

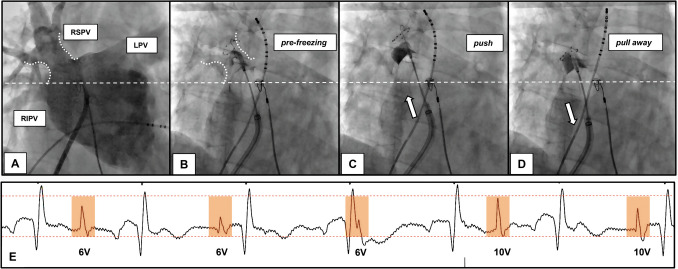

- Step 2—Pre-freezing for RSPVFig. 1. The consecutive steps of a new approach. All fluoroscopy pictures are presented in RAO 10° angulation, which is preferred over AP angulation because it provides better view of RIPV ostia. A Angiography of the PVs under rapid pacing from RV. Pre-freezing of the balloon close to the RSPV ostia (B) and pushing the balloon towards the ostia with simultaneous contrast injection until occlusion of the vein is verified (C). D After achieving −40 °C or isolating the vein, the pull-away maneuver (and hold until the end of the application) was performed. E The significance of PN stimulation with lower output, closer to the PN stimulation threshold, is demonstrated. The CMAP potential (colored blocks) decreases gradually when stimulated with 6 V/2.0 ms output (in this case, the PN stimulation threshold was 3 V/2.0 ms). Increasing the output to 10 V/2.0 ms immediately results in a higher CMAP potential, even higher than the initial potential under output with 6 V/2.0 ms. The application was immediately stopped despite high CMAP amplitude during stimulation with maximum outputThe pre-freezing technique was used to occlude and ablate the right superior pulmonary vein (RSPV). The approach involved inflating the cryoballoon in close proximity to the RSPV ostia, initiating the cryotherapy and then advancing the balloon towards the ostium under simultaneous angiography until occlusion was confirmed (Fig. 1).
- Step 3—Pull away for septal PVsOnce the temperature reached − 40 °C and/or the PV was isolated, a “pull-away” maneuver was performed on both right-sided PVs under continuous freezing. This maneuver is similar to the pull-back maneuver, but the position is held until the end of the procedure (see Fig. 1).
Postprocedural care and follow-up
After PNI was detected, each affected patient underwent a chest x-ray to determine the recovery status of the phrenic nerve before hospital discharge. Additionally, all patients underwent transthoracic echocardiography to exclude any possibility of fluid accumulation in the pericardium. Typically, patients were discharged the day after the procedure.
Anticoagulants were prescribed for a minimum of 3 months after the CB-PVI procedure. Lifelong anticoagulation was recommended according to the individual CHA2DS2-VASC scores. All patients were scheduled for follow-up visits after 3, 6, and 12 months.
Statistical analysis
Statistical analyses were performed using IBM SPSS V29 (IBM Corporation, Armonk, NY, USA). Data are expressed as percentages for categorical variables and as mean ± standard deviation (SD) or median ± interquartile range (IQR) for continuous variables. We compared continuous variables using Student’s t-test and Mann–Whitney U test as appropriate. Comparisons of categorical variables between groups were performed by Pearson’s X^2^ test, for expected frequencies < 5 by two-sided Fisher’s exact test. Logistic regression analysis was implemented to adjust for other covariates. Univariate analyses were initially performed and all parameters with p < 0.1 were then included in multivariate analysis. All p-values were two-sided, and statistical significance was assumed at a p-value of 0.05.
Results
Between 2016 and 2023, 900 patients suffering from drug-resistant AF underwent PVI using the cryoballoon technique. The control group consisted of 650 patients. In the intervention group, 250 procedures were performed using our novel stepwise approach. The study population had an average age of 62.3 ± 10.9 years and 37.7% of the patients were female. 52.1% had paroxysmal AF, while 47.9% had a history of persistent AF. The most common comorbidities in the study population were myocardial infarction (12.6%), followed by diabetes (11.6%), chronic kidney disease (3.9%), and chronic obstructive pulmonary disease (3.0%). There were no significant differences in baseline characteristics between the two groups, except for the higher age in the intervention group (Table 1). There was a significant difference in procedural data between the two groups. The intervention group had lower procedural time and contrast amount, while the control group had lower fluoroscopy time and radiation dose. Although there was no difference in the lowest temperature for all veins, the intervention group had a significantly lower time for cryo application compared to the control group (Table 2). Table 1. Baseline characteristics of intervention and control groupsOverallIntervention groupControl groupp-valuen900250650Age62.3 ± 10.965.3 ± 10.361.9 ± 11.0 < 0.001Female342 (38%)105 (42%)237 (36.5%)0.13BMI28.3 ± 4.928.3 ± 4.928.3 ± 4.80.99History of MI113 (12.6%)37 (14.8%)76 (11.7%)0.21Diabetes104 (11.6%)23 (9.2%)81 (12.5%)0.17COPD30 (3.0%)12 (4.8%)18 (2.8%)0.13CKD35 (3.9%)9 (3.6%)26 (4%)0.8EHRA2.4 ± 0.82.4 ± 0.72.3 ± 0.80.11Paroxysmal AF569 (52.1%)127 (50.8%)342 (52.6%)0.63PM22 (2.4%)7 (2.8%)15 (2.3%)0.67BMI body mass index, MI myocardial ischemia, COPD chronic obstructive pulmonary disease, CKD chronic kidney disease, EHRA European Heart Rhythm Association classification, AF atrial fibrillation, PM pacemakerTable 2Periprocedural characteristics of intervention and control groupsOverallIntervention groupControl groupp-valueProcedural time (min)79.8 ± 19.664.6 ± 20.888.5 ± 12.4 < 0.001Fluoroscopy time (time)8.7 ± 20.712.1 ± 7.97.4 ± 23.80.003Radiation dose (Gycm^2^)928 ± 13971158 ± 1668840 ± 12670.007Contrast volume (mL)56.4 ± 19.144 ± 15.961 ± 18 < 0.001RSPV Freeze duration227.1 ± 61.2191 ± 48240 ± 61 < 0.001 Lowest temperature − 48 ± 9.7 − 47.8 ± 9.6 − 48.0 ± 9.50.82RIPV Freeze duration250.5 ± 79.5200 ± 47270 ± 80 < 0.001 Lowest temperature − 45.9 ± 10.1 − 46.5 ± 9 − 45.7 ± 100.3LSPV Freeze duration227.6 ± 49.5199 ± 46239 ± 47 < 0.001 Lowest temperature − 46 ± 9.3 − 46.8 ± 9.9 − 45.7 ± 8.90.1LIPV Freeze duration237.7 ± 77186 ± 49257 ± 76 < 0.001 Lowest temperature − 42.4 ± 11.1 − 43.9 ± 13.6 − 41.9 ± 9.70.01RSPV* right superior pulmonary vein, RIPV right inferior pulmonary vein, LSPV left superior pulmonary vein, LIPV left inferior pulmonary vein
Procedural data

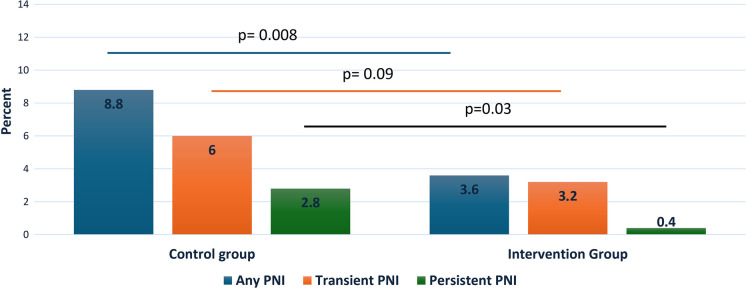

During the application of cryoenergy to RSPV, 66 out of 900 patients (7.3%) experienced PNI. Of those affected, 47 (5.2%) individuals recovered during the procedure, while the remaining 19 (2.1%) had persistent PN paresis at discharge. All of the PNIs occurred during the cryo therapy of the RSPV. We observed a statistically significant difference in terms of PNI between the two groups. The incidence of any PNI was lower in the intervention group (3.6% vs. 8.8%, p = 0.008) as well as persistent PNI (0.4% vs. 2.8%, p = 0.03) (Fig. 2). The incidence of transient PNI also tended to be lower in the intervention group (3.2% vs. 6.%, p = 0.09), The logistic regression analysis revealed that the utilization of the intervention was significantly associated with a reduced risk of any PNI (odds ratio (OR), 0.39; 95% CI [0.19–0.79]; p = 0.006). This association remained significant even after adjusting for age, gender, and type of AF (paroxysmal vs persistent) (OR, 0.36; 95% CI [0.18–0.74]; p = 0.007), please refer to Table 3. The PN threshold in the control group was analyzed and found to be 2.7 ± 2.6 V/2.0 ms. The average output for PN stimulation was 5.6 ± 5.2 V/2.0 ms, which is almost half of the regular output (10 V/2.0 ms). Fig. 2. Differences in the incidence of phrenic nerve injury between two groups. PNI phrenic nerve injuryTable 3The logistic regression analysisUnivariateOR (95% CI)Univariatep-valueMultivariateOR (95% CI)Multivariate**p-valueAny PNI0.39 [0.19–0.79]0.010.36 [0.18–0.77]0.007Persistent PNI0.14 [0.02–0.98]0.0480.14 [0.02–0.99]0.05*After adjustment for age, gender, type of AF (paroxysmal vs persistent)PNI phrenic nerve injury
