Reconciling multiple connectivity-based systems biology methods for drug repurposing
Catalina Gonzalez Gomez, Manuel Rosa-Calatrava, Julien Fouret
TL;DR
This review unifies twelve drug repurposing methods by categorizing them into gene set-driven and network-driven approaches, clarifying their similarities and differences.
Contribution
The paper systematically reconciles diverse connectivity-based drug repurposing methods into two structured categories with homogenized formulations.
Findings
Drug repurposing methods can be grouped into gene set-driven and network-driven approaches based on their strategies.
Gene set-driven methods use enrichment or projection to compare transcriptomic signatures and rank drug candidates.
Network-driven methods use biological networks and algorithms to uncover system-level relationships between diseases and drugs.
Abstract
In the last two decades, numerous in silico methods have been developed for drug repurposing, to accelerate and reduce the risks about early drug development. Particularly, following Connectivity Map, dozens of distinct data-driven methods have been implemented to find candidates from the comparison of differential transcriptomic signatures. Interestingly, there have been multiple proposals to integrate available knowledge using systems biology databases and adapted algorithms from the network biology research field. Despite their similarities, these methods have been formulated inconsistently over the years, even if some of them are fundamentally similar. The aim of this review is to reconcile these integrative methods, focusing on elucidating their common structures while underlining the specificities of their strategies. To achieve this, we classified those methods into two main…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3|
|
|
|
|---|---|---|
| Gene Expression Modules-Based Similarity Search | GEMS2 | [ |
| Gene set Local Hierarchical Clustering | GSLHC | [ |
| Co-expressed gene set enrichment analysis | Cogena | [ |
| Functional Module Connectivity Map | FMCM | [ |
| Master Regulators Connectivity Map | MRCMap | [ |
| Connectivity Map Co-expression Network Analysis | CMapCNA | [ |
| Module Network Based Method for Drug Repositioning | MNBDR | [ |
| Network mapping approach for knowledge-driven comparison of transcriptomic profiles | KNeMAP | [ |
| Method of functional modules | MFM | [ |
| Pathway-based Network Propagation for Drug repositioning | PNPDR | [ |
| DrugDiseaseNet | DDN | [ |
| Drug Repurposing method based on the Inhibition Effect on gene regulatory network | DRIE | [ |
|
|
|
|---|---|
|
| The full set of genes of the reference perturbagen profile. |
|
| Subset of reference genes with the most extreme scores, defined by fold-change and/or significance |
|
| The up-regulated and down-regulated subsets of RX, the genes with the extreme perturbagen gene scores ( |
|
| Full set of genes, or those selected based on prior knowledge (e.g. mutated genes), associated with the query perturbagen state. |
|
| Subset of query genes with the most extreme scores, defined by fold-change and/or significance |
|
| The up-regulated and down-regulated subsets of SX, the genes with the extreme perturbagen gene scores ( |
|
| score function for the reference or the query signature that takes one or more genes as input and returns a vector of their gene expression scores. |
|
| score function for the reference or the query signature that takes one or more genes as input and returns a vector of the signed normalized measured of their gene expression changes (e.g. log fold change). |
|
| Number of genes in |
| GeneSetDB | Database with the predefined gene sets. Commonly, those sets represent a group of functionally associated genes (e.g. GO, MSigDB, KEGG), that act in concert to carry out a specific function. |
| RefProfDB | Database with the gene expression profiles used as reference for the similarity search (e.g. Connectivity Map database). |
|
| Number of reference profiles in the RefProfDB. |
|
| Reference instance in the RefProfDB |
|
| Number of enriched gene sets in the query (or identified gene modules). |
|
| Gene sets, or gene modules, instance |
|
| A gene module instance, i.e. a collection of genes in the i-th gene module. |
|
| Pearson’s correlation coefficient. |
|
|
| |
|---|---|---|
| Modular similarity score between the reference profile r and the i-th gene set. | S |
|
| Global similarity score associated to the reference profile r. | - |
|
| Subsets of up- and down-regulated genes in the query that belong to the i-th gene set. | - |
|
| Enrichment score for up-regulated gene set subquery and down-regulated gene set subquery. |
|
|
| Number of genes in | n |
|
| Rank of the gene g in the rank-ordered version of R, ranked from highest to lowest gene expression values. | V(j) |
|
|
|
| |
|---|---|---|
| Modular similarity score between each reference profile and the i-th gene module. | - |
|
| Modular similarity score; normalized across all reference profiles and the i-th gene module. | ES |
|
|
|
| |
|---|---|---|
| Modular similarity score between each reference profile and i-th regulatory unit. | - |
|
| Modular similarity score; normalized across all reference profiles and the i-th regulatory unit. | - |
|
|
|
| |
|---|---|---|
| First principal component (module eigengene) of the i-th gene module. | - |
|
| Projection of the reference profile r into the module eigengene associated to i-th gene module. | ME |
|
|
|
| |
|---|---|---|
| Importance score of the i-th gene module in the query signature. |
|
|
| Importance score of the i-th gene module in the reference profile r. |
|
|
| Minimum and maximum differential expression values of all the genes in the query that belong to the i-th gene module. |
|
|
| Minimum and maximum differential expression values of all the genes in the reference that belong to the i-th gene module. |
|
|
| Vector of PageRank scores associated with the query gene modules at the k-th iteration. |
|
|
| Position of the i-th module in the ranked list of importance modules in the reference profile r. |
|
|
| Global similarity score between the query and the reference r. |
|
|
|
|
| |
|---|---|---|
| Threshold for filtering the up- and down-regulated genes in the query. |
|
|
| Threshold for selecting the up- and down-regulated genes in the reference. |
|
|
| Mutation-associated deregulated genes in the query. |
|
|
| Subset of deregulated genes in the reference profile. |
|
|
| Area under the ROC curve inferred from the mutual predictability scores between gene sets A and B. |
|
|
| Global similarity score between the query and the reference r. |
|
|
|
|
| |
|---|---|---|
| Bipartite graph. |
|
|
| Node associated to a functional pathway. |
|
|
| Node associated to a reference profile. |
|
|
| Final labels for the reference profile v and the functional pathway u. |
|
|
| Initial labels for the reference profile v and the functional pathway u. |
|
|
| Global similarity score between the query and the reference r. |
|
|
|
|
| |
|---|---|---|
| Query perturbation signature. |
|
|
| Reference perturbation signature. |
|
|
| Perturbation factor of a gene g in the query perturbation signature. |
|
|
| Perturbation factor of a gene g in the reference perturbation signature. |
|
|
| Subset of upstream genes of g. | - |
|
| Number of downstream genes of g. |
|
|
| Binary indicator representing the type of interaction between the genes g and h. |
|
|
| Global similarity score (i.e. inhibition score) between the query and the reference r. |
|
|
|
|
| |
|---|---|---|
| Effect score of the reference r on the query-associated gene g. |
|
|
| Set of edges composing the shortest path between the genes g and h. |
|
|
| Accumulation of the interaction between the reference-perturbed gene g and the query-associated gene h. |
|
|
| Binary indicator representing the type of interaction characterized by the k-th edge in the shortest path |
|
|
| Global similarity score (i.e. inhibition score) between the query and the reference r. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| GEMS2 | One gene expression profile | Predefined gene sets | 1 | low | yes | yes | 1 (CMap1) | Valproic acid (VPA); hypoxia; breast cancer | Web UI | Broken link |
|
| GSLHC | One gene expression profile | Predefined gene sets | 2 | low | no | yes | 1 (CMap1) | Similar effects for 18 query compounds | Web UI | Broken link |
|
| Cogena | multiple gene expression profiles | Predefined gene sets | 1 | low | yes | no | 1 (CMap1) | Psoriasis | Package/ | November 2023 |
|
| FMCM | multiple gene expression profiles | PPIN from HPRD [ | 4 | very high | yes | global selection | 1 (CMap1) | Colorectal cancer | no | no mention | |
| MRCMap | One gene expression profile | Expression data for network inference | 3 | high | yes | global selection | 1 (CMap1) | Bipolar disorder | no | codes available on request to the corresponding authors | |
| CMapCNA | One gene expression profile | Predefined gene sets | 4 | low | yes | global selection | None | Breast cancer and non-alcoholic fatty liver disease | no | data available under reasonable to the corresponding authors | |
| MNBDR | One gene expression profile | PPIN from String [ | 4 | low | no | yes | 6 (similar and non-similar methods) | Breast cancer | Source/ | November 2020 |
|
| KNeMAP | One gene expression profile | Multiple (PPIN, GGIN, gene-pathway, etc.) | 4 | low | no | yes | 3 (non-similar methods) | Drug exposure and exposure to nanomaterials | Source/ | October 2024 |
|
| MFM | Mutated genes from OMIM | Functional Network | 3 | low | no | yes | 2 (non-similar methods) | Breast cancer, prostate cancer and leukemia | no | no mention | |
| PNPDR | multiple gene expression profiles | Predefined Pathways + Known drug-disease interactions | 5 | medium | no | yes | None | Breast cancer | no | no mention | |
| DDN | One gene expression profile | Signaling pathways | 3 | low | no | yes | 1 (CMap1) | Pulmonary fibrosis, non-small cell lung cancer, prostate cancer, breast cancer | Package/GPL-3 | October 2017 |
|
| DRIE | One gene expression profile | Signaling pathways | 3 | low | no | yes | 3 (similar and non-similar methods) | Colorectal cancer, breast cancer and lung cancer | Package/Unlicensed | July 2023 |
|
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBioinformatics and Genomic Networks · Microbial Metabolic Engineering and Bioproduction · Computational Drug Discovery Methods
Introduction
Drug development is a costly and time-consuming process, with an average cost that ranges between less than 2 billion per drug [1, 2] and takes between 5 and 20 years [3]. In addition, the field suffers from low success rates, with only 12% of molecules achieving FDA approval after entering the clinical stage [1]. To accelerate the discovery phase of drug development and to diminish the associated risks, repurposing (or repositioning) has emerged as a promising strategy to identify new therapeutic applications for existing drugs [4, 5]. To date, the majority of successfully repurposed drugs have been identified by retrospective clinical or pharmacological analysis [6]. However, there are ongoing efforts to develop systematic in silico approaches [7, 8]. In this review we focused on in silico repurposing strategy matching disease and drug omics signatures while integrating knowledge leveraging systems biology and network biology methods. The past two decades has witnessed the rise of signature-based approaches focusing on gene expression pattern comparison [9, 10]. Unlike target-based repositioning methods, which identify molecules that interact with a known target protein to provide a new indication [11], signature-based methods are target-agnostic and rely on the principle of polypharmacology [12, 13]. A significant advancement came with Lamb et al.’s development of the Connectivity Map (CMap) [9]. CMap screens disease (or drug) signatures against its drug-profiles database using a Kolmogorov–Smirnov (KS) based connectivity score. Alternative screening methods were derived from this principle with new connectivity scores [9, 10, 14] and similarity metrics [15] which all have been reconciled in the review from Samart et al. [16]. However, these signature-based methods have limitations: they cannot identify relationships without common genes and may overlook underlying gene relationships. Therefore, new methods relying on available knowledge have been developed integrating systems biology databases and network biology algorithms.
Knowledge-centered approaches, leveraging network biology, are widely used at drug discovery stage [17]. A fundamental method is the enrichment analysis [18] using functional genomics databases such KEGG [19] or GO [20] to identify significant pathways from disease-specific genes (e.g. deregulated genes). Enrichment methods range from over-representation analysis (ORA) [18] to more sophisticated approaches such as GSEA [21] or the parent–child method, which is based on the hierarchical structure of functional genomics databases [22]. Even more complex strategies leverage the topological aspects of functional genomics databases [23] including relationships between genes and/or other entities (e.g. metabolites or drugs), as well as causal inference [24, 25]. In the field of drug development, these approaches have been primarily used during the discovery phase for target identification [17, 26–28] and mechanism elucidation [29, 30].
Omics’ signatures comparisons while integrating available knowledge has been challenging. However, recent developments in network biology algorithms have facilitated the process [31] through specialized algorithms such as network propagation [32]. In this review, we aim to systematically analyze in silico repurposing strategies leveraging both the data-driven aspects by comparing disease and drug(s) omics signatures with the integration of available knowledge using network biology algorithms. We deliberately exclude chemoinformatics and molecular docking strategies, which typically intervene downstream in the drug development pipeline after target identification. Instead, we focused on computational methods that leverage disease signatures and network-based analyses to generate initial drug-disease or target-disease hypotheses, which can later be refined through structure-based approaches. We retrieved twelve published methods that, despite their similarities, often employ inconsistent terminology and notation. Inspired by Samart et al.’s [16], we propose a unified framework that homogenizes notation and identifies standard workflow steps, aiming to facilitate method comparison and guide future developments in systems biology-based connectivity estimation and drug repositioning.
Methods taxonomy and general notations
We performed a taxonomic classification of methods that compare omics signatures of two given perturbagens (e.g. drug and disease) while integrating systems biology data. These methods, listed in Table 1, fall into two main categories, as represented in Fig. 1. On one hand we have a set of methods relying on gene sets and on the other hand we have methods using biological networks as a graph. General notation used across methods are summarized in Table 2 [33–44].

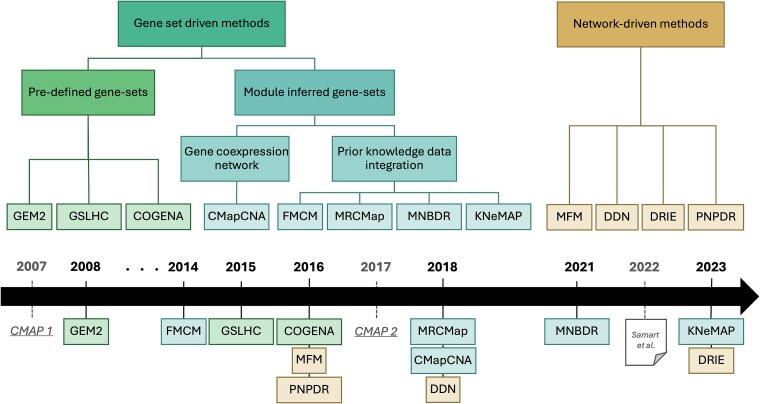

Taxonomy and chronology of system biology-based connectivity scores. The twelve scores were primarily classified depending on the mathematical object used to integrate systems biology knowledge into connectivity computations: Gene sets or networks. Among gene set driven methods, we distinguish predefined gene sets such as KEGG [19] or GO [20] with inferred gene sets using either data (gene co-expression) or prior knowledge. CMAP1 and CMAP2 connectivity scores were included in the chronology as references, along with the reconciling review by Samart et al. [16].
Gene set driven approaches
Generalized approach for gene set driven methods

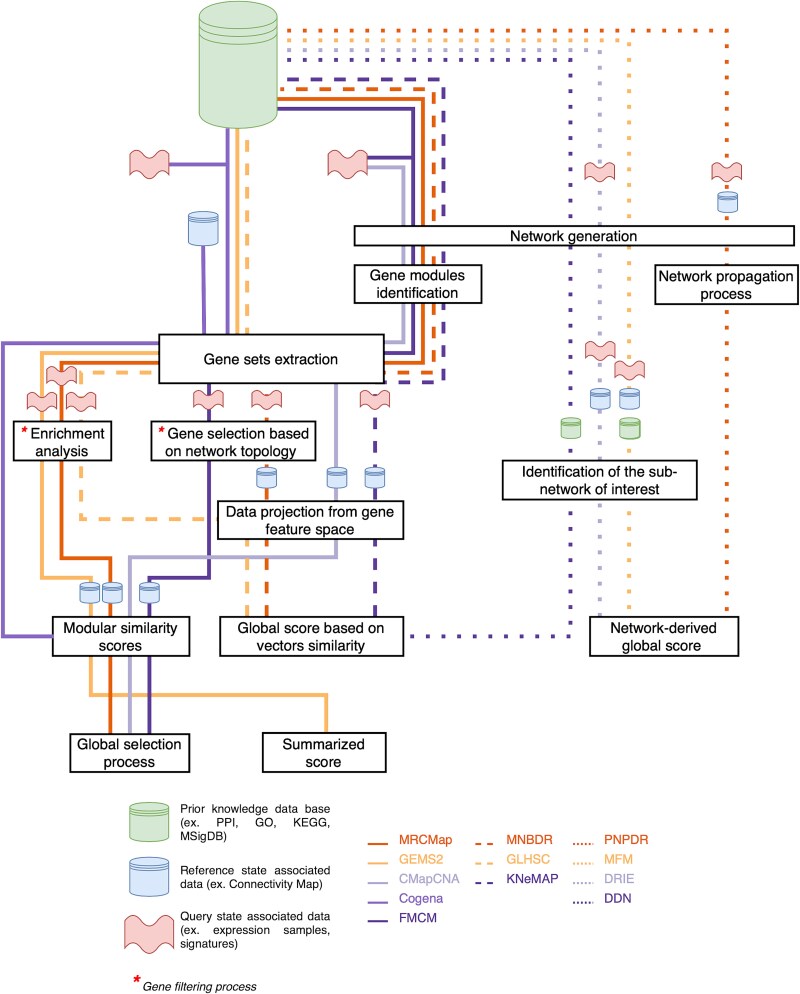

To generalize all those methods (see Fig. 1) into a general framework, we have named three recurrent steps. First (i) the identification of gene sets, then (ii) the selection/extraction of those gene sets using the query signature and finally (iii) the calculation of the score that can be modular (at the gene set level) and/or summarized. Below, we shortly describe the principles of those steps across the different methodologies before presenting each method using a common terminology.
Gene sets identification
The aim of this step is to find one or many gene sets. GEMS2 [33] and GLHSC [34] directly extract functional gene sets from predefined databases such as KEGG [19], GO [20] or MSigDB [45, 46]. Other approaches, like FMCM [36], MRCmap [37], CMapCNA [38], MNBDR [39], and KNeMAP [40] build gene sets from data-inferred networks in combination with module identification algorithms as depicted on Fig. 2A. Each method proposes its own network construction strategy, from prior-knowledge data and/or experimental data. A bit apart, Cogena [35] uses network-free hierarchical clustering from experimental data to identify gene sets while annotating them with functional databases (e.g. GO).

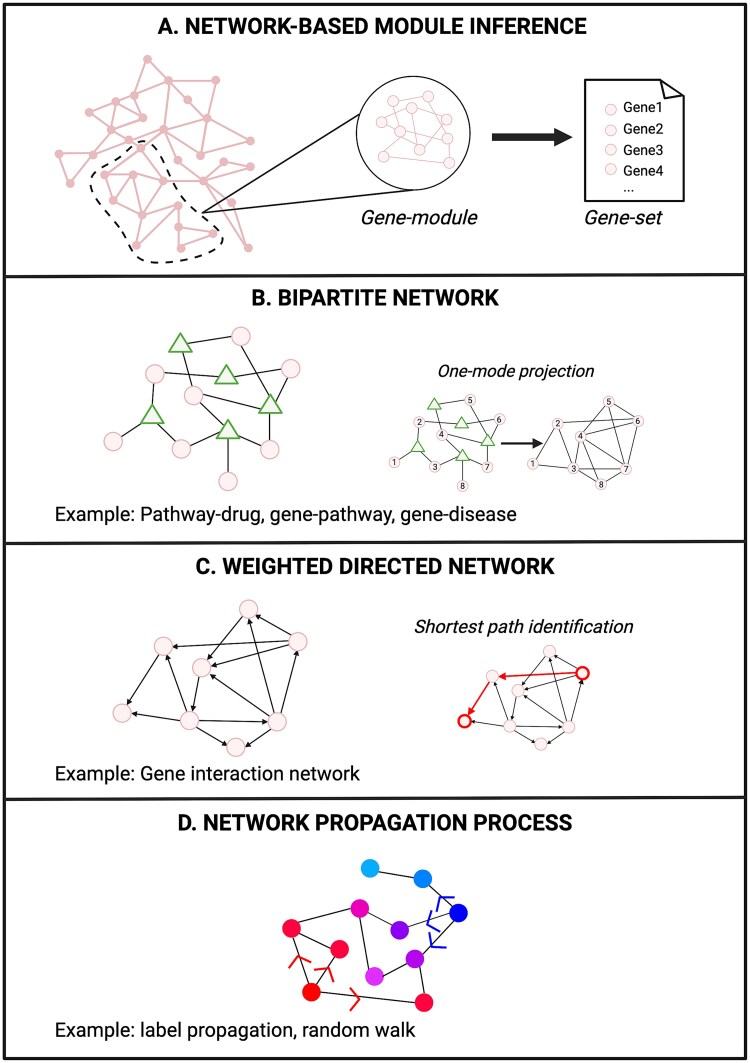

Schematic representation of key concepts in network analysis. (A) Network-based module inference. Different clustering strategies exist, such as agglomerative hierarchical clustering, to identify communities or modules of related nodes. (B) Bipartite network. These networks are characterized for having two classes of nodes with edges only existing between nodes of different classes. They can be transformed by suppressing one class and connecting nodes with common neighbors. (C) Weighted directed network. In this type of network, each edge has an associated direction and a weight. The shortest path between two nodes can be identified by finding the path that minimizes the sum of weights. (D) Network propagation process. This process can be applied to different types of networks as a way to spread information across them. Created in BioRender. Gonzalez Gomez, C. (2025) https://BioRender.com/h78r633.
