Advanced Design for High-Performance and AI Chips
Ying Cao, Yuejiao Chen, Xi Fan, Hong Fu, Bingang Xu
TL;DR
This paper reviews recent advancements in AI chip design, focusing on materials, architecture, and techniques to improve performance and efficiency.
Contribution
The paper provides a systematic review of the latest design strategies for advanced and AI chips, emphasizing co-design and future directions.
Findings
Recent advancements include photonic computing and quantum processors for improved performance.
Design tactics consider materials, algorithms, and architectures to achieve high energy efficiency and computing power.
The paper outlines future design considerations for advanced chips, including multimodal data processing and reconfigurability.
Abstract
A comprehensive review focused on the recent advancement of the advanced and artificial intelligence (AI) chip is presented.The design tactics for the enhanced and AI chips can be conducted from a diversity of aspects, with materials, circuit, architecture, and packaging technique taken into considerations, for the pursuit of multimodal data processing abilities, robust reconfigurability, high energy efficiency, and enhanced computing power.A broad outlook on the future considerations of the advanced chip is put forward. A comprehensive review focused on the recent advancement of the advanced and artificial intelligence (AI) chip is presented. The design tactics for the enhanced and AI chips can be conducted from a diversity of aspects, with materials, circuit, architecture, and packaging technique taken into considerations, for the pursuit of multimodal data processing abilities,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

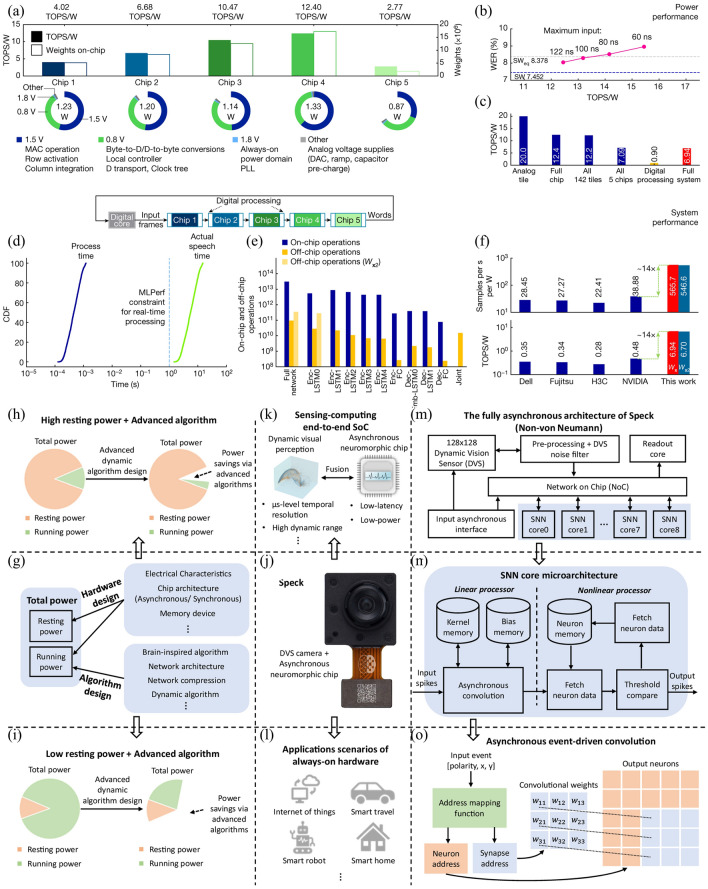

Figure 10

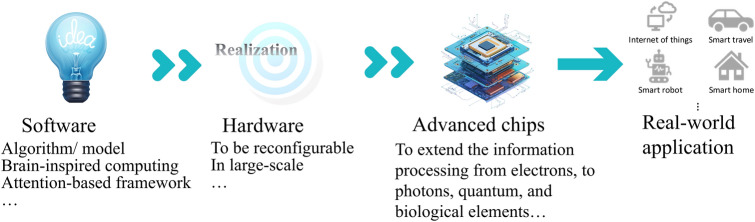

Figure 11

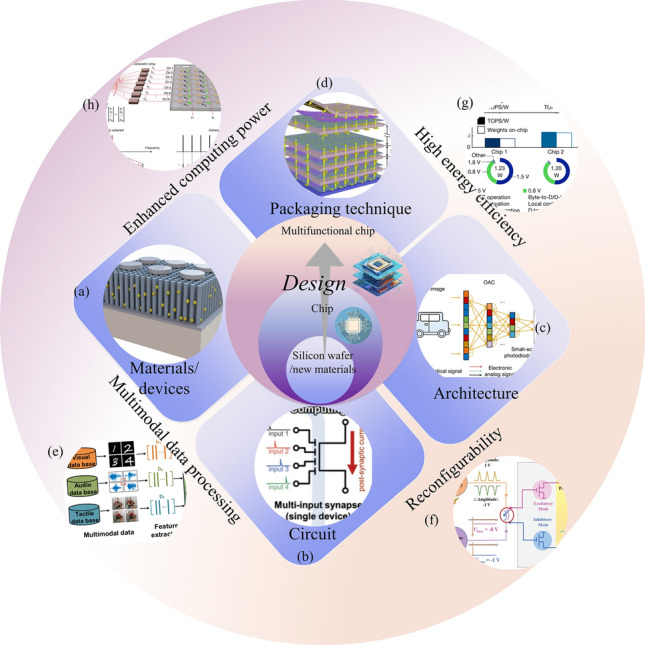

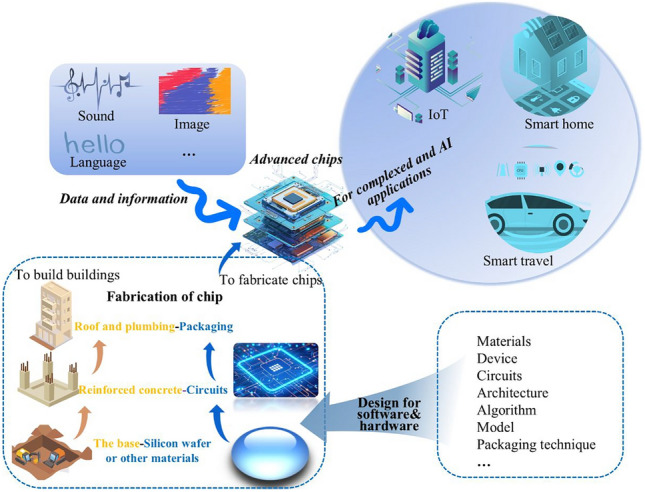

Figure 1

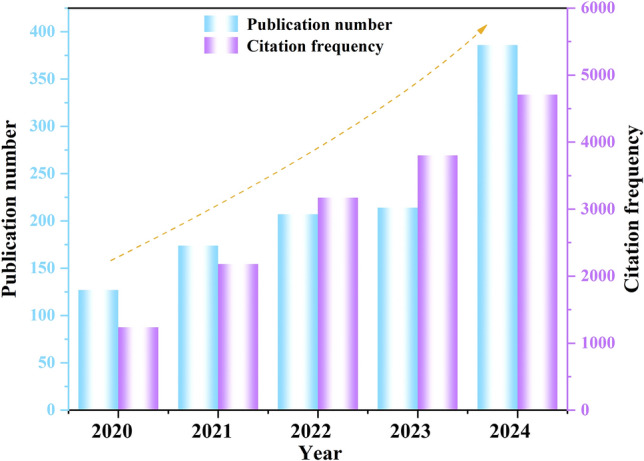

Figure 2
Figure 3

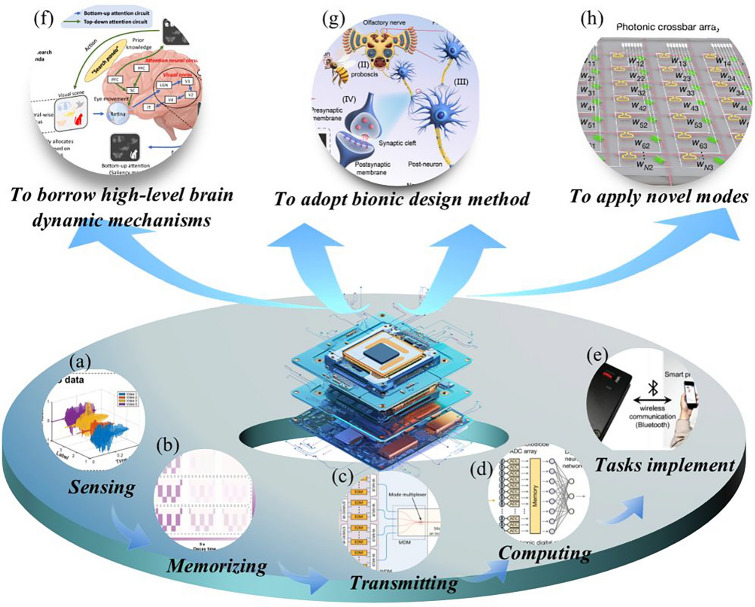

Figure 4

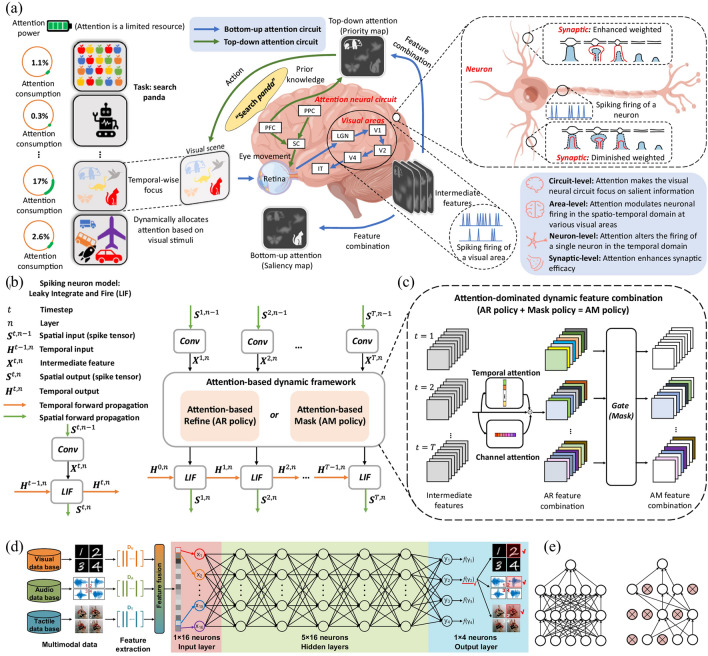

Figure 5

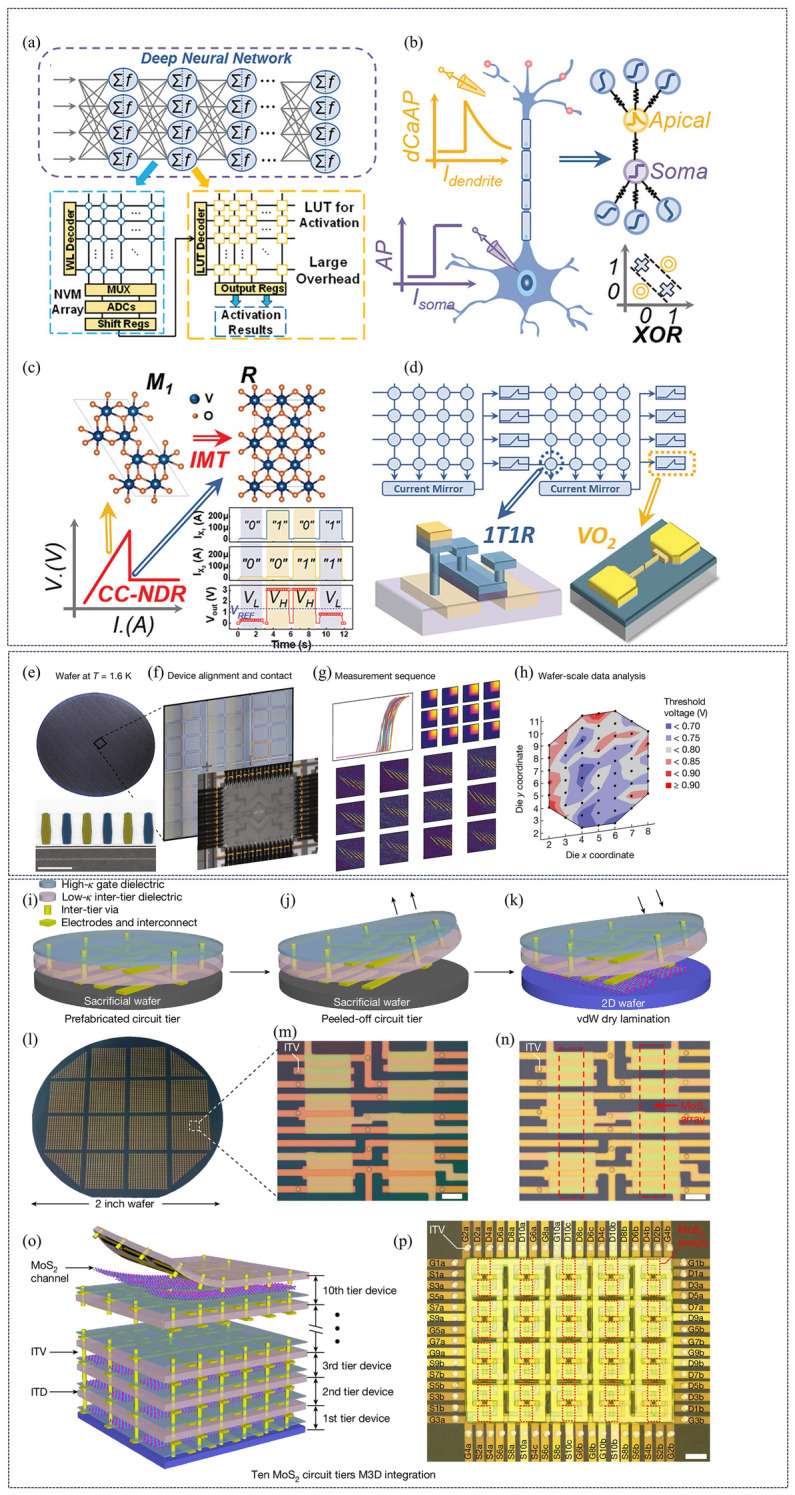

Figure 6

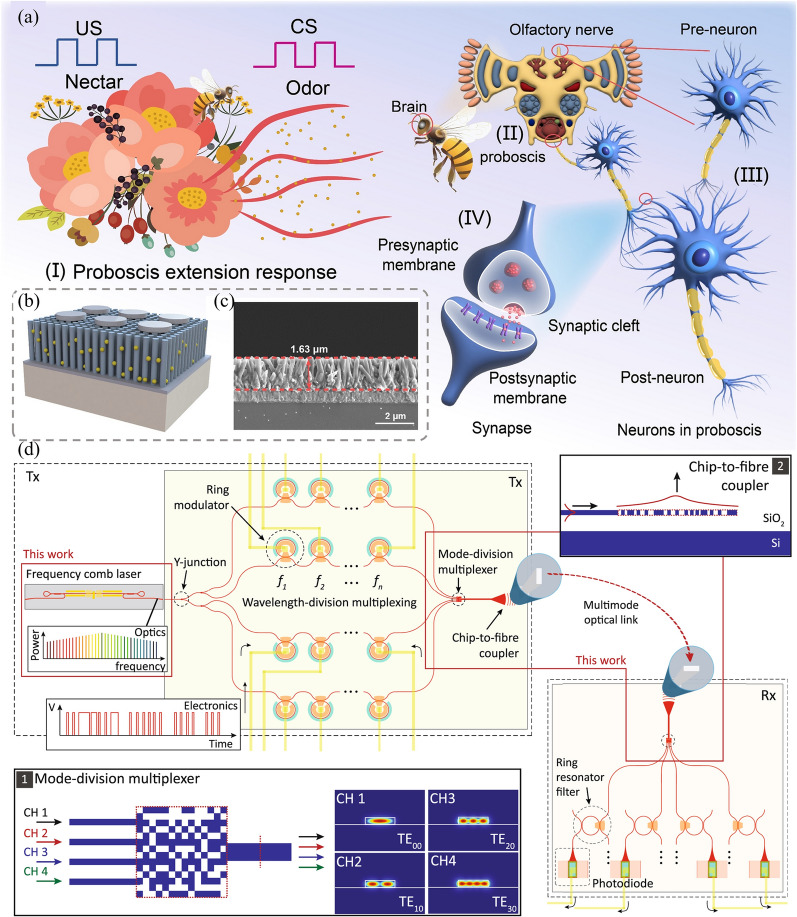

Figure 7

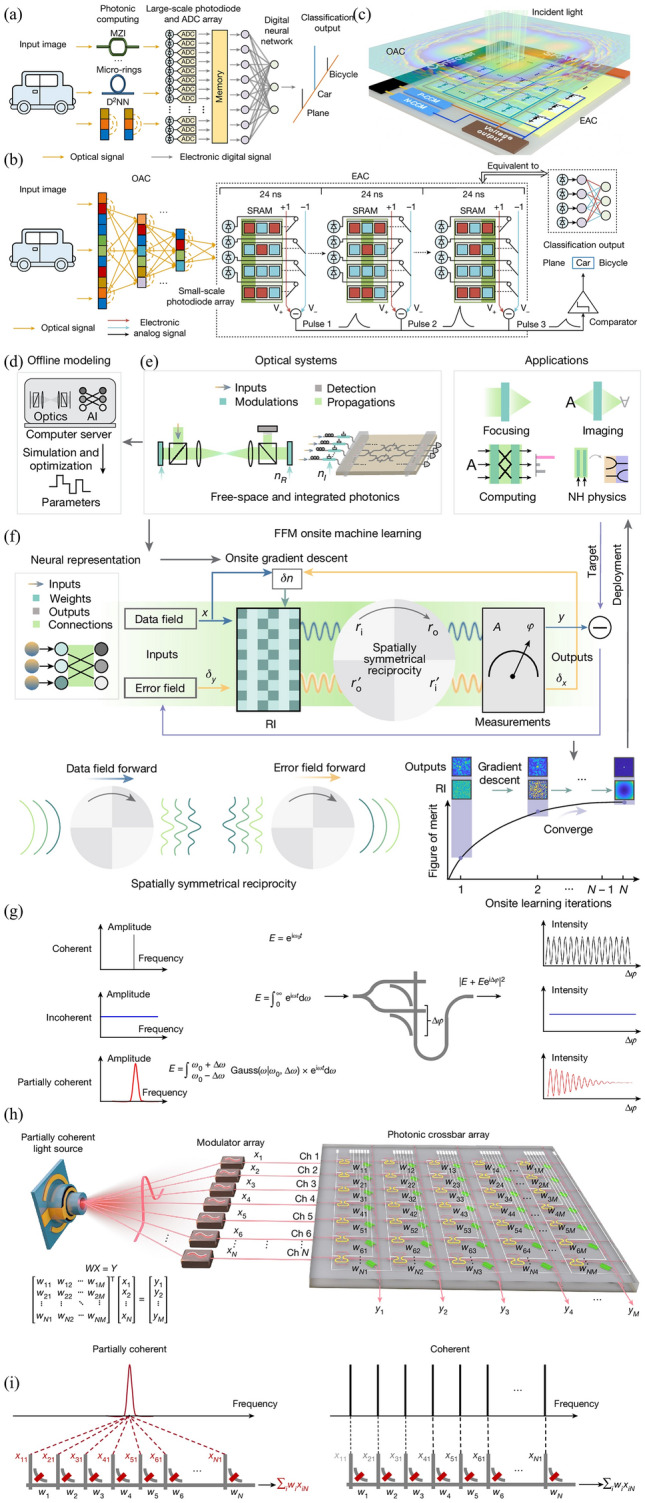

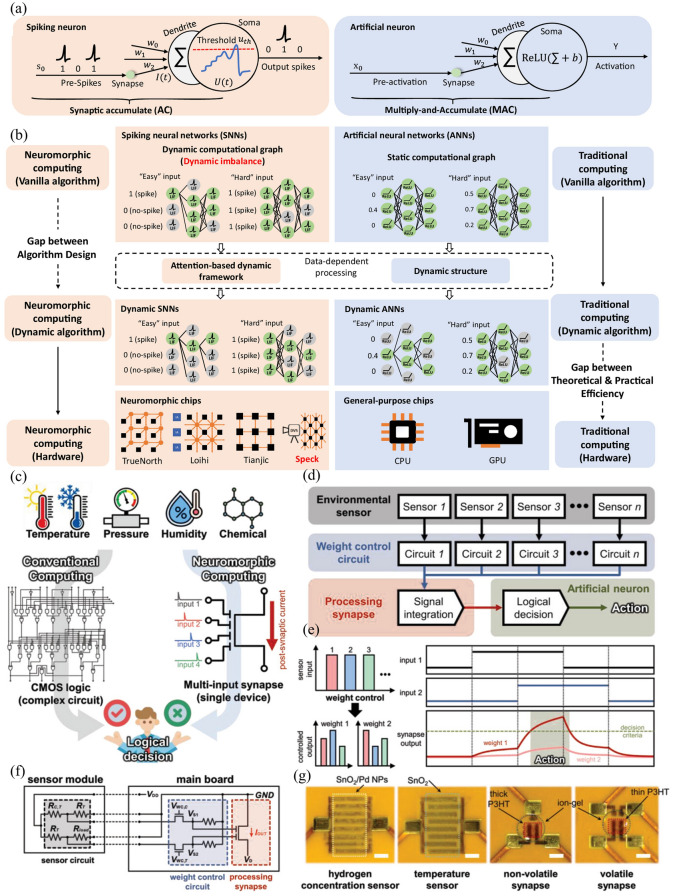

Figure 8
