Successful treatment for distal-arch aortic aneurysm in a cold agglutinin-positive patient via physician-modified thoracic endovascular aortic repair: a case report
Rika Oshima, Tetsuya Sato, Ryotaro Yamada, Takuya Kawahara, Riki Sumiyoshi, Kosuke Miyoshi, Kazunori Hashimoto, Kenichi Hashizume, Satoshi Itoh
TL;DR
A 76-year-old man with cold agglutinin disease successfully underwent a modified aortic repair procedure instead of open heart surgery.
Contribution
This is the first reported use of physician-modified TEVAR in a patient with cold agglutinin disease.
Findings
Physician-modified TEVAR was safely performed without complications in a cold agglutinin-positive patient.
The procedure avoided risks associated with hypothermic cardiopulmonary surgery in cold agglutinin disease.
Further research is needed to determine the broader applicability of this approach in CAD patients.
Abstract
Cold agglutinin disease (CAD) is sometimes incidentally detected before cardiovascular surgery. Several methods to prevent complications associated with CAD after cardiac surgery have been reported, but there are no reports of the use of physician-modified TEVAR to date. A 76-year-old man with an arch aortic saccular aneurysm was scheduled to undergo arch aortic replacement. However, cold agglutinin syndrome was incidentally detected before open heart surgery. The safety of cardiopulmonary surgery under hypothermia for patients with cold agglutinin disease is unknown, as intravascular hemolysis is a source of concern for patients sensitive to cold stimulation. Instead, we performed physician-modified thoracic endovascular aortic repair (3 fenestrations and 1 branch), as the aneurysm in this case was suitable for thoracic endovascular aortic repair (TEVAR). As a result, the patient…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBlood groups and transfusion · Hemoglobinopathies and Related Disorders · Erythrocyte Function and Pathophysiology
Background
There are no reports on the safety of open thoracotomy under moderate hypothermic circulatory arrest in patients with cold agglutinin syndrome. It is not known how hypothermic circulatory arrest affects agglutinin; thus, open thoracotomy should be avoided whenever possible. Here, we report the efficacy of physician-modified TEVAR for aortic arch aneurysms in a patient with cold agglutinin syndrome to avoid hypothermic circulatory arrest. The local medical technical ethics committee approved the study. Written informed consent was obtained from the patient and his family.
Case presentation

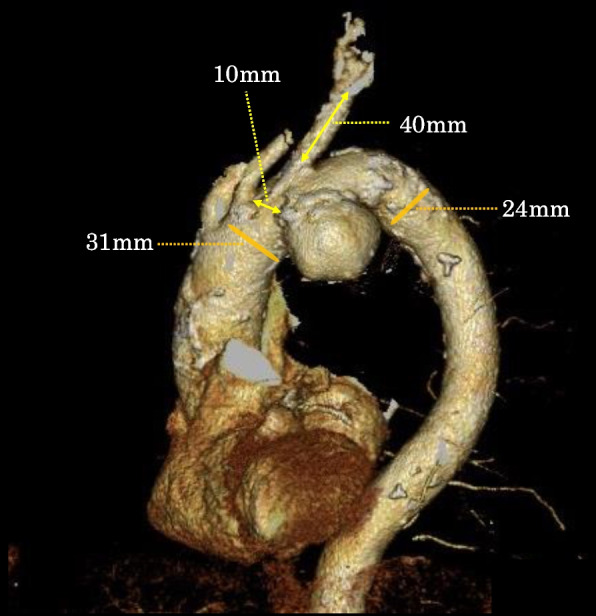

The patient was a 76-year-old man with sigmoid colon cancer and a distal arch aortic aneurysm. The saccular aneurysm protruded into the lesser curvature of Zones 2–3 of the aortic arch and had a maximum short diameter of 54 mm. Since TEVAR is unsuitable owing to the shape and location of the aneurysm, aortic arch replacement was planned. A blood transfusion study was performed preoperatively and revealed an abnormality in the blood group system. A blood test revealed that the patient’s blood was positive for type A antigens, which has not only B-type antibodies but also A-type antibodies. Therefore, the results of the test were inconclusive. When the blood was preheated to 37℃, the cold agglutinin was removed, erythrocyte agglutination disappeared, and anti-A antibodies undetected (Table 1). The titer of cold agglutinins was 16,384 times the normal value, thus the patient was diagnosed with CAD (Table 2). Therefore, we decided not to perform the aortic arch replacement because the replacement procedure needs hypothermic circulatory arrest and therefore potentially unsafe for patients with cold agglutination. We remeasured the aortic arch aneurysm for TEVAR and noted that there was practically no distance between the origin of the left subclavian artery and the aneurysm, the 3-dimensional distance between the origin of the left common carotid artery and the aneurysm was 10 mm, the diameter of the left subclavian artery was 10 mm, the distance from the origin of the left subclavian artery to the bifurcation of the vertebral artery was 40 mm, the diameter of the aortic neck was 31 mm, and the diameter of the descending aorta was 24 mm (Fig. 1). On the basis of these measurements, we considered TEVAR feasible and scheduled physician-modified TEVAR. Table 1. Transfusion testsNon-preheatedPreheatedAfter removingCold Agglutinin ABO Blood Group System** Cell** Anti-A Antibody4 + 4 + 4 + Anti-B AntibodyNo AgglutinationNo AgglutinationNo Agglutination** Serum** Type A Antigen3 + No AgglutinationNo Agglutination Type B Antigen3 + 1 + 2 + ** Coombs Test** Direct Coombs TestNegative-- Indirect Coombs TestNegative--A blood test revealed that the patient's blood was positive for type A antigens, anti-A and anti-B antibodies. As this result was inconclusive, the blood was preheated to 37℃ or the cold agglutinin was removed to determine the true type of blood. After preheating and removing cold agglutinin, anti-A antibodies were undetected, which means the patient's blood is type ATable 2Pre- and postoperative laboratory dataPreoperativePostoperativeDay2Day9Day76UnitReference ValueComplete Blood Count WBC40008400^a^64003500/μL3900–9800 RBC354347^a^30842810^4^/μL427–570 Hb1211.6^a^9.913.1g/dL13.5–17.6 Ht34.333.2^a^29.539.5%39.8–51.8 Ret24---5–20 PLT21.116.7^a^3819.8^a^10^4^/μL13.1–36.2Serum Chemistries CRP0.12.84.30mg/dL0–0.3 T-Bil0.51.50.70.5mg/dL0.2–1.0 Na142139138139mEq/L136–147 K3.93.73.64.3mEq/L3.6–5.0 Cl107105104104mEq/L99–109 AST26331930U/L10–40 ALT21201318U/L5–40 LDH173203203220U/L124–222Coagulation Studies PT11.311.812.3-Sec10.5–13.5 PT-INR0.981.021.07-%- APTT27.729.3--Sec25–35 D-dimer0.8---μg/mL0–1.0Cold Agglutination Titer16384--8192times< 64Preoperatively, the patient was mildly anemic, with high reticulocyte counts and cold agglutination titers. Anemia progressed until postoperative day 9, but recovered by day 76. Cold agglutinin titer decreased but remained high. During the course, the coagulation-fibrinolytic system data did not change significantly^a^Results of re-inspection after heatingFig. 1Measurements for physician-modified TEVAR.There was almost no distance from the origin of the left subclavian artery to the aneurysm, and the 3-dimensional distance from the origin of the left common carotid artery to the aneurysm was 10 mm. The diameter of the left subclavian artery was 10 mm, the distance from the origin of the left subclavian artery to the bifurcation of the vertebral artery was 40 mm, the diameter of the aortic neck was 31 mm, and the diameter of the descending aorta was 24 mm
The Zenith Alpha® Thoracic Endovascular Graft system(William Cook Europe ApS, Denmark) was used for physician-modified TEVAR (Fig. 2). A segment of the aortic stent graft was unsheathed, and the barb at the first stent was cut with nippers. Fenestrations were made at the CT-measured locations of the three arterial origins from the aortic arch and were created with an Accu-Temp® cautery. The edges of the fenestrations were marked with gold-plated tungsten loops of Amplatz Goose Neck® Snares. The stent graft was resheathed by bending with 10 mm silk tape. The sizes of the fenestrations were an ellipse with a short diameter of 10 mm and a long diameter of 14 mm for the brachiocephalic artery, an 8 mm diameter circle for the left common carotid artery, and an ellipse with a short diameter of 8 mm and a long diameter of 9 mm for the left subclavian artery. A guide wire was passed through the right common femoral artery to the ascending aorta. A Zenith Alpha® Thoracic Endovascular Graft (ZTA-P-28–155) was deployed at the descending aorta. A physician-modified Zenith Alpha® Thoracic Endovascular Graft (ZTA-PT-36–32–209) was subsequently deployed from Zone 0 with controlled pacing at 110 bpm. Oversize ratios of landings were 16.1% at the proximal and 33.3% at the distal. Next, the guide wire was passed through the left branchial artery to the right femoral artery via endograft fenestration for the left subclavian artery. A Viabahn® stent (diameter, 13 mm; length, 50mm, W. L. Gore, Newark, DE, USA) was deployed into the left subclavian artery over the pull-through wire, which preserve the vertebral arterial flow. The physician-modified TEVAR was completed without contrast agent leakage. On postoperative contrast CT, a Type 3a endoleak from the site of Viabahn® stent implantation was suspected, and the patient was started on 1500 mg of tranexamic acid per day. Three months later, contrast-enhanced CT revealed that the endoleak in the aneurysm had disappeared, and the aneurysm diameter was 54 mm and unchanged (Fig. 3).

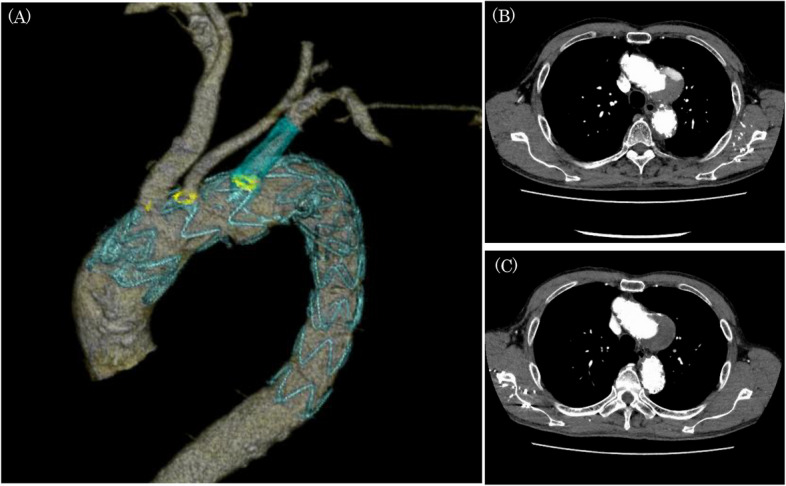

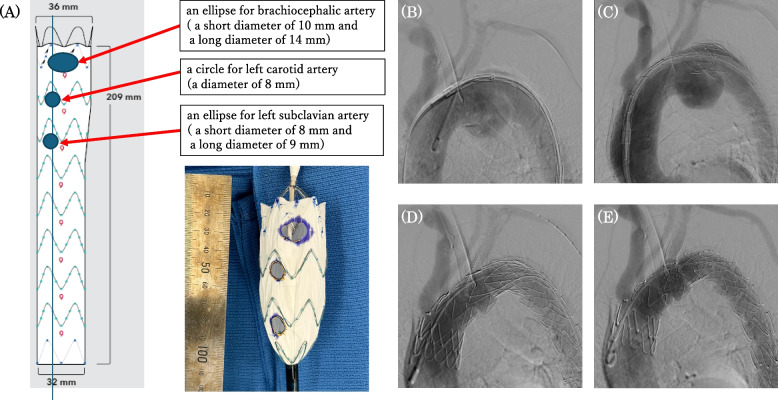

Fig. 2. Intraoperative images. A The blueprint and actual fenestrated stent graft created on the basis of preoperative measurements. B The initial contrast image before stent placement. C The first stent graft (Zenith Alpha® Thoracic Endovascular Graft: ZTA-P-28–155) was implanted from Zone 3. D The second fenestrated stent graft (Zenith Alpha® Thoracic Endovascular Graft: ZTA- PT-36–32–209) was implanted from Zone 0 to the descending aorta. E Viabahn® (diameter,13 mm; length,50mm) was inserted into the left subclavian artery using the pull-through technique and deployed so that it would not interfere with the vertebral artery. The final contrast image showed no leakage Fig. 3. Postoperative computed tomography images. A 3D CT image on the 4th postoperative day. The position of the fenestration completely matched the cervical branch (yellow), and the vertebral artery was preserved. B Contrast CT on postoperative day 4: a type 3a endoleak was suspected at the Viabahn® implantation site. C Contrast CT at 3 months after surgery: the endoleak had disappeared after continuous treatment with 1500 mg of tranexamic acid per day
