Frugally inventive carbon fabric-based wearable sensor for monitoring human body movements
Ahmed Alqaderi, Syed Muhammad Hafiz Syed Mohd Jaafar, Shafarina Azlinda Ahmad Kamal, Lee Hing Wah, Wei Yin Lim, Narayanan Ramakrishan
TL;DR
This paper introduces a durable, flexible fabric-based sensor that can monitor body movements and transmit data wirelessly for real-time tracking.
Contribution
A novel, scalable carbon fabric strain sensor with reliable performance and ease of integration into wearable systems.
Findings
The sensor achieved a gauge factor of 3.4 and durability up to 635% strain.
Distinct resistance patterns were recorded for different body motions like walking and jumping.
The sensor enabled wireless transmission for real-time monitoring of physical activities.
Abstract

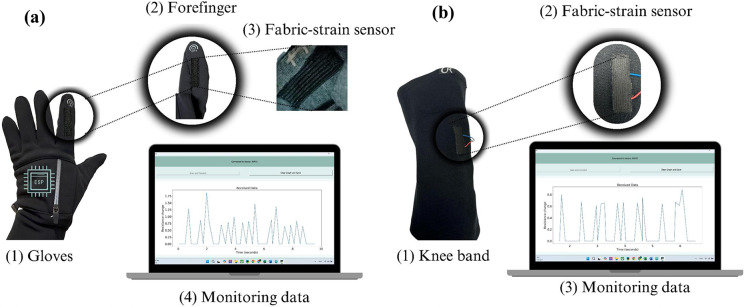

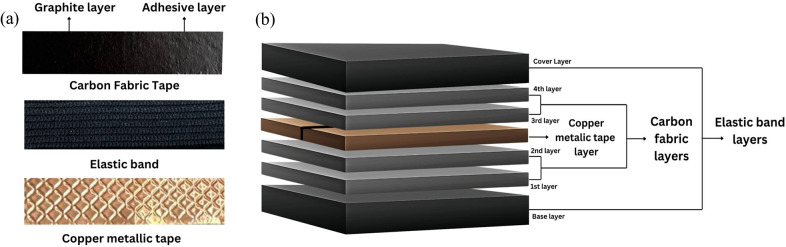

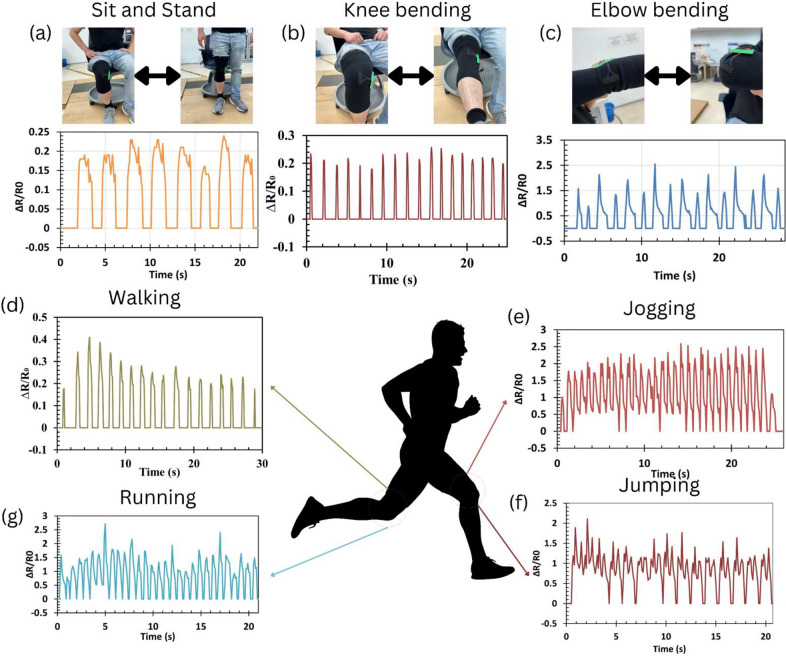

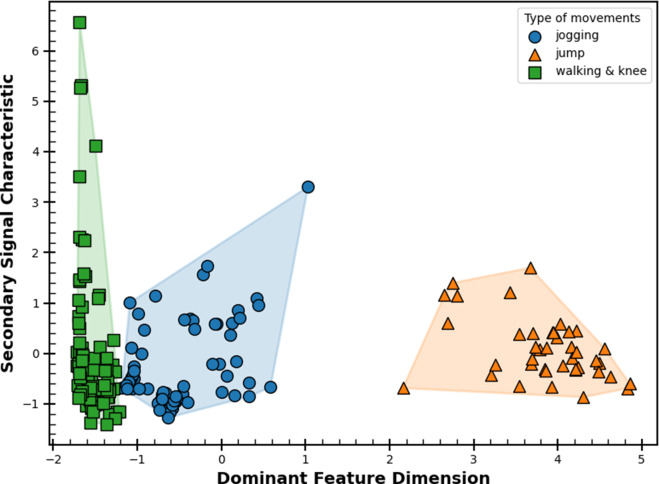

We present a flexible, multilayer fabric strain sensor composed of a carbon fabric layer sandwiched between elastic bands. The sensor achieved a gauge factor of 3.4 and maintained its durability up to 635% strain. Its uniform graphite layer enabled reliable fabrication and easy integration into wearable formats. Performing well on commercial gloves and bands, the sensor effectively captured strain variations during body movement and enabled wireless transmission for real-time monitoring. Distinct resistance patterns were recorded for various body motions such as walking, jogging, jumping, and knee bending with a clear separation between high- and low-intensity activities. The overall design supports scalable fabrication and practical integration into wearable systems.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 1
Figure 2

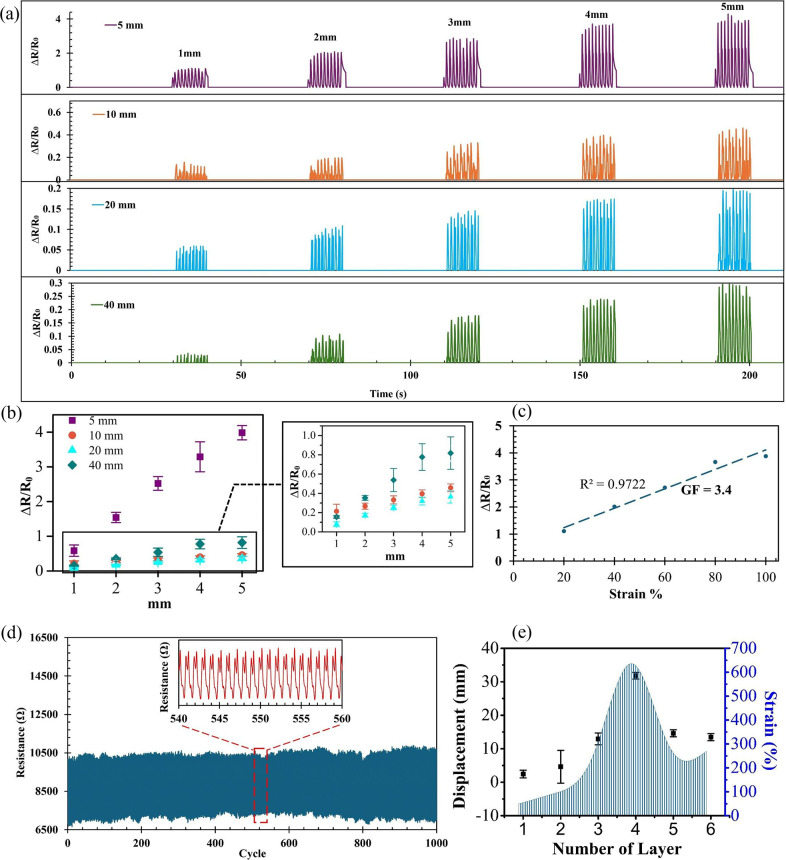

Figure 3
