Design of Heavy Agricultural Machinery Rail Transport System and Dynamic Performance Research on Tracks in Hilly Regions of Southern China
Cheng Lin, Hao Chen, Jiawen Chen, Shaolong Gou, Yande Liu, Jun Hu
TL;DR
This paper introduces a new double-track rail system for transporting heavy agricultural machinery in hilly regions of southern China, improving stability and efficiency.
Contribution
The novel double-track rail system and its dynamic performance analysis in hilly terrains are presented.
Findings

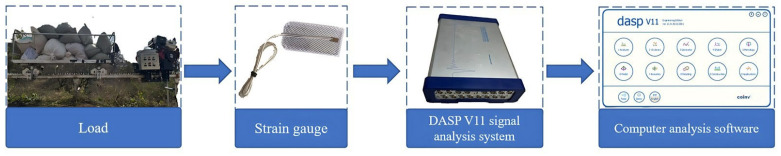

The rail system's stress–strain distribution was analyzed under a 750 kg load using resistance strain gauges.

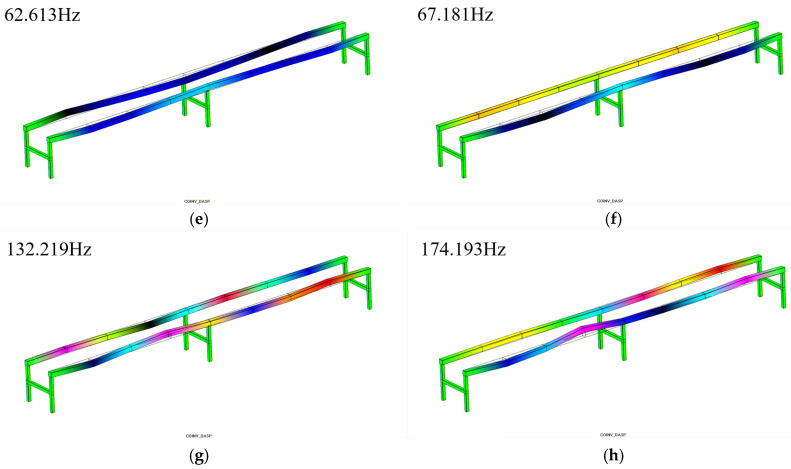

The first 20 natural modes of the double-track rail were identified using the Eigensystem Realization Algorithm.
Comparative analysis showed the rail's vibration characteristics under constrained and actual boundary conditions.
Abstract
To address the limitations of conventional single-track rail systems in challenging hilly and mountainous terrains, which are ill-suited for transporting heavy agricultural machinery, there is a critical need to develop a specialized the double-track rail transportation system optimized for orchard equipment. Recognizing this requirement, our research team designed and implemented a double-track rail transportation system. In this innovative system, the rail functions as the pivotal component, with its structural properties significantly impacting the machine’s overall stability and operational performance. In this study, resistance strain gauges were employed to analyze the stress–strain distribution of the track under a full load of 750 kg, a critical factor in the system’s design. To further investigate the structural performance of the double-track rail, the impact hammer method was…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

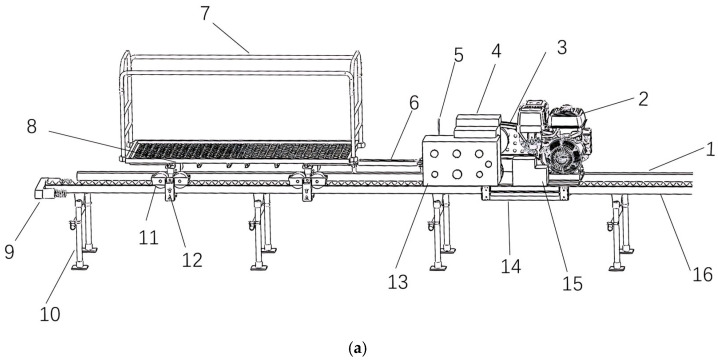

Figure 1
Figure 2

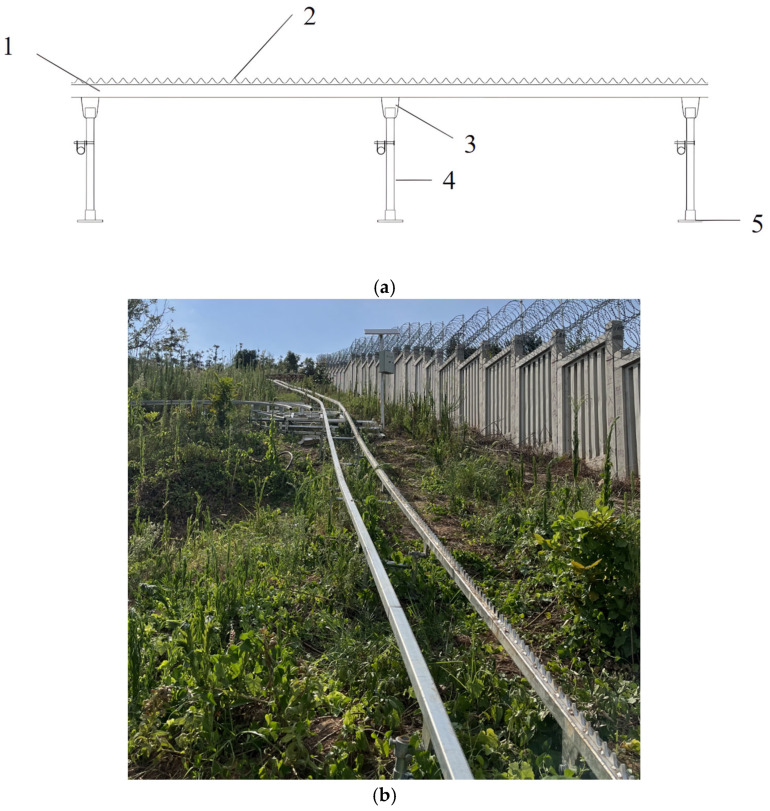

Figure 3

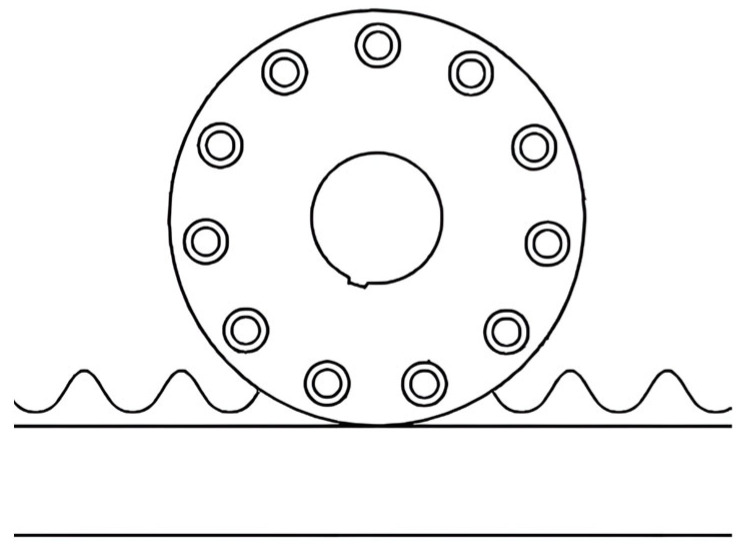

Figure 4
Figure 5

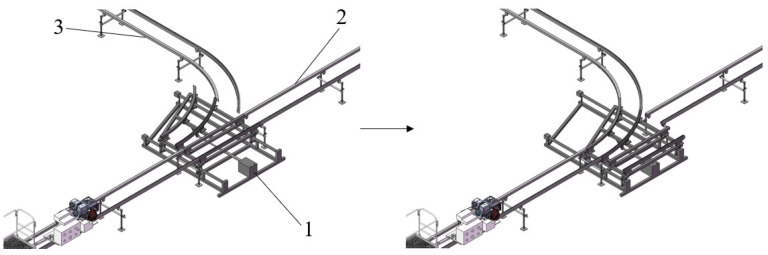

Figure 6
Figure 7
Figure 8

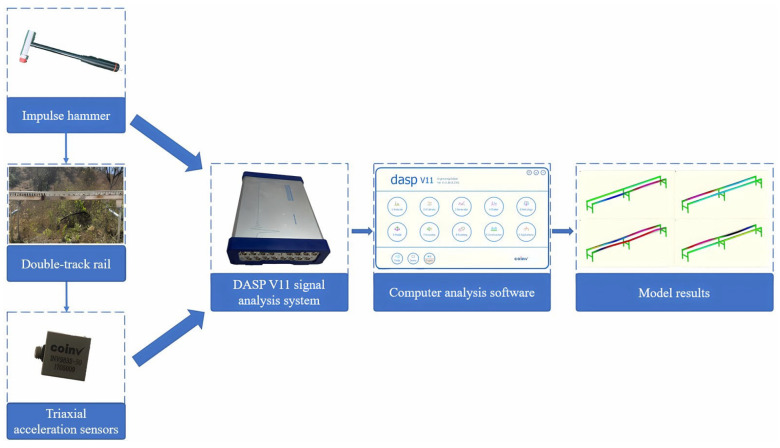

Figure 9
Figure 10

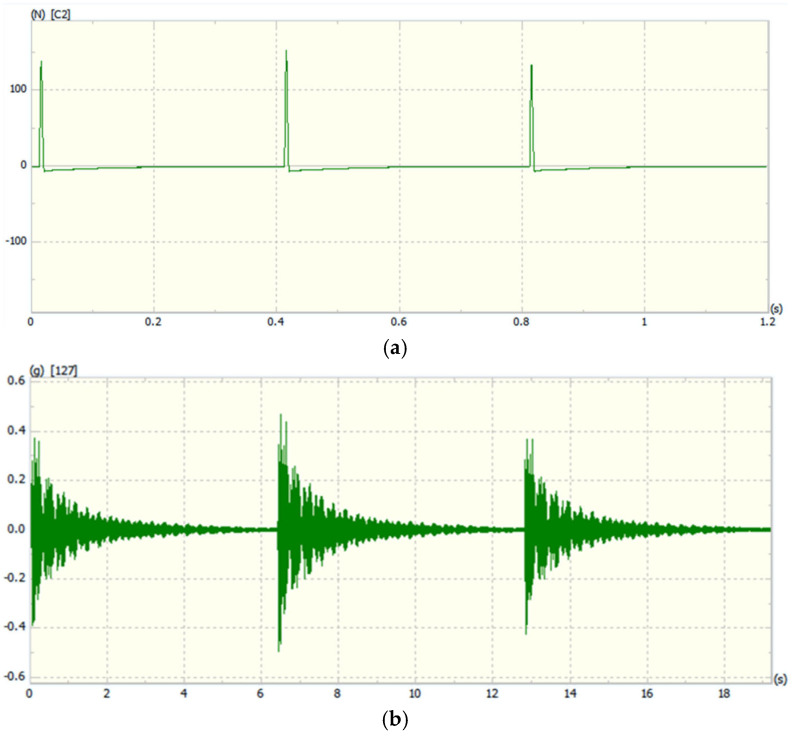

Figure 11
Figure 12

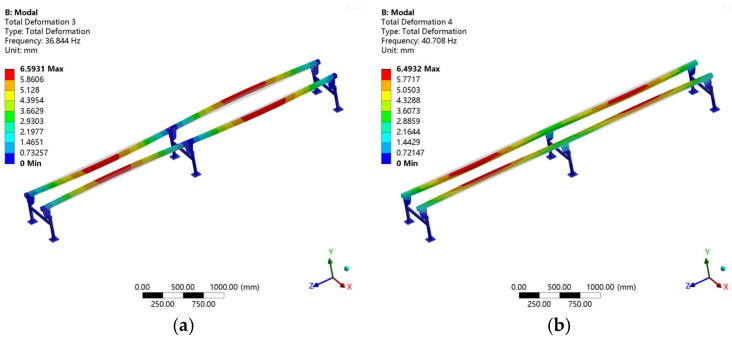

Figure 13

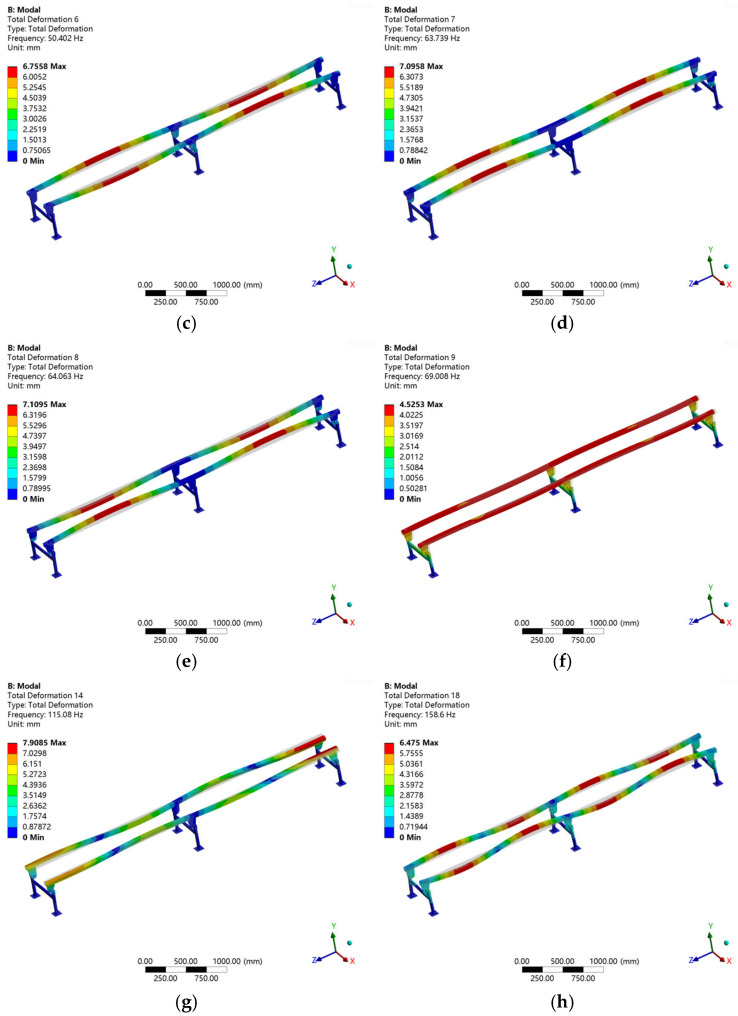

Figure 14

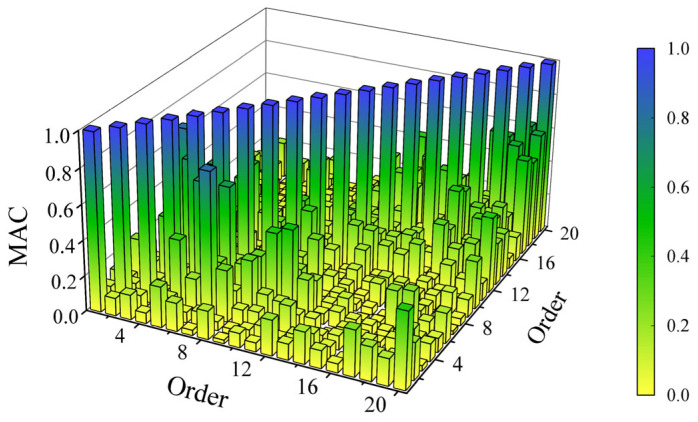

Figure 15

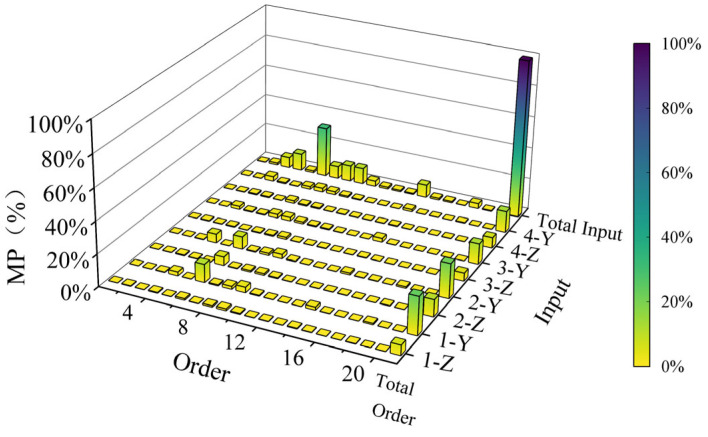

Figure 16

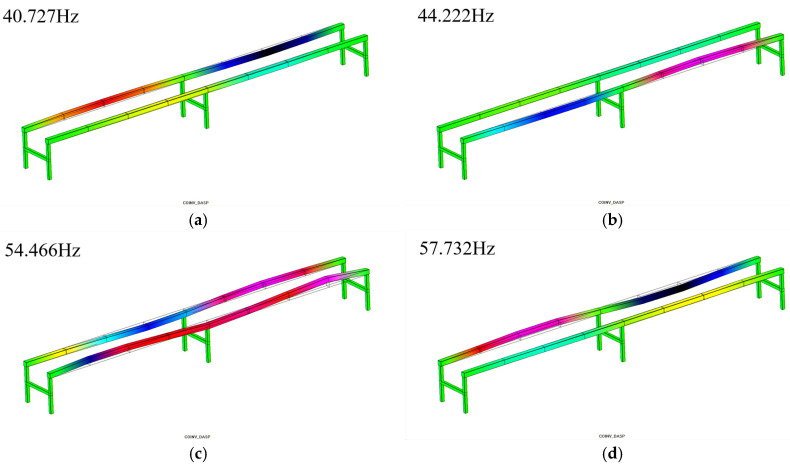

Figure 17
Figure 18

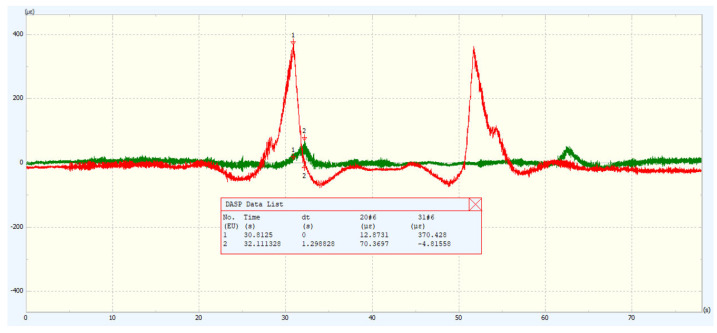

Figure 19
Figure 20Peer Reviews
