The Effect of the Finishing Deformation Temperature on the Microstructure of CrVNb Micro-Alloyed Steel
Gholam Ali Baqeri, Chris Killmore, Lachlan Smillie, Elena Pereloma
TL;DR
This paper studies how the finishing deformation temperature affects the microstructure and properties of a specific type of steel.
Contribution
The study reveals how deformation temperature influences grain structure and precipitate formation in CrVNb micro-alloyed steel.
Findings
Lower deformation temperatures refine ferrite grains but can lead to bimodal structures.
Lower temperatures increase strain-induced precipitates but reduce finer precipitate density.
Hardness peaks when deformation occurs between 950–850 °C.
Abstract
This study explored the effects of the finishing deformation temperature on the microstructure and properties of CrVNb micro-alloyed steel following thermomechanical processing (TMP). The investigation encompassed the influence of the deformation temperature on the ferrite grain size, precipitate characteristics, hardness and flow stress. The microstructure characterization was performed using optical and electron microscopy techniques. The results show that decreasing the deformation temperature refined the ferrite grains, though a bimodal ferrite grain structure formed when the deformation temperature fell to about 100 °C below the Ar3 temperature. Additionally, lower deformation temperatures increased the number density of strain-induced precipitates (SIPs), whereas the density of finer precipitates (random and interphase precipitates (IPs)) decreased. The highest hardness was…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

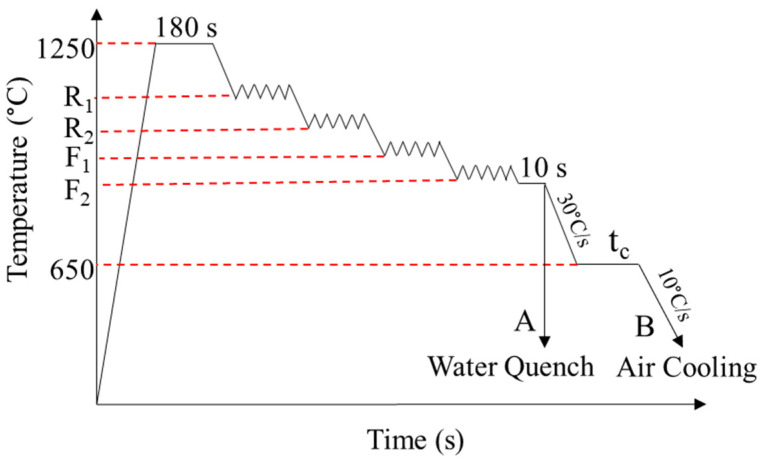

Figure 1

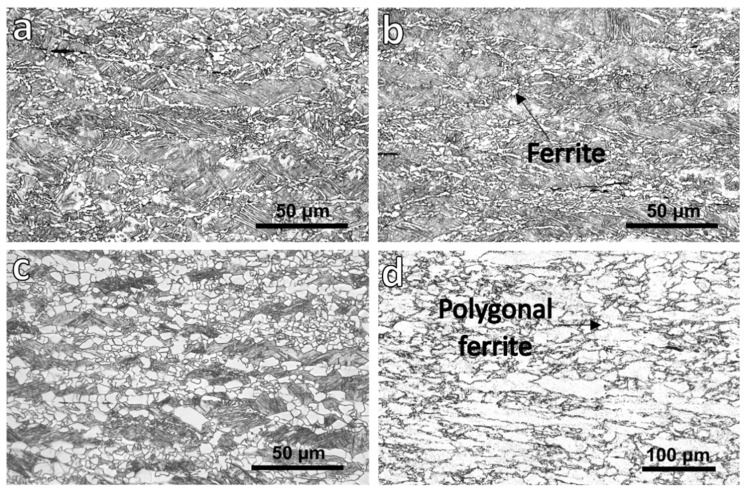

Figure 2
Figure 3

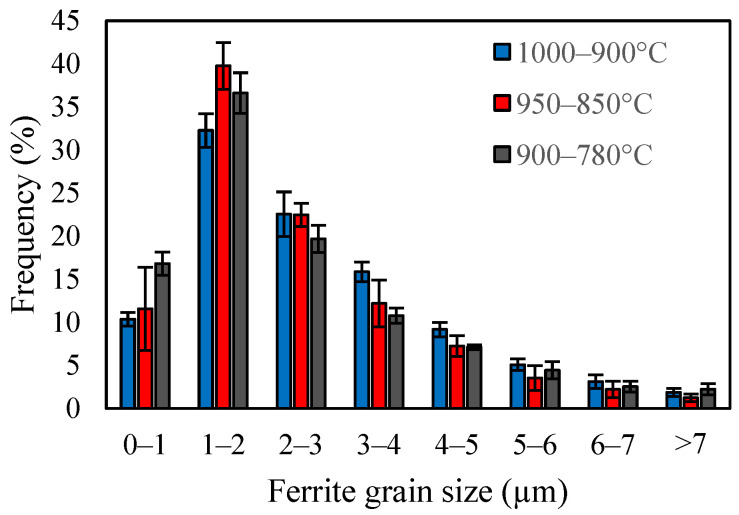

Figure 4

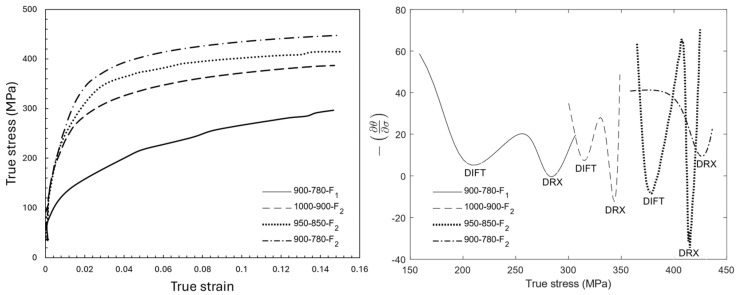

Figure 5

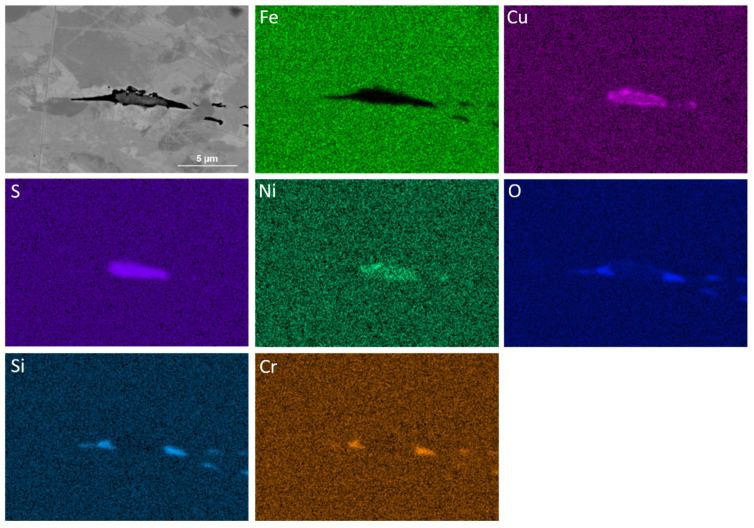

Figure 6

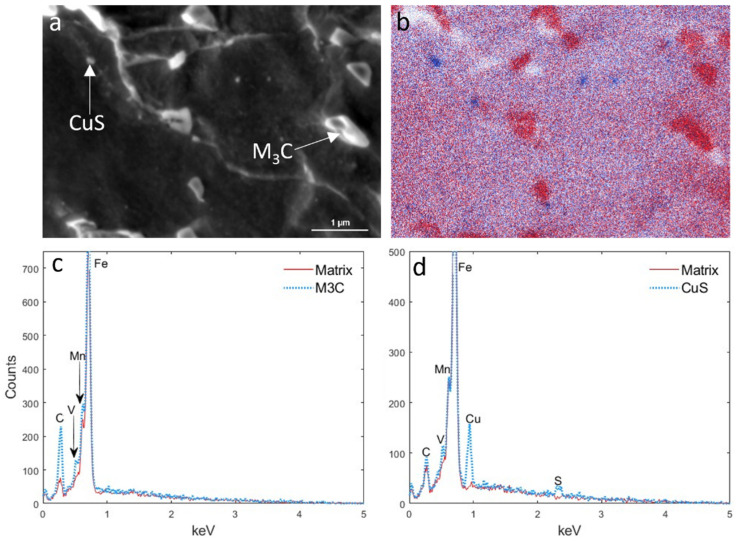

Figure 7

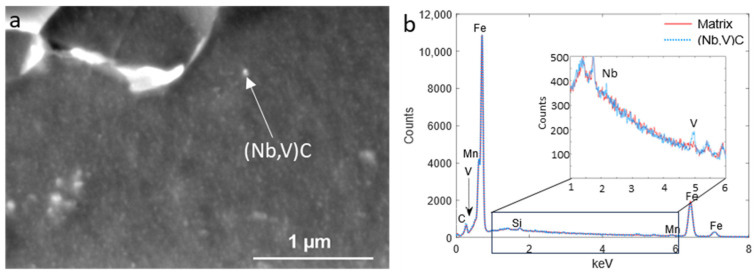

Figure 8

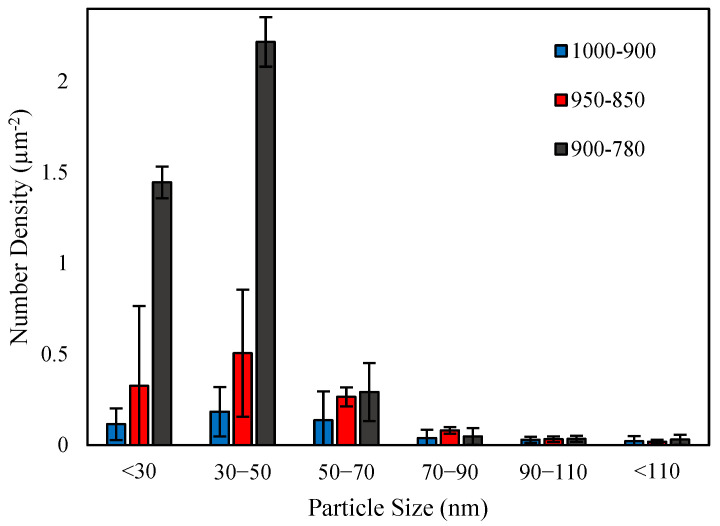

Figure 9

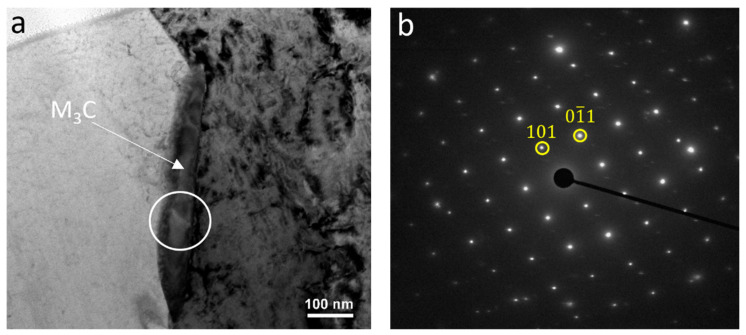

Figure 10
Figure 11
Figure 12

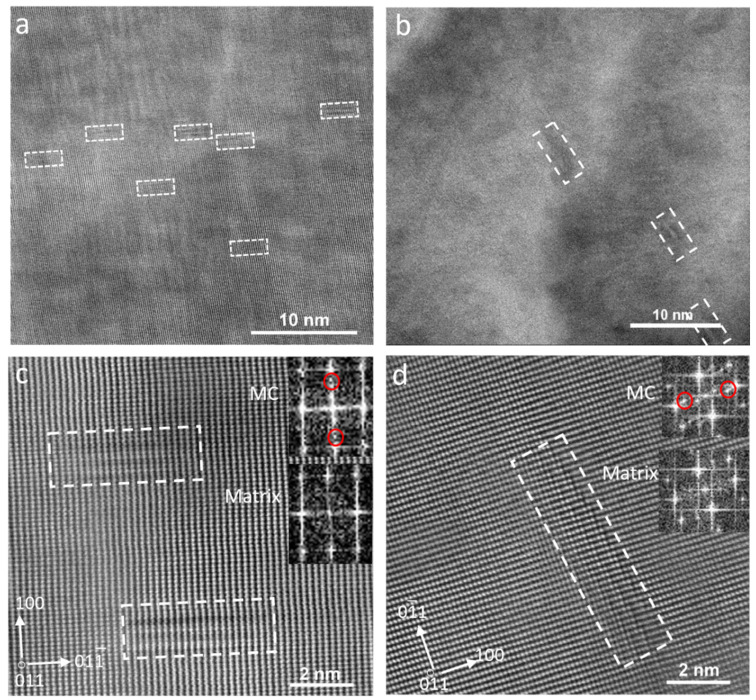

Figure 13

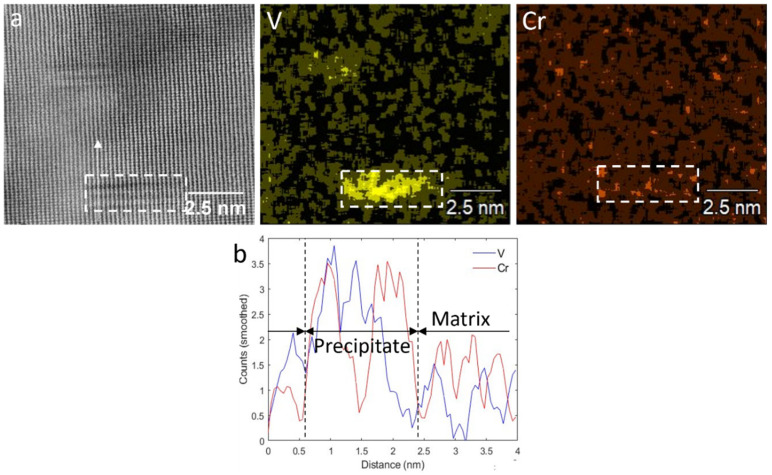

Figure 14

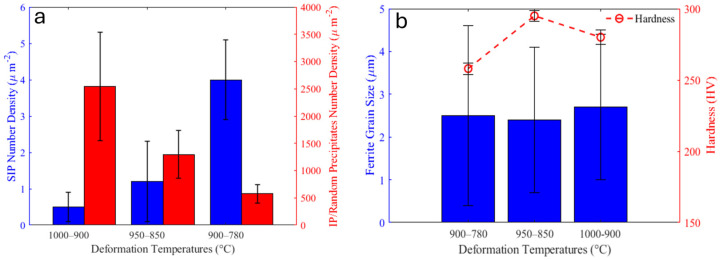

Figure 15Peer Reviews
