Bi-Objective Optimization of Techno-Economic and Environmental Performance of CO2 Capture Strategy Involving Two-Stage Membrane-Based Separation with Recycling
Nobuo Hara, Satoshi Taniguchi, Takehiro Yamaki, Thuy T.H. Nguyen, Sho Kataoka
TL;DR
This paper optimizes CO2 capture using a two-stage membrane process, balancing cost and environmental impact while considering different membrane performance levels.
Contribution
The study introduces a bi-objective optimization framework combining machine learning and genetic algorithms for CCUS membrane design.
Findings
Electricity consumption significantly affects both operating costs and CO2 emissions.
Improving α*(CO2/N2) enhances process performance more than increasing membrane permeability.

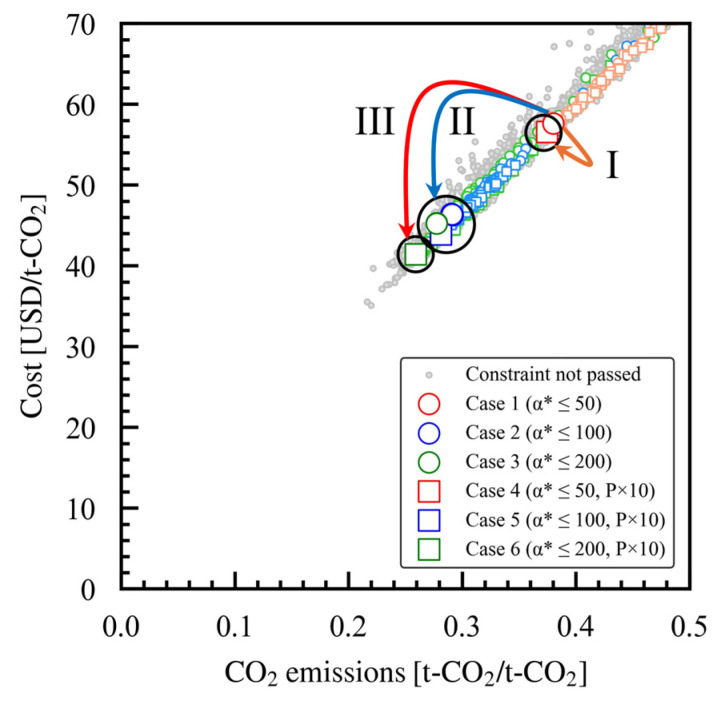

Pareto solutions reveal trade-offs between techno-economic and environmental objectives.
Abstract

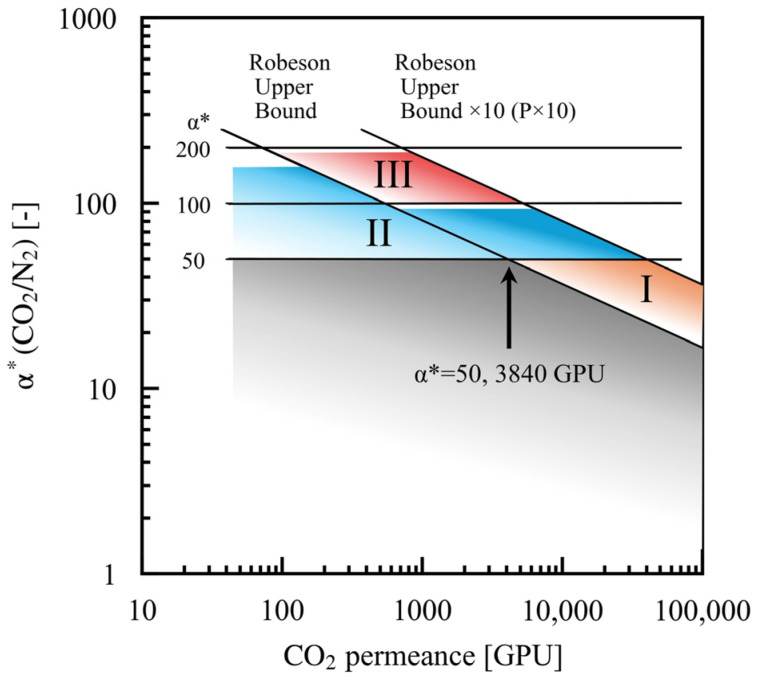

To effectively implement complex CO2 capture, utilization, and storage (CCUS) processes, it is essential to optimize their design by considering various factors. This research bi-objectively optimized a two-stage membrane-based separation process that includes recycling, concentrating on minimizing both costs and CO2 emissions. The implemented algorithm combined experimental design, machine learning, genetic algorithms, and Bayesian optimization. Under the constraints of a recovery rate of 0.9 and a produced CO2 purity of 0.95, six case studies were conducted on two types of membrane performance: the Robeson upper bound and a tenfold increase in permeability. The maximum value of α*(CO2/N2), used as a constraint, was adjusted to three levels: 50, 100, and 200. The analysis of the Pareto solutions and the relationship between each design variable and the final evaluation index indicates…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

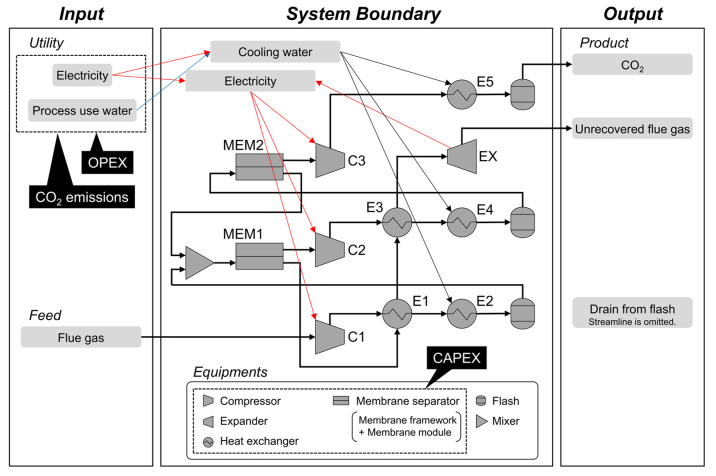

Figure 1

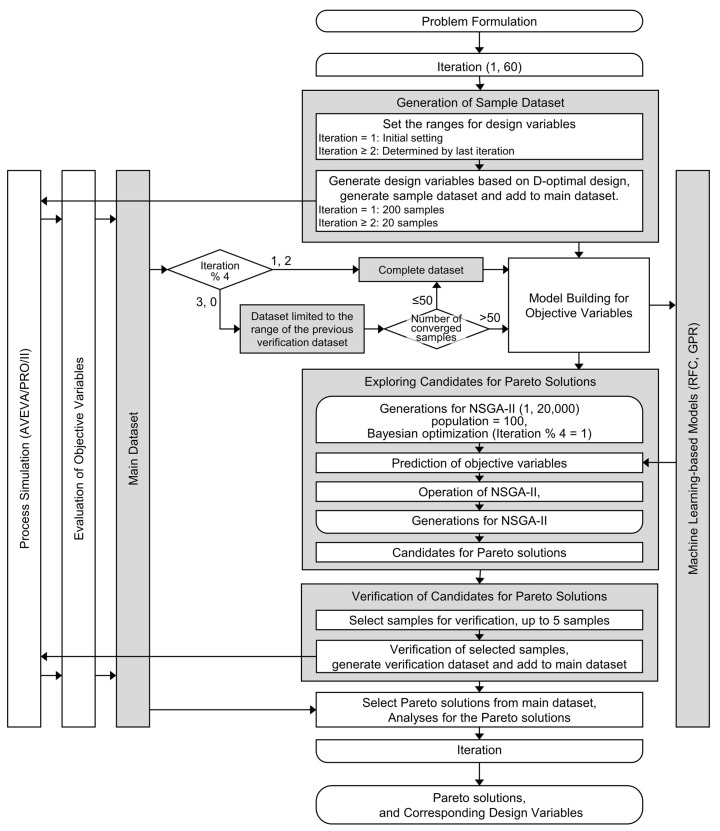

Figure 2
Figure 3

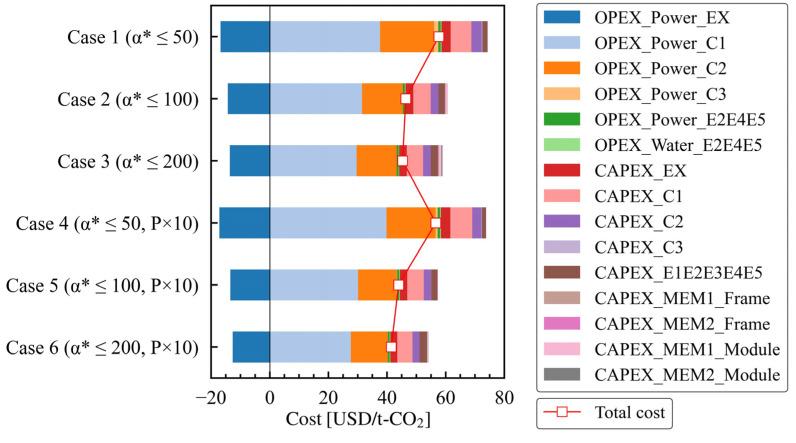

Figure 4

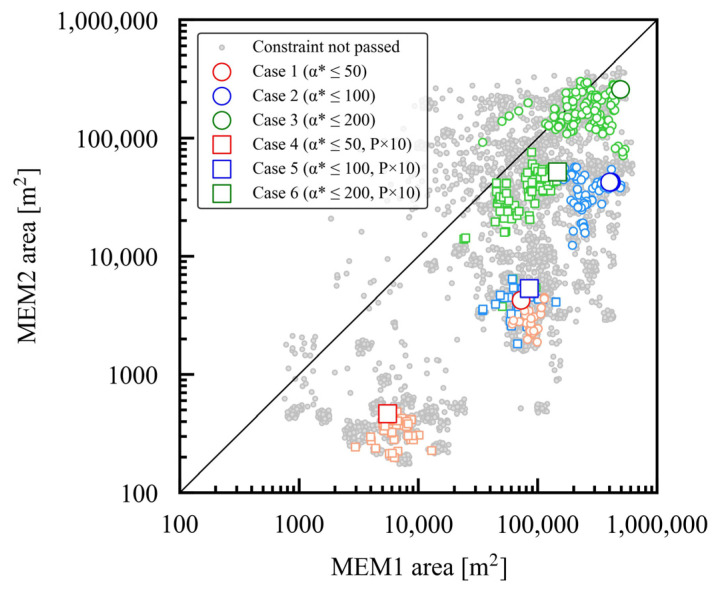

Figure 5

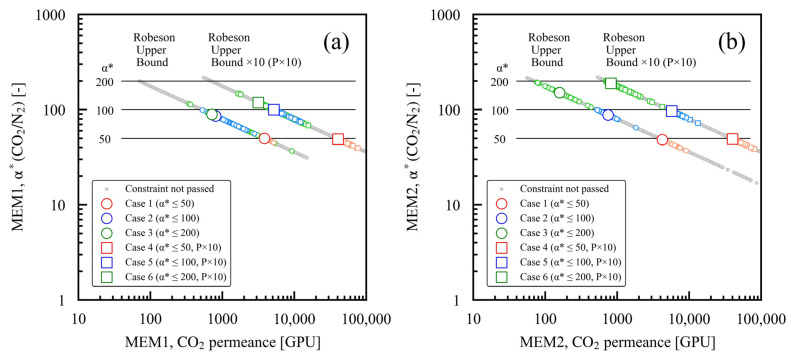

Figure 6
Figure 7
Figure 8

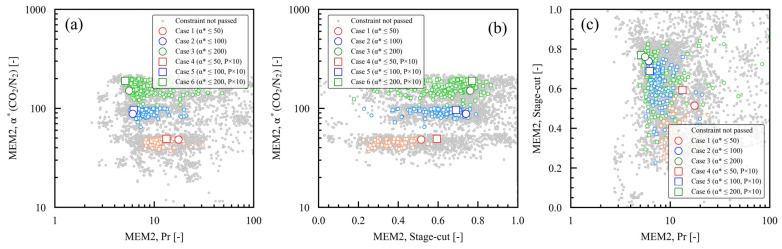

Figure 9

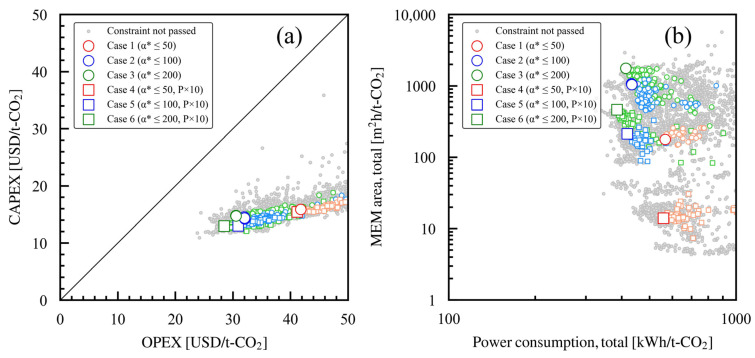

Figure 10
Figure 11
Figure 12

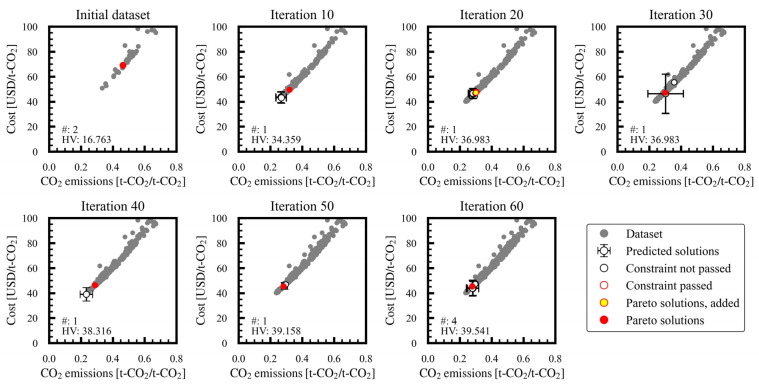

Figure 13
Figure 14
Figure 15

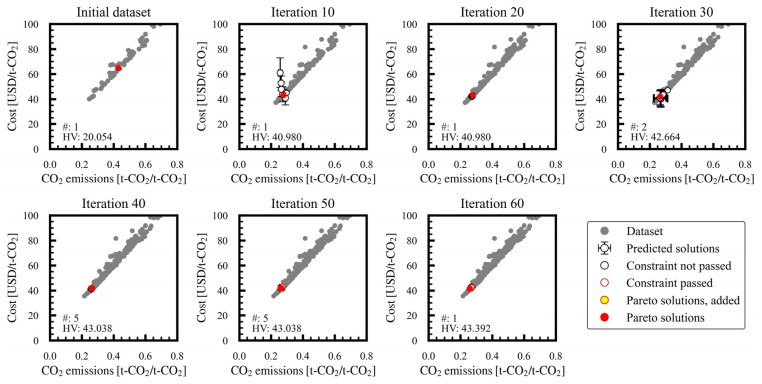

Figure 16

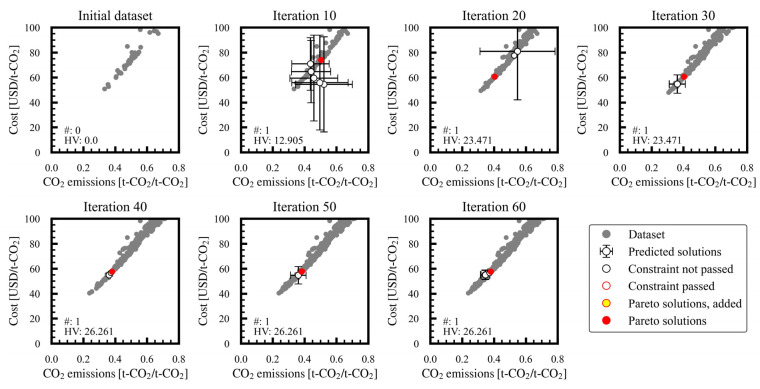

Figure 17

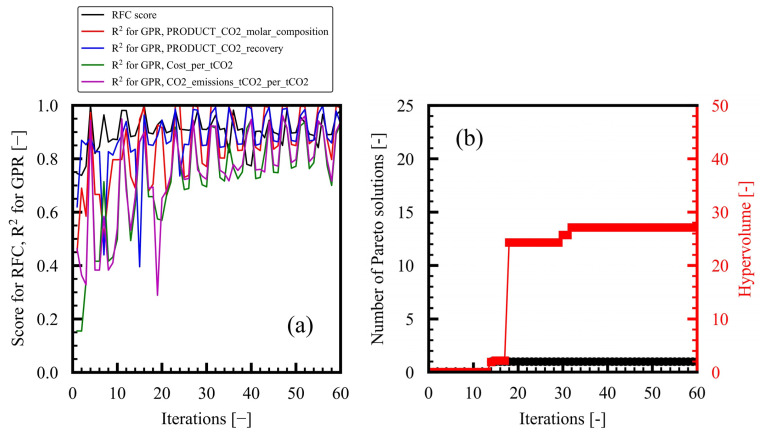

Figure 18
Figure 19

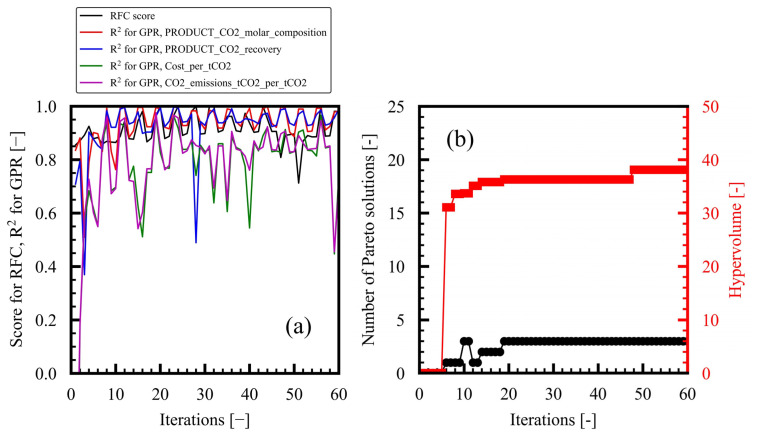

Figure 20

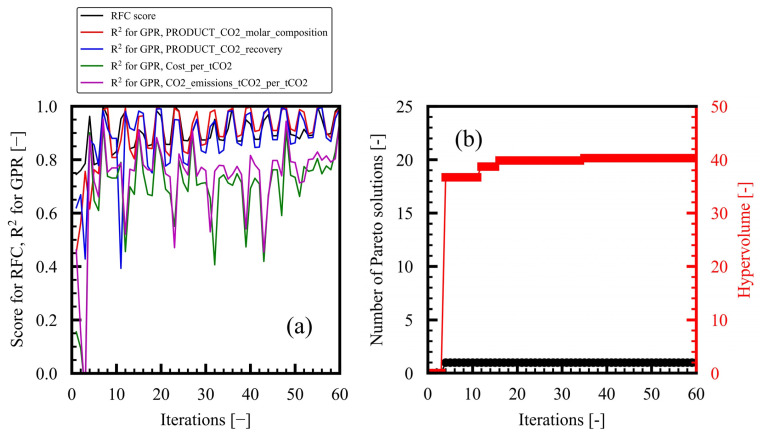

Figure 21
Figure 22

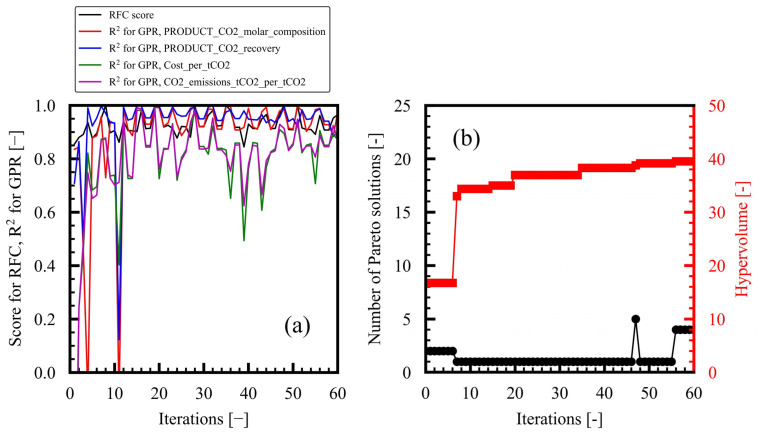

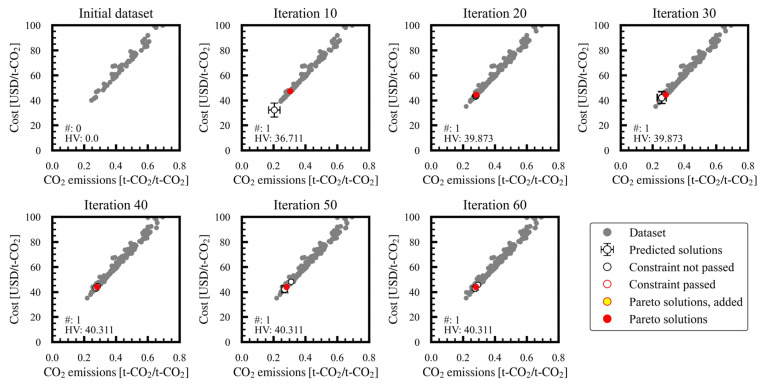

Figure 23Peer Reviews
