Optimal Design for a Novel Compliant XY Platform Integrated with a Hybrid Double Symmetric Amplifier Comprising One-Lever and Scott–Russell Mechanisms Arranged in a Perpendicular Series Layout for Vibration-Assisted CNC Milling
Minh Phung Dang, Anh Kiet Luong, Hieu Giang Le, Chi Thien Tran
TL;DR
This paper presents a new compliant XY platform design for vibration-assisted CNC milling, optimized for precise positioning and surface quality.
Contribution
A novel hybrid displacement amplifier combining lever and Scott–Russell mechanisms in a perpendicular series layout for vibration-assisted CNC milling.
Findings
The hybrid design achieved a primary natural frequency of 308.79 Hz with a 3.04% difference between theoretical and FEM results.
The Firefly optimization algorithm improved the mechanism's design parameters effectively.

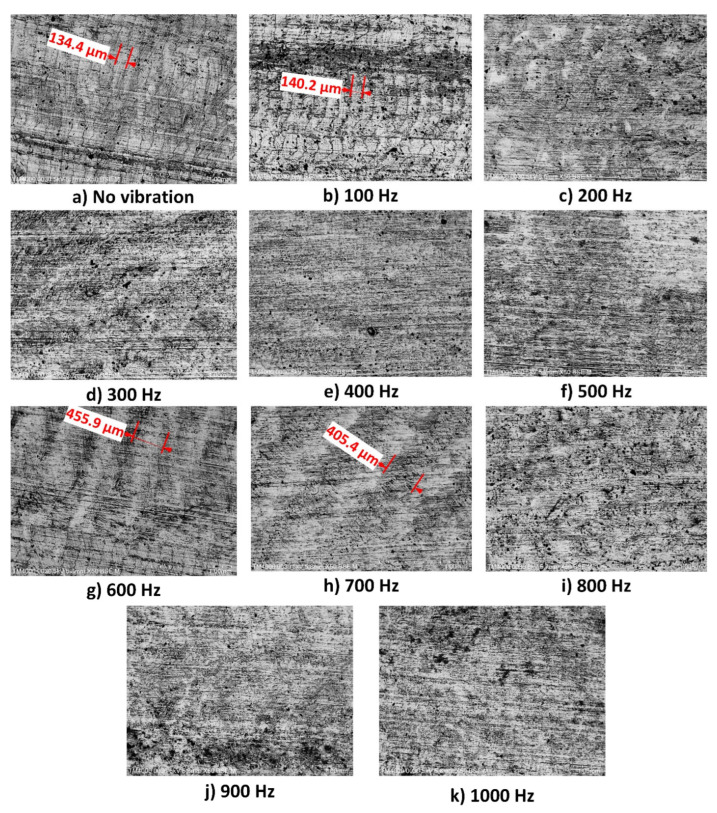

Vibration-assisted milling at 400 Hz produced a surface roughness of 0.187 µm.
Abstract
Compliant mechanisms are often utilized in precise positioning systems but have not been thoroughly examined in vibration-aided fine CNC machining. This study aims to develop a new 02-DOF flexure stage for vibration-aided fine CNC milling. A hybrid displacement amplifier, featuring a two-lever mechanism, two Scott–Russell mechanisms, and a parallel leading mechanism, was integrated into a symmetric perpendicular series configuration to create an innovative design. The pseudo-rigid body model (PRBM), Lagrangian approach, finite element analysis (FEA), and Firefly optimization algorithm were employed to develop, verify, and optimize the quality response of the new positioner. The PRBM and Lagrangian methods were used to construct an analytical model, while finite element analysis was used to validate the theoretical solution. The primary natural frequency results from theoretical and FEM…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

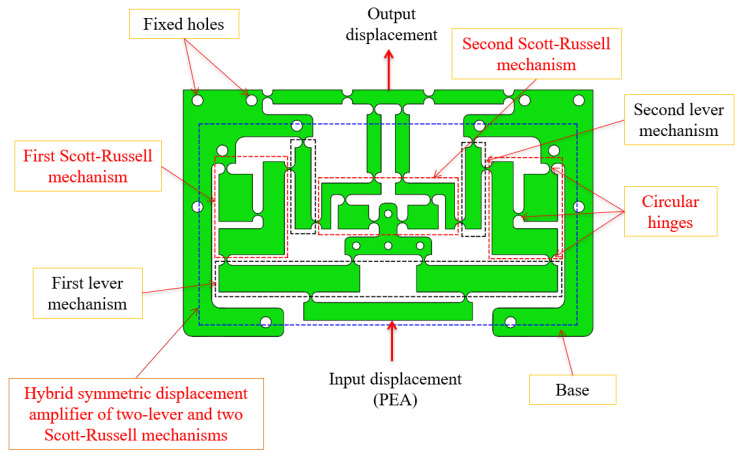

Figure 1

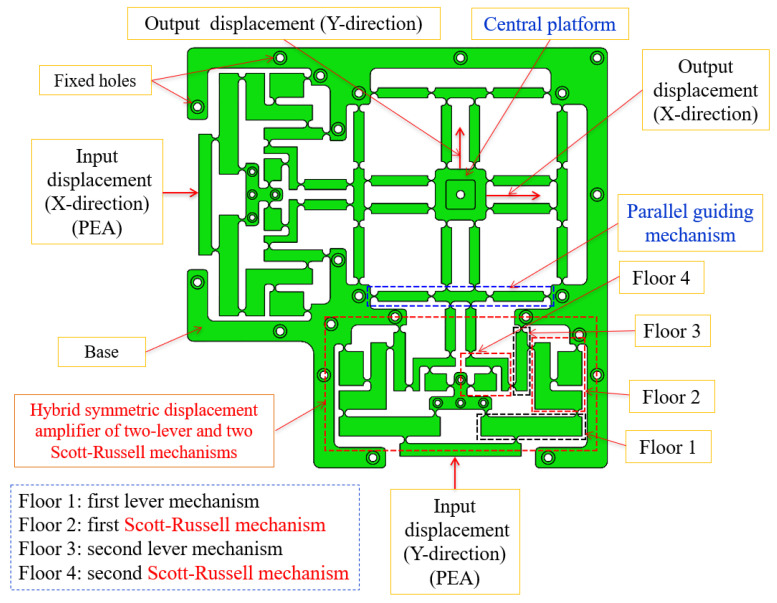

Figure 2

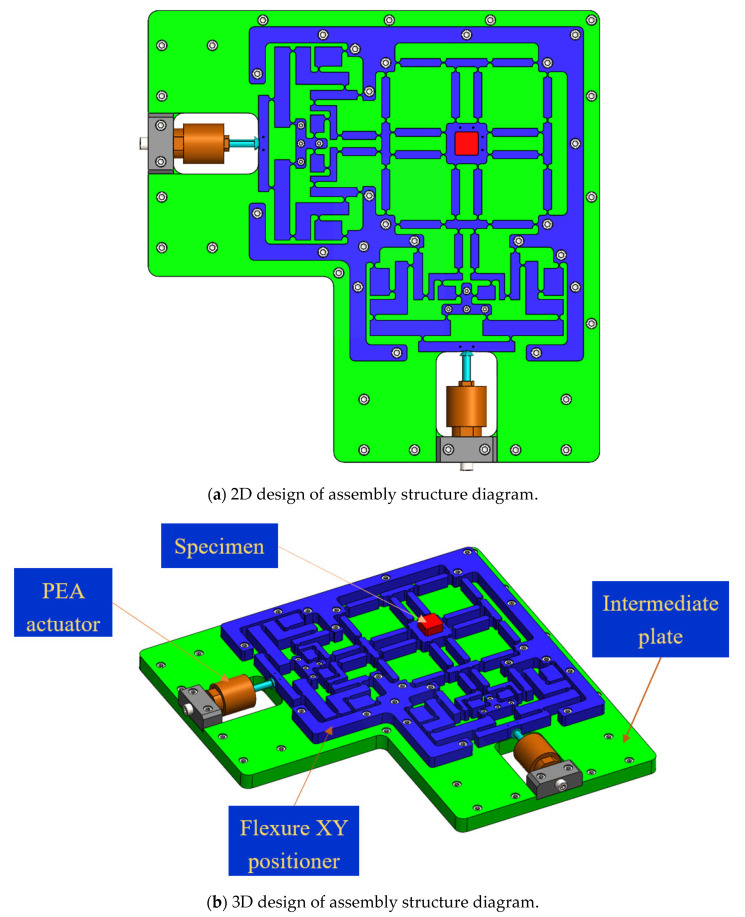

Figure 3

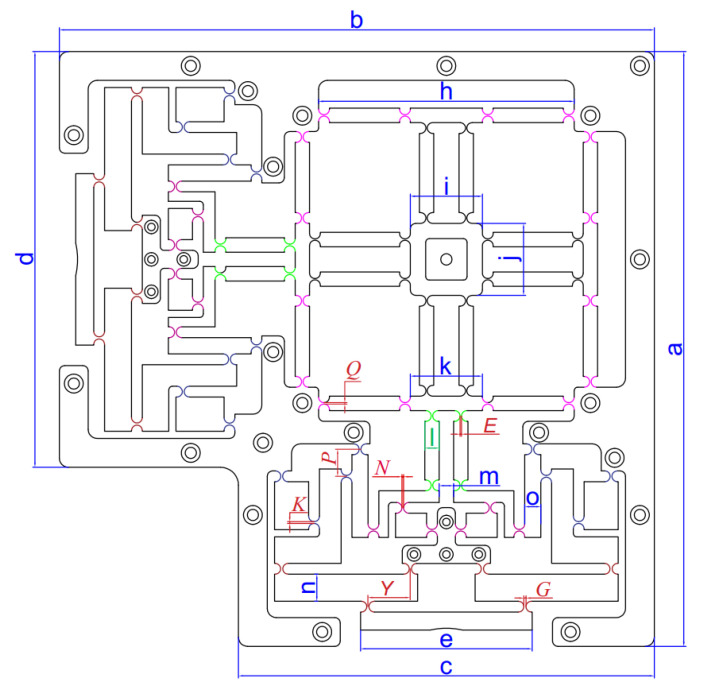

Figure 4
Figure 5

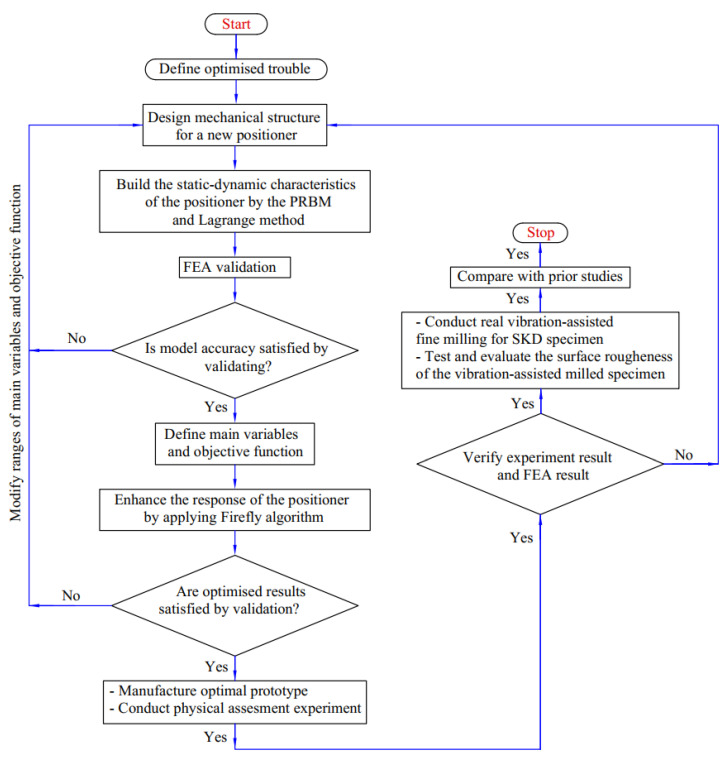

Figure 6

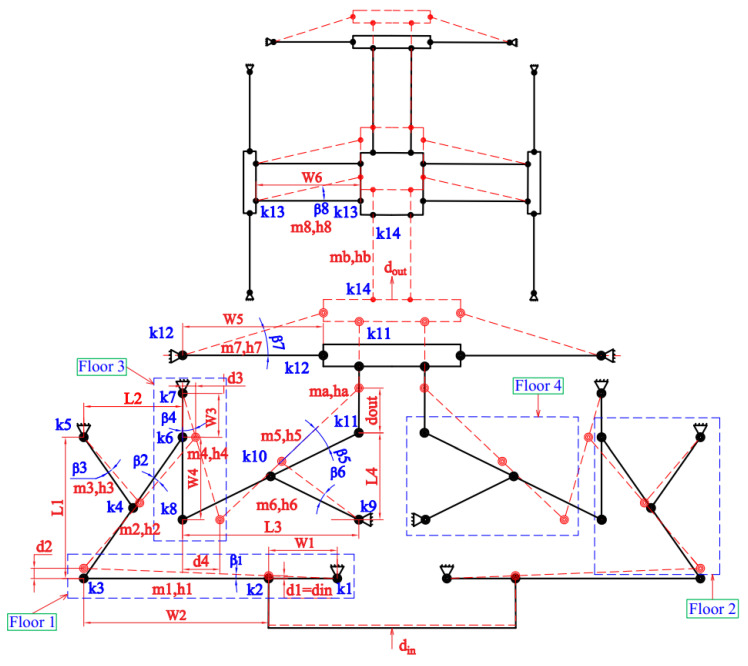

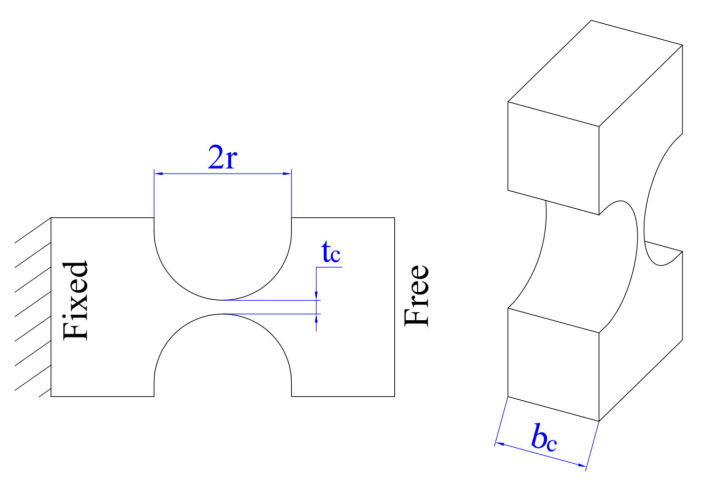

Figure 7

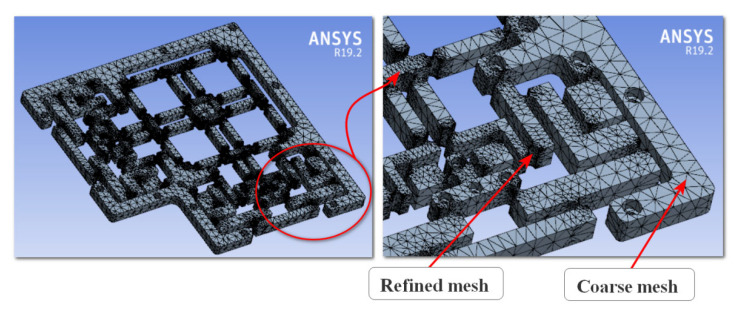

Figure 8

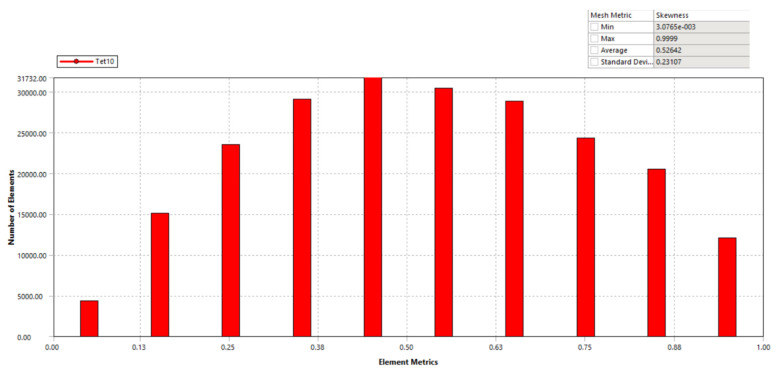

Figure 9

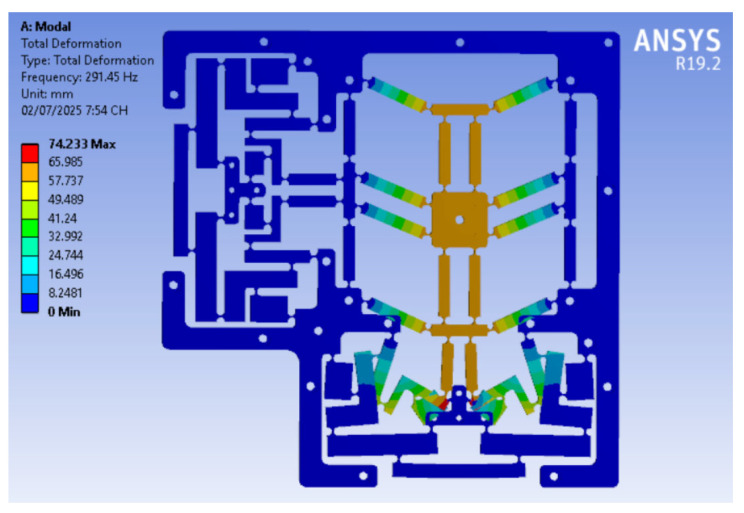

Figure 10

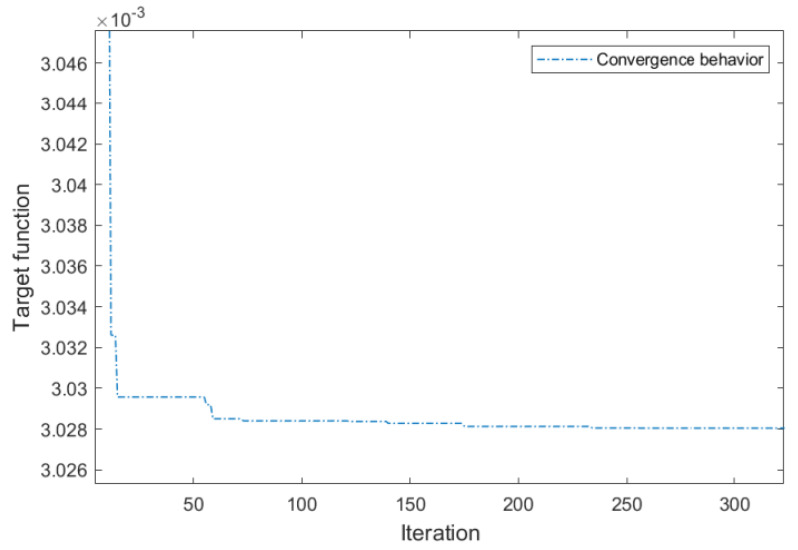

Figure 11

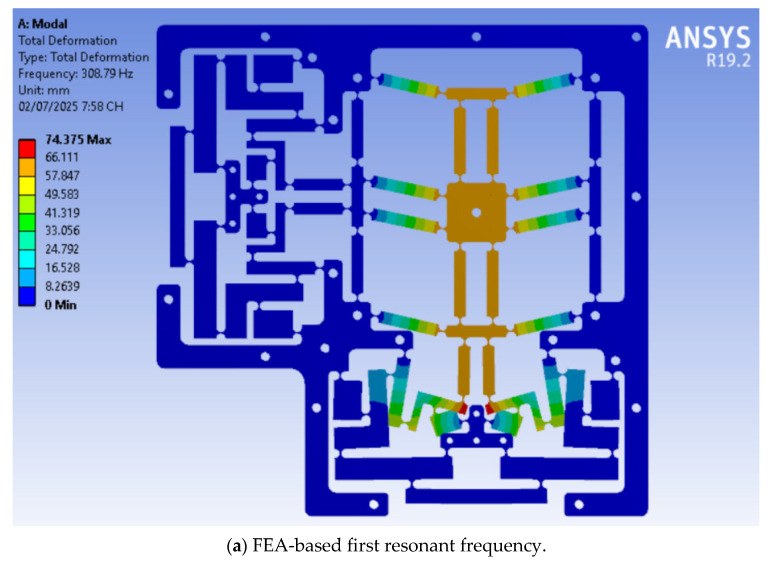

Figure 12

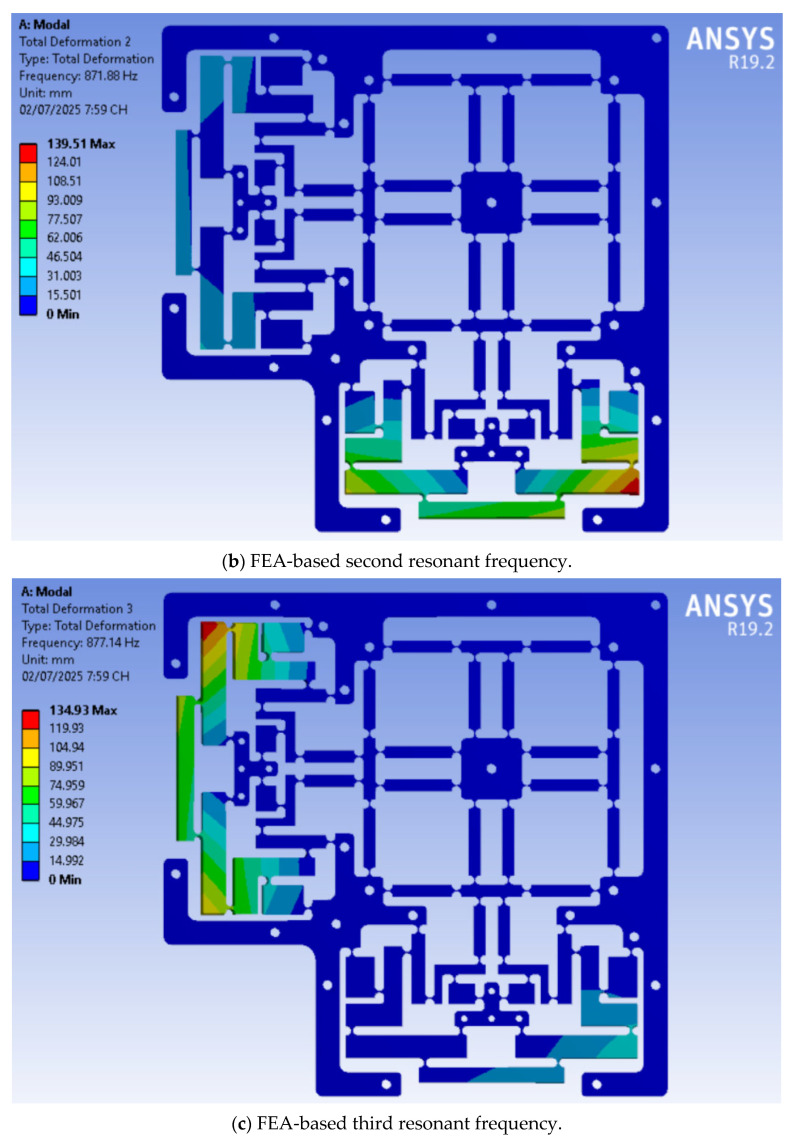

Figure 13

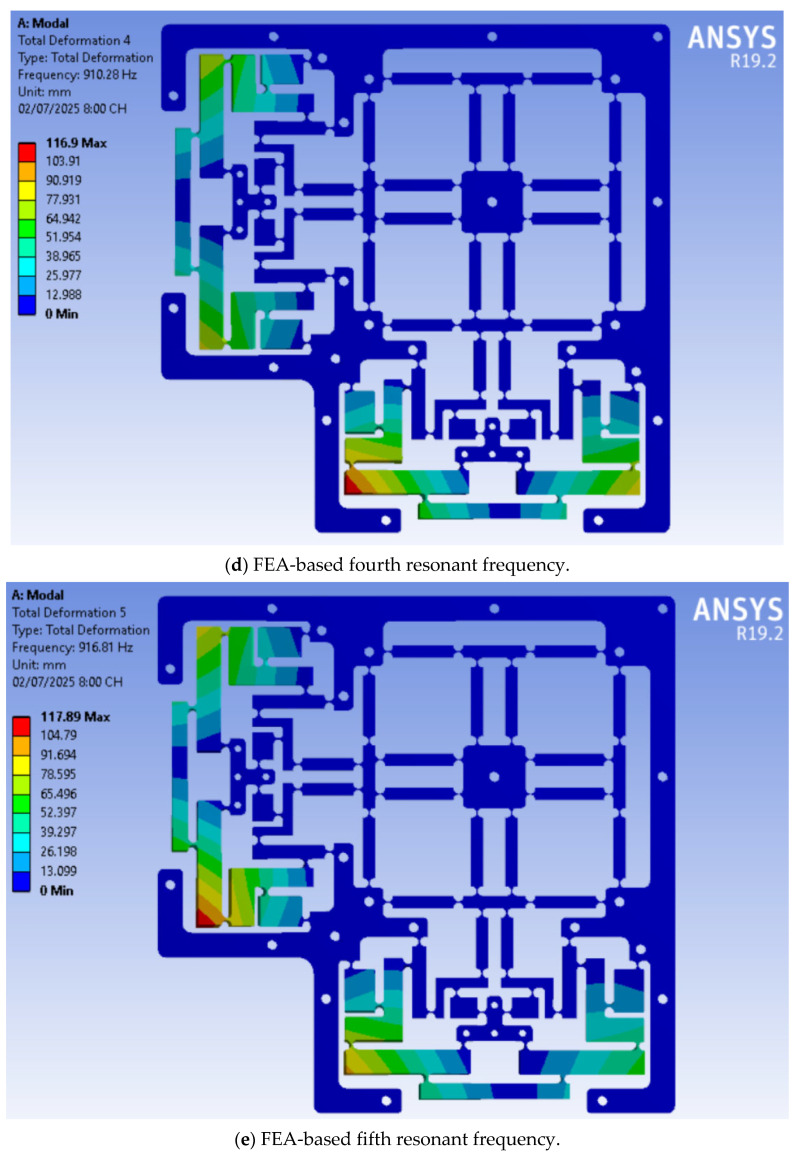

Figure 14

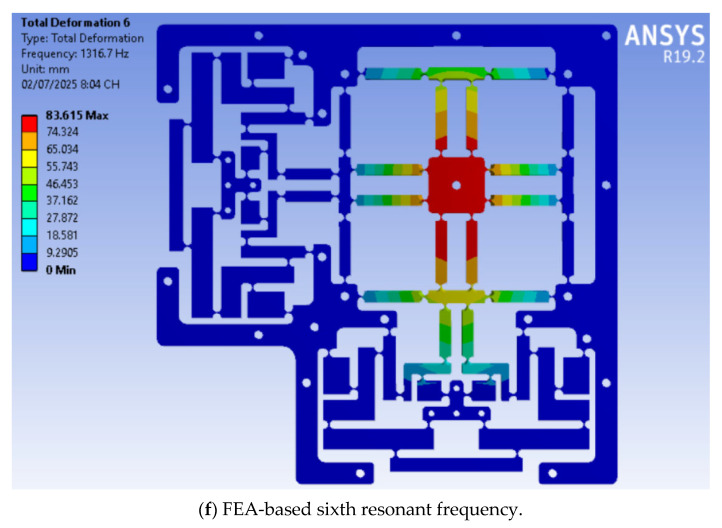

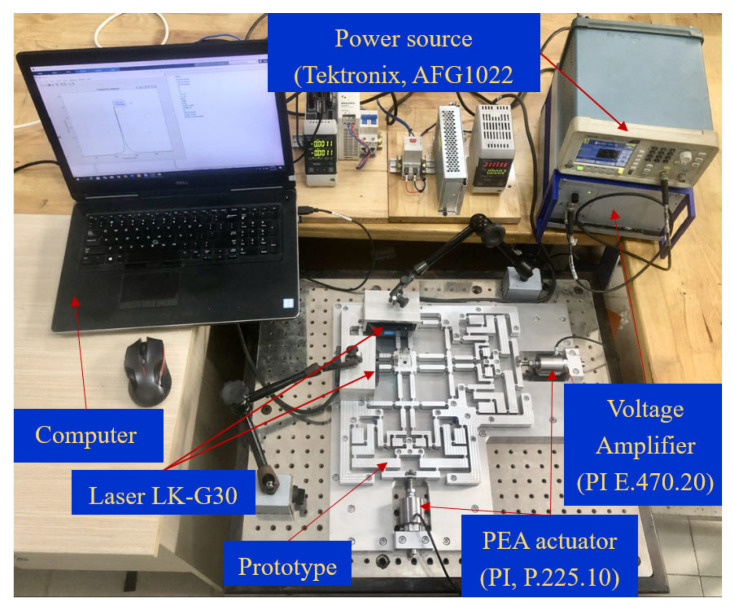

Figure 15
Figure 16

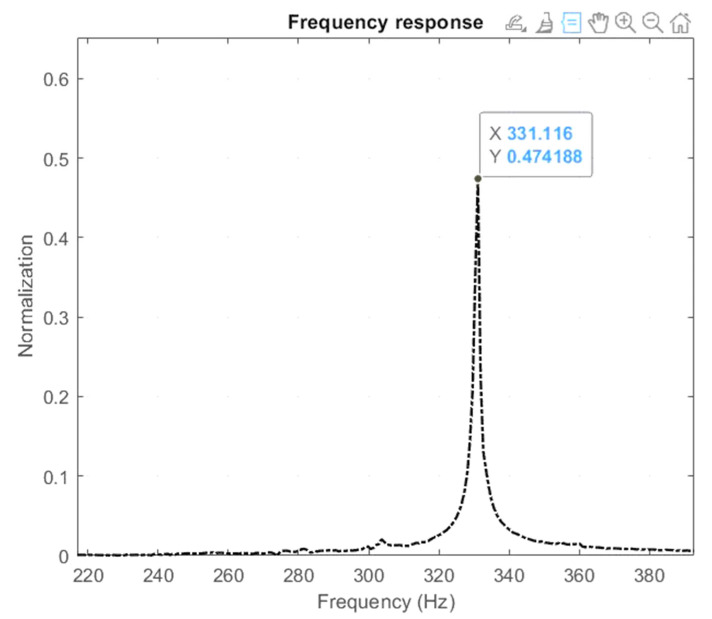

Figure 17

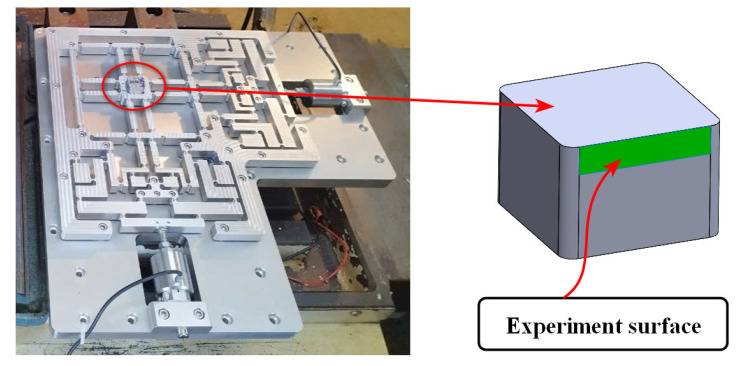

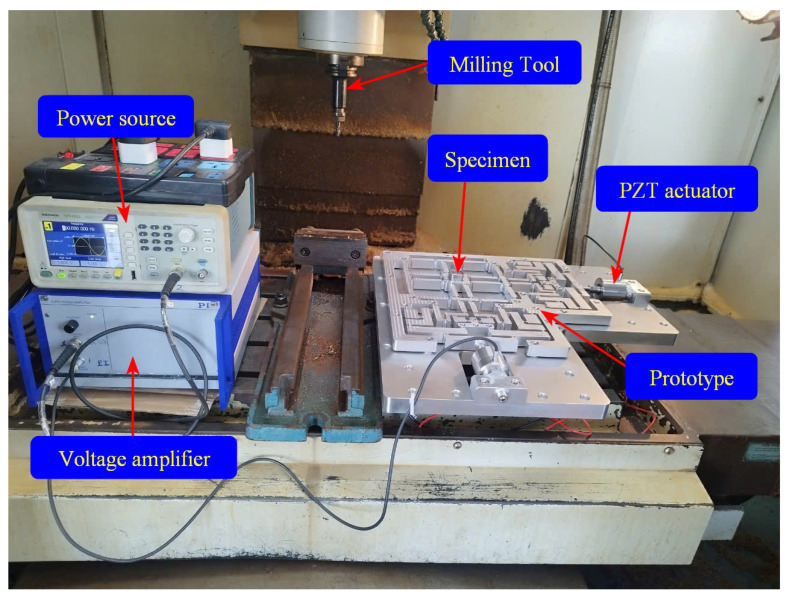

Figure 18

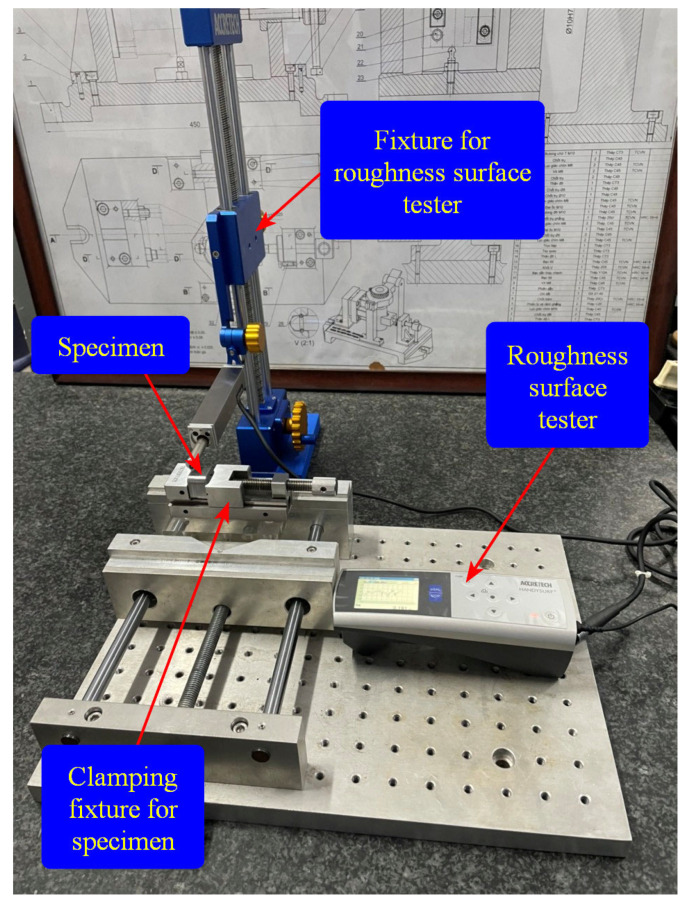

Figure 19
Figure 20

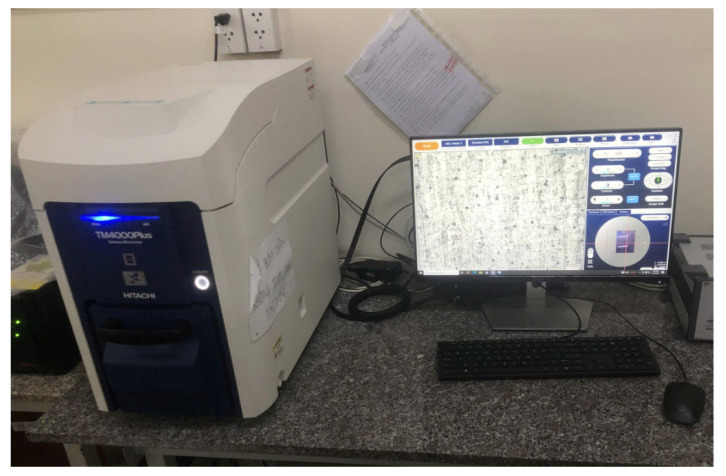

Figure 21
Figure 22Peer Reviews
