Research on Multi-Objective Optimization Method for Hydroforming Loading Path of Centralizer
Zaixiang Zheng, Zhengjian Pan, Hui Tan, Feng Wang, Jing Xu, Yiyang Gu, Guoheng Li
TL;DR
This study explores how to optimize the pressure and feed paths during centralizer hydroforming to achieve uniform wall thickness and avoid defects.
Contribution
The paper introduces a multi-objective optimization framework combining several algorithms with LS-DYNA for hydroforming process design.
Findings
NSGA-II, NCGA, and AMGA successfully generated optimized loading paths.
NSGA-II and AMGA produced larger sets of higher-quality Pareto solutions.
MOPSO showed premature convergence and yielded inferior results.
Abstract

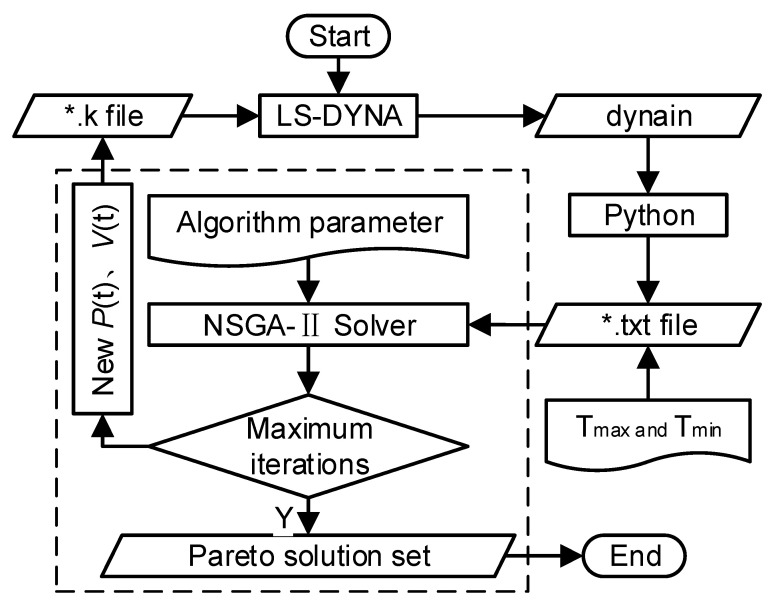

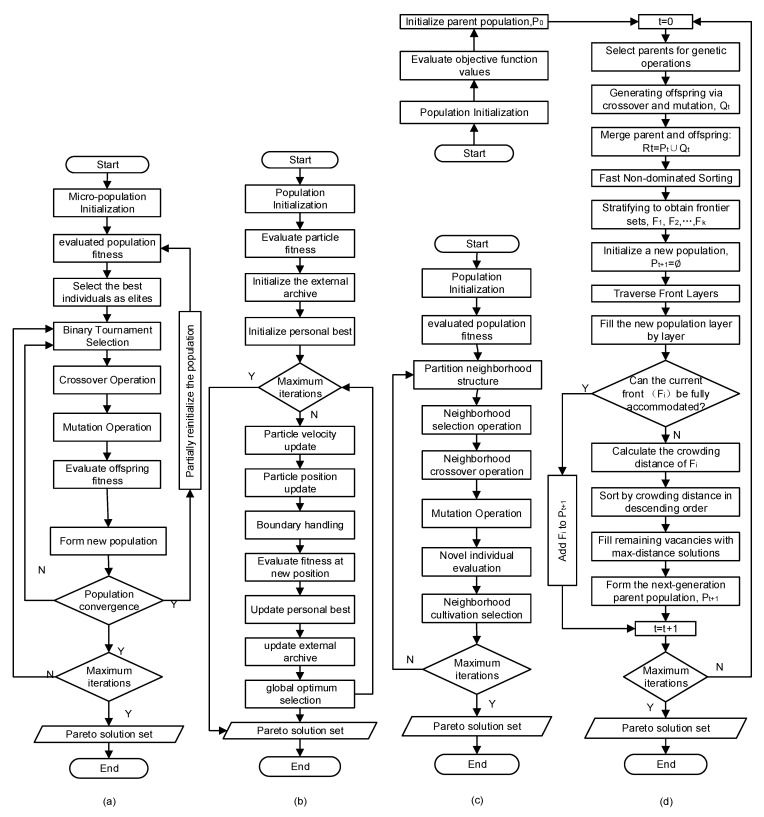

During centralizer hydroforming, internal pressure and axial feed critically influence the forming outcome. Insufficient feed causes excessive thinning and cracking, while excessive feed causes thickening and wrinkling. Achieving uniform wall thickness necessitates careful design of the pressure and feed curves. Using max/min wall thickness as objectives and key control points on these curves as variables, the study integrated Non-dominated Sorting Genetic Algorithm (NSGA-II), Multi-Objective Particle Swarm Optimization (MOPSO), Neighborhood Cultivation Genetic Algorithm (NCGA), and Archive-based Micro Genetic Algorithm (AMGA) with LS-DYNA to automatically optimize loading paths. The results demonstrate the following: ① NSGA-II, NCGA, and AMGA successfully generated optimized paths; ② NSGA-II and AMGA produced larger sets of higher-quality Pareto solutions; ③ AMGA required more…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

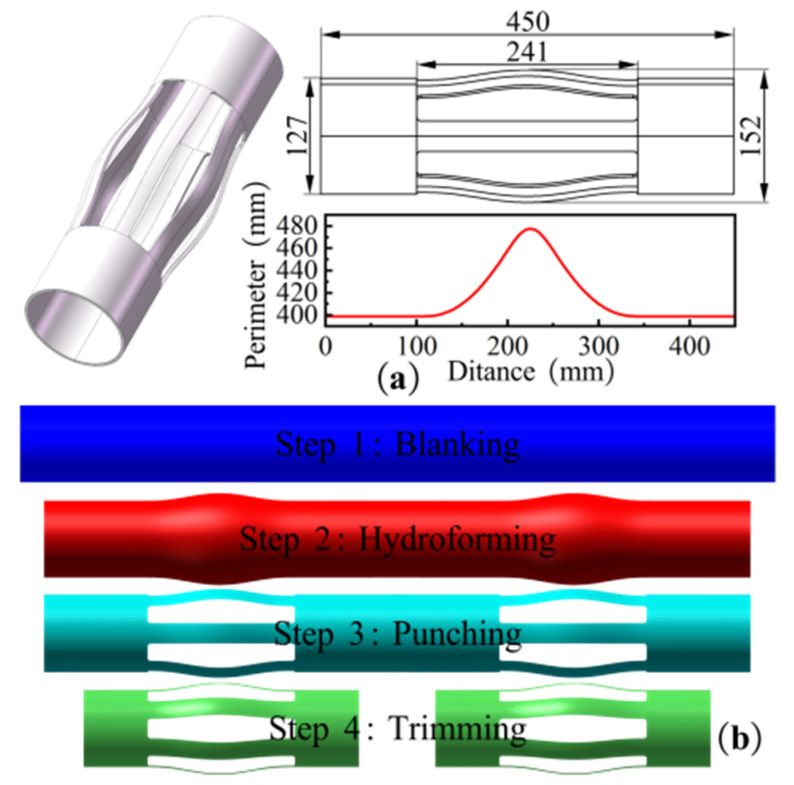

Figure 1

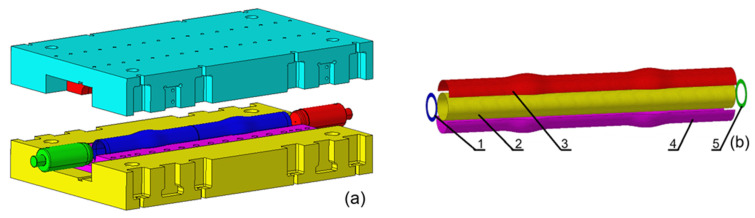

Figure 2

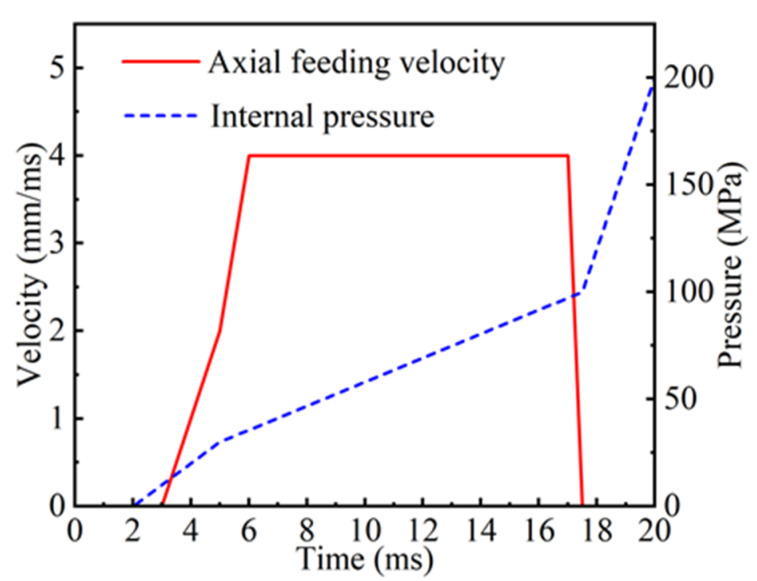

Figure 3

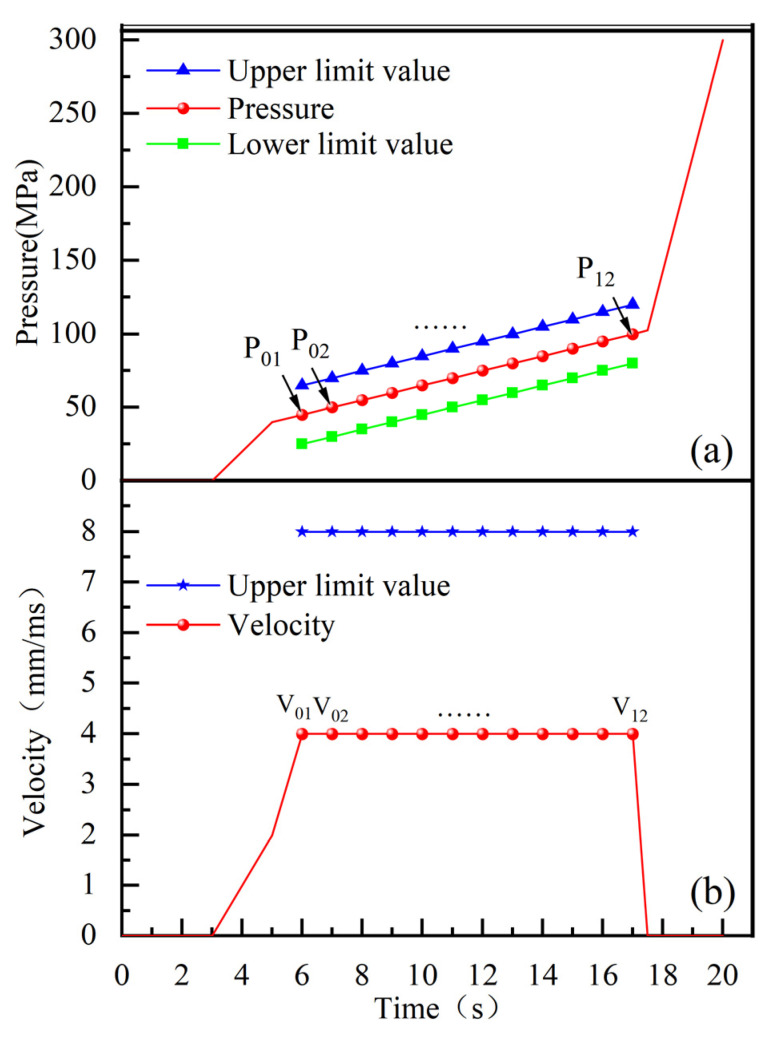

Figure 4
Figure 5
Figure 6
Figure 7

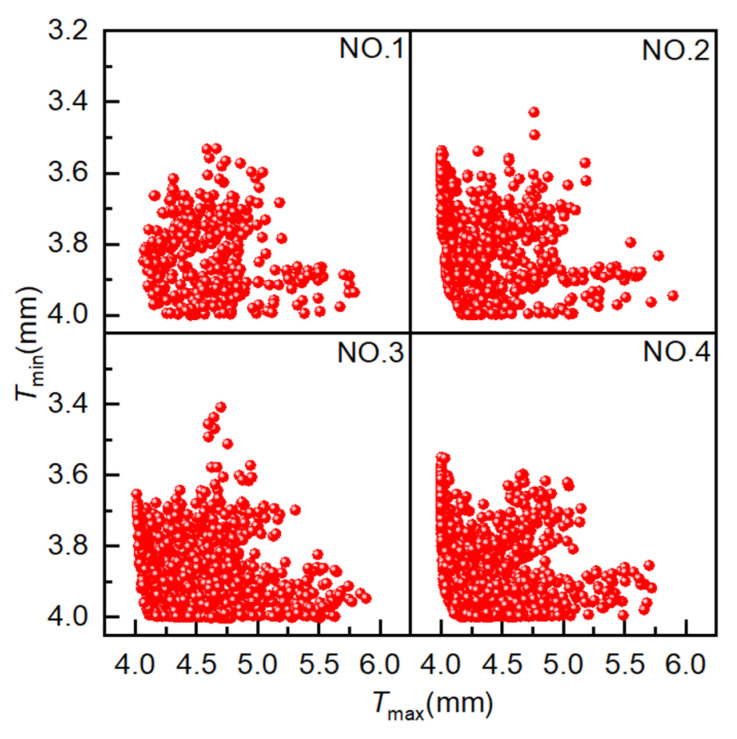

Figure 8
Figure 9
Figure 10
Figure 11

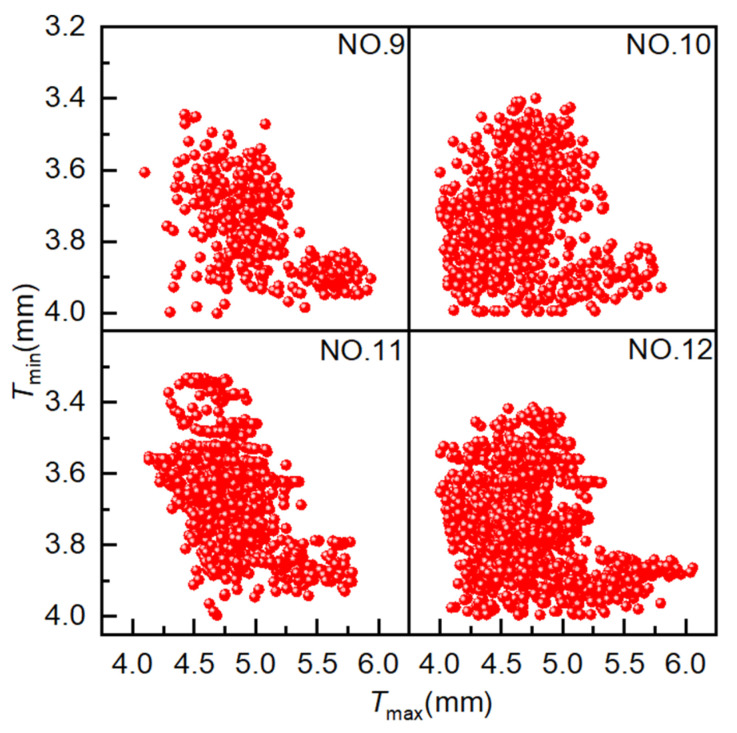

Figure 12
Figure 13
Figure 14
Figure 15

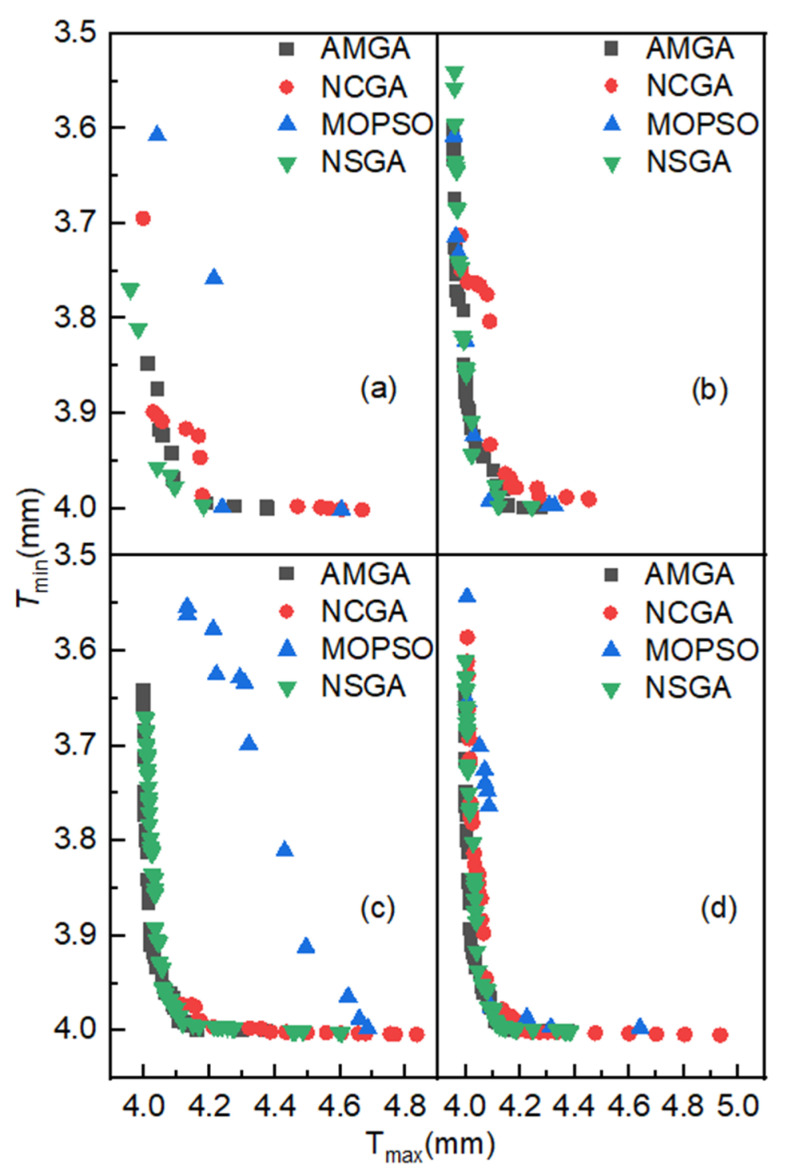

Figure 16
Figure 17

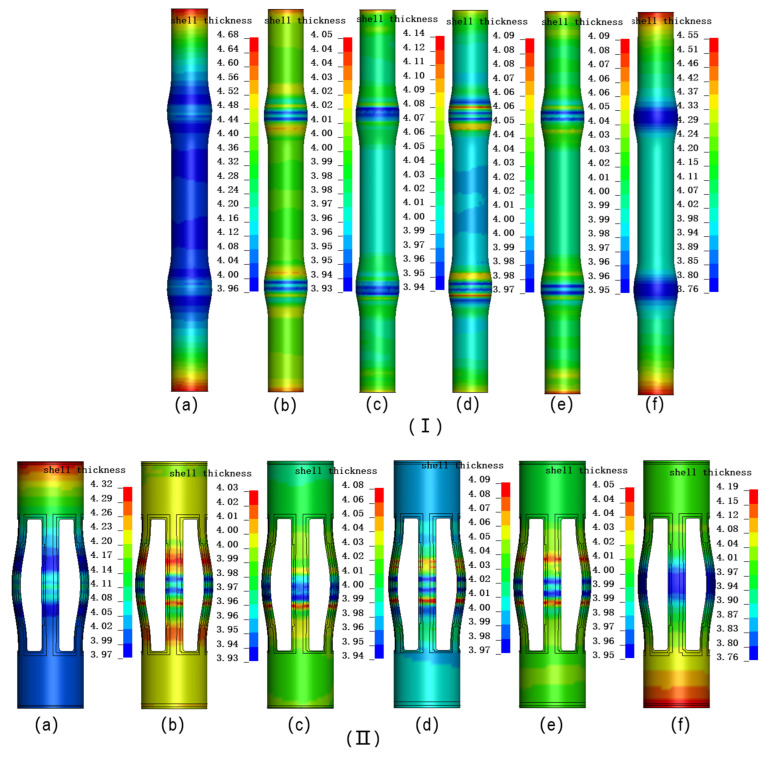

Figure 18
Figure 19Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMetal Forming Simulation Techniques · Advanced Multi-Objective Optimization Algorithms · Metallurgy and Material Forming
