A Novel High-Precision Workpiece Self-Positioning Method for Improving the Convergence Ratio of Optical Components in Magnetorheological Finishing
Yiang Zhang, Pengxiang Wang, Chaoliang Guan, Meng Liu, Xiaoqiang Peng, Hao Hu
TL;DR
This paper introduces a new method for positioning workpieces in magnetorheological finishing to improve optical component manufacturing efficiency and precision.
Contribution

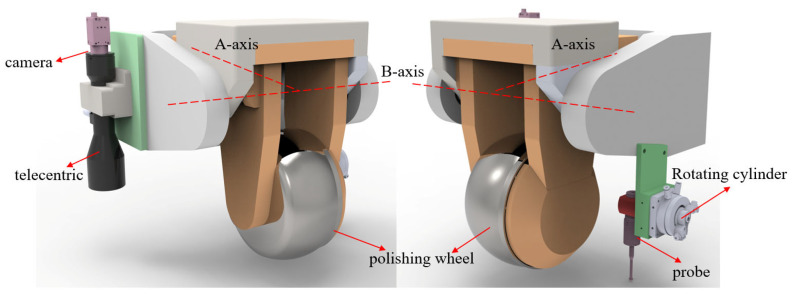

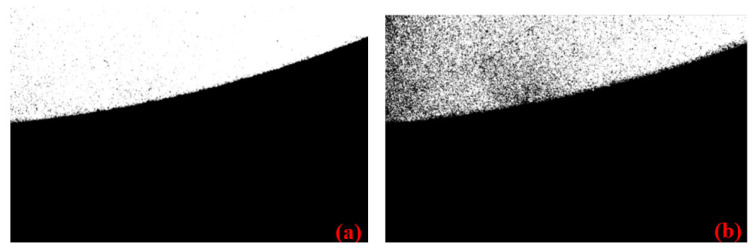

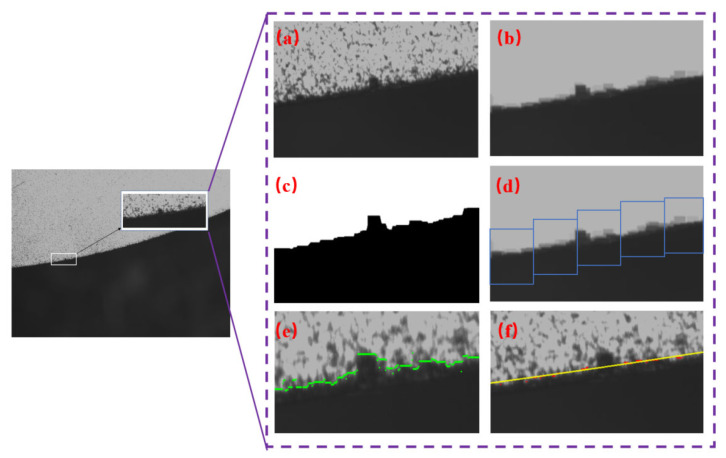

A hybrid self-positioning method combining machine vision and a probing module is proposed to enhance convergence and reduce alignment time.
Findings
The proposed method improves flat workpiece convergence by 41.9% and reduces alignment time by 66.7%.
For curved workpieces, convergence improves by 25.7% with an 80% reduction in alignment time.

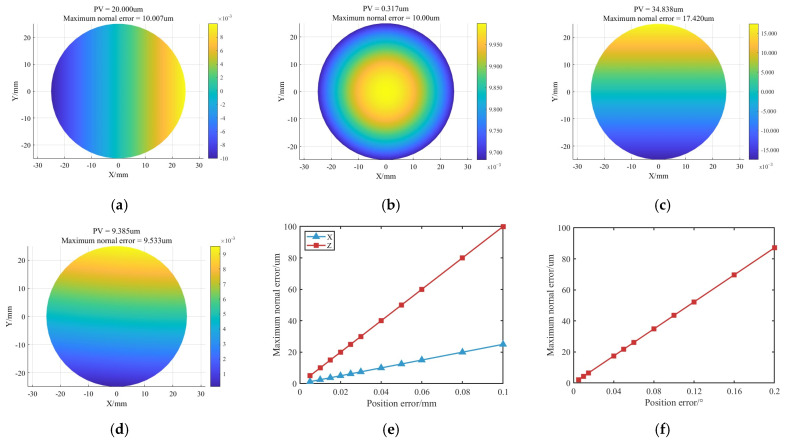

A positioning error-normal contour error transmission model is established to set error tolerance thresholds.
Abstract
Magnetorheological finishing is widely used in the high-precision processing of optical components, but due to the influence of multi-source system errors, the convergence of single-pass magnetorheological finishing (MRF) is limited. Although iterative processing can improve the surface accuracy, repeated tool paths tend to deteriorate mid-spatial frequency textures, and for complex surfaces such as aspheres, traditional manual alignment is time-consuming and lacks repeatability, significantly restricting the processing efficiency. To address these issues, firstly, this study systematically analyzes the effect of six-degree-of-freedom positioning errors on convergence behavior, establishes a positioning error-normal contour error transmission model, and obtains a workpiece positioning error tolerance threshold that ensures that the relative convergence ratio is not less than 80%.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

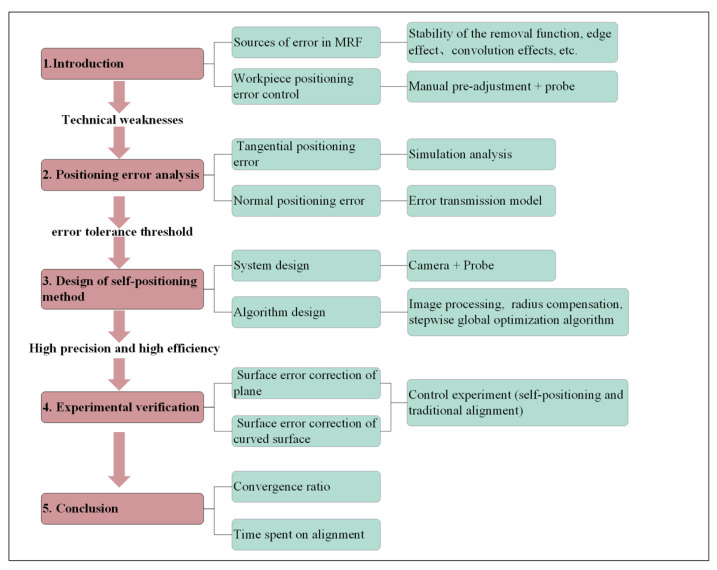

Figure 1

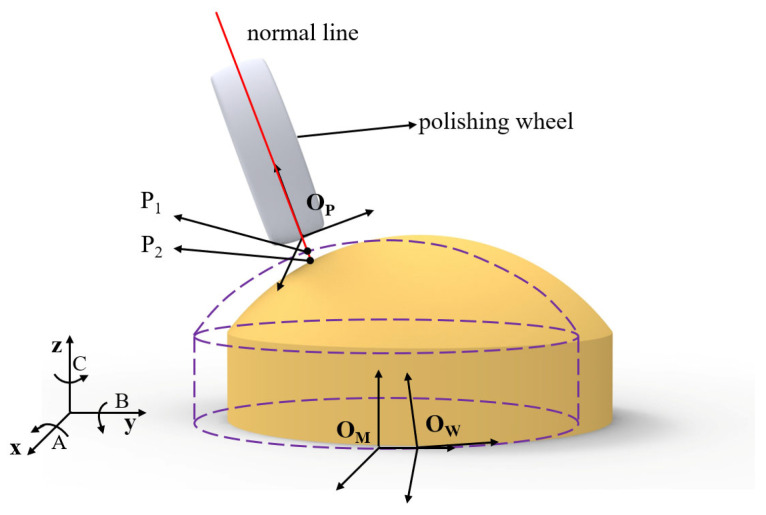

Figure 2

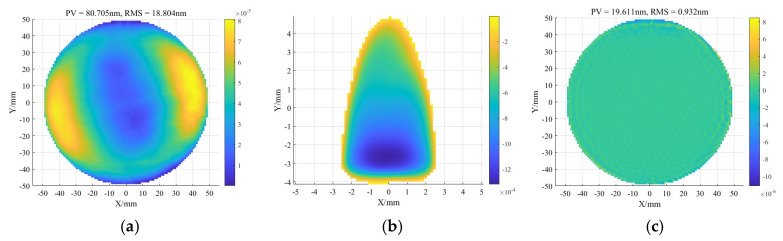

Figure 3

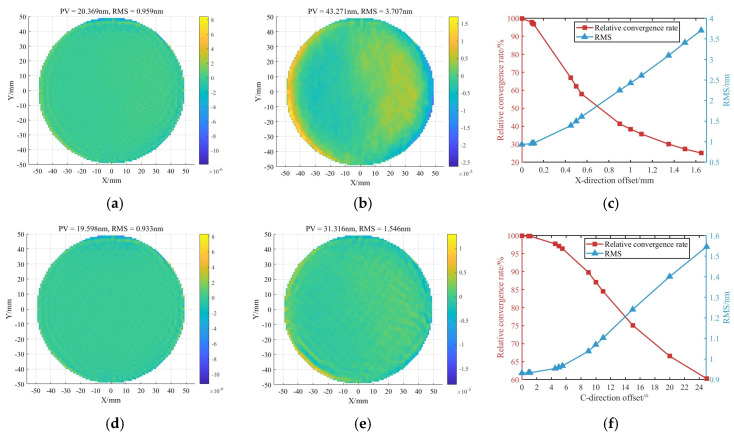

Figure 4

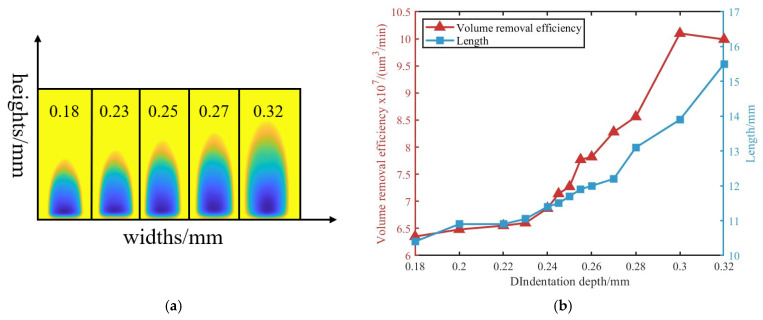

Figure 5

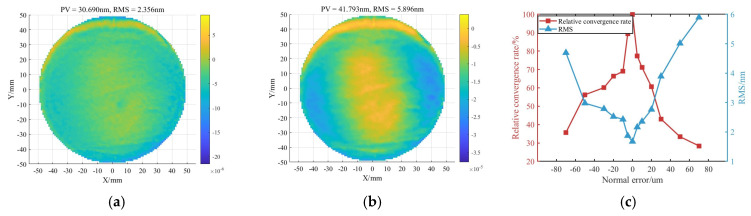

Figure 6
Figure 7

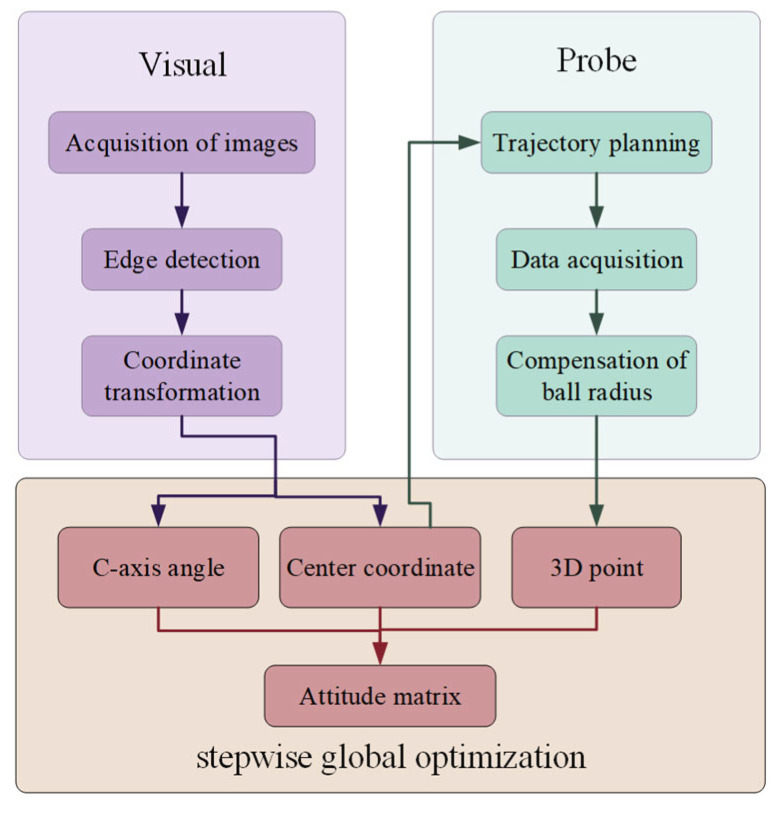

Figure 8
Figure 9

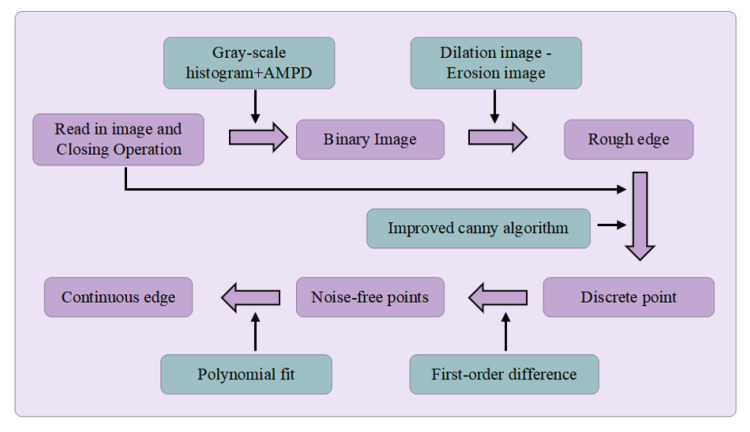

Figure 10
Figure 11
Figure 12

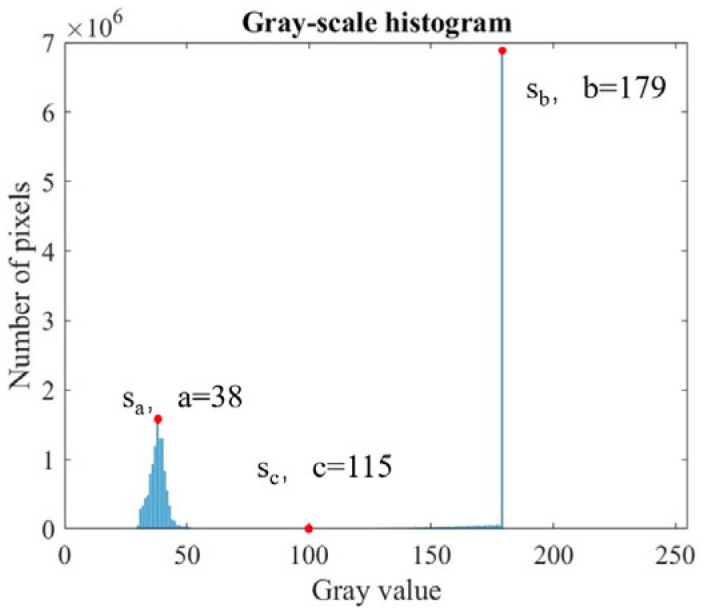

Figure 13

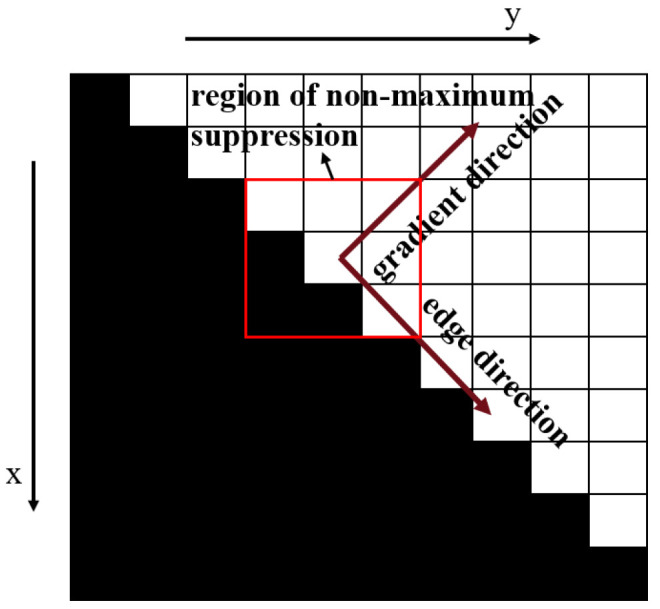

Figure 14

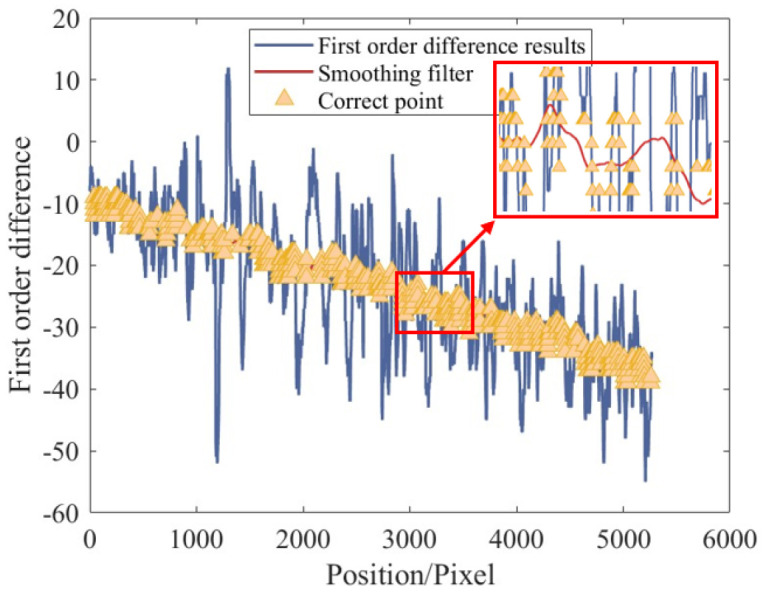

Figure 15

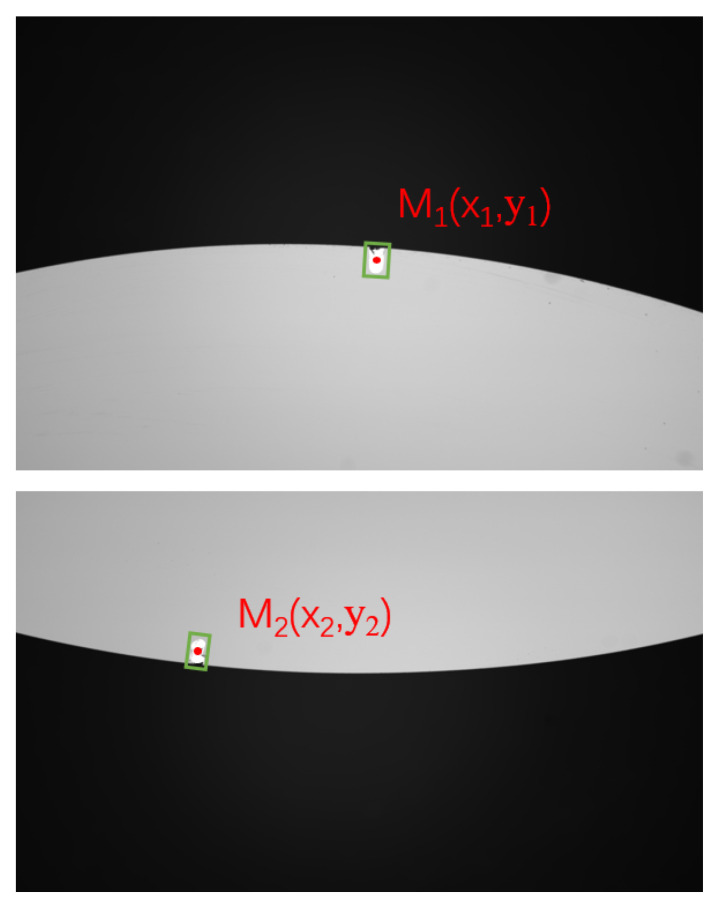

Figure 16

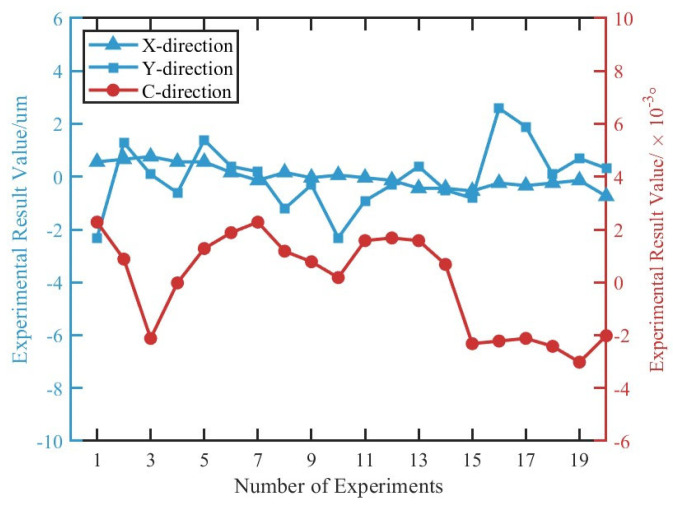

Figure 17

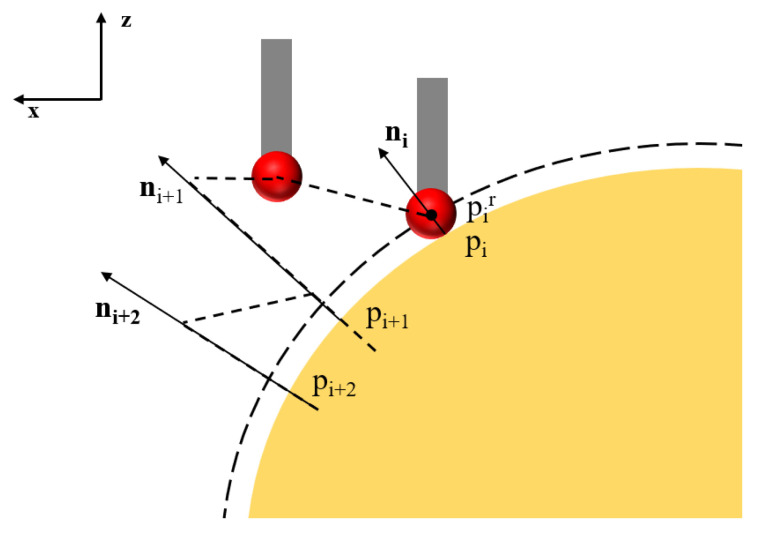

Figure 18

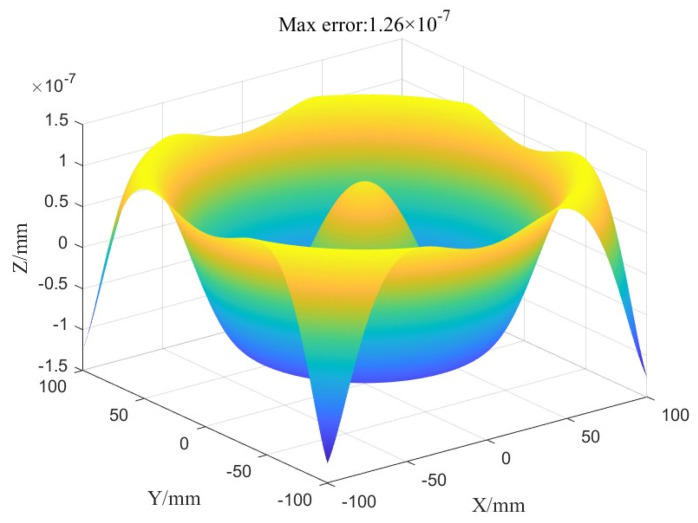

Figure 19

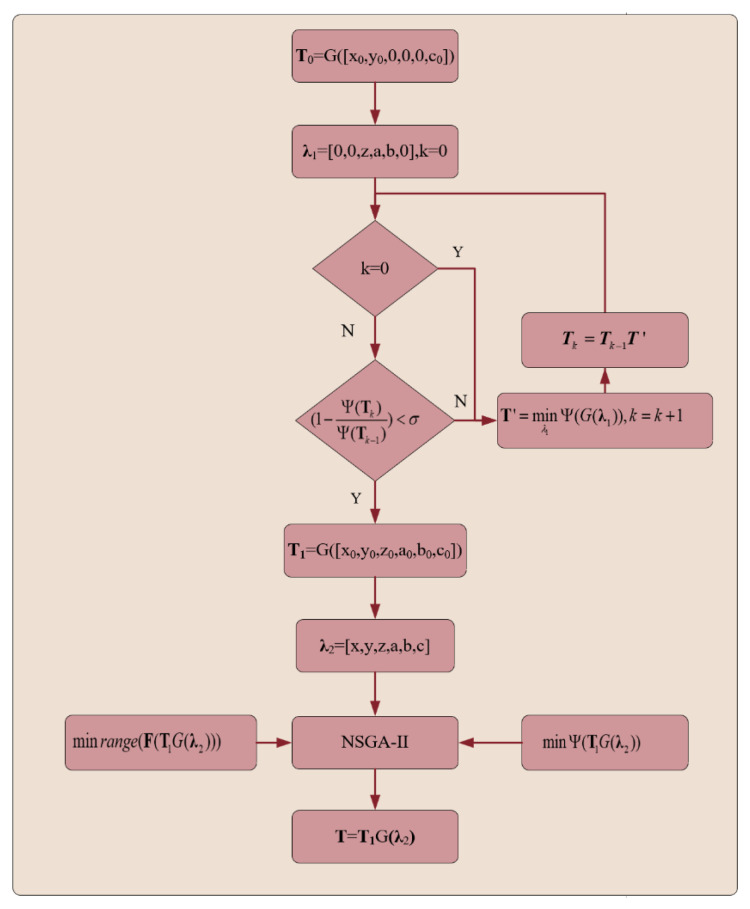

Figure 20

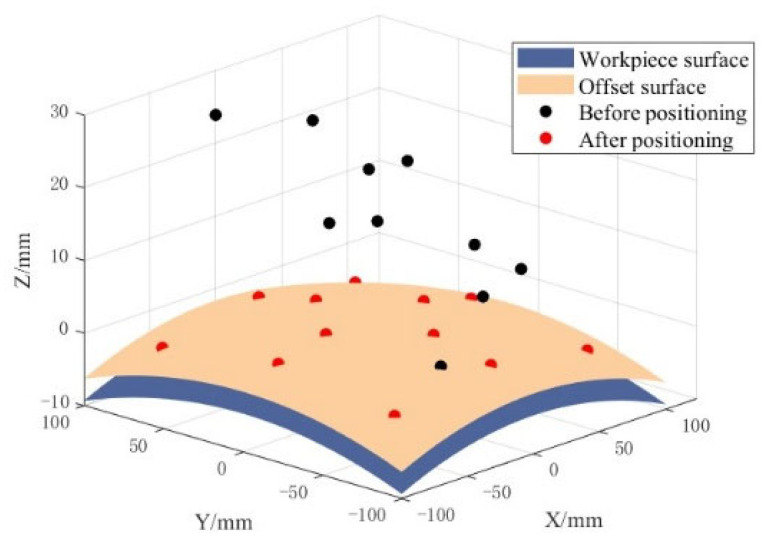

Figure 21

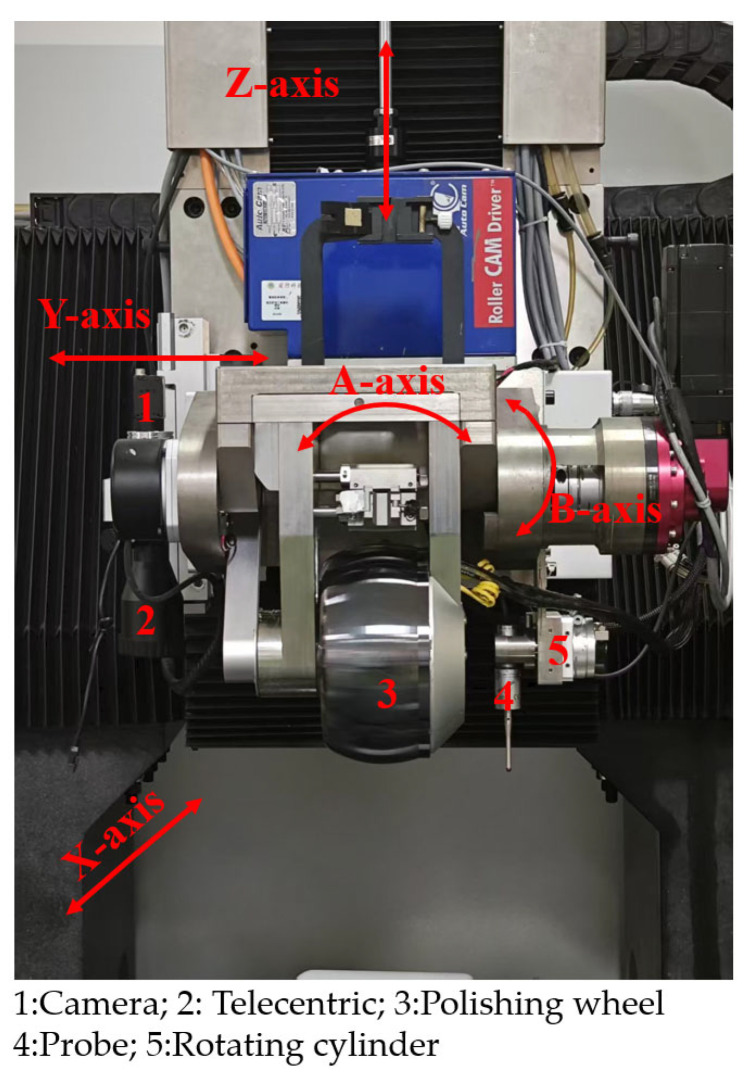

Figure 22

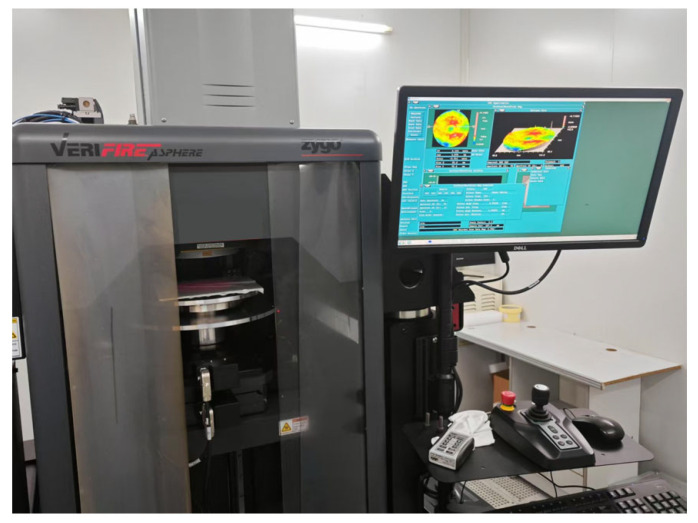

Figure 23

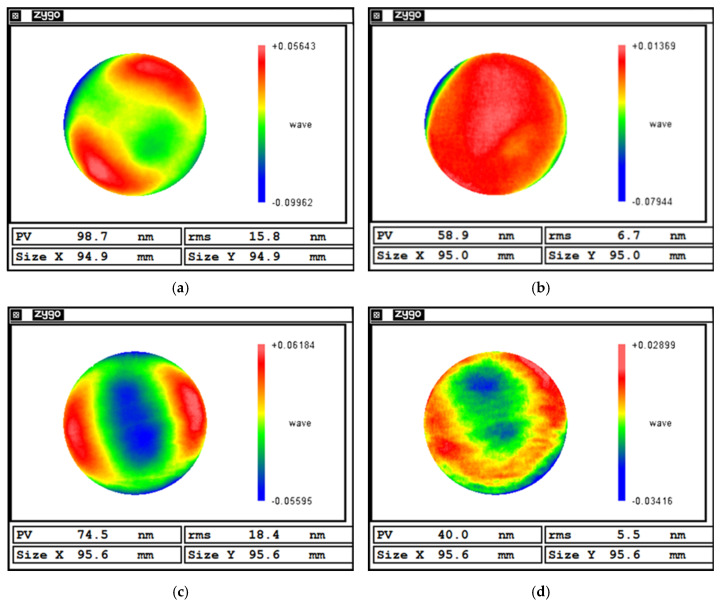

Figure 24

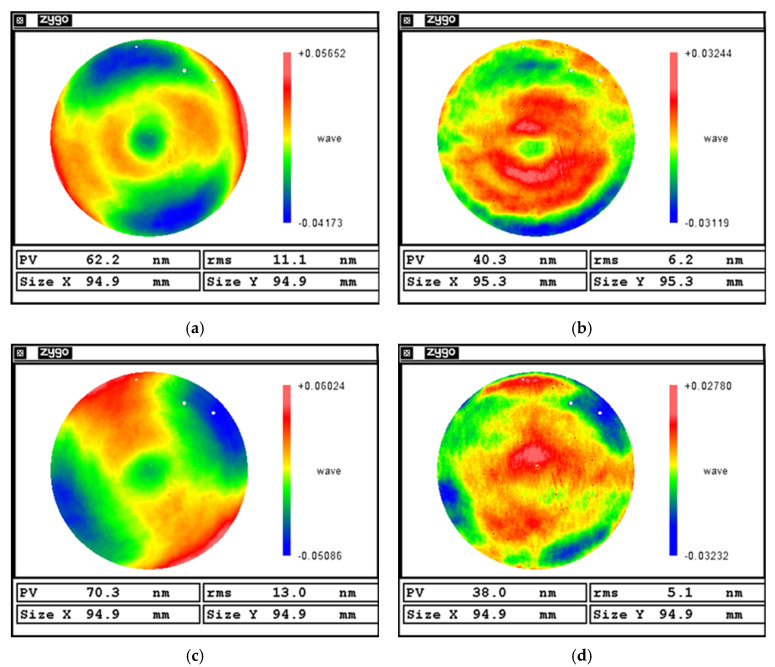

Figure 25Peer Reviews
