Superelasticity in Shape Memory Alloys—Experimental and Numerical Investigations of the Clamping Effect
Jakub Bryła, Adam Martowicz
TL;DR
This study explores how different clamping methods affect the superelastic behavior of shape memory alloys during tensile tests.
Contribution
The authors developed a new bollard grip to reduce stress concentration and studied its impact on phase transformations in shape memory alloys.
Findings
The bollard grip reduced local stress concentration in shape memory alloy specimens.
Martensitic transformation and stress–strain plateau were observed during tensile tests.
Numerical simulations matched experimental results, confirming the influence of clamping on phase changes.
Abstract
Loading and clamping schemes significantly influence the behavior of shape memory alloys, specifically, the course of their solid-state transformations. This paper presents experimental and numerical findings regarding the nonlinear response of samples of the above-mentioned type of smart materials observed during tensile tests. Hysteretic properties were studied to elucidate the superelastic behavior of the tested and modeled samples. The conducted tensile tests considered two configurations of grips, i.e., the standard one, where the jaws transversely clamp a specimen, and the customized bollard grip solution, which the authors developed to reduce local stress concentration in a specimen. The characteristic impact of the boundary conditions on the solid phase transformation in shape memory alloys, present due to the specific clamping scheme, was studied using a thermal camera and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

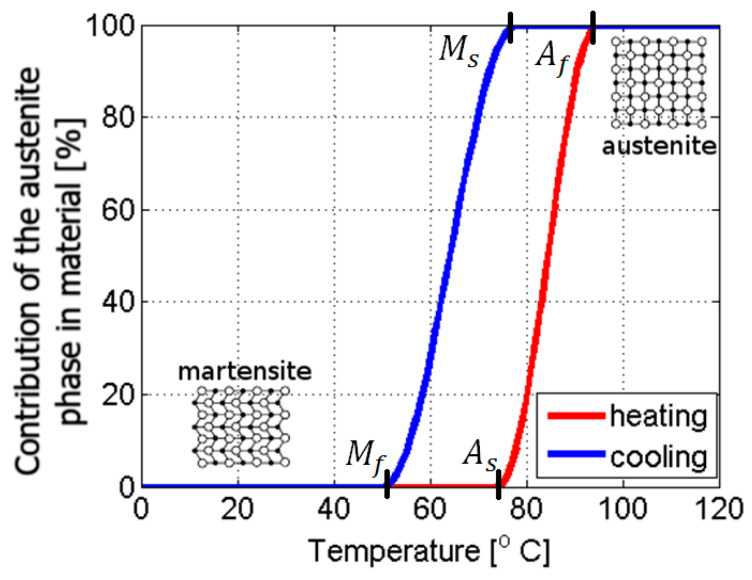

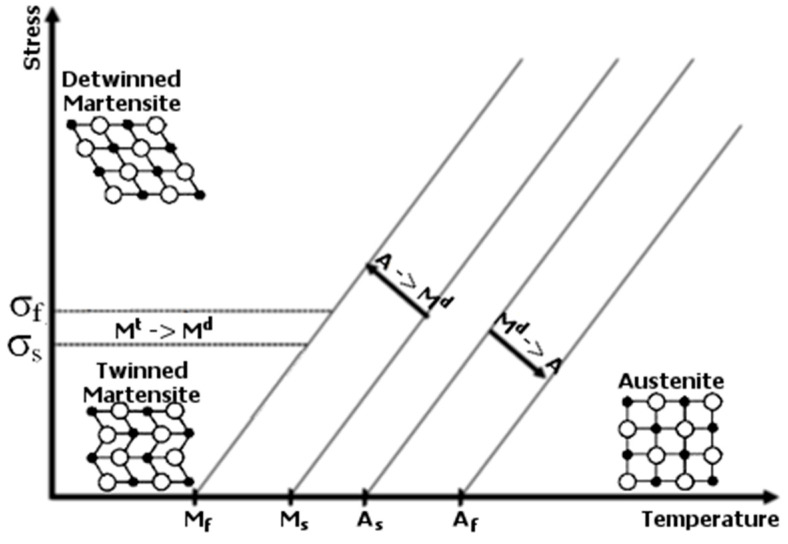

Figure 2
Figure 3

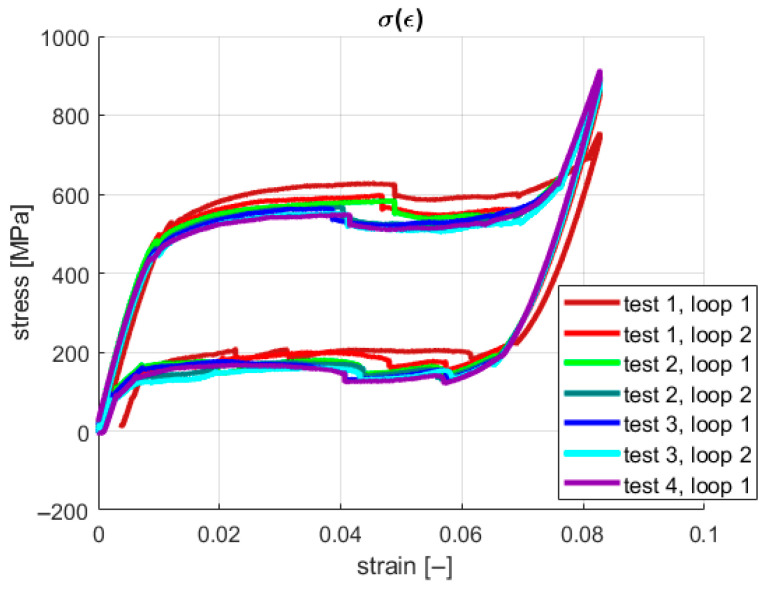

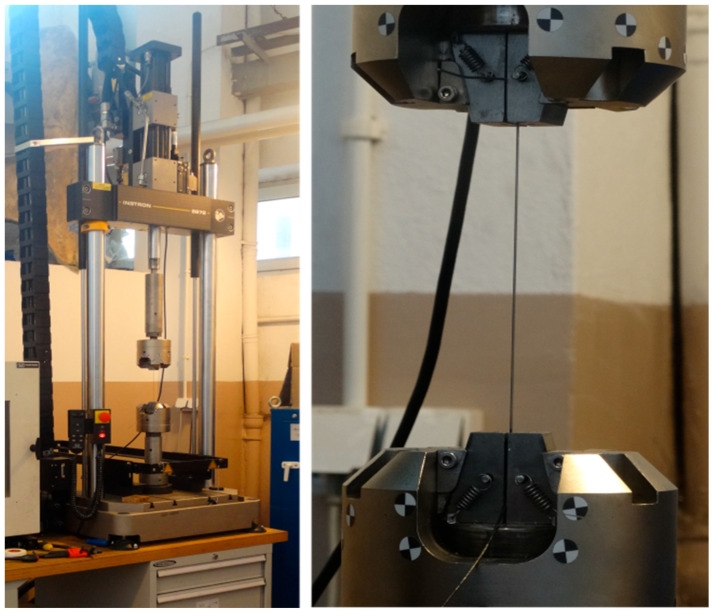

Figure 4

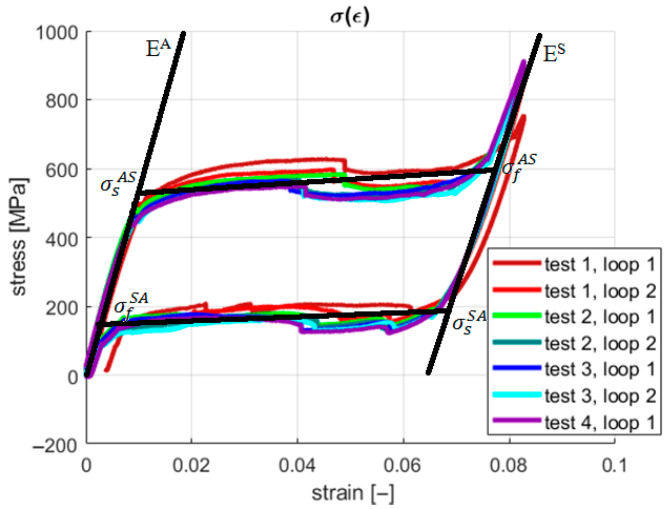

Figure 5

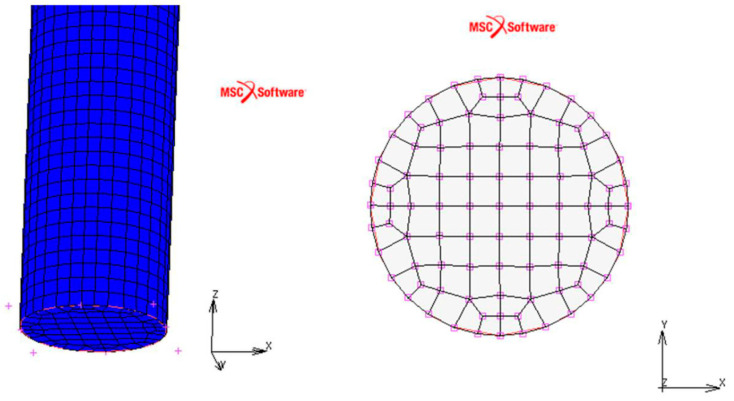

Figure 6

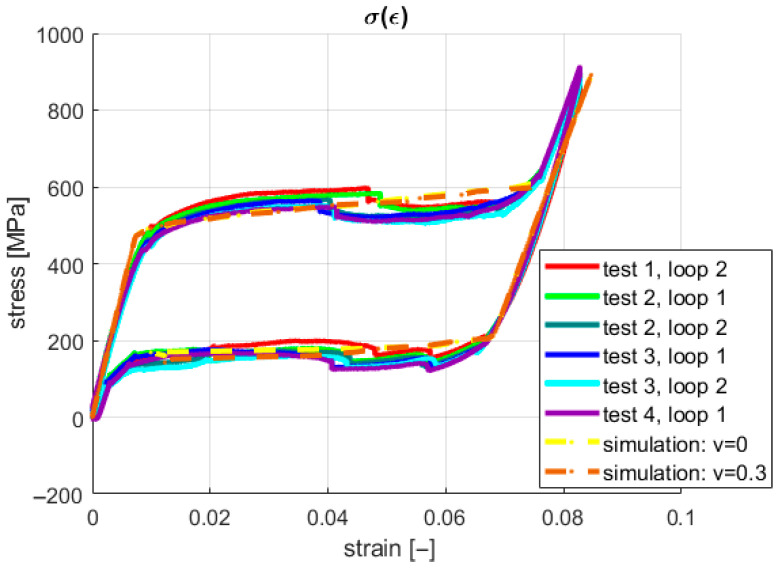

Figure 7

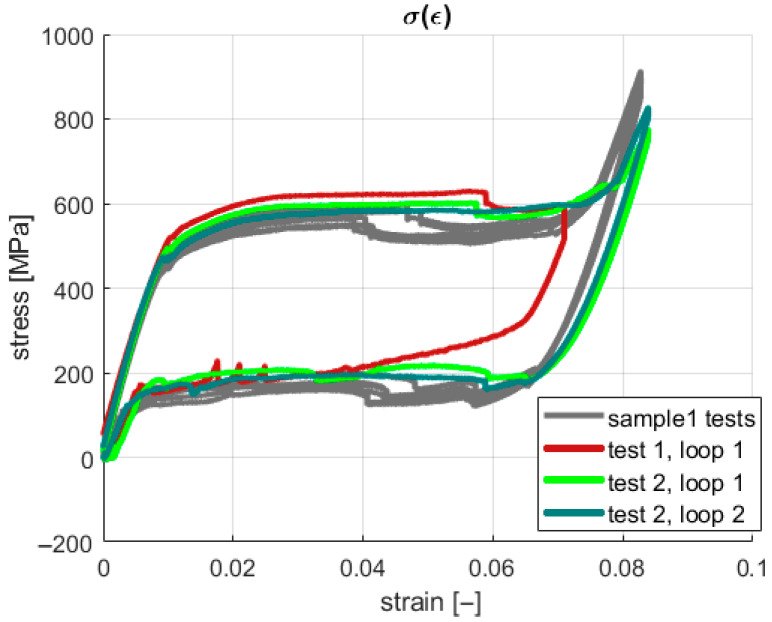

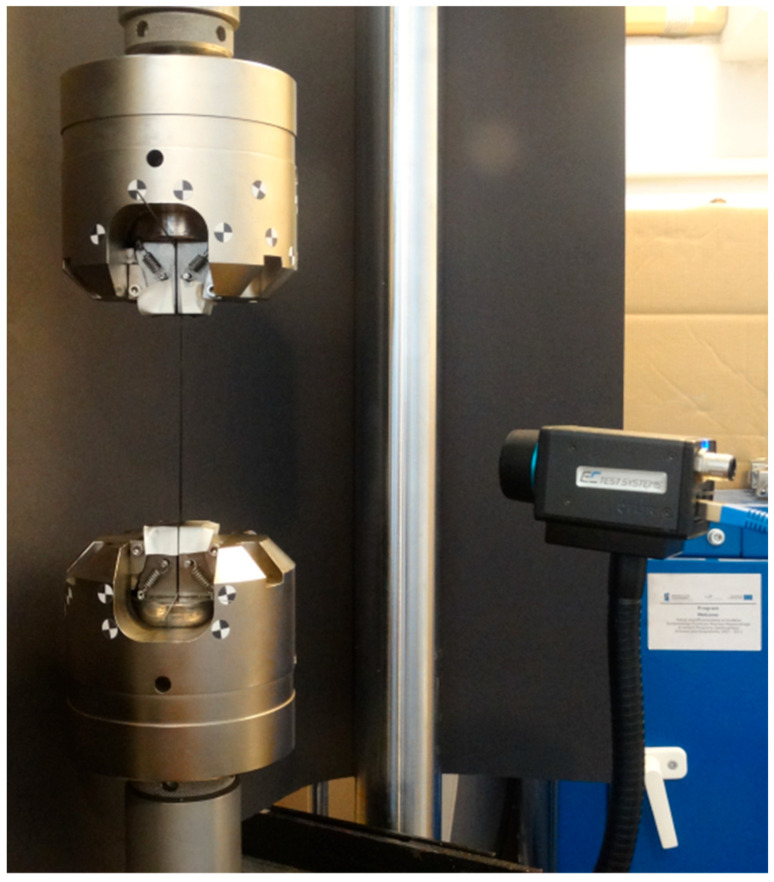

Figure 8

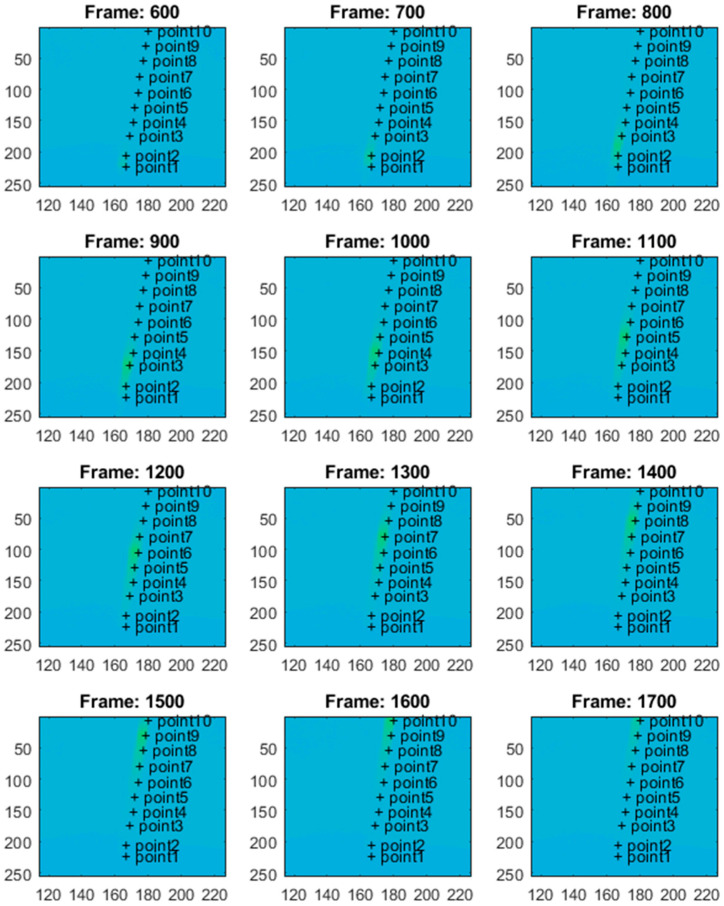

Figure 9

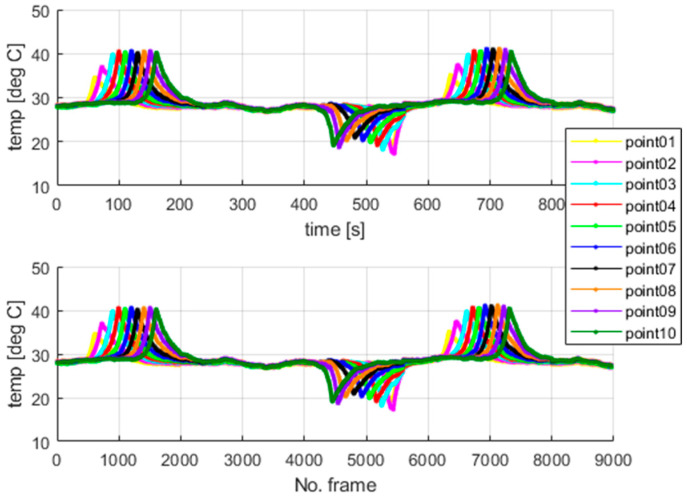

Figure 10

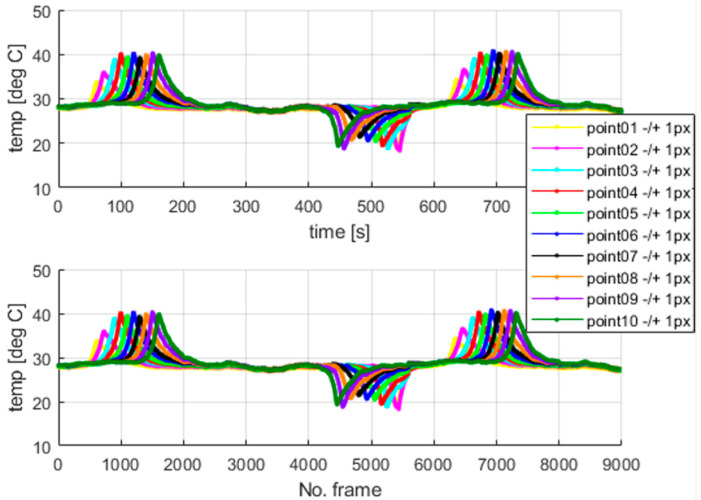

Figure 11

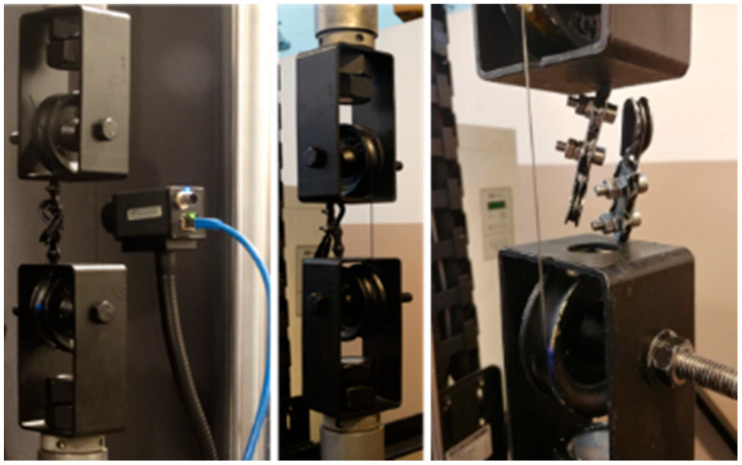

Figure 12
Figure 13

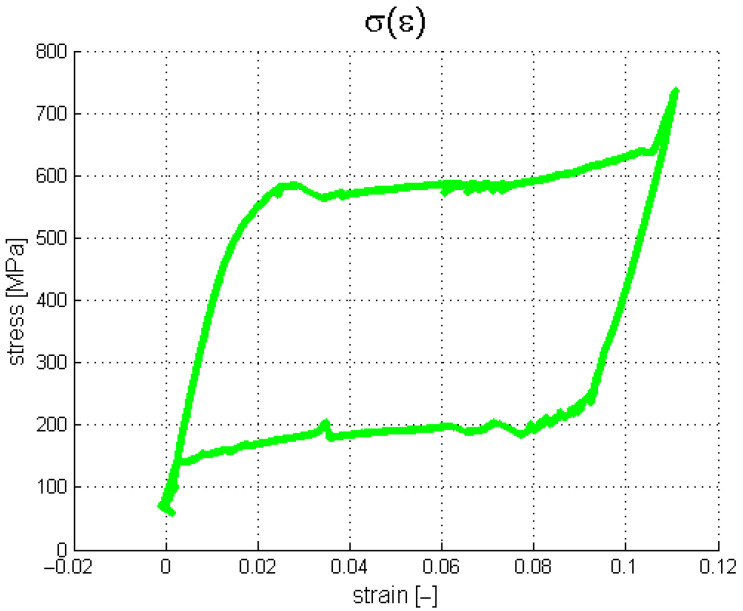

Figure 14

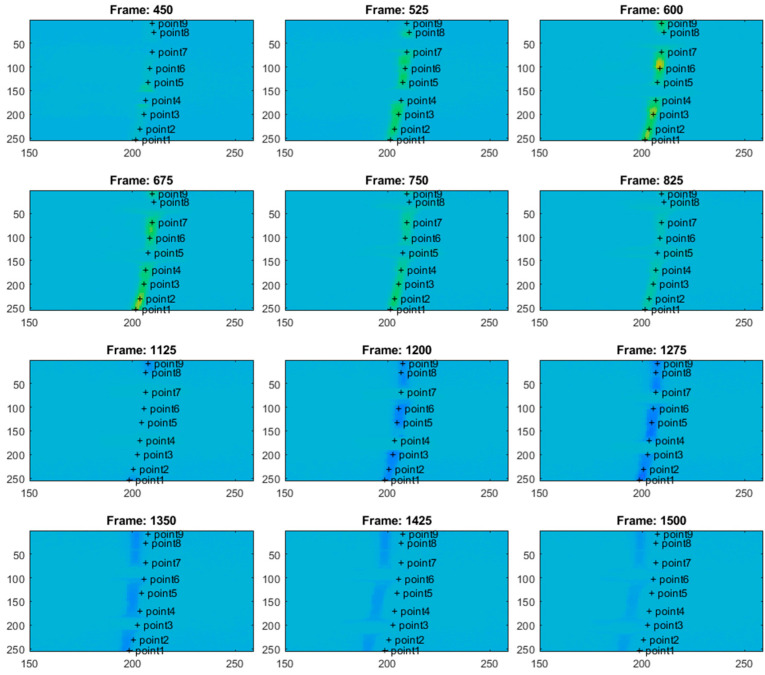

Figure 15

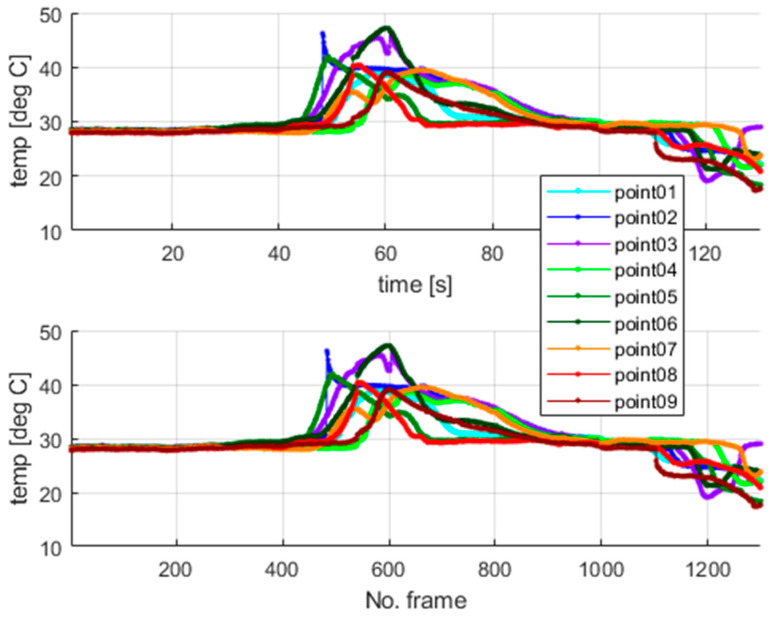

Figure 16

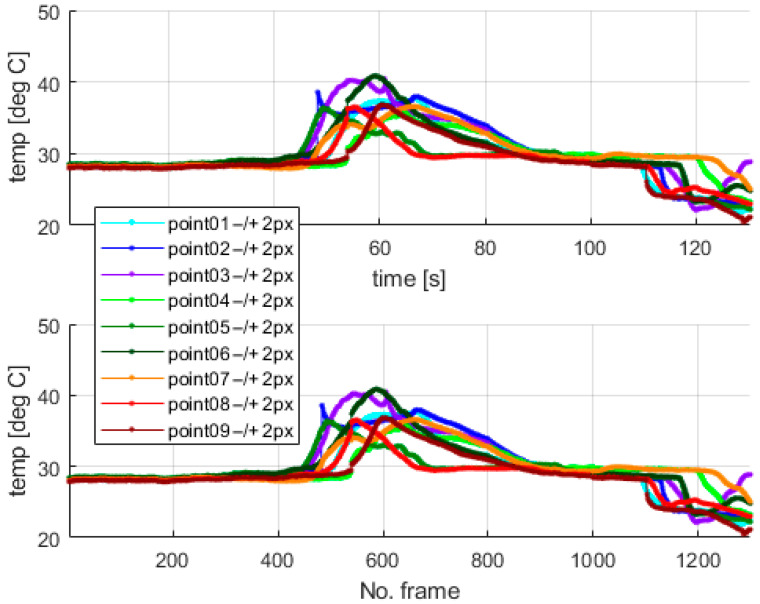

Figure 17

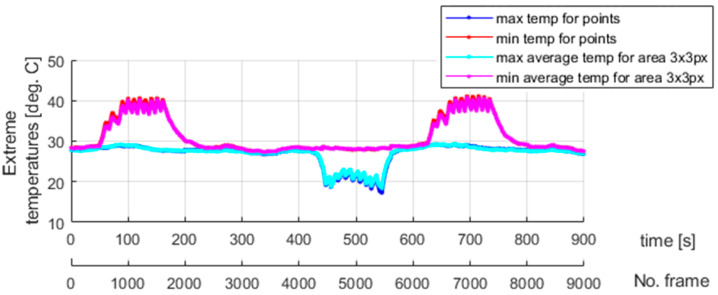

Figure 18

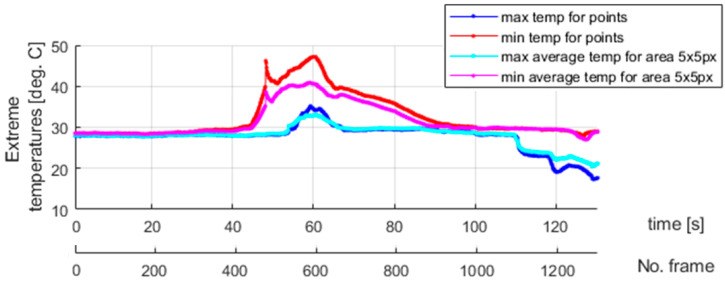

Figure 19Peer Reviews
