Numerical Investigation of Mixing Performance in Microfluidic Chip via Structural Micro-Rotors
Yongliang Dong, Liqiu Wang, Xing Han
TL;DR
This paper uses computer simulations to study how different rotor shapes and arrangements improve mixing in microfluidic chips.
Contribution
The study introduces a numerical investigation of various rotor shapes and their arrangements for enhancing mixing in microfluidic systems.
Findings
Bar-shaped, Y-shaped, and cross-shaped rotors were analyzed for their mixing performance.
Multiple cross-rotors and rotation rates significantly influence mixing efficiency.
Findings can guide the design of rotors for better in-channel mixing.
Abstract
Microfluidics is a powerful tool with extensive applications, including chemical synthesis and biological detection. However, the limited channel size and high viscosity of samples/reagents make it difficult to fully mix liquids and improve the reaction efficiency inside microfluidic chips. Active mixing by rotors has been proven to be an effective method to promote mixing efficiency via a magnetic field. Here, we numerically investigated the mixing performance of rotors with different shapes (bar-shaped, Y-shaped, and cross-shaped). We systematically studied the influence of the arrangement of multiple cross-rotors and the rotation rate on mixing performance. The results are promising for instructing the design and manipulation of rotors for in-channel mixing.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

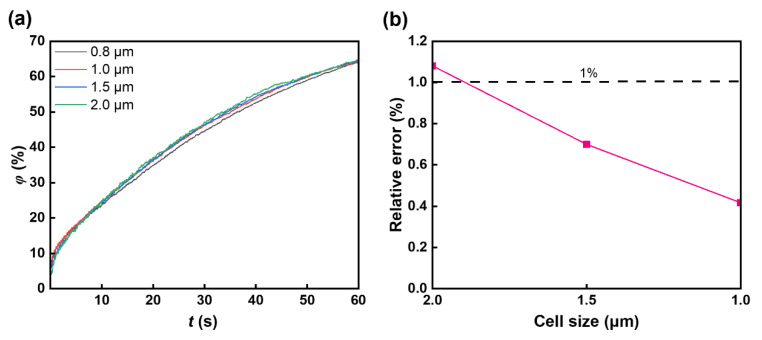

Figure 1

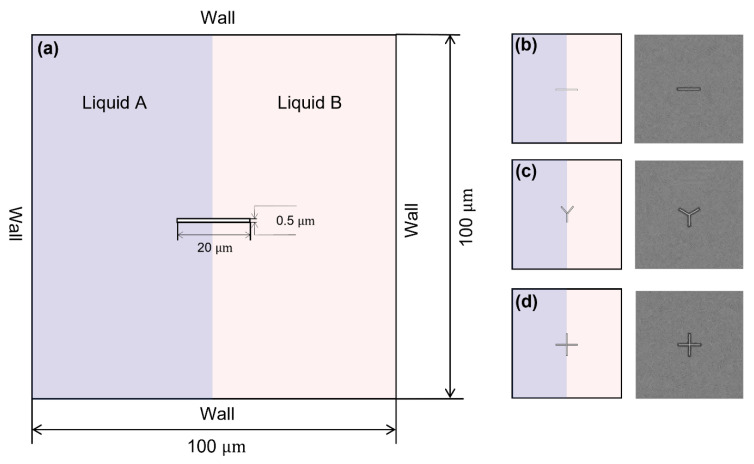

Figure 2

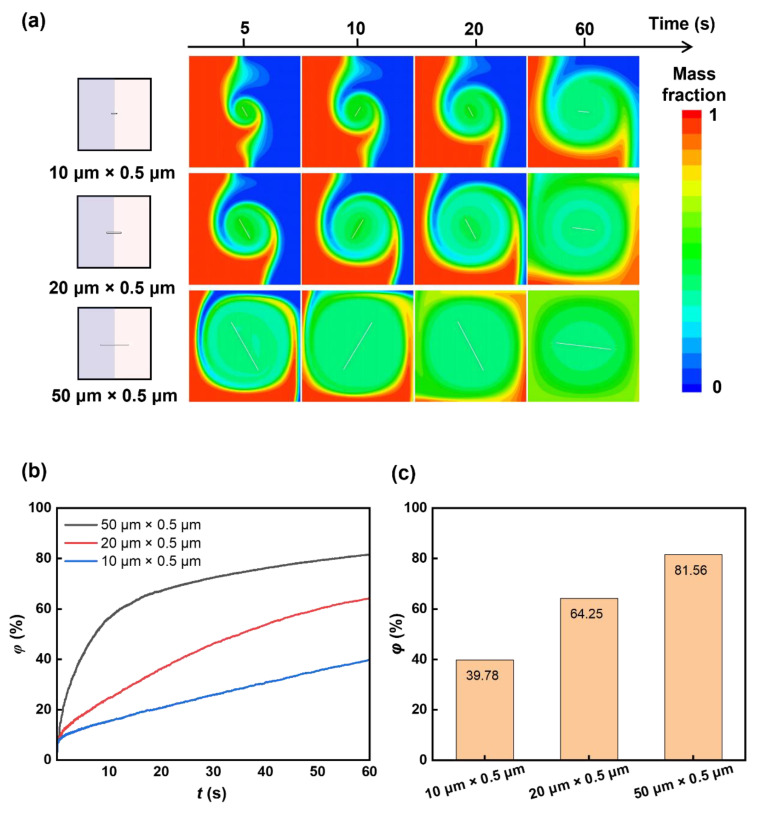

Figure 3

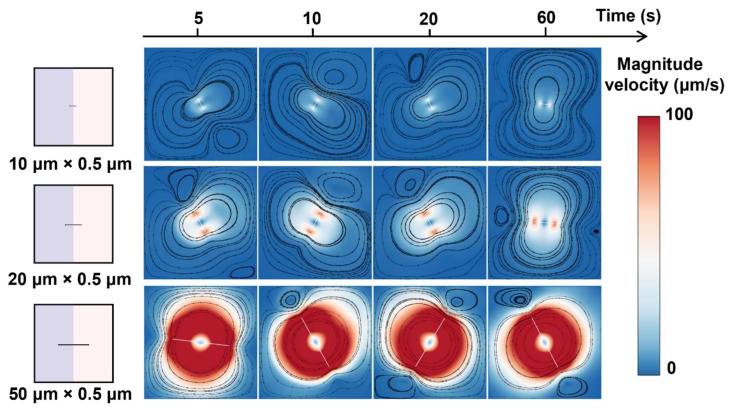

Figure 4

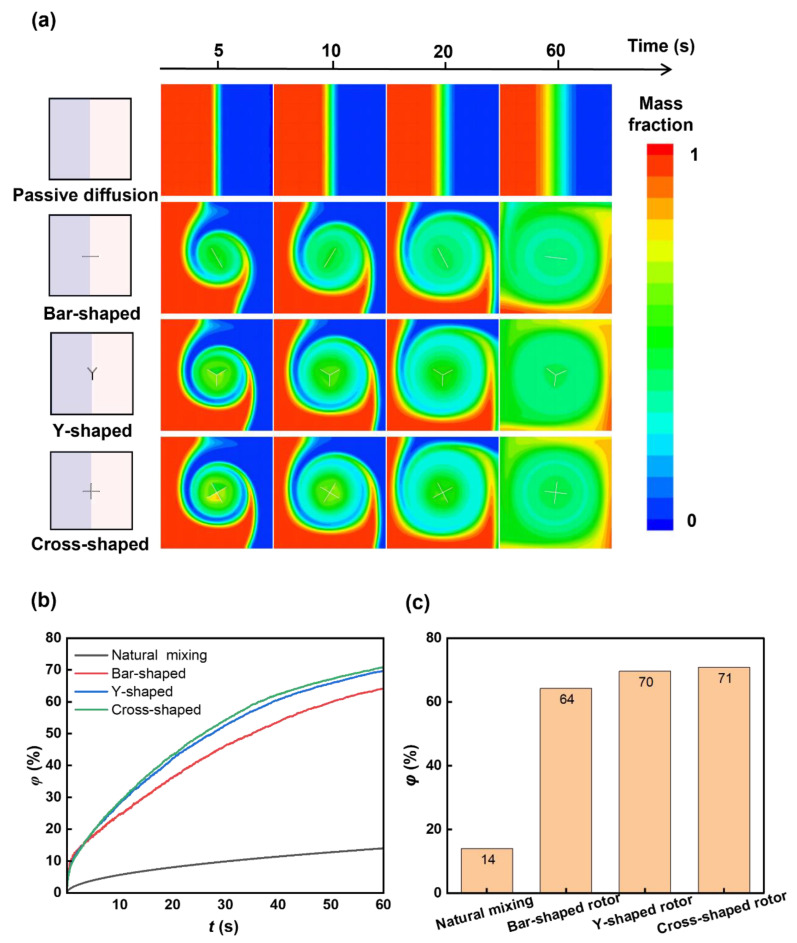

Figure 5

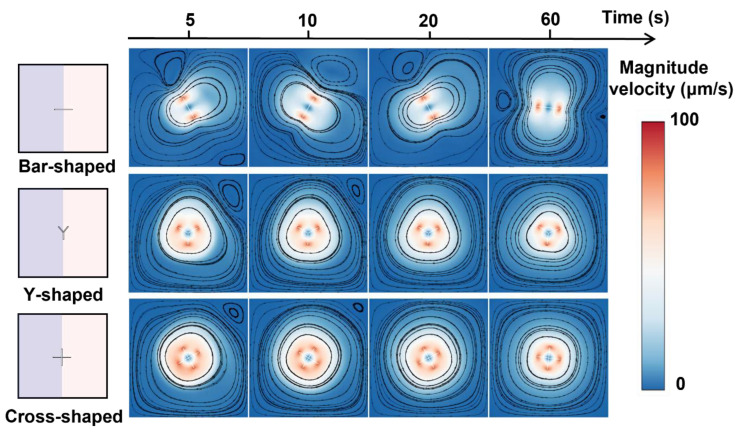

Figure 6

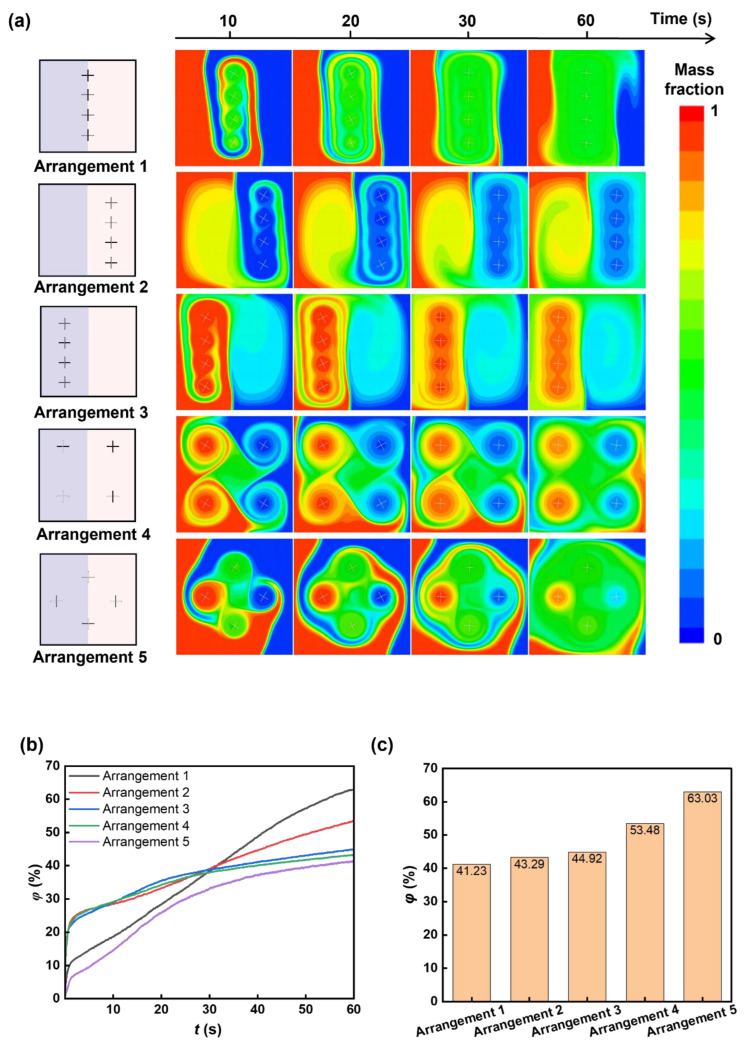

Figure 7

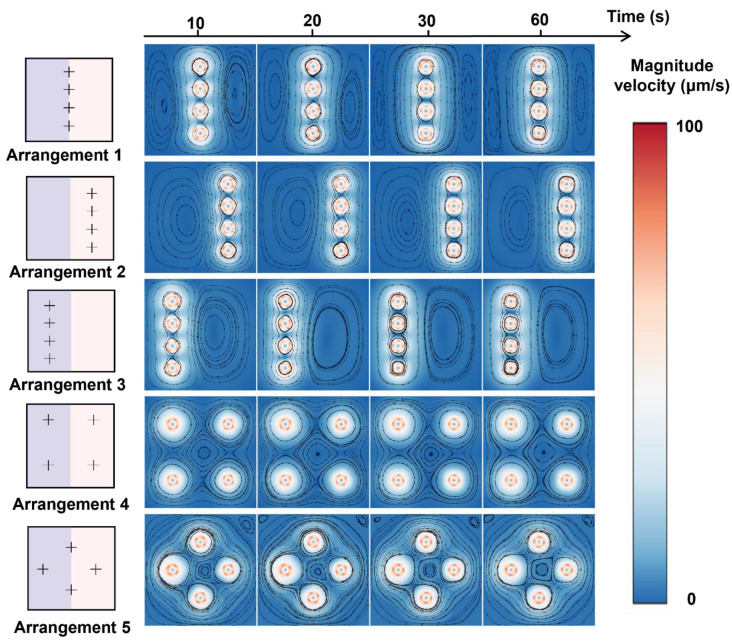

Figure 8

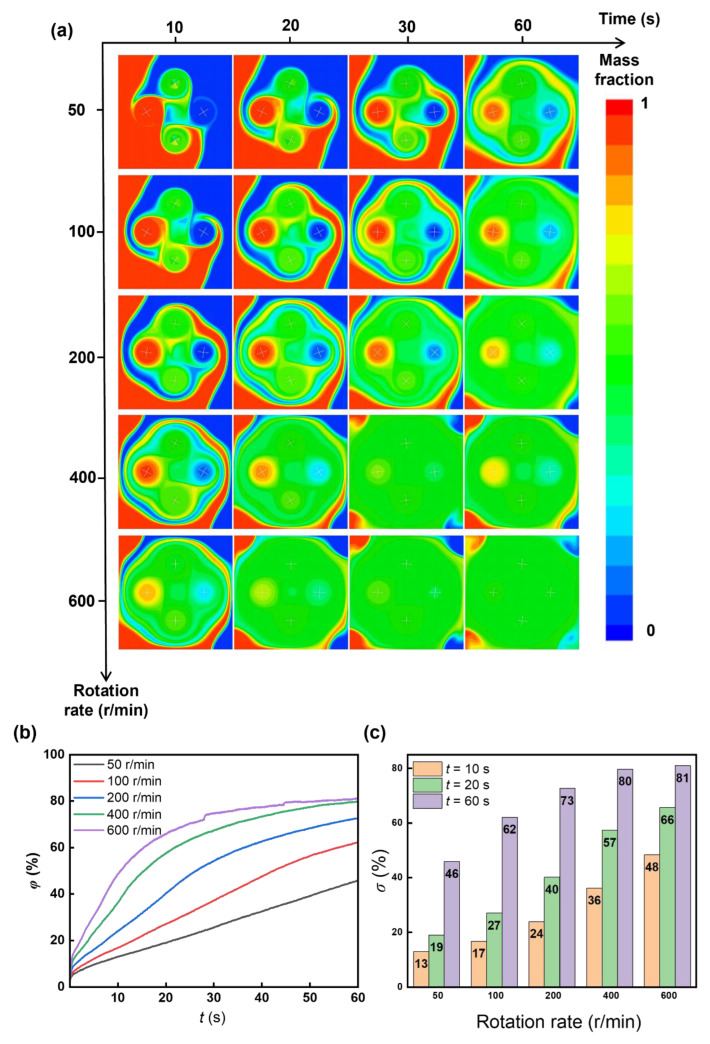

Figure 9

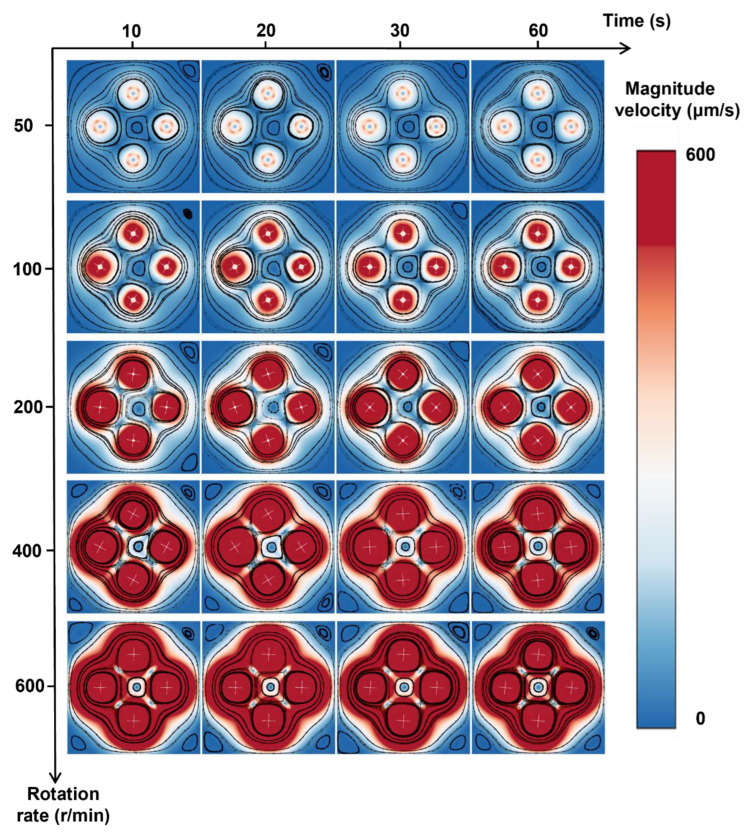

Figure 10Peer Reviews
