Miniaturized Soft and Stretchable Multilayer Circuits through Laser‐Defined High Aspect‐Ratio Printing
Mohsen Mohammadi, Jin Shang, Yuyang Li, Aiman Rahmanudin, Darius Jakonis, Magnus Berggren, Lars Herlogsson, Klas Tybrandt
TL;DR
A new printing method creates ultra-soft, stretchable circuits with high precision, enabling miniaturized wearable electronics for biomedical use.
Contribution
A scalable, sustainable method for ultra-soft, high-resolution stretchable multilayer circuits using lignin-based bio-masks.
Findings
Ultra-soft stretchable conductors with <0.4 MPa softness and >300% strain are achieved.
High-resolution (<2.5 µm) and high aspect-ratio tracks are connected via ultra-fine (20 µm) VIAs.
A miniaturized ultra-soft wireless NFC temperature logger is demonstrated using the method.
Abstract
Stretchable electronics enable seamless integration of wearables with the human body, thereby creating new opportunities in biomedical applications. Miniaturized multilayer stretchable printed circuit boards are key for achieving high functional density circuits with minimal footprint. However, current microfabrication technologies struggle with simultaneously achieving tissue‐like softness (<<1 MPa), high resolution and low sheet resistance. This study demonstrates a scalable printing method that enables ultra‐soft (<0.4 MPa) stretchable conductors (>300% strain) with high‐resolution (<2.5 µm width) and high aspect‐ratio tracks (>1) connected by ultra‐fine (20 µm) vertical‐interconnect‐access (VIA) for multi‐layered configurations. The method is based on stencil printing into laser‐defined bio‐masks comprising the abundant biopolymer lignin, thereby achieving printing capabilities…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —Knut and Alice Wallenberg Foundation10.13039/501100004063
- —Wallenberg Wood Science Center10.13039/501100011075
- —Swedish Research Council10.13039/501100004359
- —Swedish Foundation for Strategic Research10.13039/501100001729
- —Swedish Government Strategic Research Area in Materials Science on Advanced Functional Materials
- —European Research Council10.13039/501100000781
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Sensor and Energy Harvesting Materials · Nanomaterials and Printing Technologies · Conducting polymers and applications
Introduction
1
Soft and stretchable electronics allows for seamless integration into deforming systems like clothing, skin, and tissue, thereby enabling next‐generation applications in soft robotics,^[^ 1, 2 ^]^ wearable electronics,^[^ 3, 4, 5 ^]^ health monitoring and therapeutics,^[^ 6, 7, 8 ^]^ and human‐machine interfaces.^[^ 9, 10 ^]^ Multilayered stretchable printed circuit boards (sPCB) is a key technology in enabling hybrid stretchable electronic circuits that can provide diverse functionality across a wide range of fields.^[^ 11, 12 ^]^ Achieving ultra‐soft (<<1 MPa) and miniaturized (<100 µm line width) devices is crucial for higher function density,^[^ 12, 13 ^]^ intimate coupling with biological tissues,^[^ 14 ^]^ reducing mechanical loads,^[^ 15 ^]^ and minimizing discomfort^[^ 16 ^]^ or immune responses.^[^ 17 ^]^ This requires ultra‐soft highly conductive and stretchable materials that can be efficiently printed in a scalable manner, ideally into high‐aspect ratio (AR) configurations that minimize footprint while maintaining low circuit resistance.
Several material approaches with distinct advantages and disadvantages have been explored for the realization of sPCBs, including structurally patterned metallic conductors,^[^ 11, 12, 13, 18 ^]^ liquid metals,^[^ 19, 20, 21, 22, 23 ^]^ and stretchable composites.^[^ 24, 25, 26, 27, 28 ^]^ Structural approaches employ conventional highly conductive metals (Au, Cu, Ag, Zn etc), but they undergo out‐of‐plane deformations that constrains resolution, softness, and conformability of these circuits. On the other hand, liquid metals are highly conductive and stretchable due to their fluidic nature,^[^ 29 ^]^ but due to alloying,^[^ 30 ^]^ robust interfacing with rigid circuit components is challenging. Stretchable composites based on a variety of metallic fillers with different shapes including nanoparticles,^[^ 31, 32, 33 ^]^ nanowires,^[^ 28, 34, 35 ^]^ and flakes^[^ 24, 25, 36, 37, 38, 39 ^]^ can be highly conductive and stretchable, but many of the high‐performing materials systems are rather stiff^[^ 24, 25, 32, 33, 34, 35, 36, 37 ^]^ and require complex processing,^[^ 28, 32, 39 ^]^ which is not consistent with high‐throughput printing processes. Therefore, to ensure practical applicability, the development of materials and processing methods that are efficient and scalable is required.
sPCBs employing stretchable composites have been established through various patterning methods, including photolithography,^[^ 28, 34, 40 ^]^ molding,^[^ 41, 42, 43 ^]^ laser ablation,^[^ 44 ^]^ photothermal patterning,^[^ 25 ^]^ 3D printing,^[^ 26, 33, 45, 46 ^]^ masked filtration,^[^ 27 ^]^ stencil printing,^[^ 24, 36, 47 ^]^ and screen printing.^[^ 37, 48 ^]^ Most of the reported sPCBs still have a high reported modulus (>1 MPa) beyond the range of human skin,^[^ 24, 25, 26, 27, 28, 33, 34, 35, 36, 40, 41, 42, 44, 45, 47, 48 ^]^ are not multi‐layered,^[^ 33, 34, 37, 42, 43, 44 ^]^ have a low AR^[^ 24, 25, 27, 28, 34, 36, 37, 40, 44, 47, 48 ^]^ (<<0.5) and low resolution^[^ 25, 27, 41, 42, 43, 44, 46, 47, 48 ^]^ (>100 µm). Stencil and screen‐printing methods allow for moderate resolution (down to 50 µm) and scalability, but they typically exhibit low ARs, especially at high resolutions. Although 3D printing offers high resolution (down to 3 µm) and high ARs (>1) prints, it is a serial printing process that has limited scalability, and the printing nozzles are easily clogged due to the aggregation tendency of the nanoparticles dispersions. While photolithography techniques offer high resolution, their AR is low (<<0.2) and they are not environment friendly due to use of unsustainable materials.^[^ 49, 50 ^]^ Furthermore, the use of harsh solvents and high‐temperature processes restrict their compatibility with most soft composite systems which restricts multilayer patterning. Photothermal patterning is scalable but limited in terms of resolution (down to 250 µm). Similarly, master moulding and direct laser ablation methods are highly capable of making high AR structures even for soft materials, but their resolution is often limited to 300 µm line widths and adapting them for scalable multilayered patterning is more demanding. In general, increasing the print resolution of stretchable conductors generally comes with a trade‐off in AR, sheet resistance, and stretchability. ARs and conductivity can be improved by increasing the filler density, but it normally results in a stiffer material system that limits softness and conformability. Therefore, the development of new printing methods for soft and stretchable conductors is needed to simultaneously achieve high‐resolution, high AR, and soft sPCBs.
Another important factor in the design of multilayered sPCBs is the implementation of stretchable conducting vertically interconnecting access (VIA) holes between the layers that are mechanically robust and scalable. VIAs have often been accomplished through direct writing,^[^ 26, 45 ^]^ patterned openings in insulating layers,^[^ 27, 31 ^]^ punching^[^ 51, 52, 53 ^]^ or drilling holes using laser ablation,^[^ 12, 20, 22, 25 ^]^ followed by filling of the hole with a conductive material. Creating VIAs in a scalable and robust manner for ultra‐soft miniaturized sPCBs is a major challenge due to the requirements for high‐resolution, alignment, and material selection. A related challenge is the robust mounting of rigid electronic components on sPCBs. This has often been achieved by the incorporation of stiffer^[^ 24, 54 ^]^ or rigid^[^ 45, 55 ^]^ layer/region to reduce the mechanical mismatch at the interface. Such approaches add complexity, stiffens the circuit, and can limit the resolution and density of the integrated components. Direct integration of rigid components into the soft sPCB^[^ 25 ^]^ is thus desirable but challenging as it often limits the stretchability of the circuit. In general, there are several fabrication challenges that needs to be addressed to achieve sPCBs that are ultra‐soft (<<1 MPa), multilayered with high resolution line width (<100 µm) and high AR (>0.5) conducting lines, and compatible with mounting of rigid components.
Here, we report on a printing method based on high‐resolution laser‐defined sacrificial masks, made from a sustainable lignin‐based bio‐blend, for stencil printing of the ultra‐soft and stretchable silver flakes (AgFs) and elastomer composite conductive inks (Figure 1a). The use of lignin addresses the sustainability challenges facing current microfabrication technologies where petroleum‐based polymers are typically used.^[^ 56, 57 ^]^ Briefly, the process starts with coating stencil bio‐mask on a stretchable substrate followed by high‐resolution laser patterning (down to 2.5 µm) of high AR (>1) openings into which the ultra‐soft conductive ink is stencil printed (Figure 1a,i). The method achieved ultra‐soft low resistance conductive tracks (<0.1 Ω/□) with linewidth down to 20 µm on elastomer substrates while using sustainable materials and mild processes. This has not been possible with previous techniques that generally achieves resistive tracks with ARs well below 1, resolutions above 10 µm, linewidths above 20 µm (see Figure 1b,c for the comparison with state‐of‐the‐art microfabrication techniques for elastic stretchable conductors). Our method can also achieve multilayered circuits by printing a second layer on top of a coated colored passivation layer, and at the same time form high resolution (20 µm) VIAs (Figure 1a,ii). Finally, rigid components can be directly soldered onto the sPCBs to create soft hybrid electronic circuits (Figure 1a,iii). To demonstrate the feasibility of the method for a wearable application, stretchable LED matrix displays and miniaturized wireless ultra‐soft wearable body temperature sensors comprising near‐field communication (NFC) and microbattery for mobile phone readout were developed.

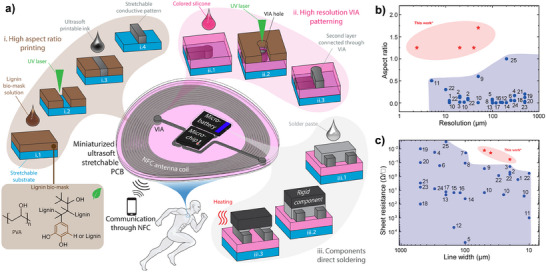

Laser‐defined stencil printing concept. a) Schematic of the developed method for printing of miniaturized ultrasoft stretchable PCBs. The fabrication steps include i.1 the coating of lignin stencil bio‐mask on a stretchable substrate, i.2 UV laser patterning of the bio‐mask, i.3 stencil printing of ultrasoft conductive ink in the bio‐mask and curing, i.4 dissolution of the bio‐mask in water. ii.1 coating of colored silicone on the first layer print, ii.2 UV laser patterning of stencil mask for the second layer and selective ablation of colored silicone for VIA formation, ii.3 stencil printing of second layer conductor. iii.1 stencil printing of solder paste, iii.2, placing circuit components, iii.3 direct soldering of components by heating in oven. b,c) Comparison of our printing method to previous reports of elastic stretchable conductors in terms of b) printing resolution and aspect ratio (see Table S1, Supporting Information for references) and c) the sheet resistance at different resolutions (see Table S1, Supporting Information for references).
Results and Discussion
2
Ultra‐Soft Printed Stretchable Conductors
2.1
To achieve printing of ultra‐soft sPCBs both material selection and processing methods need to be considered. The ultra‐soft (0.22 MPa) silicone elastomer Dragon Skin (DS) was selected as the substrate and encapsulation material (Figure 2a) as its thermal and chemical stability ensures compatibility with the fabrication process. The addition of conducting fillers typically stiffens the composite, hence the even softer silicone rubber formulation Ecoflex 00–20 with a modulus of <0.06 MPa at 100% strain and maximum strain of >600%^[^ 58 ^]^ was chosen as the composite matrix. Ag flakes (AgFs) were selected as the conductive filler to simultaneously achieve high conductivity and printability. The stretchable conductive ink was prepared by mixing AgFs and Ecoflex 00–20 in isopropanol to produce a well dispersed ink of suitable viscosity for printing. To enhance the electromechanical performance of the composite, the loading of AgFs and the sintering process were optimized. The initial conductivity for 20, 25, 30, and 35 v% AgFs were 0.789 ± 0.147, 2.904 ± 0.233, 5.64 ± 0.182 and 5.33 ± 0.114 kS cm^−1^ (n = 3), respectively, with a sintering temperature of 150 °C (Figure 2b). The 30 v% of AgF composite demonstrated the best electromechanical performance among the tested formulations and maintained a conductivity of 1.1 kS cm^−1^ even at 300% strain. The electrical percolation network improves with filler loading, while the mechanical properties deteriorated at higher loadings of 35 v%, resulting in an optimum loading of 30 v% that has simultaneously good electrical and mechanical properties.

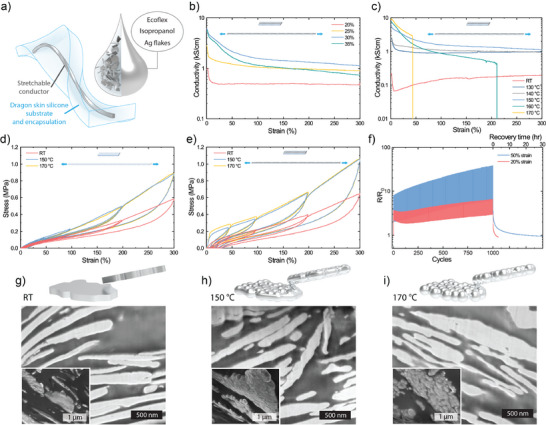

Printed stretchable conductor. a) Schematic of the stretchable conductor and ink composition. b) Conductivity vs strain for stretchable conductors with different loading of silver flakes (AgFs) sintered at 150 °C for 1 h. c) Conductivity vs strain for conductors with 30% AgFs loading sintered at different temperatures for 1 h. d) Stress–strain curves of Dragon skin (DS) silicone cured at different temperatures. e) Stress–strain curves of stretchable conductors on DS substrates sintered at different temperatures. f) Cyclic stability of stretchable conductor during 1000 strain cycles and recovery. g–i) Schematics of AgFs and SEM images of focused ion beam (FIB) milled samples. Insets show SEM images of liquid N2 cracked samples sintered at g) RT, h) 150 °C, and i) 170 °C.
Various mechanisms can be employed for sintering AgFs to improve their electromechanical properties, including photo‐sintering,^[^ 25, 59 ^]^solvent‐sintering,^[^ 60 ^]^ mechanical deformation treatment,^[^ 61 ^]^ and thermal sintering.^[^ 25, 36, 37 ^]^ Here, we chose thermal sintering due to its effectiveness, scalability, and simplicity. The initial conductivity increases from 0.191 ± 0.018 to 8.66 ± 1.11 kS cm^−1^ (n = 3) for a sintering temperature of 170 °C (Figure 2c). An optimum sintering temperature was achieved at 150 °C, for which the conductor has the best electromechanical performance over a 300% strain range. At different curing temperatures of RT, 150 and 170 °C, the DS elastomer obtained a 100% modulus of 0.154 ± 0.004, 0.220 ± 0.009, and 0.214 ± 0.017 MPa (n = 3), respectively (Figure 2d). For printed composites with AgF, a similar effect in their 100% modulus with respect to curing temperature (RT, 150 °C, and 170 °C) was observed with a modulus of 0.195 ± 0.022, 0.372 ± 0.033, and 0.374 ± 0.004 MPa (n = 3), respectively (Figure 2e). The simultaneous embedment of softness and electrical performance into the composites makes it an ideal conductor for seamless integration with the human skin (Young's modulus ≤0.85 MPa)^[^ 62 ^]^. The conductor shows quite stable performance during 1000 stretching cycles at 20 and 50% strain (Figure 2f). Interestingly, their resistance recovered when the composites were in their relaxed state over time, eventually reaching below their initial values. This indicates that the composite has a viscoelastic behavior which allows it to flow and relax at long time scales.
The effect of the sintering of the AgFs in the composite were then investigated by cross‐sectional SEM (Figure 2g‐I; Figure S1, Supporting Information). Sintering at higher temperatures has several pronounced effects on the AgF that include the adoption of a rougher texture, welding of the flakes, and the formation of Ag particles between the flakes (Figure S3, Supporting Information). At 150 °C, the connectivity between the flakes provided high electrical conductivity while preserving good mechanical properties. At 170 °C, the flakes adopt an even rougher texture and they become even more connected, resulting in a slightly higher initial conductivity. However, at this point an extended flake network likely rigidifies the composite, making it vulnerable to fracturing even at moderate strains, as indicated by the backlight microscope images (Figure S2, Supporting Information) and deteriorating electromechanical performance (Figure 2c).
For the optimized conductor, no visible cracking was observed under backlight imaging (Figure S2, Supporting Information), and no delamination occurred throughout the electromechanical characterization, confirming the structural integrity of the printed traces. While some conductivity loss was observed during strain cycling (Figure 2f), this degradation was reversible, as conductivity consistently recovered upon relaxation. This indicates that the failure mechanism is likely due to reversible microscopic effects rather than macroscopic permanent structural damage. We speculate that the temporary conductivity loss is caused by microscopic rearrangements within the conductive network, such as slight separations of the flakes, which recover upon release of the mechanical load.
Laser Patterning of Sacrificial Stencil Masks
2.2
A major challenge associated with printing of soft high resolution and high aspect ratio structures is that the ink spreads out during and after the printing. To circumvent this issue, we developed a printing method based on a laser patterned sacrificial mask into which the ink was stencil printed (Figure 3a). The approach has three main advantages including the use of a low viscosity ink while filling the high AR patterns without flowing out, the ink can be cured within the sacrificial mask that allows for printing of conventional silicone‐based composites, and high‐resolution patterns can be rapidly generated by laser ablation with a galvo scanner. Polyvinyl alcohol (PVA) and lignin sulfonate (L) were chosen as the base material for the mask as they are biodegradable^[^ 63, 64 ^]^ and can be processed in water, thereby removing the need for potentially harmful or harsh organic solvents (see Figure 3a for their molecular structure). As PVA has a low absorption in the UV spectrum, a variety of water soluble/dispersible colorants were evaluated to improve the UV absorption of the mask during laser exposure, and LS showed the highest absorption for both laser wavelengths (Figure 3b). Apart from absorption, the solubility of the ablated regions in water was also critical. Some of the colorants such as zinc oxide nanoparticles (ZNPs) and methylene blue (MB) resulted in insoluble material after laser ablation. For other dyes like Alizarin red S (ARS) and indigo carmine (IC), their solubility constituted a severe limitation. Additionally, lignin sulfonate is a sustainable biopolymer and it fulfils all processing requirements including the role of a thickening agent which can facilitate higher film thicknesses. Moreover, several layers of the PVA‐lignin sulfonate blend (PVAL) could be spin coated in sequence to reach higher thickness without any wrinkle formation.

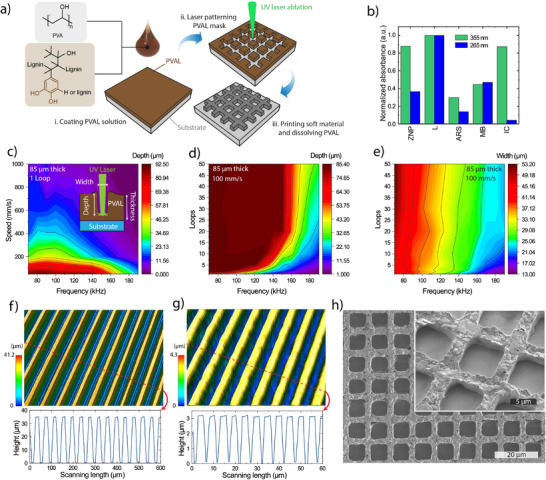

Laser defined sacrificial stencil mask. a) Schematic of the high‐resolution printing process with laser ablation defined bio‐blend mask. b) Absorbance of different polyvinyl alcohol (PVA) colorants including zinc oxide nano particles (ZNP), lignin sulfonate (L), Alizarin red S (ARS), methyl blue (MB), and indigo carmine (IC) at the two wavelengths of the lasers. c) Depth of the laser ablation of the PVAL at different frequencies and scanning speeds for the 355 nm laser (one loop). d) Depth and e) width of the laser ablation at different frequencies and loop counts at 100 mm s−1 speed. High resolution and high AR defined masks using f) 355 nm and g) 266 nm lasers. h) Printed stretchable conductor ink using a high resolution and high AR defined mask.
The mask fabrication starts by coating PVAL onto an oxygen plasma activated substrate. Subsequently, a 355 nm or a 266 nm UV laser was used to ablate the features into the mask without damaging the underlying substrate due to the high UV absorption of PVAL. A 355 nm ns laser ablation system with galvo scanner was primarily used to rapidly (scan speed up to 10 000 mm s^−1^) ablate the mask. The laser had a fixed wavelength and pulse duration, and the tunable parameters that affected the quality of ablation of the masks were the pulse frequency (also affecting power, see Figure S4, Supporting Information), the scanning speed, and the loop count. As shown in Figure 3c and Figure S5 (Supporting Information), the depth and width of the ablation at a scanning speed of 100 mm s^−1^ enabled a wide range of different sizes while maintaining smooth ablation profiles (Figure S6, Supporting Information). To fine tune their properties, we explored the effect of the number of loops and pulse frequency on the width and depth of the patterns (Figure 3d,e; Figure S7, Supporting Information). For a fixed frequency, the number of loops does not substantially affect the width (Figure 3e), while the depth increases dramatically with increasing loop count (Figure 3d). Thus, the line width could be controlled by the pulse frequency (which affects the pulse power, see Figure S4, Supporting Information) while the loop count was used to achieve the desired thickness, although slightly higher resolution can be achieved for thinner masks (Figures S8 and S9, Supporting Information). The ablation results can be understood by considering that the laser beam has approximately a gaussian intensity profile in the radial direction. For lower pulse energies (higher frequency), the area above the ablation threshold is smaller, which makes the ablated spot smaller. Lower energy pulses remove less material, thus more loops are needed to reach a certain ablation depth. The final aspect ratio of an ablated line depends mainly on the laser beam shape, which is a property of the laser system. When optimizing the parameters for the 355 nm laser, features down to 20 µm with AR of more than 1 were obtained in the mask (Figure 3f). For the 266 nm ns laser, resolutions down to 2.5 µm and AR of more than 1.5 was achieved (Figure 3h). Based on this, we show that the printing of the soft conductor inks into such high‐resolution masks allows the formation of conductors with line widths down to 2.5 µm and an AR of more than 1 (Figure 3h; Figure S10, Supporting Information).
Laser‐Masked Printed Stretchable Conductors
2.3
The processing steps to print a single layer ultra‐soft sPCB are shown in Figure 4a. The lasered mask allows for arbitrary prints of high AR (Figure 4b), in contrast to conventional stencil printing through metal foil masks which has fundamental limitations in both print geometry and AR. The ink (Figure 2a) is printed into the mask using a soft squeegee to efficiently fill the mold and to remove any excess ink. The conductive print is then encapsulated with DS to improve the mechanical stability of the print. Despite achieving a 2.5 µm print resolution with this method (Figure 3g,h; Figure S10, Supporting Information), the particle size of the AgF is approximately between 2–5 µm. We therefore limited the study of the printed lines to widths equal to or more than 20 µm but smaller dimensions should be possible using smaller particles. The electromechanical performance of prints with widths of 20, 40, 50, and 70 µm were characterized by 4 probe measurements. The high AR is key for reaching ultralow sheet resistances down to 0.013 Ω/□ for high resolution prints and for maintaining the conductive percolation network during deformations (Figure 4c). In general, the sheet resistance of the conductive lines was below 0.1 Ω/□, and conductors with line widths of 20, 40 and 70 µm were able to retain stable conductivity up to 30%, 100% and 300% strain, respectively. The 70 µm lines showed good retention and recovery at 20% and 50% strain cycling (Figure 4d). To demonstrate high‐quality printing, high resolution and high AR, ultra‐long spiral prints were fabricated (Figure 4e,f). Optical images show a 25 cm long double spiral coil print of 70 µm width, which is more than 3500 squares in length (Figure 4g). The spiral patterns exhibited stable electromechanical performance and recovery over 100 strain cycles at 20% and 50% strain (Figure 4h), indicating excellent print quality with minimal defects.

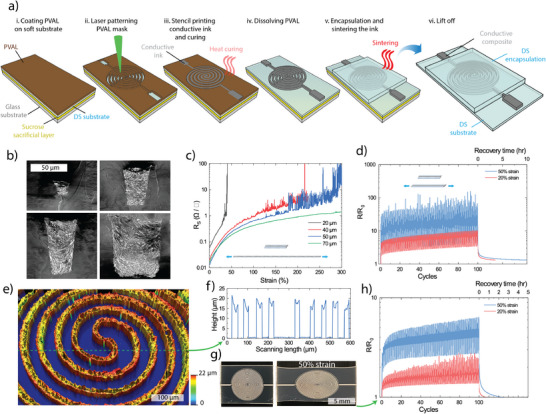

Laser‐masked printing of stretchable conductors. a) Schematic of the printing method for single layer printing of a stretchable conductor: i. Coating of stretchable substrate with PVAL layer. ii. 355 nm UV laser definition of the mask. iii. Stencil printing of the stretchable conductor and heat curing of the ink. iv. Dissolution of the sacrificial mask in water. v. Encapsulation with masked contacts and sintering of the composite conductors. vi. Release of the circuit by dissolving the sucrose layer in water. b) Cross section SEM images of different line widths and thickness of the print. c) Electromechanical performance of different conductor widths up to 300% strain. d) Strain cycling stability test of 70 µm line width conductor at 20% and 50% strains. e) 3D and f) 2D profiles of a 20 µm wide double spiral conductor print. g,h) 70 µm line width double spiral print g) image and h) strain cycling stability at 20% and 50% strains.
Stretchable composite conductors typically show decreasing performance with decreasing line width, both with respect to conductivity and strain sensitivity.^[^ 40 ^]^ As the conduction relies on a finite number of particles and connections, by reducing the width the likelihood of losing the connective network due to local deformations or defects increase. Indeed, in our investigation (Figure 4c) we see a strong influence of conductor width on performance under strain. For 70 µm wide conductors, the sheet resistance increases smoothly with strain, while resistance noise appears at low strains for the narrower conductors. This can be understood as a changing network with few parallel pathways, in which the loss of one or a few critical connections can have a large influence on the total resistance. The earlier the noise appears, the earlier the conductor fails, which is consistent with the reasoning above. High aspect ratio structures help here, as a large cross section allows for more pathways and better stability. However, as the narrower conductors also are thinner due to printing limitations, the cross section decreases fast with width and thereby amplifies the strain sensitivity for narrow conductors. The performance of the narrow conductors should be possible to improve with a combination of high aspect ratio prints, smaller filler particle size and good particle dispersion. As the bending stiffness k_B_ ∝ Et^3^, where E is Young's modulus and t thickness, thicker prints need to be exceedingly softer to not induce substantial stiffening. Ultra‐soft conducting composites are thus key for realizing the benefits of high aspect ratio printing of stretchable electronics.
Hybrid Multilayer sPCBs
2.4
The developed printing method is compatible with multilayer printing without addition complexity (Figure 5a). After printing the first conductor layer, a colored passivation layer is coated as encapsulation. The enhanced UV absorption protects the conductor underneath from laser damage during subsequent patterning and allows for laser drilling of VIAs. Without colorant, the UV laser will pass through the DS layer and damage the conducting layer (Figure S11, Supporting Information). Figure 5b shows absorption of DS with different colorants. The concentration of colorant was tuned so that its ablation threshold was above that of PVAL, to enable PVAL patterning without damaging the passivation layer. We used 3% of the white colorant to improve the UV absorption in the film and 0.5% of the red colorant for visibility during fabrication. As the VIAs are formed in the second printing step, they require no additional processing and do not induce any mechanical mismatch within the structure. The formed VIAs were electromechanically stable and remain highly conductive even when stretched to more than 250% strain (Figure 5c). They also show stable electromechanical performance and recovery during cyclic strains up to 20% and 50% strain (Figure 5d). The method allows for stacking of additional layers, demonstrated by a three‐layer sPCB, with two interconnecting VIAs, which remained stable up to 200% strain (Figure S12, Supporting Information). Figure 5e displays SEM and optical microscopy images of the multilayer prints connected through a 70 µm VIA which was drilled through the colored passivation layer using the 355 nm UV laser. The resolution of the VIAs can be further improved if needed and reach down to ≈50 µm for the 355 nm laser and ≈ 20 µm for the 266 nm laser (Figure 5f,g).

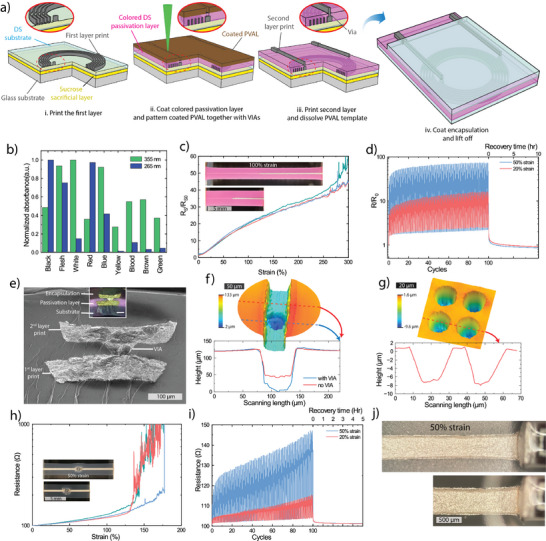

Multilayer hybrid sPCB fabrication. a) Schematic of the fabrication method: i. Printing of the first layer of conductor. ii. Coating of colored passivation layer and patterning of the second mask including VIAs. iii. Printing of the second layer and dissolution of the mask. iv. Coating of encapsulation and release of the device. b) Absorbance of various DS pigments at the two laser wavelengths. c) Electromechanical characterization and d) cyclic strain stability tests of two‐layer prints connected through a 70 µm in diameter VIA. e) SEM and optical microscope images of two printed layers connected through a 70 µm VIA. 3D and 2D profiles of laser drilled VIA using f) 355 nm and g) 266 nm lasers. h) Electromechanical, i) cyclic strain stability tests and j) optical microscopy of integrated rigid resistor directly soldered to the stretchable conductor.
A critical aspect for any sPCB technology is the mounting and electrical connection to rigid circuit components. Our approach is compatible with standard stencil printed low temperature solder to directly mount and connect surface‐mount devices (SMDs) onto our stretchable conductor. This enables conventional scalable pick‐and‐place integration of rigid components onto the stretchable circuit, making it compatible with traditional PCB processing. A 100 Ω resistor was used to investigate the stability of the connection to the SMD during stretching of the circuit. The connection was electromechanically stable up to 120% strain (Figure 5h) and during 100 strain cycling to 20% and 50% strain (Figure 5i). The results shows that the developed printing method for ultra‐soft sPCB technology is compatible with multilayer high‐resolution printing with the potential of designing sPCBs with high density SMD integration.
NFC Temperature Logger and LED Display
2.5
The high resolution and excellent performance of the developed sPCB technology was leveraged to develop an ultra‐soft miniaturized wireless temperature logger (11 mm in diameter). The circuit comprises a first layer of the NFC antenna coil on DS substrate, colored DS passivation layer with VIA holes, a second layer of interconnects, a sensor‐integrated microchip, a micro‐battery, and lastly an encapsulation layer (Figure 6a). The device was capable of recording temperature through the integrated NFC chip (Figure 6b) over an extended period with the integrated micro battery (characterized in Figure S13, Supporting Information). The recorded data could be wirelessly transmitted to a smartphone through the soft miniaturized NFC antenna, which was made up of a 32 cm long and 70 µm wide stretchable coil (Figure 6c). The coil was designed to communicate with external readers by magnetic inductive coupling at a resonance frequency ≈13.56 MHz (Figure 5d). The device allowed for a wireless readout up to 3 mm in distance and the signal declined with increasing distance as expected for NFC (Figure 6d). The soft device was used to record skin temperature before, during, and after physical activity. Following each trial, the data was wirelessly transmitted to a smartphone. The device was tested in three trials, performing successfully in all instances. Variations in the temperature response were observed, likely due to differences in the specific experimental conditions (Figure 6e; Figure S14, Supporting Information). Our ink and printing method is also compatible with higher frequency antennas, demonstrated by the printing and characterization of an RFID antenna with resonance frequency within the RFID range of the EU and the US (0.863 GHz to 0.928 GHz) (Figure S15, Supporting Information).

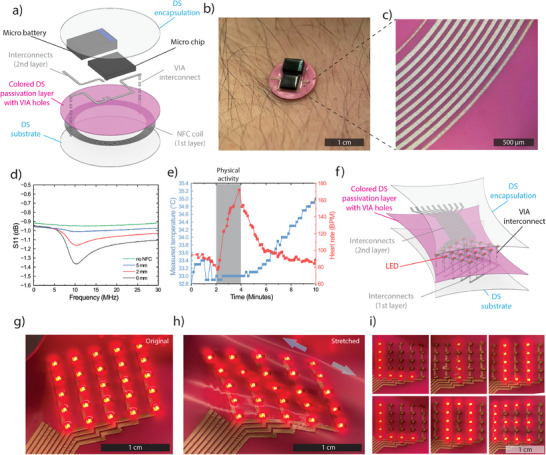

Ultra‐soft miniaturized NFC temperature logger and LED display. a) Schematic of soft temperature logger circuit comprising of a first layer with NFC antenna coil, a passivation layer with VIA holes, a second layer of interconnects, integrated microchip and micro battery, and encapsulation. b) A soft miniaturized temperature logger device on a fingertip. c) Microscope image of the embedded high‐resolution NFC coil taken from the backside of the device. d) S11 Parameter of the miniature NFC antenna as a function of frequency at various distances from the reader. e) Body temperature change measured by the soft temperature logger before, during, and after a physical activity (heart rate also shown). f) Schematic of a printed LED matrix display, including a first layer of printed conductors, a passivation layer with VIA holes, a second layer of printed conductors, integrated LEDs, and encapsulation. g) A stretchable LED matrix display in relaxed and h) stretched state. i) Demonstration of the addressability of the LED matrix.
