Engineering Lymphatic Transport of Nanoparticles through Emulsion Polymerization
Alexander J. Heiler, Tae Hee Yoon, Maya Levitan, Yunus Alapan, Susan N. Thomas
TL;DR
Researchers created nanoparticles that can target the lymphatic system by adjusting their chemical properties during synthesis.
Contribution
A new method for designing lymphatic-targeting nanoparticles through emulsion polymerization is introduced.
Findings
NP characteristics and transport properties can be controlled by adjusting copolymer surfactants.
In vitro assays predicted in vivo lymphatic transport and uptake behaviors of the nanoparticles.
The approach enables the design of drug delivery vehicles and imaging agents with tailored lymphatic targeting.
Abstract
A library of lymphatic-targeting poly(propylene sulfide) nanoparticles (NPs) synthesized with copolymers of different properties at various concentrations was created. The effects of copolymer type and concentration on NP properties were explored, along with the transport behaviors of the NP formulations using in vitro assays that modeled diffusion through the skin interstitium and permeability across and uptake into lymphatic endothelial cells that predicted their in vivo lymphatic transport and uptake. By tuning the properties of the copolymer surfactants used during NP synthesis, both the NP characteristics and transport properties could be controlled, enabling the design of lymphatic-targeting drug delivery vehicles and imaging agents with varying behaviors.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

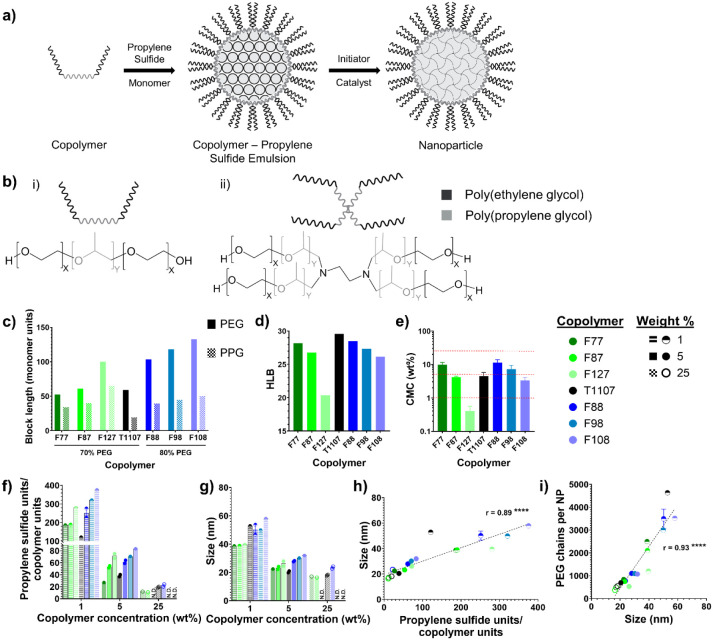

Figure 1

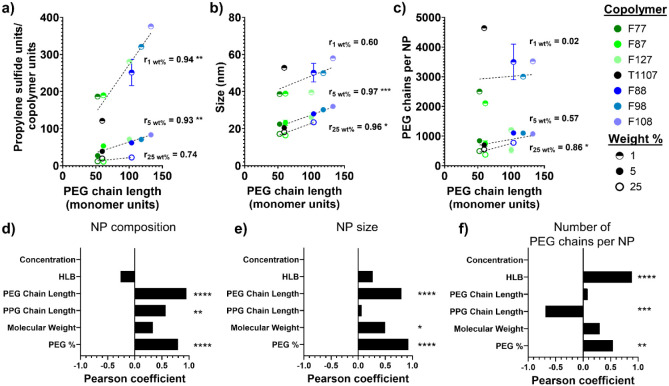

Figure 2

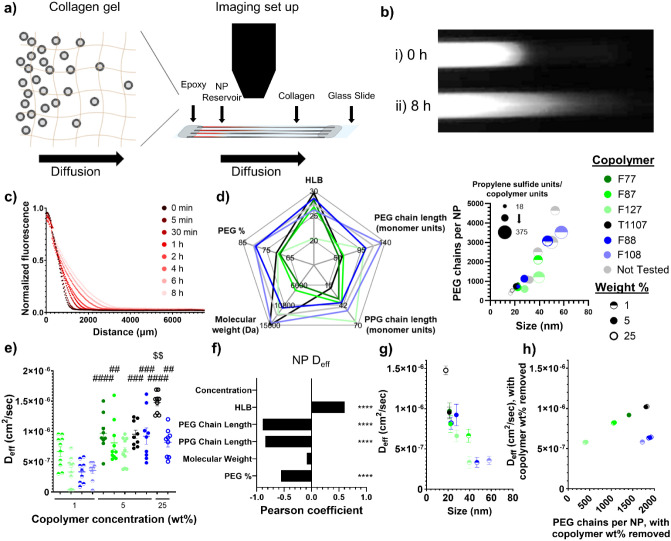

Figure 3

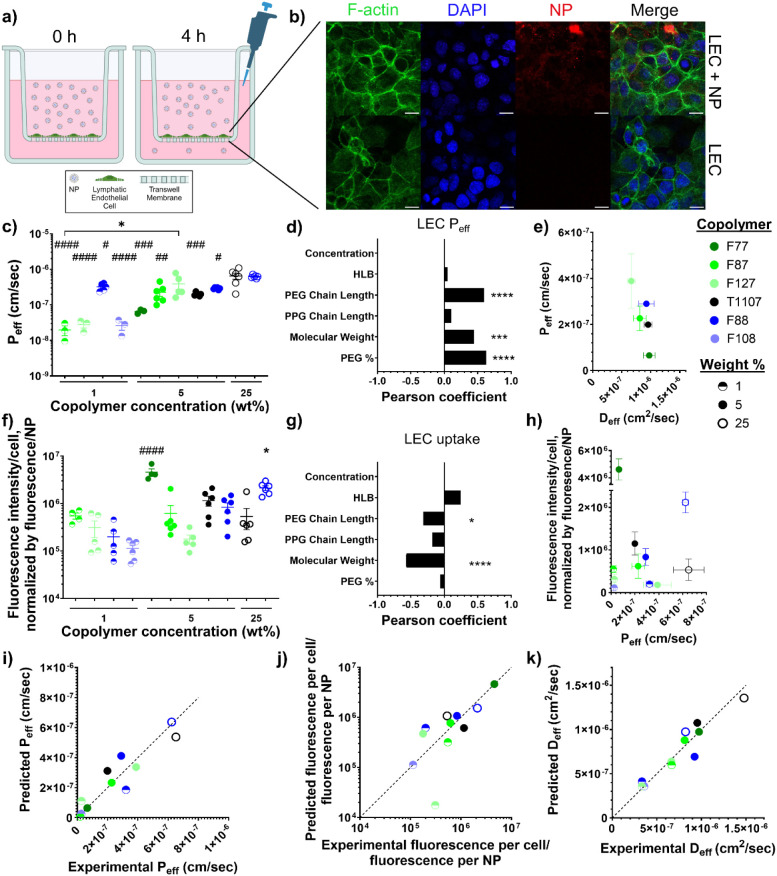

Figure 4

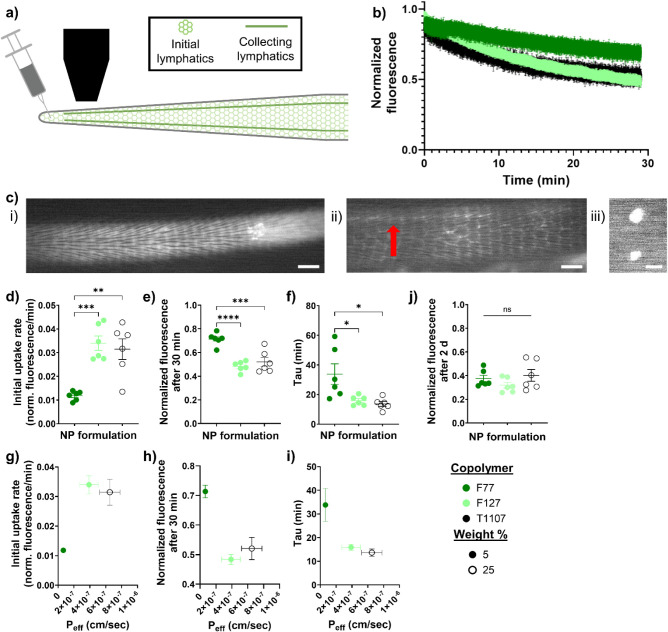

Figure 5

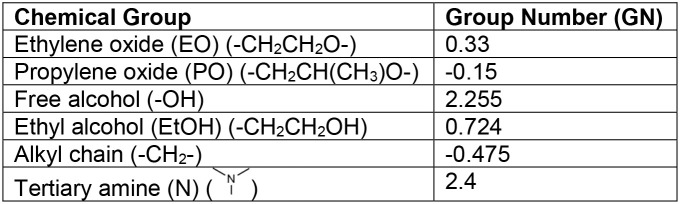

Figure 6

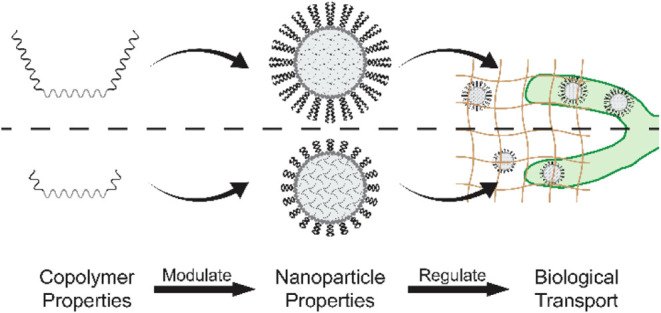

Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20Peer Reviews
