Towards a quantitative theory for transmission X-ray microscopy
James G McNally, Christoph Pratsch, Stephan Werner, Stefan Rehbein, Andrew Gibbs, Jihao Wang, Thomas Lunkenbein, Peter Guttmann, Gerd Schneider
TL;DR
This paper develops a model for X-ray microscopes to better understand how they capture images of tiny objects like gold nanospheres.
Contribution
A new experimental and theoretical framework using Mie theory to evaluate TXMs with quantitative accuracy.
Findings
Including both absorption and phase properties of gold is necessary for accurate TXM image modeling.

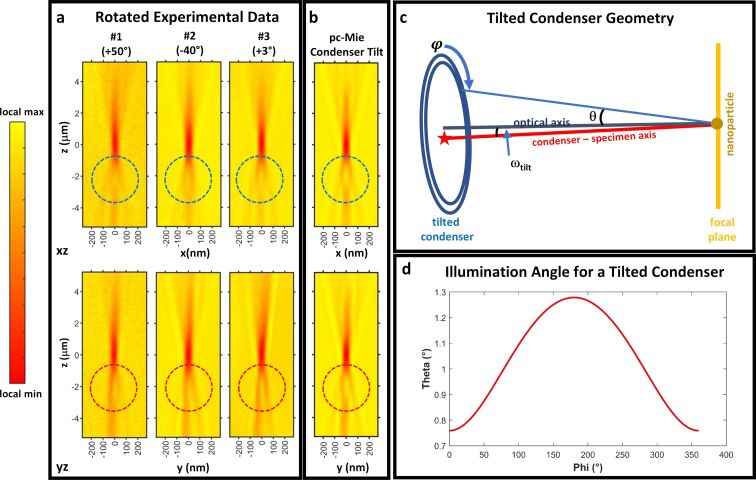

A small tilt in condenser illumination improves qualitative agreement with measurements.

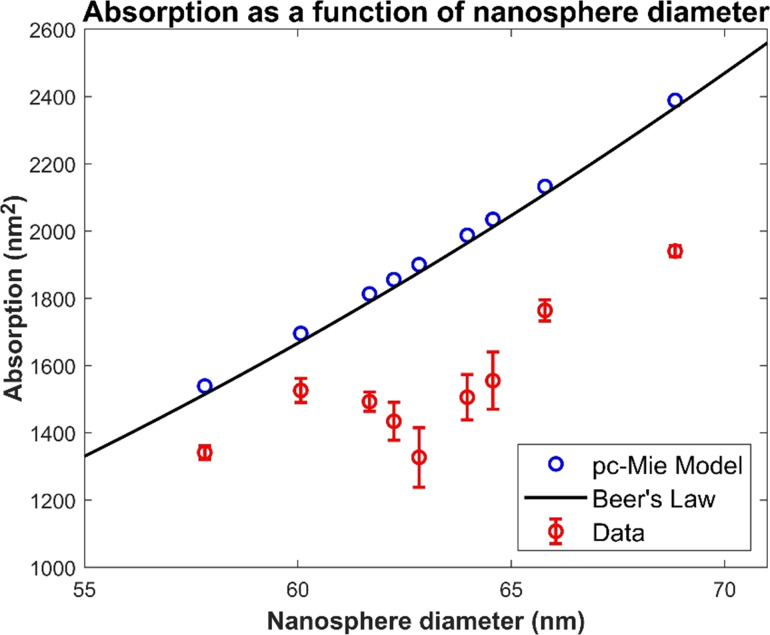

The microscope underestimates absorption by 10–20% compared to the model predictions.
Abstract

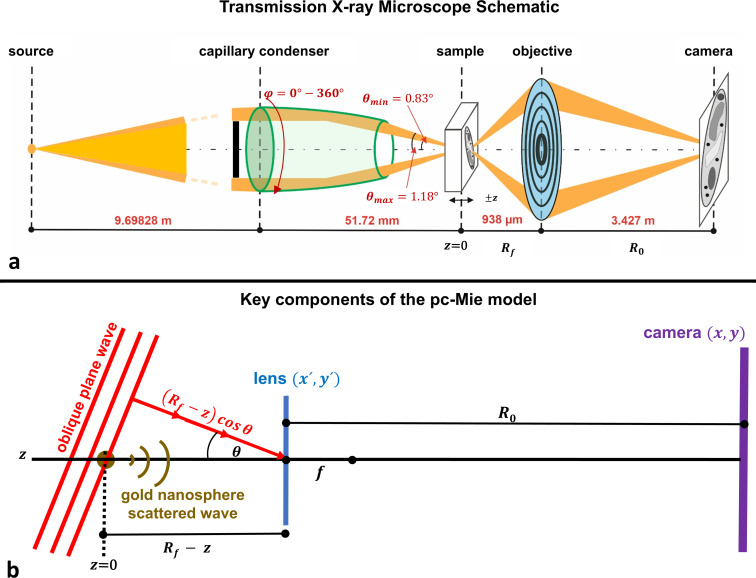

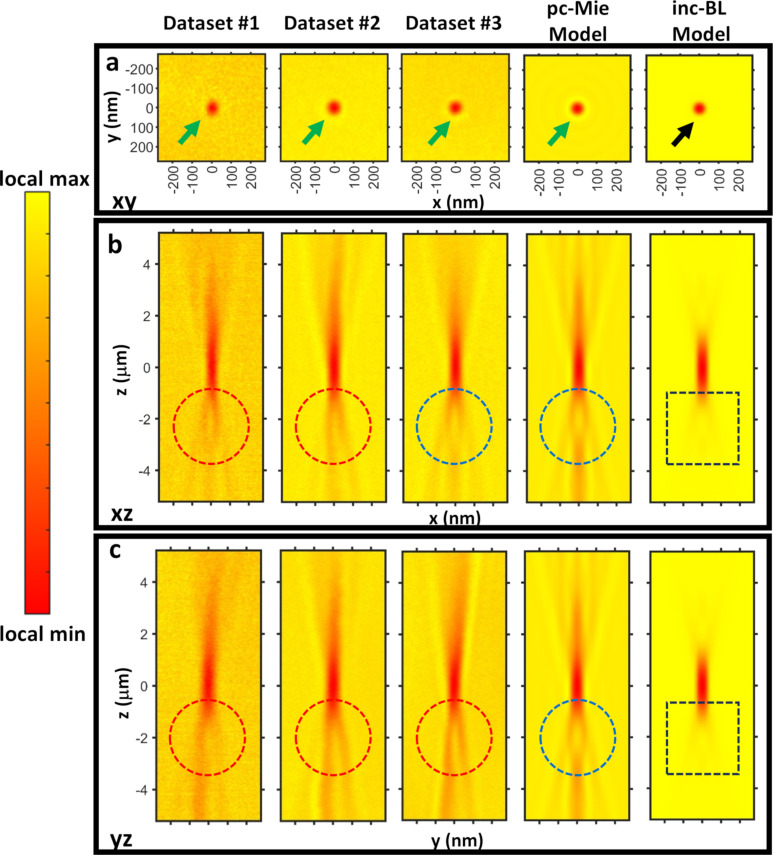

Transmission X-ray microscopes (TXMs) are now increasingly used for quantitative analysis of samples, most notably in the spectral analysis of materials. Validating such measurements requires quantitatively accurate models for these microscopes, but current TXM models have only been tested qualitatively. Here we develop an experimental and theoretical framework for evaluation of TXMs that uses Mie theory to compute the electric field emerging from a nanosphere. We approximate the microscope’s condenser illumination by plane waves at the mean illumination angle and the zone plate by a thin lens. We find that this model produces good qualitative agreement with our 3D measurements of 60 nm gold nanospheres, but only if both β and δ for the complex refractive index n = 1 – δ + iβ of gold are included in the model. This shows that both absorption and phase properties of the specimen…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21

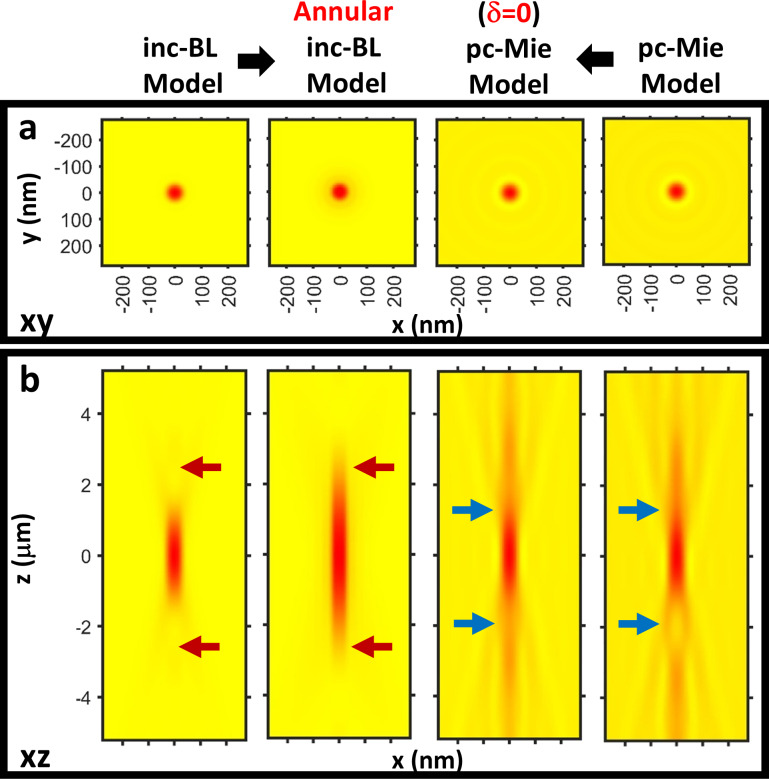

Figure 22
Figure 23

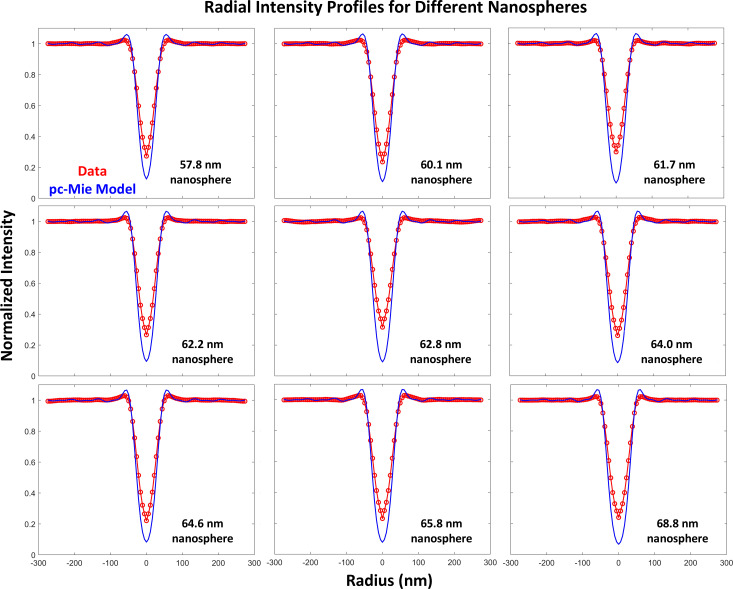

Figure 24
Figure 25

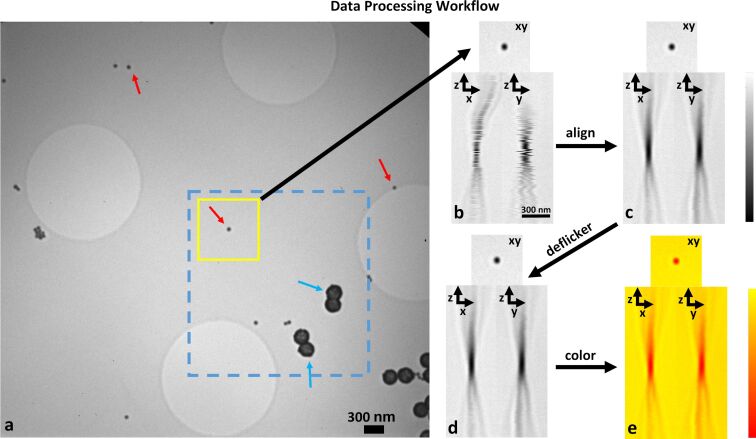

Figure 26
