High-throughput end-to-end aphid honeydew excretion behavior recognition method based on rapid adaptive motion-feature fusion

TL;DR

This paper introduces a high-throughput method to automatically detect aphid honeydew excretion behavior using motion features and deep learning, improving accuracy and efficiency over traditional methods.

Contribution

The novel contribution is a rapid adaptive motion-feature fusion algorithm and an optimized RT-DETR model with a new RK50 module for aphid behavior recognition.

Findings

The framework achieved an average precision of 85.9% in detecting aphid behaviors.

The RK50 module improved mAP50 by 2.9% compared to the baseline model.

The method outperformed mainstream algorithms in detecting small-target honeydew.

Abstract

Aphids are significant agricultural pests and vectors of plant viruses. Their Honeydew Excretion(HE) behavior holds critical importance for investigating feeding activities and evaluating plant resistance levels. Addressing the challenges of suboptimal efficiency, inadequate real-time capability, and cumbersome operational procedures inherent in conventional manual and chemical detection methodologies, this research introduces an end-to-end multi-target behavior detection framework. This framework integrates spatiotemporal motion features with deep learning architectures to enhance detection accuracy and operational efficacy.

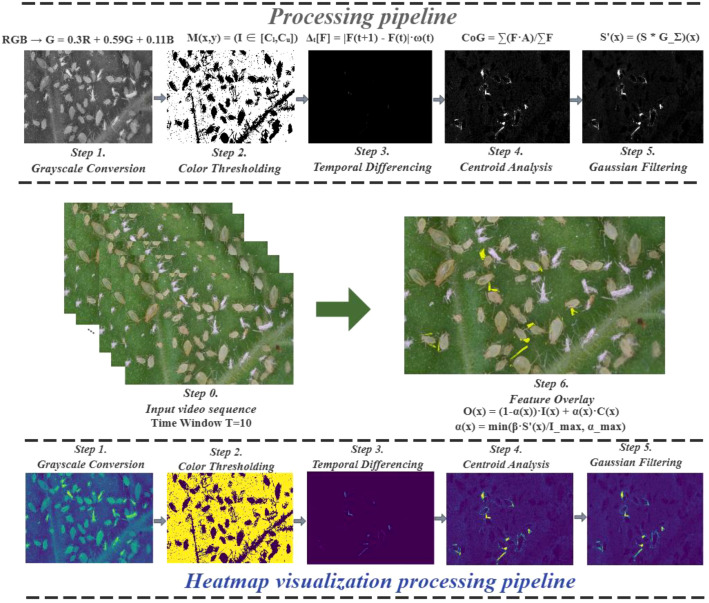

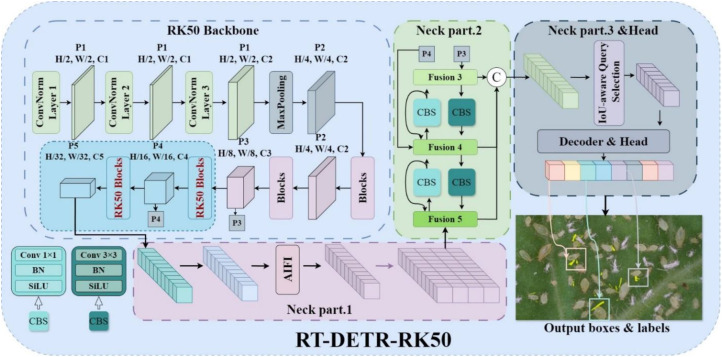

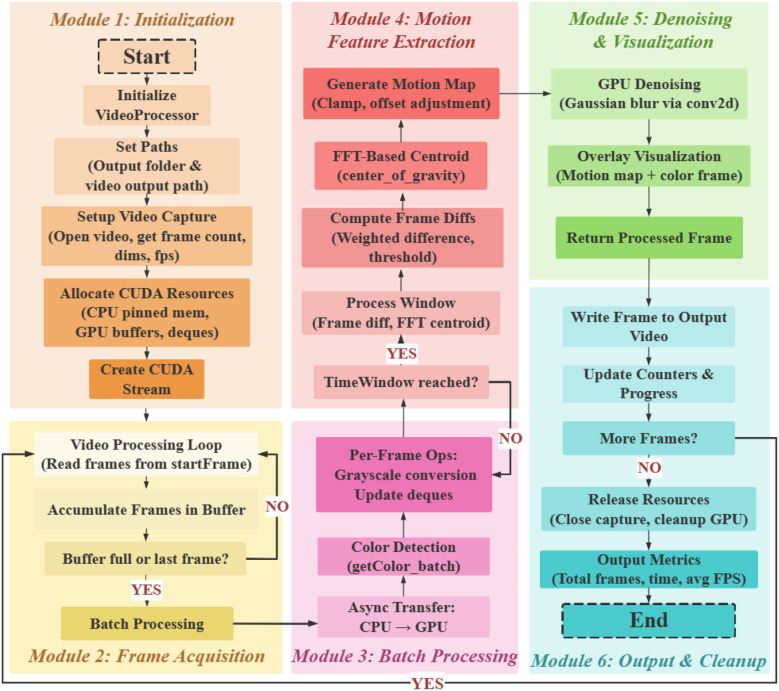

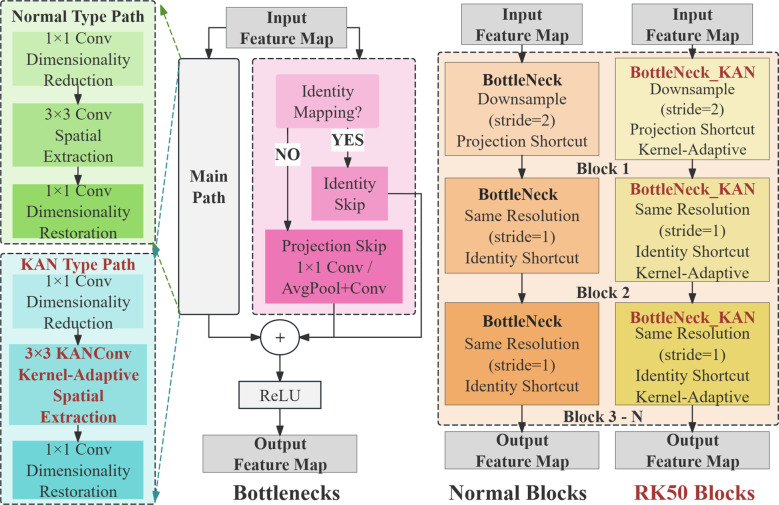

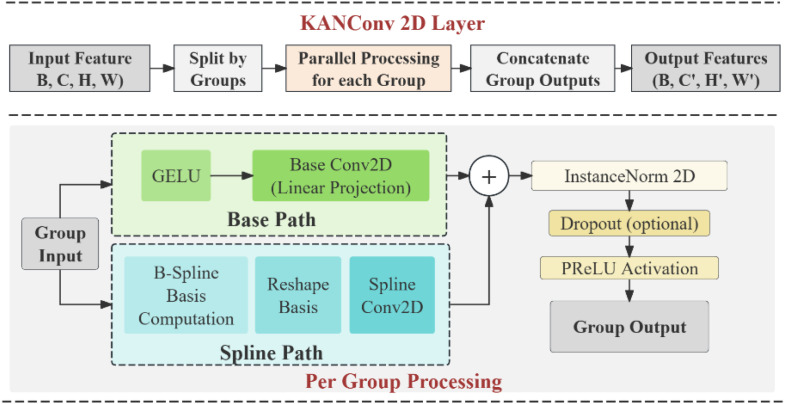

This study established the first fine-grained dataset encompassing aphid Crawling Locomotion(CL), Leg Flicking(LF), and HE behaviors, offering standardized samples for algorithm training. A rapid adaptive motion feature fusion algorithm was developed to accurately extract high-granularity spatiotemporal motion features. Simultaneously, the RT-DETR detection model underwent deep optimization: a spline-based adaptive nonlinear activation function was introduced, and the Kolmogorov-Arnold network was integrated into the deep feature stage of the ResNet50 backbone network to form the RK50 module. These modifications enhanced the model’s capability to capture complex spatial relationships and subtle features.

Experimental results demonstrated that the proposed framework achieved an average precision of 85.9%. Compared with the model excluding the RK50 module, the mAP50 improved by 2.9%, and its performance in detecting small-target honeydew significantly surpassed mainstream algorithms. This study presents an innovative solution for automated monitoring of aphids’ fine-grained behaviors and provides a reference for insect behavior recognition research. The datasets, codes, and model weights were made available on GitHub (https://github.com/kuieless/RAMF-Aphid-Honeydew-Excretion-Behavior-Recognition).
