Design and implementation of three-phases energy storage system using DSP F28379D for laboratory research
Hoai Phong Nguyen, Thuan Thanh Nguyen, Minh Phuong Le, Minh Tan Tran, Cong Duy Pham
TL;DR
This paper describes a modular energy storage system designed for university labs, using a Texas Instruments DSP for control and enabling safe grid connection.
Contribution
The novel modular design allows for easy upgrades and testing of control algorithms in a laboratory setting.
Findings
The system successfully operates in both charging and discharging modes with controlled power of 230(W).
The modular design facilitates quick configuration changes and power capacity adjustments.
The hardware model is effective for educational purposes in laboratory environments.
Abstract

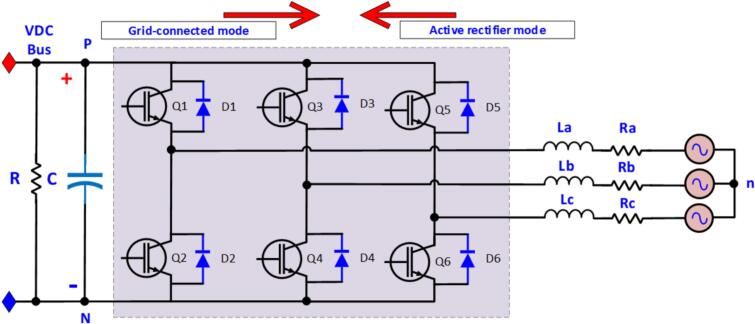

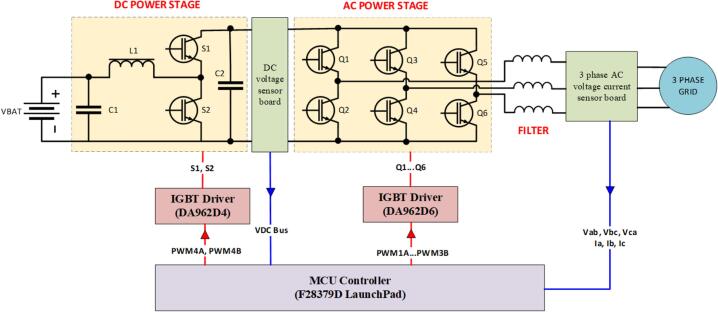

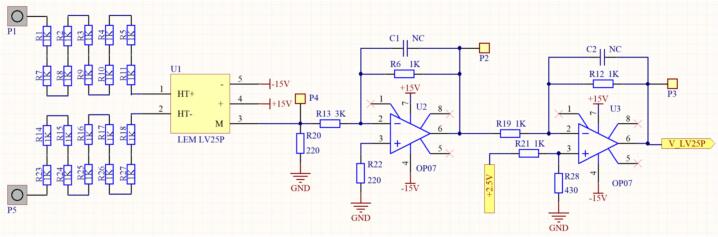

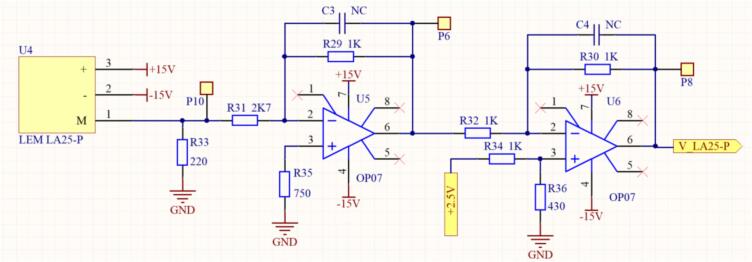

This paper presents the hardware design for a three-phases energy storage system connected to the grid through a safe isolation transformer, suitable for use in university laboratory experiments. The power hardware configuration includes a bidirectional DC/DC buck-boost converter and a bidirectional 3-phase 6-switch DC/AC converter. Additionally, the control board uses the Texas Instruments DSP F28379D with a charging-discharging control program written in C programming language and compiled with Code Composer Studio (CCS v12). The current and voltage sensing circuits use Hall-effect sensors to isolate the power circuit from the control circuit. A unique aspect of this research is the modular design, allowing for quick and easy upgrades and changes to the configuration and power capacity, facilitating the testing of control algorithms for the storage system. Experiments were conducted…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

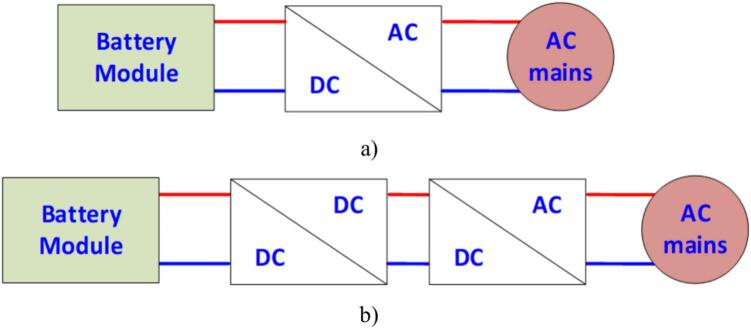

Figure 7

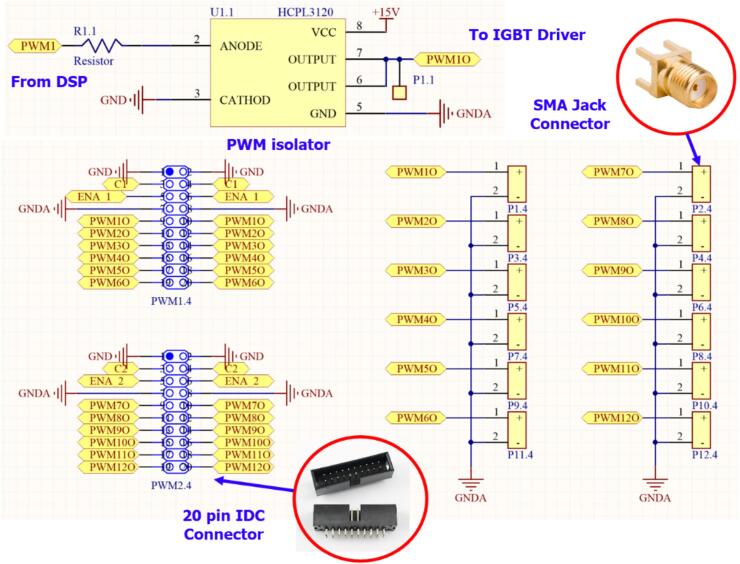

Figure 8

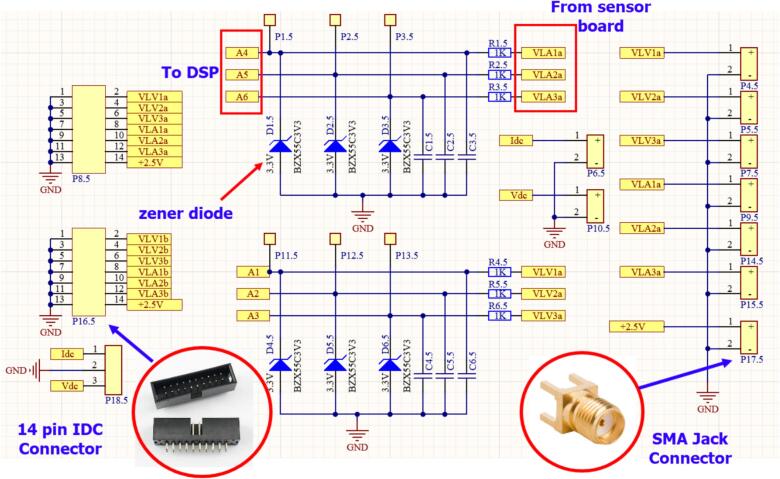

Figure 9

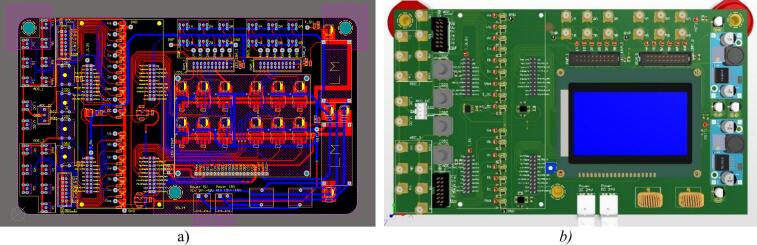

Figure 10
Figure 11

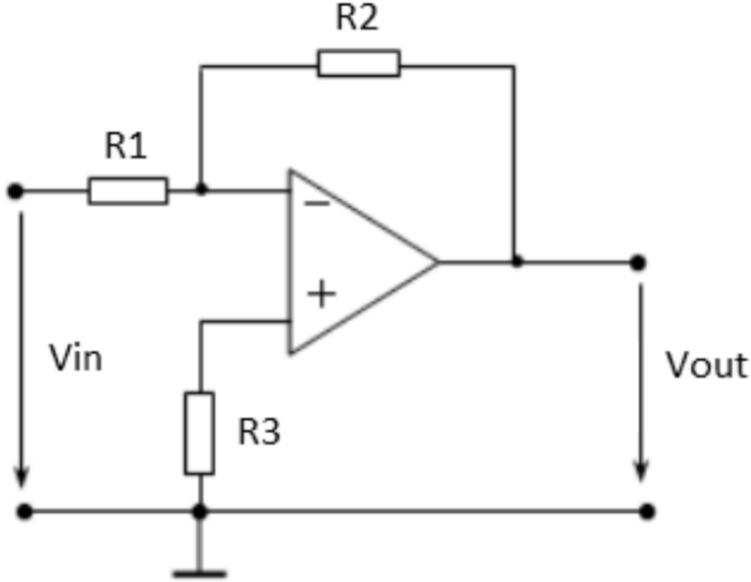

Figure 12

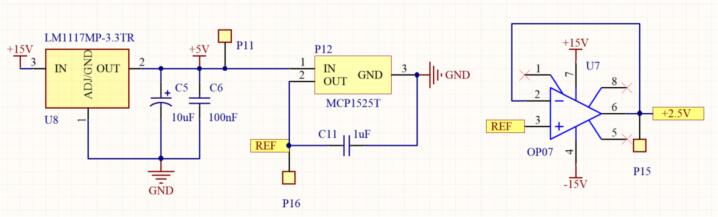

Figure 13

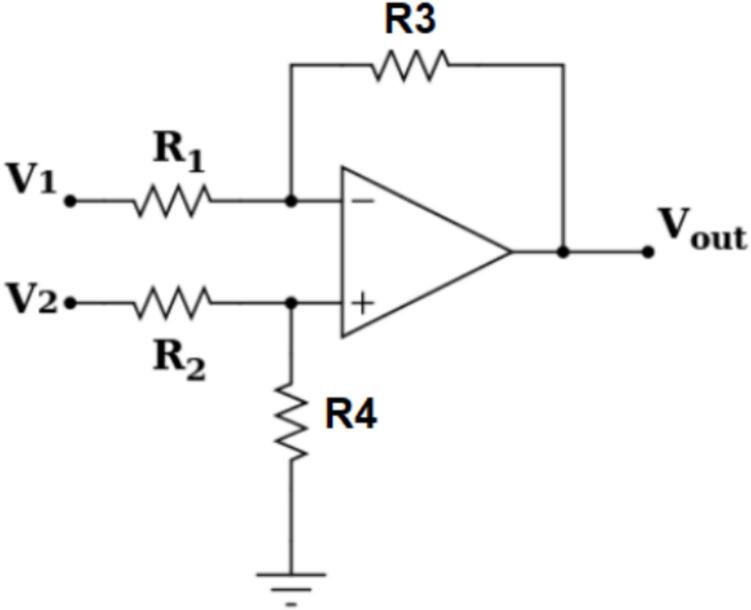

Figure 14
Figure 15

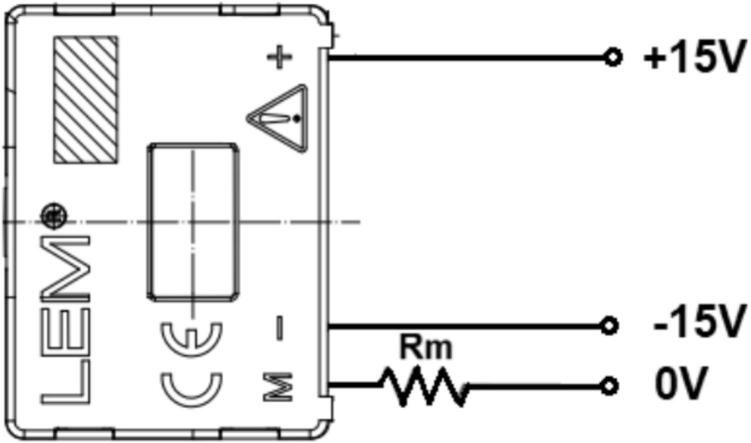

Figure 16
Figure 17
Figure 18

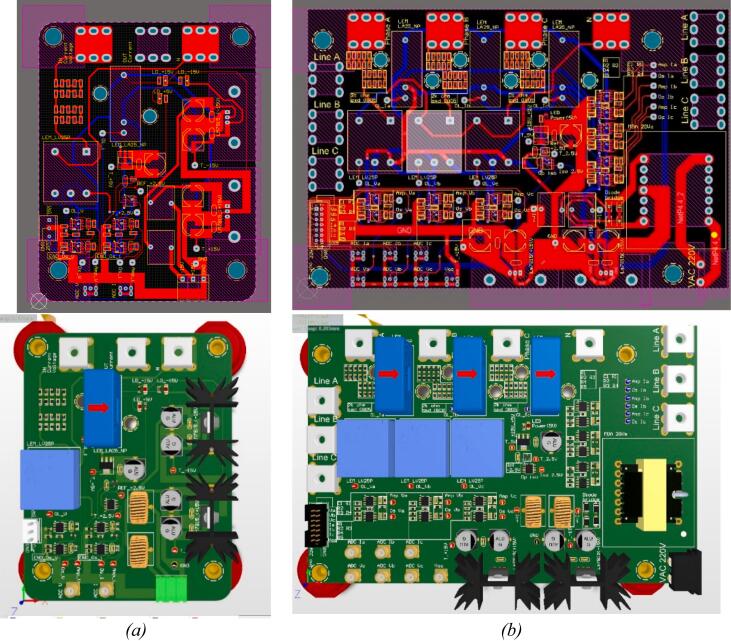

Figure 19

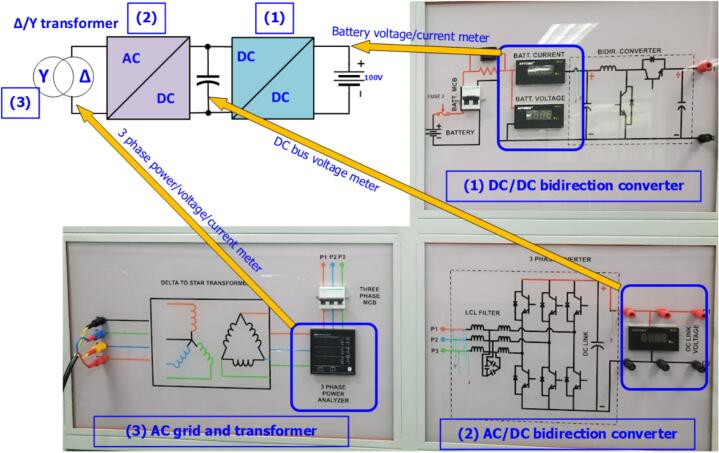

Figure 20

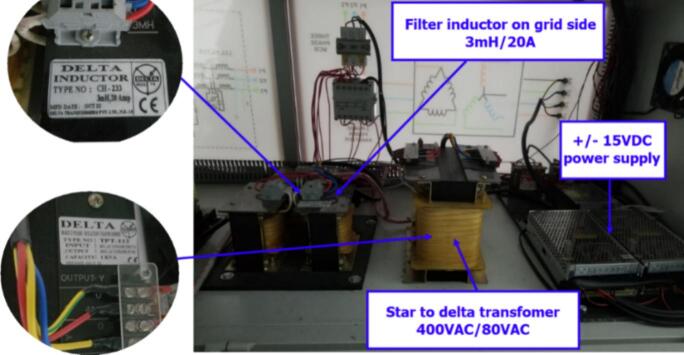

Figure 21

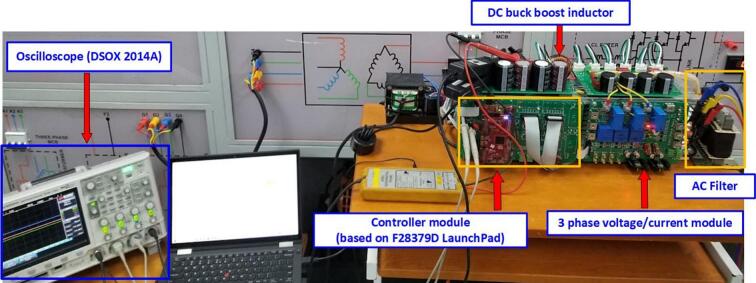

Figure 22

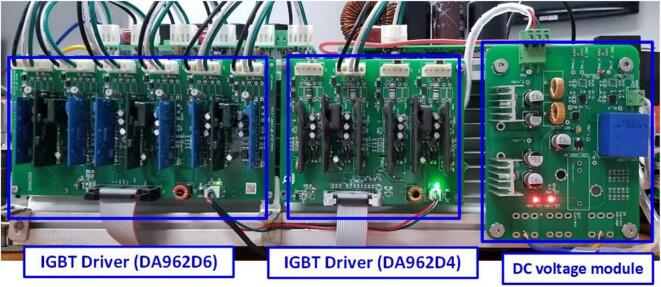

Figure 23

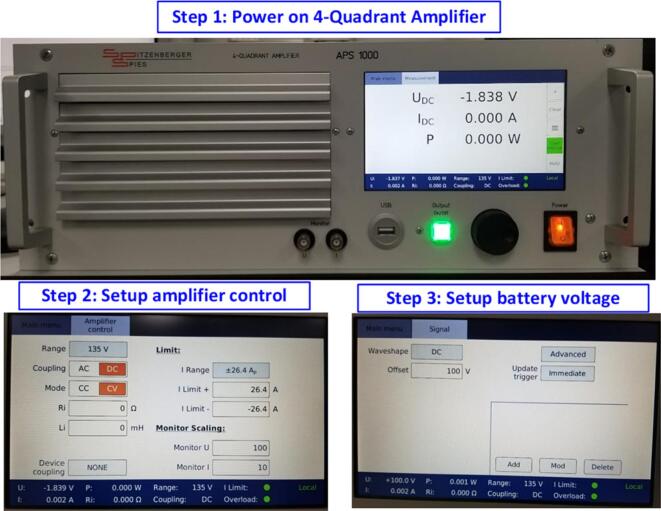

Figure 24

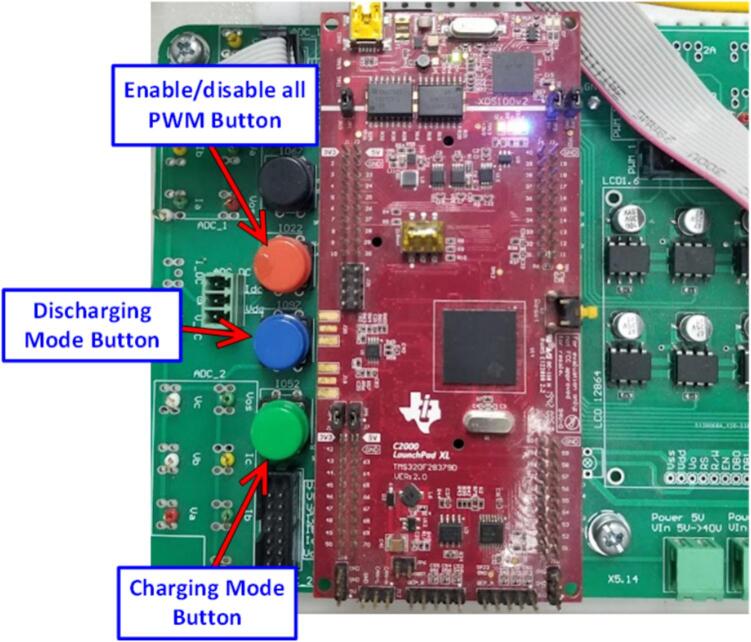

Figure 25

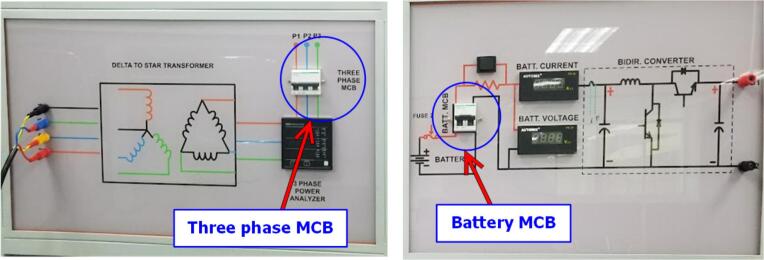

Figure 26

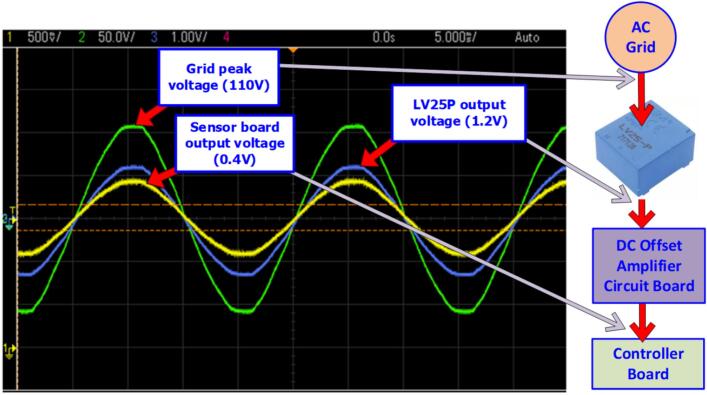

Figure 27

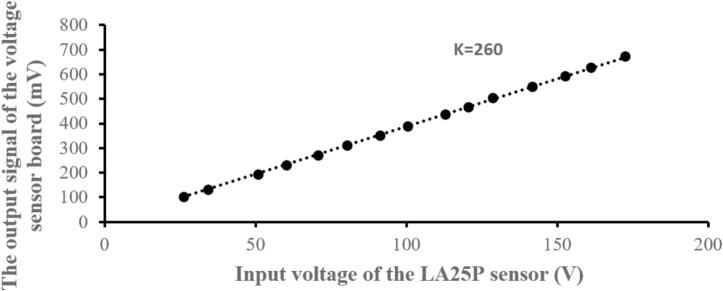

Figure 28

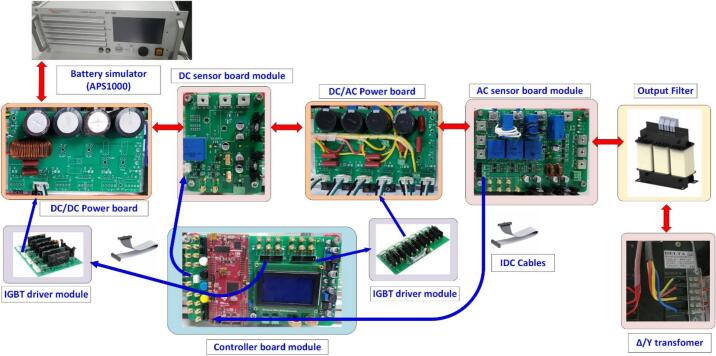

Figure 29

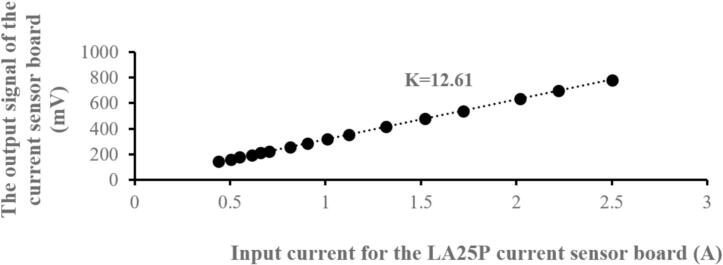

Figure 30

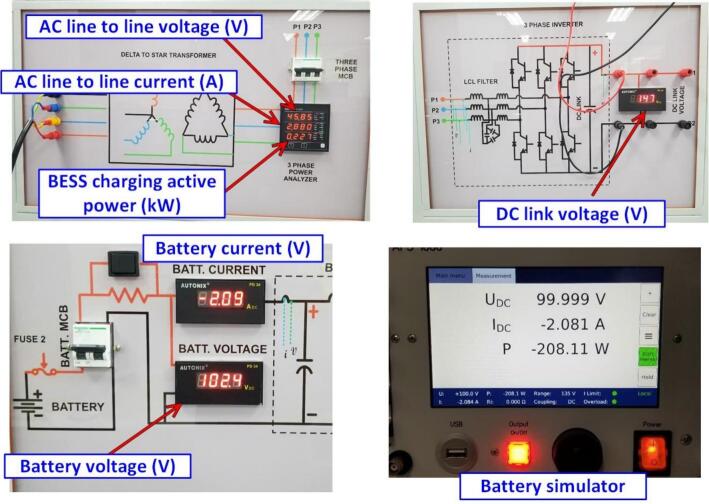

Figure 31

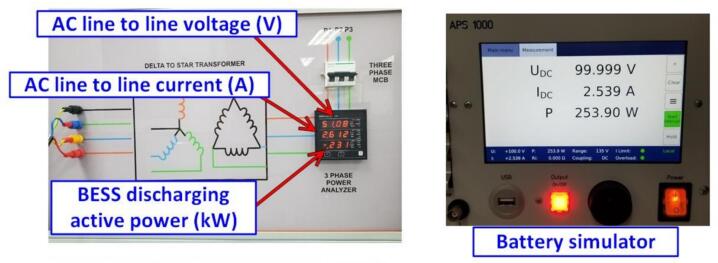

Figure 32

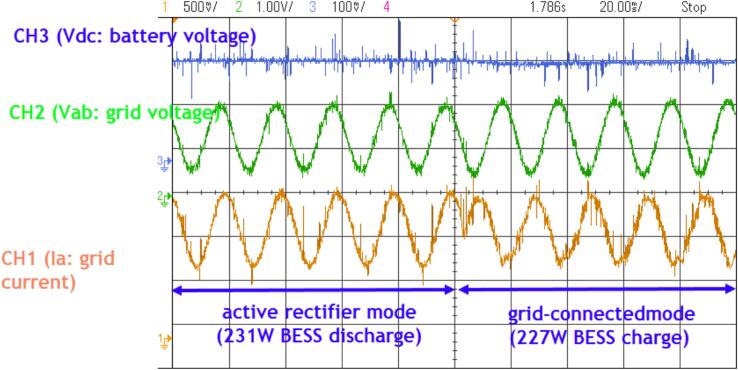

Figure 33

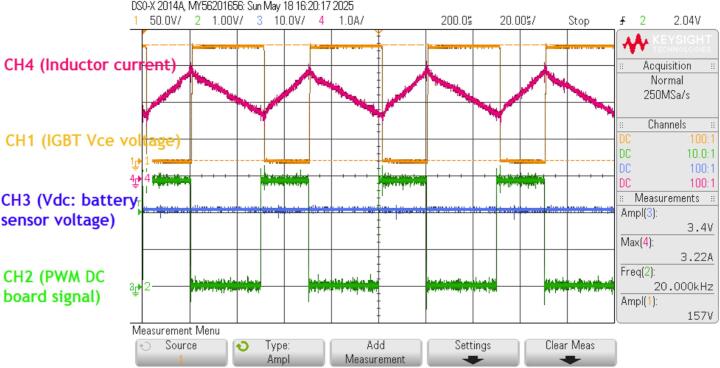

Figure 34

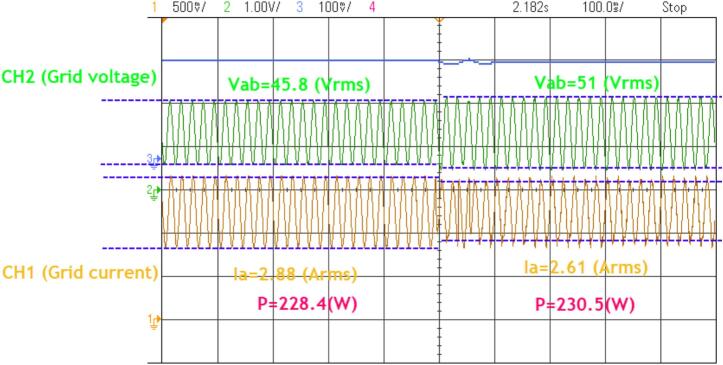

Figure 35

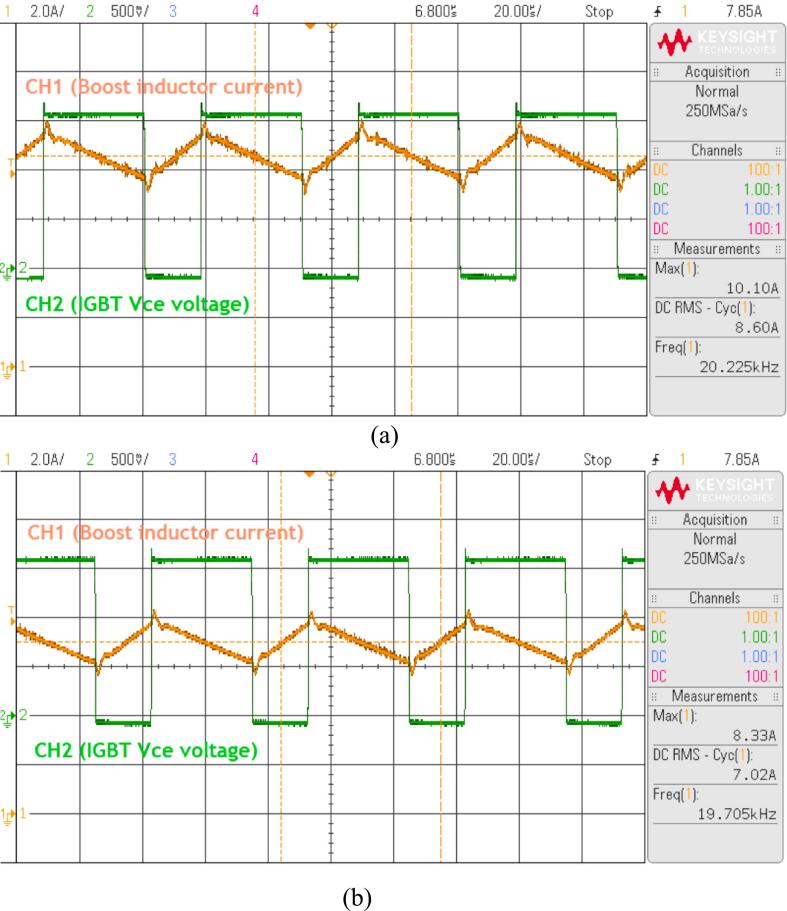

Figure 36

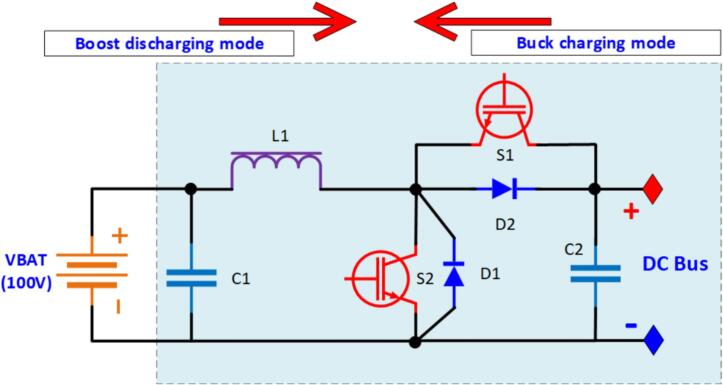

Figure 37
Figure 38
Figure 39

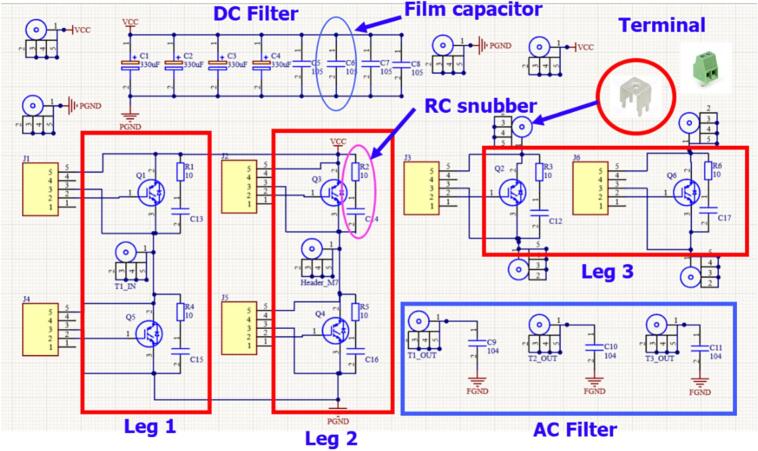

Figure 40

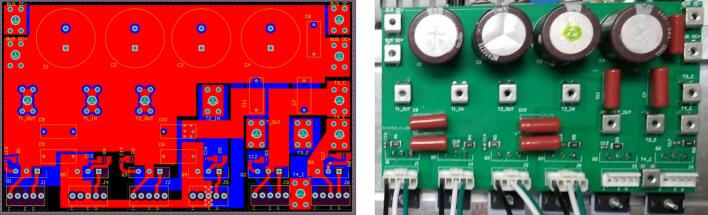

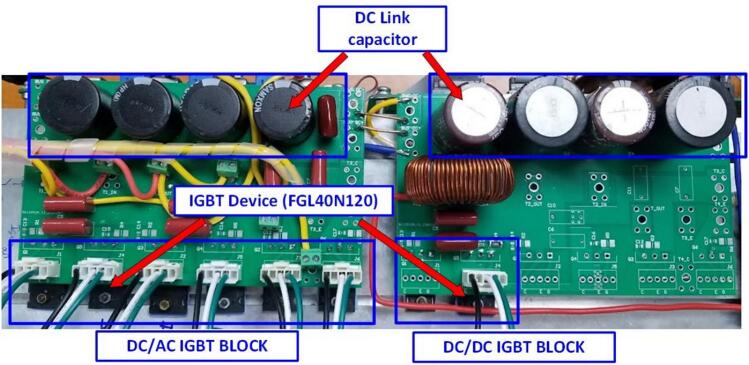

Figure 41

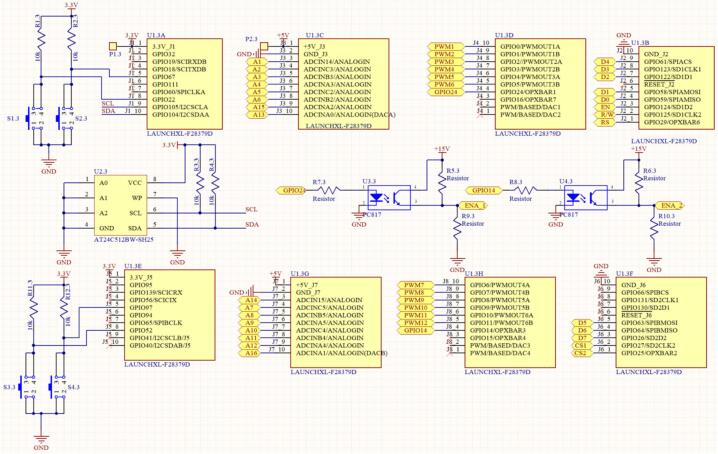

Figure 42Peer Reviews
