The challenges of replication: A worked example of methods reproducibility using electronic health record data

TL;DR

This paper explores the challenges of replicating a study using electronic health record data and offers recommendations to improve reproducibility.

Contribution

The paper introduces a new concept called 'data reproducibility' and provides practical recommendations for improving replication in EHR studies.

Findings

Differences between data environments and sources caused challenges in methods reproducibility.

Recommendations include better metadata, standardized governance, code sharing, and support structures.

Data reproducibility is identified as a new theme requiring further research.

Abstract

The ability to reproduce the work of others is an essential part of the scientific disciplines. Replicating observational studies using electronic health record (EHR) data can be challenging due to complexities in data access, variations in EHR systems across institutions, and the potential for unaccounted confounding variables. Our aim is to identify the barriers to methods reproducibility for replication studies using EHR data.

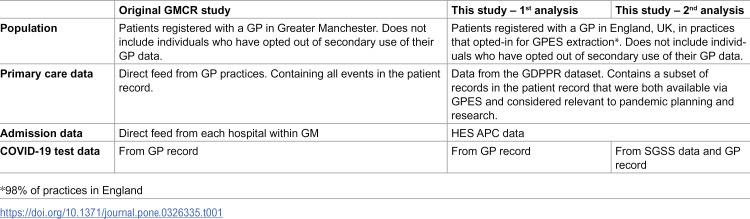

We replicated a study that examined the risk of hospitalisation following a positive COVID-19 test in individuals with diabetes. Using EHR data from the NHS England’s Secure Data Environment (SDE) covering the whole of England, UK (population 57m), we sought to replicate findings from the original study, which used data from Greater Manchester (a large urban region in the UK, population 2.9m). Both analyses were conducted in Trusted Research Environments (TREs) or SDEs, containing linked primary and secondary care data, however methods reproducibility was not straightforward. Differences between the environments that contributed to the difficulties were documented, categorized into themes, and converted into a list of recommendations for TRE/SDEs.

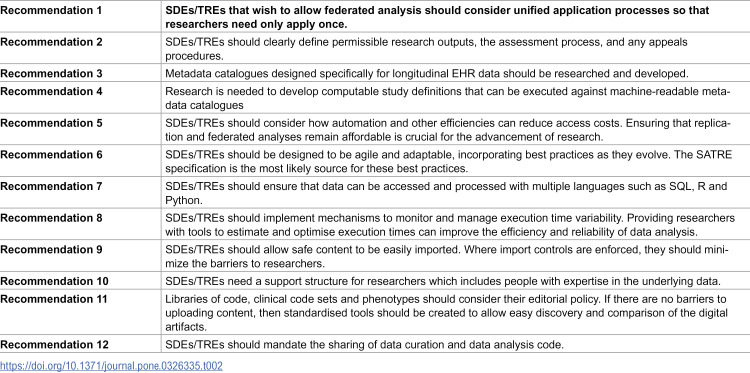

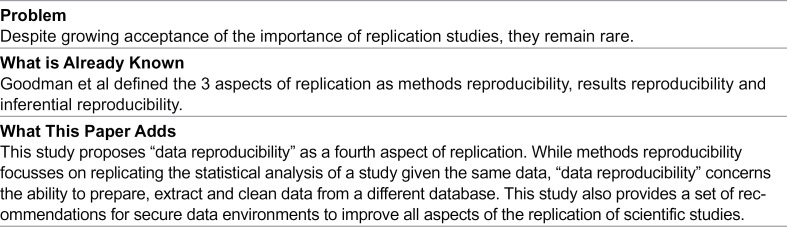

Small differences between the environments and the data sources led to several challenges in methods reproducibility. Our recommendations of TRE/SDEs should facilitate future replication studies. The recommendations include: a need for improved machine-readable metadata for EHR data; standardization of governance processes to facilitate federated analysis; mandating of code sharing; and for environments to have a support structure for data engineers and analysts. We also propose a new theme for research, “data reproducibility”, as the ability to prepare, extract and clean data from a different database for a replication study.

Even with perfect code sharing, data reproducibility remains a challenge. Our recommendations have the potential to reduce the barriers to replication studies and therefore enhance the potential of observational studies using EHR data.

Figures
