Designing and prototyping of a reconfigurable segmented fan concrete shell as a flooring system
Mishael Nuh, Robin Oval, John Orr
TL;DR
This paper introduces a reconfigurable segmented fan concrete shell flooring system that is lightweight, carbon-efficient, and supports disassembly and reuse for sustainable construction.
Contribution
The novel segmented fan concrete shell offers reconfigurability and circular economy compatibility while maintaining structural efficiency.
Findings
Quarter-scale prototypes demonstrated structural viability and identified limitations for future development.
Embodied carbon analysis showed a 20% premium over non-reconfigurable systems but potential long-term savings with extended lifespan.
The system enables disassembly and reuse, aligning with circular economy principles for the built environment.
Abstract
A significant portion of the environmental impact of a building’s superstructure lies in its structural flooring. By leveraging funicular forms such as thin concrete shells, a materially and carbon-efficient alternative to bending-active flooring systems can be attained. In addition, through segmentation and the use of dry jointed interfaces, a segmented concrete shell allows for ease of disassembly compatible with circular economy principles for the built environment. This paper presents a novel segmented concrete shell flooring system that leverages the symmetry of revolution of the classical fan vault form to facilitate future design flexibility through increased reconfigurability. The design and form-finding of the segmented fan concrete shell are detailed through the use of an evolutionary algorithm and finite element analysis. Quarter-scale prototypes were digitally fabricated…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10

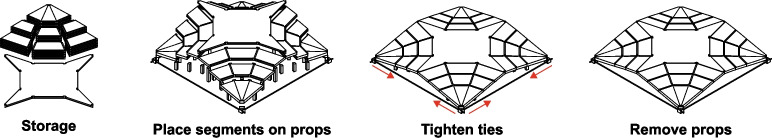

Figure 11

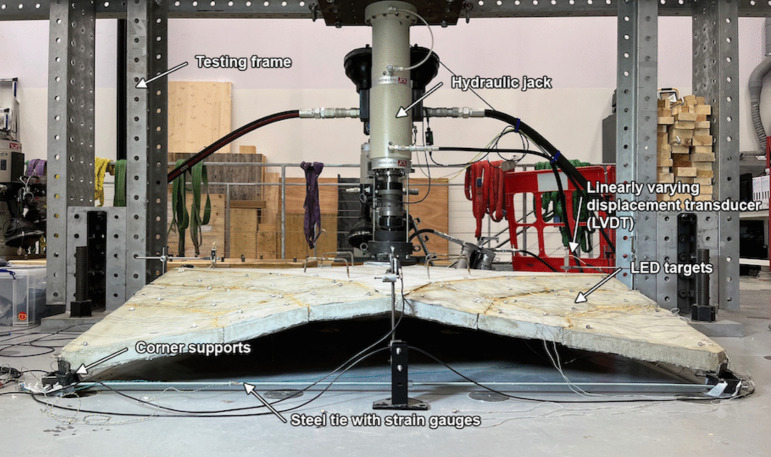

Figure 12

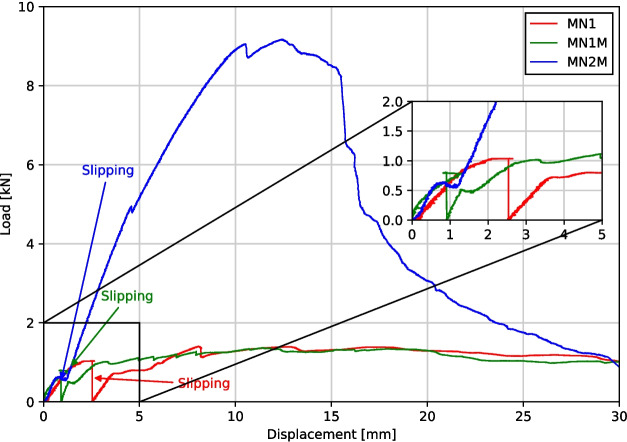

Figure 13

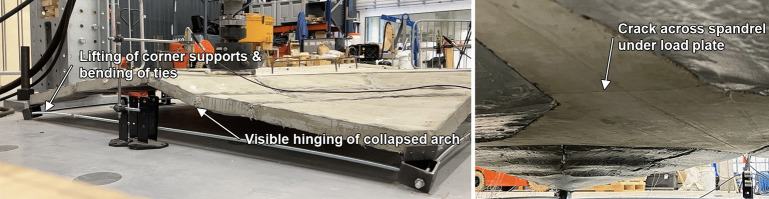

Figure 14

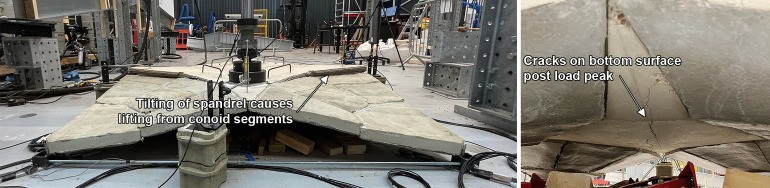

Figure 15
Figure 16
Figure 17

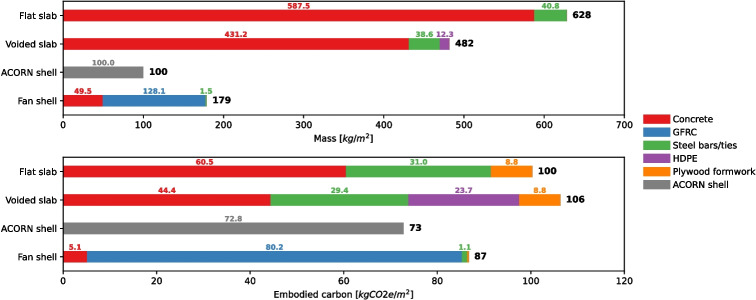

Figure 18

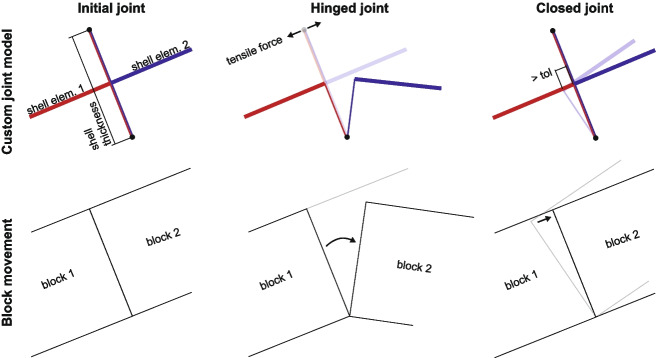

Figure 19

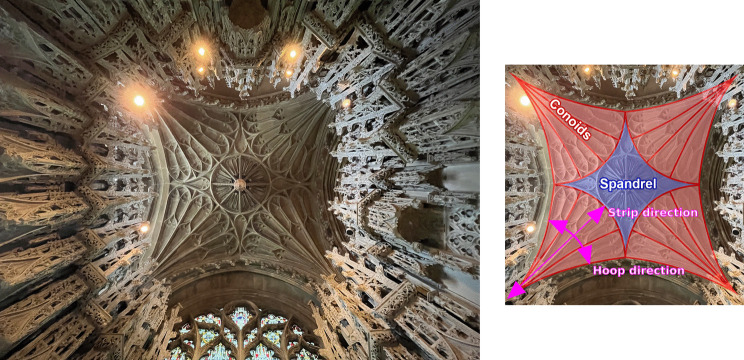

Figure 1

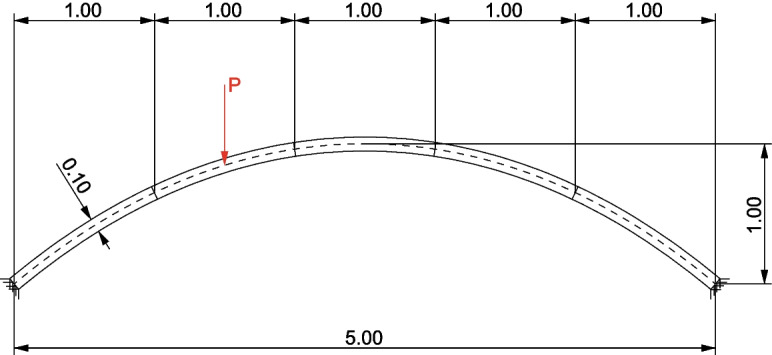

Figure 20
Figure 21

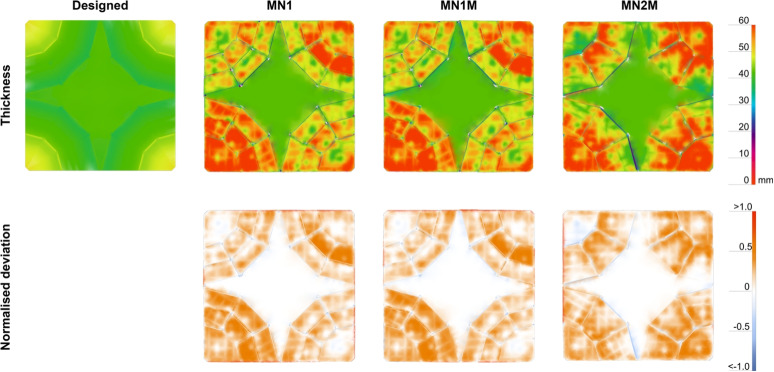

Figure 22

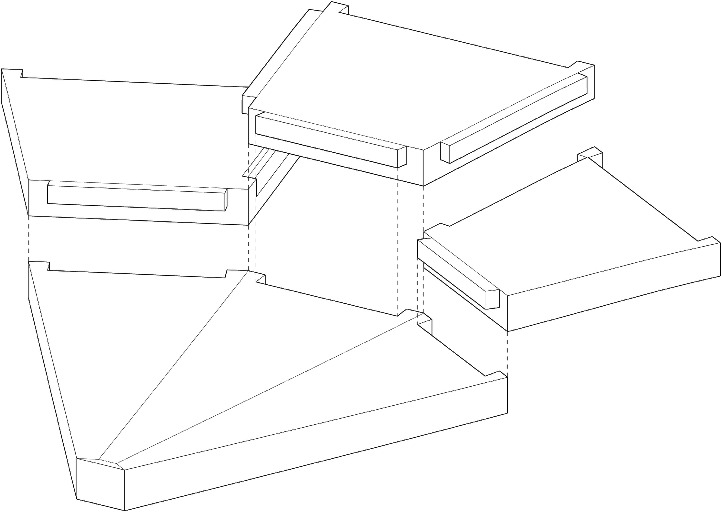

Figure 2

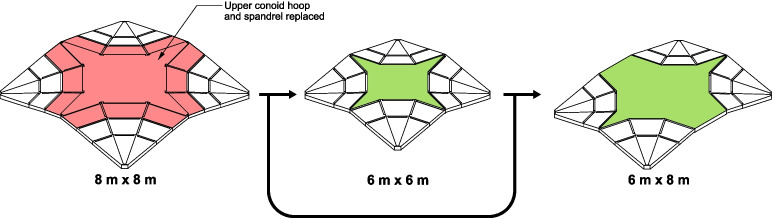

Figure 3
Figure 4
Figure 5
Figure 6

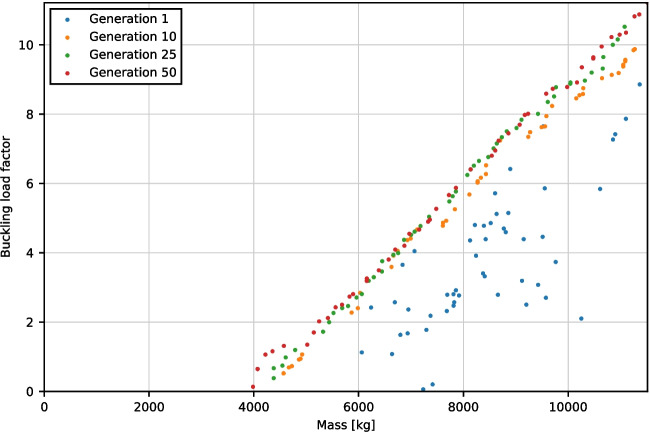

Figure 7

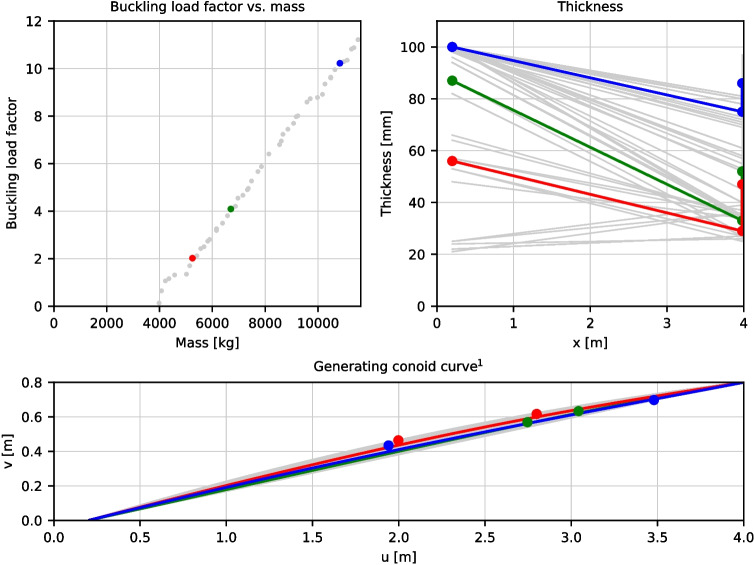

Figure 8
