C,N‐Chelated Organogermanium(II) Hydride as Catalyst for Esterification of Aldehydes

TL;DR

A new organogermanium compound was found to effectively catalyze the esterification of aldehydes into t-butyl esters.

Contribution

A C,N-chelated organogermanium(II) hydride was identified as a novel catalyst for aldehyde esterification.

Findings

The organogermanium compound catalyzed esterification of aldehydes using potassium alkoxides.

t-Butyl esters of carboxylic acids were confirmed via GC-MS analysis.

Mechanistic insights were obtained through DFT calculations and NMR/IR spectroscopy.

Abstract

The reactions of the monomeric C,N‐chelated organogermanium(II) hydride L(H)Ge·BH3 (1) with potassium alkoxides KOR provided potassium hydrido‐alkoxo‐germanato‐borates {K(THF)2[BH3·Ge(L)(H)(OR)]}2 (R =
t
Bu (2), C(CH3)2CH2CH3 (3)) as products of KOR addition. Compounds 2 and 3 react with benzaldehyde under formation of alkyl esters of benzoic acid along with elimination of a neutral complex L(H)Ge·BH3 (1). Thus complex 1 was tested as a useful catalyst for esterification of aldehydes by KO
t
Bu. The GC‐MS analysis revealed formation of t‐butyl esters of appropriated carboxylic acids. The mechanistic studies for the esterification of benzaldehyde with KO
t
Bu catalyzed by 1 were also performed either theoretically (DFT calculations), or experimentally (NMR and IR spectroscopy).

Monomeric C,N‐chelated organogermanium(II) hydride L(H)Ge·BH3 (1) reacts with potassium alkoxides to give potassium hydrido‐alkoxo‐germanato‐borates {K(THF)2[BH3·Ge(L)(H)(OR)]}2 (R =
t
Bu (2), C(CH3)2CH2CH3 (3)) as products of KOR addition. Moreover, complex 1 was tested as useful catalyst for esterification of aldehydes by KO
t
Bu to yield t‐butyl esters of appropriated carboxylic acids.

Figures

Synthesis of {K(THF)2[BH3·Ge(L)(H)(OR)]}2 (R =  t Bu (2), C(CH3)2CH3CH3 (3).

Molecular structures of 2 and 3. Hydrogen atoms (except of the GeH) and coordinated molecules of THF are omitted. Selected bond distances (Å) and angels (°): For 2: Ge1─O1 1.8428(17), Ge1─B1 2.053(3), K1─O1 2.700(2), Ge1─H1 1.49(4), O1─Ge1─C1 105.99(9), O1─Ge1─B1 105.36(10). For 3: Ge1─O1 1.845(2), Ge1─B1 2.050(4), K1─O1 2.706(2), Ge1─H1 1.48(4), O1─Ge1─C1 106.70(11), O1─Ge1─B1 106.04(13).

Stoichiometric reaction of 2 and 3 with benzaldehyde.

Esterification reaction of benzaldehyde with KO t Bu catalyzed by 1.

The courses of stoichiometric (A, B) and catalytic (C) reactions monitored by time‐resolved FTIR spectroscopy. Experimental conditions: A) benzaldehyde + KO t Bu + 1, B) benzaldehyde + 2, C) benzaldehyde + KO t Bu + 10 mol% of 1.

Catalytic cycle for the esterification of benzaldehyde with KO t Bu catalyzed by 1 proposed by DFT calculations (optimalization of 2, Int1, and ΔG) in the combination with the experimental studies (NMR and IR spectroscopy).

Optimized geometries of 2 and 2‐mon and relative Gibbs free energies (in kcal mol−1; calculated in n‐hexane at the M06/cc‐pVTZ(‐PP) level).

Energetical profile for the reaction of 2 with 2 eq. of benzaldehyde to give Int1 (in kcal mol−1; calculated in n‐hexane at the M06/cc‐pVTZ(‐PP) level).

Esterification of substituted aldehydes by KO t Bu catalyzed by 1.

Full text

Introduction

1

Reactivity of tetrylene‐hydrides RE(II)H (E is Si, Ge, Sn, Pb) toward unsaturated bonds classifies them as a very important class of organometallic compounds, which can be even compared to transition metal hydrides.^[^ 1 ^]^ Studies made by groups of Power,^[^ 2 ^]^ Aldridge,^[^ 3 ^]^ Rivard,^[^ 4 ^]^ Wesemann,^[^ 5 ^]^ Jones,^[^ 6 ^]^ or Roesky^[^ 7 ^]^ nicely clarified that the hydrometallation may proceed also without the addition of catalyst. Substrate insertions into the E–H bond should be the first step of potential hydrometallation catalytic cycles. However, the recovering of the low‐valent group 14 hydrides usually remains main disadvantage, despite the progress made by above mentioned groups.^[^ 2, 3, 4, 5, 6, 7 ^]^ Nowadays, tetrylene‐hydrides RE(II)H are studied as active sites for catalysis. Depending on the system, these compounds are either used as isolable species, or are formed in situ from precatalysts.^[^ [Link], [Link] ^]^ The foundation of their use was laid by the group of Jones, who demonstrated that two‐coordinate tetrylenes hydrides [(N^Ar^)(H)E:] (E = Ge, Sn, N^Ar^ = [N(Ar)(SiMe_3_)], Ar = [C_6_H_2_Me{C(H)Ph_2_}2‐2,4,6]) may be used as efficient catalysts in the hydroboration of aldehydes or ketones RR^1^C═O by the pinacol borane (HBpin).^[^ 8 ^]^ Since that time, tetrylenes hydrides or their precatalysts have been tested more frequently as suitable catalysts for hydroboration, hydrosilylation, or cyanosilylation of aldehydes, ketones, pyridine, or nitriles.^[^ 5, 8, 9 ^]^ The conversion of CO_2_ into the methanol equivalents MeOBR_2_ (R = Bpin or Bcat) using the HBpin or HBcat was achieved either by tetrylenes hydrides precatalysts [(L´)(O* ^t^ Bu)E:] (E = Ge, Sn, L´ = [N(Ar)(Si* ^i^ Pr_3_)], Ar = [C_6_H_3_{C(H)Ph_2_}2‐2,4,6]) reported by Jones, Maron, and coworkers,^[^ 10 ^]^or by Si(II) hydride complex [(ImMe_4_)2_SiH]I [ImMe_4 =: C(NMe)2(CMe)2] reported by So and coworkers.^[^ 11 ^]^ The Power group also successfully used Sn(II) hydride precatalysts [(Ar^Me6^)(μ‐OMe)Sn:]2 and [(Ar^iPr4^)(μ‐OMe)Sn:]2 (Ar^Me6^ = Ar^Me6^ = [C_6_H_3_{C(H)Ph_2_}2‐2,4,6]) in dehydro‐coupling reactions of amines R_2_NH (R = H, alkyl, aryl) with HBpin.^[^ 12 ^]^ Finally, the Driess group opened another direction of tetrylene‐hydride catalysis when they have reported on the cooperative activation of H_2_ by a bimetallic Ni(0)/Si(II) system, and postulated active Ni(μ‐H)2_Si structure.^[^ 13 ^]^ Recently, we have started with studies including N→Ge coordinated germanium hydride L(H)Ge (L is [2‐(CH_2_NEt_2)‐4,6‐tBu_2_‐C_6_H_2_]^−^) and its adducts with ZnCl_2_ and BH_3_.^[^ 14 ^]^ While the [L(H)Ge·ZnCl_2_]2 is an active catalyst in the ring‐opening polymerization of the lactide, ^[^ 14a ^]^ the borane adduct L(H)Ge·BH_3_ (1) reacted with organolithium salts RLi (R = Ph, tBu, nBu) to produce lithium hydrido‐germanato‐borates {Li(THF)2{BH_3_[L(H)GeR]}}2.^[^ 14b ^]^ Here we report on the reactivity studies of 1 with potassium alkoxides, and subsequent use of 1 as an unpreceded catalyst in a direct esterification of aldehydes.

Results and Discussion

2

The monomeric germanium hydride L(H)Ge·BH_3_ (1) was prepared according to our previous procedure.^[^ 14b ^]^ Complex 1 was then treated with different alkali alkoxides MOR (M = Li, Na, K; R = * ^t^ Bu, C(CH_3_)2_CH_2_CH_3). While no reactions were observed for M = Li or Na, reactions of potassium alkoxides KOR provided potassium hydrido‐alkoxo‐germanato‐borates {K(THF)2[BH_3_·Ge(L)(H)(OR)]}2 (R = * t Bu(2), C(CH_3_)2_CH_2_CH_3 (3)) as products of KOR addition (Scheme 1). These reactions thus mimic the addition of organolithium salts RLi (* t *Bu, nBu, Ph) into 1.^[^ 14b ^]^ Compounds 2 and 3 were characterized via NMR spectroscopy and X‐ray diffraction analysis.

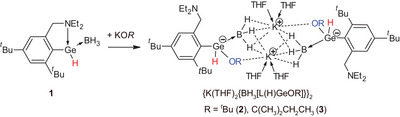

Synthesis of {K(THF)2[BH3·Ge(L)(H)(OR)]}2 (R =  t Bu (2), C(CH3)2CH3CH3 (3).

The ^1^H NMR spectra of THF‐d_8_ solutions of 2 and 3 showed that the GeH proton resonates at δ 6.35 ppm and the ^11^B{^1^H} NMR spectra of 2 and 3 revealed resonances at δ −37.6 (2) and −37.4 (3). The data correlate with those found for lithium germanato‐borates {Li(THF)2{BH_3_[L(H)GeR]}}2 (δ ^1^H ranges from 4.93 to 5.65, δ ^11^B ∼ −41 ppm)^[^ 14b ^]^ and [{HC(C(CH_2_)NAr)CMeNAr}Ge(H)BH_3_]Li(OEt_2_)3 (Ar = 2,6‐iPr_2_C_6_H_3_, δ ^1^H 6.70 ppm, δ ^11^B at −43.7 ppm),^[^ 15 ^]^ and proved the existence of negatively charged {BH_3_[L(H)GeR]}^−^ moiety. The IR spectra showed typical vibrations of both BH and GeH bonds at ν BH3 2343 (2) or 2356 (3) cm^−1^, and ν GeH 1989 (2) or 1976 (3) cm^−1^.^[^ 16 ^]^

Compounds 2 and 3 crystallize as discrete centrosymmetric dimers (Figure 1, for details see Supporting Informtion).^[^ 17 ^]^ The {BH_3_[L(H)GeR]}^−^ ligand binds one potassium K1 through the O1 atom (2.700(2) Å in 2, 2.706(2) Å in 3), while the hydrogen atoms of borane coordinate second potassium K2. In addition, two hydrogens also coordinate the K1 ion and thus the borane group forms bridge between both potassium ions forming diamond‐shaped K_2_(BH_3_)2 core. The potassium ions are also coordinated by two THF molecules defining the potassium ions pseudo‐eight coordinate. Similar arrangement was observed in potassium salts of amido‐diphenylphosphine‐borane ligands,^[^ 18 ^]^ and thio‐substituted phosphido‐borane ligands.^[^ 19 ^]^ The Ge atoms have the tetrahedral arrangement. The Ge–B bond distances (2.053(3) Å in 2, 2.050(4) Å in 3) suggest strong Ge→B interaction (Σ_cov_Ge,B = 2.06 Å).^[^ 20 ^]^ The Ge–O bond distances (1.8428(2) Å in 2, 1.845(2) Å in 3) are closed to the sum of the covalent radii of the parent atoms (Σ_cov_Ge,O = 1.84 Å).^[^ 20 ^]^

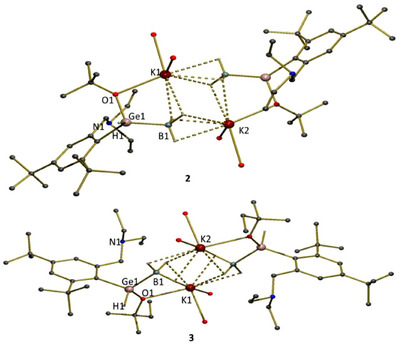

Molecular structures of 2 and 3. Hydrogen atoms (except of the GeH) and coordinated molecules of THF are omitted. Selected bond distances (Å) and angels (°): For 2: Ge1─O1 1.8428(17), Ge1─B1 2.053(3), K1─O1 2.700(2), Ge1─H1 1.49(4), O1─Ge1─C1 105.99(9), O1─Ge1─B1 105.36(10). For 3: Ge1─O1 1.845(2), Ge1─B1 2.050(4), K1─O1 2.706(2), Ge1─H1 1.48(4), O1─Ge1─C1 106.70(11), O1─Ge1─B1 106.04(13).

Thus, it seems that reactivity of 1 toward nucleophiles (Nu^−^) has a general character. The Nu^−^ group may coordinate the Ge(II) atom and convert a neutral L(H)Ge(II) moiety into the organogermanato anions [L(H)Ge(II)R]^−^ (R is Nu^−^). This process is accompanied with the decoordination of the Et_2_N arm of L. The flexibility and stability of 1 contrast with a related germanium hydride [{HC(CMeNAr)2}GeH(BH_3_)] (Ar = 2,6‐iPr_2_C_6_H_3_) that provided [{HC(C(CH_2_)NAr)CMeNAr}Ge(H)BH_3_]Li(OEt_2_)3 along with the elimination of * ^t^ *BuH.^[^ 15 ^]^

Since these compounds 2 and 3 contain both B─H and Ge─H bonds, their ability to reduce C═O bond was assessed by the stoichiometric reaction with benzaldehyde (Scheme 2, for experimental details see Supporting Information), similarly to their lithium analogues {Li(THF)2{BH_3_[L(H)GeR]}}2.^[^ 14b ^]^ Interestingly, the GC‐MS analysis of a reaction mixture showed formation of appropriate alkyl esters ROC(O)Ph (R = * ^t^ Bu, C(CH_3_)2_CH_2_CH_3) with conversions up to 95% (Scheme 2, Figures S9 and S10 in Supporting Information). In addition, monitoring of stoichiometric reactions in C_6_D_6_ revealed signal of the GeH* proton at δ 6.54 ppm, characteristic for L(H)Ge·BH_3_ (1), and suggested a recovery of neutral germanium hydride 1 during this reaction (Figure S11 in Supporting Information).

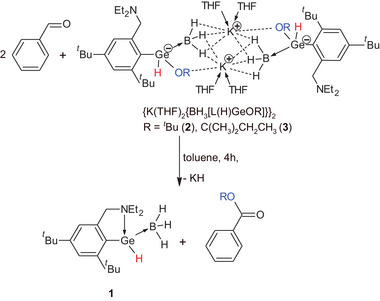

Stoichiometric reaction of 2 and 3 with benzaldehyde.

The formation of 1 in the reaction mixture also suggests, that GeOR group of the starting 2 or 3 is transferred to benzaldehyde and new COR bond is formed to provide parent esters of benzoic acids, as detected by GC‐MS analysis. Thus, compound 1 appears as a starting material for synthesis of 2/3, as well as the product of abovementioned reactions of 2/3 with benzaldehyde.

Therefore, 1 could be a useful catalyst for esterification of benzaldehyde. Thus, the reaction of benzaldehyde with KO* ^t^ Bu in the presence of 1 as the catalyst (10 mol %) was done under same conditions (Scheme 3). Once more, the GC‐MS analysis revealed formation of t‐butyl ester of benzoic acid as the major product with conversion up to 95% (Figure S12 in Supporting Information). To see the effect of 1, a blind experiment between benzaldehyde and KO ^t^ Bu in an absence 1 was carried out as well. The GC‐MS analysis revealed presence of benzyl ester of benzoic acid as the major product (conversion ∼ 90%, Figure S15A in Supporting Information), typical for Tishchenko reaction. We have also done blind experiment between benzaldehyde and KO ^t^ *Bu in the presence of BH_3_ as the catalyst (10 mol %) to see effect of the Ge atom. The GC‐MS analysis revealed presence of t‐butyl ester of benzoic acid, but benzyl alcohol was detected as the major product (conversion ∼ 60%, Figure S15B in Supporting Information).

Esterification reaction of benzaldehyde with KO t Bu catalyzed by 1.

Therefore, the presence of 1 shifts progress of the reaction toward alkyl esters of benzoic acid.

It should also be noted that the decrease of catalytic loading of 1 to 1% provided mixture of t‐butyl ester of benzoic acid (∼70%) and benzyl alcohol (∼ 30%, Figure S14 in Supporting Information). The effect of cations M (M = Li, Na, K) in MO* ^t^ Bu was also tested. Therefore, reactions of benzaldehyde with MO ^t^ Bu (M = Li or Na) in the presence of 1 as the catalyst (10 mol %) were done, but no t‐butyl ester of benzoic acid was detected by GC‐MS analysis (Figure S13). However, this observation, fits well with low reactivity of 1 toward MOR* for M = Li and Na. Therefore, 1 cannot be converted into the appropriate hydrido‐alkoxo‐germanato‐borate.

The courses of studied reactions were also monitored by IR spectroscopy using ATR probe following the changes of the band area corresponding to C═O stretching mode of benzaldehyde (Figure 2). We have observed, that stoichiometric and catalytic (10 mol. % of 1) reactions proceed very fast and starting compounds are converted into respective ester within 15 minutes. We note that using of catalytic amount of 1 lead to a slight decrease in the reaction rate when 70% of conversion is achieved. Thus we propose, that in the catalytic reaction catalyst 1 reacts with KO* ^t^ Bu to provide 2 that may react with the benzaldehyde as a rate determining step. The regeneration of 1 is the final step and it can repeatedly react with KO ^t^ Bu to give 2. A series of reactions performed at various stoichiometry proved that conversion of benzaldehyde corresponds to the amount of KO ^t^ Bu used in the reaction, see Figure S16 in Supporting Information. This again confirms, that 1 reacts with KO ^t^ *Bu to provide 2, and this step is then followed by the reaction with benzaldehyde.

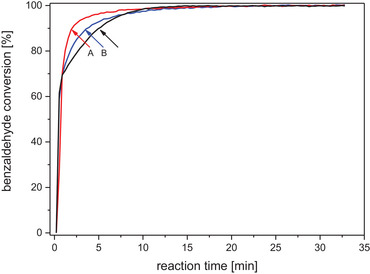

The courses of stoichiometric (A, B) and catalytic (C) reactions monitored by time‐resolved FTIR spectroscopy. Experimental conditions: A) benzaldehyde + KO t Bu + 1, B) benzaldehyde + 2, C) benzaldehyde + KO t Bu + 10 mol% of 1.

To explain the rapid consumption of the C═O bond of the benzaldehyde together with the formation of new C*O^t^ Bu bond in t‐butyl ester of benzoic acid, we tentatively propose, that reaction might proceed via a prereactive intermediate Int1, as the addition product of the GeO ^t^ Bu bond of 2 to the C═O bond of the benzaldehyde. Finally, Int1 with new CO^t^ *Bu bond may decompose to 1 and t‐butyl ester of benzoic acid along with elimination of KH (Scheme 4). To support this proposed mechanism, DFT computational studies together with additional ^11^B NMR experiments were done. DFT calculations were performed to gain a better understanding of the molecular structure of 2 and suggested Int1. The geometries of both complexes were fully optimized at the M06/cc‐pVDZ(‐PP)^[^ 21 ^]^ level of theory, which was chosen on the basis of our previous studies of lithium organogermanato compounds {Li(THF)2{BH_3_[L(H)GeR]}}2 (R is Ph, tBu, nBu),^[^ 14b ^]^ or of the transition metal complexes of the type L(H)Ge·TM(CO)5.^[^ 22 ^]^ We have previously demonstrated, that dimeric structures of the lithium organogermanato compounds {Li(THF)2{BH_3_[L(H)GeR]}}2 (R is Ph, tBu,nBu),^[^ 14b ^]^ analogues of 2, are more stable than its monomers Li(THF)2{BH_3_[L(H)GeR]}. In the case of studied complex 2 and plausible corresponding monomer (2‐mon) the DFT calculations confirmed stabilization of dimeric structure by 4.55 kcal/mol (see Figure 3).

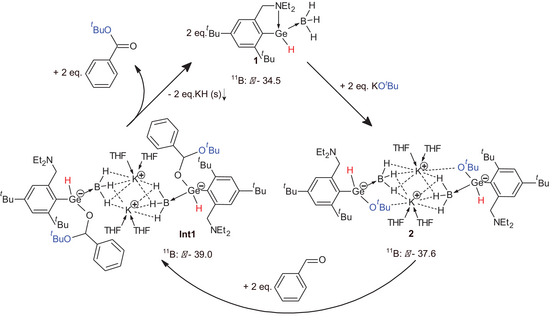

Catalytic cycle for the esterification of benzaldehyde with KO t Bu catalyzed by 1 proposed by DFT calculations (optimalization of 2, Int1, and ΔG) in the combination with the experimental studies (NMR and IR spectroscopy).

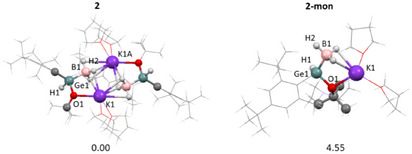

Optimized geometries of 2 and 2‐mon and relative Gibbs free energies (in kcal mol−1; calculated in n‐hexane at the M06/cc‐pVTZ(‐PP) level).

The agreement between the experimental X‐ray diffraction data of 2 and the calculated structural parameters was deemed satisfactory (Figure 3). The structure is very similar, showing a diamond‐shaped K_2_(BH_3_)2 core and four‐coordinate Ge center with a distorted tetrahedral geometry with bond lengths Ge─O 1.889 Å; Ge─C 2.029 Å; Ge─B 2.073 Å. The structure of Int1 closely resembles that of 2 and Int1 remains as hydrido‐alkoxo‐germanatoborate {K(THF)2[BH_3_·Ge(L)(H)(OR)]}2 (R = C(OtBu)(H)Ph) having four‐coordinate Ge center with Ge→B interaction (2.073 Å) (Figure 4). In Int1, new Ph(H)C‐O^t^ Bu (C1─O1 = 1.416 Å) and Ge─O─C(H)Ph bonds (Ge1─O2 = 1.912 Å) are formed. Oxygen O2 of Ge─O─C(H)Ph bond also interacts with potassium cation (K1─O2 2.665 Å). In addition, according to the DFT calculations, reaction of 2 with two eq. of benzaldehyde might proceed via a prereactive intermediate Int1 (Figure 4). The original GeO ^t^ Bu bond of 2 is cleaved in Int1 (Ge1─O2 = 3.260 Å). Similarly, former C═O bond of benzaldehyde was transformed during this addition to C1─O2 bond with bond length of 1.376 Å in Int1. In addition, the whole process is a thermodynamically favored with ΔG = −7.37 kcal/mol (Figure 4).

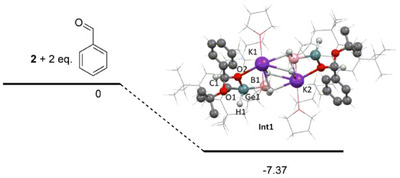

Energetical profile for the reaction of 2 with 2 eq. of benzaldehyde to give Int1 (in kcal mol−1; calculated in n‐hexane at the M06/cc‐pVTZ(‐PP) level).

Since the proposed mechanism involve the elimination of solid KH, DFT calculations could not provide valid information about the last step of suggested mechanism. Therefore, we have done both stoichiometric (Scheme 2) and catalytic (Scheme 3) reactions at −50°C in THF to slow down the reaction rate, and we monitored reactions by ^11^B{^1^H} NMR spectroscopy. After 10 minutes, the stoichiometric reaction revealed signals at δ −37.6 of starting 2 together with a new signal at δ −38.6 (Figure S17 in Supporting Information). This new signal corroborates formation of new {BH_3_[L(H)GeR]}^−^ moiety (Int1) in reaction. In contrast after 60 minutes, the ^11^B NMR spectrum showed signals at δ −38.6 of Int1 and at *δ *−34.5 ppm of 1, while the signal of starting 2 disappeared (Figure S18 in Supporting Information). Similarly, catalytic reaction reveled signals at *δ *−34.5 (1), −38 (2), and −38.6 ppm (major signal of Int1) after 10 minutes (Figure S19 in Supporting Information), and at *δ −35.5 (1) and −39.6 ppm (major signal of Int1) after 60 minutes (Figure S20 in Supporting Information). These data again corroborate reaction of 1 with KO ^t^ *Bu under formation of 2 and its immediate reaction with benzaldehyde probably via hydrido‐alkoxo‐germanato‐borate Int1 (supported by DFT and experimental studies). Degradation of Int1 may provide 1 and t‐butyl ester of benzoic acid along with elimination of KH (Scheme 4). As the reaction is heterogenous (see Figure S26 in Supporting Information), the solid material was separated and characterized by Raman spectroscopy as KH (see Figure S27 in Supporting Information). Therefore, all the data support proposed mechanism depicted in Scheme 4.

We have also done some preliminary tests for the scope of substrates. Therefore, reactions of substituted aldehydes with KO* ^t^ *Bu in the presence of 1 as the catalyst (10 mol %) were done under same conditions (Scheme 5). The GC‐MS analysis of the reaction mixtures revealed nearly quantitative formation of appropriate t‐butyl esters with conversion up to 95% (Figures S21–S24 in Supporting Information).

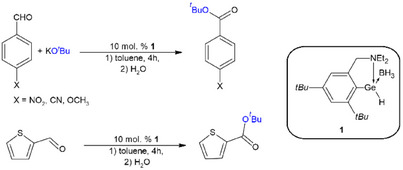

Esterification of substituted aldehydes by KO t Bu catalyzed by 1.

Finally, we have also run the esterification reaction of 4‐CN benzaldehyde as the up‐scale experiment (200 mg) and corresponding t‐butyl ester of 4‐CN‐benzoic acid was isolated and characterized by ^1^H NMR spectroscopy (Figure S25 in Supporting Information)

Conclusion

3

In conclusion, we have reported on the synthesis of potassium hydrido‐alkoxo‐germanato‐borates K(THF)2[BH_3_·Ge(L)(H)(OR)]}2 (R = * t Bu(2), C(CH_3_)2_CH_2_CH_3 (3)) as products of KOR* addition to neutral L(H)Ge·BH_3_ (1). Both compounds 2 and 3 react with benzylaldehyde to provide appropriate alkyl esters of benzoic acid and eliminates starting 1. This demonstrates possible application of 1 as a catalyst for esterification of benzaldehyde by KO* ^t^ Bu. This unique application of tetrylene hydrides was not reported up to date. The possible application of 1 as a catalyst for the esterification of several substrates was demonstrated and it was also clearly proven, that the presence of 10 mol. % of 1 shifts progress of the reaction toward alkyl esters of benzoic acid from the Tishchenko reaction. Mechanistic studies also support formation of 2 by the reaction of 1 and KO ^t^ Bu in the catalytic cycle. Reaction of 2 with the C═O bond of the benzaldehyde may process as addition reaction of the GeO ^t^ Bu bond of 2 to the C═O bond of the benzaldehyde via a prereactive intermediate Int1. The addition reactions of the GeOR* bond in N‐coordinated germylenes are thus of current interest.
