Lattice bond chains administer kink anisotropy and inform strategies of theophylline crystal self-healing

TL;DR

This study shows how controlling lattice bonds in theophylline crystals can shape their growth and enable self-healing after damage.

Contribution

The paper introduces a method to control crystal shape and self-healing through classical growth and lattice bond manipulation.

Findings

Classical growth allows control over crystal shape and dimensions.

Lattice bond strengths influence growth anisotropy and crystal face development.

Classically grown crystals can regenerate after mechanical or thermal damage.

Abstract

How molecular-level understanding of the crystal growth mechanisms and their relation to lattice bonds informs the rational design of crystals with desired shapes and properties has remained elusive. Here we employ theophylline crystals and drive them into classical growth mode, in which the crystals grow molecule-by-molecule and new layers are generated by two-dimensional nucleation. We demonstrate that classical growth allows for controlling the crystal’s shape and dimensions. We correlate the anisotropic responses to the supersaturation of the growth rates of crystal layers and crystal faces to the hydrogen and π−π stacking bond chains in the crystal lattice. The obtained insights suggest strategies to direct the crystal shape to either one-dimensional needles or flat sheets. Moreover, we show that crystals that grow by the classical mode of direct monomer incorporation have the potential to regrow and heal once a defect is introduced by mechanical cut or local thermal subliming of crystalline sections.

•The strengths of the lattice bonds control the growth anisotropy•Crystal growth in the classical regime grants the means to control crystal morphology•Transition between needle and slate crystal shape can be driven by supersaturation•Crystals that grow classically regenerate after the introduction of cuts

The strengths of the lattice bonds control the growth anisotropy

Crystal growth in the classical regime grants the means to control crystal morphology

Transition between needle and slate crystal shape can be driven by supersaturation

Crystals that grow classically regenerate after the introduction of cuts

Chemistry; Physics; Materials science

Figures

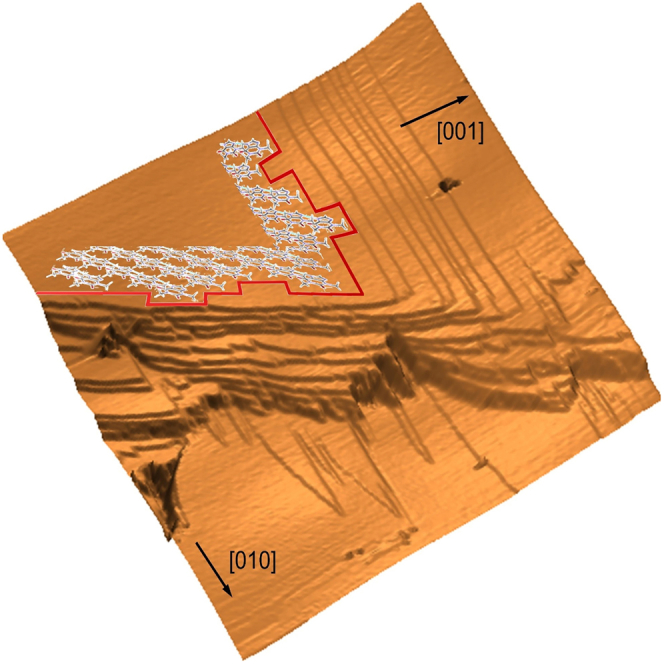

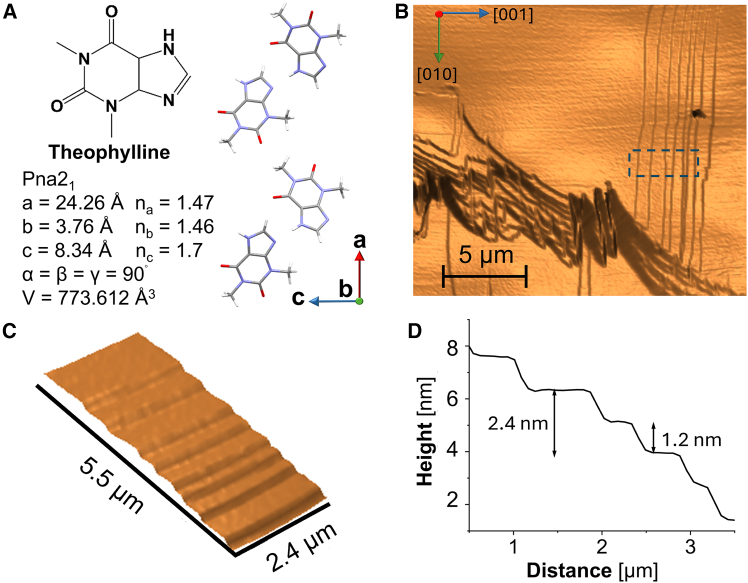

Theophylline crystals and their growth(A) The structure of theophylline and of the anhydrous Form II crystals (Crystallographic symmetry group Pna2_1_, Database: CDC REFCODE: BAPLOT01). C atoms are shown in gray; H, in silver; N, in magenta; and O, in red. The unit cell parameters are listed.(B–D) The morphology of a (200) theophylline crystal surface. (B) An AFM micrograph of the (200) surface in contact with a 0.167 M solution in n-octanol.(C) Expanded view of the area marked with a dashed rectangle in (B). (D) Height profile in direction perpendicular to steps along the center of the image

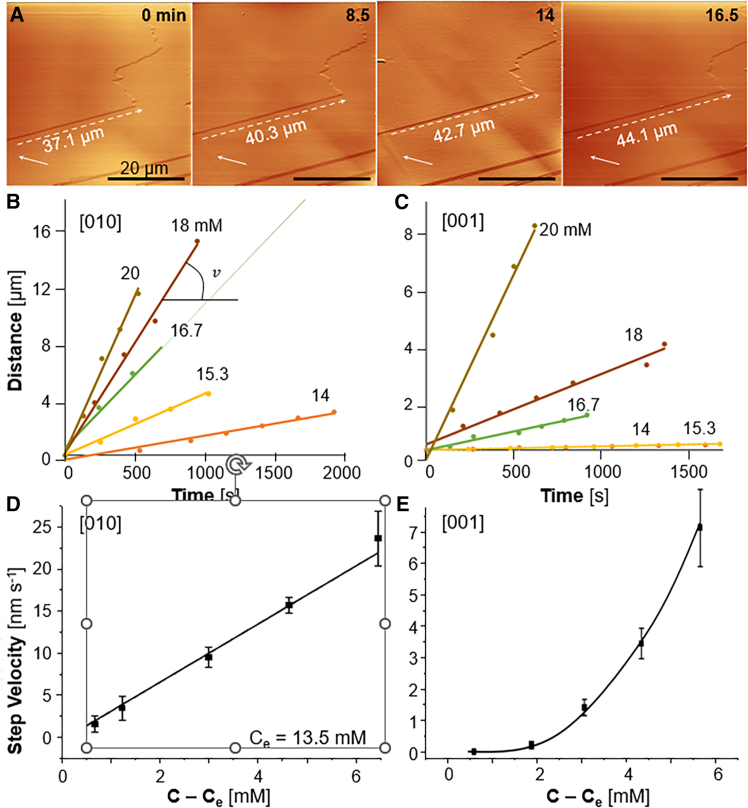

The growth of steps on the (200) crystal face(A) *In situ* AFM monitoring of the displacement of a step growing in the [010] direction in a 16.7 mM theophylline solution in n-octanol at the times indicated in the images. White arrows mark the reference point.(B and C) The evolutions of the step position in time for steps growing in the [010] direction, in (B), and in the [001] direction, in (C), at the theophylline concentrations shown next to each correlation. The step velocity $[eqn]$ is evaluated as the slope of each correlation.(D and E) Step velocity $[eqn]$ in the [010] direction (D), an

Potential mechanisms of nonlinear $[eqn]$ in the [001] direction(A and B) Schematic representation of step configurations with the maximum possible kink density of 0.5, which is unique and has entropy S = 0 in (A), and a structure with a kink density of 0.3, which has greater multiplicity and higher entropy in (B).(C) UV spectra of theophylline in n-octanol at concentrations ranging from 1 to 17 mM.(D) The absorbance at λ = 270 nm as a function of theophylline concentration.(E and F) High resolution images of the edges a [010] step, in (E), and a [001] step, in (F).(G and H) Schematics of two

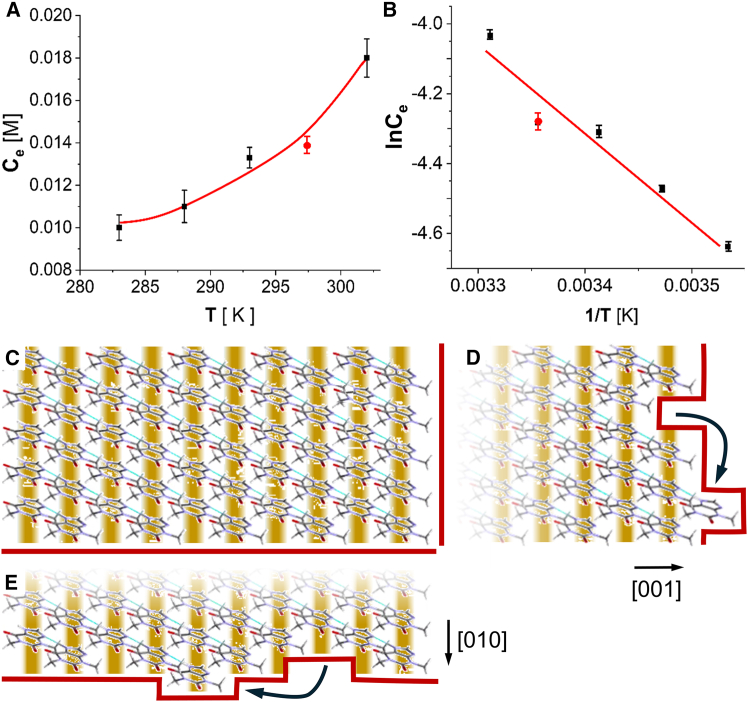

Crystallization thermodynamics and the kink energy(A) The dependence of the solubility $[eqn]$ of anhydrous theophylline crystals in n-octanol on temperature. Squares, the spectroscopically determined terminal concentrations of theophylline crystals growing in n-octanol. Circle, the concentration at which steps monitored by AFM do not grow or dissolve but instead fluctuate around fixed locations.(B) The $[eqn]$ data from (A) in van ‘t Hoff coordinates. Error bars in (A) and (B) represent standard deviations from the averages of five independent measurements.(C) Schematic representation of the

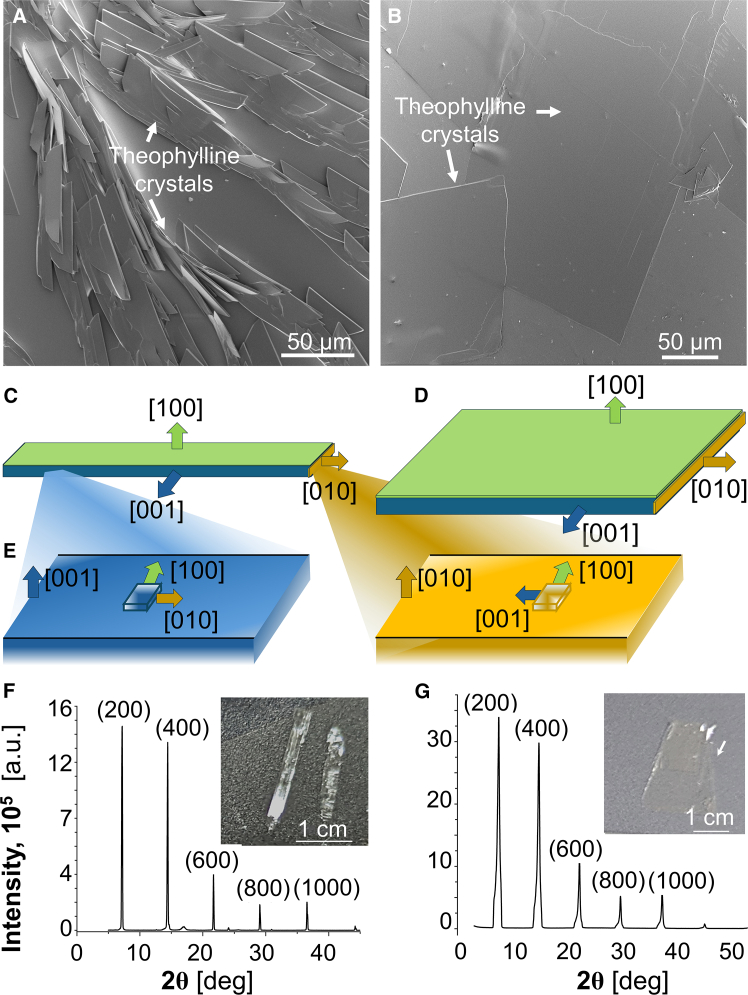

Control of crystal morphology(A and B) Scanning electron microscopy images of theophylline crystals grown from a 14 mM octanol solution in (A), and from a 20 mM solution in (B).(C and D) Schematic representations of the relation between face size and growth rate in normal direction.(E) Schematic of 2days islands on (001) and (010) faces and the orientations of their edges.(F and G) Morphology control during growth from chloroform solutions. X-ray diffractograms show single orientation of {100} planes parallel to the (200) surface for crystals grown from 27 mM solution in (E) and 83 mM in (F).

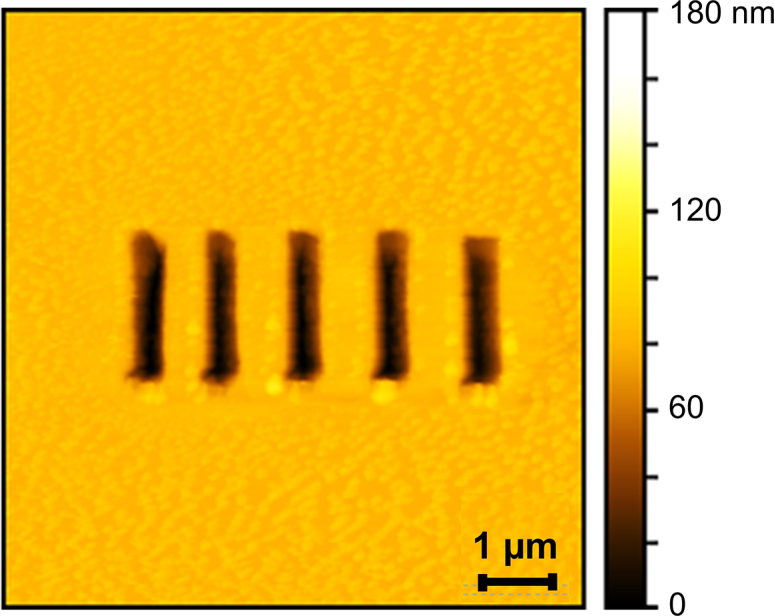

Line grating created by scanning thermal lithography

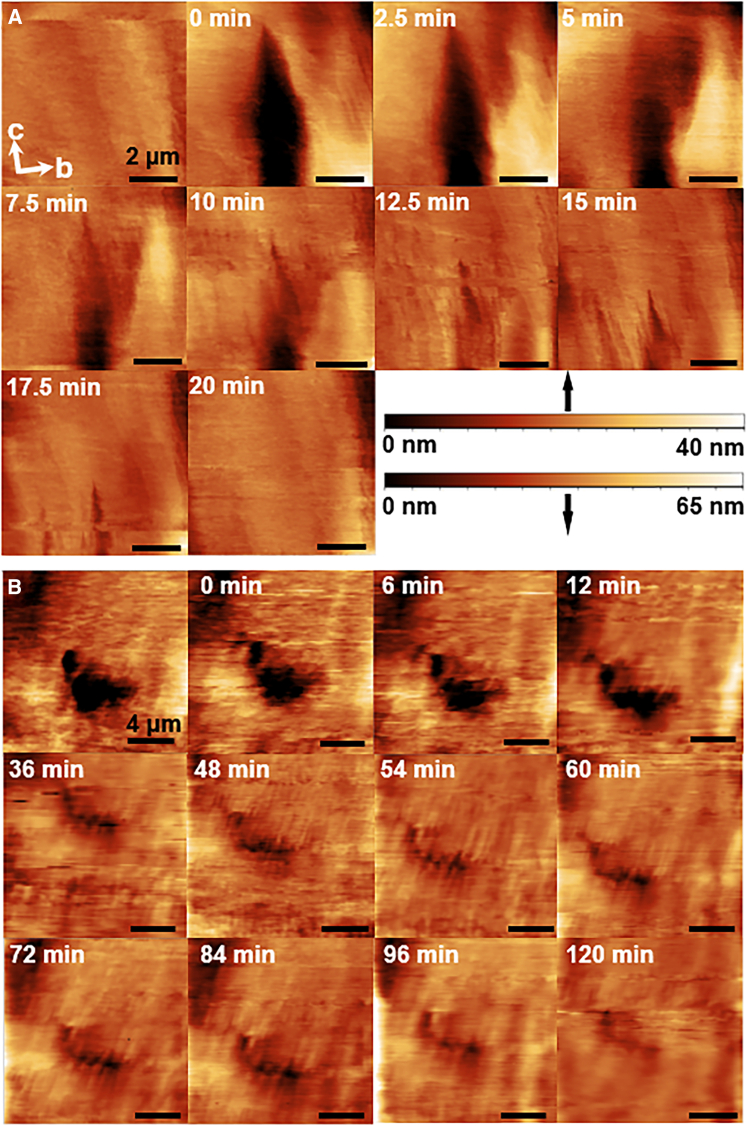

Regeneration of grooves etched in the (200) crystal surface after exposure to 18 mM theophylline solution monitored *in situ* by time-resolved AFM. Times after the start of regeneration indicated on images(A) Groove elongated along [001] or c direction.(B) Groove elongated along [010] or b direction.
