Solid-state NMR of membrane peptides and proteins in the lipid cubic phase

TL;DR

This paper explores using the lipid cubic phase (LCP) as a new medium for solid-state NMR studies of membrane proteins and peptides.

Contribution

The study introduces LCP as a practical and effective alternative to traditional bilayers for ssNMR of membrane proteins.

Findings

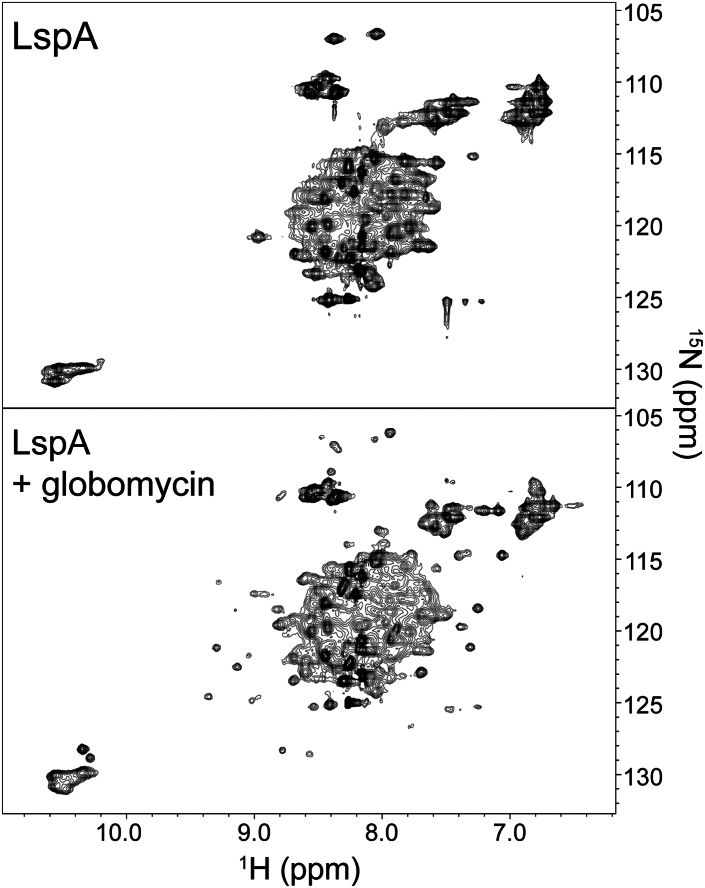

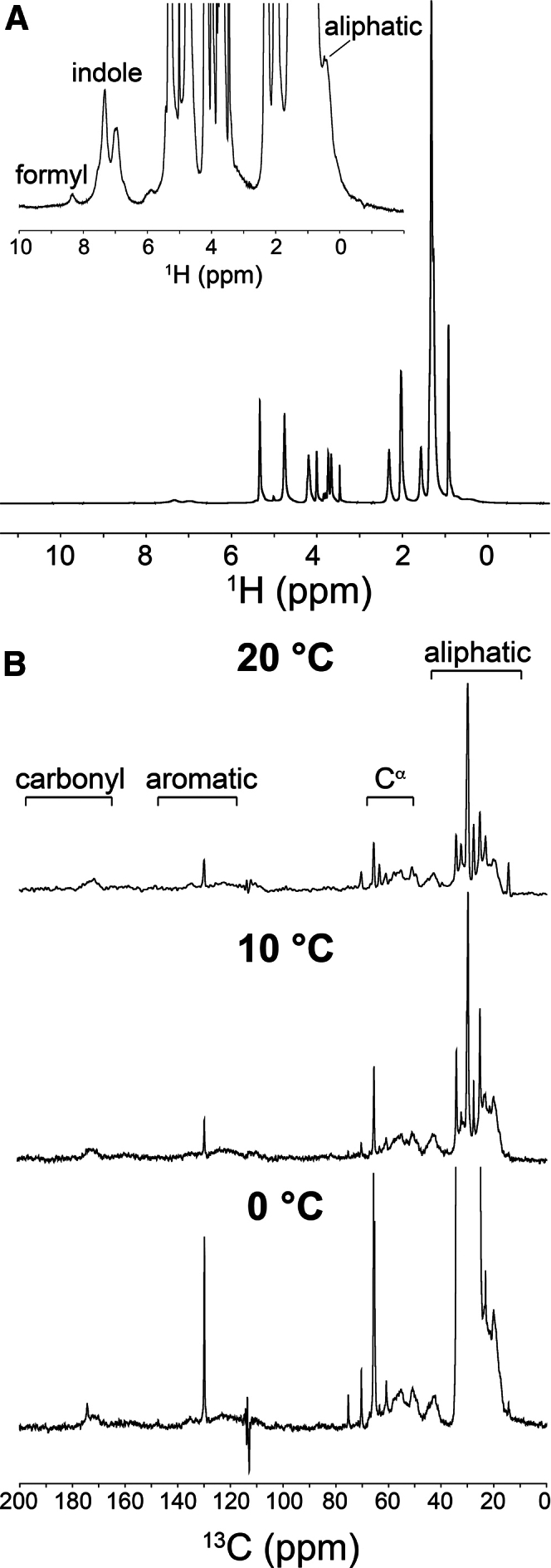

LCP enabled high-quality 1D and 2D ssNMR spectra for gramicidin and LspA.

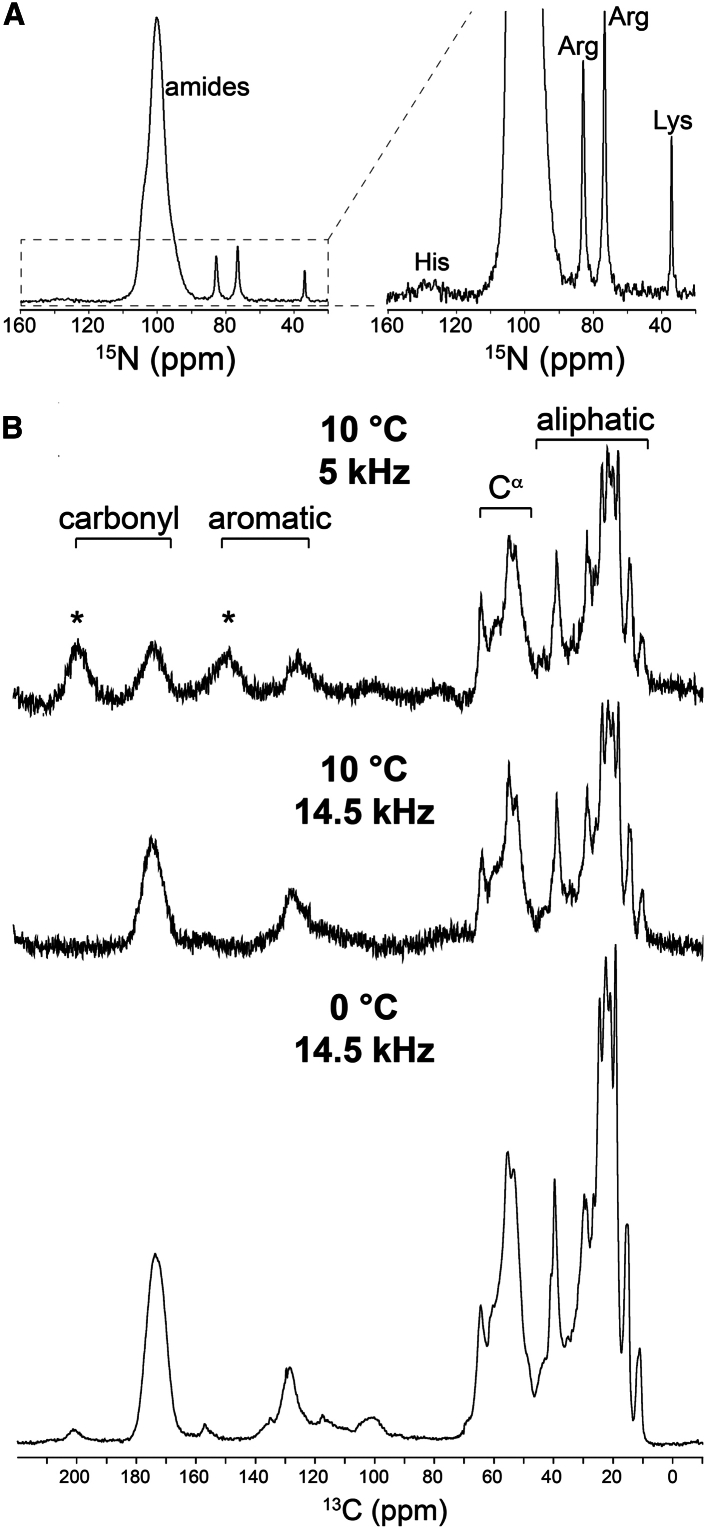

Lowering temperature and increasing spinning frequency improved spectral quality.

LCP's high protein-carrying capacity allowed natural abundance 13C ssNMR.

Abstract

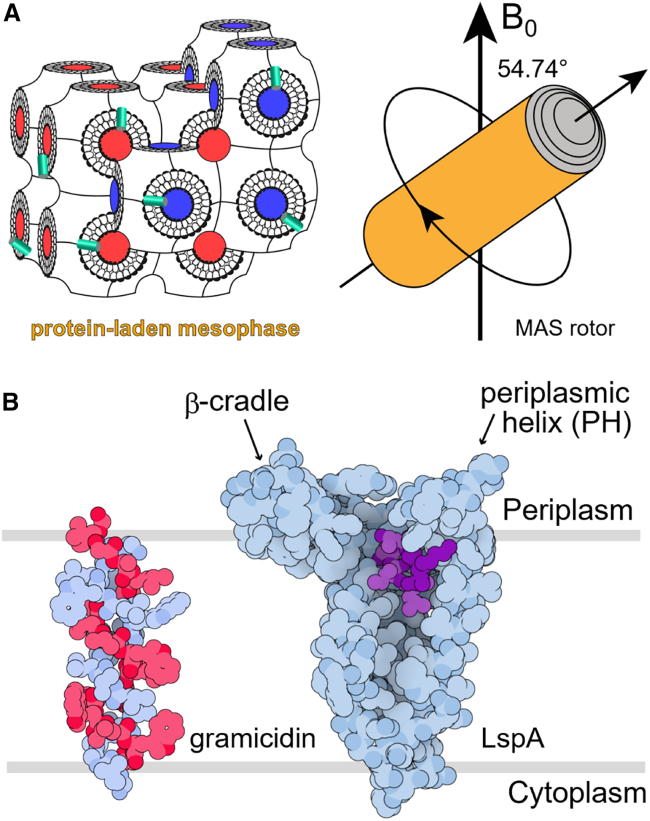

Solid-state nuclear magnetic resonance (ssNMR) is a powerful technique for studying membrane protein structure and dynamics. Ideally, measurements are performed with the protein in a lipid bilayer. However, homogenous reconstitution of functional protein into intact bilayers at sufficiently high concentrations is often difficult to achieve. In this work, we investigate the suitability of the lipid cubic phase (LCP), which incorporates a lipid bilayer, as an alternative medium for ssNMR of integral membrane peptides and proteins. The cubic mesophase has long been used to generate membrane protein crystals for use in X-ray crystallographic structure determination by the so-called in meso method and for protein functional and biophysical characterization. Preparing and handling protein-laden LCP is straightforward. LCP may therefore provide a valuable alternative to native membranes and other membrane mimetics for ssNMR. We tested this idea by conducting standard magic-angle spinning ssNMR experiments on LCP into which gramicidin, a ∼4-kDa transmembrane peptide, or bacterial lipoprotein signal peptidase II (LspA), a ∼20-kDa integral membrane enzyme, had been reconstituted. We report one- and two-dimensional ssNMR spectra for both gramicidin and LspA and the parameters for optimizing spectral quality. The high protein-carrying capacity of the cubic phase facilitated 13C ssNMR at natural abundance. Lowering temperature and raising magic-angle spinning frequency enabled significant improvements in spectral quality. One-dimensional 13C and 15N spectra were collected for LspA. Two-dimensional ssNMR experiments provided information on LspA dynamics and its interaction with the water and lipid components of the cubic phase. Solution NMR measurements carried out in parallel yielded information on the effect of the antibiotic, globomycin, on LspA structure and dynamics.

Figures
