A novel SGRT system for real‐time optical surface tracking or guidance

TL;DR

A new radiation therapy system called LUNA 3D accurately tracks patient surfaces in real time, even with changes in lighting and skin color.

Contribution

The LUNA 3D system introduces a novel SGRT setup with high accuracy and robustness to environmental and surface variations.

Findings

LUNA 3D achieved sub-millimeter tracking accuracy comparable to IR tracking cameras.

The system maintained consistent frame rates regardless of the tracked region size.

Performance remained stable under varying lighting and surface color conditions.

Abstract

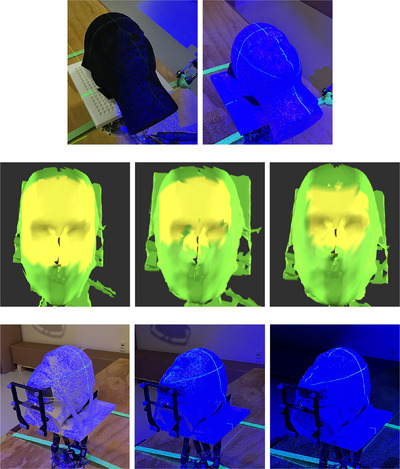

Optical 3D surface imaging is a technique that reconstructs a patient's surface without requiring external markers. This study aimed to evaluate the static and dynamic accuracy, as well as performance under varying conditions, including changes in skin surface color, ambient room lighting, and the size of the tracked region of interest (ROI), for a novel surface guided radiation therapy (SGRT) system (LUNA 3D).

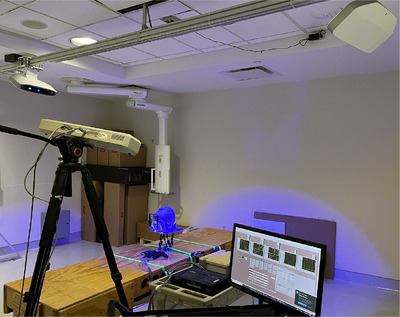

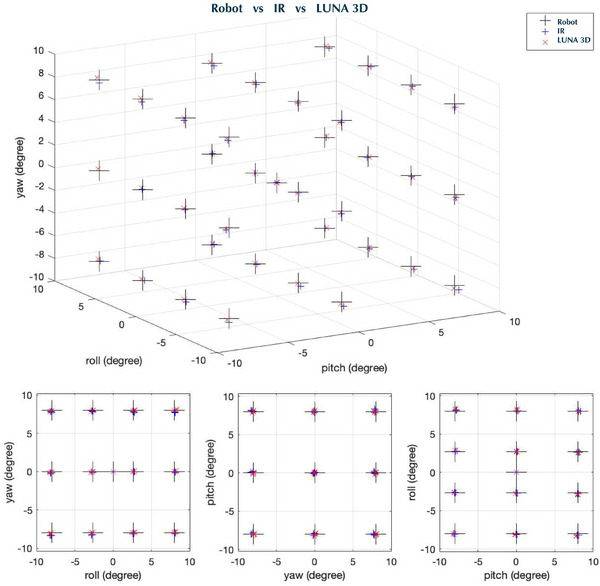

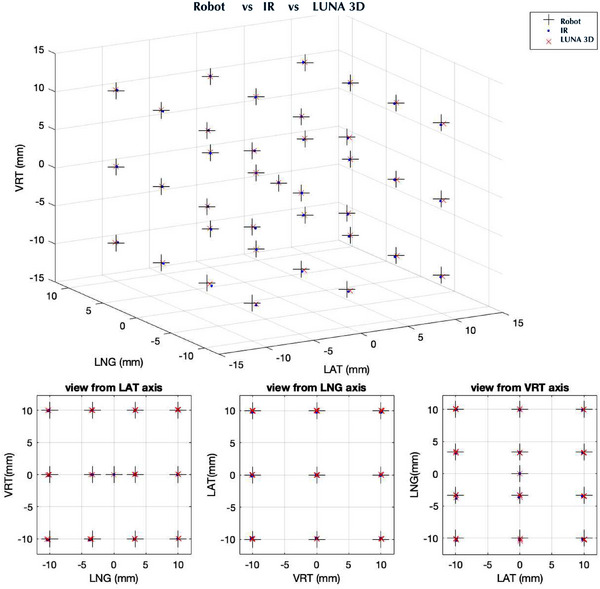

The LUNA 3D consisted of three ceiling mounted camera pods, with each pod equipped with a pattern projector and two camera units. Blue 465 nm light projection, combined with narrow bandpass filters and advanced triggering, were used to improve tracking accuracy to surface color and ambient room light variations. GPU processing enabled surface acquisition at high speeds. To investigate static and dynamic accuracy, a 6‐degree‐of‐freedom (6DoF) robot stage was used to move head phantoms to known positions in 6D space. A 6D infrared (IR) tracking camera was employed as a secondary verification tool.

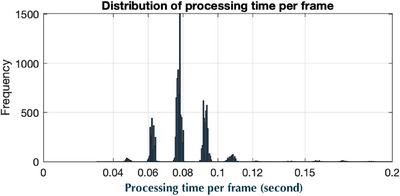

When tracking a static head phantom with a clinically relevant ROI, the LUNA 3D demonstrated a translational noise root‐mean‐sqaured‐error (RMSE) of approximately 0.04 mm LAT, 0.06 mm LNG, and 0.04 mm VRT and a rotational noise RMSE of 0.04 pitch, 0.04 roll, and 0.04 yaw. For varying surface colors, ambient light conditions, and ROI sizes, LUNA 3D's performance, when compared to the IR camera, exhibited a maximum difference of 0.14 mm. The measured frame rate remained approximately constant at 12.5 fps for all ROI sizes tested.

The LUNA 3D demonstrated high sub‐millimeter and sub‐degree tracking accuracy, comparable to or better than that of an IR tracking camera, while exhibiting minimal sensitivity to surface color and ambient lighting conditions. Additionally, it maintained stable and consistent frame rate tracking regardless of the tracked ROI size.
