Crack Failure Analysis of Hot-Stamping Die Insert for Manufacturing an Automobile A-Pillar
Shuo Wang, Zhiyang Dou, Yixiu Yin, Hanqi Zhao, Yaocheng Wang, Pengpeng Zuo, Na Min, Senlin Jin
TL;DR
This paper investigates why a hot-stamping die insert used to make an automobile A-pillar cracked, finding that stress and corrosion in the cooling channel caused the failure.
Contribution
The study identifies stress-induced corrosion in cooling channels as a novel cause of die insert cracking in hot-stamping processes.
Findings
Cracks are linked to stress concentration and oxidative corrosion in the cooling channel.
Pores and cracks in the grain boundary reduce the die steel's impact energy.
Crack propagation occurs along brittle oxide layers due to poor material properties.
Abstract
In order to determine the failure reason for the non-working area of a cracked A-pillar hot-stamping die insert, various instruments were used to detect the properties and microstructures of the cracks and matrix. The results show that the cracks are located in the area where the oxidative corrosion is more serious, and the cracks do not appear in the pitting area, verifying that crack initiation is related to the stress concentration on the upper half of the inner wall of the cooling channel. Meanwhile, pores and cracks exist in the grain boundary and crystal, making the impact energy of the die steel poor. Therefore, crack initiation and propagation easily occur along the brittle oxide layer. In summary, the die insert is damaged by stress-induced corrosion. In engineering applications of hot-stamping dies, we should pay more attention to the cracking of the cooling channel caused by…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

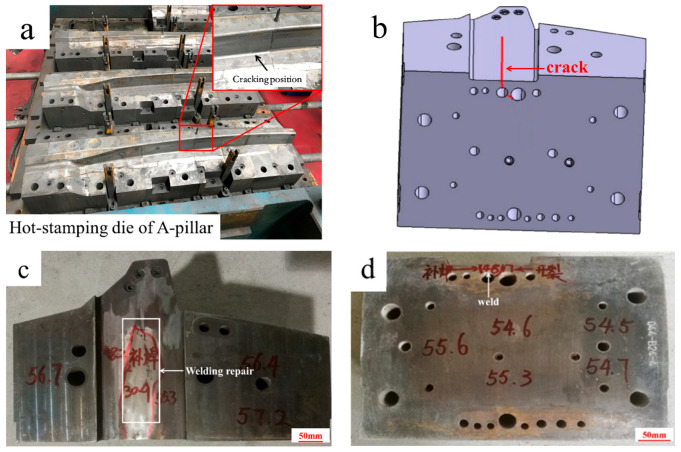

Figure 1

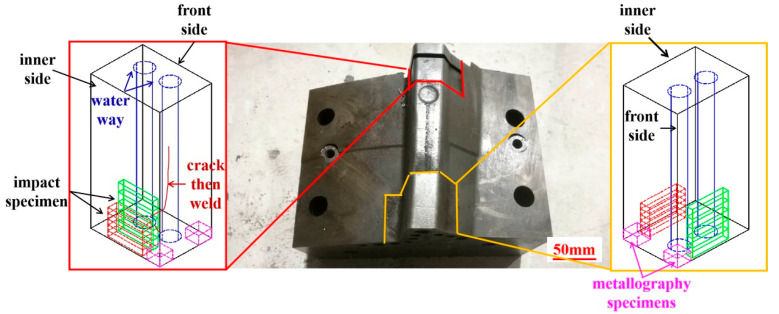

Figure 2
Figure 3

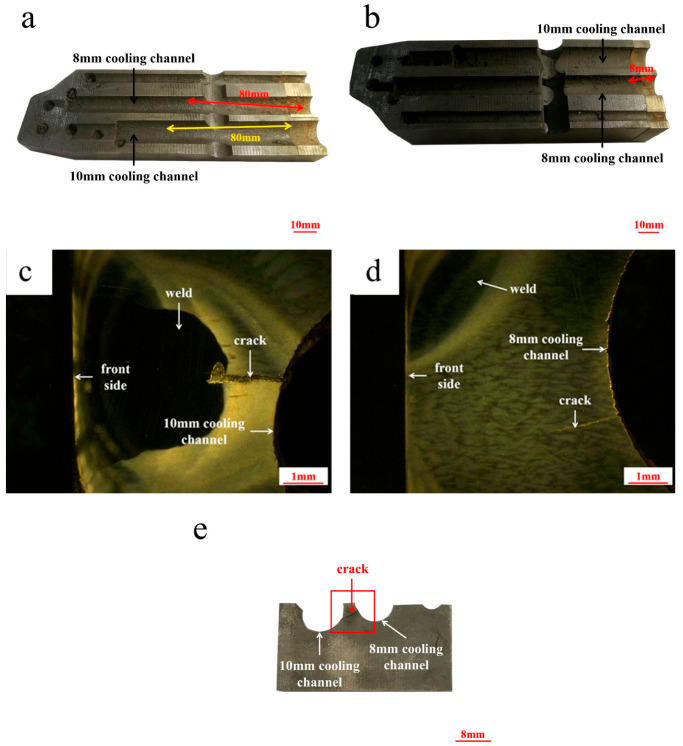

Figure 4

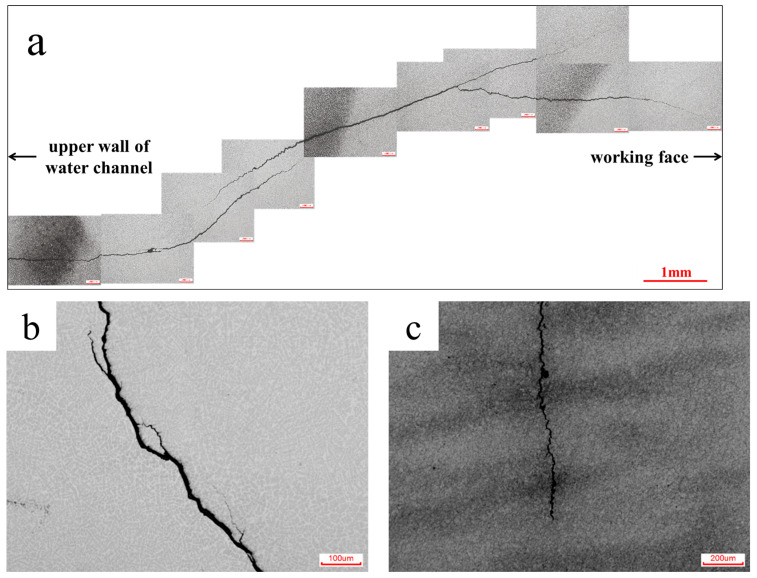

Figure 5

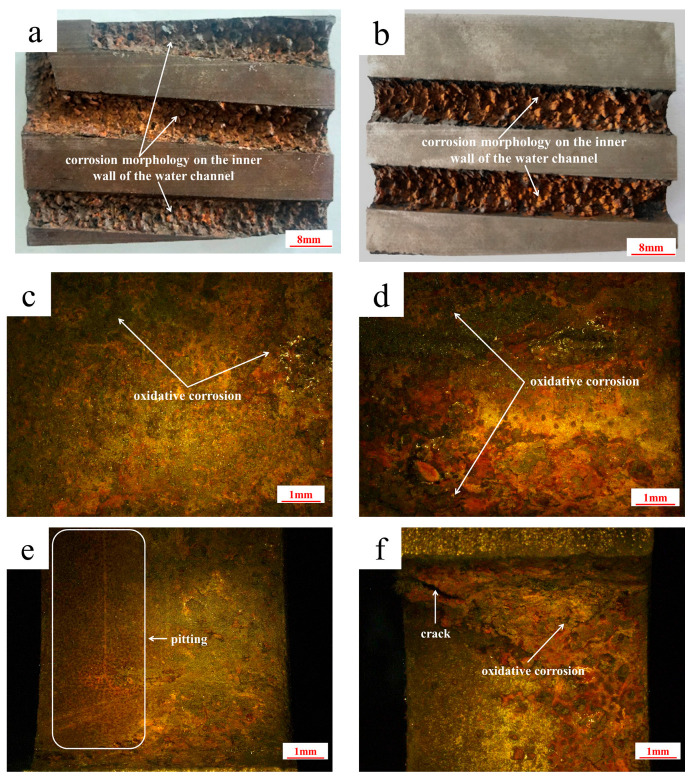

Figure 6
Figure 7
Figure 8

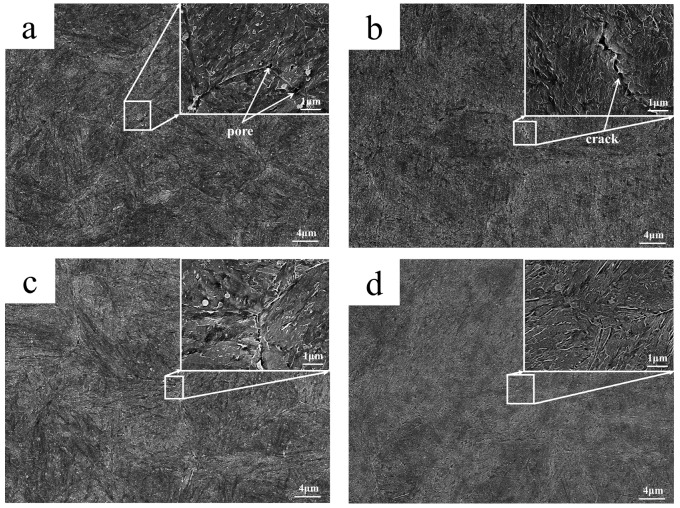

Figure 9

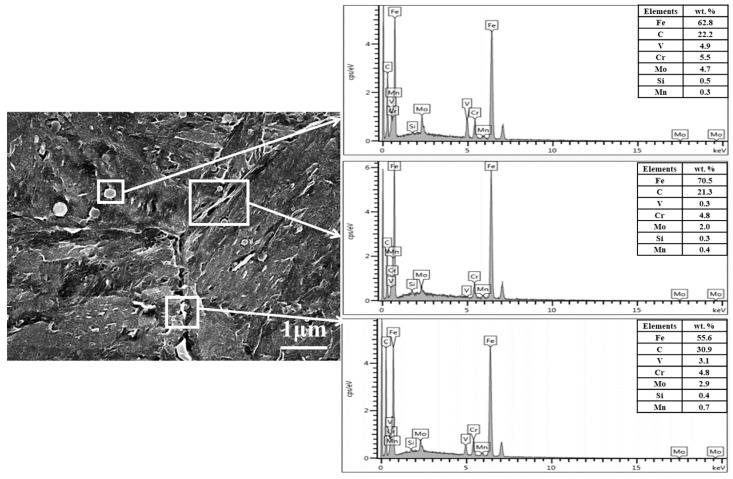

Figure 10

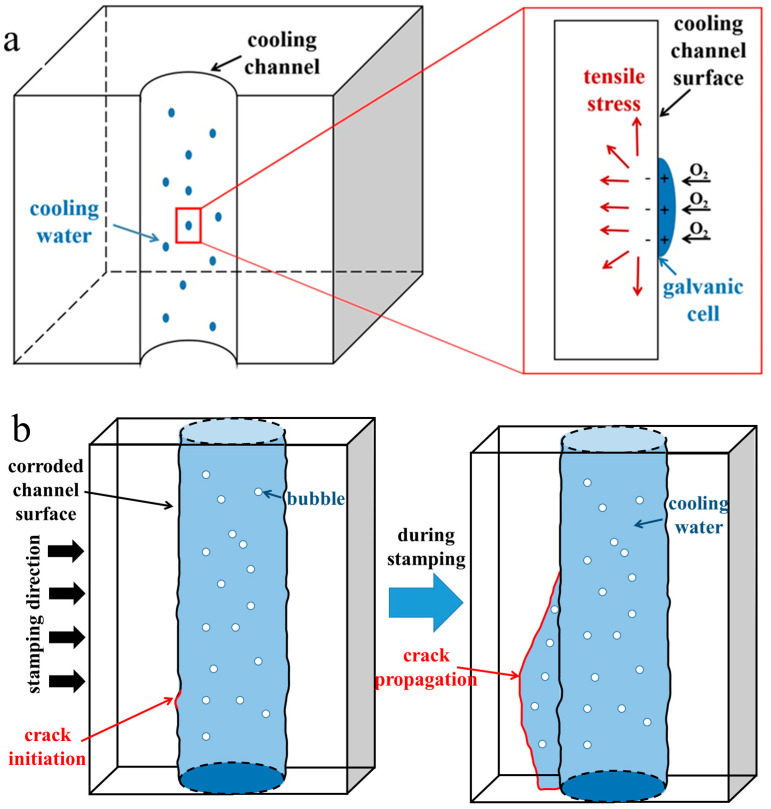

Figure 11

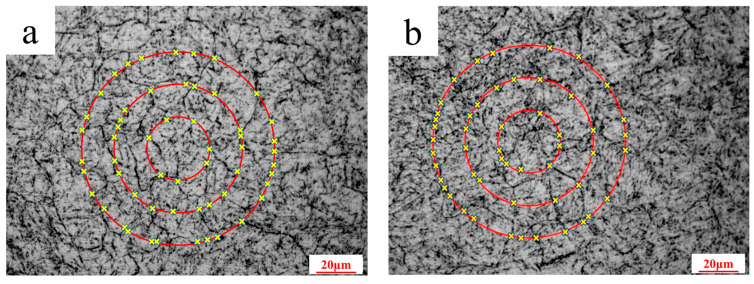

Figure 12Peer Reviews
