Adsorption Characteristics of an AlGaN/GaN Heterojunction on Potassium Ions

TL;DR

This paper studies how potassium ions affect the performance of AlGaN/GaN sensors, showing significant current changes that could help develop high-sensitivity medical diagnostic tools.

Contribution

The novel contribution is the first-principles simulation of potassium ion adsorption effects on AlGaN/GaN heterojunctions for sensor development.

Findings

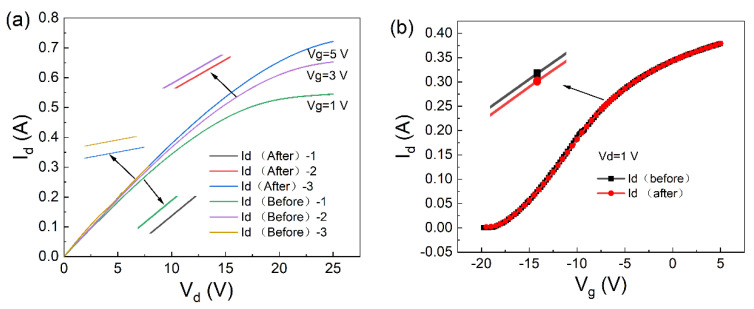

Adsorption of a single potassium ion causes milliampere-level current changes in AlGaN/GaN devices.

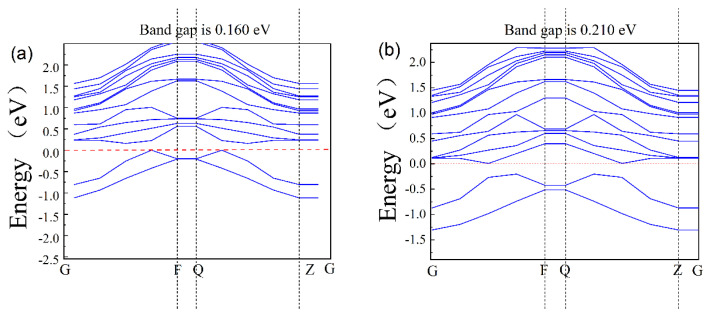

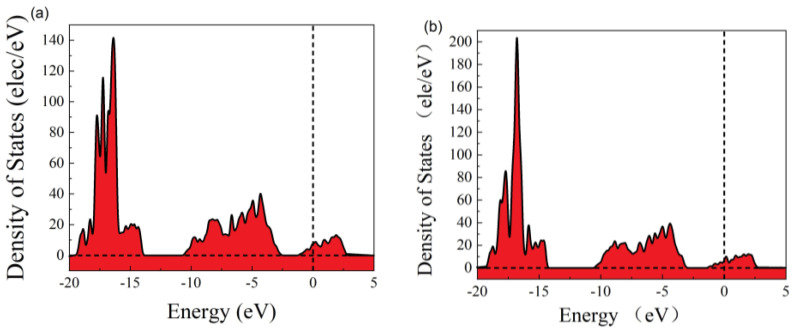

First-principles simulations reveal shifts in density of states and energy bands due to potassium ion adsorption.

Device performance changes are linked to material property modifications from ion adsorption.

Abstract

Slight changes in potassium levels can affect health. Therefore, rapid, reliable, and quantitative determination of potassium ion content is important for medical diagnosis. AlGaN, as a semiconductor material with good biocompatibility, has many advantages in the development of new potassium ion sensors. Understanding the adsorption behavior of a specific ion on the AlGaN surface and the eventual effect on AlGaN/GaN’s heterostructure interface is the key to obtaining high-performance nitride sensors. In this paper, we calculated the changes in the density of states and energy bands of the material after AlGaN adsorbed potassium ions through first-principles simulation. Combined with two-dimensional device simulation software, the changes in device performance caused by the changes in material properties are presented. The simulation results show that the adsorption of a single potassium ion can cause a current change in the order of milliamperes, providing a theoretical reference for the subsequent development of high-sensitivity potassium ion sensors.

Figures
